A3LGTY3400X850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Module

G XGG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G XGGT-Y3400 Installation Guide and User ManualG GT-Y3 400 Ins tallation Guide and User Manual 07.Feb, 2011 SAMSUNG ELECTRONICS.LTD. G YGG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G YGGT-Y3400 Installation Guide and User ManualG Table of contents 1 Introduction 1.1 Overview 1.1.1 Product description 1.1.2 Key features and specifications 2. Mechanical specifications 2.1 Specifications 2.1.1 Mechanical dimensions 2.1.2 Mini PCI Express interface 2.1.3 Antenna connectors 2.1.4 Connector location 2.1.5 Conducted RF measurement 2.1.6 RFx information G ZGG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G ZGGT-Y3300 Installation Guide and User ManualG 1 Introduction 1.1 Overview This manual is intended to be a complete technical reference and integration guide for the GT- Y3 400 module product. 1.1.1 Product description The GT-Y3400 module described in this manual are PCI Express Mini Cards support WWAN (UMTS/HSPA+/HSUPA & GSM/GRPS/EDGE) connectivity to SAMSUNG notebooks. The module is manufactured and installed by SAMSUNG. It includes diversity receiver and equalization. G [GG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G [GGT-Y3400 Installation Guide and User ManualG 1.1.2 Key features and specifications G RF subsystem -2G GPRS / EDGE / 3GPP WCDMA HSPA+/HSUPA Platform -ICERA Platform Band 2G ( 850/900/1800/1900), 3G (BAND1/BAND2/BAND5/BAND8) Size (mm) - 30.0 x 26.8 x 4.72 mm Weight (g) -5.5g Modem -ICERA ICE8060T Memory -MCP 1Gb/512Mb (Nand/SDRAM) RF -ICERA ICE8260B General Features Mini PCI Express Card for Samsung Mini PC. ( Half Type) GSM/GPRS/EDGE/UMTS /HSPA+ & HSUPA Support. Main Power is 3.3V and Rated Power Consumption is 900mA. UART, USB2.0 and Nexus IF Support (ICERA IF) Modem - High data rate (HSUPA 5.76Mbps, HSPA+ 21Mbps) - Dual antenna Rx diversity Micro processor - Embedded DXP Processor - Support Multi-mode EDGE,WCDMA,HSPA etc. Interface - High–speed USB functionality (2.0) - USIM controller - General Purpose I/O pins, UARTs. G \GG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G \GGT-Y3400 Installation Guide and User ManualG 2. Mechanical specifications 2.1 Specifications 2.1.1 Mechanical dimensions Mechanical drawings of the GT-Y3400 module following one. Figure 3.Mechanical dimensions of the GT-Y3400 module 2.1.2 Mini PCI Express interface The card edge connector of the GT-Y3400 module complies with the PCI Express Mini Card specification and mates with a 52 pin Mini PCI Express connector. This specification defines an implementation for small form factor PCI Express cards. The specification uses a qualified sub-set of the same signal protocol, electrical definitions, and configuration definitions as the PCI Express Base Specification, Revision 1.1. Where this specification does not explicitly define PCI Express characteristics, the PCI Express Base Specificationgoverns. The primary differences between a PCI Express add-in card (as defined by the PCI Express Card Electromechanical Specification) and a PCI Express Mini Card add-in card is a unique card form factor optimized for mobile computing platforms and a card-system interconnection optimized for communication applications. Specifically, PCI Express Mini Card add-in cards are smaller and have smaller connectors than standard PCI Express add-in cards. Figure 4 shows a 52 pin PCI Express Mini Card connector. G ]GG SAMSUNG Proprietary-Contents may change without notice This Document can not be used without Samsung's authorization | Samsung Electronics G ]GGT-Y3400 Installation Guide and User ManualG Figure 4. 52 pin Mini PCI Express connector Figure 5 shows a conceptual drawing of this form factor as it may be installed in a mobile platform. Figure 5 does not reflect the actual dimensions and physical characteristics as those details are specified elsewhere in this specification. However, it is representative of the general concept of this specification to use a single system connector to support all necessary system interfaces by means of a common edge connector. Communications media interfaces may be provided via separate I/O connectors and RF connecto…

Text truncated - open the document above for the full version.

Date: June 23, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LGTY3400X To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd. CONFIDENTIAL LIST Permanent 1Block Diagram 2Operational Descriptions 3Schematics 4 Tune up procedure 5 Parts list Short-Term 6External Photos 7Internal Photos 8Test-SetupPhotos 9User’sManual

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Applicant/Grantee FCC ID: Modular Transmitters Request for Modular Approval Request for Limited Modular Approval RequirementsEUT Conditions Comply (Y/N) Single Modular Approval Requirements 1The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Yes,GT-Y3400 is perfectly shielded RF part by using PCB wall and shield can. 2The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with modular approval requirements under conditions of excessive data rates or over- modulation. Yes, GT-Y3400 has enough buffered modulation/data inputs in all band by RF part circuit tuning. 3The modular transmitter must have its own power supply regulation. Yes,GT-Y3400 is applied power supply regulation of each power level in all band. 4The modular transmitter must comply with the antenna and transmission system requirements. Yes, This module comply with any specific rules or operating requirements. 5The modular transmitter must be tested in a stand-alone configuration,i.e., the module must not be inside another device during testing. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). Yes,GT-Y3400 is already confirmed with H/W performance, conduction test, RSE test in a stand-alone configuration 6The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Yes, GT-Y3400 has 3 kind of FCC ID label. The 2 kind of label attach both side of Y3400 module. They are visible when cover is removed. Last one Label is located at outside of Applicant (like labtop). (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 7The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Yes, GT-Y3400 is tested with reference antenna. When GT-Y3400 is installed in specific host device, GT-Y3400 will demonstrate the compliance of standard by FCC C2PC process. 8The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Yes, This module comply with any applicable RF exposure requirements in its final configuration. Alimited modular approvalmay be granted for single or split modular transmitters that do not comply with all of the above requirements,e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured.

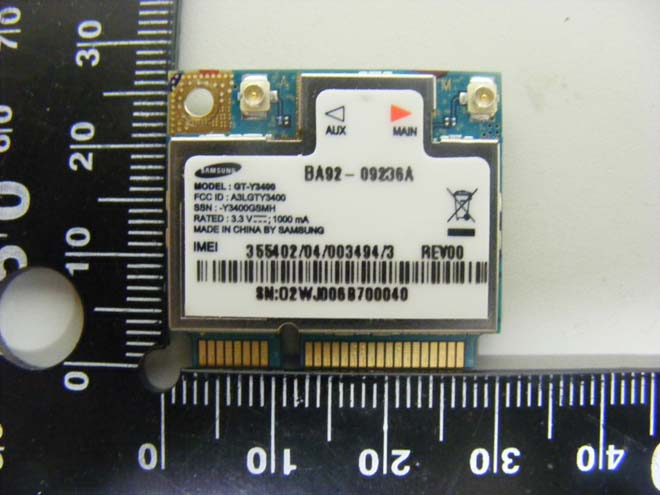

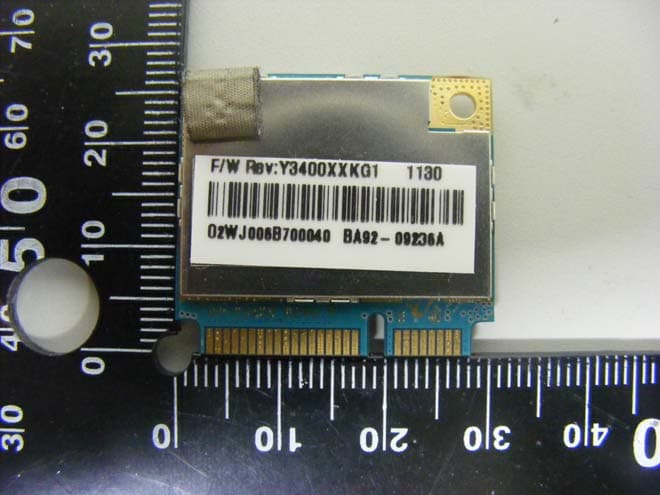

Model : GT-Y3400 External photos of EUT Model : GT-Y3400 External view of RF-Module with antenna Test jig Antenna Model : GT-Y3400 Top view of WCDMA & GSM Module Bottom view of WCDMA & GSM Module

* Label Information - Module Label -When the module’s installed in end product. Samsung Electronics Co., Ltd. Model : GT­Y3400 Contains Transmitter Module FCC ID: A3LGTY3400X Samsung Electronics Co., Ltd. Model: GT­Y3400 FCC ID: A3LGTY3400X IC: 649E­GTY3400X Made In Korea

Model : GT-Y3400 Internal photos of EUT Model : GT-Y3400 Top view of WCDMA & GSM Module Bottom view of WCDMA & GSM Module

Report Number: F690501/RF-RTL005114-2 Page: 2 of 55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee INDEX TABLE OF CONTENTS Page 1. General Information ---------------------------------------------------------------------------------------3 2. RF radiated output power & spurious radiated emission ----------------------------------------7 3. Conducted Output Power ------------------------------------------------------------------------------- 16 4. Occupied Bandwidth 99 % ------------------------------------------------------------------------------18 5. Spurious Emissions At Antenna Terminal----------------------------------------------------------- 28 6. Band Edge --------------------------------------------------------------------------------------------------37 7. Peak-Average Ratio --------------------------------------------------------------------------------------46 8. Frequency Stability --------------------------------------------------------------------------------------- 48 9. RF Exposure Evaluation--------------------------------------------------------------------------------- 53 Report Number: F690501/RF-RTL005114-2 Page: 3 of 55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1. General information 1.1. Testing laboratory SGS Korea Co., Ltd.(Gunpo Laboratory) -705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. -Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.kr.sgs.com/ee Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of applicant Applicant : Samsung Electronics Co., Ltd. Address : 416, Maetan-dong, Yeongtong-gu, Suwon-city, Gyeonggi-do, Korea Contact Person : Lee, Sang-Cheong Phone No. : +82 31 277 4784 1.3. Description of EUT Kind of Product 850/1900 GSM/GPRS/EDGE/WCDMA/HSPA Module Model Name GT-Y3400 Serial Number N/A HSPA Module Name (Company name) GT-Y3400 (Samsung) Power Supply DC 3.3 V Rated Power GSM850 : 32.8 ໒m GSM1900 : 28.3 ໒m WCDMA850 : 22.9 ໒m WCDMA1 900 : 22.5 ໒m Frequency Range GSM850: 824.2 ໬ ~ 848.8 ໬ GSM1900: 1 850.2 ໬ ~ 1 909.8 ໬ WCDMA850: 826.4 ໬ ~ 846.6 ໬ WCDMA1900: 1 852.4 ໬ ~ 1 907.6 ໬ Class of GPRS Class 12, Class B Emission Designator 252KGXW (GSM850), 242KG7W (GSM850 EDGE), 247KGXW (GSM1900), 250KG7W (GSM1900 EDGE), 4M14F9W (WCDMA850), 4M15F9W (WCDMA1900) 1.4. Declaration by the manufacturer - Main port has Tx and Rx function. - Aux port has only Rx function. Report Number: F690501/RF-RTL005114-2 Page: 4 of 55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1.5. Description of test mode Band Frequency (MHz) GPRS Data GPRS GPRS GPRS GPRS 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot (dBm) (dBm) (dBm) (dBm) GSM 850 824.2 32.728.726.725.4 836.6 32.828.526.825.5 848.8 32.728.726.325.2 GSM 1900 1 850.2 28.325.323.522.4 1 880.0 28.025.523.722.3 1 909.8 28.225.423.622.2 Band Frequency (MHz) EDGE Data EDGE EDGE EDGE EDGE 1 TX Slot 2 TX Slot 3 TX Slot 4 TX Slot (dBm) (dBm) (dBm) (dBm) GSM 850 824.2 26.9 23.4 21.2 19.4 836.6 26.8 23.0 21.0 19.6 848.8 26.9 23.1 21.3 19.7 GSM 1900 1 850.2 25.4 21.4 19.5 18.3 1 880.0 25.3 21.5 19.4 18.3 1 909.8 25.2 21.3 19.4 17.9 3GPP Release version Mode 3GPP 34.121 Cellular Band[dBm] PCS Band[dBm] Subtest 4132 4183 4233 9262 9400 9538 99 WCDMA 12.2kbps RMC 22.9 22.9 22.4 22.3 22.5 22.0 5 HSDPA Subtest1 22.3 22.1 22.3 22.2 22.3 22.1 5 Subtest2 22.6 22.0 22.4 22.4 22.4 22.2 5 Subtest3 22.1 21.5 22.0 22.0 21.8 21.7 5 Subtest4 22.0 21.9 21.9 21.8 21.5 21.5 5 HSUPA Subtest1 20.8 20.0 20.9 20.5 19.8 20.5 5 Subtest2 20.0 20.4 20.4 20.4 19.9 20.3 5 Subtest3 21.2 21.0 21.2 21.3 21.3 21.0 5 Subtest4 20.5 20.4 20.3 20.5 20.1 20.0 5 Subtest5 21.3 20.7 21.3 21.6 21.4 20.5 - GSM (850 / 1900) & WCDMA (850 / 1900) We found out the test mode with the highest power level after we analyze all the data rates. So we chose GSM850 / GSM1900 1 TX Slot and WCDMA850 and WCDMA1900 12.2 kbps RMC (worst case) as a representative. Report Number: F690501/RF-RTL005114-2 Page: 5 of 55 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.kr.sgs.com/ee 1.6. Test equipment list EquipmentManufacturer Model S/NCal Due. Signal Generator R&S SMBV100A 255384 Jul. 20, 2012 Signal Generator R&S SMR40 100272 Jul. 15, 2012 Spectrum Analyzer R&S FSV30 100768 Mar. 31, 2012 Mobile Test Unit R&S CMU200 106190 May. 30, 2012 Directional Coupler KRYTAR 152613 122661 May. 16, 2012 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jul. 07, 2012 High Pass Filter Wainwright WHK1.5/15G-6SS 4 Mar. 30, 2012 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R&S SCU 18 10117 Mar. 23, 2012 Preamplifier MITEQ Inc. JS44-18004000-35-8P1546891 Jul. 04, 2012 Test Receiver R&S ESU26 100109 Feb. 21, 2012 Bilog Antenna SCHWARZBECKVULB9163 396 Apr. 27, 2013 Horn Antenna R&S HF 906 100384 Oct. 10. 2012 Horn Antenna SCHWARZBE…
