A3LHLP4663WDLP Projection TV

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG ELECTRONICS AMERICA INC. 105 CHALLENGER ROAD, RIDGEFIELD PARK N.J. 07660-0511, U.S.A. DIST.BY SAMSUNG ELECTRONICS CANADA INC 7037 Financial Drive Mississauge, Ontario L5N 6R3 TYPE NO.: AT46L3 FCC ID.: A3LHLP4663W MODEL NO./MODELE NO. : HLP4663W AC120VOLTS 60HZ 200WATTS MFD./FABRIQUE: APRIL. 2004 FABRIQUE EN SUWON COREE MADE IN SUWON KOREA(SEC) CHASSIS/CHASSIS:L62B SERIAL NO.: U L R LISTED 77HN E215927 LR38329 EUT (Label)

1 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE040752 Equipment under Test Applicant Samsung Electronics Co. Ltd; 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea, 442-742 FCC ID A3LHLP4663W Product Name DLP PROJECTION TV Model Name AT46L3 Manufacturer Samsung Electronics Co. Ltd Date of Test April 06 ~ 07, 2004 Issued Date April 09, 2004 Name/Position Signature Tested by Jang Tae Young Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200447 2 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd; Model name AT46L3 Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 Contact Person SEUNGCHEOL LEE Kind of product DLP PROJECTION TV Valiant list Manufacturer Samsung Electronics Co. Ltd; 1.2 Detail Information related Product Specification Resolution 1280 * 720 Horizontal Frequency 60kHz Vertical Frequency 75Hz Operating Frequency 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. The mode of operation utilized for testing was selected to best simulate typical EUT use. - PC Video Input - PC DVI Input 4 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. The EUT Exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 1.4 Equipment Modifications No equipment modifications were required. 1.5 Test Procedure 1.5.1 Disturbance Voltage at Mains EUT was placed on a platform nominal size, 1m by 1.5m, raised 80cm above the conducti ng ground plane. The rear of tabletop was located 40cm to the vertical conducting groud plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30cm to 40cm long and were handed at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety)lead, were individually connected through a LISN to the input power source. All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 1.5.2 Radiated disturbance EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane and the run table azimuth was varied to obtain the maximum signal strength The system configuration, clock speed, mode of operation or video resolution, turntable 5 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. azimuth with respect to the antenna were noted for each frequency found. The spectrum was scanned from 30 to 1000 MHz using biconiLog antenna. 1.6 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A DLP Projection TV AT46L3 - SAMSUNG B PC M6320 625792GR301193 SAMSUNG C Printer LQ-580H CG2Y016889 EPSON D PS/2 Keyboard SEM-DT35 3T013127 SAMSUNG E USB Mouse M-UR69 LNA23802301 Logitech Used Cable Description Connect Cable Length [m] Shielded [Y/N] Remark 1 Parallel (Printer) 1.7 Yes 2 Monitor 1.5 Yes 3 DVI 1.5 Yes 4 USB 1.5 Yes 5 PS/2 1.5 Yes 6 Component Video Out 1.5 No 7 AV front IN 1.5 No 8 Audio Out 1.5 No 9 S -Video Out 1.5 Yes 10 Audio Out 1.5 No 6 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Block Diagram 1.7 Applied Standards List Product or Generic Standards Basic Standards FCC Part15 ANSI C63.4 : 2000 Performance Criter…

Text truncated - open the document above for the full version.

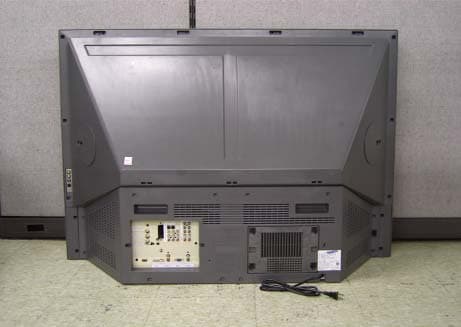

17 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE040752 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3 Radiated Emission (Front) Pic. 4 Radiated Emission (Rear)
