A3LHMXQF20BNDigital Camcorder

User Manual HMX-Q F 20BN HMX-QF20UN H igh Definition Digital Camcorder www.samsung.com/register For video recording, use a memory card that supports faster write speeds.- Recommended Memory Card: 6MB/s (Class 6) or above. ii Important safety instructions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.This symbol indicates that there are important operating and maintenance instructions in the literature accompanying this unit. WarningTo Reduce The Risk Of Fire Or Electric Shock, Do Not Expose This Apparatus To Rain Or Moisture.CautionApparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the mains plug shall be readily operable.1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11 Only use attachment/accessories specified by the manufacturer. 12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover. 13 Unplug this apparatus during lightning storms or when unused for long periods of time. Important safety instructions iii 14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 16. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register. This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to. 17. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company. A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions. 18. GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other) or a 3-wire grounding type plug, a plug having a third (grounding) pin. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. 19. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit. 20. OUTDOOR ANTENNA GROUNDING: CAMCORDER, be sure the antenna or cable system is grounded to provide some protection against voltage surges and built-up static charges, Section 810 of the National Electrical Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire and supporting structure, grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding to conductors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See figure below. GROUNDING CONDUCTORS (NEC SECTION 810-21) GROUND CLAMPS POWER SERVICE GROUNDINGELECTRODE SYSTEM(NEC ART 250, PART H) NEC NATIONAL ELECTRICAL CODE ELECTRICSERVICEEQUIPMENT GROUNDCLAMP ANTENNALEAD INWIRE ANTENNADISCHARGE UNIT(NEC SECTION 810-20) Important safety instructions iv 21. LIGHTNING: For added protection of this CAMCORDER during a lightning storm or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the CAMCORDER due to lightning and powerline surges. 22. POWER LINES: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits where it can fall into such power lines or circuits. When installing an outside antenna system, extreme ca…

Text truncated - open the document above for the full version.

Using the Manual modes 47 Extended functions Back LightWhen a subject is lit from behind, this function compensates for back lighting so that the subject does not appear too dark.1 Press the [ Home ( )] button  touch Manual  Back Light ( ) tab. 2 Touch the desired submenu item. STBY 00:00:00 [253Min] Back Light : Off Icon Description Off : Disables the function. On : Backlight compensation brightens the subject. Back lighting causes the subject to be darker than the backgroundIt typically occurs when: The subject is in front of a window.The person you want to record is wearing white or shiny clothes and is placed against a bright background. The person’s face is too dark to distinguish his/her features.The subject is outdoors and the background is overcast.The light sources are too bright.The subject is in front of a snowy background. ••••• Using the Manual modes 48 Extended functions FocusThe camcorder usually focuses on a subject automatically (auto focus). When you turn the camcorder on, focus is always set to automatic. You can also set the focus manually.1 In STBY mode, touch the Video recording mode ( ) tab. 2 Press the [ Home ( )] button  touch Manual  Focus ( ) tab. 3 Touch the desired submenu item. STBY 00:00:00 [253Min] Focus : Auto Icon Description Auto : In most situations, it is better to use the automatic focus feature, as it lets you concentrate on the creative side of your recording.Manual : You may need to focus manually under conditions in which automatic focusing is difficult or unreliable. To adjust the focus, place and hold your finger on the for a nearer subject, and on the tab for a farther subject. The nearer or farther icon ( / ) appears when focus adjustment reaches the end. The camcorder applies the adjusted value right after you touch the or tab. The Auto Focus (AF) setting is useful when you operate the zoom function because you might not be able to keep accurate focus after the zoom ratio has been changed.In the manual focus setting menu screen, you can access auto focus by touching the AF ( ) tab on the screen. You can return to manual focus by touching the manual focusing tabs.When the camcorder exits from Manual mode or switch to the photo recording mode, the Focus function is automatically set to Auto . ••• Using the Manual modes 49 Extended functions Super C.NiteYou can adjust shutter speed when recording a slow moving object, or record a brighter image in dark places without a compromise in colors.1 In STBY mode, touch the Video recording mode ( ) tab. 2 Press the [ Home ( )] button  touch Manual  Super C.Nite ( ) tab. 3 Touch the desired submenu item. STBY 00:00:00 [253Min] Super C.Nite : Normal Icon Description Off : Disables the function. Normal : The shutter opens for 1/60 of a second in the normal mode and automatically switches to open for 1/30 of a second in a dark place. Use this function to get bright images in a dark place. Super : The shutter opens for 1/15 of a second regardless of surrounding conditions. Use this function to get bright images in a darker place. The images may not seem smoothly because the camcorder has recorded them with the low shutter speed when using Super C.Nite. Using the Manual modes 50 Extended functions Self TimerWhen the self-timer is enabled, there is a time delay of 10 seconds before recording starts. You can take photos of yourself.1 In STBY mode, touch the Photo recording mode ( ) tab. 2 Press the [ Home ( )] button  touch Manual  Self Timer ( ) tab. 3 Touch the desired submenu item. 9999 Self Timer : Off Icon Description Off : Disables the function. On : There is a time delay of 10 seconds after you press the [ Recording Start/Stop ] button. The camcorder automatically turns the Self Timer function off after it has been used once. You must turn it on each time you want to use it.When the camcorder exits from Manual mode, the Self Timer function is automatically set to Off . •• Cont. ShotThe Continuous Shot function lets you capture up to eight photos in rapid.1 In STBY mode, touch the Photo recording mode ( ) tab. 2 Press the [ Home ( )] button  touch Manual  Cont. Shot ( ) tab. 3 Touch the desired submenu item. 9999 Cont. Shot : Off Icon Description Off : The camcorder records only one photo image. On : When you press the [ Recording start/stop ] button, the camcorder can take up to 8 photos in one second. When an error occurs (Card Full, etc.) during continuous shot, the recording stops and an error message appears.When the Cont. Shot is On , the photo resolution is fixed to 2M 1920x1080 . When the camcorder exits from Manual mode, the Cont. Shot function is automatically set to Off . ••• 51 Extended functions Using the Art Film modesFaderYou can give your recording a professional look by using special effects such as fade in at the beginning of a sequence or fade out at the end of a sequence.1 In STBY mode, touch the Video recording mode ( ) tab. 2 Press the [ Home ( )] button  touch Art Film  Fader ( ) tab. 3 Touch the desired submenu item. STBY 00:00:00 [253Min] Fader : Off Icon Description Off : Disables the function. On : When you start or stop recording, the recording fades in or fades out accordingly. Recording a video with Fade effect Fade Out (Approx. 3 seconds) Fade In (Approx.3 seconds) Fade inWith Fader set to On , press the [ Recording start/stop ] button. The recording starts with a dark screen, and then the image and sound fade in.Fade outWith Fader set to On , press the [ Recording start/stop ] button to stop recording. The image and sound fade out, the screen goes black, and then the recording stops. The camcorder automatically turns the Fader function off after it has been used once. You must reset it each time you want to use it.When the camcorder sets the Art Time Lapse mode or exits from the Art Film mode, the Fader function is automatically set to Off . •• Using the Art Film modes 52 Extended functions Digital EffectUsing the Digital Effect function gives your recording a c…

Text truncated - open the document above for the full version.

70 Wireless network (HMX-QF20 only) Connecting to a WLANYou can connect to a WLAN using an AP (access point) in the wireless network service area.1 Press the [ Home ( )] button  touch Social Sharing . 2 Touch the AP setting ( ) tab. The camcorder automatically searches for available AP devices. 3 Touch an AP. When you select an unsecured AP, the camcorder will connect to the network.When you select a secured AP, input the required passwords with the virtual keyboard to connect to the WLAN.  page 73 If you select a WPS profile supported AP, touch the tab  WPS PIN , and then enter the PIN code at the AP device. You can also connect to a WPS profile supported AP by dragging the current screen down, touching WPS PBC , and then pressing the [ WPS ] button on the AP device. If there is not the desired AP on the AP devices list, drag the current screen down and then touch Add Wi-Fi Network to input and search the desired AP name manually. Samsung 2Samsung 4Samsung 3Samsung 1 AP Setting ••••• Icon Description Ad hoc APSecured APWPS APSignal strengthAP setting optionsRefreshing connectable APs You can check the signal strength in the top right corner of the screen. Icon Signal strength Not connectedVery weakWeakNormalVery strong Connecting to a WLAN and configuring network settings Connecting to a WLAN and configuring network settings 71 Wireless network (HMX-QF20 only) Configuring the network settings1 Press the [ Home ( )] button  touch Social Sharing . 2 Touch the AP setting ( ) tab. The camcorder automatically searches for available AP devices. 3 Touch the tab next to an AP. Samsung 2Samsung 4Samsung 3Samsung 1 AP Setting 4 Touch each submenu and enter the required information. item Description Authentication Select an authentication type according to your AP’s setting. ( Open , Shared , WPA-PSK , WPA2-PSK , WPA-PSK/ WPA2-PSK ). When you select Open or Shared , WPA is automatically set. Data Encryption Select an encryption type according to your AP’s setting.( Disabled , WEP , TKIP , AES , TKIP/AES Mixed ) Network Key Enter the password using the virtual keyboard.  page 73 IP Setting The default is Auto . Set the IP address manually. • 5 Touch the tab. The camcorder connects to the network via the selected AP. Even if AP authentication and Data Encryption have been detected, set the authentication mode to Open or Shared . If the camcorder does not detect the AP automatically, you can set the network properties directly.  page 72 Data encryption settings by authentication type are below:- Open  Disabled or WEP - Shared  WEP - WPA-PSK  TKIP , AES , or TKIP/AES Mixed - WPA2-PSK  TKIP , AES , or TKIP/AES Mixed - WPA-PSK/WPA2-PSK  TKIP , AES , or TKIP/AES Mixed When the Data Encryption function is set to WEP or TKIP for 802.11n AP connection, you can access in the 802.11g mode. In the 802.11g mode, the network connection and speed are not guaranteed. •••• • Connecting to a WLAN and configuring network settings 72 Wireless network (HMX-QF20 only) Manually setting the IP addressBy entering the IP address, you can connect to a WLAN via an AP (access point) in the wireless network service area.1 Press the [ Home ( )] button  touch Social Sharing . 2 Touch the AP setting ( ) tab. The camcorder automatically searches for available AP devices. 3 Touch the tab next to an AP. 4 Touch IP Setting  Manual . Subnet MaskDNS ServerGatewayIP Manual . . . . . . . . . . . . • 5 Touch each submenu item and then enter the required value by using the virtual keyboard.  page 73 Item Description IP Enter the static IP address. Subnet Mask Enter the subnet mask. Gateway Enter the gateway. DNS Server Enter the DNS address. 6 Touch the tab. The camcorder connects to the network via the selected AP. For more information about the network settings, contact the network administrator or the service provider.The network settings may differ, depending on network conditions.Do not try to connect to a network that you have no permission to access.Use a fully charged battery while you are using network services. •••• • Connecting to a WLAN and configuring network settings 73 Wireless network (HMX-QF20 only) Network connection tips Compatibility with an AP that has not been formally Wi-Fi certified cannot be guaranteed.The wireless network connection may not be stable, depending on the connected AP.When the distance from AP is large, the network connection takes longer and video stuttering may occur.If there is an electric device using the same frequency range as the network near the camcorder, you may experience wireless interference.If an AP device is named in a language other than English, it may not be displayed in the AP list or, if it is, it may appear in a corrupted format or font.For the network settings and password, contact the network administrator or the service provider.The letters and numbers used in passwords may differ, depending on the encryption type.You may not be able to connect to the wireless network, depending on the conditions.The AP search may find a printer that supports the wireless network, but you cannot use the printer to connect to the network.The service provider may charge you a fee for the wireless connection under the contract made between you and the service provider.Channels available for the networking differ according to the region (country).Some countries may restrict wireless networking under local radio regulation laws. We recommend you connect your camcorder to networks only inside the country where you purchased it.If your AP name is not in English, the camcorder may not be able to locate the device or the name may appear incorrectly.If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect the WLAN, contact your network service provider. •••••••••••••• Entering textYou can use the virtual keyboard to enter your information and settings. Touch the desired characters, numbers, or symbols. @. abc def ghi jkl mno 123 / Syn pqrs…

Text truncated - open the document above for the full version.

To Whom It May Concern: We, SAMSUNG ELECTRONICS CO., LTD., located at 416, Maetan-3dong, Yeongtong-gu, Suwon-City, Gyeonggi-do, 443-742, Korea as manufacturer of the product model: HMX­QF20BN and HMX­QF20UN, declare that both HMX­QF20BN and HMX­QF20UN are exactly same in H/W and S/W. The only difference is the model name and it is named differently for marketing purpose. Best Regards Oh Dong-Chan / Manager Samsung Electronics Co., Ltd.

Date: February 14, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: December 22, 2011 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LHMXQF20BN To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

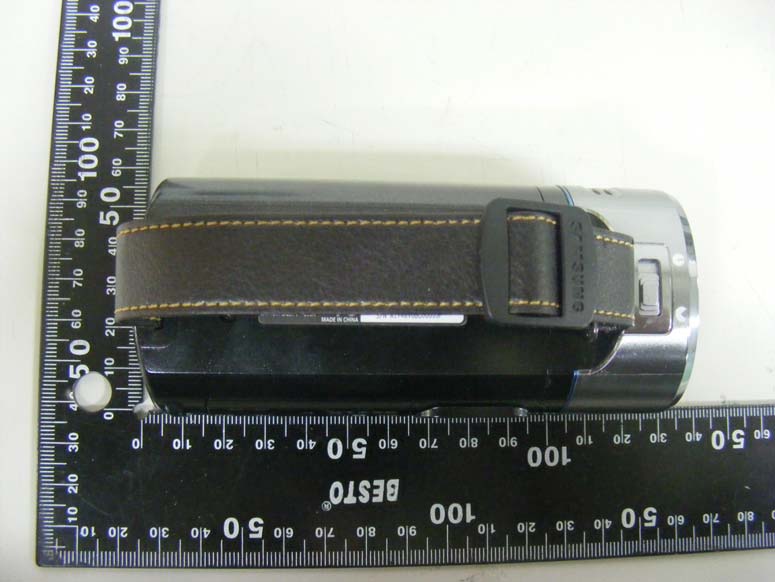

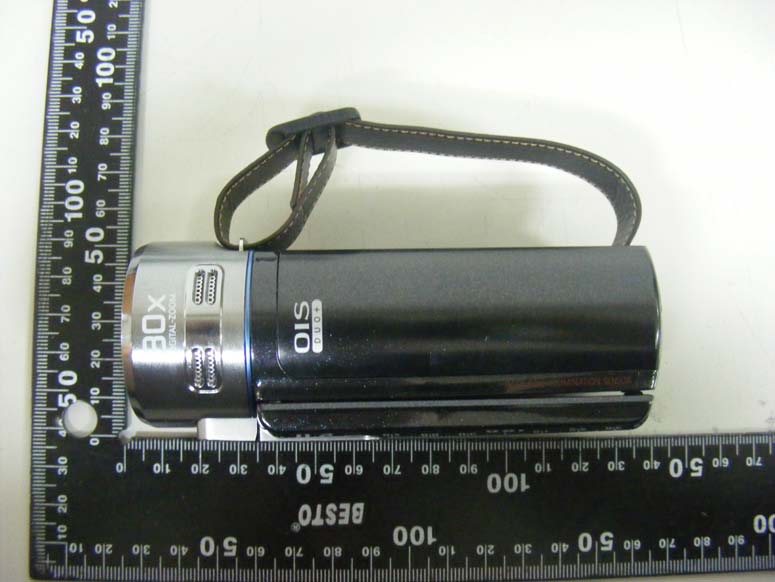

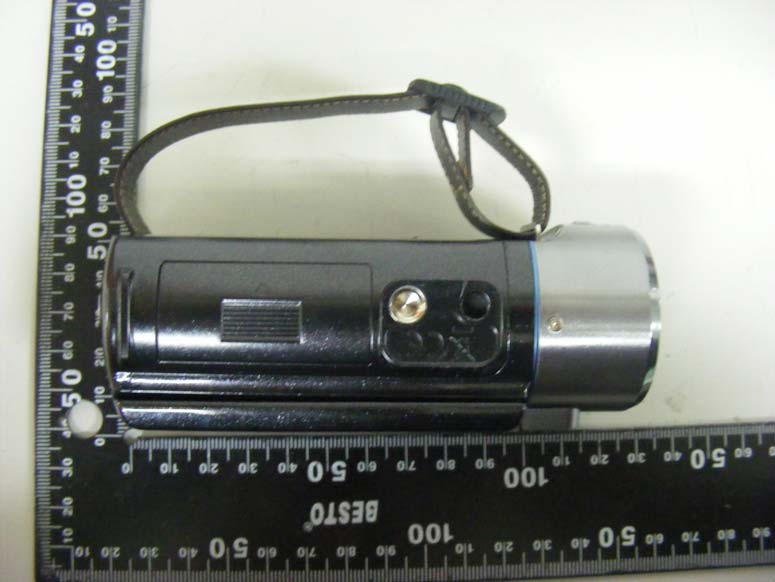

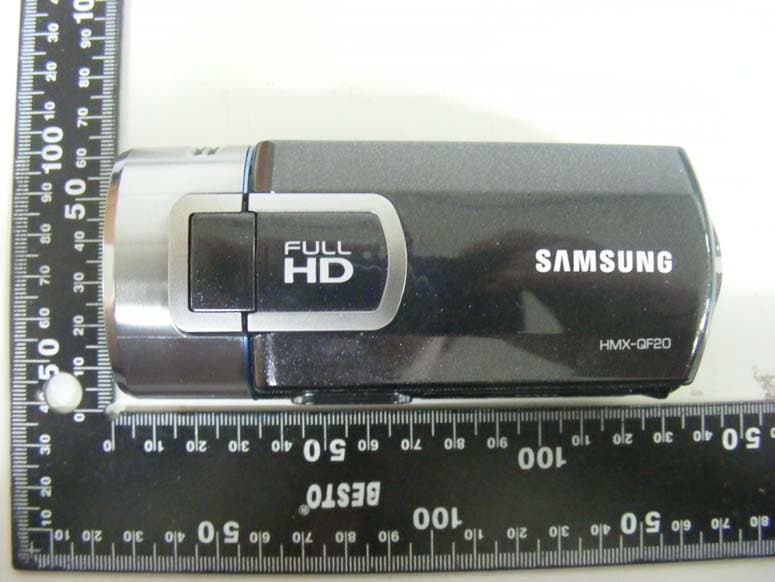

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Slide view of EUT Cover open of EUT

FCC/IC Label 1. FCC/IC Label Drawing 2. FCC/IC Label Location Samsung Electronics Co., Ltd. Model: HMX­QF20BN FCC ID: A3LHMXQF20BN IC: 649E-HMXQF20BN Made in China Samsung Electronics Co., Ltd. Model: HMX­QF20UN FCC ID: A3LHMXQF20BN IC: 649E-HMXQF20BN Made in China

Internal photos of EUT Internal view of EUT Top view of LCD PCB Bottom view of LCD PCB Top view of keypad PCB Bottom view of keypad PCB Top view of main PCB Bottom view of main PCB Top view of Lens Bottom view of Lens WLAN antenna Antenna

Report Number: F690501/RF-RTL005198 Page: 2 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. Receiver Radiated Spurious Emission --------------------------------------------------------------25 4. 6 ໒ bandwidth ------------------------------------------------------------------------------------------- 27 5. Maximum peak output power --------------------------------------------------------------------------39 6. Power Spectral Density --------------------------------------------------------------------------------- 41 7. Transmitter AC Power Line Conducted Emission-------------------------------------------------48 8. Receiver AC Power Line Conducted Emission --------------------------------------------------- 53 9. Antenna Requirement ----------------------------------------------------------------------------------- 57 10. RF Exposure evaluation------------------------------------------------------------------------------- 58 Report Number: F690501/RF-RTL005198 Page: 3 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. - Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-dong, Korea - 705, Dongcheon-dong Suji-gu, Yongin-si, Gyeonggi-do, Korea www.ee.sgs.com/korea Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS Co., Ltd. Address : 416, Maetan-dong, Yeongtong-gu, Suwon-si, Gyeonggi-do, Korea Contact Person : Jeong, Dae-Hyun Phone No. : +82 31 277 4108 1.3. Details of Factory Information Name : TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD. Address :No.9 ZhangHeng Street, Micro-Electronic Industrial Park, JinGang Road, Tianjin, China 1.4. Description of EUT Kind of Product Digital Camcorder Model Name HMX-QF20BN (Alternative model: HMX-QF20UN) Serial Number N / A Power Supply DC 3.7 V (Li-ion Battery) Frequency Range 2 412 ~ 2 462 ໬ (802.11b/g/n-HT20_SISO) Modulation Technique DSSS, OFDM Number of Channels 11 Antenna Type Integral Type Antenna Gain 0.81໒i 1.5. Declaration by the manufacturer - 802.11n supports HT20 mode only. Report Number: F690501/RF-RTL005198 Page: 4 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6.Test Equipment List EquipmentManufacturer Model S/NCal Due. Signal Generator R & S SMR40 100272 Jul. 15, 2012 Spectrum Analyzer R & S FSV30 100768 Mar. 31, 2012 Power Divider KRYTAR 6005265 126340 Sep. 01, 2012 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jul. 07, 2012 Attenuator AEROFLEX 18N-20dB 1 Apr. 06, 2012 DC power Supply Agilent U8002A MY49030063 Jan. 05, 2012 Preamplifier H.P. 8447F 2944A03909 Jul. 04, 2012 Preamplifier R & S SCU 18 10117 Mar. 23, 2012 Test Receiver R & S ESU26 100109 Feb. 21, 2012 Two-Line V-Network R & S ENV216 100190 Jan. 06, 2012 Test Receiver R & S ESHS10 863365/018 Apr. 27, 2012 Bilog Antenna SCHWARZBECK VULB9163 396 Apr. 27, 2013 Horn Antenna R & S HF 906 100326 Nov. 23, 2013 Horn Antenna SCHWARZBECK BBH 9120D BBHA9170431 Mar. 17, 2012 Antenna Master INN-CO MM 4000 N.C.R. N.C.R. Turn Table INN-CO DS 1200 S N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (6.5 m×3.5 m×3.5 m) N.C.R. N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N.C.R. N.C.R. 1.7. Alternative model names Model name Information HMX-QF20BN Basic model (Black color). HMX-QF20UN Same to basic model but it has only different color (Blue color). Report Number: F690501/RF-RTL005198 Page: 5 of 59 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory)18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.8. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC Part15 subpart B&C, RSS-210, RSS-Gen Standard section Test Item Result 15.205(a) 15.209 15.247(d) A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.109(a) RSS-Gen 6 Receiver Radiated Spurious Emission Complied 15.247(a)(2) A8.2(a) 6 dB Bandwidth and 99% BW Complied 15.247(b)(3) A8.4(4) Maximum Peak Output Power Complied 15.247(e) A8.3(2) Power Spectral Density Complied 15.207 RSS-Gen 7.2.4 Transmitter AC Power Line Conducted Emission Complied 15.107 RSS-Gen 7.2.4 Receiver AC Power Line Conducted Emission Complied 15.247(i) 1.1307(b)(1) RSS-Gen 5.5/ RSS-102 Maximum Permissible Exposure (Exposure of Humans to RF Fields) Complied 1.9. Conclusion of worst-case The field strength of spurious emission was measured in three orthogonal EUT positions (X-axis, Y-axis and Z-axis). Worst case is X-axis. 1 Mbps is the highest output power in the 11b. 6 Mbps is the highest …

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Spurious Emission Test B. Photos of conducted power line test
