A3LHPN423542-inch PDP Monitor

BN68-00 487 A-00 Owner’s Instructions HPN4235 SERVICE DIVISION 400 Valley Road, Suite 201 Mount Arlington, NJ 07856 TEL : 1-800-SAMSUNG (1-800-726-7864) www.samsungusa.com Thank you for choosing Samsung! Your new Samsung product represents the latest in television technology. We designed it with easy-to-use on-screen menus and closed captioning capabilities, making it one of the best products in its class. We are proud to offer you a product that will provideconvenient, dependable service and enjoyment for years to come.Important Safety InformationAlways be careful when using your PDP. To reduce the risk of fire, electrical shock, and other injuries,keep these safety precautions in mind when installing, using, and maintaining your machine.• Read all safety and operating instructions before operating your PDP.• Keep the safety and operating instructions for future reference.• Heed all warnings on the PDP and in the operating instructions.• Follow all operating and use instructions.• Unplug the PDP from the wall outlet before cleaning. Use a damp cloth; do not use liquid or aerosol cleaners. • Never add any attachments and/or equipment without approval of the manufacturer. Such additions can increase the risk of fire, electric shock, or other personal injury. • Do not use the PDP where contact with or immersion in water is a possibility, such as near bath tubs, sinks, washing machines, swimming pools, etc. • Do not place the PDP on an unstable cart, stand, tripod, bracket, table, or floor where it can fall. A falling PDP can cause serious injuryto a child or adult, and serious damage to the appliance. Use onlywith a cart, stand, tripod, bracket, or table recommended by the man-ufacturer or sold with the PDP. Follow the manufacturer's instructionswhen mounting the unit, and use a mounting accessory recommendedby the manufacturer. Move the PDP and cart with care. Quick stops,excessive force, and uneven surfaces can make the unit and cartunsteady and likely to overturn. • Provide ventilation for the PDP. The unit is designed with slots in the cabinet for ventilation to protect it from overheating. Do not block these openings with any object, and do not place the PDP on a bed,sofa, rug, or other similar surface. Do not place it near a radiator or heat register. If you place thePDP on a rack or bookcase, ensure that there is adequate ventilation and that you've followed themanufacturer's instructions for mounting. • Operate your PDP only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power com-pany. • Use only a grounded or polarized outlet. For your safety, this PDP is equipped with a polarized alter- nating current line plug having one blade wider than the other. This plug will fit into the power outletonly one way. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still does not fit, contact your electrician to replace your outlet. Warning! Important Safety Instructions 3 2 CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contactwith any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has beenincluded with this product. Note to CATV system installer: This reminder is provided to call CATV system installer's attention to Arti- cle 820-40 of the National Electrical Code (Section 54 of Canadian Electrical Code, Part I), that providesguidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to thegrounding system of the building as close to the point of cable entry as practical.Caution: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.Caution: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug. Attention: pour eviter les chocs electriques, introduire la lame le plus large de la fiche dans la borne corre- spondante de la prise et pousser jusqu'au fond.Important: One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws.Certain Canadian programs may also be copyrighted and any unauthorized recording in whole or in partmay be in violation of these rights. TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THISAPPLIANCE TO RAIN OR MOISTURE. Thank You for Choosing Samsung User InstructionsThe Federal Communications Commission RadioFrequency Interference Statement includes the fol-lowing warning:NOTE: This equipment has been tested and foundto comply with the limits for a Class B digitaldevice, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonableprotection against harmful interference in a resi-dential installation. This equipment generates,uses, and can radiate radio frequency energyand, if not installed and used in accordance withthe instructions, may cause harmful interference toradio communications. However, there is no guar-antee that interference will not occur in a particu-lar installation .If this equipment does cause harmful interferenceto radio or television receptions, which can bedetermined by turning the equipment off and on,the user is encouraged to try to correct the inter-ference by one or more of the following mea-sures:• Reorient or relocate the receiving antenna.• Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a cir- cuit different from that to which the receiver isconnected. • Consult the dealer or an experienced radio/TV technician for help. User InformationChanges or modifications not expressly appr…

Text truncated - open the document above for the full version.

Turning the PDP On and Off 30 31 Turning the PDP On and OffPress the Power button on the remote control.The PDP will be turned on and you will be ready to use it’s features.You can also use the POWER( ) button on the front of the PDP.Notes: • If your PDP isn’t turned on when the power button is pressed: Press the MODE button to check if the TV mode has been chosen ( ). Viewing the Menus and DisplaysYour PDP has a simple, easy-to-use menu system that appears on the PDP screen. This system makes it con-venient and fast to use features on the PDP. Your PDP also lets you display the status of many of your PDP’sfeatures.Viewing the Menus 1 With the power on, press the MENU button on theremote control. The main menu appears on the screen. The Picture menu is selected. 2 Press the UP/DOWN buttons to move items in the menu.Press the LEFT/RIGHT buttons to display, change, or use the selected items.Press the ENTER ( ) button to enter items in the menu. On screen menus disappear from the screen automatically after about thirty seconds, or you can press the EXIT button on your remote control to exit the menu. Picture ModeAdjustColor ToneDNIe Move Enter Menu Custom Normal On Displaying Status InformationPress the INFO button on the remote control. The PDP willdisplay the Picture mode, Sound mode, MTS, Signal andCaption.Press the INFO button on the remote control again. The PDP will display the Clock. Picture : Custom Sound : Custom MTS : Mono Signal : Mono Caption : Off Ant 6 07 : 30 am Memorizing the ChannelsYour PDP can memorize and store all of the available channels for both “off-air” (antenna)and cable channels. After the available channels are memorized, use the CH and CH buttons to scan through the channels. This eliminates the need to change channels by enteringthe channel digits. There are three steps for memorizing channels: selecting a broadcastsource, memorizing the channels (automatic) and adding and deleting channels (manual). 32 33 Selecting the Video Signal-sourceBefore your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the PDP (i.e., an antenna or a cable system). 1 Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button. 2 Press the LEFT or RIGHT button to select “Ant”,“STD”, “HRC” or “IRC”. • If you are connected to an antenna, leave "Ant" displayed. If you connected cable, press the LEFT or RIGHT button to the display the type of cable system: "STD", "HRC", or "IRC". (If you are not sure which type of cable system youhave, contact your cable company). 3 Press the MENU button to exit. Note• STD, HRC and IRC identify various types of cable TV systems. Contact your local cable company to identify the type of cable system that exists in your particular area.At this point the signal source has been selected. Proceed to “Storing Channels in Memory” (next page). Channel Ant/ CATVAuto ProgramFine TuneLNACh. Scan Move Select Menu Ant Off 0 Channel Ant/ CATVAuto ProgramFine TuneLNACh. Scan Move Select Menu STD Off 0 Storing Channels in Memory (Automatic Method) 1 First, select the correct signal source (Ant, STD, HRC,IRC). See steps on previous page. Press the MENU button. Press the UP or DOWN button to select “Channel”, then press the ENTER button. 2 Press the UP or DOWN button to select “Auto Pro-gram”, then press the ENTER button. 3 The PDP will begin memorizing all of the available channels. After all the available channels are stored, the Auto program menu reappears. Press the RIGHTbutton to stop. Note• The PDP automatically cycles through all of the available channels and stores them in memory. This takes about one to two minutes. Channel Ant/ CATVAuto ProgramFine TuneLNACh. Scan Move Select Menu Ant Off 0 Channel Ant / CATVAuto ProgramFine TuneLNACh. Scan Move Enter Menu Ant Off 0 Ant 50 Auto Program : Stop ➤ ➤ Quick way to access the Automatic Channel Setting : Just press the“AUTO PROG.” button on the remote control. To View Memorized Channel (PIP Mode) 1 Press the MENU button. Press the UP or DOWNbutton to select “Channel”, then press the ENTER button. 2 Press the UP or DOWN button to select “Ch Scan”,then press the ENTER button. Only the memorized channels are chosen. Press the RIGHT button to stop. 34 35 Adding and Erasing Channels (Manual Method) 1 Use the number buttons to directly select the channel thatwill be added or erased. Ex) Channel “4” 2 Press the ADD/DEL button: Repeatedly pressing this button will alternate between “Added” and “Erased.” Note• You can view any channel (including an erased channel) by using the number buttons on the remote control. Ant 4 Ant 4Added Channel Ant/ CATVAuto ProgramFine TuneLNACh. Scan Move Select Menu Ant Off 0 Channel Ant / CATVAuto ProgramFine TuneLNACh. Scan Move Enter Menu Ant Off 0 Ch. ScanAnt 7 : Stop 36 37 Setting Up Your Remote Control This PDP's remote control can operate almost any VCR, cable box or DVD. After it has been set upproperly, your remote control can operate in four different modes :TV, VCR, Cable or DVD. Pressing the corresponding button on the remote control allows you to switch between these modes,and control whichever piece of equipment you choose.Note :  The remote control may not be compatible with all DVD Players, VCRs, Cable boxes.  The remote control can operate only on STB made by Samsung. Setting Up the Remote to Operate Your VCR, Cable box or DVD player 1 Turn off your VCR. (or Cable box, DVD player) 2 Press the MODE button. Mode is changed wheneverMODE button is pressed(New mode is displayed on LED screen). 3 Press the SET button on your TV's remote control. 4 Using the number buttons on your remote control,enter three digits of the VCR (or Cable box, DVD player) code listed on page 38 of this manual for your brand of VCR (or CATV, DVD). Make sure you enter three digits of the code, even if the first digit is a "0".(If more than one code is listed, try the first one.) 5 Press the Power but…

Text truncated - open the document above for the full version.

EUT Photographs

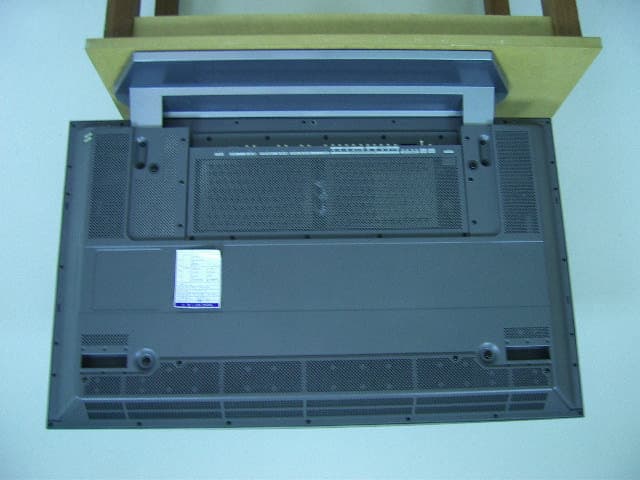

EUT Photographs [Label and Label position]

Project No. : LBE031494 Page 1 of 15 Project No. :LBE031494 Product :PDP Monitor Model No. :AH42** Date of test :July 8 - 10, 2003 Issued Date :July 11, 2003 Tested by: Kyung Chul,MIN / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE031494 Page 2 of 15 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031494 Page 3 of 15 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model FCC ID Number 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG ELECTRONICS Co., Ltd. LBE031494 PDP Monitor A3LHPN4235 - AH42** SAMSUNG Project No. : LBE031494 Page 4 of 15 1.3 Test equipment EquipmentModel No.Serial No.Makers Last calibration and Interval E7405AMY42000109Agilent02/11/29, 12Months Firmware versions : Rev.29.9.86 Quasi-peak adapter85650A2521A00687H.P02/10/09, 12Months RF selectorNS49000303-015TOYON/A ESCS30839809/002R & S03/06/27, 12Months Firmware versions : Main 1.08, OTP 02.01, GRA 02.03 Field strength meterESCS30100104R & S03/01/17, 12Months L.I.S.NESH3-Z5847265/028R & S02/10/09, 12Months Bi-Log AntennaCBL6112B2766SCHAFFNER0./06/20, 12Months 10dB Attenuator8419B58226Agilent02/10/08, 12Months RF Relais MatrixPSU861206/024R & SN/A Measurement Software EP5CE-TOYON/A Measurement Software EP6RE-TOYON/A EMC AnalyzerE7405AMY42000052Agilent03/07/09, 12Months Trun TableDS412-HDN/A Antenna MastMA240240/620HDN/A This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum analyzer Field strength meter Project No. : LBE031494 Page 5 of 15 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1024x76832bits Frequency Band [MHz] Equipment Horizontal F.: 68kHz Vertical F. : 84Hz EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE031494 Page 6 of 15 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerFCC ID A PDP MonitorAH42** -SamsungEUT BPersonal ComputerMP22D66892KTA00010Samsung- CPrinterK10158CLG001000275CANON- DPS/2 Keyboard7800K08100020Gateway- EPS/2 MouseSBM-6029CAK002649Samsung- FSpeaker--SamsungEUT GAC AdapterK30088CLG001000275CANONFor printer * DOC : FCC Declaration of Conformity 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1PS/2 Mouse Cable1.8N 2PS/2 Keyboard Cable1.6N 3Video Cable(Analog)1.5Y 4Video Cable(Digital)1.5Y 5Speaker Cable1.2N 6 AC Power Cable(Monitor) 1.8N 7AC Power Cable(PC)1.8N 8 AC Power Cable(Printer) 1.8N 9Printer Cable1.5Y 10A/V In Cable1.2N 11S-Video In Cable1.2N 12BNC Cable1.2N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Project No. : LBE031494 Page 7 of 15 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 ED A B C FF 1 2 3 4 5 5 6 7 8 9 10 11 12 G Project No. : LBE031494 Page 8 of 15 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the …

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
