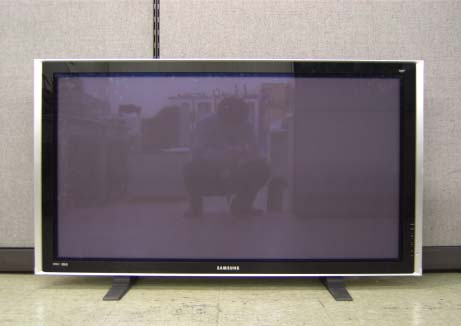

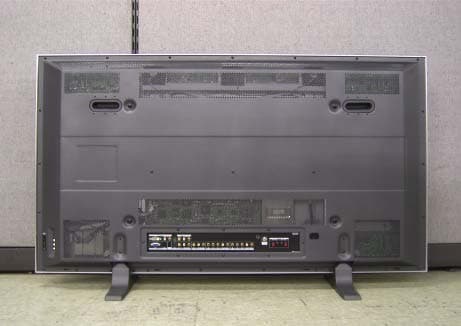

A3LHPP507150-inch PDP TV Monitor

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered. - Do not cover the slots and openings with a cloth or other materials. - Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface. - Do not place this apparatus in a confined space, such as a bookcase, or built-in cabinet, unless proper ventilations is provided. • Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight. • Do not place the sources of heat on this apparatus, such as a candle, ash tray, incense or other similar material. • Do not place a water containing vessel on this apparatus, as this can result in a risk of fire or electric shock. • Do not expose this apparatus to rain or place it near water(near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately. You can clean this apparatus with damp cloth when necessary, but be sure to unplug the apparatus first. • Do not expose this apparatus set to extreme temperature conditions or to extreme humidity conditions. • This appratus use batteries. In your community there might be regulations that require you to dispose these batteries properly under environmental considerations. Please contact your local authorities for disposal or recycling information. • To cut off the power source, unplug this apparatus from the wall outlet. • Do not overload wall outlets, extension cords or convenience receptacles beyond their capacity, since this can result in fire or electric shock. • Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. • To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges. • Before connecting the AC power cord to the DC adapter outlet, make sure the voltage designation of the DC adapter corrsponds to the local electrical supply. • Never insert anything metallic into this appratus openings. Doing so many create the danger of electric shock. • To avoid electric shock, never touch the inside of this apparatus. Only a qualified technician should open this apparatus's case. • Be sure to hold the plug, not the cord, when disconnecting this apparatus from an electric socket. • Locate this apparatus near an easily acessible AC outlet. • If this appratus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact an authorized dealer or service center. • Unplug this apparatus from the AC outlet before any service. • Be sure to pull the power plug out of the outlet if the TV is to remain unused or you are to leave the house for an extended period of time (especially when children, elderly or disabled people will be left alone in the house). - Accumulated dust can cause an electric shock, an electric leakage or a fire by causing the power cord to generate sparks and heat or deteriorating the insulation. Warning! Important Safety Instructions (Please read the appropriate section that corresponds to the marking on your Samsung product before attempting to install the product.) CAUTION CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN This sysmbol indicated high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product. This symbol alerts you that important literature concerning operation and maintenance has been included with this product. - 1- • Les fentes et les ouvertures ménagées dans le boîtier ainsi qu'à l’arrière et au-dessous de l'appareil assurent la ventilation de ce dernier. Afin de garantir le bon fonctionnement de l'appareil et éviter les risques de surchauffe, ces fentes et ouvertures ne doivent être ni obstruées ni couvertes. - Ne couvrez pas les fentes et les ouvertures avec un morceau de tissu ou tout autre objet. - Ne les obstruez pas non plus en plaçant l’appareil sur un lit, un canapé, un tapis ou toute autre surface apparentée. - Ne placez pas l’appareil dans un environnement clos tel qu’une bibliothèque ou une armoire encastrée, sauf si une ventilation adéquate est prévue. • Ne placez pas l’appareil à proximité ou au-dessus d’un radiateur ou d’une bouche d'air chaud, de même que dans un endroit exposé à la lumière directe du soleil. • Ne placez pas de sources de chaleur sur l’appareil, telles qu’une bougie, un cendrier, de l'encens. • Ne placez aucun récipient d’eau sur l’appareil car cela représente un risque d’incendie ou de décharge électrique. • N’exposez pas l’appareil à la pluie et ne le placez pas à proximité d'une source d'eau, par exemple une baignoire, un lavabo, un évier, un bac de lavage, un sous-sol humide, une piscine, etc. Si l’app areil vient à être mouillé par accident, débranchez-le et contactez immédiatement un revendeur agréé. Si nécessaire, après vous être assuré de l'avoir débranché, vous pouvez nettoyer l’appareil à l’aide d’un chiffon humide. • N’exposez pas l’appareil à des conditions de température ou d’humidité extrêmes. • Cet appareil peut fonctionner sur piles. Dans un souci de préservation de l’environnement, la réglementation locale prévoit peut-être des mesures spécifiques de récupération des piles usagées.Veuillez donc c…

Text truncated - open the document above for the full version.

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) Label

Project No. : LBE040511 Page 1 of 13 Project No. : LBE040511 Product :PDP TV Monitor Model No. : NP50P4 Date of test :Februsry 25 ~March 10, 2004 Issued Date :March.16 , 2004 Tested by: Tae Young,JANG / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Youngtong-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE040511 Page 2 of 13 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040511 Page 3 of 13 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model FCC ID Number Mains input Using Clock 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. See the attached Block Diagram A3LHPP5071 120V, 60Hz - NP50P4 SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE040511 PDP TV Monitor Project No. : LBE040511 Page 4 of 13 1.3 Test equipment DescriptionModelManufacturerSerial No.Applied TEST RECEIVERESCS30R & S839809/002o RF RELAIS MATRIXPSUR & S861206/024o LISNESH3-Z5R & S100261o TEST SOFTWAREEP5CETOYO-o TEST RECEIVERESCS30R & S100104o SPECTRUM ANALYZERE7405AAgilentUS41110272o BI-LOG ANTENNACBL6112BSCHAFFNER2766o RF SELECTORNS4900TOYO0303-015o SPECTRUM ANALYZERE7405AR & SMY42000109o TEST SOFTWAREEP5RETOYO-o Turn TableDS412HD-N/A Antenna MastMA240HD240/620N/A amplifier8447DAgilent2944A10430o This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040511 Page 5 of 13 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 1024x768 Frequency Band [MHz] Equipment Refresh rates "H" Pattern display Operating ModeResolutionsColors Horizontal F.:63.667kHz32bits Vertical F. : 84.997Hz Project No. : LBE040511 Page 6 of 13 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A PDP TV MonitorNP50P4 -SamsungEUT BPersonal ComputerGX2706Q4W81SDELL- CPrinterLQ-580HCG2Y014537EPSON- DPS/2 KeyboardSK-8110LR86682DELL- EPS/2 MouseM-S69LZB33503033DELL- FSpeaker--Samsung- GSpeaker--Samsung- 2) Used Cable Description No.ItemLength[m] Shielded(Y/N)Remark 1PS/2 Mouse Cable1.8N 2PS/2 Keyboard1.6N 3 Video Cable(Analog) 1.5Y 4 Video Cable(Digital) 1.5Y 5 Power Cable(Monitor) 1.8N 6PC Power Cable1.8N 7 Power Cable(Printer) 1.8N 8Printer Cable1.5Y 9Antenna Cable 10AV1 In Cable 11AV Out Cable2 12AV Out Cable1 13 Component In 14 S-video In 15 Speaker Y 16 Speaker This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE040511 Page 7 of 13 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 ED A B C 1 2 3 4 5 6 7 8 9 ~ 14 G F 61 51 Project No. : LBE040511 Page 8 of 13 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port are …

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
