A3LHS10Bluetooth Body Scale

English Safety precautions Do not use the device for anything other than its intended use Do not disassemble, modify, or repair the device Any changes or modifications to the device can void your manufacturer’s warranty. For service, take the device to a Samsung Service Center. When using the device, mind the following: • Humidity and liquids may damage parts or electronic circuits. • Do not store the device in hot areas. High temperature may cause damage to the device or shorten battery life. • Do not drop the device or cause impacts to it. • Do not jump on the device. • This manual’s images and content may differ from the product. • This product is only a health assisting device. It cannot be used for medical diagnostic purposes. Overview Check the product box for the following items: Bluetooth Body Scale, three AAA batteries, user manual. The supplied items may vary depending on the region. Inserting the batteries 1 Remove the battery cover. 2 Insert the batteries into the battery slots, and then replace the battery cover. For taring weight, place the device on a flat surface within 30 seconds after inserting the batteries. If not, measured weight can be different from actual weight. Connecting with a smartphone 1 Turn on the smartphone, and tap S Health on the Applications screen. 2 Tap Health board → Weight → → Weighing accessory manager → EI-HS10. 3 Connect with the device using the instructions on the smartphone’s display. Up to four users can be registered to the device. Disconnecting a smartphone 1 Turn on the device, and press and hold to enter PAIRING MODE. 2 Press to select a user, and then press and hold . 3 Press to select DISCONNECT, and then press and hold . 4 When disconnected, the device displays SUCCESS. Selecting a registered user 1 Step lightly on the measuring platform to turn the device on. 2 If the LCD screen is turned on, step on the bottom of the measuring platform to select a registered user. When stepping on areas other than the lower part of the measuring platform without choosing a user, the device works as a standard scale. Because it acts as an unconnected scale and measurements do not transfer to the smartphone. Measuring weight 1 Turn the device on, select a user, and then step on the device. 2 Step off the device if measuring weight is complete. 3 Measured weight is displayed momentarily, and is transferred to the connected smartphone. • The measurable weight range is 10–180 kg / 22 lb-396 lb. • To change the unit of measure (kg/lb), press . Type STA. A00145 05/2013 Rev. 1.0www.samsung.com Bluetooth Body Scale Recycling Direct To dispose electronics properly, follow the recycling process regulated in your area or go to Samsung website to find the nearest recycling location: www.samsung.com/recyclingdirect Or call, (877) 278 – 0799. Samsung Telecommunications America, LLC 1301 E. Lookout Drive Richardson, Texas 75082 Phone: 1-800-SAMSUNG Phone: 1-888-987-HELP (4357) FCC This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Users are not permitted to make changes or modify the device in any way. Changes or modifications not expressly approved by Samsung will void the user’s authority to operate the equipment. LCD screen Measuring platform Español Precauciones de seguridad No lo utilice para ningún fin que no sea aquél para el que se lo diseñó No desarme, modifique ni repare el dispositivo Cualquier cambio o modificación en el dispositivo puede anular la garantía del fabricante. Si necesita mantenimiento, lleve el dispositivo a un Centro de servicios de Samsung. Cuando use el dispositivo, tenga en cuenta lo siguiente: • La humedad y los líquidos pueden dañar piezas o circuitos electrónicos. • No almacene el dispositivo en áreas de calor extremo. Las altas temperaturas pueden dañar el dispositivo o reducir la vida útil de la batería. • No golpee el dispositivo ni lo deje caer. • No salte sobre el dispositivo. • Las imágenes y el contenido que aparecen en este manual pueden diferir del producto. • Este producto no constituye un dispositivo médico. No puede utilizarse para efectuar diagnósticos. Descripción general Busque los siguientes elementos en la caja del producto: Balanza corporal con Bluetooth, tres baterías AAA, manual del usuario. Los elementos provistos pueden cambiar en función de la región. Colocación de las baterías 1 Retire la cubierta de la batería. 2 Inserte las baterías en las ranuras correspondientes y vuelva a colocar la tapa. Para tarar el peso, coloque el dispositivo sobre una superficie plana durante 30 segundos después de insertar las baterías. De lo contrario, el peso medido puede ser diferente del peso real. Cómo conectarla a un smartphone 1 Encienda el smartphone, y toque S Health en la pantalla Aplicaciones. 2 Toque Tablero de salud → Peso → → Gestor de accesorio de pesaje → EI-HS10. 3 Conéctela con el dispositivo siguiendo las instrucciones en la pantalla del smartphone. Se pueden registrar hasta cuatro usuarios en el dispositivo. Cómo desconectarla de un smartphone 1 Encienda el dispositivo y mantenga presionado para ingresar al PAIRING MODE. 2 Presione para seleccionar un usuario, y luego mantenga presionado . 3 Presione para seleccionar DISCONNECT, y luego mantenga presionado . 4 Cuando esté desconectado, el dispositivo mostrará SUCCESS. Cómo seleccionar un usuario registrado 1 Pise suavemente la plataforma de medición para encender el dispositivo. 2 Si la pantalla LCD se enciende, pise la parte inferior de la plataforma de medición para seleccionar un usuario registrado. Si pisa sobre otra área que no sea la parte inferior de la plataforma de medición sin elegir un usuario, el dispositivo funcionará como una balanza común. Esto se debe a que actúa como una balanza desconectada y las mediciones no se transmite…

Text truncated - open the document above for the full version.

Date: April 1, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Hyunchae. You (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Hyunchae. You (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; Samsung Electronics Co.,Ltd. 19 Chapin Rd., Building D Pine Brook, NJ 07058, United States e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: April 24, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LHS10 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Kim, Hui­Kyung / Manager Samsung Electronics Co., Ltd. 129, Samsung­ro, Yeongton­gu, Suwon­si, Gyeonggi­do, 443­742, Korea, Republic of

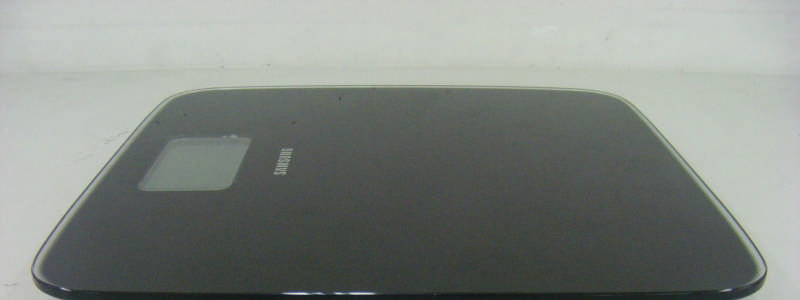

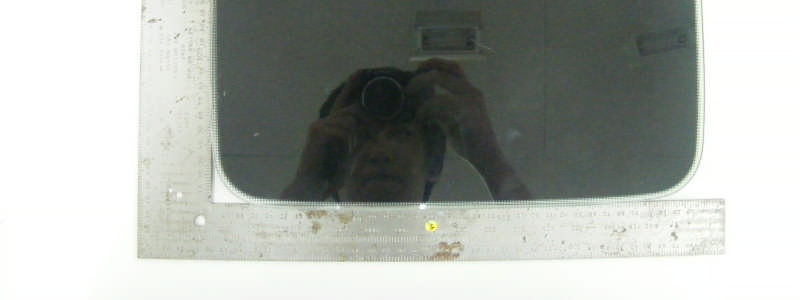

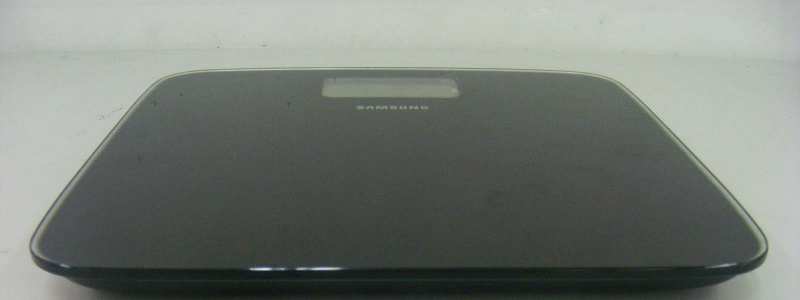

Model :EI-HS10 External photos of EUT Model :EI-HS10 Front view of EUT Rear view of EUT Model :EI-HS10 Top view of EUT Bottom view of EUT Model :EI-HS10 Side view of EUT

FCC Label 1. FCC/IC Label Drawing Location MODEL : EI-HS10 KCC-CMM-SEC-EI-HS10 FCC ID : A3LHS10 IC : 649E-EIHS10 CMIIT ID : 0000000000 000-AB0000 4.5V This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Model :EI-HS10 Internal photos of EUT Model :EI-HS10 Internal View of EUT Model :EI-HS10 Top view of Main PCB Bottom view of Main PCB Model :EI-HS10 Top view of Bluetooth Antenna Antenna

Report Number:F690501/RF-RTL006579Page:2of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea INDEX Table of ContentsPage 1. General Information ---------------------------------------------------------------------------------3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------7 3. 20㏈Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power -------------------------------------------------------------------42 5. Hopping Channel Separation ---------------------------------------------------------------------44 6. Number of Hopping Frequency ------------------------------------------------------------------47 7. Time of Occupancy(Dwell Time) -----------------------------------------------------------------51 8. Antenna Requirement ------------------------------------------------------------------------------64 Report Number:F690501/RF-RTL006579Page:3of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:Samsung Electronics Co., LTD. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Republic of Korea Contact Person:Kim, Hui-Kyeong Phone No.:+82 10 8981 4871 1.3. Description of EUT Kind of Product Bluetooth Body Scale Model Name EI-HS10 Serial Number N/A Power Supply DC 4.5 V Frequency Range 2 402㎒~ 2 480㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Internal type Antenna Gain 3.1㏈i H/W Version REV 1.1 S/W Version bw130m_V1.29.saf 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels Report Number:F690501/RF-RTL006579Page:4of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number:F690501/RF-RTL006579Page:5of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 1.6. Test Equipment List EquipmentManufacturerModelS/NCal DateCal IntervalCal Due. Signal GeneratorR&S SMR40100272 Aug. 23, 2012AnnualAug. 23, 2013 Spectrum AnalyzerAgilentN9030AUS51350132Oct. 30, 2012AnnualOct. 30, 2013 Spectrum AnalyzerR&SFSV30100768Mar. 28, 2013 Annual Mar. 28, 2014 Bluetooth TesterTESOMTC-3000C3000C000142Dec. 24, 2012 Annual Dec. 24, 2013 Bluetooth TesterR&SCBT 32100300Jun. 12, 2012 Annual Jun. 12, 2013 Directional CouplerKRYTAR 152613122660 Jul. 19, 2012 Annual Jul. 19, 2013 High Pass FilterWainwrightWHK3.0/18G-10SS344 Sep. 12, 2012AnnualSep. 12, 2013 High Pass FilterWainwrightWHK7.5/26.5G-6SSN/A Jul. 12, 2012AnnualJul. 12, 2013 Low Pass FilterMini circuitsNLP-1200+V8979400903-1 Jul. 12, 2012AnnualJul. 12, 2013 Power SensorR&S NRP-Z81100748 Jul. 10, 2012 Annual Jul. 10, 2013 DC Power SupplyAgilent6553AMY40000695Jul. 02, 2012 Annual Jul. 02, 2013 PreamplifierH.P.8447F2944A03909Jul. 04, 2012AnnualJul. 03, 2013 PreamplifierR&SSCU 1810117Jan. 14, 2013 Annual Jan. 14, 2014 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891 Jul. 12, 2012AnnualJul. 12, 2013 Test ReceiverR&SESU26100109Feb. 28…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL006579Page:33of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea High Channel Operating Mode: π/4DQPSK Low Channel Report Number:F690501/RF-RTL006579Page:34of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea Middle Channel High Channel Report Number:F690501/RF-RTL006579Page:35of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea Operating Mode: 8DPSK Low Channel Middle Channel Report Number:F690501/RF-RTL006579Page:36of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea High Channel Report Number:F690501/RF-RTL006579Page:37of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 99 % Bandwidth Operating Mode: GFSK Low Channel Middle Channel Report Number:F690501/RF-RTL006579Page:38of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea High Channel Operating Mode: π/4DQPSK Low Channel Report Number:F690501/RF-RTL006579Page:39of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea Middle Channel High Channel Report Number:F690501/RF-RTL006579Page:40of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea Operating Mode: 8DPSK Low Channel Middle Channel Report Number:F690501/RF-RTL006579Page:41of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea High Channel Report Number:F690501/RF-RTL006579Page:42of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 4. Maximum Peak Output Power Measurement 4.1. Test Setup EUT Directional Coupler Bluetooth Tester Power SensorTest Note PC 4.2. Limit The maximum peak output power of the intentional radiator shall not exceed the following : 1. §15.247(a)(1), Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25㎑or the 20㏈bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 125㎽. 2. §15.247(b)(1), For frequency hopping systems operating in the 2 400 – 2 483.5㎒employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5 725 – 5 805㎒band: 1 Watt. 4.3. Test Procedure All data rates and modes were investigated for this test. The test follows DA000705. Using the power sensor instead of a spectrum analyzer. 1. Place the EUT on the table and set it in the transmitting mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to the Power sensor. 3. Test program : (S/W name : R&S Power Viewer, Version : 3.2.0) 4. Measure peak & average power each channel. Report Number:F690501/RF-RTL006579Page:43of64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371www.ee.sgs.com/korea 4.4. Test Results Ambient temperature:(23±2)°C Relative humidity:47% R.…

Text truncated - open the document above for the full version.

Model :EI-HS10 Test setup photo of EUT Model :EI-HS10 Photo of radiated spurious emission
