A3LHTWDC10WLAN Transmitter Module

Wireless Dock Cradle for iPod/iPhone Model : HT-WDC10 Thank you for purchasing this product (HT-WDC10). First, please update the main unit(HW-C450/C451) with connecting supplied USB to USB PORT back the main unit. When the main unit power is on. The power of the main unit is turned off automatically after the messages are displayed as a following order. "UPDATE" ➝ "M 0% ~ 100%" ➝ "W 0% ~ 100%" ➝ "OK". Turn on the main unit and connect the iPod/iPhone to the Wireless transmitter. Then Press O/A INPUT button on the remote control to select "iPod" mode. The INPUT mode of the main unit will switches as follows. repeatedly press DIGI.1 ➝ DIGI.2 ➝ ANALOG ➝ iPod ✴ If the iPod/iPhone does not automatically make wireless connection to the Hone Theater, ID setting must be made manually. 1. Turn off your Home Theater(HW-C450). 2. Press the hold "AV SYNC" button on the remote control for 5 seconds. The standby light on the HW-C450 will blink once. 3. Connect the iPod/iPhone to the Wireless transmitter. 4. Turn on the iPod/iPhone. Press the "ID SET" button on the back of the Wireless transmitter for 5 seconds. The link light on the wireless transmitter will blink fast. 5. Turn on your Home Theater(make sure the wireless transmitter's Link LED in ON). To listen to music from your iPod/iPhone over the Home Theater, select the iPod mode as the Home Theater's source. ✴ When iPod is connected to WDC10, both the Home Theater and the iPod Volume are operated together. Display Function LINK (Blue LED)STANDBY (Red LED) LED ON Pairing successfully completed STANDBY LED BLINK (Long blink)Processing iPod/iPhoneLOW BATTERY LED BLINK (Short blink) Processing pairingPairing failed OPERATION STATUS OF THE WIRELESS TRANSMITTER'S LED If you use the main unit nearby a wireless device such as a laptop computer, an AP, or Wifi , any unstable operation error can happen. ▪ STANDBY LINK CH ARGE DisplayFunction GREEN LED ON Power on /Charging completed RED LED ON Charging. OPERATION STATUS OF THE CHARGING CRADLE'S LED How to charge the Wireless Transmitter 1. Connect the Wireless Transmitter to the Charging Cradle. 2. Connect the DC power adaptor to a wall socket. The charging indicator lights up and charging starts. After the battery is fully charged, the charging indicator turns Green. • STANDBY LINK CHARGE Wireless Dock Cradle for iPod/iPhone ✴ The Wireless Transmitter can be only charghed by the supplied adaptor. ✴ The indication is the charging state of the built-in battery in iPod main Dock. Check the charging state of iPod/iPhone by checking the charging indication of its battery. “Made for iPod” means that an electronic accessory has been designed to connect specifi cally to iPod and has been certifi ed by the developer to meet Apple performance standards. “Made for iPhone” means that an electronic accessory has been designed to connect specifi cally to iPhone and has been certifi ed by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. ▪ ▪ ▪ iPod/iPhone MODELS THAT CAN BE USED WITH THIS PRODUCT iPod nano 3rd generation (video) iPod 5th generation (video) iPod nano 4th generation (video) iPod touch 1st generation iPod touch 2nd generation iPhone 3G iPod classiciPhone Power RequirementsAdaptor : AC 110V 60Hz , Charging Cradle : DC 5V 1A Power Consumption5W Weight0.23 lbs (total) Dimensions (W x H x D) Wireless Transmitter : 1.6 x 3.5 x 1.1 inches Charging Cradle : 2.0 x 1.1 x 2.0 inches Operating Temperature Range+41°F to +95°F Operating Humidity Range10% ~ 75% Charging time90min ± 10min Available running time 180min ± 30min (The time may differ under the condition of the iPod or the iPhone) Specifications Wireless Dock Cradle for iPod/iPhone CHARGE STANDBY LINK Wireless Transmitter DC power code Accessories Charging Cradle CHARGE STANDBY LINK CHARGE STANDBY LINK DC power adaptor CHARGE STANDBY LINK USB (only for update HW-C450/C451) CHARGE STANDBY LINK This USB memory use only for HW-C450/C451 firmware update. Samsung is not responsible for problems occurring due to using for other purposes. Be careful to keep the USB out of the reach of children, who might swallow it. ▪ ▪ TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and Arrowhead within Triangle is a warning sign alerting you of dangerous voltage Inside the product CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QULAIFIED SERVICE PERSONNEL. The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. If this power supply is used at 240V ac, a suitable plug adapter should be used. CAUTION Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC and IC NOTE (FOR U.S.A and Canada): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and Canadian ICES-003. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses…

Text truncated - open the document above for the full version.

416, Maethan 3-Dong, Youngtong-Ku, Suwon-City, Kyung-ki-Do, KOREA Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A3LHTWDC10 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagrams, Circuit Diagrams, and Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, 20 March 2010 NAME : Sun Kwan Kim TITLE : S. Manager COMPANY : Samsung Electronics Co., Ltd. 416 Maetan-dong, Young-Tong gu, Suwon, Korea 442-742

From: JayWoo Lee Sent: Sunday, May 30, 2010 8:22 PM To: 김성용; PCTEST TCB/CB Cc: 라상경; 'PCTEST - Gregory Czumak'; 'PCTEST - Randy Ortanez'; 'PCTEST - Mia Park' Subject: Re: Re: Follow-up Questions Regarding FCC ID: A3LHTWDC10 Page 1 of 5Samsung Enterprise Portal mySingle 6/2/2010 Dear PC TEST Sorry for late response, As you mention in your e-Mail. There is no 2.4GHz function in this device. It is mistake for operation description. I send revised operation description and block diagram, thanks, Please progress this HT-WDC10 ------------------------------------------------------------------------------------------------------------------- 이재우 선임 삼성전자 VD(사) 개발팀 개발솔루션그룹 Jaywoo.Lee Engineer R&D Solution Group VD Division, Samsung Electronics --------------------------- ------- Original Message------- Sender: 김성용<[email protected]> E5(책임)/책임/개발4그룹(VD)/삼성전자 Date: 2010-05-28 11:27 (GMT+09:00) Title: Re: Follow-up Questions Regarding FCC ID: A3LHTWDC10 이재우 선임.. WDC10은 2.4GHz는 사용하고 있지 않습니다. 이 부분 확인시켜 주시기 바랍니다. ------- Original Message------- Sender: PCTEST TCB/CB<[email protected]> [email protected] Date: 2010-05-28 11:27 (GMT+09:00) Title: Follow-up Questions Regarding FCC ID: A3LHTWDC10 Dear Mr. Lee. Thank you for our email. Regarding the revised Operational Description, 2.4 GHz operation capability is listed. Please confirm that this is not implemented in the EUT. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager From: JayWoo Lee Sent: Tuesday, May 25, 2010 8:53 AM To: PCTEST TCB/CB; 김성용 Cc: 라상경; PCTEST - Gregory Czumak; PCTEST - Randy Ortanez; PCTEST - Mia Park Subject: Re: Questions Regarding FCC ID: A3LHTWDC10 Dear PC TEST I send additional information for your requestion. 1. Is Short Term Confidentiality requested for any of the exhibits in the application? If so, please submit the appropriate request letter. => I don't want to submit short term confidential letter. only long term on is. 2. Please submit a block diagram showing some detail of the RF section of the EUT and listing all clocks/oscillators. => See attached block diagram. (page 2) 3. Please submit an Operational Description that describes the RF functionality of the EUT (a technical description of how the EUT generates the RF signal, the modulation format, how power is controlled, how the frequency is generated and maintained, how spurious emissions are attenuated, etc.). => See attached operation description. (page 2) 4. The block diagram shows 2 antennas. Please confirm that there is no simultaneous transmission (i.e., no MIMO operation). => There are 2 antenna on this module but these two antenna never transmit RF Page 2 of 5Samsung Enterprise Portal mySingle 6/2/2010 signal at same time I also describe this on operation description. 5. The EUT does not appear to be a pc peripheral (no mention in the application of connection to a pc). If this is the case, then no portion of the EUT is subject to DoC authorization, and the DoC logo currently shown on the FCC ID label must be removed. Please confirm, revise the label accordingly, and resubmit it. => In this HT-WDC10 model use USB port only for chargeing bettery, not communicate with PC So i send new label sample and photos for this HT-WDC10 ------------------------------------------------------------------------------------------------------------------- 이재우 선임 삼성전자 VD(사) 개발팀 개발솔루션그룹 Jaywoo.Lee Engineer R&D Solution Group VD Division, Samsung Electronics --------------------------- ------- Original Message------- Sender: PCTEST TCB/CB<[email protected]> [email protected] Date: 2010-05-19 00:59 (GMT+09:00) Title: Questions Regarding FCC ID: A3LHTWDC10 To: Mr. JayWoo Lee / Samsung Electronics Co., Ltd. From: Mr. Gregory Czumak / PCTEST TCB RE: FCC ID: A3LHTWDC10 Applicant: Samsung Electronics Co., Ltd. Correspondence Reference Number: A3L0596 Confirmation Number: 1Y1005170596 Date of Original Email: May 18 , 2010 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. Page 3 of 5Samsung Enterprise Portal mySingle 6/2/2010 1. Is Short Term Confidentiality requested for any of the exhibits in the application? If so, please submit the appropriate request letter. 2. Please submit a block diagram showing some detail of the RF section of the EUT and listing all clocks/oscillators. 3. Please submit an Operational Description that describes the RF functionality of the EUT (a technical description of how the EUT generates the RF signal, the modulation format, how power is controlled, how the frequency is generated and maintained, how spurious emissions are attenuated, etc.). 4. The block diagram shows 2 antennas. Please confirm that there is no simultaneous transmission (i.e., no MIMO operation). 5. The EUT does not appear to be a pc peripheral (no mention in the application of connection to a pc). If this is the case, then no portion of the EUT is subject to DoC authorization, and the DoC logo currently shown on the FCC ID label must be removed. Please confirm, revise the label accordingly, and resubmit it. The item indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receiv…

Text truncated - open the document above for the full version.

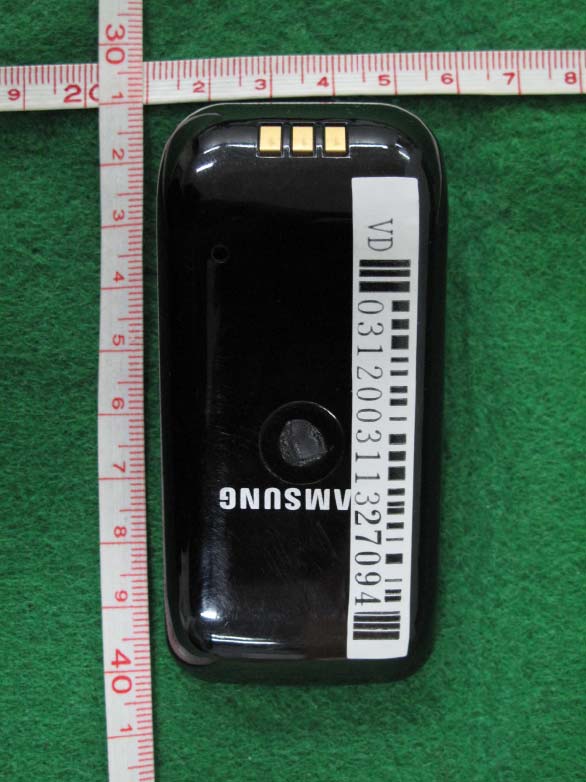

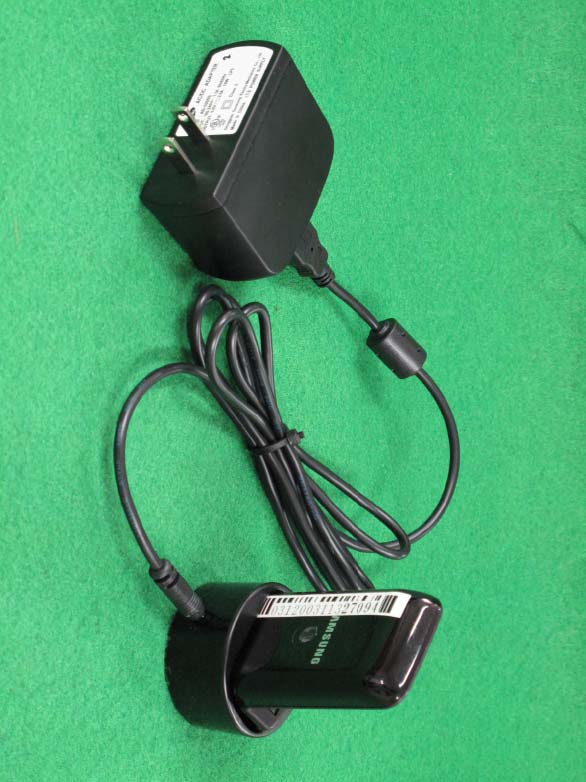

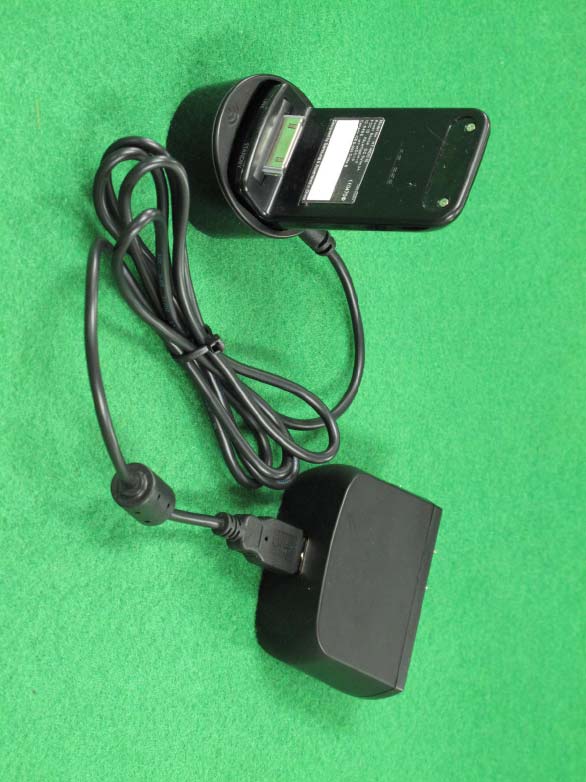

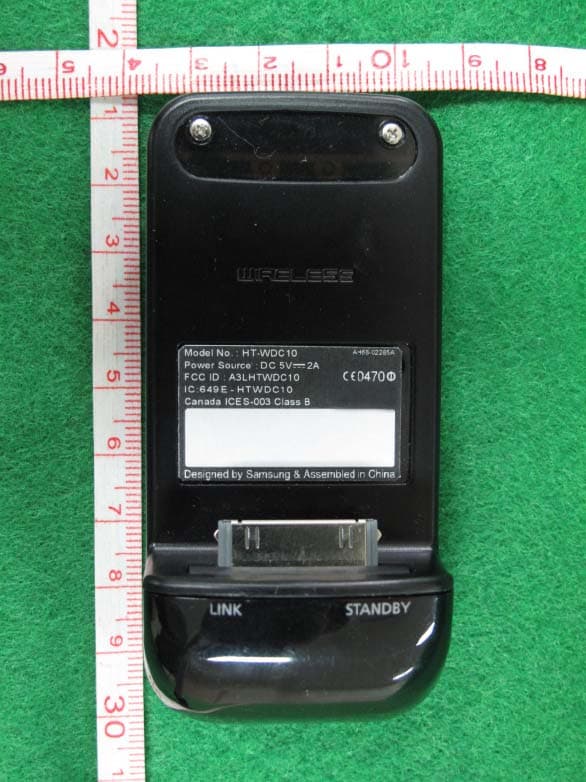

Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 43 of 58 APPENDIX C – EUT PHOTOGRAPHS Front View of System Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 44 of 58 Rear View of System Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 45 of 58 Front View of I-Pot Cradle Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 46 of 58 Rear View of I-Pot Cradle Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 47 of 58 Top View of I-Pot Cradle Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 48 of 58 Bottom of of I-Pot Cradle Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 49 of 58 Top View of Charging Cradle

Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 40 of 58 APPENDIX A – LABELLING REQUIREMENTS The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. ※ See other informations in the manual Labelling Requirements

Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 50 of 58 Front View of Main board Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 51 of 58 Front View of Main board without battery Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 52 of 58 Front View of Main board without shieding can Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 53 of 58 Rear View of Main board Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 54 of 58 Front View of Charging port board Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 55 of 58 Rear View of Charging port board Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 56 of 58 Inter View of Charging Cradle Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 57 of 58 Front View of Charging cardle board Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 58 of 58 Rear View of Charging cardle board

Ipot cradle RF exposure calculation Frequency Maximum Conducted Power (dBm) Maximum Conducted Power (mW) Max ant. Gain(dBi) 5736 MHz4.322.703.72 5762 MHz5.563.603.72 5814 MHz7.175.21 3.72 According to 447498 D01 Section 4) c) iii) For Hand SAR: 1000 x (5.732 GHz)^-0.5 = 417.68 mW For Body SAR: 300 x (5.732 GHz)^-0.5) = 125.30 mW The maximum output power 5.21 mW for this device is below the powers listed above. MPE Calculation: S = PG/4πR^2 =0.0024 mW/cm^2 (Limit: 1 mW/cm^2) Maximum distance =0.99 cm(Limit: 20 cm) Prediction of MPE limit at a given distance(WLAN) Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Mi k tt t t i tt il 717 (dB ) 2 4 R PG S π = Maximum peak output power at antenna input terminal: 7.17 (dBm) Maximum peak output power at antenna input terminal: 5.211947111 (mW) Antenna gain(typical): 3.72 (dBi) Maximum antenna gain: 2.355049284 (numeric) Prediction distance: 20 (cm) Prediction frequency: 5762 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.002442 (mW/cm^2) Maximum allowable antenna gain: 29.84269855 (dBi) Antenna Gain Margin of Compliance: 26.12269855 (dB) Maximum Distance: 0.99 (cm) Test result : PASS 2 4 R PG S π =

Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 2 of 58 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 2.1 Test facility 5 2.2 Accreditation and listing 6 3. Test Conditions & EUT Information 7 3.1 Operation During Test 7 3.2 Support Equipment 7 3.3 Setup Drawing 8 3.4 EUT Information 9 4. Summary of Test Results 10 5. Recommendation / Conclusion 11 6. Antenna Requirements 11 7. Description of Test 12 7.1 Conducted Emissions 12 7.2 Radiated Emissions 13 7.3 6 dB Bandwidth 14 7.4 Maximum Peak Output Power 14 7.5 Peak Power Spectral Density 15 7.6 Conducted Spurious Emissions 15 8. Test Data 16 8.1 Conducted Emissions 16 8.2 Radiated Emissions 19 8.3 6 dB Modulated Bandwidth 20 8.4 Peak Power Output 23 8.5 Power Spectral Density 24 8.6 Conducted Spurious Emissions 27 Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 3 of 58 8.7 Radiated Spurious Emissions 32 8.8 Receiver Spurious Emissions 34 9 Maximum Permissible Exposure 35 10 Accuracy of Measurement 37 11. Test Equipment 39 Appendix A: Labelling Requirement 40 Appendix B: Photographs of Test Set-up 41 Appendix C: EUT Photographs 43 Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 4 of 58 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15 and IC RSS-210. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Jaywoo. Lee Samsung Electronics Co., Ltd. 416 Maetan-3Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 KOREA z FCC ID: A3L-HTWDC10 z IC ID: 649E-HTWDC10 z Model: HT-WDC10 z Brand Name: SAMSUNG z EUT Type: I-Pod Cradle z Classification: z Applied Standard: z Test Procedure(s): z Dates of Test: z Place of Tests: Digital transmission system FCC 47 CFR Part 15 subpart C and IC RSS-210 ANSI C63.4 (2003) Mar. 31, 2010 ~ Apr. 27, 2010 Nemko Korea Co., Ltd. Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 5 of 58 2. INTRODUCTION 2.1 Test facility The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 and IC ID : 649E-HTWDC10 These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-322-2333 Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 6 of 58 2.2 Accreditation and listing Accreditation type Accreditation number FCC part 15/18 Filing site Registration No. 97992 CAB Accreditation for DOC Designation No. KR0026 KOLAS Accredited Lab. (Korea Laboratory Accreditation Scheme) Registration No. 155 Canada IC Registered site Site No. 2040E-1 VCCI registration site(RE/CE/Telecom CE) Member No. 2118 EMC CBTL - KCC(RRL)Designated Lab. Registration No. KR0026 SASO registered Lab and Certification Body Registration No. 2008-15 Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 7 of 58 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT was controlled by pushing the ID set button on back of the EUT according to manufacturer’s test procedure. The EUT have two antennas which are not working simultaneously. All tests were performed the worst case antenna path at the Lowest, Middle, Highest channel. Test frequency Channel Frequency (MHz) 1 5736 2 5762 3 5814 3.2 Support Equipment Wireless Transmitter (EUT) Samsung Electronics Co., Ltd. FCC ID: A3LHTWDC10 S/N: N/A Charging Cradle Samsung Electronics Co., Ltd. Model : - S/N: N/A AC/DC adaptor Dongguan Samsung Electro- Mechanics Co.,Ltd. Model :AD-1005S 1.5 m shielded cable S/N: N/A I-Pod Apple Inc. Model: A1288 FCC ID: BCGA1288 S/N: 9C011S4B75J Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 8 of 58 3.3 Setup Drawing Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 9 of 58 3.4 EUT Information The EUT is the Samsung I-Pod Cradle FCC ID: A3LHTWDC10, IC ID: 649E-HTWDC10. Specifications: Category: I-Pod Cradle Model Name: HT-WDC10 Brand Name: SAMSUNG Frequency of Operation 5736 MHz to 5814 MHz Power Output (Conducted) 7.17 dBm Channels 3 ch Antenna Gain (Max) 3.72 dBi Modulations QPSK Temperature Range -…

Text truncated - open the document above for the full version.

Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 41 of 58 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. z Conducted Test Picture(Front) z Conducted Test Picture(Rear) Test Report No.: NK-10-R-065 FCC and IC Certification Samsung Electronics Co., Ltd. FCC ID : A3LHTWDC10 / IC ID :649E- HTWDC10 Page 42 of 58 z Radiated Test Picture(Front) z Radiated Test Picture(Rear)
