Digital Home Theater System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register HT-X715 HT-X715_XAA_ENG_0318.indd 1 2 features Various CDs playback This Home Cinema System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW. DVD-Audio compatible Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail. USB Host support You can connect and play fi les from external USB storage devices such as MP3 players, USB fl ash memory, etc. using the Home Theater's USB HOST function. Dolby Pro Logic II Dolby Pro Logic II is a form of multi-channel audio signal decoding technology that improves upon existing Dolby Pro Logic. DTS (Digital Theater Systems) DTS is an audio compression format developed by Digital Theater Systems Inc. It delivers full-frequency 5.1 channel sound. TV Screen Saver Function If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen. The HT-X715 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode. Power Saving Function The HT-X715automatically shuts itself off after 20 minutes in Stop mode. Customized TV Screen Display The HT-X715 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper. HDMI HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture. AV SYNC Function Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video. Anynet+(HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.) iPod support You can enjoy music fi les by your connecting iPod to the home theater with the supplied iPod dock. Bluetooth Function You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires! WHAT’S INCLUDED Check for the supplied accessories below. Video Cable (AH39-40001V) FM Antenna ( AH42-00017A ) iPod Dock Package ( AH97-02650A ) User's Manual ( AH68-02047C ) Remote Control ( AH59-01907E ) / Batteries (AAA size) ( 4301-000116 ) ASC microphone ( AH30-00099A ) HT-X715_XAA_ENG_0318.indd 2 3 ENG safety information SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER- SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN This symbol indicates “dangerous voltage” inside the product that presents a risk of electric shock or personal injury. This symbol indicates important instructions accompanying the product. CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. If this power supply is used at 240V ac, a suitable plug adapter should be used. CAUTION Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it. • • • • • • • • • CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 HT-X715_XAA_ENG_0318.indd 3 4 safety information IMPORTANT SAFETY INSTRUCTIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interferen…

Text truncated - open the document above for the full version.

21 ENG ● CONNECTIONS CONNECTING THE VIDEO OUT TO YOUR TV Choose one of the three methods for connecting to a TV. METHOD3 (supplied) METHOD2METHOD1 METHOD 1 : HDMI (BEST QUALITY) Connect the HDMI cable from the HDMI OUT jack on the back of the DVD Player to the HDMI IN jack on your TV. METHOD 2 : Component Video (BETTER QUALITY) If your television is equipped with Component Video inputs, connect a Component video cable(not supplied) from the Component Video Output (P R, PB and Y) jacks on the back of the DVD Player to the Component Video Input jacks on your TV. METHOD 3 : Composite Video (GOOD QUALITY) Connect the supplied Video cable from the VIDEO OUT jack on the back of the DVD Player to the VIDEO IN jack on your TV. The resolution from the Component Output is 480i. If you use an HDMI cable to connect a Samsung TV to the DVD Player, you can operate the Home Theater using the TV's remote control. This is only available with SAMSUNG TVs that support Anynet+(HDMI-CEC). Please check the n logo (If your TV has an n logo, then it supports the Anynet+ function.) M    HT-X715_XAA_ENG_0318.indd 21 22 connections HDMI Auto Detection Function The player's video output will automatically change to HDMI mode when connecting an HDMI cable while power is on. HDMI (High Definition Multimedia Interface) HDMI is an interface that enables the digital transmission of video and audio data with just a single connector. Using HDMI, the DVD Home Theater transmits a digital video and audio signals and displays a vivid picture. HDMI connection description HDMI connector - Supports video and digital audio data. - HDMI outputs only a pure digital signal to the TV. - If your TV does not support HDCP (High-bandwidth Digital Content Protection), random noise appears on the screen. Why does Samsung use HDMI? Analog TVs require an analog video/audio signal. However, when playing a DVD, the data transmitted to a TV is digital. Therefore either a digital-to-analog converter (in the DVD Home Theater) or an analog-to-digital converter (in the TV) is required. During this conversion, the picture quality is degraded due to noise and signal loss. HDMI technology is superior because it requires no D/A conversion and is a pure digital signal from the player to your TV. What is the HDCP? HDCP (High-band width Digital Content Protection) is a system for protecting DVD content outputted via HDMI from being copied. It provides a secure digital link between a video source (PC, DVD. etc) and a display device (TV, projector. etc). Content is encrypted at the source device to prevent unauthorized copies from being made. What is Anynet+? Anynet+ is a convenient function that offers linked operation of this unit through Samsung TVs with the Anynet+ feature. - If your Samsung TV has an n logo, then it supports the Anynet+ function. - If you turn on the player and insert a disc, the player will start playing the disc, and the TV will turn on automatically and switch to HDMI mode. - If you turn on the player and press the Play button with a disc already inserted, the TV will immediately turn on and switch to HDMI mode. • • • • • HT-X715_XAA_ENG_0318.indd 22 23 ENG ● CONNECTIONS HDMI FUNCTION Resolution Selection This function allows the user to select the screen resolution for HDMI output. In Stop mode, press and hold the SD/HD (Standard Defi nition/High Defi nition) button on the remote control for longer than 5 seconds. Resolutions available for the HDMI output are 480p, 720p, 1080i/1080p. SD(Standard Defi nition) resolution is 480p and HD (High Defi nition) resolution is 720p, 1080i/1080p. The default value of HDMI output is 480P. If the TV does not support the confi gured resolution, you will not be able to see the picture. When an HDMI cable is connected, composite and component video signals are not output. See your TV owner's manual for more information on how to select the TV's Video Input source. Using Anynet+(HDMI-CEC) Anynet+ is a function that enables you to control other Samsung Devices with your Samsung TV's remote control. Anynet + can be used by connecting this Home Theater to a SAMSUNG TV using an HDMI Cable. This is only available with SAMSUNG TVs that support Anynet+. Connect the main unit of the Home Theater to a Samsung TV with an HDMI cable. (See page 21) Set the Anynet+ function on your TV. (See the TV instructions manual for more information.) You can operate the Home Theater by using the TV remote control. (Available TV buttons : , , , , ▲, ▼ and ◄, ► buttons,~ button) If you select the TV Set the Anynet+(HDMI-CEC) to On by pressing the Anynet+ button on your TV. Receiver : On : You can listen to audio through the Home Theater. Receiver : Off : You can listen to audio through the TV. If you select the THEATER Select THEATER to connect and set the option of each item below. View TV : If Anynet+(HDMI-CEC) is set to on and you select View TV, the Home Theater will automatically switch to DIGITAL IN mode. THEATER Menu : You can access and control the Home Theater menu. THEATER Operation : The Home Theater disc playback information will be displayed. You can control the Disc operation of the Home Theater such as title, chapter and subtitle change. Receiver : On : You can listen to audio through the Home Theater. Receiver : Off : You can listen to audio through the TV. The Theater function is available only when you listen to the audio through the Home Theater with the digital optical cable connected. • • M    1. 2. • • • • • • • • M  Why use HDMI (High Defi nition Multimedia Interface)? This device transmits a DVD video signal digitally without the process of converting to analog. You will get sharper digital pictures when using an HDMI connection. .07&&/5&3&9*5 .07&&/5&3&9*5 .07&&/5&3 &9*5 With Anynet+ You can operate this unit, power on your TV, or watch a movie by pressing the Play button on your Samsung TV's remote control. HT-X715_XAA_ENG_0318.indd 23…

Text truncated - open the document above for the full version.

46 playback PLAYING MEDIA FILES USING THE USB HOST FEATURE You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video with 5.1 channel Home Theater sound by connecting the storage device to the USB port of the Home Theater. Connect the USB device to the USB port on the side of the unit. Press the FUNCTION button on the DVD Player or the PORT button on the remote control to select the USB mode. USB appears on the display screen and then disappears. The USB MENU screen appears on the TV screen and the saved fi le is played. To stop playback, press the STOP () button. Safe USB Removal To prevent damage to the data stored in the USB device, perform safe removal before disconnecting the USB cable. Press the STOP () button twice in a row. The display will show REMOVE USB. Remove the USB cable. To listen to your music fi les with 5.1 channel home theater sound, you must set the Dolby Pro Logic II mode to Matrix. (See page 58) Skip Forward/Back During playback, press the #, $ button. When there is more than one fi le and you press the $ button, the next fi le is selected. When there is more than one fi le and you press the # button, the previous fi le is selected. 1. 2. • • 3. • • M  • • AUX IN1 iPOD *6:A:##A'0)AKPFF 47 ENG ● PLAYBACK Fast playback During playback, press the ,  button. Each time you press either button, the playback speed will change as follows: 2x € 4x € 8x € 32x € Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) MP3 Player: HDD and fl ash type MP3 players. Digital camera: Cameras that support USB Mass Storage v1.0. Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1. You may experience a difference in playback quality when you connect a USB1.1 device. For a USB HDD, make sure to connect an auxiliary power cord to the USB HDD for proper operation. USB card Reader: One slot USB card reader and Multi slot USB card reader. Depending on the manufacturer. the USB card reader may not be supported. If you install multiple memory devices into a multi card reader, you may experience problems. If you use a USB extension cable, the USB device might not be recognized. Supported Formats FormatFile name File extension Bit rateVersionPixel Sampling Frequency Still Picture JPGJPG .JPEG––640x480– Music MP3.MP380~384kbps––44.1kHz WMA.WMA56~128kbpsV8–44.1kHz Movie WMV.WMV4MbpsV1,V2,V3,V7720x48044.1KHz~48KHz DivX.AVI,.ASF4Mbps DivX3.11~ DivX5.1, XviD 720x48044.1KHz~48KHz CBI (Control/Bulk/Interrupt) is not supported. Digital Cameras that use PTP protocol or require additional program installation when connected to a PC are not supported. A device using NTFS fi le system is not supported. (Only FAT 16/32 (File Allocation Table 16/32) fi le system is supported.) Some MP3 players, when connected to this product, may not operate depending on the sector size of their fi le systems. The USB host function is not supported if a product that transfers media fi les by its manufacturer- specifi c program is connected. Does not operate with Janus enabled MTP (Media Transfer Protocol) devices. The USB host function of this product does not support all USB devices. For information on the supported devices, see page 65. • 1. 2. 3. • 4. • • 5. • • 6. • • • • • • • *6:A:##A'0)AKPFF 48 system setupsystem setup For your convenience, you can set this Blu-ray Home Theater's features for the best use in your home environment. SETTING THE LANGUAGE OSD(On-Screen Display) language is set to English by default. In Stop mode, press the MENU button. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. Select Language and then press the ENTER or ► button. Press the Cursor ▲,▼ button to select OSD Language and then press the ENTER or ► button. Press the Cursor ▲,▼ button to select the desired language and then press the ENTER button. Once the setup is complete, the OSD will be English if English has been selected as language.  Press the RETURN button to return to the previous level.  Press the EXIT button to exit the setup screen. OSD LANGUAGE : Selecting the OSD Language AUDIO : Selecting the Audio Language (recorded on the disc) SUBTITLE : Selecting the Subtitle Language (recorded on the disc) DISC MENU : Selecting the Disc Menu Language (recorded on the disc) ÚIf the language you selected is not recorded on the disc, menu language will not change even if you set it to your desired language. OTHERS : To select another language, select OTHERS and enter the language code of your country (see page 64). AUDIO, SUBTITLE and DISC MENU languages can be selected. 1. 2. 3. 4. 5. • • • • • • .07&&/5&3 &9*53&563/ .07&&/5&3&9*53&563/ .07&&/5&3&9*53&563/ .07&4&-&$5&9*5 3&563/ *6:A:##A'0)AKPFF 49 ENG ● SYSTEM SETUP SETTING TV SCREEN TYPE Depending on your TV type (Wide Screen or conventional 4:3), you can select the TV's aspect ratio. In Stop mode, press the MENU button. Press the Cursor ▼ button to move to Setup and then press the ENTER or ► button. Press the Cursor ▼ button to move to TV DISPLAY and then press the ENTER or ► button. Press the Cursor ▲,▼ button to select the desired item and then press the ENTER button. Once the setup is complete, you will be taken to the previous screen. Press the RETURN button to return to the previous level. Press the EXIT button to exit the setup screen. Adjusting the TV Aspect Ratio (Screen Size) The horizontal to vertical screen size ratio of conventional TVs is 4:3, while that of widescreen and high definition TVs is 16:9. This ratio is called the aspect ratio. When playing DVDs recorded in different screen…

Text truncated - open the document above for the full version.

Date: Mar. 25, 2008 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Steve Kim / General Manager Samsung Electronics Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

1 Lucy Tsai From: Kim, Sent: Monday, April 21, 2008 11:30 PM To: Lucy Tsai Cc: Subject: RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LHTX715, Assessment NO.: AN08T7805, Notice#1 Dear Lucy, Please refer to the below answer. If you have any questions, let me know. Thanks and regards. Raymond Kim/ ? ? ? Wireless Division Assistant Section Chief/ ?? SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: Mobile: Fax: E -mail : • From: Loh, Sent: Tuesday, April 22, 2008 11:42 AM To: Kim, Do, ); Jeong Cc: Ham, Denny (Gunpo) Subject: RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LHTX715, Assessment NO.: AN08T7805, Notice#1 • ??? ?? ??? ???????. ??????. -----Original Message----- 2 From: Lucy Tsai Sent: Monday, April 07, 2008 8:26 PM To: 'Loh, Subject: FW: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LHTX715, Assessment NO.: AN08T7805, Notice#1 Dear Grace, Following are some issues regarding 15B report need to be addressed. Q#1: Test report doesn't include the calibration information for the test equipment, please address. Ans.: Please find attached Part15B test report. Q#2: Test configuration is not acceptable. According to ANSI C63.4:2003, all available I/O ports should be connected during the test. Besides, as indicated in test report, support equipment list doesn't agree with test setup photos, please explain. Ans.: Confirmed that all I/O ports have been properly connected during the test. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email.

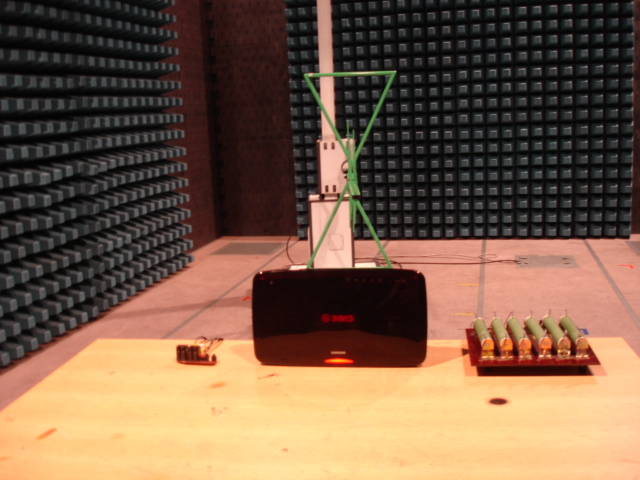

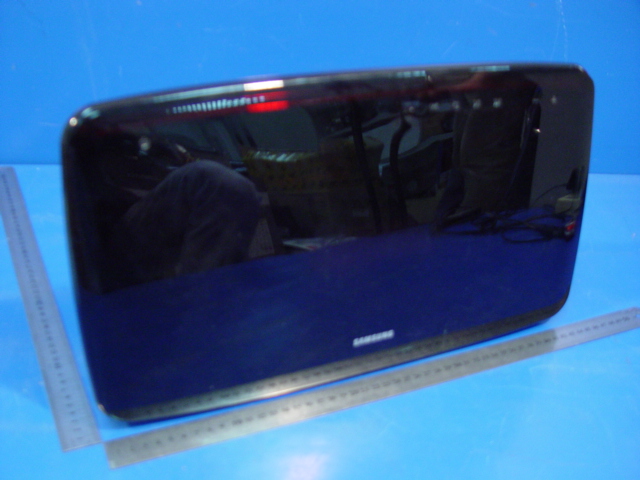

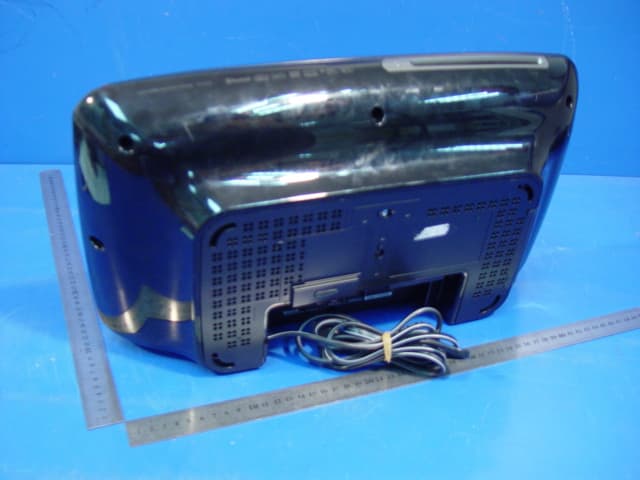

Report No.: WT088000312 Page 38/39 Photo 3 Radiated disturbances Test Photo 4 Appearance of EUT Report No.: WT088000312 Page 39/39 Photo 5 Appearance of EUT

G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 87 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of RF Module Bottom View of RF Module G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 86 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Optic Board Bottom View of Optic Board G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 85 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of Sub Board Bottom View of Sub Board G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 84 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of LCD Bottom View of LCD G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 83 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Main Board Top View of DVD G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 82 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Power Top View of Main Board G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 81 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Digital AMP Top View of Power G G G FCC ID : A3LHTX715 Report File No. :F690501/RF-RTL001821 Page : 80 of 87 G The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company.G SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT Top View of Digital AMP

EMC TEST REPORT For DVD Receiver Model Number: HT-X715, HT-X710 Report Number : WT088000312 Test Laboratory : Shenzhen Academy of Metrology and Quality Inspection EMC Laboratory Guangdong EMC Compliance Test Center Site Location : Bldg. Of Metrology &Quality Inspection, Longzhu Road, Shenzhen, Guangdong, China Tel : 0086-755-26941637, 26941529, 26941531 Fax : 0086-755-26941545 Email : [email protected] Report No.: WT088000312 Page 2/39 TABLE OF CONTENTS TEST REPORT DECLARATION ........................................................................................................3 1. TEST RESULTS SUMMARY ...................................................................................................4 2. GENERAL INFORMATION ....................................................................................................5 2.1. Report information ............................................................................................................5 2.2. Laboratory Accreditation and Relationship to Customer .................................................5 2.3. Measurement Uncertainty .................................................................................................5 3. PRODUCT DESCRIPTION ......................................................................................................6 3.1. EUT Description ...............................................................................................................6 3.2. Block Diagram of EUT Configuration..............................................................................6 3.3. Support Equipment List ....................................................................................................6 3.4. Operating Condition of EUT ............................................................................................6 3.5. Test Conditions .................................................................................................................6 4. TEST EQUIPMENT USED .......................................................................................................7 4.1. Test Equipment Used to Measure Conducted Disturbance ..............................................7 4.2. Test Equipment Used to Measure Radiated Disturbance .................................................7 4.3.…
