A3LIR31CFFMulti Function Printer

Code: Rev.No: OldCode: Confidential REF NR Initial Release Date PAGE 1 BA T CCD M ADF JOINT ADF B'D COVER OPEN ADF MOTOR S C F BIN FULL ADF DET ADF REG ADF POS FLAT MOTOR DEVE JOINT FUSER INLET&SWITCH DRAWER CON. 14P 3P 10P 2P 16P 24P Halogen Lamp Thermostat 2P 3P 24P 2P 3P 2P 3P 2P 1P Dev Bias & SUPPLY Y Dev Bias & SUPPLY M Dev Bias & SUPPLY C Dev Bias & SUPPLY K Y CRUM M CRUM C CRUM K CRUM SMPS Standard Type 3 +24V 4.5A, +5V 3A TONER KIT 2P 24P 22P MAIN SRAM 1Mbit EEPROM 64Kbit N/W Φ STE100P SD[31:0] SA[12:0],BA0,1 nSCS0,1 SDRAM 64MB SDRAM 64MB nRAS,nCAS, nWE,DQM,CKE, SDCLK0,1 ADDR[13:2] ADDR[22:2] ADDR[9:2] Flash 4MB nRD,nWR,nCS DATA[31:16] DATA[31:0] DATA[31:16] nRD,nWR,nCS nRD,nWR,nCS 6MHz 12MHz USB2.0 Dev USB2.0 Host TX_CLK,RX_CLK,MAC_TXD[3:0] MAC_RXD[3:0] SCL SDA AFE HT82V26 LVDS FIN1047 AFE,CCDControl DATA[31:24] ADDR[8:2] nRD,nWR,nCS USB_D Conn USB_H Module 25MHz 32.768KHz CHORUSm ARM9- 300MHz SDRAM Controller Local Controller MAC I2C UART ADC 8ch PWM 8ch LSU Controller Image Processor HPVC STEPMotor GPIO RJ-45 OPE 16*2 LCD SRAM_D[15:0] SRAM_A[15:0] UART9600bps 2P Light-Emitting Deve 34C02 CRUM 2P HVPS Charger 1ea T1 1ea T2 1ea Bias AC 1ea DC 1ea RELAY RELAY RELAYRELAY DEV_CLT T2_CLT ITB_CLT PICKUP_CLT REGI_CLT COVER_S/W LSU S/W LSU BLDC 2P 3P 4P 16P 4P INNER TEMP SENSOR 4P 4P 4P 4P TONER CLT TONER CLTTONER CLT TONER CLT 2P 2P 2P 2P TONER SENSOR TONER SENSORTONER SENSORTONER SENSOR FUSER_CLT 2P ITB_JOINT ITB_HOME_SENSOR PTL & ERASER 4P 2P WASTE LEVEL RX 2P WASTE LEVEL TX 2P 2P 2P2P EMPTY_SENSOR REGI_SENSOR THERMISTOR DEVE HOME SENSOR MP_SENSOR 9P 8P SCANNER HOME 3P FAN MAIN 2P EXIT SENSOR 2P 12MHz SystemClock SYSTEM PLL VIDEO PLL RTC VideoClock 12MHz RTCClock DAA FAX CLX-3160FN only [CLX-3160F(N)] Block Diagram

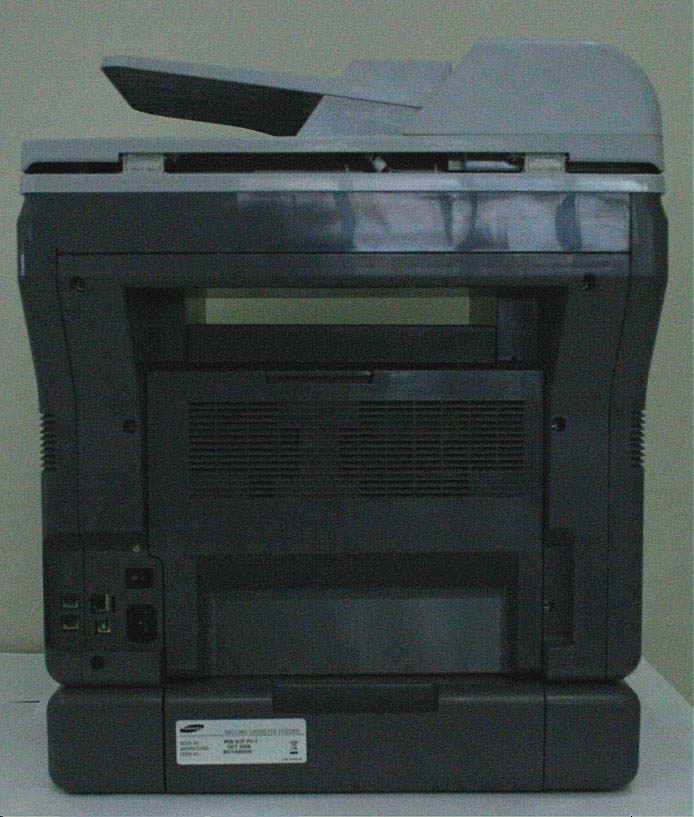

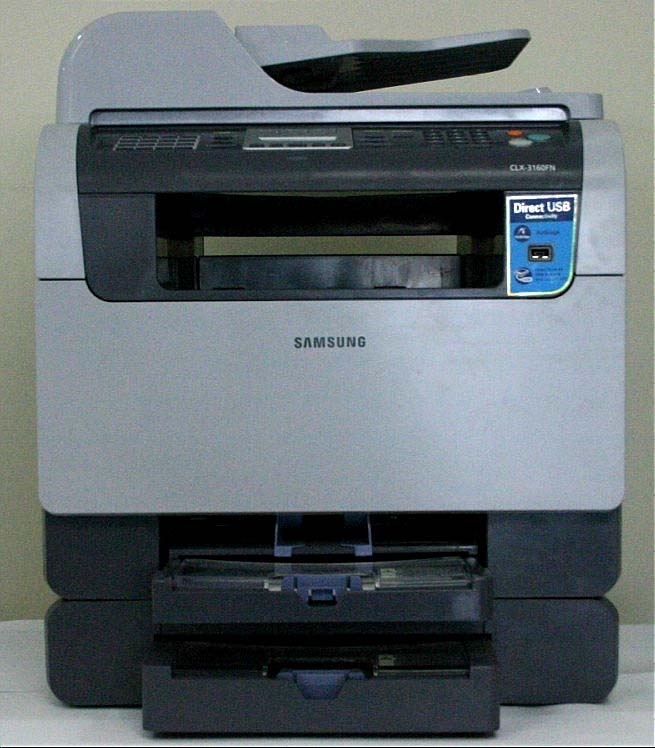

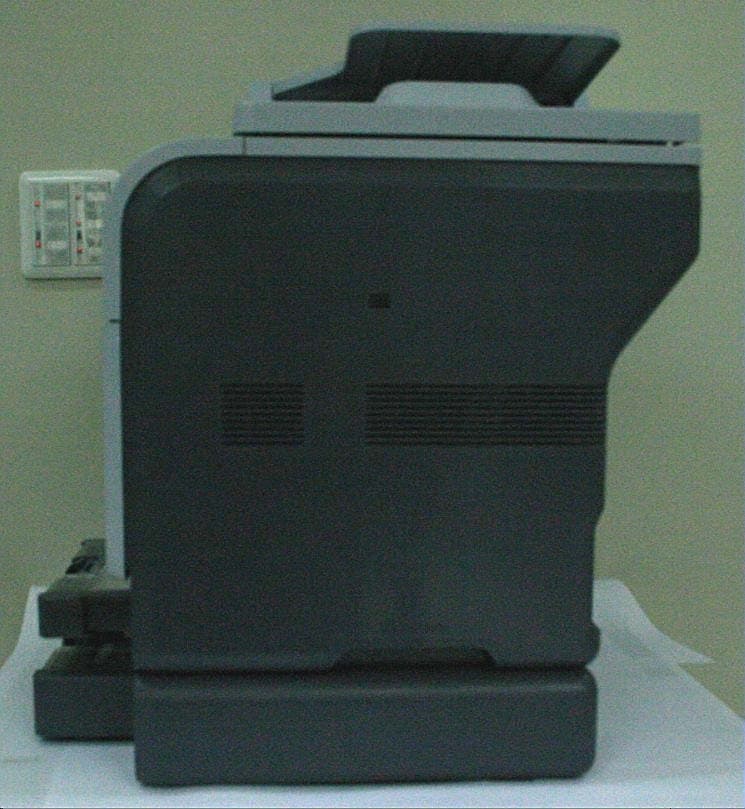

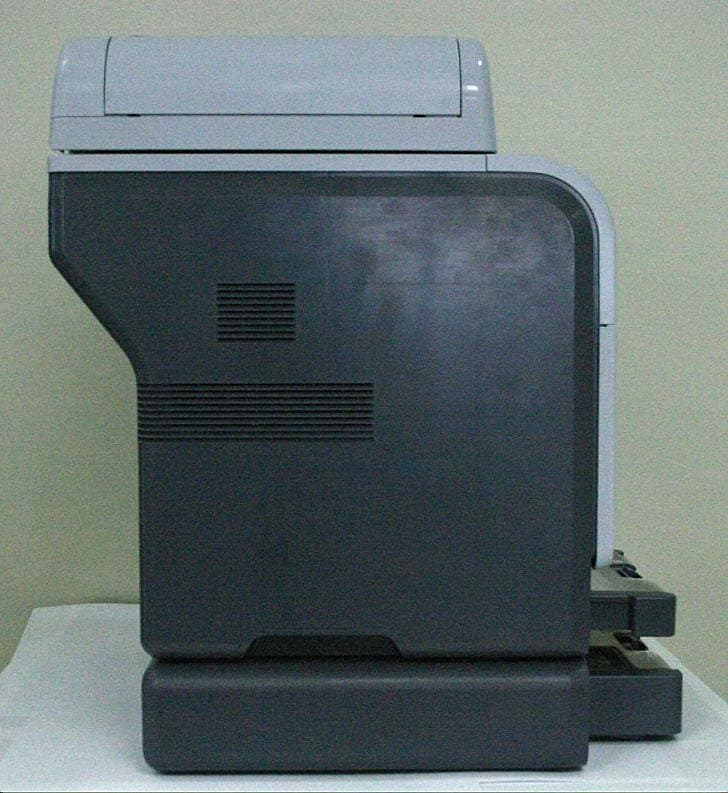

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2 2. Internal Pictures 1) Front View 2) Rear View

20 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 7 Label Location Pic. 8 Label (CLX-3160FN) – KOREA

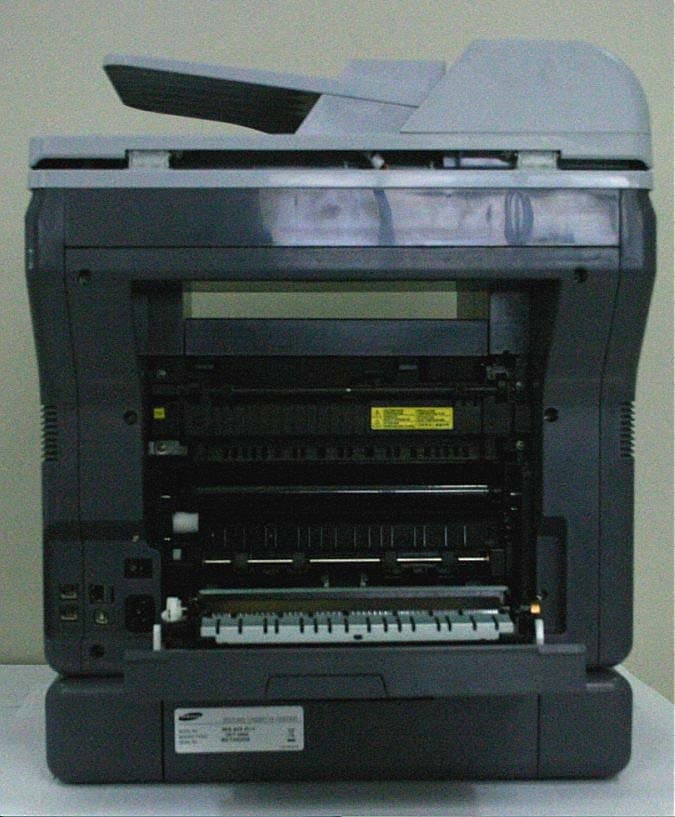

2. Internal Pictures 1) Front View 2) Rear View 3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of OPE 8) Bottom View of OPE 9) Top View of FAX 10) Bottom View of FAX 11) Top View of ADF 12) Bottom View of ADF 13) Top View of Joint B'D 14) Top View of Joint B'D

CLX-3160N/CLX-3160FN Technical Specification ItemDescription ADF Up to 50 sheets(20lb bond,75 g/m 2 ) ADF Document size Width:5.6to8.5inches Length : 5.8 to 14 inches Paper input capacity Tray 1 : 150 multi-pages for plain paper Manual tray : 1 page for plain paper,label,card,stock,transparency Optional tray : 250 multi pages for plain paper Paper out capacity Output tray : 100 sheet (face down) Power Rating 110 ~ 127 VAC, 5A, 50/60 Hz Power Consumption Average : 400 W Power Save mode : Less than 17 W Noise Level Printing mode Black and white : Less than 49 dBA Color : Less than 48 dBA Copying mode : Less than 55 dBA Standby mode : Less than 35 dBA Consumable life Black Toner Cartridge : Approx. 2,000 A4/Letter pages at 5% Coverage Yellow/Magenta/Cyan Toner Cartridge : Approx. 1,000 A4/Letter pages at 5% Coverage Duty cycle Monthly : Up to 24,200 images Weight 20.5 kg (including consumables) Package weight Paper : 2.8 Kg, Plastic : 700 g External dimensions (W x D x H) 466 x 429 x 486 mm(18.3 x 16.8 x 19.1 in) Operating Environment Temperature : 59 ~ 90 °F (15 ~ 32.5 °C ) Humidity : 20 ~ 80 % RH Warm-up time Less than 35 seconds (from sleep mode) Display 16 characters x 2 lines Memory 128MB Printer Specifications General Specifications ItemDescription Printing method Laser Beam Printing Printing speed Black & White : Up to 16 ppm in A4 Color : Up to 4 ppm in A4 First print out time From Ready Black and White : Less than 14 seconds Color : Less than 26 seconds From ColdBoot Black and White : Less than 45 seconds Color : Less than 57 seconds Print Resolution Up to 2400 x 600 dpi effective output Printer Language SPL-C OS compatibility Windows 98/Me/NT4.0/2000/XP/2003 Various Linux OS Mac OS 10.3 ~ 10.4 Interface High Speed USB 2.0 Device, USB 1.1 Host Ethernet 10/100 Base TX Facsimile Specifications ( CLX-3160FN Only ) Scanner and copier Specifications ItemDescription Compatibility ITU-T Group3 Applicable line Public Switched Telephone Network(PSTN) or behind PABX Data coding MH/MR/MMR/JBIG/JPEG Modem speed 33.6 kbps Transmission speed Approx. 3 second/page Maximum document length Scanner glass : 11.7 inches ADF : 14 inches Resolution Standard : 203 x 98 dpi Fine : 203 x 196 dpi Super Fine : 300 x 300 dpi Photo : 203 x 196 dpi Color : 200 x 200 dpi Memory 4MB Halftone 256 levels Auto dialer Speed buttons(up to 30 numbers) Speed dialing(up to 240 numbers) ItemDescription Compatibility TWAIN standard / WIA standard Scanning method ADF and Flat-bed Color CCD module Resolution Optical : 600 x 1200 dpi (mono and color) Enhanced : 4,800 x 4,800 dpi Effective scanning length Scanner glass : 11.7 inches ADF : 14 inches Effective scanning length Max 8.2 inches Color bit depth 24-bit Mono bit depth 1-bit for Linearity & Halftone 8-bit for Gray mode Copy speed Black & White : Up to 16 cpm in A4@SDMC Color : Up to 4 cpm in A4 Copy resolution Scan : up to 600 x 300 dpi(text, text/photo) up to 600 x 600 dpi(photo) Print : up to 600 x 600 dpi(text, text/photo) up to 1200 x 1200 dpi(photo) Zoom rate Scanner glass : 25 to 400% ADF : 25 to 100% Multiple copies 1 to 99 pages Grayscale 256 levels ■ Type No : A3LIR31CFF ■ Clock Frequency List Main Source Clock: 12 MHz Video Source Clock: 12 MHz RTC Source Clock: 32.768 KHz USB Device Source Clock : 12 MHz USB Host Source Clock:6 MHz NetworkSourceClock: 25MHz CPU Operating Clock: 300 MHz SDRAM Operating Clock : 100 MHz Video Operating Clock: 15.922 MHz OPE MICOM Source Clock : 7.37 MHz CCD Operating Clock(mono) : 8.33 MHz MODEM Source Clock: 28.224 MHz ■ Variant Models CLX-3160FN (with a FAX function ) CLX-3160N (without a FAX function ) (Variant model 은함께보내는라벨을참조해주십시오 ..) ■생산공장주소 1)KOREA Samsung Electronics Co.,Ltd. 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea Place:M259 2)CHINA Shandong Samsung Telecommunications Co., Ltd. #264209, Samsung Road, Weihai Hi-Tech. IDZ, Shangdong Province P.R.CHINA

1 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE052787 Equipment under Test Applicant Samsung Electronics Co., Ltd 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea FCC ID A3LIR31CFF Product Name Multi Function Printer Model Name CLX-3160FN Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Date of Test November 28, 2005 ~ November 29, 2005 Issued Date December 09, 2005 Name/Position Signature Tested by Min Gon, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC filing Registration Number : 873282 NVLAP LAB CODE 200623-0 2 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name CLX-3160FN Applicant Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Contact Person Min Gon, Kim Kind of product Multi Function Printer Variant List CLX-3160N Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China New / Alternative / Permissive change Information New 1.2 Detail Information related Product Specification Item Specification Remark Power rating 110 ~ 127 VAC, 5A, 50/60 Hz - Power consumption Average : 400 W Power Save mode : Less than 17 W - Display 16 characters x 2 lines - Memory 128MB - External dimension 466 x 429 x 486 mm(18.3 x 16.8 x 19.1 in) - Weight 20.5 kg (including consumables) - Printing method Laser Beam Printing - Printing speed Black & White : Up to 16 ppm in A4 Color : Up to 4 ppm in A4 - Print resolution Up to 2400 x 600 dpi effective output - Interface High Speed USB 2.0 Device, Ethernet 10/100 Base TX - 4 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Scanning method ADF and Flat-bed Color CCD module - Scan Resolution Optical : 600 x 1200 dpi (mono and color) Enhanced : 4,800 x 4,800 dpi - Copy speed Black & White : Up to 16 cpm in A4 Color : Up to 4 cpm in A4 - Copy resolution Scan : up to 600 x 300 dpi(text, text/photo) up to 600 x 600 dpi(photo) Print : up to 600 x 600 dpi(text, text/photo) up to 1200 x 1200 dpi(photo) - Modem speed 33.6 kbps - Fax Resolution Standard : 203 x 98 dpi Fine : 203 x 196 dpi Super Fine : 300 x 300 dpi Photo : 203 x 196 dpi Color : 200 x 200 dpi - Fax Memory 4MB - Fax Data coding MH/MR/MMR/JBIG/JPEG - Operating Frequency - Main Source Clock : 12 MHz - Video Source Clock : 12 MHz - RTC Source Clock : 32.768 KHz - USB Device Source Clock : 12 MHz - USB Host Source Clock : 6 MHz - Network Source Clock : 25 MHz - CPU Operating Clock : 300 MHz - SDRAM Operating Clock : 100 MHz - Video Operating Clock : 15.922 MHz - OPE MICOM Source Clock : 7.37 MHz - CCD Operating Clock(mono) : 8.33 MHz - MODEM Source Clock : 28.224 MHz 5 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB and Network(LAN) printing, Fax Tx and Rx mode, Copy mode. In each test mode, finally we found worst case emission. So, the data of the maximum EUT operation, ADF Copy was reported. - ADF Copy Mode (worst emission) - USB Printing Mode - Network(LAN) Printing Mode - Fax Tx, Rx Mode - Standby Mode - Power Input Voltage : AC 110V Frequency : 60Hz 1.4 Test System Details Refer to 1.2 1.5 Equipment Modifications No equipment modifications were required. 6 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Conducted Emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tab…

Text truncated - open the document above for the full version.

17 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 21 Samsung EMC Laboratory Project No: LBE052787 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3. Radiated Emission (Front) Pic. 4. Radiated Emission (Rear)
