A3LLASERMFP1815DNMulti Function Printer

www.dell.com | support.dell.com Dell™ Laser Multi-Function Printer 1815n/1815dn Owner’s Manual Look Inside For: • Preparing Your Multi-Function Printer • Understanding the Software • Loading Print Media • Using Your Multi-Function Printer • Maintenance • Troubleshooting • Installing Options • Contacting Dell Temporary 3 Ordering Supplies Dell™ toner cartridges are available only through Dell. You can order toner cartridges online at www.dell.com/supplies or premier.dell.com: Dell’s secure, customizable, procurement, and support site for its larger relationship customers. NOTE: If your country is not listed, contact your Dell distributor to order supplies. USA 877-INK-2-YOU Austria08 20 - 24 05 30 35 Belgium02.713 1590 Canada877-501-4803 Colombia01800-9-155676 Denmark3287 5215 Finland09 2533 1411 France0825387247 Germany0800 2873355 Ireland1850 707 407 Italy800602705 Luxembourg02.713 1590 Mexico866-851-1754 Netherlands020 - 674 4881 Norway231622 64 Portugal21 4220710 Puerto Rico866-851-1760 Spain902120385 Sweden08 587 705 81 Switzerland0848 335 599 UK0870 907 4574 Toner cartridgePart number Dell Standard Capacity Toner Cartridge a a. Dell Standard Capacity Toner Cartridge life is 3,000 pages and Dell High Capacity Toner Cartridge life is 5,000 pages. NF485 Dell High Capacity Toner CartridgeRF223 4 5 Notes, Notices, and Cautions NOTE: A NOTE indicates important information that helps you make better use of your printer. NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. CAUTION: A CAUTION indicates a potential for property damage, personal injury, or death. Information in this document is subject to change without notice. © 2006 Dell Inc.. All rights reserved. Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden. Trademarks used in this text: Dell, DELL logo, Dell ScanCenter and Dell Toner Management System are trademarks of Dell Inc.; Microsoft and Windows are registered trademarks of Microsoft Corporation.; PaperPort ® is a registered trademark of ScanSoft, Inc.; Adobe ® and PhotoShop ® are registered trademarks of Adobe Systems Incorporated. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names of their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own. Model Laser MFP 1815n/1815dn June 2006SRVRev. A00 6 Contents7 Contents Understanding Your Multi-Function Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 Rear View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 CAUTION: SAFETY INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 1Preparing Your Multi-Function Printer Unlocking the Scanner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 Using the Operator Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Common Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Key Pad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Dell Laser MFP 1815n/1815dn Menu Functions. . . . . . . . . . . . . . . . . . . . . 21 Changing the Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Setting Up Faxing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Setting the Printer ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 Using the Number Keypad to Enter Characters . . . . . . . . . . . . . . . . . . . . . . . . . 23 Setting the Time and Date . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24 Storing a Number for Speed Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Setting Group Dial. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 Preparing Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Attaching Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 Printing the Network Configuration Page. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27 2Understanding the Software Software Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29 Installing Dell Software For Local Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Windows XP: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30 Windows 2000: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Windows 98: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31 Windows Me: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 Assigning an IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32 8Contents Installing Dell Software For Network Printing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33 Uninstalling Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34 3Loading Print Media Print Media Guidelines . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

F US E R COVE R OP E N E XI T S E NS OR HVP S DP X S E NS OR R E GI S E NS OR F E E D S E NS OR COVE R OP E N S / W MHV OP C DE V S UP P L Y THV P AP E R E MP TY S E NS OR P L ATE N MOTOR P L ATE N COVE R OP E N COL OR CCD MODUL E ( 6 0 0 DP I ) ADF - P - R E GI S E NS OR - P - DE T S E NS OR - P - P OS S E NS OR - MOTOR DR I VE R OP E - MI COM. - L CD DR I VE R - KE Y S CAN CCD HOME S ENS OR L CD( 1 6 Ch a r * 2 l i n e s ) AUDI O DR I VE S S D MODE M S F X3 3 6 3 3 . 6 KBP S L S D CX2 0 4 9 3 L I NE EXTER NAL F AX MODUL E CARD P A R A L L E L U S B 2 . 0 BL OCK DI AGRAM S CF ( OP TI ON) - S E NS OR 1 E A - MOTOR DR I VE R ( A3 9 7 7 ) US B HOS T MAI N MOTOR ( BL CD) L S U I NTE RL OCK S WI TCH CRUM PTL PI CKUP CL UTCH MPF CL UTCH REGI . CL UTCH MPF S ENS OR NETWORK W I R E D CF TYP E WI R E L E S S L AN CAR D ( OP TI ON) CONNECTI ON MAI N F AN DUPL EX MOTOR EXI T MOTOR DUPL EX F AN DUP L E X MOTOR DR I VE R I C E XI T MOTOR DR I VE R I C ( AN4 4 0 6 0 A) F AS T S R AM ( 1 2 8 KB) NAND F L AS H ( 3 2 MB* 1 EA) S DRAM ( 3 2 MB* 2 EA) RAM DI MM. DRAM BACK UP L OGI C AF E CCD DRI VI NG P ART MOTOR DRI VER RES ET US B Dr i v e r ( I S P 1 5 8 2 ) NI C I / F ( PHY CHI P) US B HOS T CONTROL L E R I C S UP ER1 2 8 4 I NL E T S MP S +5 V +2 4 V +2 4 VS F AC 1 1 0 / 2 2 0 V F US ER BATTE RY

Mia Kang From: Mia Kang [[email protected]] Sent: Wednesday, January 11, 2006 5:08 PM To: '[email protected]' Cc: 'Alfred Cirwithian'; 'randy'; 'Gregory Czumak'; [email protected] Subject: FCC ID: A3LLASERMFP1815DN Page 1 of 2 1/17/2006 To: Steve Kim/ Samsung Electronics Co., Ltd. From: Gregory Czumak/PCTEST TCB Re: FCC ID: A3LLASERMFP1815DN (Multi Function Printer ) Applicant: Samsung Electronics Co., Ltd. Application Received: 1/06/05 Correspondence Reference Number: 260111A.A3L Confirmation Number: 1601060008 Date of Original Email: 1/11/05 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. RT Questions: 1. You have submitted the average measurement data for radiated emissions over 1 GHz. Please submit the peak radiated data for these emissions, in order to demonstrate compliance with Section 15.35(b). The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fees. If you have any questions, please do not hesitate to contact us. Sincerely, Gregory Czumak Quality Manager Senior Certification Engineer PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia , MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you. Page 2 of 2 1/17/2006 SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 DATE : January 13, 2005 PCTEST Engineering Laboratory Inc. Atten.: Mr. Randy Ortanez / Mr. Gregory Czumak 6660-B Dobbin Road Columbia, MD 21045 Subject: Radiated emission test FCC ID: A3LLASERMFP1815DN Gentlemen: We, Samsung Electronics, hereby declare the comments regarding to radiated Emission test results above 1 GHz as follows; “ The measured peak emission levels do not exceed the average limit by more than 20dB.” Should you have any questions or comments concerning the above, please contact the undersigned. Sincerely, Steve Kim General Manager American QA Lab SAMSUNG Electronics America INC.

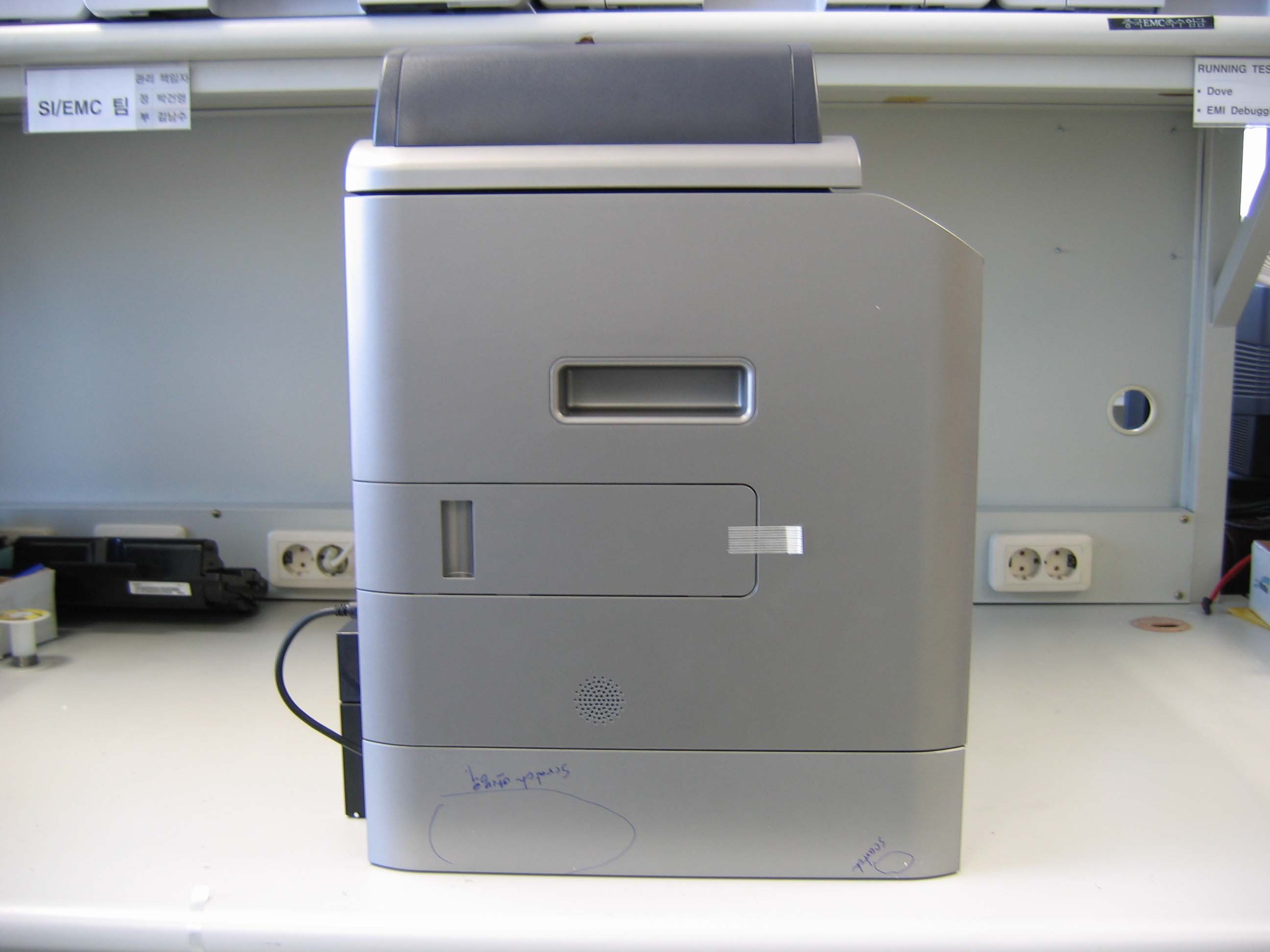

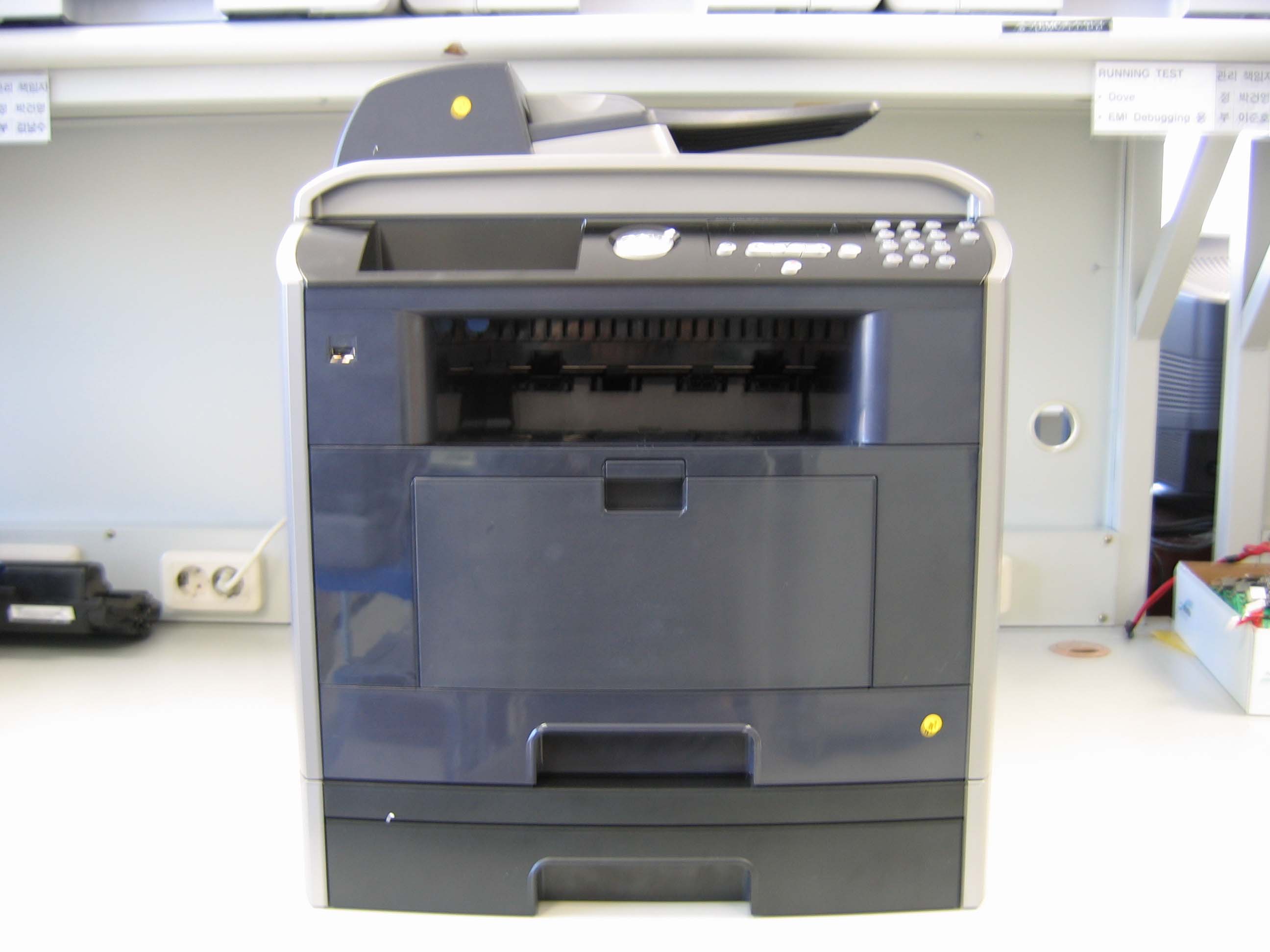

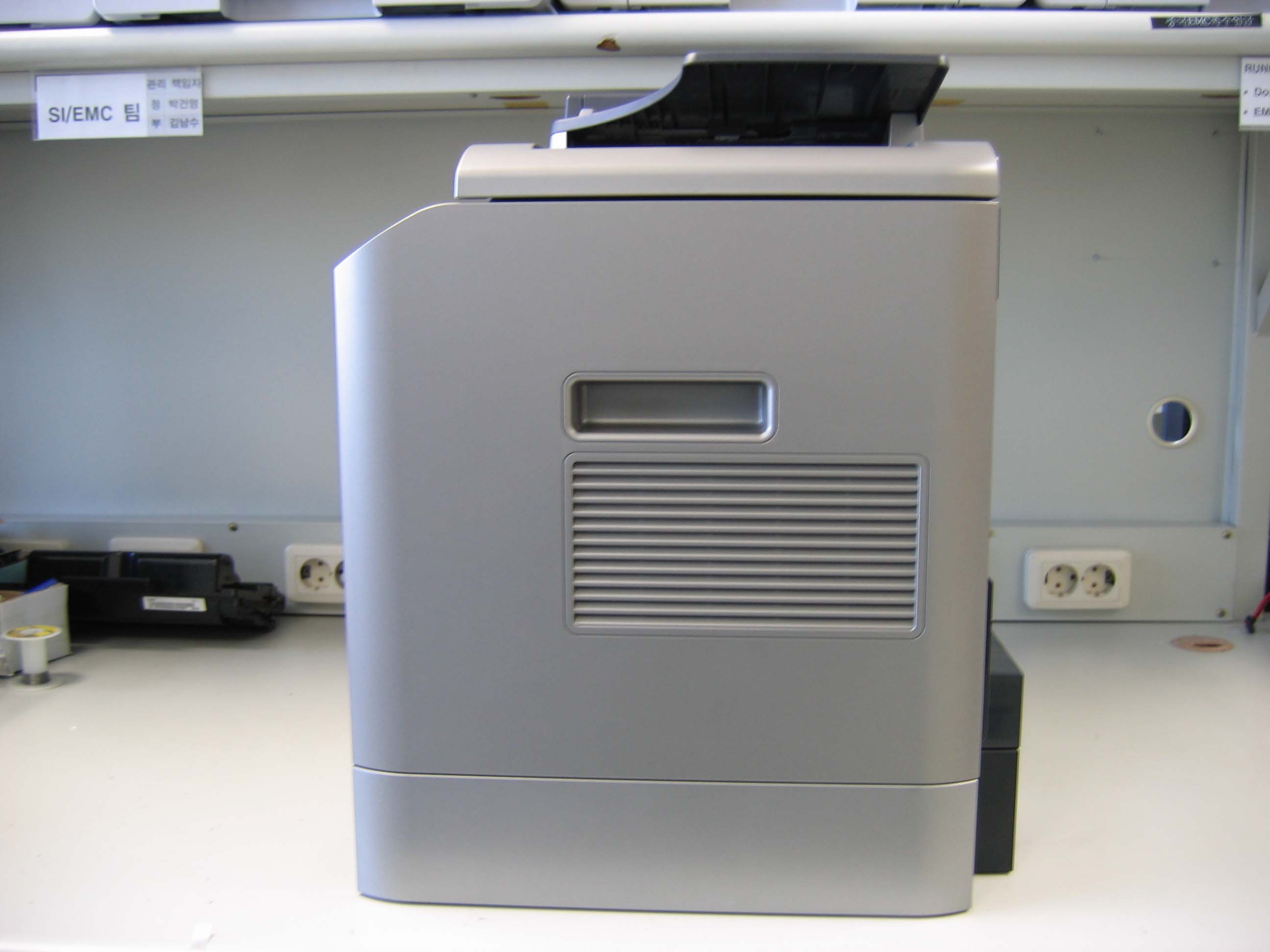

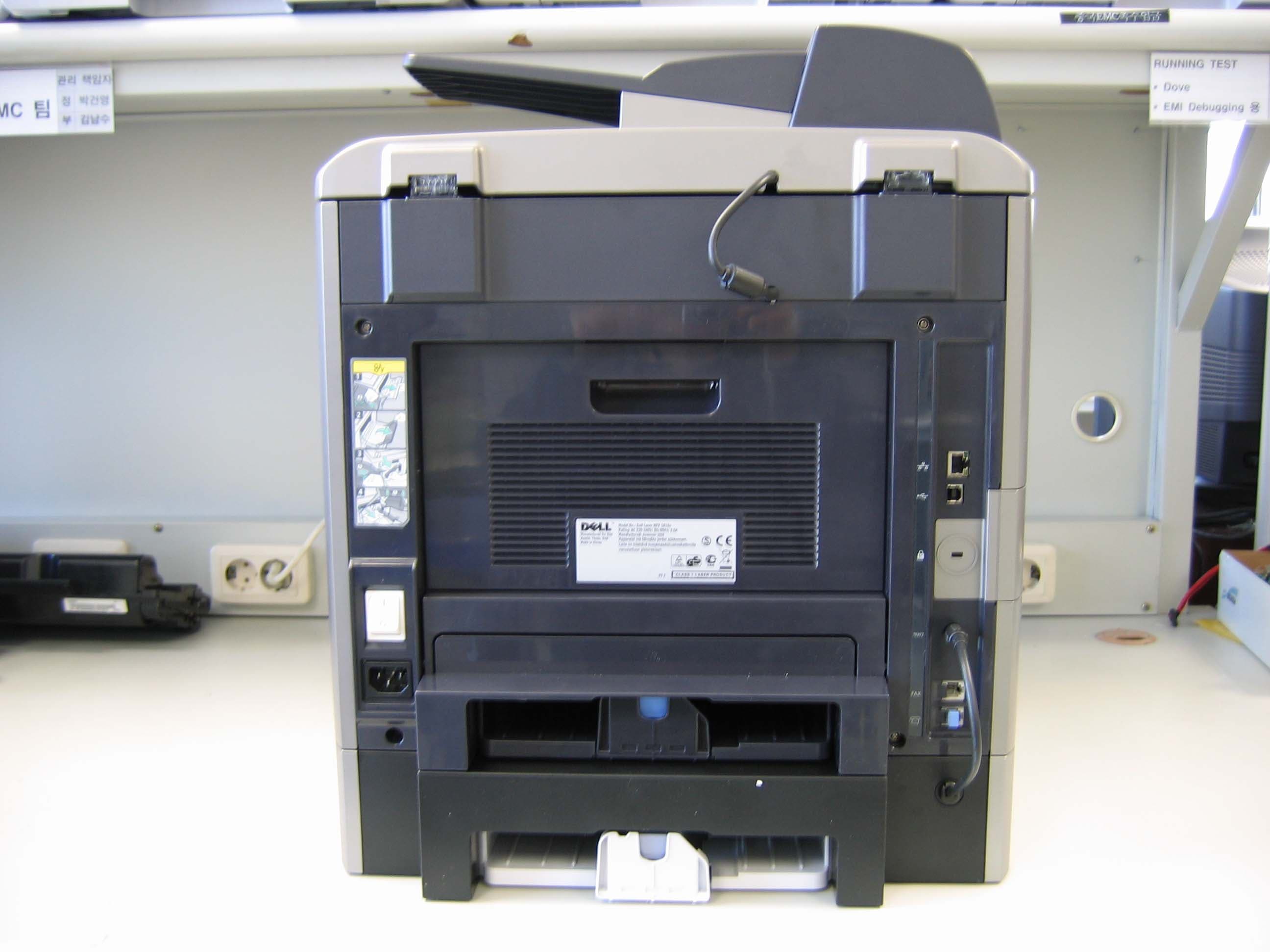

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

A 3LLASERMFP1815D N A 3LLASERMFP1815D N A 3LLASERMFP1815D N A 3LLASERMFP1815D N A 3LLASERMFP1815D N A 3LLASERMFP1815DN A 3LLASERMFP1815DN

2. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View HVPS B'd 6) Bottom View of HVPS B'd 7) Top View of SCF B'd 8) Bottom View of SCF B'd

9) Top View of Modem B'd 10) Bottom View of Modem B'd 11) Top View of OPE B'd 12) Bottom View of OPE B'd 13) Top View of RAM B'd 14) Bottom View of RAM B'd 15) Top View of ADF B'd 16) Bottom View of ADF B'd

1 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE052790 Equipment under Test Applicant Samsung Electronics Co., Ltd 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea FCC ID A3LLASERMFP1815DN Product Name Multi Function Printer Model Name Dell Laser MFP 1815dn Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Date of Test November 30, 2005 Issued Date December 12, 2005 Name/Position Signature Tested by Min Gon, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC filing Registration Number : 873282 NVLAP LAB CODE 200623-0 2 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name Dell Laser MFP 1815dn Applicant Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Contact Person Min Gon, Kim Kind of product Multi Function Printer Variant List Dell Laser MFP 1815n Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, 730-030 Korea 2) Shandong Samsung Telecommunications Co., Ltd. 264209, Samsugn (Sanxing) Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China New / Alternative / Permissive change Information New 1.2 Detail Information related Product Specification Item Specification Remark Power rating 110 ~ 127 VAC, 5A, 50/60 Hz - Power consumption Average : 520 W Power save mode : Less than 10 W - Display 16 characters x 2 lines - Toner cartridge life 4,000 or 8,000 pages at ISO 19752 5% coverage - Memory Dell Laser MFP 1815n: 64 MB (max. 320 MB) Dell Laser MFP 1815dn: 96 MB (max. 320 MB) - External dimension 467,5 x 435,5 x 458 mm (W x D x H) - Weight 17,5 Kg (including consumables) - Printing method Laser Beam Printing - Printing speed Up to 28 ppm in A4 (30 ppm in Letter) - Print resolution Up to 1,200 x 1,200 dpi effective output - 4 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Interface High Speed USB 2.0 Ethernet 10/100 Base TX(Embedded type) - Scanning method ADF and Flat-bed Color CCD (Charge Coupled Device) - Scan Resolution Optical: 600 x 1,200 dpi (mono and color) Enhanced: 4,800 x 4,800 dpi - Copy speed Up to 28 ppm in A4 (30 ppm in Letter) - Copy resolution Scan: up to 600 x 300 (text, text/photo) up to 600 x 600 (photo using platen) up to 600 x 300 (photo using ADF) Print: up to 600 x 600 (text, text/photo, photo) - Modem speed 33,6 Kbps - Fax Resolution Standard: 203 x 98 dpi Fine: 203 x 196 dpi Super Fine: 300 x 300 dpi Photo: 203 x 196 dpi Color: 200 x 200 dpi - Fax Memory 8 MB - Fax Data coding MH/MR/MMR/JPEG/ECM (Error Correction Mode) - Operating Frequency - Main Source Clock : 12 MHz - Video Source Clock : 12 MHz - USB Device Source Clock : 12 MHz - USB Host Source Clock : 6 MHz - Network Source Clock : 25 MHz - CPU Operating Clock : 300 MHz - SDRAM Operating Clock : 100 MHz - CCD Operating Clock(mono) : 8.33 MHz - MODEM Source Clock : 28.224 MHz 5 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O port. Where applicable, peripherals were attached to the I/O cables. This EUT is supporting the USB and Network(LAN) printing, Fax Tx and Rx mode, Copy mode. In each test mode, finally we found worst case emission. So, the data of the maximum EUT operation, ADF Copy was reported. - ADF Copy Mode (worst emission) - USB Printing Mode - Network(LAN) Printing Mode - Fax Tx, Rx Mode - Standby Mode - Power Input Voltage : AC 110V Frequency : 60Hz 1.4 Test System Details Refer to 1.2 1.5 Equipment Modifications No equipment modifications were required. 6 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Conducted Emission EUT was placed on a platform nominal size, 1 m by 1.5 m, raised 80 cm above the conducting ground plane. The rear of tabletop was located 40 cm to the vertical conducting ground plane. The rear of EUT, including peripherals w…

Text truncated - open the document above for the full version.

17 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 21 Samsung EMC Laboratory Project No: LBE052790 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3. Radiated Emission (Front) Pic. 4. Radiated Emission (Rear)
