Microwave Oven Owner’s Instructions & Cooking Guide MC11H6033CT imagine the possibilities Thank you for purchasing this Samsung product. This manual is made with 100 % recycled paper.Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance. MC11H6033CT_AA_DE68-XXXXXX-00_EN_140612.indd 1

  English - 2 SAVE THESE INSTRUCTIONS safety informationCongratulations on your new Samsung microwave oven. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your microwave oven’s many benefits and features.WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONSWarnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your microwave oven.PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYA. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. B. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface. C. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:1. Door (bent), 2. Hinges and latches, (broken or loosened), 3. Door seals and sealing surface. D. Only properly qualified service personnel should adjust or repair the oven. Do not attempt to adjust or repair the oven yourself. IMPORTANT SAFETY SYMBOLS AND PRECAUTIONSWhat the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. WT contentsSafety information ................................................................................ 2Quick look-up guide .............................................................................10Oven features ........................................................................................11 Oven ....................................................................................................11 Control panel .......................................................................................11Accessories .........................................................................................12 Oven use ................................................................................................12 How a microwave oven works .............................................................12Checking that your oven is operating correctly .....................................13Setting the time ...................................................................................13Cooking/Reheating ..............................................................................14Power levels and time variations ..........................................................14Adjusting the cooking time ...................................................................14Stopping the cooking ...........................................................................15 Setting the energy save mode..............................................................15Using the popcorn features ..................................................................15Using the defrost featur e ......................................................................16 Using the auto reheat/cook features ....................................................17Using the slim fry cook featur e .............................................................18 Multistage cooking ...............................................................................20 Fast preheating the oven ......................................................................21 Cooking by convection ........................................................................21Choosing the accessories ....................................................................22Grilling .................................................................................................22Combining microwaves and the grill .....................................................22Combining microwaves and convection ...............................................23Switching the beeper off ......................................................................24Safety-locking your microwave oven ....................................................24 Cookware guide ...................................................................................24 Microwave-safe utensils .......................................................................24 Cooking guide .......................................................................................26 Troubleshooting and error code .........................................................35 Troubleshooting ...................................................................................35Error code ...........................................................................................36Warranty and service information .........................................................36 Technical specifications ......................................................................37Warranty ................................................................................................37 Samsung microwave oven ...................................................................37 MC11H6033CT_AA_DE68-XXXXXX-00_EN_140612.indd 2

  English - 3 01 SAFETY INFORMATION SAVE THESE INSTRUCTIONS SAVE THESE INSTRUCTIONS CAUTION Hazards Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTIO…

Text truncated - open the document above for the full version.

English - 21 03 OVEN USE FAST PREHEATING THE OVENFor convection cooking, it is recommended that you preheat the oven to the appropriate temperature before placing the food in the oven. When the oven reaches the requested temperature, it is maintained for approximately 10 minutes; it is then switched off automatically.Check that the heating element is in the correct position for type of cooking that you require. 1. Press the Fast Preheat button. Result: The following indications are displayed:400 °F (temperature) 2. Press the Fast Preheat button one or more times to set the temperature. (Temperature : 400, 375, 350, 325, 300, 250, 200, 100 °F) 3. Press the START/+30s button. Result: The oven is preheated to the requested temperature. š The display times are 8 seconds for the selected cooking mode and 2 seconds for the preset temperature in sequence. Ex) In fast preheat mode at 400 °F (displayed for 8 seconds) (displayed for 2 seconds) š 8SRQDUULYDODWWKHSUHVHWWHPSHUDWXUHWKH oven beeps 6 times and the temperature is kept for 10 minutes. š $IWHUPLQXWHVWKHEHHSVWLPHVDQGWKH operation stops. In case the inner temperature has reached the preset temperature, the beeps 6 times when temperature and the preset temperature is kept for 10 minutes.If you would like to know the current temperature of oven cavity, press Fast Preheat button. COOKING BY CONVECTIONThe convection mode enables you to cook food in the same way as in a traditional oven. The microwave mode is not used. You can set the temperature, as required, in a range varying from 100 °F to 400 °F in 8 preset levels. The maximum cooking time is 60 minutes. If you wish to Fast Preheating the oven, see page 21 . š Always use oven gloves when touching the recipients in the oven, as they will be very hot. š <RXFDQJHWEHWWHUFRRNLQJDQGEURZQLQJLI\RXXVHWKHORZU DFN Check that the heating element is in the horizontal position and that the turntable is in position. Open the door and place the recipient on the low rack and set on turntable. 1. Press the Convection button. 2. Press the Convection button once or more times to set the temperature. (Temperature : 400, 375, 350, 325, 300, 250, 200, 100 °F) 3. Set the cooking time by turning the Dial knob . 4. Press the START/+30s button. Result: Cooking starts: š The display times are 8 seconds for the preset cooking time and 2 seconds for the preset temperature in sequence. Ex) 30 minutes of cooking time at 400 °F (displayed for 8 seconds) (displayed for 2 seconds) š :KHQFRRNLQJKDVıQLVKHGWKHRYHQZLOO beep and flash “0” four times. The oven will then beep one time per minute. If you would like to know the current temperature of oven cavity, press the Fast Preheat button.Be careful, Grill heater may work intermittently while the convection mode is operating. MC11H6033CT_AA_DE68-XXXXXX-00_EN_140612.indd 21

  English - 22 CHOOSING THE ACCESSORIES Traditional convection cooking does require cookware. You should, however, use only cookware that you would use in your normal oven.Microwave-safe containers are not usually suitable for convection cooking; don’t use plastic containers, dishes, paper cups, towels, etc.If you wish to select a combined cooking mode (microwave and grill or convection), use only recipients that are microwave-safe and oven-proof. For further details on suitable cookware and utensils, refer to the Cookware Guide on page 24-25 . GRILLINGThe grill enables you to heat and brown food quickly, without using microwaves. š Always use oven gloves when touching the recipients in the oven, as they will be very hot. š You can get better cooking and grilling results, if you use the high rack. 1. Open the door and place the food on the rack. 2. Press the Grill button. Result: The follwing indications are displayed: (grill mode) š You cannot set the temperature of the grill. 3. Set the grilling time by turning the Dial knob . š The maximum grilling time is 60 minutes. 4. Press the Start button. Result: Grilling starts. š When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. COMBINING MICROWAVES AND THE GRILLYou can also combine microwave cooking with the grill, to cook quickly and brown at the same time. ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. Open the door. Place the food on the rack best suited to the type of food to be cooked. Place the rack on the turntable. Close the door. 1. Press the Microwave+Grill button. Result: The following indications are displayed: (microwave & grill combi mode) PL:30 (30 %) (output power) 2. Press the Microwave+Grill button. The output power is displayed (PL:30). š You cannot set the temperature of the grill and power level. 3. Set the cooking time by turning the Dial knob . š The maximum cooking time is 60 minutes. 4. Press the Start button. Result: š Combination cooking starts. š When cooking has finished, the oven will beep and flash “0” four times. The oven will then beep one time per minute. MC11H6033CT_AA_DE68-XXXXXX-00_EN_140612.indd 22

  English - 23 03 OVEN USE COMBINING MICROWAVES AND CONVECTIONCombination cooking uses both microwave energy and convection heating. No preheating is required as the microwave energy is immediately available. Many foods can be cooked in combination mode, particularly: š Roast meats and poultry š Pies and cakes š Egg and cheese dishes ALWAYS use microwave-safe and oven-proof cookware. Glass or ceramic dishes are ideal as they allow the microwaves to penetrate the food evenly. ALWAYS use oven gloves when touching the recipients in the oven, as they will be very hot. You can get better cooking and browning, if you use the low rack. Open the door. Place the food on the turntable or on the low rac…

Text truncated - open the document above for the full version.

BLOCK DIAGRAM Control Panel (Clock Frequency 8MHz) H.V. Transformer H.V. Capacitor H.V. Diode Magnetron Fan Motor Turntable Motor Input120Vac 60Hz Convection Motor Convection Heater Grill Heater Oven Cavity Note: Components outlined with dotted line is optio nal and may not be provided in the model FCC ID : A3LMC11H6033

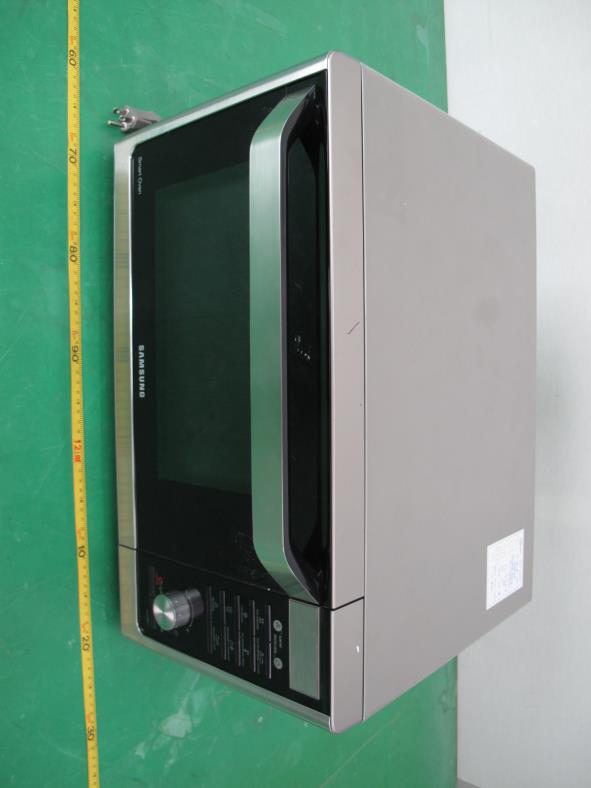

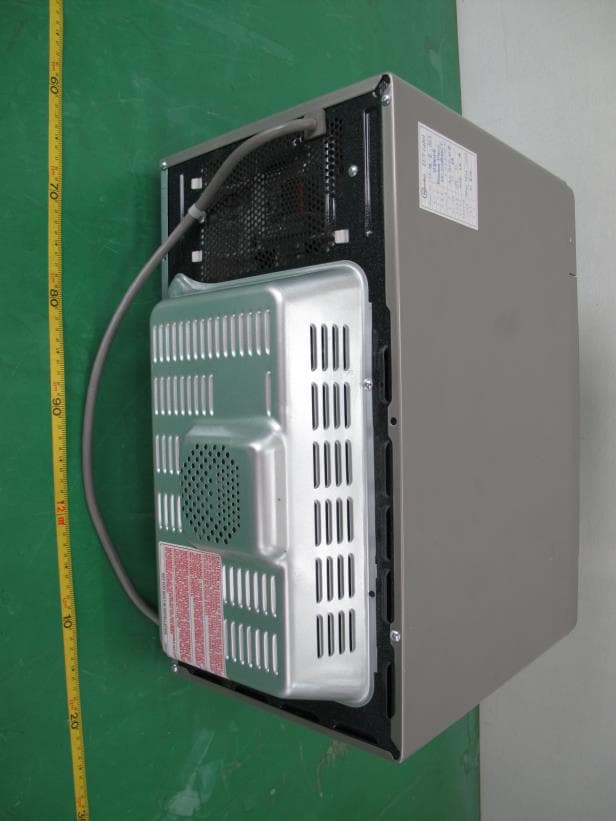

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 53 of 67 APPENDIX C – EUT PHOTOGRAPHS  Front View of EUT Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 54 of 67  Rear View of EUT

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 47 of 67 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  FCC ID Location of EUT Labeling Requirements

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 55 of 67
Door open View of EUT Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 56 of 67
Inside View of EUT Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 57 of 67
Front View of Main Board

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 58 of 67
Rear View of Main Board Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 59 of 67
Enclosure View of Magnetron

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 60 of 67
Enclosure View of H.V Trans Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 61 of 67
Enclosure View of H.V Capacitor

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 62 of 67
Enclosure View of Fan Motor Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 63 of 67
Enclosure View of Noise Filter

Test Report No.: NK-14-E-363 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMC11H6033 Page 64 of 67
Enclosure View of Turntable Motor

OPERATION DESCRIPTION Af ter turning on microwave oven and pressing star ting button, micom gives signal to and power relay to supply 120V power This high voltage circuit consisted of HV T, HVC, HVD generates 4kV output and supplys to a magnetron. As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go into cavity. OPERATION DESCRIPTION Model : MC11H6033CT (FCC ID : A3LMC11H6033) Af ter turning on microwave oven and pressing star ting button, micom gives signal to and power relay to supply 120V power for high voltage circuit. This high voltage circuit consisted of HV T, HVC, HVD generates 4kV output and supplys to a As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go Model : MC11H6033CT (FCC ID : A3LMC11H6033) Af ter turning on microwave oven and pressing star ting button, micom gives signal to main relay This high voltage circuit consisted of HV T, HVC, HVD generates 4kV output and supplys to a As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go

COMPONENT LIST Model : MC11H6033CT (FCC ID : A3LMC11H6033) Parts Spec. Manufacturer 1 MAGNETRON OM75P Samsung 2 H.V TRANS SHV-UT1136B Samsung 3 H.V CAPACITOR CH85-21091 Bicai 4 FAN MOTOR SMF-U1136A Oh Sung 5 INTERLOCK SWITCH 16A, 125/250V Several 6 PCB SMS100L Samsung
