Code No.: DE68-02888A Microwave Oven Owner’s Manual MD1200 MD1200.fm Page 1 Monday, March 15, 2004 8:17 AM 2 S AVE T HESE I NSTRUCTIONS Safety P RECAUTIONS TO A VOID P OSSIBLE E XPOSURE TO E XCESSIVE M ICROWAVE E NERGY : (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces. (c) Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNINGAlways observe Safety Precautions when using your oven. Never try to repair t he oven on your own – there is dangerous voltage inside. If the oven needs to be repaired, call 1-800-SAMSUNG for the name of an authorized service center near you. I MPORTANT S AFETY I NSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: WARNINGTo reduce risk of burns, electric shock, fire, personal injury or exposure to excessive microwave energy: • Read all safety instructions before using the appliance.• Read and follow the specific “ PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY ” on this page. • This appliance must be grounded. Connect only to properly grounded outlets. See “ IMPORTANT GROUNDING INSTRUCTIONS ” on page 3 of this manual. • Install or place this appliance only in accordance with the installation instructions provided. • Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. • As with any appliance, close supervision is necessary when used by children. • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on this appliance.• Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. MD1200.fm Page 2 Monday, March 15, 2004 8:17 AM 3 S AVE T HESE I NSTRUCTIONS Safety Important Safety Inst ructions, continued • Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficiency of the oven. • Do not immerse cord or plug in water.• Keep cord away from heated surfaces.• Do not let cord hang over edge of table or counter.• When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a. Do not overcook food. Watch appliance carefully if paper, plastic, or other combustible materials are inside. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty.• Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break. • Dishes and containers can become hot. Handle with care.• Carefully remove container coverings, directing steam away from hands and face. • Remove lids from baby food before heating. After heating baby food, stir well and test temperature by tasting before serving. • A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used with caution. • Do not operate any other heating or cooking appliance beneath this appliance. • Do not mount unit over or near any portion of a heating or cooking appliance. • Do not mount over a sink.• Do not store anything directly on top of the appliance when it is in operation. • If materials inside oven should ignite, keep the oven door closed, turn the oven off and disconnect the power cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread. • Pre-caution for safe use to avoid possible exposure to excessive micro oven energy :Do not attempt to pull any part of the door by hand to open the door. Open the door only utilizing the push button located at front-right-bottom side. I MPORTANT G ROUNDING I NSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Plug the three-prong power cord into a properly grounded outlet of standard 115-120 voltage, 60 Hz. Your oven should be the only appliance on this circuit. MD1200.fm Page 3 Monday, March 15, 2004 8:17 AM 4 S AVE T HESE I NSTRUCTIONS Safety WARNINGImproper use of the grounding plug can result in a risk of electric…

Text truncated - open the document above for the full version.

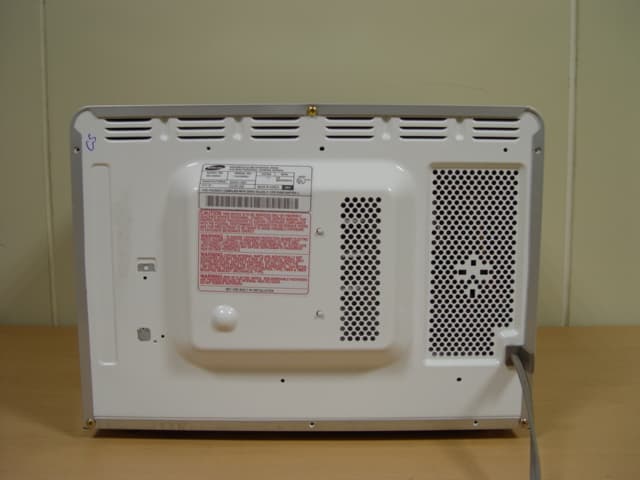

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

2KR06 +12V DU1PU-1PRRY04 +5V D07 1N4148M +5V C114.7uF +5V KRA226-AT TR04 10K R17 D031N4148M ZNR110D471 358A IC05 VCC=+8V,GND=DGND R15 3.9K 3.9K R16 3.9K R14 +5V 22uFC03 1nFC18 47KR08 13 TEST18 VAref40 VDD17 VSS15 X-IN16 X-OUT 1N4148M D10 19 36373839352126431444342 2714 RESET 5678 28232431252220323334 41 30 IC01TPM87CH47U 2 BUZZER 29 INT 1211109 D06 1N4148M KRA226-ATTR10 KRA226-AT TR09 IC03 KIA7033 C0247uF KRA226-ATTR11 D04 1N4148M +5V R032K +5V 3214 D021N4148M SMW250-04V_WHT CN02 4.7KR01 D011N4004 TR07 KSR1005 TR03 KSR1005 TR06 KSR1005 TR05 OJ01 KSR1005 47uFC12 1nFC19 FTR-F3AA012E RY01 R1147K LVT1 47KR10 VRK-281 R024.7K +5V 1N4004D08 1N4004 R0947K C10 D09 RY02 +12V 4.7nF RY03 DU1PU-1P FTR-F3AA012E 20pF C08C09 20pF 8MHzXTL1 R042K 3571 47KR12 C011000uF SMW250-07AV_REDCN01 10KR21 +5V 100nF 1nFC15 C20 1nF C16 100nFC14 100nFC06 C07100nF 100nFC04 C05100nF KRA226-AT TR08 TR01KSR1005 1nFC17 KSR1005 +12V FUSE1 FH-51H TR02 68 10 +12V KSR1005 TR13 17151311 2 9 7534 CN03YDW200-20 1 121416182019 IC06 KIA78S08 VCC=+8V,GND=DGND IC05 358A 2345 C13 10uF +5V CN05 SMW250-05V_WHT 1 R20100K +8V R132K 100K 100K R19 CN04 SMW250-04V_RED 1234 R18 R07 CBE2220BA BZ01 1K PTC1390M +8V TR12KRA226-AT D05 1N4148M 10K IC02 78L05 R05 WaterSound Pizza Reheat Kichen Timer Beverage 2 Fresh Vegetables Popcorn 1 HandyHelper Auto Reheat Kids Meals Start Snack Bar 790 Boil Pause/Cancel 4 3 Clock 8 6 FrozenDinner Potato Bacon 5 Power Level Auto Defrost One Min+ CN02FCZ254-14S MM4148 D03 D04 MM4148 D02 MM4148 11 2 9 753468101 121416182019171513 5 DOV 1 a 1312 b c 11 d 10 e 9 f 8 g 7 uc_lc 6 YDW200-20 CN01 MM4148 D05 CSE-4048 DSP1 1G 2 2G 3 3G 4 4G MM4148 D01 MM4148 D07 D06 MM4148

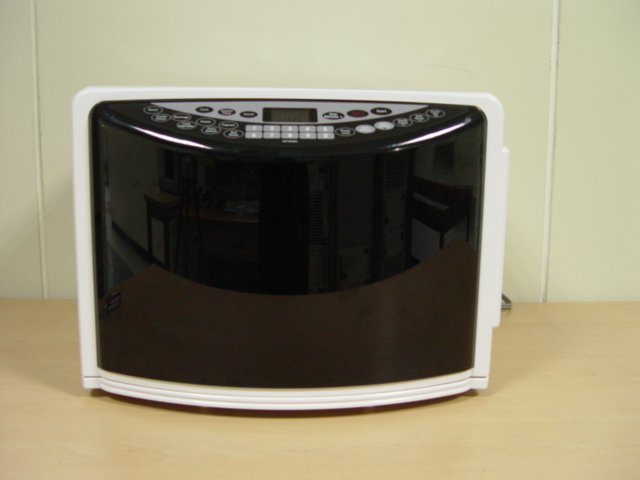

JOB Number : LBE040580 Page 1 of 14 EMC TEST REPORT According to FCC CFR47 Part 18 Subpart C JOB Number : LBE040580 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 18 CFR47 Subpart C Intentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name :SAMSUNG ELECTRONICS CO., LTD. 416 Maetan-3 Dong, Yeongtong-Gu, Suwon Si, Gyeonggi-Do, Korea, 443-742 2. Identification of tested device 2.1 FCC ID :A3LMD1200 2.2 Device Name :MICROWAVE OVEN 2.3 Trade Name :SAMSUNG Electronics Co.,Ltd. 2.4 Model Number :MD1200WD Variant Model : MD1200CD 2.5 RF Output Power : 1000W ( by IEC 705 method ) 3. Test Procedure and Items 3.1 FCC/OST MP-5 : 1986 4. Issued Date :March 30, 2004 Tested by: Jay Yong, PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorised by: Kyu Baek, CHUNG / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200447-0 JOB Number : LBE040580 Page 2 of 14 TABLE OF CONTENTS 1. Product Description 2. Test Facility 3. Accreditation and Listing 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement 4.2 Input Power Measurement 4.3 RF Output Power Measurement 4.4 Operation Frequency Measurement 4.4.1 Frequency Measurement 4.5 Radiated Emission Measurement 4.5.1 Radiated Emission Measurement Procedure 4.5.2 Radiated Emission Measurement Configuration 4.5.3 Radiated Emission Measurement Data(30 - 1000MHz) 4.5.4 Radiated Emission Measurement Data(1 - 25GHz) 5. Measurement Equipment List This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE040580 Page 3 of 14 1. Product Description The equipment under test is a microwave oven sold for consumer use. Model : MD1200WD is a1000 W microwave oven with digital controls. Installation Type: Count-Top Clock Frequency : 8.0MHz < Magnetron > Model : OM-75P manufactured by Samsung Electronic Co., Ltd. 2. Test Facility The Semi-anechoic chamber and Conducted measurement facilities used to collect the radiated data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR Publication 22. 3. Accreditation and Listing The test facilities used to perform radiated and conducted emissions tests are accrediated by National Voluntary Laboratory Accreditation Program for the specific of accreditation under Lab Code: 200447-0 to perform Electromagnetic Interference tests according to FCC PART 15 and CISPR 22 requirements. No part of this report may be used to claim or imply product endorsement by NVLAP or any agency of the US Government. In addition, the test facilities are listed with Federal Communications Commission(Registration Number:98856, Anechoic Chamber #1). This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE040580 Page 4 of 14 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.071.0 50.101.0 70.151.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 23 4 5 6 7 8 9 JOB Number : LBE040580 Page 5 of 14 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12013.7415521500 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE040580 Page 6 of 14 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001034.5120854.8 10001033.4120816.5 10001034.4120851.4 840.9 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials JOB Number : LBE040580 Page 7 of 14 4.4 Operation Frequency Measurement Fig. 4 Operating Frequency Measurements Configuration This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Spectrum anal…

Text truncated - open the document above for the full version.

JOB Number : LBE040580 Page 4 of 14 4. Radio Noise Emission Measurement Procedures/Results 4.1 Radiation Hazard Measurement A 700-ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. The results of this test are as follows. ProbeMaximum LeakageLimit Location[mW/Cm2][mW/Cm2] 10.071.0 50.101.0 70.151.0 All others0.051.0 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1 23 4 5 6 7 8 9 JOB Number : LBE040580 Page 5 of 14 4.2 Input Power Measurement Input power and current were measured using a Power Analyzer. A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Manufacturers to determine their input ratings commonly use this procedure. Fig. 2 Test Setup for Input power The results of this test are as follows. InputInputMeasuredEUT Spec. VoltageCurrentInput powerInput power [Vac][amps][watts][watts] 12013.7415521500 Based on the measured input power, the EUT was found to be operating within the intended specifications. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. JOB Number : LBE040580 Page 6 of 14 4.3 RF Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000-ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 120 seconds. Then the temperature of the water re-measured. Fig.3 Test Setup for RF output power QuantityStartingFinalElapsedRF Power of waterTemperature TemperatureTime [ml][centigrade][centigrade][seconds][watts] 10001034.5120854.8 10001033.4120816.5 10001034.4120851.4 840.9 Power = (4.187 Joules/Cal) x (Volume in ml) x (Temp. Rise) Time in seconds The measured output was found to be ABOVE 500Watts. Therefore, in accordance with section 18.305 of Subpart C, the measured out-of-band emissions were compared to the 25xSQRT(power/500)[uV/m] @ 300M limit. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Average RF Power of 3 Trials
