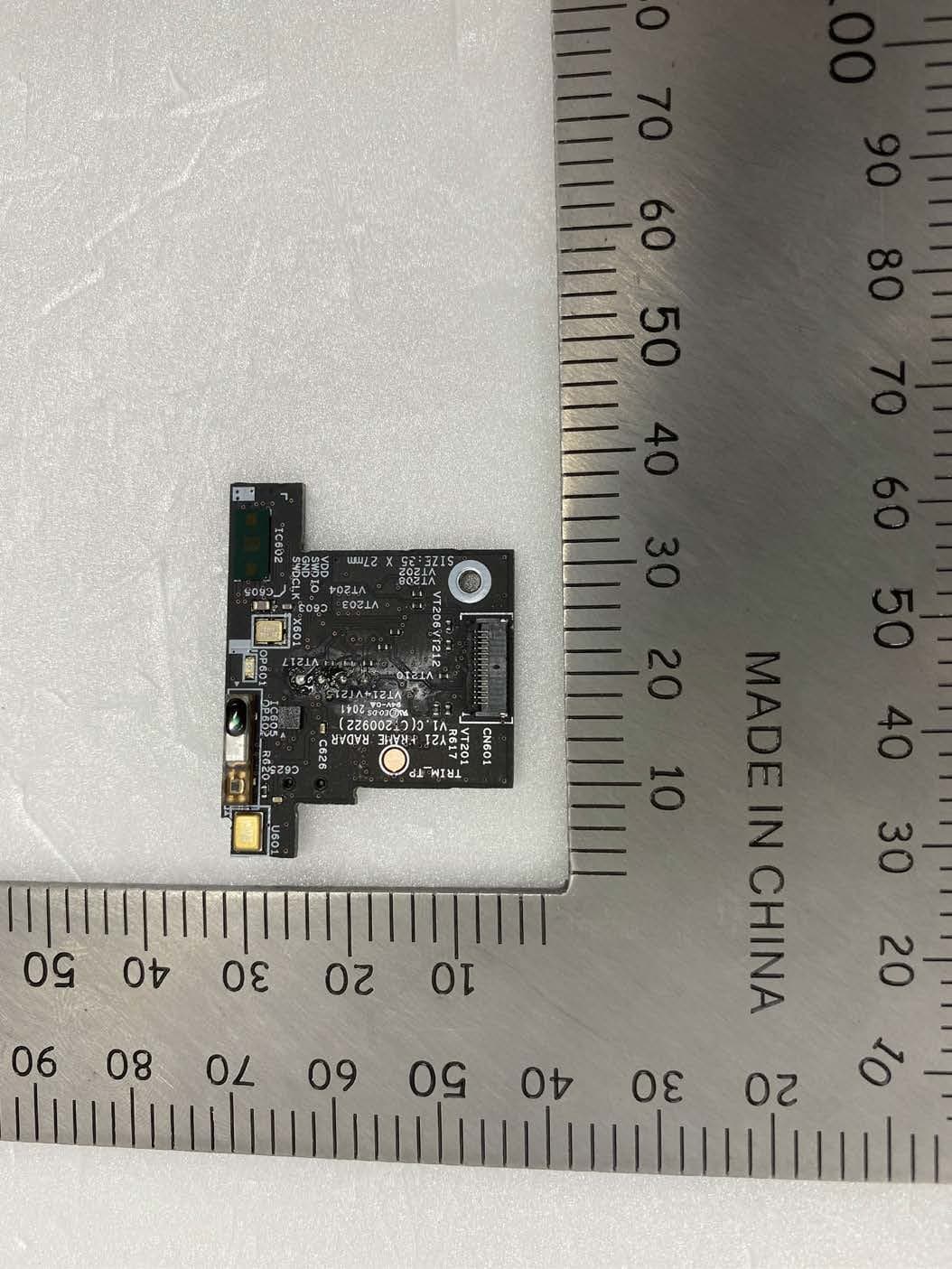

A3LMDRAI302Motion Detection Sensor Module

CHEMTRONICS Motion Detection Sensor Module User Manual Product Name Motion Detection Sensor Module Model Name MDRAI302 Version 0.1 Date October 09, 2020 Revision History Version Date Description 0.1 October 09, 2020 Draft Version Contents 1. Overview ................................................................................................................................................................................ 4 2. System Specification .......................................................................................................................................................... 5 2.1 Physical feature ................................................................................................................................................................... 5 2.2 Pin Description.................................................................................................................................................................... 6 2.3 Module Specification ......................................................................................................................................................... 7 2.4 RF Specification ................................................................................................................................................................. 9 3. Module Assembly ............................................................................................................................................................. 10 1. Overview This product is a module developed for effective human or object recognition using the built-in RADAR sensor. Built-in detectors that allow full autonomous operation of the device. Detector Designed to operate as a Doppler motion sensor from 61 to 61.5 GHz (60.5 to 61 GHz for the Japanese ISM band). The compact 2-in-1 (RGB color sensor + IR receiver) is a transparent epoxy transfer mold package on the lead frame. The IR module provides excellent performance even in disturbing ambient light applications and provides protection against uncontrolled output pulses. RGB color sensor is an advanced digital ambient light sensor that converts luminosity into a digital signal output. The RGB color sensor for ambient light detection has 5 open photodiodes (red, green, blue, transparent, IR). The microphone mounted on top of the product is a compact low power bottom port silicone microphone with a single bit PDM output. This device has great performance and is suitable for applications such as music recorders and other suitable electronic devices. The color sensor detects red, green, blue and white. Sensitivity to human eye reactions. Offers excellent temperature compensation. The actual function of the color sensor is a simple command format of I2C interface protocol. The accelerometer is a process micromachine accelerometer that has already been used in production in rugged and mature manufacturing belonging to the "femto" family of ultra-low-power, high-performance 3- axis linear accelerometers. There is an integrated 32-level preconceived, FIFO (first-in, first-out) buffer with data for users to limit host intervention Processor. Features  60GHz Radar IC with one transmitter and one receiver unit  Antennas in Package (AiP) Radar IC  CW and pulsed-CW mode of operation  Integrated PLL for Doppler and FMCW ramp generation  Color(R,G,B,W) Sensor with I2C Interface  2- in-1 ALI(RGB color sensor + IR receiver)  D-MIC(SPH0655LM4H-1)  Micro-machine accelerometer belonging to the "femto" family.  38.4MHz X-Tal Applications  Smart TV appliances The Motion Detection Sensor Module specified is a product that is installed in the application after being mounted on the frame in actual use. 2. System Specification 2.1 Physical feature Item Specification Product Name Motion Detection Sensor Module Model Name MDRAI302 Communication method 61.251 GHz (ISM BAND) RADAR (DOPPLER) Dimension 35.00mm x 27.00mm x 1.4mm(T) Wei ght 2.67g Mounting Type FFC Connector(14Pin Header), Screw(1Hole) Function Acceleration Sensor, MIC, 2-in-1 ALI, Color Sensor Mutual of the person being certified CHEMTRONICS Co., Ltd Manufacturer/country of manufacture CHEMTRONICS Co., Ltd / Korea Date of manufacture Marked separately Certification Number - 2.2 Pin Description Pin No. Pin Name Ty pe Function Pin No. Pin Name Ty pe Function 1 IRRR_1B I IR Signal Receive 2 3.3_PW P INPUT 3.3V 3 MCU_M_DET_OUT_1B I/O Detection Signal Read 4 R_SCL1_TV_1B I/O MCU_I2C_SCL 5 R_SDA1_TV_1B I/O MCU_I2C_SDA 6 MIC_SWITCH_1B I/O MIC_ Power Control 7 R_SCL2_TV I/O Sensor_I2C_SCL 8 R_SDA2_TV I/O Sensor_I2C_SDA 9 MCU_RESET_1B O MCU_RESET 10 R_MIC_DATA_1B I/O MIC_I2C_SDA 11 R_MIC_CLK_1B I/O MIC_I2C_CLK 12 GND P Digital Ground 13 R_LED_STB_OUT_1B P RED LED Control 14 KEY_INPUT_R_1B I TACT KEY INPUT 2.3 Module Specification 2.3.1 Product Summary Item P/N Description Radar IC BGT60LTR11AiP - Low Power 60GHz Doppler Radar Sensor MCU XMC1302-Q024X006 - 8 kbytes on-chip ROM - 16 kbytes on-chip high-speed SRAM - up to 200 kbytes on-chip Flash program and data memory LDO LP590715QDQNRQ1 - Automotive 250-mA - Ultra-Low-Noise, Low-IQ LDO X-TA L X.ME. 112HJVF0038400000 - XME-SMD2520 - 38.400000MHz - 12 PF/60ohms FET 2N7002K - Small Signal MOSFET - 60 V, 380 mA, Single, N−Channel, SOT−23 LEVEL SHIFTER SN74AVC4T245RSVR - Dual-Bit Bus Transceiver with Configurable Voltage Translation and 3-State Outputs MIC SPH0655LM4H-1 - Low Distortion / High AOP - Low Current Consumption in Low-Power Mode - Flat Frequency Response ACCELERATION SENSOR LIS2DWLTR - Very low noise: down to 1.3 mg RMS in low power Mode - supply voltage, 1.62 V to 3.6 V - High-speed I2C/SPI digital output interface 2- in-1 ALI J315XRHH-R - Supply Voltage : IR Receiver(6.0V), RGB color Sensor(3.6V) - Supply Current : IR Receiver(1.0mA), RGB color Sensor(20mA) - Internal filter for a high frequency lighting fluorescent lamp - Automatic light flickering cancellation supporting Color Sensor RCS-D6…
