A3LMG11H2020Microwave Oven

Microwave Oven Owner’s Instructions & Cooking Guide MG11H2020CT MG14H3020CM imagine the possibilities Thank you for purchasing this Samsung product. This manual is made with 100 % recycled paper.Please be advised that the Samsung warranty does NOT cover service calls to explain product operation, correct improper installation, or perform normal cleaning or maintenance.
       English - 2 contents Safety information ................................................................................ 2Quick look-up guide .............................................................................10Oven features ........................................................................................10 Oven ....................................................................................................10 Control panel .......................................................................................11Accessories .........................................................................................11 Oven use ................................................................................................12 How a microwave oven works .............................................................12Checking that your oven is operating correctly .....................................12Setting the time ...................................................................................13Switching the time notation ..................................................................13Setting power levels .............................................................................13One-stage cooking ..............................................................................13Multi-stage cooking .............................................................................14Using the +30 s button .........................................................................14 Stopping the cooking ...........................................................................14 Setting the energy save mode..............................................................14Using the auto cook features ...............................................................15Using the auto reheat features .............................................................17Using the soften/melt features .............................................................17Using the auto defrost features ............................................................18Using the grill cook button ...................................................................19Choosing the accessories ....................................................................19Using the combi cook button ...............................................................19Using the crusty plate ..........................................................................20Switching the beeper off ......................................................................21Using the kitchen timer ........................................................................21Safety-locking your microwave oven ....................................................22 Cookware guide ...................................................................................22 Microwave-safe utensils .......................................................................22 Cooking guide .......................................................................................24 Troubleshooting and error code .........................................................31 Troubleshooting ...................................................................................31Error code ...........................................................................................32Warranty and service information .........................................................32 Technical specifications ......................................................................33Warranty ................................................................................................33 Samsung microwave oven ...................................................................33 safety informationCongratulations on your new Samsung microwave oven. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your microwave oven’s many benefits and features.WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONSWarnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your microwave oven.PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGYA. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. B. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface. C. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the:1. Door (bent), 2. Hinges and latches, (broken or loosened), 3. Door seals and sealing surface. D. Only properly qualified service personnel should adjust or repair the oven. Do not attempt to adjust or repair the oven yourself. IMPORTANT SAFETY SYMBOLS AND PRECAUTIONSWhat the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. WT SAVE THESE INSTRUCTIONS
       English - 3 01 SAFETY INFORMATION CAUTION Hazards Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTION To reduce the risk of fire, explosi…

Text truncated - open the document above for the full version.

English - 16 Food Serving Size Instructions Kids Meals Chicken Nuggets (Frozen) 1 serving 2 servings Place a paper towel on a plate and arrange the nuggets in a spoke-like fashion on the paper towel.Do not cover. Let stand for 1 minute after heating. Refer to the package directions for the serving size and the amount of food. French Fries(Frozen) 1 serving 2 servings Place two paper towels on a microwave-safe plate and arrange the French fries on the towels without letting them overlap. Blot the fries with additional paper towels after removing from the oven. Let stand for 1 minute. Refer to the directions on the packaging for the serving size and the amount of food. Frozen Sandwiches (In crisping sleeve) 9-oz. package size 1 sandwich 2 sandwiches Place the frozen sandwich in a susceptor “crisping sleeve” (which is in the package) and place on a microwave-safe plate. Remove from the “crisping sleeve”.Let stand for 2 minutes after heating. Hot Dogs 2 hot dogs4 hot dogs Pierce the hot dogs and place them on a plate. When the oven beeps, add the buns and restart the oven. Let stand for 1 minute after heating. For the best texture, the buns should be added to the hot dogs when the oven beeps. Food Serving Size Instructions Snack Cheese Sticks(Frozen) 5-6 pcs 7-10 pcs Place the cheese sticks on a plate in a spoke-like fashion. Do not cover. Let stand for 1 to 2 minutes after heating. Chicken Wings 5-6 oz.7-8 oz. Use precooked, refrigerated chicken wings. Place the chicken wings around the plate in a spoke-like fashion and cover with wax paper. Let stand for 1 to 2 minutes. Nachos 1 serving Place the nachos on a plate without letting them overlap. Sprinkle cheese evenly over them.Contents:2 cups tortilla chips 1/3 cup grated cheese Potato Skins 1 (cooked) potato 2 (cooked) potatoes Cut the cooked potato into 4 even wedges. Scoop or cut out the potato flesh, leaving about a ¼ in. of skin. Place the skins in a spoke-like fashion around the plate. Sprinkle with bacon, onions and cheese. Do not cover. Let stand 1 to 2 minutes. T
       English - 17 03 OVEN USE USING THE AUTO REHEAT FEATURESHeating leftovers and precooked foods is easy with your new microwave. By actually sensing the humidity that escapes as the food is heated, the oven’s heating time is automatically adjusted depending on the type and amount of precooked food.First, place the food in the centre of the turntable and close the door. 1. Select the type of food that you are cooking by pressing the Auto Reheat button one or more times. (Refer to the table.) 2. Press the Start button. Result: Cooking starts. When it has finished.1) The oven beeps 4 times.2) The end reminder signal will beep 1 time (once every minute). 3) The current time is displayed again. All food must already be precooked. Plates of food and casseroles should be stored at refrigerator temperature.Casserole and Pasta need to select serving size by pressing Number button before press the Start button. (Refer to the table.) The following table presents the Auto Reheat programmes, quantities and appropriate instructions. Food Serving Size Instructions Dinner Plate 1 serving (1 plate) Use only precooked, refrigerated foods. Cover the plate with vented plastic wrap or waxed paper tucked under the plate.Contents:3 - 4 oz. meat, poultry or fish (up to 6 oz. with bone)½ cup starch (potatoes, pasta, rice, etc.)½ cup vegetables (about 3 - 4 oz.) Casserole 1 to 4 servings Cover the plate with a lid or vented plastic wrap. Stir the food once before serving.Contents:Casserole, refrigerated foods.Pasta: canned spaghetti and ravioli. Pasta Refer to the directions on the packaging for the serving size and the amount of food. USING THE SOFTEN/MELT FEATURESThe Soften/Melt features has 4 pre-programmed cooking times. You do not need to set either the cooking times or the power level. You can select the food servings by pressing the button.First, place the food in the centre of the turntable and close the door. 1. Select the type of food that you are cooking by pressing the Soften/Melt button one or more times. (Refer to the table.) 2. Press the Start button. Result: Cooking starts. When it has finished.1) The oven beeps 4 times.2) The end reminder signal will beep 1 time (once every minute). 3) The current time is displayed again. The Soften/Melt features need to select serving size by pressing Number button before press the Start button. (Refer to the table.) The following table presents the Soften/Melt programmes, quantities and appropriate instructions. Food Serving Size Instructions Melt Butter 1 stick (serving) 2 sticks (serving) Remove the wrapping and cut the butter in half vertically. Place the butter in a dish and cover with wax paper. Stir well after finishing and let stand for 1-2 minutes. Melt Chocolate 1 cup chips or 1 square Place the chocolate chips or squares in a microwave-safe container. When the oven beeps, stir the chocolate and restart the oven. Stir and let stand for 1 minute. Soften Butter 1 stick (1/4 lbs.) Remove wrapping and cut butter in half vertically. Place butter in dish, cover with wax paper. Soften Cream Cheese 1 Package (8-oz.) Unwrap the cream cheese and place in a microwave-safe container. Cut in half vertically. Let stand for 2 minutes.
       English - 18 USING THE AUTO DEFROST FEATURESTo thaw frozen foods, enter the weight of the food, and the microwave automatically sets the defrosting time, power level and standing time. Press Start button to start defrosting. Check the food when you hear the oven signal. After the final stage, small sections may still be icy; let them stand to continue the thawing process. The food is not defrosted until all ice crystals have thawed. Shielding roasts and pieces of steak using small pieces of foil prevents the edges from being cooked before the center of the food has defrosted. Use narrow, flat, …

Text truncated - open the document above for the full version.

BLOCK DIAGRAM Control Panel (Clock Frequency 8MHz) H.V. Transformer H.V. Capacitor H.V. Diode Magnetron Fan Motor Turntable Motor Input120Vac 60Hz Convection Motor Convection Heater Grill Heater Oven Cavity Note: Components outlined with dotted line is optio nal and may not be provided in the model FCC ID : A3LMG11H2020

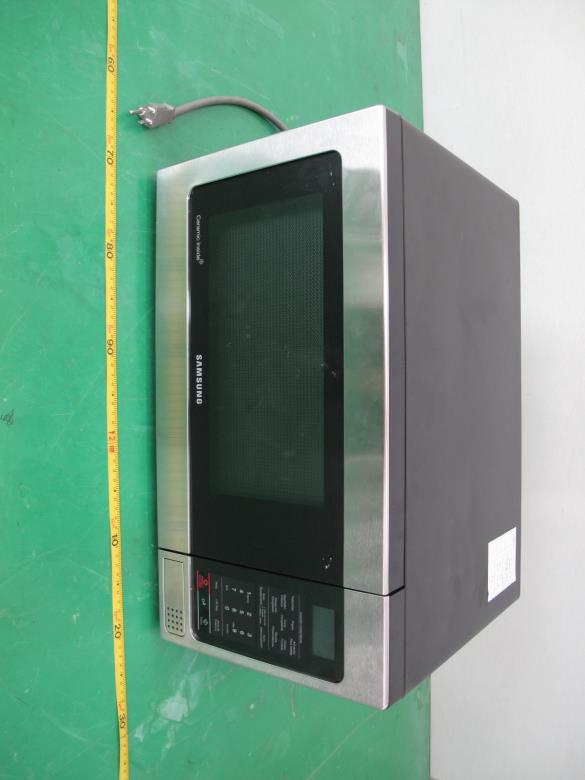

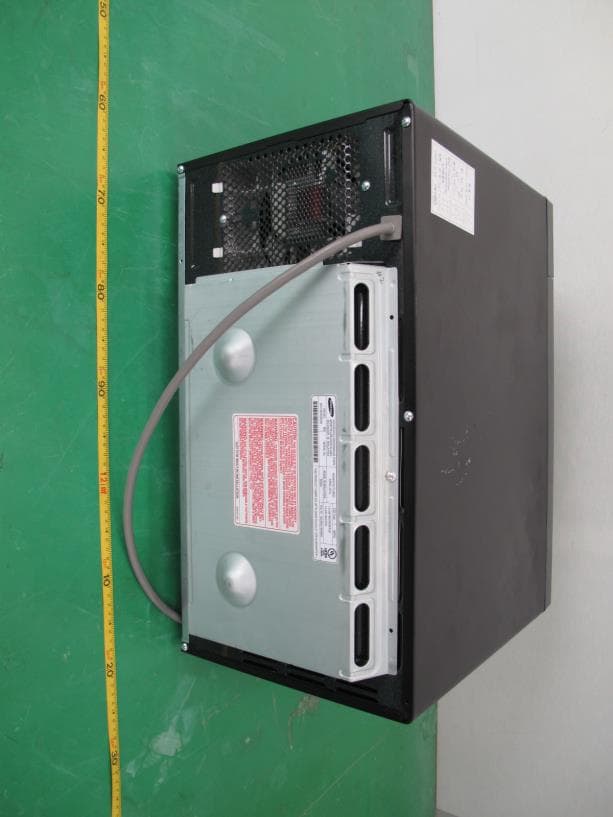

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 53 of 67 APPENDIX C – EUT PHOTOGRAPHS  Front View of EUT Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 54 of 67  Rear View of EUT

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 47 of 67 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  FCC ID Location of EUT Labeling Requirements

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 55 of 67
Door open View of EUT Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 56 of 67
Inside View of EUT Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 57 of 67
Front View of Main Board

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 58 of 67
Rear View of Main Board Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 59 of 67
Enclosure View of Magnetron

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 60 of 67
Enclosure View of H.V Trans Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 61 of 67
Enclosure View of H.V Capacitor

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 62 of 67
Enclosure View of Fan Motor Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 63 of 67
Enclosure View of Noise Filter

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 64 of 67
Enclosure View of Turntable Motor

OPERATION DESCRIPTION Af ter turning on microwave oven and pressing star ting button, micom gives signal to main relay and power relay to supply 120V power for high voltage circuit. This high voltage circuit consisted of HV T, HVC, HVD generates 4kV output magnetron. As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go into cavity. OPERATION DESCRIPTION Model : MG11H2020CT (FCC ID : A3LMG11H2020) Af ter turning on microwave oven and pressing star ting button, micom gives signal to main relay and power relay to supply 120V power for high voltage circuit. This high voltage circuit consisted of HV T, HVC, HVD generates 4kV output and supplys to a As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go Model : MG11H2020CT ID : A3LMG11H2020) Af ter turning on microwave oven and pressing star ting button, micom gives signal to main relay and supplys to a As a result, a magnetron generates 2450Mhz microwave and wave guide makes microwave go

COMPONENT LIST Model : MG11H2020CT (FCC ID : A3LMG11H2020) Par ts Spec. Manufacturer 1 MAGNETRON OM75P Samsung 2 H.V TRANS SHV-UT1136B Samsung 3 H.V CAPACITOR CH85-21091 Bicai 4 FAN MOTOR SMF-U1136A Oh Sung 5 INTERLOCK SWITCH 16A , 125/250V Several 6 PCB SMS3L Samsung

Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 2 of 67 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 11 13 16 23 43 46 47 48 53 65 66 67 Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 3 of 67 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Factory : Samsung Electronics Co., Ltd. Mr. Gilryeong Koh Tel No.: + 82 31 200 6849 Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Korea, Republic of 1) Samsung Electronics (M) Sdn. Bhd Lot 2, Lebuh 2, North Klang Straits, Area 21, Industrial Park, 42000 Port Klang, Selangor Malaysia 2) Thai Samsung Electronics Co., Ltd. 313 Moo 1 Sukhaphiban 8 Rd, Striracha Industry Park T.Bung A. Sriracha Chonburi Thailand 20230  FCC ID: A3LMG11H2020  Model: MG11H2020CT  Brand Name: SAMSUNG  EUT Type: Microwave Oven  Applied Standard:  Test Procedure(s):  Dates of Test:  Place of Tests:  Test Report No.: FCC Part 18 & Part 2 MP-5:1986 April 18, 2014 to May 21, 2014 Nemko Korea Co., Ltd. EMC Site NK-14-E-364 Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 4 of 67 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LMG11H2020, Microwave Oven. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 on 2009. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. ☜ Nemko Korea Co., Ltd. 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF Tel) + 82 31 330 1700 Fax) + 82 31 322 2332 Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 5 of 67 EUT INFORMATION EUT Information Electric Rating : a.c. 120 V, 60 Hz Clock : 8 MHz Magnetron Type : OM-75P (Samsung) Operating Frequency : 2450 MHz ± 50 MHz Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 6 of 67 DESCRIPTION OF TESTS Radiation Hazard A 700 ml water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement A 700ml water load was placed in the center of the oven and the oven set to maximum power. A 700 ml water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000 ml water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 42 seconds. Then the temperature of the water re-measured. Frequency Measurements Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 to 125 percent of the nominal rating. And the load quantity was reduced by evaporation to approximately 20 % of the original quantity with nominal rating. Test Report No.: NK-14-E-364 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMG11H2020 Page 7 of 67 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 x 7 x 2.5 m shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1 m x 1.5 m wooden table 0.8 m height is placed 0.4 m away from the vertical wall and 0.5 m away from the side of wall of the shielded room Rohde & Schwarz (ESH2-Z5) of the 50 ohm / 50 uH Line Impedance Stabilization Network(LISN) is bonded to …
