A3LML-1710PLaser Beam Printer

SAMSUNG LASER PRINTER User’s Guide i This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual. © 2003 Samsung Electronics Co., Ltd. All rights reserved. •ML-1710 Series and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •Centronics is a trademark of Centronics Data Computer Corporation. •IBM and IBM PC are trademarks of International Business Machines Corporation. •Apple, AppleTalk, TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. •Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and Windows XP are registered trademarks of Micorsoft Corporation. •All other brand or product names are trademarks of their respective companies or organizations. ii CONTENTS Chapter 1: INTRODUCTION Special Features .................................................. 1.2 Printer Components ............................................. 1.4 Front View ..................................................... 1.4 Inside View .................................................... 1.5 Rear View ...................................................... 1.5 Understanding the Control Panel ............................ 1.6 On Line/Error and Toner Save LEDs ................... 1.6 Cancel button ................................................. 1.7 Chapter 2: SETTING UP YOUR PRINTER Unpacking .......................................................... 2.2 Selecting a Location ........................................ 2.3 Installing the Toner Cartridge ................................ 2.4 Loading Paper ..................................................... 2.6 Changing the Paper Size in the Tray .................. 2.8 Connecting a Printer Cable .................................... 2.9 Turning the Printer on ......................................... 2.11 Printing a Demo Page .......................................... 2.12 Installing Printer Software ................................... 2.13 Printer Driver Features ................................... 2.14 Installing Printer software in Windows .............. 2.15 Viewing the User’s Guide ..................................... 2.20 iii Chapter 3: USING PRINT MATERIALS Choosing Paper and Other Materials ....................... 3.2 Sizes and Capacities ....................................... 3.3 Guidelines for Paper and Special Materials .......... 3.4 Selecting the Output Location ................................ 3.5 Printing to the Top Output Tray (Face down) .... 3.5 Printing to the Rear Output Tray (Face up) ....... 3.6 Loading Paper ..................................................... 3.7 Using the Tray ................................................ 3.7 Using the Manual Feeder ................................. 3.8 Printing on Envelopes .......................................... 3.10 Printing on Labels ............................................... 3.12 Printing on Transparencies ................................... 3.13 Printing on Card Stock or Custom-sized Materials ....................................... 3.15 Printing on Preprinted Paper ................................. 3.16 Chapter 4: PRINTING TASKS Printing a Document ............................................ 4.2 Canceling a Print Job ....................................... 4.4 Using a Favorite Setting .................................. 4.5 Using Help ..................................................... 4.5 Setting Paper Properties ....................................... 4.6 Using the Toner Save Mode ................................... 4.8 Printing Multiple Pages on One Sheet of Paper (N-Up Print- ing) .................................................................. 4.10 Scaling Your Document ....................................... 4.12 Fitting Your Document to a Selected Paper Size ...... 4.13 Printing Posters .................................................. 4.14 Setting Graphic Properties ................................... 4.16 Printing Watermarks ........................................... 4.19 Using an existing Watermark ........................... 4.19 Creating a Watermark .................................... 4.20 Editing a Watermark ...................................... 4.21 Deleting a Watermark .................................... 4.21 Printing Overlays ................................................ 4.22 What is an Overlay? ....................................... 4.22 Creating a New Page Overlay .......................... 4.22 Using a Page Overlay ..................................... 4.24 Deleting a Page Overlay ................................. 4.25 Using the Status Monitor ..................................... 4.26 Opening the Status Monitor ............................. 4.26 Setting Up Locally Shared Printer .......................... 4.28 Windows 9x/Me ............................................. 4.28 Windows NT/2000/XP ..................................... 4.29 iv Chapter 5: MAINTAINING YOUR PRINTER Maintaining the Toner Cartridge ............................. 5.2 Redistributing Toner ........................................ 5.3 Replacing the Toner Cartridge .......................... 5.4 Cleaning the Printer ............................................. 5.5 Cleaning the Outside ....................................... 5.5 Cleaning the Inside ......................................... 5.5 Consumables and Replacement Parts ..................... 5.8 Chapter 6: SOLVING PROBLEMS Troubleshooting Checklist ..................................... 6.2 Solving General Printing Problems .......................... 6.3 Clearing Paper Jams ............................................. 6.7 In the Paper Exit Area ..................................... 6.7 In the Paper Feed Area .................................... 6.9 Around the Toner Cartridge ............................. 6.10…

Text truncated - open the document above for the full version.

PRINTING TASKS 4.18 Advanced Options (continued) True-Type Options This option determines what the driver tells the printer about how to image the text in your document. Select the appropriate setting according to the status of your document. • Download as Bit Image: When this option is selected, the driver will download the font data as bitmap images. Documents with complicated fonts, such as Korean or Chinese, or various types of fonts will print faster in this setting. • Print as Graphics: When this option is selected, the driver will download any fonts as graphics. When printing documents with high graphic content and relatively few TrueType fonts, printing performance (speed) may be enhanced in this setting. When the Print All Text Black is checked, all text in your document is allowed to print solid black, regardless of the color it appears on the screen. When it is not checked, colored text is allowed to print in shades of gray. PropertyDescription ➂ PRINTING TASKS 4.19 4 Printing Watermarks The Watermark option allows you to print text over an existing document. For example, you may want to have large gray letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally across the first page or all pages of a document. There are several predefined watermarks that come with the printer, and they can be modified or you can add new ones to the list. Using an existing Watermark 1To change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and select the desired watermark in the Watermark drop-down list. You will see the selected watermark in the preview image. 3Click OK to start printing. PRINTING TASKS 4.20 Creating a Watermark 1To change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and click the Edit button in the Watermark section. The Watermarks window appears. 3You can enter the desired text message in the Watermark Message box. This will be displayed in the preview window. The preview image is provided so that you can see how the watermark will appear on the printed page. If the First Page Only box is checked, the watermark will be printed on the first page only. 4Select the desired watermark options. You can select the font type and size, and color from the Font Attributes section, and set the angle of the watermark from the Message Angle section. 5Click Add to add a new watermark to the list. 6When you complete editing, click OK and start printing. To stop printing the watermark, select <No Watermark> in the Watermark drop-down list. PRINTING TASKS 4.21 4 Editing a Watermark 1To change the print settings from your software application, access the printer properties. See page 4.2. 2Click the Extras tab, and click the Edit button in the Watermark section. The Watermarks window appears. 3Select the watermark you want to edit in the Current Watermarks list, and change the watermark message and the options. Refer to “Creating a Watermark” on page 4.20. 4Click Update to save the changes. 5Click OK. Deleting a Watermark 1To change the print settings from your software application, access the printer properties. See page 4.2. 2From the Extras tab, click the Edit button in the Watermark section. 3Select the watermark you want to delete in the Current Watermarks list, and click Delete. 4Click OK. PRINTING TASKS 4.22 Printing Overlays What is an Overlay? An overlay is text and/or images stored in the computer hard disk drive(HDD) as a special file format that can be printed on any document. Overlays are often used to take the place of preprinted forms and letterhead paper. Rather than using preprinted letterhead, you can create an overlay containing the exact same information that is currently on your letterhead. To print a letter with your company’s letterhead, you do not need to load preprinted letterhead paper in the printer. You need only tell the printer to print the letterhead overlay on your document. Creating a New Page Overlay To use a page overlay, you must create a new page overlay containing your logo or image. 1Create or open a document containing text or an image for use in a new page overlay. Position the items exactly as you wish them to appear when printed as an overlay. If needed, save the file for later use. 2To change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab, and click Edit button in the Overlay section. WORLD BEST Dear ABC Regards WORLD BEST PRINTING TASKS 4.23 4 4In the Overlays window, click Create Overlay. 5In the Create Overlay window, type a name of up to eight characters in the File name box. Select the destination path, if necessary. (The default is C:\Formover). 6Click Save. You will see the name in the Overlay List. 7Click OK or Yes until you complete creating. The file is not printed out. Instead it will be stored on your computer HDD disk. Note: The overlay document size must be the same as documents you will print with the overlay. Do not create an overlay with a watermark. PRINTING TASKS 4.24 Using a Page Overlay After an overlay has been created, it is ready to be printed with your document. To print an overlay with a document: 1Create or open the document you want to print. 2To change the print settings from your software application, access the printer properties. See page 4.2. 3Click the Extras tab. 4Select the desired overlay from the Overlay drop-down list box. 5If the desired overlay file does not appear in the Overlay list, click Edit button and Load Overlay, and select the overlay file. If you have stored the overlay file you want to use into an external source, you can also load the file when you access the Load Overlay window. After you select the file, click Open. The file is now shown in the Overlay List box and is available for printing. Select the overlay from the Overlay List box. PRINTING TASKS 4.25 4 6If necessary, click Con…

Text truncated - open the document above for the full version.

9 9 9-1 Samsung Electronics BLOCK DIAG R A M Service Manual 9. Block Diagram 9.1 GDI Model POWER CORD IN-LET F. G THERMISTOR To Controller MAIN MOTOR SOLENOID PTL IEEE1284 Interface Crystal 14.74 MHz Freq. Spread Video Clock VOLTAGE DETECTOR MOTOR DRIVER Power On Reset Controller Block SMPS Block HEATER-AC +24V+5V+3.3V GND Crystal 10MHz Freq. Spread EEPROM FEED-SENSOR P/EMPTY-SENSOR MP-SENSOR Main Clock EXIT-SENSOR THVPWM BLASPWM MHVPWM +24V Cover-open Switch PANEL B’D LSU + + + + FAN 2 LED 1KEY FLASH MEMORY (0.5MB) SDRAM (8MB) ASIC JUPITER3 HVPS Block MHV OPC GND SUPPLY DEV THV FUSER ASS’Y

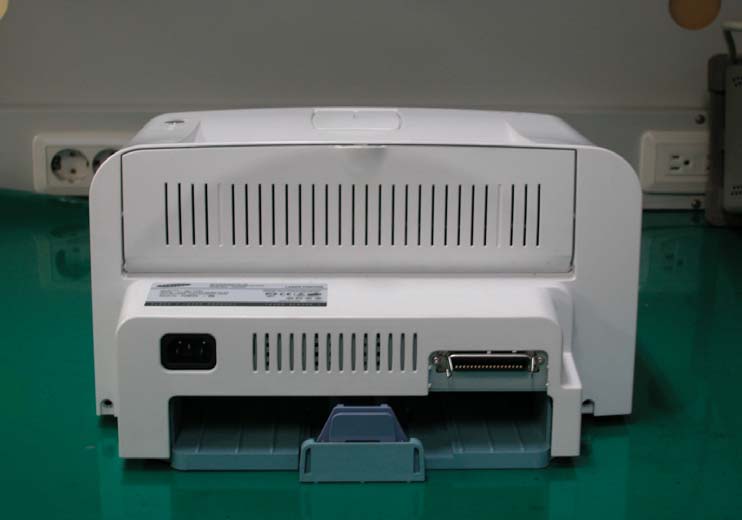

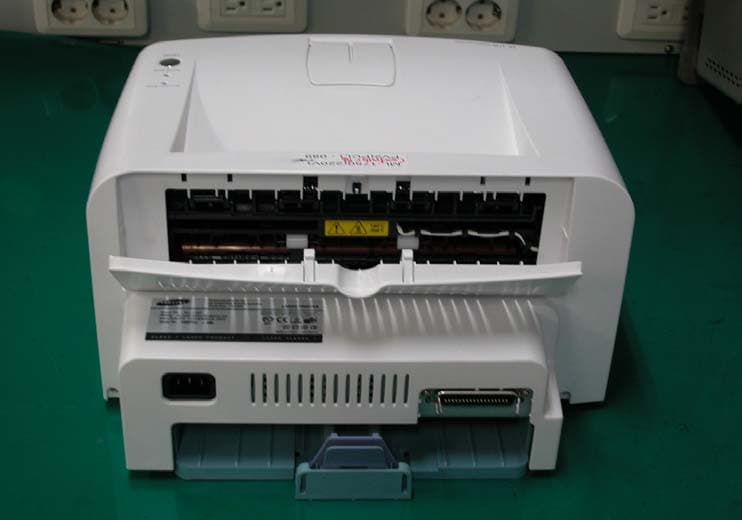

ٛ. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2 2. Internal Pictures 1) Front View 2) Rear View

ٛ ML-1710P Location of Label >

3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS + HVPS 4) Bottom View of SMPS + HVPS

Page 1 of 18 Project NO. : LBE032435 Product :Laser Beam Printer Model No. : ML-1710P FCC ID : A3LML-1710P 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 4. That data in this report are traceable to National or International Standards. Date of test :December 3, 2003 Issued Date :December 3, 2003 Tested by: Choon Kil, KIM / Test Engineer of EMC Lab. Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT According to FCC Part 15 Subpart B/Class B NVLAP Code: 200623- Page 2 of 18 Project NO. : LBE032435 Table of Contents 1. General Information 1.1 Product Description 1.2 Configuration of EUT and peripherals 1.3 Used Cable Description 1.4 System Block Diagram of Test Configuration 1.5 Test Facility 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement 2.2 Operation Environment 2.3 Test Procedure 2.4 Measurement Uncertainty 3. Conducted Emission Test Data 4. Radiated Emission Test Data 5. Label Configuration and Location 6. Test Equipment Used Distribution This test report has been made available as follows: CS Management Center, EMC Laboratory1 original Printer Division1 copy This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 3 of 18 Project NO. : LBE032435 1. General Information Applicant :Samsung Electronics Co., Ltd. Full Address :416 Maetan 3 Dong, YeoungTon-Ku, Suwon City, Kyungki Do, Korea, 442-742 Kind of Product :Laser Beam Printer FCC ID:A3LML-1710P Project Name :- Model & Variant Names : ML-1510P (Brand : Samsung) Phaser 3121(Brand : Xerox) Remark) Variant Model ML-1510P is identical to the Basic Model ML-1710P except for printing speed as 14ppm, A4. Variant Model Phaser 3121 is identical to the Basic Model ML-1710P except for Model and Brand Name. Test Report Produced by : Choon Kil, KIM / Test Engineer of EMC Lab. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 4 of 18 Project NO. : LBE032435 1.1 Product Description 1) Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. The mode of operation utilized for testing was selected to best simulate typical EUT use. In each test mode, Finally we found worst case emission that is above configuration with the Worst case components(in the above table). So, the DATA of the maximum EUT operation was reported. Further details of cabling and configuration are shown in the test system configuration. 2) Operating Frequency : Video Clock: 14.7456 MHz Main Clock : 10 MHz CPU Clock : 48 MHz SD-RAM : 66 MHz This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 5 of 18 Project NO. : LBE032435 3) Description of Testing operating mode USB PrintingContinously H pattern printing by Computer Parallel PrintingContinously H pattern printing by Computer EUT was tested all operating mode as above. Finally EUT was tested USB Printing mode as maximum emission. 4) Tested Resolution : N/A 5) Manufacturer :Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Kyung-Buk, 730-030, Korea Shandong Samsung Telecommunications Co. Ltd. Sanxing Road, Weihai Hi-Tech. IDZ Shandong Province, 264209 China This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating Mode Operating section of EUT ColorsTested Video modeResolutionsRefresh rates Page 6 of 18 Project NO. : LBE032435 1.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A Laser Beam Printer ML-1710PNoneSamsungEUT BComputerPP03L26429045536DELLDoC CAdapterADP-90FB06G356C/0DELL- This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 7 of 18 Project NO. : LBE032435 1.3 Used Cable Description No.ItemLength[m]Shielded (Y/N)Remark 1AC Power Cable1.7NFor EUT 2USB Cable1.5Y- 3Parallel Cable1.5Y- 4AC Power Cable1.5NFor PC This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 8 of 18 Project NO. : LBE032435 1.4 System Block Diagram of Test Configuration 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 442-742 Semi Anechoic Chamber #2(Registration Number:873282) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1995. This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. B AC POWER A 4 AC POWER 3 1 2 Page 9 of 18 Project NO. : LBE032435 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 18 Project NO. : LBE032435 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SE…

Text truncated - open the document above for the full version.

Page 9 of 18 Project NO. : LBE032435 2. System Test Configuration 2.1 Configuration of Radiated and Conducted Interference Measurement * Cabling was taken into consideration and test data was taken under worse case conditions. 1)Conduction(Front View) 2)Conduction(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Page 10 of 18 Project NO. : LBE032435 3) Radiation(Front View) 4) Radiation(Rear View) This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory.
