A3LML1250Laser Printer

This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual. © 2001 Samsung Electronics Co., Ltd. All rights reserved. • ML-1250 and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • IBM and IBM PC are trademarks of International Business Machines Corporation. • Microsoft, Windows, Windows 9x, Windows Me, WindowsNT and Windows 2000 are trademarks of Microsoft Corporation. • PCL6 are trademarks of Hewlett-Packard Company. • Apple, Macintosh, Power Macintosh, iMac and iBook are trademarks of Apple Computer, Inc. • GNU Ghostscript software, Copyright (C) 1999. Aladdin Enterprise, Menlo Park, California, and other authors as indicated in its documentation. • All other brand or product names are trademarks of their respective companies or organizations. I Special Features ––––––––––––––––––––––––––––––––– 1.1 Printer Components ––––––––––––––––––––––––––––––1.3 Control Panel Buttons –––––––––––––––––––––––––––––– 3.1 Control Panel Lights ––––––––––––––––––––––––––––––– 3.3 Contents Introduction STEP 1 :Unpack Your Printer –––––––––––––––––––––––––– 2.1 STEP 2 :Install the Toner Cartridge ––––––––––––––––––––– 2.2 STEP 3 : Load Paper ––––––––––––––––––––––––––––––––– 2.4 STEP 4 :Connect to the Computer with a Parallel Cable ––––– 2.6 STEP 5 :Turn on the Printer ––––––––––––––––––––––––––– 2.7 STEP 6 : Print a Demo Page! ––––––––––––––––––––––––––– 2.7 STEP 7 :Install the Printer Software ––––––––––––––––––––– 2.8 Installing Software from Diskette –––––––––––––––––––– 2.13 Choosing Paper and Other Media ––––––––––––––––––––– 4.1 Selecting the Output Location ––––––––––––––––––––––– 4.4 Loading Paper –––––––––––––––––––––––––––––––––––– 4.5 Printing on Envelopes –––––––––––––––––––––––––––––– 4.7 Printing on Heavy Paper –––––––––––––––––––––––––––– 4.9 Printing on Labels –––––––––––––––––––––––––––––––– 4.10 Printing on Transparencies ––––––––––––––––––––––––– 4.11 Printing on Preprinted Paper ––––––––––––––––––––––– 4.12 Printing on Card Stock or Custom-sized Media –––––––––– 4.13 1 2 Setting Up Your Printer 3 Using Control Panel 4 Print Media II Maintaining Toner Cartridge ––––––––––––––––––––––––– 6.1 Cleaning the Printer ––––––––––––––––––––––––––––––– 6.4 Maintaining Your Printer 6 Printing a Document ––––––––––––––––––––––––––––––– 5.1 Using Toner Save Mode –––––––––––––––––––––––––––– 5.6 Printing Multiple Pages on One Sheet of Paper––––––––––5.7 Fitting Your Document to a Selected Paper Size ––––––––– 5.8 Printing Posters ––––––––––––––––––––––––––––––––––– 5.9 Setting Graphic Properties ––––––––––––––––––––––––– 5.11 Printing Watermarks –––––––––––––––––––––––––––––– 5.14 Using Page Overlay ––––––––––––––––––––––––––––––– 5.17 Reprinting the Last Page –––––––––––––––––––––––––– 5.21 Printing on a Network Environment ––––––––––––––––––– 5.22 Printing Tasks 5 Troubleshooting Checklist ––––––––––––––––––––––––––– 7.1 Solving General Printing Problems –––––––––––––––––––– 7.2 Clearing Paper Jams ––––––––––––––––––––––––––––––– 7.6 Solving Print Quality Problems –––––––––––––––––––––– 7.11 Troubleshooting Error Messages ––––––––––––––––––––– 7.17 Common Windows Problems –––––––––––––––––––––––– 7.19 Problem Solving 7 Printer Specifications ––––––––––––––––––––––––––––––– A.1 Paper Specifications –––––––––––––––––––––––––––––––– A.2 Using Your Printer with a USB Cable ––––––––––––––––– A.10 Using Your Printer with Macintosh ––––––––––––––––––– A.16 Printing from DOS Applications ––––––––––––––––––––– A.23 Linux Driver Installation ––––––––––––––––––––––––––– A.28 Installing Optional Memory Card ––––––––––––––––––––– A.30 Appendix INDEX III Environmental and Safety Consideration The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere is certified as a Class I laser product conforming to the requirements of IEC 825. Class I laser products are not considered to be hazardous. The laser system and printer are designed so there is never any human access to laser radiation above a Class I level during normal operation, user maintenance, or prescribed service condition. WARNING Never operate or service the printer with the protective cover removed from Laser/Scanner assembly. The reflected beam, although invisible, can damage your eyes. CAUTION - INVISIBLE LASER RADIATION WHEN THIS COVER OPEN. DO NOT OPEN THIS COVER. VORSICHT - UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN. ATTENTION - RAYONNEMENT LASER INVISIBLE EN CAS D’OUVERTURE.EXPOSITION DAN GEREUSE AU FAISCEAU. ATTENZIONE -RADIAZIONE LASER INVISIBILE IN CASO DI APERTURA. EVITARE L’ESPOSIZIONE AL FASCIO. PRECAUCION -RADIACION LASER IVISIBLE CUANDO SE ABRE. EVITAR EXPONERSE AL RAYO. ADVARSEL. - USYNLIG LASERSTRÅLNING VED ÅBNING NÅR SIKKERHEDSBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLNING. ADVARSER. - USYNLIG LASERSTRÅLNING NÅR DEKSEL ÅPNES. STIRR IKKE INN I STRÅLEN. UNNGÅ EKSPONERING FOR STRÅLEN. VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPAND OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG. VARO! - AVATTAESSA JASUOJALUKITUS OHITETTAESSA OLET ALTTIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ KATSO SÄTEESEEN. Laser Safety Statement IV Environmental and Safety Consideration Ozone Safety Power Saver During normal operation, the Samsung ML-1250 Series printer produces ozone. The ozone produced does not present a hazard to the operator. However, it is advisable that the machine be operated in a well ventilated area. If you need additional information about ozone, please request your nearest Samsung dealer. This printer contains advanced energy conservation technology that reduces power consumption when it is not in active use. When the printer does not receive data for an extended period of time,…

Text truncated - open the document above for the full version.

PRINTINGTASKS 1 Right-click Start, and selectExplorer. 2 Open your network folder in the left column. 3 Right-click the shared name, and select Capture Printer Port. 4 Select the port you want, check the Reconnect at log on box, then click OK. 5 From the Startmenu, select Settings, then Printers. 6 Double-click your printer icon. 7 From the Printersmenu, select Properties. 8 Press the Detailstab, select the printer port, then click OK. Setting Up Client PC Printing on a Network Environment 5.23 chapter This chapter provides suggestions for high-quality and economical printing and information for maintaining the toner cartridge and the printer. Topics included in this chapter are: Maintaining Toner Cartridge Cleaning the Printer 6 6 MAINTAININGYOURPRINTER 6.1 Maintaining Toner Cartridge To get the most from the toner cartridge, keep the following guidelines in your mind. • Do not remove the toner cartridge from its package until you are ready to use it. • Do not refill toner cartridges.The printer warranty does not cover damage caused by using a refilled cartridge. • Store toner cartridges in the same environment as the printer. • Do not remove a toner cartridge from the printer except to replace it, clean it or clear a paper jam. Replace the cartridge immediately. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Toner cartridge storage The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at 5 % coverage, a new toner cartridge lasts an average of 2,500 pages. (But, the toner cartridge supplied with the printer lasts an average of 1,000 pages.) Toner cartridge life expectancy After you install a new toner cartridge (see page 2.2), follow the instructions included in the toner cartridge box to recycle the old cartridge. Recycling toner cartridge To save toner, press the Toner Savebutton on the printer control panel. The button will be lit. You can also enable the Toner Save Modein your printer properties. Refer to “Using Toner Save Mode” on page 5.6. Selecting this option will extend the life of the toner cartridge and reduce your cost per page, but will reduce print quality. Saving toner MAINTAININGYOURPRINTER 6.2 Maintaining Toner Cartridge When toner is low, faded or light areas may appear on a printed page. You may be able to temporarily improve print quality by redistributing the toner. The following procedures may allow you to finish the current print job before replacing the toner cartridge. Redistributing Toner 1Grasp the front cover by both sides of the cover and pull it toward you to open. 2Remove the toner cartridge from the printer. CAUTIONS: • Avoid reaching too far into the printer. The fusing area may be hot. • To prevent damage to the toner cartridge, do not expose it to light formore than a few minutes. MAINTAININGYOURPRINTER 6.3 Maintaining Toner Cartridge 3Gently shake the toner cartridge from side to side 5 or 6 times to redistribute the toner. 4Reinsert the toner cartridge into the printer. Be sure that the toner cartridge snaps in its place. 5Firmly close the cover. If the print remains light Remove the old cartridge and install a new toner cartridge. See “Install the Toner Cartridge” on page 2.2. Note:If the toner gets on your clothing, wipe it off with a dry cloth and wash clothing in cold water. Hot water sets toner into fabric. MAINTAININGYOURPRINTER 6.4 Cleaning the Printer To maintain print quality, follow the cleaning procedures below every time the toner cartridge is replaced or whenever print quality problems occur. As much as possible, keep the printer free from dust and debris. Notes: • Do not use ammonia-based cleaners or volatile solvents such as thinner, on or around the printer. These can damage the printer. • While cleaning the inside of the printer, be careful not to touch the transfer roller (located underneath the toner cartridge ). The oil from your hands on the roller can cause print quality problems. Wipe the outside surface of the printer with a soft, clean, lint- free cloth. You can dampen the cloth slightly with water, but be careful not to let any water drip onto the printer or inside it. Cleaning the Outside During the printing process, paper, toner, and dust particles can accumulate inside the printer. Over time, this buildup can cause print quality problems such as toner specks or smearing. Cleaning inside the printer will eliminate or reduce these problems. Cleaning the Inside 1 Turn the printer off and unplug the power cord, then wait for the printer to cool. 2 Open the front cover and remove the toner cartridge. 3 With a dry, lint-free cloth, wipe away any dust and spilled toner from the toner cartridge area and the toner cartridge cavity. Cleaning inside the printer Note:To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Cover it with a piece of paper, if necessary. Also, do not touch the black transfer roller inside the printer. By doing so, you can damage the printer. 3 Your printer automatically picks up a sheet of paper from the tray and prints out a cleaning sheet with the dust or toner particles on it. MAINTAININGYOURPRINTER 5 Then, plug in the power cord, and turn the printer on. Note:The cartridge cleaning process takes some time. To stop the printing, turn the power off. Cleaning the Printer Printing a cleaning sheet Printing a cleaning sheet cleans the drum inside the toner cartridge. Use this process if you are experiencing blurred, faded or smeared printouts. This process will produce a page with toner debris, which should be discarded. 1 Make sure the printer is turned on and in the Ready mode and that there is paper loaded in the automatic input tray. 2 Press and hold down Demoon the control panel for about 10 seconds until all control panel lights remain lit, then release the button. 4 Reinsert the toner cartridge and close the cover. 6.5 chapter This chapter gives helpful…

Text truncated - open the document above for the full version.

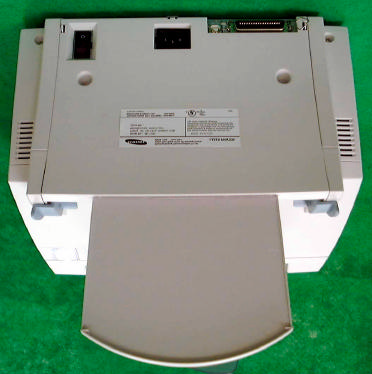

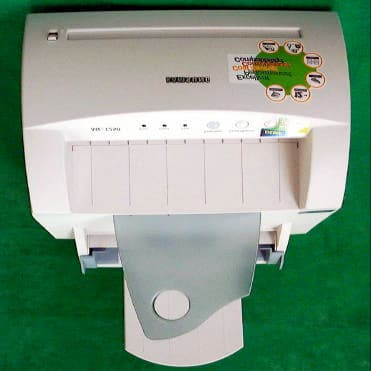

Front view of EUT Rear view of EUT

Page 13 of 14 JOB NO. : KE-01-0312 7. Label and Label Location 7.1 Label 7.2 Label location This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.

Internal view of EUT Side view of EUT PCBs view of HVPS b'd Solder view of HVPS b'd Front view of LSU Rear view of LSU PCBs view of controller b'd Solder view of controller b'd PCBs view of SMPS b'd Solder view of SMPS b'd PCBs view of OP b'd Solder view of OP b'd PCBs view of PTL b'd Solder view of PTL b'd PCBs view of Sensor b'd Solder view of Sensor b'd PCBs view of SIMM Solder view of SIMM

Page 1 of 14 JOB NO. : KE-01-0312 Product :Laser Printer Model No. :ML-1250 JOB NO. : KE-01-0312 1. This test reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 2. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 3. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. Date of test :June 14, 2001 Issued Date :June 19, 2001 Prepared by: Kyeong Dong,Kim / Test Engineer Reviewed by: Chun Kil,Kim / Technical Manager Authorised by: Yang Su,Kim / Quality Manager This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. EMI TEST REPORT FCC Part 15 Subpart B, Class B LAB CODE : 200447-0 Page 2 of 14 JOB NO. : KE-01-0312 Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Test Methodology 1.4 Test Facility 2. System Test Configuration 2.1 Operation Environment 2.2 Justification 2.3 EUT Exercise Software 2.4 Test Procedure 2.5 Test System configuration 3. Conducted and Radiated Measurement Photos 3.1 Conducted Measurement Photos 3.2 Radiated Measurement Photos 4. Measurement Uncertainty 4.1 Conducted Emission Test 4.2 Radiated Emission Test 5. Conducted Emission Test Data 6. Radiated Emission Test Data 7. Label and Label Location 8. Test Equipment Used This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 3 of 14 JOB NO. : KE-01-0312 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 CONTACT PERSON :Jun Won, Kim TEL. +82-31-200-4325 CONTACT ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 REGULATION(S) :FCC Part 15 Subpart B, Class B MODEL NUMBER :ML-1250 SERIAL NUMBER :- KIND OF PRODUCT :Laser Printer TESTED DATE :June 14, 2001 TEST SITE :3meter semi-anechoic chamber TEST SITE ADDRESS :San 14, Nongseo-Ri, Kihung-Eup, Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 4 of 14 JOB NO. : KE-01-0312 1.1 Product Description The Samsung ML-1250 print at 1200dots per inch class,12 pages-per-minute. Standard 150 sheet automatic input tray and a 1-sheet manual input tray support various sizes,types. Main System Clock is 20MHz, Vedeo clock 44MHz, USB clock 48MHz and crystal clock 6.7149MHz. Power rating is AC100~127V and 250W Power consumption during operation and less than 10W in sleep mode. See the attached ML-1250 User's Guide for more information. 1.2 Tested System Details The FCC IDs for all equipment, plus descriptions of all products used in the tested system are: Device TypeManufacturerModel NumberSerial No.FCC ID / DoC (1)Laser printerSamsungML-1250N/AA3LML1250 (EUT) (2)PCSAMSUNGTD260-DTC92DK409981FCC DoC (3)MonitorSamsungSyncMaster 17GLsiH3MF400637FCC DoC (4)KeyboardSamsung5900K09141644FCC DoC (5)MouseLogitechM-SAS51LZB00478743JNZ211167 (6)External ModemUS RoboticsSPORTSTER33083962CJE-0149-217 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT. 1.4 Test Facility All test described in this report were performed by : Open area test site : 781-14, Chung-Ri, Dongtan-Myun, Hwasung-Kun, Kyungki-Do, Korea Conducted measurement facility and 3meter Semi-anechoic chamber : San 14, Nongseo-Ri, Kihung-Eup,Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 5 of 14 JOB NO. : KE-01-0312 2. System Test Configuration 2.1 Operation Environment ConductionRadiation Temperature [] :2525.5 Humidity [%] :4244 Power supply :AC115V/60HzAC115V/60Hz 2.2 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.3 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing is word editor(Hun2000).Type H character on decument 10 page and then execute print to EUT continuously. 2.4 Test Procedure 2.4.1 Conducted Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 6 of 14 JOB NO. : KE-01-0312 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.4.2 Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obt…

Text truncated - open the document above for the full version.

Page 8 of 14 JOB NO. : KE-01-0312 3. Conducted and Radiated Measurement Photos * Cabling was taken into consideration and test data was taken under worse case conditions. 3.1 Conducted Measurement Photos Conduction(Front View) Conduction(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 9 of 14 JOB NO. : KE-01-0312 * Cabling was taken into consideration and test data was taken under worse case conditions. 3.2 Radiated Measurement Photos Radiation(Front View) Radiation(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.
