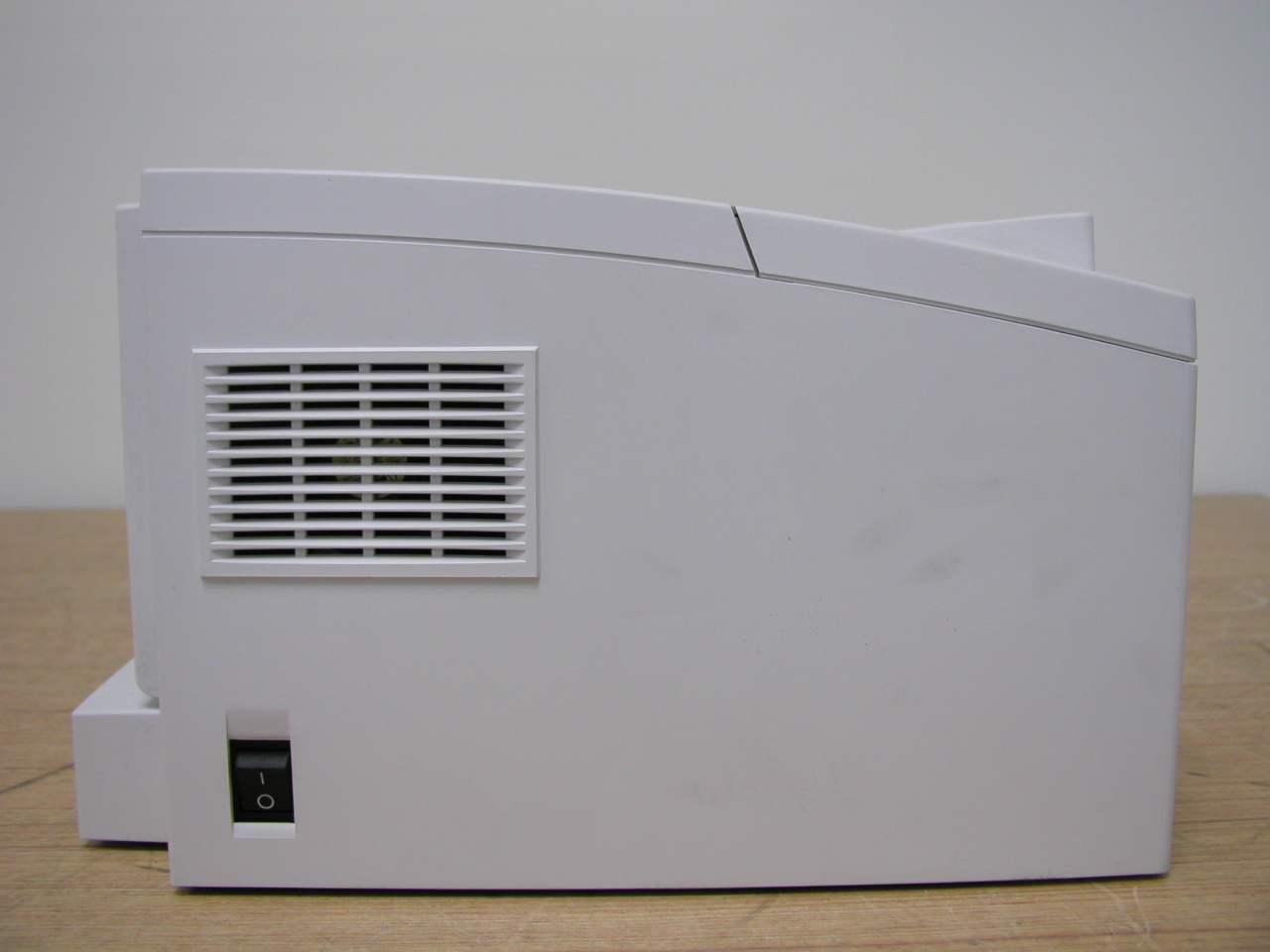

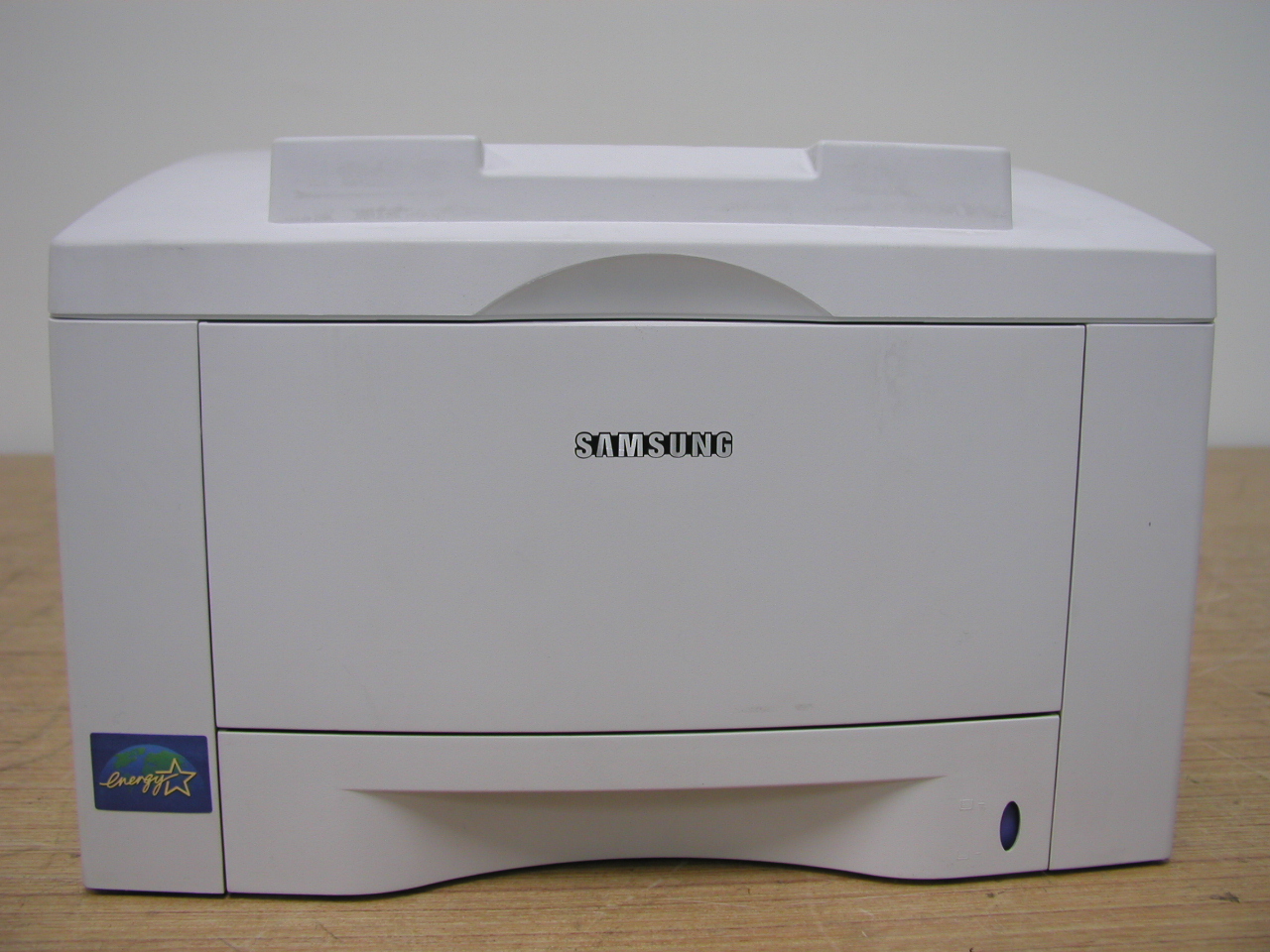

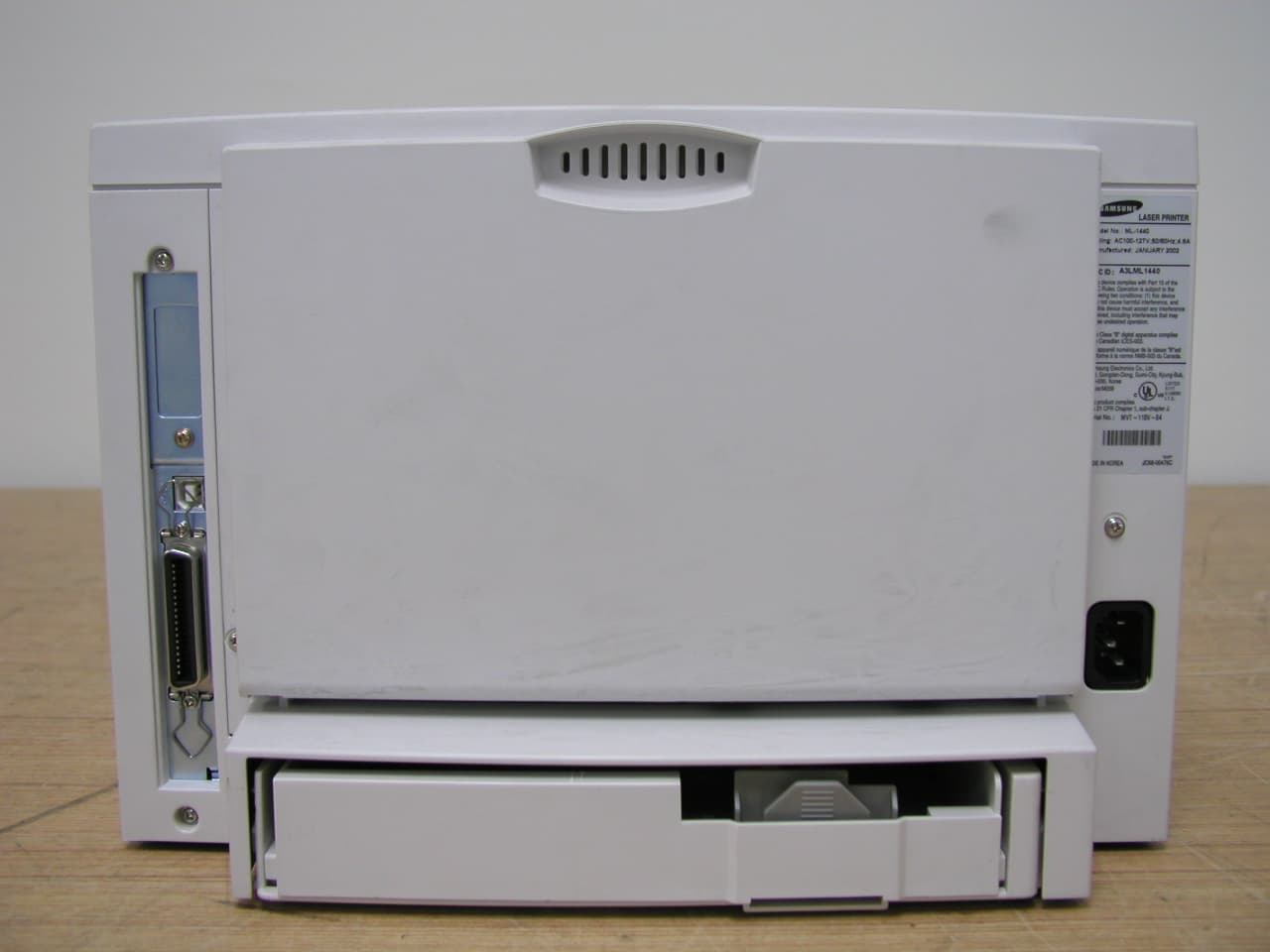

A3LML1440Laser Printer

4.9 P RINT MEDIA Printing on Envelopes Guidelines • Only use envelopes recommended for laser printers. Before you load envelopes in the Manual Tray, make sure that they are undamaged. • Do not feed stamped envelopes. • Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives. These envelopes may severely damage the printer. 1Open the Manual Tray by pulling it down toward you. 2Open the rear output tray and pull the extender. 4.10 P RINT MEDIA 3Load the envelope with the flap side down. The stamp area ison the left sideand the end of the envelope with the stamp area enters the Manual Tray first. 4Adjust the guide to the width of envelope. 5When you print on envelopes, configure the paper source, type and size properly in the software application. For details, see page 5.3. 6After printing, close the Manual Tray and the rear output tray. Printing on Envelopes 4.11 P RINT MEDIA Printing on Heavy Paper Guidelines • Heavy paper is any paper heavier than 24 lb (90 g/m 2 ). The maximum paper weight available for your printer is 43 lb (163g/m 2 ). • Do not use extremely heavy paper stock (greater than 43 lb, or 163 g/m 2 bond). Misfeeds, mis-stacking, media jams, poor toner fusing, poor print quality, and excessive mechanical wear can result. 1Open the Manual Tray and the rear output tray. 2Load paper with print side up, and against the left edge of the tray. Adjust the guide to the width of paper. 3When you print on heavy paper, select Bondin the Paper Type section.then configure the paper source, and size in the software application. For details, see page 5.3. 4.12 P RINT MEDIA Printing on Labels Guidelines • Only use labels recommended for laser printers. • Verify that the labels’ adhesive material can tolerate fusing temperature of 200°C (392°F) for 0.1 second. • Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components. • Do not feed a sheet of labels through the printer more than once. The adhesive backing is designed for one pass through the printer. • Do not use labels that are wrinkled, bubbled, separated from the backing sheet, or damaged in any way. 1Open the Manual Tray and the rear output tray. 2Load labels with print side up, and against the left edge of the tray. Adjust the guide to the width of paper. 3When you print on labels, configure the paper source, type and size in the software application. For details, see page 5.3. Note:To prevent them from sticking together, remove label sheet from the output tray as they are printed out. 4.13 P RINT MEDIA Printing on Transparencies Guidelines • Only use transparencies recommended for use in laser printers. • Make sure that the transparencies are not wrinkled or curled, and that they do not have any torn edge. • Hold the transparencies by the edges and avoid touching the print side. Oils from your fingers that are deposited on the transparency can cause print quality problems. • Be careful not to scratch or leave fingerprints on the print side. • To prevent transparencies from curling, use the standard output tray. (This is for transparencies only; for other media, use the rear output tray to reduce curling.) 1Open the Manual Tray by pulling it down toward you. 2Load transparencies with print side up, and the top with the adhesive strip entering the printer first. Adjust the guide to the width of paper. 3When you print on transparencies, configure the paper source, type and size in the software application. For details, see page 5.3. Notes: • To prevent transparencies from sticking together, remove them from the output tray as they are printed. • Place transparencies on a flat surface after removing them from the printer. 4.14 P RINT MEDIA Printing on Preprinted Paper 1Load letterheads into the tray you want to use as shown in the figures. Adjust the guide to the width of paper. 2When you print a document on the paper, configure the paper source, type and size in the software application. For details, see page 5.3. Preprinted paper is paper that has some type of printing placed on it before it is sent through the printer. (paper that has a preprinted logo at the top of the page, for example) Guidelines • Letterheads must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 400°F (205°C) for 0.1 second. • Ink on letterheads must be non-flammable and should not adversely affect any printer rollers. • Forms and letterheads should be sealed in a moisture-proof wrapping to prevent changes during storage. • Before you load preprinted paper as forms and letterheads, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper. Load withthe design face up, top edge toward the printer. Load withthe design face down, bottom edge toward the printer. 4.15 P RINT MEDIA Printing on Card Stock or Custom-sized Media 1Open the Manual Tray. Open the rear output tray and pull the extender out to its full-length position. 2Load print media with print side up, short edge firstand against the left edge of the tray. Adjust the guide to the width of paper. 3Configure the paper source, type and size in the printer driver’s properties (see page 5.3) and print. Postcards, 3.9 by 5.83 in.(index) cards and other custom-sized media can be printed with the ML-1440 printer. The minimum size is 98 by 148 mm (3.9 by 5.83 in.) and the maximum size is 216 by 356 mm (8.5 by 14 in.). Guidelines • Always insert the short-edge into the Manual tray first. If you want to print in landscape mode, make this selection through your software. Inserting paper long-edge first may cause a paper jam. • Do not print on media smaller than 98 mm (3.9 in.) wide or 148 mm(5.83 in.) long. • Set margins at least 6.4 mm (0.25 in.) away from the edges of the media …

Text truncated - open the document above for the full version.

5.28 PRINTING TASKS Printing on Different Paper for the First Page 1When you change the print settings from your software application, access the printer properties. See page 5.2to access the printer properties. 2Click the Papertab, and click Different Source for First Page. If the box is checked, this feature is enabled and the dialog box allows you to select the desired paper source for the FirstPageand Other Pagesindependently. If the box is empty, this feature is disabled. 3Click OK, then start printing. Note:The paper size for all pages of the print job must be the same. 5.29 PRINTING TASKS Reprinting the Last Page The Samsung ML-1440 printer’s memory always keep the last page of the last job. If you canceled a print job due to a paper jam or other problems and you want to know which page was printed last, reprint the last page. Press Cancel/Reprintbriefly in the ready mode. Cancel/Reprint To disable this feature: 1. From the Startmenu, select Settingsand then Printers. 2. Click the right mouse button on the Samsung ML-1440 Seriesprinter icon and select Propertiesto open the properties window. 3. From the Graphictab, Select OFFfrom the Reprint drop-down list. With this option OFF, you cannot reprint the last page from the control panel. When you want to reprint the last page on the control panel, you must select ONfrom the list. 4. Click OK. Note:If you want to prevent somebody from reprinting your document, you can turn the Reprinting feature off in the printer’s properties dialog box. When you turn the feature off in the printer’s properties, the Cancel/Reprintbutton on the control panel does not perform the reprinting operation. 5.30 PRINTING TASKS Printing on a Network Environment If you work in a network environment, you can connect your printer directly to a selected computer (called the “host computer”) on the network. The printer can then be shared by other users on the network through a Windows 9x/Me/ NT 4.0/2000/XP network printer connection. Note:You need to install the Samsung ML-1440 printer driver on each computer that will print documents to the printer. 1Start Windows. 2Click Start and select Control Panelfrom Settings, then double-click on the Networkicon. 3Check the File and Print Sharing box, then click OK. Close the window. 4Click Start and select Printersfrom Settings, then double-click your printer name. 5Select Propertiesin the Printers menu. 6Click the Sharingtab, then check the Shared Asbox. Fill in the Shared Namefield, then click OK. Windows 98/Me Setting Up Host Computer 5.31 PRINTING TASKS 1Right-click Start, and selectExplorer. 2Open your network folder in the left column. 3Right-click the shared name, and select Capture Printer Port. 4Select the port you want, check the Reconnect at log on box, then click OK. 5From the Startmenu, select Settings, then Printers. 6Double-click your printer icon. 7From the Printersmenu, select Properties. 8Press the Detailstab, select the printer port, then click OK. Printing on a Network Environment Setting Up Client PC 5.32 PRINTING TASKS 1Start Windows. 2From the Startmenu, select Settings, then Printers. (Windows NT/2000) From the Startmenu, select Printers and Faxes. (Windows XP) 3Double-click your printer icon. 4From the Printermenu, select Sharing. 5Check the Sharedbox. (Windows NT) Check the Shared Asbox. (Windows 2000) Check the Share this printerbox. (Windows XP) Fill in the Share Namefield, then click OK. (Windows NT) Fill in the Shared Namefield, then click OK. (Windows 2000/XP) Windows NT/2000/XP Setting Up Host Computer Printing on a Network Environment 5.33 PRINTING TASKS Printing on a Network Environment 1Right-click Start, and selectExplorer. 2Open your network folder in the left column. 3Click the shared name. 4From the Startmenu, select Settings, then Printers. (Windows NT/2000) From the Startmenu, select Printers and Faxes. (Windows XP) 5Double-click your printer icon. 6From the Printermenu, select Properties. 7Press the Portstab, click Add Port. 8Select Local port, and click New Port. 9Fill in the Enter a port namefield, enter the shared name. 10Click OK, and click Close. 11Click OK. (Windows NT) Click Apply, and click OK. (Windows 2000/XP) Setting Up Client PC This chapter provides suggestions for high-quality and economical printing and information for maintaining the toner cartridge and the printer. Topics included in this chapter are: Maintaining Toner Cartridge Cleaning the Printer 6 6 CHAPTER Maintaining Your Printer Maintaining Your Printer 6.1 M AINTAINING YOUR PRINTER Maintaining Toner Cartridge To get the most from the toner cartridge, keep the following guidelines in your mind. • Do not remove the toner cartridge from its package until you are ready to use it. The shelf life of a cartridge in an unopened package is approximately 2 years. The shelf life of a cartridge in an opened package is approximately 6 months. • Do not refill toner cartridges.The printer warranty does not cover damage caused by using a refilled cartridge. • Store toner cartridges in the same environment as the printer. • Do not remove a toner cartridge from the printer except to replace it, clean it or clear a paper jam. Replace the cartridge immediately. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Toner cartridge storage The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at 5 % coverage, a new toner cartridge lasts an average of 6,000 pages. (But, the toner cartridge supplied with the printer lasts an average of 3,000 pages.) Toner cartridge life expectancy After you install a new toner cartridge (see page 2.3), follow the instructions included in the toner cartridge box to recycle the old cartridge. Recycling toner cartridge To save toner, press the Toner Savebutton on the printer control panel. The button will be lit. You can also enable the Toner Save Modein your printer properties. Refer to “Using Toner …

Text truncated - open the document above for the full version.

4.9 P RINT MEDIA Printing on Envelopes Guidelines • Only use envelopes recommended for laser printers. Before you load envelopes in the Manual Tray, make sure that they are undamaged. • Do not feed stamped envelopes. • Never use envelopes with clasps, snaps, windows, coated lining, or self-stick adhesives. These envelopes may severely damage the printer. 1Open the Manual Tray by pulling it down toward you. 2Open the rear output tray and pull the extender. 4.10 P RINT MEDIA 3Load the envelope with the flap side down. The stamp area ison the left sideand the end of the envelope with the stamp area enters the Manual Tray first. 4Adjust the guide to the width of envelope. 5When you print on envelopes, configure the paper source, type and size properly in the software application. For details, see page 5.3. 6After printing, close the Manual Tray and the rear output tray. Printing on Envelopes 4.11 P RINT MEDIA Printing on Heavy Paper Guidelines • Heavy paper is any paper heavier than 24 lb (90 g/m 2 ). The maximum paper weight available for your printer is 43 lb (163g/m 2 ). • Do not use extremely heavy paper stock (greater than 43 lb, or 163 g/m 2 bond). Misfeeds, mis-stacking, media jams, poor toner fusing, poor print quality, and excessive mechanical wear can result. 1Open the Manual Tray and the rear output tray. 2Load paper with print side up, and against the left edge of the tray. Adjust the guide to the width of paper. 3When you print on heavy paper, select Bondin the Paper Type section.then configure the paper source, and size in the software application. For details, see page 5.3. 4.12 P RINT MEDIA Printing on Labels Guidelines • Only use labels recommended for laser printers. • Verify that the labels’ adhesive material can tolerate fusing temperature of 200°C (392°F) for 0.1 second. • Make sure that there is no exposed adhesive material between the labels. Exposed areas can cause labels to peel off during printing, which can cause paper jams. Exposed adhesive can also cause damage to printer components. • Do not feed a sheet of labels through the printer more than once. The adhesive backing is designed for one pass through the printer. • Do not use labels that are wrinkled, bubbled, separated from the backing sheet, or damaged in any way. 1Open the Manual Tray and the rear output tray. 2Load labels with print side up, and against the left edge of the tray. Adjust the guide to the width of paper. 3When you print on labels, configure the paper source, type and size in the software application. For details, see page 5.3. Note:To prevent them from sticking together, remove label sheet from the output tray as they are printed out. 4.13 P RINT MEDIA Printing on Transparencies Guidelines • Only use transparencies recommended for use in laser printers. • Make sure that the transparencies are not wrinkled or curled, and that they do not have any torn edge. • Hold the transparencies by the edges and avoid touching the print side. Oils from your fingers that are deposited on the transparency can cause print quality problems. • Be careful not to scratch or leave fingerprints on the print side. • To prevent transparencies from curling, use the standard output tray. (This is for transparencies only; for other media, use the rear output tray to reduce curling.) 1Open the Manual Tray by pulling it down toward you. 2Load transparencies with print side up, and the top with the adhesive strip entering the printer first. Adjust the guide to the width of paper. 3When you print on transparencies, configure the paper source, type and size in the software application. For details, see page 5.3. Notes: • To prevent transparencies from sticking together, remove them from the output tray as they are printed. • Place transparencies on a flat surface after removing them from the printer. 4.14 P RINT MEDIA Printing on Preprinted Paper 1Load letterheads into the tray you want to use as shown in the figures. Adjust the guide to the width of paper. 2When you print a document on the paper, configure the paper source, type and size in the software application. For details, see page 5.3. Preprinted paper is paper that has some type of printing placed on it before it is sent through the printer. (paper that has a preprinted logo at the top of the page, for example) Guidelines • Letterheads must be printed with heat-resistant ink that will not melt, vaporize, or release hazardous emissions when subjected to the printer’s fusing temperature of 400°F (205°C) for 0.1 second. • Ink on letterheads must be non-flammable and should not adversely affect any printer rollers. • Forms and letterheads should be sealed in a moisture-proof wrapping to prevent changes during storage. • Before you load preprinted paper as forms and letterheads, verify that the ink on the paper is dry. During the fusing process, wet ink can come off preprinted paper. Load withthe design face up, top edge toward the printer. Load withthe design face down, bottom edge toward the printer. 4.15 P RINT MEDIA Printing on Card Stock or Custom-sized Media 1Open the Manual Tray. Open the rear output tray and pull the extender out to its full-length position. 2Load print media with print side up, short edge firstand against the left edge of the tray. Adjust the guide to the width of paper. 3Configure the paper source, type and size in the printer driver’s properties (see page 5.3) and print. Postcards, 3.9 by 5.83 in.(index) cards and other custom-sized media can be printed with the ML-1440 printer. The minimum size is 98 by 148 mm (3.9 by 5.83 in.) and the maximum size is 216 by 356 mm (8.5 by 14 in.). Guidelines • Always insert the short-edge into the Manual tray first. If you want to print in landscape mode, make this selection through your software. Inserting paper long-edge first may cause a paper jam. • Do not print on media smaller than 98 mm (3.9 in.) wide or 148 mm(5.83 in.) long. • Set margins at least 6.4 mm (0.25 in.) away from the edges of the media …

Text truncated - open the document above for the full version.

5.28 PRINTING TASKS Printing on Different Paper for the First Page 1When you change the print settings from your software application, access the printer properties. See page 5.2to access the printer properties. 2Click the Papertab, and click Different Source for First Page. If the box is checked, this feature is enabled and the dialog box allows you to select the desired paper source for the FirstPageand Other Pagesindependently. If the box is empty, this feature is disabled. 3Click OK, then start printing. Note:The paper size for all pages of the print job must be the same. 5.29 PRINTING TASKS Reprinting the Last Page The Samsung ML-1440 printer’s memory always keep the last page of the last job. If you canceled a print job due to a paper jam or other problems and you want to know which page was printed last, reprint the last page. Press Cancel/Reprintbriefly in the ready mode. Cancel/Reprint To disable this feature: 1. From the Startmenu, select Settingsand then Printers. 2. Click the right mouse button on the Samsung ML-1440 Seriesprinter icon and select Propertiesto open the properties window. 3. From the Graphictab, Select OFFfrom the Reprint drop-down list. With this option OFF, you cannot reprint the last page from the control panel. When you want to reprint the last page on the control panel, you must select ONfrom the list. 4. Click OK. Note:If you want to prevent somebody from reprinting your document, you can turn the Reprinting feature off in the printer’s properties dialog box. When you turn the feature off in the printer’s properties, the Cancel/Reprintbutton on the control panel does not perform the reprinting operation. 5.30 PRINTING TASKS Printing on a Network Environment If you work in a network environment, you can connect your printer directly to a selected computer (called the “host computer”) on the network. The printer can then be shared by other users on the network through a Windows 9x/Me/ NT 4.0/2000/XP network printer connection. Note:You need to install the Samsung ML-1440 printer driver on each computer that will print documents to the printer. 1Start Windows. 2Click Start and select Control Panelfrom Settings, then double-click on the Networkicon. 3Check the File and Print Sharing box, then click OK. Close the window. 4Click Start and select Printersfrom Settings, then double-click your printer name. 5Select Propertiesin the Printers menu. 6Click the Sharingtab, then check the Shared Asbox. Fill in the Shared Namefield, then click OK. Windows 98/Me Setting Up Host Computer 5.31 PRINTING TASKS 1Right-click Start, and selectExplorer. 2Open your network folder in the left column. 3Right-click the shared name, and select Capture Printer Port. 4Select the port you want, check the Reconnect at log on box, then click OK. 5From the Startmenu, select Settings, then Printers. 6Double-click your printer icon. 7From the Printersmenu, select Properties. 8Press the Detailstab, select the printer port, then click OK. Printing on a Network Environment Setting Up Client PC 5.32 PRINTING TASKS 1Start Windows. 2From the Startmenu, select Settings, then Printers. (Windows NT/2000) From the Startmenu, select Printers and Faxes. (Windows XP) 3Double-click your printer icon. 4From the Printermenu, select Sharing. 5Check the Sharedbox. (Windows NT) Check the Shared Asbox. (Windows 2000) Check the Share this printerbox. (Windows XP) Fill in the Share Namefield, then click OK. (Windows NT) Fill in the Shared Namefield, then click OK. (Windows 2000/XP) Windows NT/2000/XP Setting Up Host Computer Printing on a Network Environment 5.33 PRINTING TASKS Printing on a Network Environment 1Right-click Start, and selectExplorer. 2Open your network folder in the left column. 3Click the shared name. 4From the Startmenu, select Settings, then Printers. (Windows NT/2000) From the Startmenu, select Printers and Faxes. (Windows XP) 5Double-click your printer icon. 6From the Printermenu, select Properties. 7Press the Portstab, click Add Port. 8Select Local port, and click New Port. 9Fill in the Enter a port namefield, enter the shared name. 10Click OK, and click Close. 11Click OK. (Windows NT) Click Apply, and click OK. (Windows 2000/XP) Setting Up Client PC This chapter provides suggestions for high-quality and economical printing and information for maintaining the toner cartridge and the printer. Topics included in this chapter are: Maintaining Toner Cartridge Cleaning the Printer 6 6 CHAPTER Maintaining Your Printer Maintaining Your Printer 6.1 M AINTAINING YOUR PRINTER Maintaining Toner Cartridge To get the most from the toner cartridge, keep the following guidelines in your mind. • Do not remove the toner cartridge from its package until you are ready to use it. The shelf life of a cartridge in an unopened package is approximately 2 years. The shelf life of a cartridge in an opened package is approximately 6 months. • Do not refill toner cartridges.The printer warranty does not cover damage caused by using a refilled cartridge. • Store toner cartridges in the same environment as the printer. • Do not remove a toner cartridge from the printer except to replace it, clean it or clear a paper jam. Replace the cartridge immediately. • To prevent damage to the toner cartridge, do not expose it to light for more than a few minutes. Toner cartridge storage The life of the toner cartridge depends on the amount of toner that print jobs require. When printing text at 5 % coverage, a new toner cartridge lasts an average of 6,000 pages. (But, the toner cartridge supplied with the printer lasts an average of 3,000 pages.) Toner cartridge life expectancy After you install a new toner cartridge (see page 2.3), follow the instructions included in the toner cartridge box to recycle the old cartridge. Recycling toner cartridge To save toner, press the Toner Savebutton on the printer control panel. The button will be lit. You can also enable the Toner Save Modein your printer properties. Refer to “Using Toner …

Text truncated - open the document above for the full version.

AA BB CC DD EE 5 5 4 4 3 3 2 2 1 1 01.09.04 31 SHEET CONTENTS 4. LVDS & Power A Date G.H.NAM 4 2. gmZAN1/2 2 Comments Author SCHEMATIC REVISION HISTORY L50C(S527B/L550B/L1510B) Schematic 3. MCU(MTV312M) Ver Initial release ver A 1. Contents, Revision History 5 01.11.29S527NOISESOLUTIONE 5. AUDIO & USB6. OSD 6 7 7. BLOCK DIAGRAM 02.01.03 B L1510B MP W.S.IM NONE B 1. Contents B 17 Friday, January 04, 2002 TitleSize Document Number Rev Date: Sheet of 55 44 33 22 11 D D C C B B A A ANALOG SUPPLYDECOUPLING ANALOG AND DIGITAL GROUNDS MUST BEINTERCONNECTED AT A SINGLE POINT NOTE: 3.3DIGITALSUPPLYDECOUPLING 3.3DIGITALSUPPLYDECOUPLING VGA INPUTCONNECTOR SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 SOT23 Default R218 R211 NC REV. EREV. E U203A NC NONE B 2. gmZAN1 or gmZAN2 C 27 Friday, January 04, 2002 TitleSize Document Number Rev Date: Sheet of DVDDASVDDAVDDA PD16PD2PD10PD5PD13PD11PD4PD9PD17 RVDDA PD0PD3PDISPEPD1PD6PD8PD12PD7PD14PD15 PD[0..5]PD[6..11]PD[12..17] PD37PD38PD39PD40PD41PD36PVSPHSPCLKA VGA_SCLVGA_VSYNCVGA_HSYNC BLUE-RED-GREEN-GREEN+RED+BLUE+ GREENRED BLUE IRQHFSMFB3MFB9MFB1MFB2MFB8HCLKRESETnMFB7HDATA0MFB0 VGA_SCL VGA_SDA VGA_SDA +3.3V GND +3.3V GND ZAN1_3.3V/ ZAN2_2.5V GND ZAN1_3.3V/ ZAN2_2.5V GND GND GND GND GND +5V GND GND +5VGND GND GND +5VGND GND GND GND GND GND GND GND R21710K U200 gmZAN1/gmZAN2 1 234 5 67 8 910 11 12 1314151617 18 1920 21 2223242526272829 30 3132 33 343536373839 40 41 42434445464748 49 5051525354555657 58 59 6061 626364 65 666768697071 72 73747576 77 78 79 80 81 82 83 84 85 8687 88 89 9091 92 93 9495 96 979899 100101102103 108 114 115116117118119120121122123124 125 126 127128 129 130 131 132 133 134 135 136 137 138 139 140 141142 143 145 146 147 148 149 150 151 152153154155156157 158 159160113112111110109107106105104 144 CVSS1 RESERVEDPSCANRESERVED CVSS1A PD47PD46 RVSS1 PD45PD44 SRVDD1 RVDD1 PD43PD42PD41PD40PD39 SRVSS1 PD38PD37 SRVDD2 PD36PD35PD34PD33PD32PD31PD30PD29 RVSS2 PD28PD27 RVDD2 PD26PD25PD24PD23PD22PD21 RVDD2A CVSS2 PD20 PDISPE PCLKAPCLKB PD19PD18PD17 RVSS3 PD16PD15PD14PD13PD12PD11PD10 PD9 CVDD2 CVSS2A RVDD2BRVSS4 PD8PD7PD6 RVDD3 PD5PD4PD3PD2PD1PD0 CVSS3 PVS PHS PBIAS PPWR ADC_VDD2 ADC_GND2 ADC_VDD1 ADC_GND1 SUB_GNDA ADC_GNDA RESERVED ADC_VDDA ADC_BGNDA BLUE-BLUE+ ADC_BVDDA ADC_GGNDA GREEN-GREEN+ ADC_GVDDA ADC_RGNDA RED-RED+ ADC_RVDDA N/CHFSHDATARESETnIRQMFB9HCLK CVDD4 CVSS4 OSD_HREFOSD_VREFOSD_CLKOSD_DATA0OSD_DATA1OSD_DATA2OSD_DATA3OSD_FSWMFB11MFB10 DVDD DVSS DAC_DGNDADAC_DVDDA PLL_DVDDA RESERVED PLL_DGNDA SUB_DGNDA SUB_SGNDA PLL_SGNDA RESERVED PLL_SVDDA DAC_SVDDA DAC_SGNDA SVDD SVSS TCLKXTAL/RESERVED PLL_RVDDA RESERVED SUB_RGNDA CVSS5 VSYNC SYN_VDD HSYNC/CS SYN_VSS RESERVEDSTI_TM1STI_TM2SCAN_IN1RESERVEDSCAN_IN2 SRVSS2 SCAN_OUT1SCAN_OUT2MFB0MFB1MFB2MFB3MFB4MFB5MFB6MFB7MFB8 PLL_RGNDA R219 0 R21347K C2160.1uF R209 22 C232 0.01uF R220 0 C2240.1uF C24118pF C2080.1uF C20922uF/16V C230 0.01uF R2110 C2270.1uF R218 0 C2180.1uF C233 0.01uF C2130.1uF X20020MHz U203B74LCX14 SO14 3 4 14 7 C20022uF/16V C24218pF U203C74LCX14 SO14 5 6 14 7 R208 100 R200 100 C2280.1uF C2290.1uF C235 0.01uF C243NC C21022uF/16V R202 100 C2140.1uF C2050.1uF D2006.2V R20675 C201 22uF/16V C2020.1uF C2170.1uF U203A74LCX14 SO14 1 2 14 7 R20575 C225 22uF/16V R203 100 R214 100 C223 22uF/16V C2190.1uF R20475 R210 22 D204RLS4148 D206KDS226 C2030.1uF C2120.1uF R215 100 R21610K C206 22uF/16V D207KDS226 D205KDS226 D2086.2V C2260.1uFC2070.1uF C2390.1uF C231 0.01uF C2220.1uF D2016.2V C2110.1uF U203D74LCX14 SO14 9 8 14 7 CN200 DB15HD 162738495 1112131415 10 D2026.2V C2200.1uF U20224LC21 8P SOIC 4 8 123 765 GND VCC NC NCNC VCLKSCLSDA R207 100 R21247K C2210.1uF C234 0.01uF C24047pF R201 100 C2040.1uF C2150.1uF D2036.2V PD[0..5] SHEET 4 PD[6..11] SHEET 4 PD[12..17] SHEET 4 PD36 SHEET 4 PD37 SHEET 4 PD38 SHEET 4 PD39 SHEET 4 PD41 SHEET 4 PD40 SHEET 4 PVS SHEET 4 PHS SHEET 4 PDISPE SHEET 4 PCLKA SHEET 4 HCLK SHEET 3 KEY_DOWN SHEET 3 HDATAF2 SHEET 3 KEY_UP SHEET 3 SELECT SHEET 3 MENU SHEET 3 HFS SHEET 3 HDATAF3 SHEET 3 HDATAF0 SHEET 3 HDATAF1 SHEET 3 /IRQ SHEET 3 ZAN_RST SHEET 3 VGA_CON SHEET 3 55 44 33 22 11 D D C C B B A A KEY_UP LED_ORANGE_ENLED_GRN_EN SELECT PWM_BRIGHT INVERTERCONNECTOR HDATAF0HDATAF1HDATAF2HDATAF3 Only L1510B NONE B 3. MCU(MTV312M) C 37 Friday, January 04, 2002 TitleSize Document Number Rev Date: Sheet of KEY_DOWN MUTE GND +5V GND GND GND +5V GND +5V GND +5V +12V +5V +5V +5V GND GND GND +12V GND +5V R30110K C3091uF/50V C3020.1uF R319 470 C30410uF/16V C305 10uF/16V R314 470 MTV312M 44PinPLCC U303MTV312M 789 1011121314151617 18 19 20 21 22 23 24 25 26 27 28 2930313233343536373839 40 41 42 43 44 1 2 3 4 5 6 RSTVDDP6.3/AD3VSSX2X1ISDA/P3.4/T0ISCL/P3.5/T1STOUT/P4.2P6.2/AD2/HLFHIP1.0 P1.1 P3.2/INTO P1.2 P1.3 P1.4 P1.5 P1.6 P1.7 P6.1/AD1 P6.0/AD0 P3.1/Txd P3.0/Rxd P6.4/DA10P6.5/DA11P6.6/DA12P6.7/DA13 DA6/P5.6 DA7/HCLAMP VBLANK/P4.0 HBLANK/P4.1 DA9/HALFV DA8/HALFH DA5/P5.5 DA4/P5.4 DA3/P5.3 HSYNC VSYNC DA2/P5.2 DA1/P5.1 DA0/P5.0 VDD3 NC NC C3130.1UF C3190.1uF C3140.1uF R302 10K C3150.1uF C30818pF R313 330 C3160.1uF R304 10K C3170.1uF D301 RLS4148 C3180.1uF R312 330 U301 24LC08SOIC 1234 5678 A0A1A2VSS SDA SCL WP VCC R303 10K X30012MHz R30010K R3071K R306 10K R334 10K CN303 HEADER 7 12345 C3030.1uF C3060.1uF R31510K CN301HEADER 8 12345678 R321 10K R305 10K R309 4.7K C30718pF R322 10K R308 4.7K R310 4.7K R323 10K R324 10K C3010.1uF CN302HEADER 6123456 C30010uF/16V HDATAF[0..3] SHEET 2 HFS SHEET 2 HCLK SHEET 2 /IRQ SHEET 2 MENU SHEET 2 KEY_UP SHEET 2 KEY_DOWN SHEET 2 SELECT SHEET 2 LVDS_EN SHEET 4 ZAN_RST SHEET 2 PANEL_POWER SHEET 4 VGA_CON SHEET 2 55 44 33 22 11 D D C C B B A A 1pxl/clk REDGREENBLUE NONE B 4. LVDS & POWER C 47 Friday, January 04, 2002 TitleSize Document Number Rev Date: Sheet of PD10PD0PD8PD3 SLVDSR/F PD16 PD[12..17] PD36PD13PD4PD14PD12PD40PD5 PDISPE PD7 PD[6..11] PHS SLVDSPDN PD38PD2 PCLKA SPLL-VCC PD[0..5] PD9PD1PD17PD6 PVS PD15PD11PD37PD41PD39 SO-TD6 STTL-GNDRX0-RX1+RX1-RX0+RX2-RX2+RXCLK-RXCLK+RX3-RX3+ RX0-RX0+RX1-RX1+RX2-RX2+RXCLK-RXCLK+RX3-RX3+ SPLL-GND +3.3V GND GND LVDS_3.3V ZAN1_3.…

Text truncated - open the document above for the full version.
