A3LML1630WLaser Printer

User’s Guide Monochrome Laser Printer © 2008 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any changes, direct or indirect damages, arising from or related to use of this user’s guide. • ML-1630W is model names of Samsung Electronics Co., Ltd. • Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • Microsoft, Windows, Windows XP and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation. • UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc. • TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. CONTACT SAMSUNG WORLD WIDE If you have any comments or questions regarding Samsung products, contact the Samsung customer care center. CountryCustomer Care Center Web Site ARGENTINE0800-333-3733www.samsung.com/ar AUSTRALIA1300 362 603www.samsung.com AUSTRIA0800-SAMSUNG (726-7864)www.samsung.com/at BELGIUM0032 (0)2 201 24 18www.samsung.com/be BRAZIL0800-124-421 4004-0000 www.samsung.com CANADA1-800-SAMSUNG (726- 7864) www.samsung.com/ca CHILE800-SAMSUNG (726-7864 )www.samsung.com/cl CHINA800-810-5858 010- 6475 1880 www.samsung.com.cn COLOMBIA01-8000-112-112www.samsung.com/co COSTA RICA0-800-507-7267www.samsung.com/latin CZECH REPUBLIC 844 000 844www.samsung.com/cz Distributor pro ýeskou republiku : Samsung Zrt., þeska organizaþní složka Vyskoþilova 4, 14000 Praha 4 DENMARK70 70 19 70www.samsung.com/dk ECUADOR1-800-10-7267www.samsung.com/latin EL SALVADOR800-6225www.samsung.com/latin ESTONIA800-7267www.samsung.ee KAZAHSTAN8-10-800-500-55-500www.samsung.kz KYRGYZSTAN00-800-500-55-500 FINLAND030-6227 515www.samsung.com/fi FRANCE3260 SAMSUNG 08 25 08 65 65 (€ 0,15/min) www.samsung.com GERMANY01805 - SAMSUNG (726- 7864 (€ 0,14/Min) www.samsung.com GUATEMALA1-800-299-0013www.samsung.com/latin HONDURAS800-7919267 HONG KONG3698-4698www.samsung.com/hk HUNGARY06-80-SAMSUNG (726- 7864) www.samsung.com INDIA3030 8282 1800 110011 www.samsung.com INDONESIA0800-112-8888www.samsung.com ITALIA800-SAMSUNG (726-7864)www.samsung.com JAMAICA1-800-234-7267www.samsung.com/latin JAPAN0120-327-527www.samsung.com/jp LATVIA800-7267www.samsung.com/lv LITHUANIA8-800-77777www.samsung.com/lt LUXEMBURG0035 (0)2 261 03 710www.samsung.com/be MALAYSIA1800-88-9999www.samsung.com/my MEXICO01-800-SAMSUNG (726- 7864) www.samsung.com NETHERLANDS0900-SAMSUNG (726-7864 € 0,10/Min) www.samsung.com/nl NEW ZEALAND0800SAMSUNG (726-7864)www.samsung.com/nz NICARAGUA00-1800-5077267 NORWAY815-56 480www.samsung.com/no PANAMA800-7267www.samsung.com/latin PHILIPPINES1800-10-SAMSUNG (726- 7864) www.samsung.com/ph POLAND0 801 801 881 022-607-93-33 www.samsung.com/pl PORTUGAL80820-SAMSUNG (726- 7864) www.samsung.com/pt PUERTO RICO1-800-682-3180www.samsung.com/latin REP. DOMINICA 1-800-751-2676www.samsung.com/latin EIRE0818 717 100www.samsung.com/ie RUSSIA8-800-555-55-55www.samsung.com SINGAPORE1800-SAMSUNG (726-7864)www.samsung.com/sg SLOVAKIA0800-SAMSUNG (726-7864)www.samsung.com/sk SOUTH AFRICA 0860-SAMSUNG (726-7864 ) www.samsung.com SPAIN902 10 11 30www.samsung.com SWEDEN0771-400 200www.samsung.com/se SWITZERLAND0800-SAMSUNG (726-7864)www.samsung.com/ch TADJIKISTAN8-10-800-500-55-500 CountryCustomer Care Center Web Site TAIWAN0800-329-999www.samsung.com THAILAND1800-29-3232 02-689-3232 www.samsung.com/th TRINIDAD & TOBAGO 1-800-SAMSUNG (726- 7864) www.samsung.com/latin TURKEY444 77 11www.samsung.com U.A.E800-SAMSUNG (726-7864) 8000-4726 www.samsung.com U.K0845 SAMSUNG (726-7864)www.samsung.com U.S.A.1-800-SAMSUNG (726- 7864) www.samsung.com/us UKRAINE8-800-502-0000www.samsung.com UZBEKISTAN8-10-800-500-55-500www.samsung.com.uz VENEZUELA0-800-100-5303 www.samsung.com/latin VIETNAM1 800 588 889www.samsung.com CountryCustomer Care Center Web Site CONTENTS About this user’s guide .................................................................................................................................................i Finding more information .............................................................................................................................................i Safety and Regulatory Information .............................................................................................................................. ii 1. Introduction Special features ...................................................................................................................................................... 1.1 Machine overview ................................................................................................................................................... 1.2 Front view ........................................................................................................................................................... 1.2 Rear view ............................................................................................................................................................ 1.3 Control panel overview ........................................................................................................................................... 1.4 2. Software overview Supplied software .................................................................................................................................................... 2.1 Printer driver features .............................................................................................................................................. 2.2 System requirements .............................................................................................................................................. 2.2 3. Getting Started Setting up the hardware ..............................…

Text truncated - open the document above for the full version.

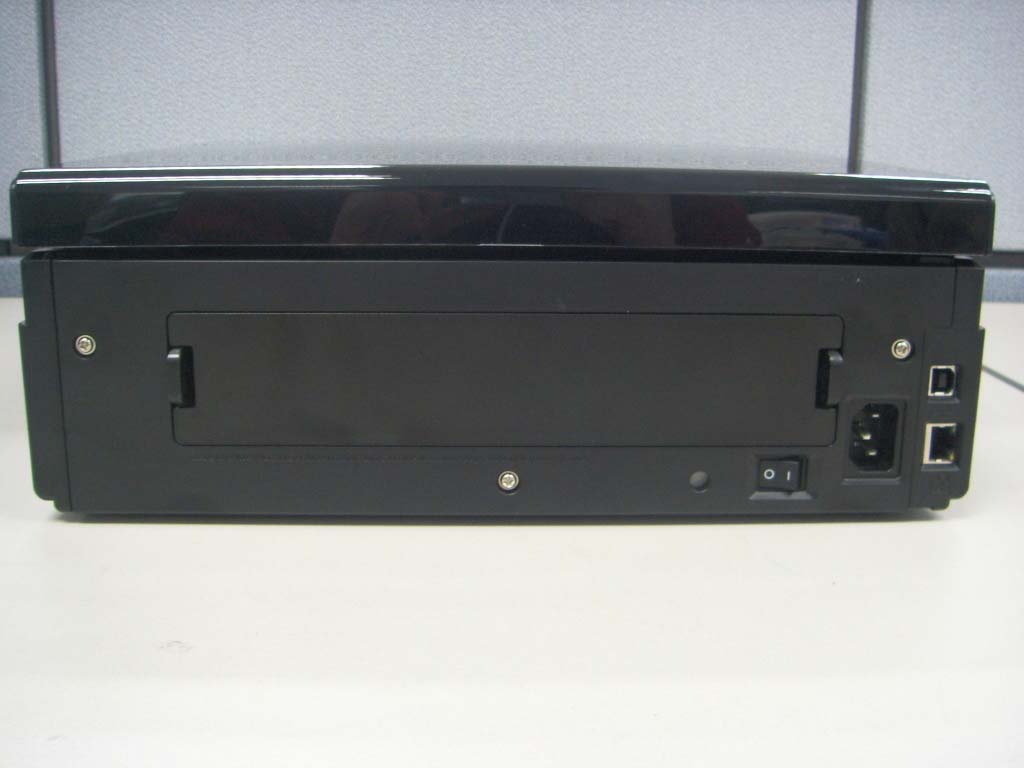

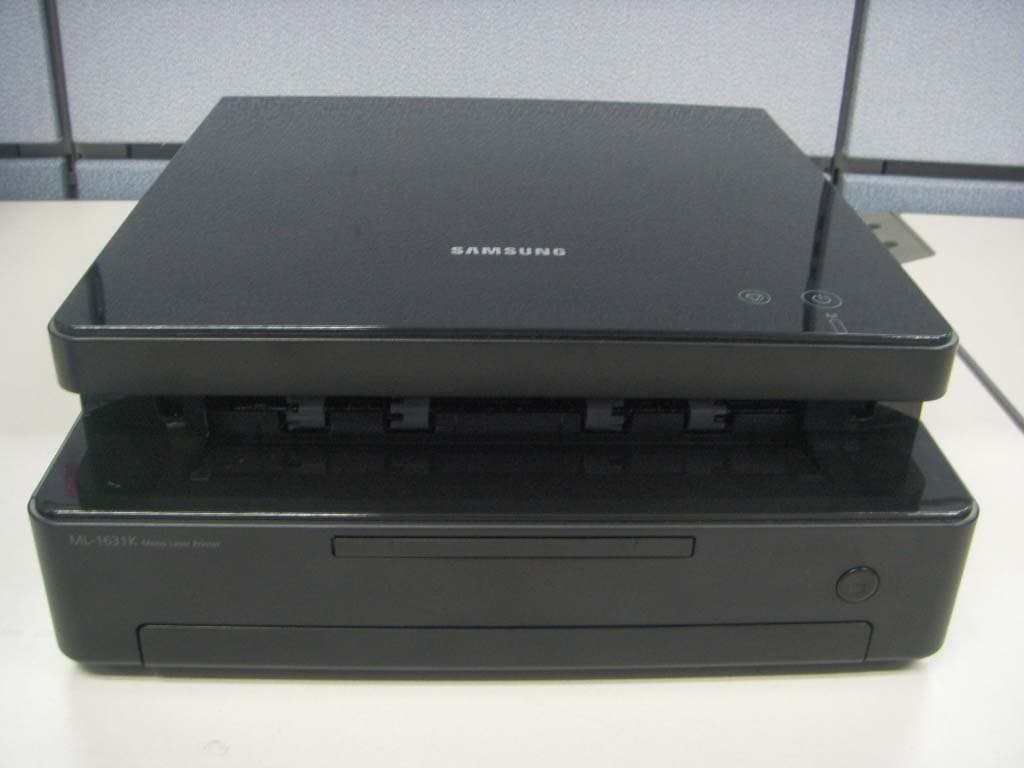

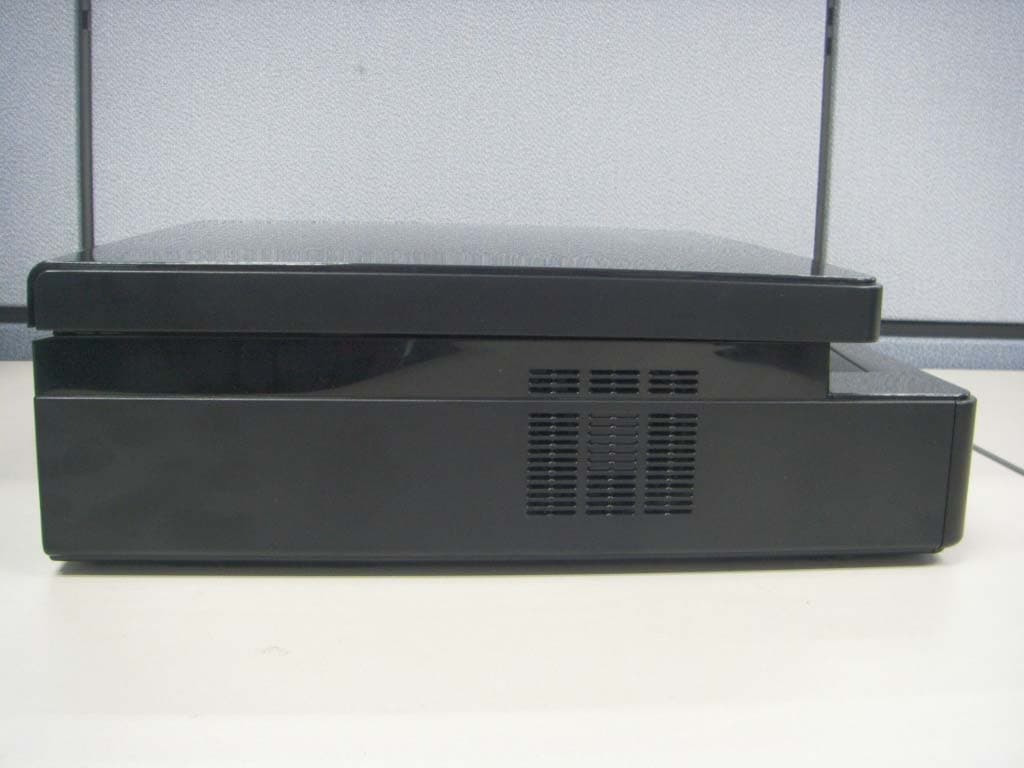

1.External Pictures 1) Front View 2) Rear View 3) Side View(Right) 4) Side View(Left)

Project No. : LBE080138 Printer : ML-1630W - 30/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Label Location Label

1) Front View 2. Internal Pictures 2) Rear View 1) Top View of Main Controller 3. Print Board Assembled (PBA) Pictures 2) Bottom View of Main Controller 3) Top View SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of Wireles s LAN 8) Bottom View of Wireless LAN

Project No. : LBE080138 Printer : ML-1630W - 7/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHORUS3 (ARM926EJS, 16/32 Bit Risc Architecture) - Standard System memory 64Mbyte DDR SDRAM - Resolution 1200x1200dpi - Copy Quality mode NA - Paper Handling Paper Tray(standard) 100 Sheets 2nd Tray(optional) : NA Bypass Tray : NA - Power Rating 110~127 VAC, 4.0A, 50/60 Hz - Power Consumption Power save mode : 8.12Watts Printing simplex : 350Watts - Printer Language SPL - Interfaces Hi-Speed USB2.0 Ethernet 10/100 Base TX IEEE802.11 b/g Wireless LAN - OS compatibility Windows 2000(32bit)/XP(32/64bit)/2003(32/64bit)/Vista(32/64bit) MAC 10.3/10.5, Linux Red Hat 8~9, Fedora Core 1~3, Mandrake 9.2~10.1, and SuSE 8.2~9.2 - Modes of Operation USB Printing Network Printing Wireless network - Intended Class for Emissions Class B -

-1/30- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE080138 Issue No. 1 Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application 2008. 01. 11 Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML1630W Kind of product LASER PRINTER ML-1630W Model No. Variant Model No. None EUT Equipment Under Test Manufacturer Samsung Electronics Shandong Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Issue date 2008. 01. 22 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Sung Jin, Sim Reviewed by : No Cheon, Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. SEC EMC Laboratory 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE080138 Printer : ML-1630W - 2/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Operating mode condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE080138 Printer : ML-1630W - 3/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standardResult Remarks Conducted Disturbance Complied Meets Class B Limit Minimum margin is 11.8 dB at 4.364 MHz Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit Minimum margin is 11.4 dB at 4000.013 MHz 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE080138 Printer : ML-1630W - 4/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 Radio Research Laboratory Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE080138 Printer : ML-1630W - 5/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Description Model No. Serial No. Manufacturer FCC ID Printer ML-1630W - Samsung A3LML1630W Note PC NP-Q20 I86191CWC00005 Samsung A3LNPQ20 AC Adapter AD-4212A CNBA440014BASE 383BS0345 Dongguan Samsung Electro-Mechanics - USB Mouse M-UAE96 LZK61923439 Logitech DoC Headset Plantronics - Microsoft - 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Operating Mode 2 USB printing Operating Mode 3 Network printing Operating Mode 4 Wireless network printing 3.3 Details of Sampling Customer selected, single unit. Project No. : LBE080138 Printer : ML-1630W - 6/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No For EUT USB 1.8 Yes From PC to EUT From PC to Mouse Cross cable 1.0 No Between PC and EUT Headset 1.0 No From earphone to PC Project No. : LBE080138 Printer : ML-1630W - 7/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor CHORUS3 (ARM926EJS, 16/32 Bit Risc Architecture) - Standard System memory 64Mbyte DDR SDRAM - Resolution 1200x1200dpi - Copy Quality mode NA - Paper Handling Paper Tray(standard) 100 She…

Text truncated - open the document above for the full version.

Project No. : LBE080138 Printer : ML-1630W - 12/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of the test Configuration (Front) (Rear) Project No. : LBE080138 Printer : ML-1630W - 22/30- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.2 Photograph of the test Configuration (30 MHz ~ 1 GHz) (Front) (Rear)
