A3LML1650Laser Printer

Home Visit us at: http://www.samsungprinter.com P/N. JC68-00xxxA Rev.1.00 ML-1650ML-1650 Series This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any damages, direct or indirect, arising from or related to use of this manual. © 2001 Samsung Electronics Co., Ltd. All rights reserved. • ML-1650, ML-1651N and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • Centronics is a trademark of Centronics Data Computer Corporation. • PCL and PCL6 are trademarks of Hewlett-Packard Company. • IBM and IBM PC are trademarks of International Business Machines Corporation. • Apple, AppleTalk, TrueType, Laser Writer and Macintosh are trademarks of Apple Computer, Inc. • Microsoft, Windows, Windows 9x, Windows Me, Windows 2000, Windows NT and MS-DOS are registered trademarks of Microsoft Corporation. • PostScript and PostScript 3 are a trademark of Adobe Systems Inc. • All other brand or product names are trademarks of their respective companies or organizations. 1 Special Features ––––––––––––––––––––––––––––––––––––––––––––1.1 Printer Components –––––––––––––––––––––––––––––––––––––––––1.3 Control Panel Buttons–––––––––––––––––––––––––––––––––––––––3.1 Control Panel Lights –––––––––––––––––––––––––––––––––––––––––3.4 Contents Introduction STEP1:Unpack Your Printer––––––––––––––––––––––––––––––––––2.1 STEP2: Install the Toner Cartridge –––––––––––––––––––––––––––2.2 STEP3:Load Paper––––––––––––––––––––––––––––––––––––––––––2.4 STEP4:Connect to the Computer with a Parallel Cable –––––––2.7 STEP5: Turn on the Printer –––––––––––––––––––––––––––––––––––2.8 STEP6:Print a Demo Page!––––––––––––––––––––––––––––––––––2.8 STEP7:Install the Printer Software––––––––––––––––––––––––––2.9 Choosing Paper and Other Media ––––––––––––––––––––––––––––4.1 Selecting the Output Tray –––––––––––––––––––––––––––––––––––4.4 Loading Paper –––––––––––––––––––––––––––––––––––––––––––––––4.6 Using Tray 1 or the Optional Tray 2 ––––––––––––––––––––––––––––4.6 Using the Multi-Purpose Tray –––––––––––––––––––––––––––––––––4.7 Using the Manual Feed ––––––––––––––––––––––––––––––––––––––4.10 Printing on Envelopes––––––––––––––––––––––––––––––––––––––4.12 Printing on Labels ––––––––––––––––––––––––––––––––––––––––––4.14 Printing on Transparencies ––––––––––––––––––––––––––––––––––4.15 Printing on Preprinted Paper ––––––––––––––––––––––––––––––––4.16 Printing on Card Stock or Custom-sized Media ––––––––––––––4.17 1 2 Setting Up Your Printer 3 Using the Control Panel 4 Print Media 2 Printing a Document–––––––––––––––––––––––––––––––––––––––5.1 Using Toner Save Mode ––––––––––––––––––––––––––––––––––––5.6 Printing on Both Sides of the Paper (Manual Duplexing) ––––––––––5.7 Printing Multiple Pages on One Sheet of Paper (N-Up Printing) –5.10 Printing Booklets –––––––––––––––––––––––––––––––––––––––––5.11 Printing on Different Paper for the First Page –––––––––––––5.14 Fitting Your Document To a Selected Paper Size ––––––––––5.15 Printing Posters ––––––––––––––––––––––––––––––––––––––––––5.16 Setting Graphic Properties –––––––––––––––––––––––––––––––5.18 Printing Watermarks –––––––––––––––––––––––––––––––––––––5.21 Using Page Overlay ––––––––––––––––––––––––––––––––––––––5.24 Printing Tasks 5 Maintaining Toner Cartridge–––––––––––––––––––––––––––––––6.1 Cleaning the Printer –––––––––––––––––––––––––––––––––––––––6.4 Maintaining Your Printer 6 Troubleshooting Checklist––––––––––––––––––––––––––––––––––7.1 Solving General Printing Problems –––––––––––––––––––––––––7.2 Printing Special Pages –––––––––––––––––––––––––––––––––––––7.6 Clearing Paper Jams –––––––––––––––––––––––––––––––––––––––7.7 Solving Print Quality Problems ––––––––––––––––––––––––––––7.16 Troubleshooting Error Messages –––––––––––––––––––––––––––7.22 Common Windows Problems ––––––––––––––––––––––––––––––7.24 Common Macintosh Problems –––––––––––––––––––––––––––––7.25 Troubleshooting PS Errors ––––––––––––––––––––––––––––––––7.27 Problem Solving 7 3 Contents (continued) Printer Specifications––––––––––––––––––––––––––––––––A.1 Paper Specifications –––––––––––––––––––––––––––––––––A.2 A Specifications Installing the Printer Software–––––––––––––––––––––––B.1 Frequently Asked Questions About USB ––––––––––––––B.4 Macintosh Installation –––––––––––––––––––––––––––––––C.1 Using PCL Driver ––––––––––––––––––––––––––––––––––––C.5 Using PS Driver ––––––––––––––––––––––––––––––––––––C.10 About Remote Control Panel for DOS ––––––––––––––––D.1 Installing the Remote Control Panel for DOS Users –––––––––––––––––––––––––––––––––––––––D.2 Selecting Print Settings ––––––––––––––––––––––––––––––D.2 Setting Your Printer with the PS Option ––––––––––––––E.1 Installing PPD Files ––––––––––––––––––––––––––––––––––E.1 Accessing the PS Printer Driver Features –––––––––––––E.3 B Using Your Printer with a USB Cable C Using Your Printer with Macintosh D Printing from DOS Applications E Using Windows PostScript Driver 4 F Using Your Printer on Network Making Installation Diskettes––––––––––––––––––––––––G.1 Installing Software from Diskette ––––––––––––––––––––G.3 About Sharing the Printer on a Network ––––––––––––––F.1 Setting Up a Locally Shared Printer –––––––––––––––––––F. 2 Setting Up a Network-Connected Printer––––––––––––––F.3 Precautions––––––––––––––––––––––––––––––––––––––––––H.1 Memory and PostScript DIMMs –––––––––––––––––––––––H.2 Network Interface Card ––––––––––––––––––––––––––––––H.5 Paper Tray 2 –––––––––––––––––––––––––––––––––––––––––H.7 Linux Driver Installation ––––––––––––––––––––––––––––––I.1 G Installing Software from Diskettes H Printer Options I Using Your Printer in Linux INDEX 5 Environmental and Safety Consideration Laser Safety Statement The printer is certified in the U.S. to conform to the requirements of DHHS 21 CFR, chapter 1 Subchapter J for Class I(1) laser products, and elsewhere, is certified as a Class I laser product conforming to the …

Text truncated - open the document above for the full version.

5.4 PRINTINGTASKS 55 Click other tabs on the top of the Properties dialog box to access other features, if needed. 66 When you complete the print settings, click OKuntil the Print dialog box is displayed. 77 Click OKto start printing. • Most Windows applications will override settings you specify in the printer driver. Change all print settings available in the software application first, and change any remaining settings using the printer driver. • The settings you change remain in effect only while you are using the current program. TToo mmaakkee yyoouurr cchhaannggeess ppeerrmmaanneenntt , make them in the Printers folder. Follows this procedure: 1. Click the Windows SSttaarrtt button. 2. Select SSeettttiinnggss , then PPrriinntteerrss to open the Printers window. Notes: 3. Select the SSaammssuunngg MMLL--11665500 SSeerriieess PPCCLL 66 . 4. Click the right mouse button and select PPrrooppeerrttiieess to open the properties window. Printing a Document 5.5 PRINTINGTASKS There are two ways to stop a print job. To stop a print job from the ML-1650 series printer Press the Cancel/Reprintbutton on the control panel. The printer will finish printing the page that is moving through the printer and delete the rest of the print job. Pressing Cancel/Reprintcancels only the current job in the printer. If more than one print job is in printer memory, Cancel/Reprint must be pressed once for each job. To stop a print job from the Printers folder 1. From the Startmenu, select Settings. 2. Select Printersto open the Printers window, then double- click the Samsung ML-1650 Series PCL 6. 3. From the Documentmenu, select Cancel Printing (Windows 9x) or Cancel(Windows NT 4.0). The Samsung ML-1650 series printer has a help screen that can be activated by the Helpbutton in the printer Properties dialog box. These help screens give detailed information about the printer features provided by the ML-1650 series printer driver. From the upper right hand corner, click ? then click on a setting for more information. If you want to restore the default printer properties settings when you change the print settings, click Defaultsin the Properties dialog box. Cancel/Reprint Printing a Document Canceling a Print Job Printing Help 5.6 PRINTINGTASKS Toner Save Using Toner Save Mode Toner Save mode allows the printer to use less toner on each page. Selecting this option will extend the life of your toner cartridge and reduce your cost per page, but will reduce print quality. This setting is not available with 1200 dpi settings. There are two ways to enable the Toner Save mode. To enable this feature from the ML-1650 series printer Press the Toner Savebutton on the control panel. The printer must be in the ready mode (Datalight is on). • If the button backlight is on, toner save mode activates and the printer uses less toner to print a page. • If the button backlight is off, toner save mode is disabled and the printer prints in the normal mode. To enable this feature from the software application 1. When you change the print settings from your software application, access the printer properties. See page 5.2 to access the printer properties. 2. Click the Graphictab, and select the Toner Save Mode option. You can select from: • Printer Setting: If you select this option, this feature is determined by the setting you’ve made on the control panel of the printer. • Standard: If you don’t need to save toner to print a document, select this option. • Save: Select this option to allow the printer to use less toner on each page. 3. Click OK. 5.7 PRINTINGTASKS Printing on Both Sides of the Paper(Manual Duplexing) To print on both sides of the paper (manual duplexing), you must run the paper through the printer twice. You can print using the top output tray (face down tray) or the rear output tray (face up tray). Samsung recommends using the top output tray for light-weight paper. Use the rear output tray for any heavy media or media that tends to curl when printed, such as envelopes and card stock. 11 When you change the print settings from your software application, access the printer properties. See page 5.2 to access the printer properties. From the Papertab, select the paper orientation, source, size and type. 22 Click the Outputtab, then choose Long Edgeor Short Edgefrom the Typedrop-down list in the Manual 2 Sided Printing section. Note:To print on both sides of the paper, yyoouu mmuusstt uussee tthhee MMuullttii--PPuurrppoossee TTrraayy for the paper input source. Load paper in the Multi-Purpose Tray. Note:If you can not see LLoonngg EEddggee in the TTyyppee drop- down list, set the TTyyppee box in the OOuuttppuutt MMooddee section to MMuullttiippllee PPaaggeess ppeerr SSiiddee or FFiitt ttoo PPaaggee . 5.8 PRINTINGTASKS 33 Select Face Down Tray(top output tray) or Face Up Tray (rear output tray) in which the printed media is to be stacked. According to this option, the printer will determine the print page order when the second sides are printed. 44 If you want to print the instruction page which tells you how to load the paper, click Printing Instruction Page. If the box is checked, the printer prints the instruction page before the duplexing job is printed. If the box is empty, this feature is disabled. 55 Start printing. The printer automatically prints only the odd-numbered pages. Choosing Long Edgelets you place the binding orientation along the long edge of the paper as in a magazine. Choosing Short Edge lets you place the binding orientation along the short edge of the paper, as in a calendar. Printing on Both Sides of the Paper (Manual Duplexing) 25 3 2 5 3 2 5 3 2 5 3   Long Edgein the Landscapeorientation   Long Edgein the Portraitorientation ➛➛



➛➛



Short Edgein the Portrait orientation   Short Edgein the Landscapeorientation 88 You are prompted to reinsert the paper into the Multi- Purpose Tray. Click OKon the screen to start printing the second side. The printer automatically prints only the…

Text truncated - open the document above for the full version.

Paper Specifications This printer accepts a variety of media, such as cut-sheet paper (including up to 100 % recycled fiber content paper), envelopes, labels, transparencies and custom-size paper. Properties such as weight, composition, grain and moisture content are important factors affecting printer performance and output quality. Paper that does not meet the guidelines outlined in this manual can cause the following problems: • Poor print quality • Increased paper jams • Premature wear on the printer, requiring repairs. Overview Notes: • Some paper may meet all of the guidelines in this manual and still not produce satisfactory results. This might be the result of improper handling, unacceptable temperature and humidity levels, or other variables over which Samsung has no control. • Before purchasing large quantities of paper, make sure that the paper meets the requirements specified in this user CAUTION:Using paper that does not meet that stated specifications may cause problems for the printer, requiring repairs. Repairs made necessary by the use of paper not specified in this manual are not covered by the Samsung warranty or service agreements. A.2 SPECIFICATIONS Tray 1 or Optional Tray 2 Letter Dimensions a 8.5 X 11 in. (216 X 279 mm) 16 to 28 lb Bond (60 to 105 g/m 2 ) 550 sheets of 20 lb Bond (75 g/m 2 ) paper Weight Capacity b A4 210 X 297 mm (8.3 X 11.7 in.) Executive Legal B5 (JIS) Folio 7.3 X 10.5 in. (191 X 267 mm) 8.5 X 14 in. (216 X 356 mm) 182 X 257 mm (7.2 X 10 in.) 216 X 330 mm (8.5 X 13 in.) Multi-Purpose Tray Minimum Size (custom) Dimensions a 90 X 148 mm (3.5 X 5.83 in.) 60 to 163 g/m 2 Bond (16 to 43 lb ) 100 sheets of 75 g/m 2 Bond (20 lb) paper Weight Capacity b Maximum Size (custom) 216 X 356 mm (8.5 X 14 in.) Transparency Labels c Envelopes Same minimum and maximum paper sizes as listed above. Thickness: .10 X .14 mm (0.0039 X 0.0055 in.) Thickness: .10 X .14 mm (0.0039 X 0.0055 in.) up to 90 g/m 2 (16-24 lb) 20 typical 25 typical up to 10 a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-Sized Media” on page 4.17. b. Capacity may vary depending on media weight and thickness, and environmental conditions. a. The printer supports a wide range of media sizes. See “Printing on Card Stock or Custom-Sized Media” on page 4.17. b. Capacity may vary depending on media weight and thickness, and environmental conditions. c. Smoothness - 100 to 250 (Sheffield) Supported Sizes ofPaper Note:You may experience some paper jams when using any media with a length of less than 148 mm (5.83 in.). For optimum performance, make sure you are storing and handling the paper correctly. Please refer to “Printer and Paper Storage Environment” on page A.6. Paper Specifications A.3 SPECIFICATIONS Paper Specifications For best results, use conventional 90 g/m 2 (24 lb) paper. Make sure the paper is of good quality, and free of cuts, nicks, tears, spots, loose particles, dust, wrinkles, voids, and curled or bent edges. If you are unsure of what type of paper you are loading (such as bond or recycled), check the label on the package of the paper. The following problems with paper can cause print quality deviations, jamming, or even damage to the printer. Symptom Poor print quality or toner adhesion Problems with feeding Dropout, jamming, curl Increased gray background shading /printer wear Excessive curl problems with feeding Jamming, damage to printer Problems with feeding Problem with Paper Too moist, too rough, too smooth, or embossed; faulty paper lot Stored improperly Too heavy Too moist, wrong grain direction or short-grain construction Cutouts or perforations Ragged edges Solution Try another kind of paper, between 100 ~ 250 Sheffield, 4 ~ 5 % moisture content. Store paper flat in its moisture- proof wrapping. Use lighter paper, open the rear output tray. • Open the rear output tray. • Use long-grain paper. Do not use paper with cutouts or perforations. Use good quality paper Notes: • Do not use letterhead paper that is printed with low-temperature inks, such as those used in some types of thermography. • Do not use raised or embossed letterhead. • The printer uses heat and pressure to fuse toner to the paper. Make sure that any colored paper or preprinted forms use inks that are compatible with this fusing temperature (200 °C or 392 °F for 0.1 second). Guidelines for Using Paper A.4 SPECIFICATIONS Paper Specifications Category Acid Content Specifications 5.5 ~ 8.0 pH Caliper .094 ~ .18 mm (3.0 ~ 7.0 mils) Curl in Ream Cut Edge Conditions Fusing Compatibility Grain Flat within 5 mm (.02 in.) Cut with sharp blades with no visible fray. Moisture Content 4 % ~ 6 % by weight Smoothness 100 ~ 250 Sheffield Must not scorch, melt, offset, or release hazardous emissions when heated to 200 °C (392 °F) for .1 second. Long Grain Paper Specifications Output Tray Top output (Face-down) tray Capacity 250 sheets of 20 lb bond (75 g/m 2 ) paper Rear output (Face-up) tray 100 sheets of 20 lb bond (75 g/m 2 ) paper Paper Output Capacity A.5 SPECIFICATIONS Ideally, the printer and paper storage environment should be at or near room temperature, and not too dry or humid. Remember that paper absorbs and loses moisture rapidly. Heat works with humidity to damage paper. Heat causes the moisture in paper to evaporate, while cold causes it to condense on the sheets. Heating systems and air conditioners remove most of the humidity from a room. As paper is opened and used, it loses moisture, causing streaks and smudging. Humid weather or water coolers can cause the humidity to increase in a room. As paper is opened and used it absorbs any excess moisture, causing light print and dropouts. Also, as paper loses and gains moisture it can distort. This can cause paper jams. As a result, paper storage and handling are as important as the paper-making process itself. Paper storage environmental conditions directly affect the feed operation. Care should be taken not to purchase…

Text truncated - open the document above for the full version.

22 ADDR(0:31) 29LV160 16MbitFlashMemory MaskFontROM K3P5V1000D-GC,High ROM 29LV160 16MbitFlashMemory MaskFontROM K3P5V1000D-GC,Low DATA(0:31) SPGPi 3 nFSYNC ACK*,BUSY, SELECT,ERROR, FAULT* SELIN* STROBE* AUTOFD* INI* PD(0:7) EIRQ(0:3)* 4 nIOCS(0:5)* 6 CPU POWERPC PPC603ei 166MHz 32 Regulator 2.7V RCS(0:3) 4 nWAIT nWR INT* nRD Centronics Connector PANEL8Pin 3 EngineI/FConnector 38 EngineControllerB'd 100PINDIMM OPPanel 74HCT273 DFlip-Flop DATA(0:7) 8 IOCS0 ML-1650VideoControllerBlockDiagram 6 0 P i n N e t w o r k C o n n e c t o r OPTION Network Card ADDR(2:18) DATA(16:31) nWAIT nRD nWR TT1 BRDIN* IOCS1 IOCS2 EIRQ2 Computer TS*,TT1,nTSBT,TSIZ(0:2) SYSCLK nTA,RST*,INT*,nTS,nBG 21 ADDR(2:22) A20 Systemclock 11.1MHz(OSC) FS781 Frequency ScalingEMI Attenuator RESET* C7733 SupplyVoltage Supervisor DATA(0:31) RD_FLASH* WR_FLASH1,2,3 Video-Clock 61.23307MHz VCLK* 74F32 2 nWR F_WR_E 74F04 32 MemoryDataBus 11 MemoryAddressBus 14 SDRAM_CAS,SDRAM_RAS, BA0*,BA1*,SDRAM_WE*, SDRAM_CS(0:1),SDQM(0:3), SD_CLK(1:2),CLKE 64MbitSDRAM K4S641632C SDRAM 64MbitSDRAM K4S641632C DRAMA(0:11) DRAMD(0:31) 100PINDIMM 74ACT245 Transceiver 93C66 4Mbit Serial EEPROM 3 5 THV_PWM*,MHV_PWM*, DEV_PWM,THVEN*, LDON*,PMOTOR*, LSUCLK,nVIDEO* To HVPS & LSU LREADY*,,LSYNC* ML-1650EngineBlockDiagram CPU (KS88C4616) 11.59158MHz PROGRAM MEMORY (27C512) 74HC245 Feed_Sensor Cover_Open SCF_RDY P_Empty P_Exit MP_Empty Output_Full Fuser_SW ---------------- Size1 Size2 Size3 D_T_Sensor DET_CRU VIDEO CONTROLLER Interface HVPScontrol -THVREAD -THV/MHV/DEVPWM ADC PWM STEPMOTOR DRIVER (TEA3718forMainMotor &2916forSub-Motor) SOLENOIDDRIVE -MAINCLUTCH -MPCLUTCH FUSERCONTROL ADC PTL FAN 2ndcassette Feeder (option) Thermister value SENSOR A0-A15 D0-D7 CPUClock(X-tal) 11.59158MHz 74HC245 A0 A8

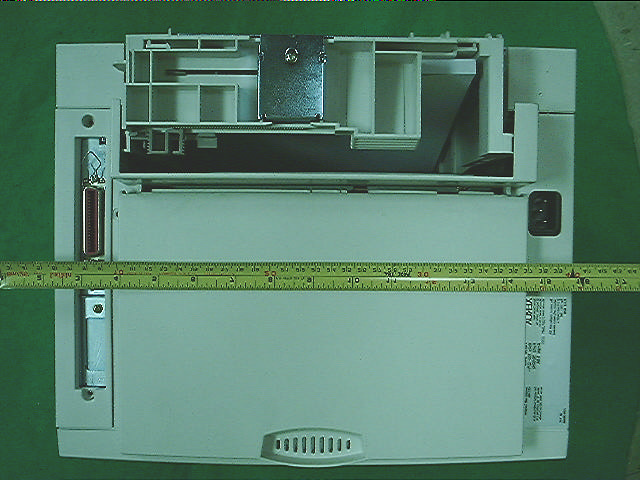

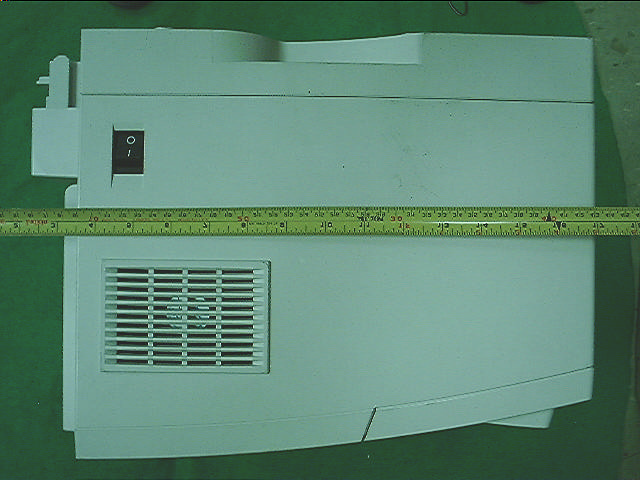

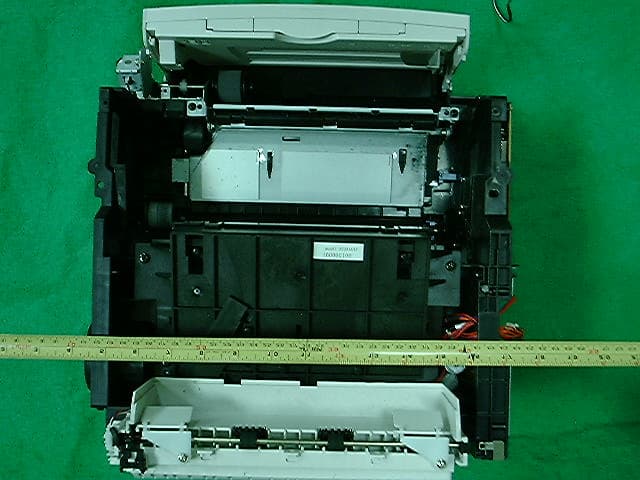

FrontviewofEUT RearviewofEUT SideviewofEUT InternalviewofEUT

Page 13 of 14 JOB NO. : 01ISM211 7. Label and Label Location 7.1 Label 7.2 Label location This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.

SolderviewofControllerb'd PCBsviewofControllerb'd SolderviewofHVPSb'd PCBsviewofHVPSb'd SolderviewofEngineb'd PCBsviewofEngineb'd SolderviewofSMPSb'd PCBsviewofSMPSb'd

Page 2 of 14 JOB NO. : 01ISM211 Table of Contents 1. General Information 1.1 Product Description 1.2 Tested System Details 1.3 Test Methodology 1.4 Test Facility 2. System Test Configuration 2.1 Operation Environment 2.2 Justification 2.3 EUT Exercise Software 2.4 Test Procedure 2.5 Test System configuration 3. Conducted and Radiated Measurement Photos 3.1 Conducted Measurement Photos 3.2 Radiated Measurement Photos 4. Measurement Uncertainty 4.1 Conducted Emission Test 4.2 Radiated Emission Test 5. Conducted Emission Test Data 6. Radiated Emission Test Data 7. Label and Label Location 8. Test Equipment Used This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 3 of 14 JOB NO. : 01ISM211 1. General Information APPLICANT :SAMSUNG ELECTRONICS CO., LTD. ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 CONTACT PERSON :SangCheol,Park TEL. +82-31-200-4298 CONTACT ADDRESS :416, Maetan-3Dong, Paldal-Gu Suwon-City, Kyungki-Do, Korea 442-742 REGULATION(S) :FCC Part 15 Subpart B, Class B MODEL NUMBER :ML-1650 SERIAL NUMBER :- KIND OF PRODUCT :LBP TESTED DATE :May 2,2001 TEST SITE :3meter semi-anechoic chamber TEST SITE ADDRESS :San 14, Nongseo-Ri, Kihung-Eup, Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 4 of 14 JOB NO. : 01ISM211 1.1 Product Description The Samsung ML-1650 print at 600 dots per inch,16 pages-per-minute.It support N/W printing(Option) Standard 500 sheet automatic input tray and a 30-sheet manual input tray support various sizes,types. Main System Clock is 11.1MHz,and Video clock is 61.233MHz, USB clock is 48MHz cristal. Power rating is AC100~127V and 300W Power consumption during operation and less than in sleep mode.See the attached ML-1650 User's Guide for more information. 1.2 Tested System Details The FCC IDs for all equipment, plus descriptions of all products used in the tested system are: Device TypeManufacturerModel NumberSerial No.FCC ID / DoC (1)LBPSamsungML-1650N/AA3LML1650 (EUT) (2)PCSAMSUNGTD260-DTC92DK409981FCC DoC (3)MonitorSamsungSyncMaster400TFTH4KH700353FCC DoC (4)KeyboardHP5183-9980J94003612FCC DoC (5)MouseSejinSMB-4004FEF027845GJJS965CO (6)External ModemUS RoboticsSPORTSTER33083962CJE-0149-217 (7)EtherNet SwitchSamsungSS6224SUS26NB00006FCC DoC 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in FCC/ANSI C63.4(1992). Radiated testing was performed at a distance of 3 meters from the antenna to EUT. 1.4 Test Facility All test described in this report were performed by : Open area test site : 781-14, Chung-Ri, Dongtan-Myun, Hwasung-Kun, Kyungki-Do, Korea Conducted measurement facility and 3meter Semi-anechoic chamber : San 14, Nongseo-Ri, Kihung-Eup,Yongin-City, Kyungki-Do, Korea, 449-900 This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 5 of 14 JOB NO. : 01ISM211 2. System Test Configuration 2.1 Operation Environment ConductionRadiation Temperature [] :2323 Humidity [%] :3636 Power supply :AC120V/60HzAC120V/60Hz 2.2 Justification The system was configured in typical fashion(as a customer would normally use it) for testing. 2.3 EUT Exercise Soft ware The EUT exercise program used during radiated and conducted testing is word editor(Hun2000).Type H character on decument 10 page and then execute print to EUT continuously.When we test N/W print,first IP of EUT was assigned as 165.213.110.85,and then Other Computer send Document to EUT via N/W. 2.4 Test Procedure 2.4.1 Conducted Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducting surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged at a 40cm height to the ground plane. Each EUT current-carrying power lead, except the ground(safety) lead, were individually connected through a LISN to the input power source. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 6 of 14 JOB NO. : 01ISM211 All unused 50 ohm connectors of the LISN were resistively terminated in 50 ohm when not connected to the measuring equipment. 2.4.2 Radiated Emissions EUT was placed on a platform of nominal size, 1m by 1.5m, raised 80cm above the conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. I/O cables that were connected to the peripherals were bundle in center. They were folded back and forth forming a bundle 30cm to 40cm long and were hanged 40cm height to the ground plane. Test was made with the antenna positioned in both the horizontal and vertical planes of polarization. The measurement antenna was varied in height above the conducting ground plane to obtain the maximum signal strength. 2.5 Test System configuration 2.5.1 System Block Diagram of Test Configuration This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 6 D 5 4 2 1 3 9 F B A C E 11 10 8 G 7 H 12 13 outside Chamber Page 7 of 14 JOB NO. : 01ISM165 2.5.2 Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark ADesktop computerTD260-DTC92DK409981Samsung BExternal ModemSPORTSTER33083962US ROBOTICS CMonitor SyncMaster400TFT H4KH700353Samsung DLaser PrinterML-1650-SamsungEUT EPS/2 MouseSMB-4004FEF027845SEJIN FKeyboard 5183-9980J94003612 HP GAC/DC AdaptorAW-1220A-AnJeon HEtherNet SwitchSS6224SUS26NB00006SamsungOutside 2.5.3 Used Cable Description No.ItemLength[m]Shielded(Y/N) 1AC Power cable1.7N 2Video cable1.5Y 3Serial cable1.5Y 4Mouse cable2Y 5Printer cable1.5Y 6Keyboar…

Text truncated - open the document above for the full version.

Page 8 of 14 JOB NO. : 01ISM211 3. Conducted and Radiated Measurement Photos * Cabling was taken into consideration and test data was taken under worse case conditions. 3.1 Conducted Measurement Photos Conduction(Front View) Conduction(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. Page 9 of 14 JOB NO. : 01ISM211 * Cabling was taken into consideration and test data was taken under worse case conditions. 3.2 Radiated Measurement Photos Radiation(Front View) Radiation(Rear View) This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government.
