A3LML1660Laser Printer

ML-1660 Series ML-1665 Series Mono Laser Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. Copyright_ 2 copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide. •Samsung and the Samsung logo are trademarks of Samsung Electronics Co., Ltd. •Microsoft, Windows, Windows Vista, Windows 7, and Windows 2008 Server R2 are either registered trademarks or trademarks of Microsoft Corporation. •TrueType, LaserWriter, and Macintosh are trademarks of Apple Computer, Inc. •All other brand or product names are trademarks of their respective companies or organizations. Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information. REV. 0.90 Safety information_ 3 safety information These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place for future reference. IMPORTANT SAFETY SYMBOLS This section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of danger. Explanation of all icons and signs used in the user’s guide: WarningHazards or unsafe practices that may result in severe personal injury or death. CautionHazards or unsafe practices that may result in minor personal injury or property damage. Do not attempt. Do not disassemble. Do not touch. Unplug the power cord from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Follow directions explicitly. OPERATING ENVIRONMENT Warning Do not use if the power cord is damaged or if the electrical outlet is not grounded. ŹThis could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. ŹStepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.). ŹThis could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. ŹThis could result in electric shock or fire. Safety information_ 4 Caution During an electrical storm or for a period of non-oper- ation, remove the power plug from the electrical out- let. ŹThis could result in electric shock or fire. If the plug does not easily enter the electrical outlet, do not attempt to force it in. ŹCall an electrician to change the electrical outlet, or this could result in electric shock. Be careful, the paper output area is hot. ŹBurns could occur. Do not allow pets to chew on the AC power, telephone or PC interface cords. ŹThis could result in electric shock or fire and/or injury to your pet. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel. ŹOtherwise, this could result in electric shock or fire. If the machine does not operate properly after these instruc- tions have been followed, unplug the machine from all interface conn ections and request assistance from qualified service per- sonnel. ŹOtherwise, this could result in electric shock or fire. If the machine exhibits a sudden and distinct change in perfor- mance, unplug the machine from all interface connections and request assistance from qualified service personnel. ŹOtherwise, this could result in electric shock or fire. OPERATING METHOD Caution Do not forcefully pull the paper out during printing. ŹIt can cause damage to the machine. When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. ŹBurns can occur. Be careful not to put your hand between the machine and paper tray. ŹYou may get injured. When removing jammed paper, do not use tweezers or sharp metal objects. ŹIt can damage the machine. Do not block or push objects into the ventilation opening. ŹThis could result in elevated component temperatures which can cause damage or fire. Do not allow too many papers to stack up in the paper output tray. ŹIt can damage the machine. Be care when replacing paper or removing jammed paper. ŹNew paper has sharp edges and can cause painful cuts. This machine's power interception device is the power cord. ŹTo switch off the power supply, remove the power cord from the el ectrical outlet. If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, imme diately turn off the power switch and unplug the machine. ŹThis could result in electric shock or fire. Safety information_ 5 INSTALLATION / MOVING Warning Do not place the machine in an area with dust, humidity or water leaks. ŹThis could result in electric shock or fire. Caution When moving the machine, turn the power off and disconnect all cords; then lift the machine with at least two people. ŹThe machine could fall, causing injury or machine damage. Do not put a cover over the machine or place it in an airtight location, such as a closet. ŹIf the machine is not well-ventilated, this could result in fire. Do not place the machine on an unstable surface. ŹThe machine could fall, causing injury or machine damage. Make sure you plug the power cord into a grounded electrical outlet. ŹOtherwise, this could result in electric shock or fire. The machine should be connected to the power leve…

Text truncated - open the document above for the full version.

SAMSUNG ELECTRONICS AMERICA, INC. American QA Lab 18600 Broadwick St. Rancho Dominguez, CA 90220 Date: December 2, 2009 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, http Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S. C. 862. Sincerely, Peter Ra General Manager American QA Lab SAMSUNG Electronics America INC.

V0.4 Jupiter4E Core : 150MHz ARM940T-32bit RISC TOP Cover Micro Switch 24VS DEVELOPER Unit OPC MHV DEV Supply THV T D S DRUM M MT STEP EEPROM (4Kbit) MAIN Controller EMPTY Sensor USB Device PickUp Clutch SOL CLK Clock Generator 12MHz Stepper Motor Controller IC CANCEL Tact Switch Ready Error FEED Sensor RESET IC SDRAM (8MByte) Soft POWER Tact Switch JAM +3.3V /+24V AC INLET 24V 4P FUSER Unit Thermostat Thermistor FUSERCONTROL THERMISTOR 2P 2P 16P LSU CONTROL Main Motor 4P 2P 5P

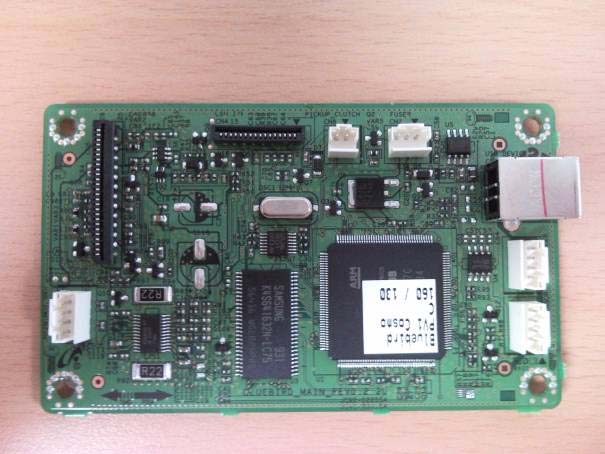

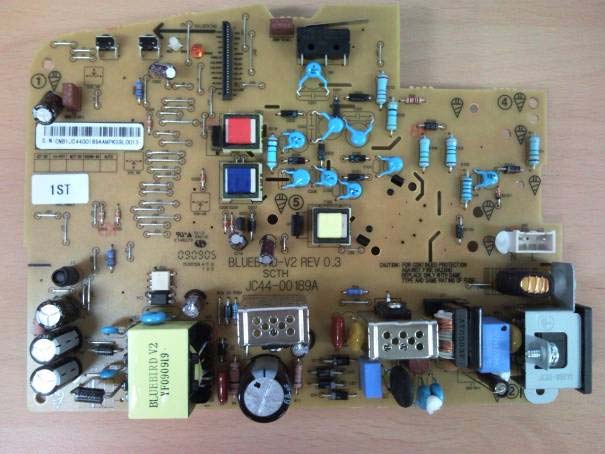

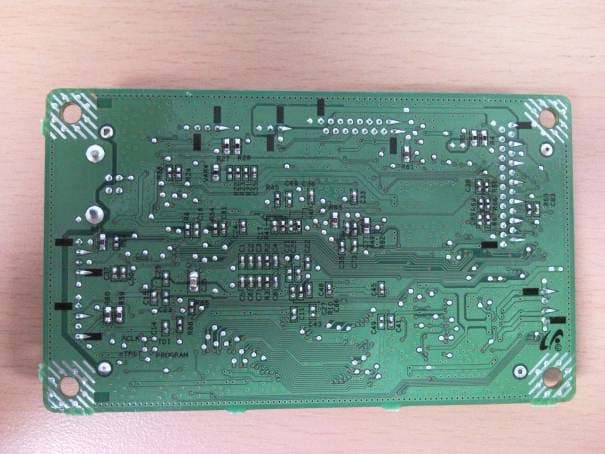

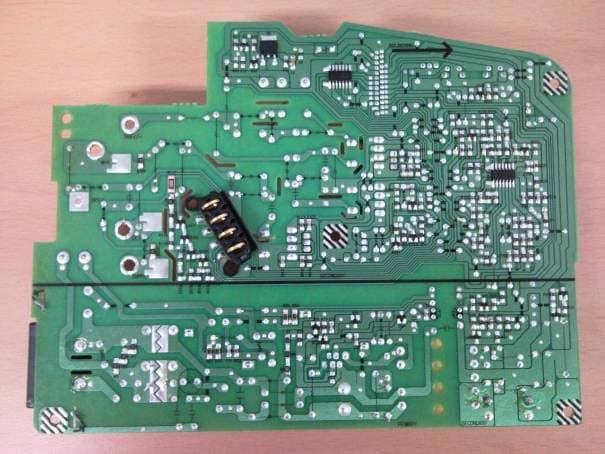

3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS/HVPS/OPE 4) Bottom View of SMPS/HVPS/OPE 9) Top View of Sensor 10) Bottom View of Sensor

Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -7/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor JUPITER4E Standard System memory 8MB SDRAM Resolution Up to 1,200 x 600 dpi effective output Copy Quality mode Not Available Paper Handling 150-sheet Multi Purpose Tray Power Rating 110~127 VAC, 4A, 50/60 Hz Power Consumption Power save mode : Less than 2.8 Watts Average operating mode: Less than 270 Watts Ready mode: Less than 40 Watts Power off mode: Less than 0.45 Watts Printer Language SPL PC Interfaces Full Speed USB 1.1 OS compatibility Windows 2000/XP/Vista/Win7/2003 Server/2008 Server Various Linux OS, Mac OS X 10.3~10.6 Modes of Operation USB Printing Intended Class for Emissions Class B 3.6 Clock Frequencies Kind of Clocks Frequency[MHz] Kind of Clocks Frequency[MHz] Main source clock 12 Video clock 20.65 CPU internal clock 150 SDRAM clock 75

-1/28- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE093147 Issue No. 1 Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Applicant Date of application October 09, 2009 Type of device Class B digital devices, peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML1660 Kind of product Mono Laser Printer ML-1660 Model No. Variant Model No. ML-1665 EUT Manufacturer Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 Test Period October 10, 2009 ~ October 14, 2009 Issue date October 30, 2009 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Sung Jin Sim Reviewed by : No Cheon Park This report is the test result about the sphere accredited by KOLAS which signed the Mutual Recognition Arrangement of International Laboratory Accreditation Cooperation. The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -2/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 2.2 Accreditation and listing 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -3/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) Complied Meets Class B Limit Radiated Disturbance FCC Part 15 Subpart B Complied Meets Class B Limit 2. General Information 2.1 Test facility The SEC EMC Laboratory is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The SEC EMC Laboratory is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -4/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 2.2 Accreditation and listing Laboratory Qualifications Remarks KOLAS(Korea Laboratory Accreditation Scheme) Accredited : 124 UKAS(United Kingdom Accreditation Service) Accredited : 4290 Korea Communications Commission Radio Research Agency Accredited : KR0004 FCC(Federal Communications Commission) Accredited : KR0004 National Voluntary Laboratory Accreditation Program Lab Code: 200623-0 Norges Elektriske Materiellkontroll Accredited : ELA 195 VCCI (Voluntary Control Council for Interference by Information Technology Equipment) C-2421,R-2224 China Quality Certification Center 5-053, 5-054 TUV Rhineland H9354285 GOST(GOSTSTANDART) ROSTEST Elektrotechnicky Zkusebni Ustav Reg. No.: 001 IC(Industry Canada) Assigned Code: 5871 Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -5/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Stand-by Operating Mode 2 USB Printing 3.3 Details of Sampling Customer selected, single unit. Description Model No. Serial No. Manufacturer FCC ID and/or DoC Printer ML-1660 - SAMSUNG A3LML1660 PC PP18L 27182225373 Dell DoC AC Adapter LA65NS1-00 CN-0YD637-71615-83C-0A0A Dongguang Lite Power DoC USB mouse MOARUO 0827010010 PRIMAX ELECTRONICS DoC Headset MH21 - ATA DoC Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -6/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No - USB 1.8 Yes From EUT to PC Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -7/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 3.5 EUT Description The following featu…

Text truncated - open the document above for the full version.

Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -11/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -19/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. 4.2.3 Photograph of Test Setup Front Rear Project No. : LBE093147 Mono Laser PRINTER : ML-1660 -20/28- This report must not be reproduced, except in full, without written permission from SEC EMC Laboratory. Front (Above 1GHz) Rear (Above 1GHz)
