A3LML1860Laser Printer

ML-1860 Series ML-1865 Series Mono Laser Printer User’s Guide imagine the possibilities Thank you for purchasing a Samsung product. Copyright_ 2 copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved. This user’s guide is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this user’s guide. •Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. •PCL and PCL 6 are trademarks of Hewlett-Packard Company. •Microsoft, Internet Explorer, Windows, Windows Vista, Windows 7 and Windows 2008 Server R2 either registered trademarks or trademarks of Microsoft Corporation. •PostScript 3 is a trademark of Adobe System, Inc. •UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc. •TrueType, Mac and Mac OS are trademarks of Apple Inc., registered in the U.S and other countries. •LaserWriter is a trademark of Apple Inc. •All other brand or product names are trademarks of their respective companies or organizations. Refer to the 'LICENSE.txt' file in the provided CD-ROM for the open source license information. REV. 1.04 Safety information_ 3 safety information These warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. Use common sense for operating any electrical appliance and whenever using your machine. Also, follow all warnings and instructions marked on the machine and in the accompanying literature. After reading this section, keep it in a safe place for future reference. Important safety symbols This section explains the meanings of all icons and signs in the user's guide. These safety symbols are in order, according to the degree of danger. Explanation of all icons and signs used in the user’s guide: Operating environment Warning WarningHazards or unsafe practices that may result in severe personal injury or death. CautionHazards or unsafe practices that may result in minor personal injury or property damage. Do not attempt. Do not disassemble. Do not touch. Unplug the power cord from the wall socket. Make sure the machine is grounded to prevent electric shock. Call the service center for help. Follow directions explicitly. Do not use if the power cord is damaged or if the electrical outlet is not grounded. ŹThis could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. ŹStepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.). ŹThis could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. ŹThis could result in electric shock or fire. Safety information_ 4 Caution Operating method Caution If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine. ŹThis could result in electric shock or fire. During an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. ŹThis could result in electric shock or fire. If the plug does not easily enter the electrical outlet, do not attempt to force it in. ŹCall an electrician to change the electrical outlet, or this could result in electric shock. Be careful, the paper output area is hot. ŹBurns could occur. Do not allow pets to chew on the AC power, telephone or PC interface cords. ŹThis could result in electric shock or fire and/or injury to your pet. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel. ŹOtherwise, this could result in electric shock or fire. If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel. ŹOtherwise, this could result in electric shock or fire. If the machine exhibits a sudden and distinct change in performance, unplug the machine from all interface connections and request assistance from qualified service personnel. ŹOtherwise, this could result in electric shock or fire. Do not forcefully pull the paper out during printing. ŹIt can cause damage to the machine. When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. ŹBurns can occur. Be careful not to put your hand between the machine and paper tray. ŹYou may get injured. When removing jammed paper, do not use tweezers or sharp metal objects. ŹIt can damage the machine. Do not block or push objects into the ventilation opening. ŹThis could result in elevated component temperatures which can cause damage or fire. Do not allow too many papers to stack up in the paper output tray. ŹIt can damage the machine. Be care when replacing paper or removing jammed paper. ŹNew paper has sharp edges and can cause painful cuts. This machine's power interception device is the power cord. ŹTo switch off the power supply, remove the power cord from the electrical outlet. Safety information_ 5 Installation / Moving Warning Caution Maintenance / Checking Caution Do not place the machine in an area with dust, humidity or water leaks. ŹThis could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. Then lift the machine: • If the machine weighs under 20 kg (44.09lb), lift with 1 person. • If the machine weighs 20 kg (44.09lb) - 40kg (88.18lb), lift with 2 people. • If the machine weighs more than 40 kg (88.18lb), lift with 4 or more people. ŹThe machine could fall, …

Text truncated - open the document above for the full version.

V0.0 Temujin Core :300MHz ARM926EJS TOP Cover Micro Switch 24VS DEVELOPER Unit OPC MHV DEV Supply THV T D S DRUM M MT STEP EEPROM (4Kbit) MAIN Controller EMPTY Sensor USB Device PickUp Clutch SOL CLK Clock Generator 12MHz Stepper Motor Controller IC CANCEL Tact Switch Ready Error FEED Sensor RESET IC SDRAM(embbed) (8MByte) Soft POWER Tact Switch JAM +3.3V /+24V AC INLET 24V 4P FUSER Unit Thermostat Thermistor FUSERCONTROL THERMISTOR 2P 2P 16P LSU CONTROL Main Motor 4P 2P 5P SPI Flash (embbed) (4MBit) AC Relay USB 2.0

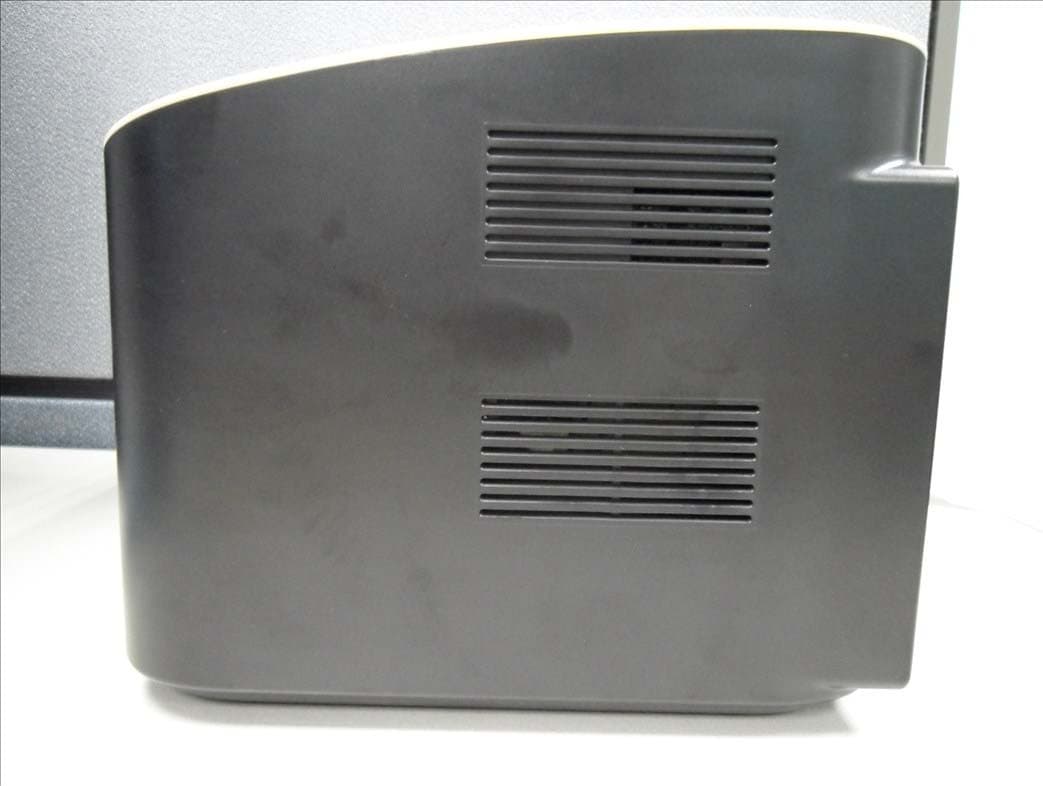

1. External Pictures 1) Front View 2) Rear View 3) Side View 1 4) Side View 2

Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 23/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View & Label position Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 27/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Label

2. Internal Pictures 1) Front View 2) Rear View 3. Print Board Assembled(PBA) Pictures 1) Top View of Main Controller 2) Bottom View of Main Controller 3) Top View of SMPS/HVPS/OPE 4) Bottom View of SMPS/HVPS/OPE 9) Top View of Sensor 10) Bottom View of Sensor

Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 6/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor TEMUJIN(300Mhz) Standard System memory Embedded SDRAM 8MB size Resolution 1200x1200dpi Copy Quality mode N.A Paper Handling Paper Tray(BIN Type) 150 Sheets Power Rating 110~127 VAC, 4A, 50/60 Hz Power Consumption Power save mode : 2.8 Watts Printing mode: MAX. 270 Watts Printer Language SPL PC Interfaces Hi-Speed USB 2.0 OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/Win7(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/2008 Server R2 Various Linux OS including RedHat Enterprise Linux WS 4, 5 (32/64bit), Fedora 4~12 (32/64bit), SuSE Linux 10.0, 10.1 (32bit), OpenSuSE 10.2, 10.3, 11.0, 11.1, 11.2 (32/64bit), Mandriva 2005, 2006, 2007, 2008, 2009, 2009.1 (32/64bit), Ubuntu 5.04, 5.10, 6.06, 6.10, 7.04, 7.10, 8.04 8.10, 9.04, 9.10 (32/64bit), SuSE Linux Enterprise Desktop 10, 11 (32/64bit), Debian 4.0, 5.0 (32/64bit) Mac OS X 10.3~10.6 Modes of Operation USB Printing Intended Class for Emissions Class B

Project N Applican EUT Applied Test Per Issue da Test res The eq (Refer Tested by This report Arrangeme n The test res without writt E E E No. L nt Name Date Ty E au Kin M M Standards riod ate ult : Comp quipment un r to the attac y : Sung is the test re nt of Internati sults in this re ten permissio 416 Te l E E E M M M C C C LBE2010066 of organi Address of applica pe of devi Equipmen uthorizatio FCC ID nd of prod Model No anufactur s plied nder test ha ched test re g Jin Sim esult about t ional Laborat eport only ap on from SEC 6 Maetan 3-Don : 82 31 277 775 C C C T T T E E E 62 zation S 4 G ation ice nt on uct . V rer Sa 25 Sa (26 W 98 P.R Int Ke Sh as found to esult for mo the sphere a tory Accredit pply to the tes EMC Labora ng, Yeongtong- 52, Fax: 82 3 -1/27- E E E S S S T T T Issue No. amsung E 416 Maetan Gyeonggi-Do C Declaration Variant Mod amsung Ele 59, Gongdan-D amsung Ele 64209) SAMS Weihai Shin H 8, Samsung R R.China tops : Intop eji Road-268-1 handong Provi FCC Au be complia ore detail.) Revi accredited by tation Coope sted sample. atory. Gu, Suwon-Si, 1 277 7753 R R R E E E P P P Electronics 3-Dong, Yeo o 443-742 K Aug Class B digi n of Conform A MONO L del No. M ctronics Co Dong, Gumi-C ctronics (Sh SUNG ROAD H Heung Digita Road, Weihai H ps (Weihai) E 1 , Weihai Hi-T ince , CHINA Part 15, Su ugust 30, 20 Octo ant with the iewed by : y KOLAS wh ration. This report Gyeonggi-Do, P P P O O O R R R s Co., Ltd ongtong-Gu Korea gust 20, 20 ital devices mity Cer A3LML1860 LASER PR ML-1860 L- 1861, ML-1 o., Ltd. City, Gyeongsa handong) D HI-TECH IDZ, al Electronic Hi-Tech. IDZ, Electronics Tech,Industries ubpart B / AN 010 ~ Octob ober 12, 20 applied sta No Cheon hich signed must not be 443-742 Korea R R R T T T 2 . u, Suwon-Si, 10 , peripheral rtification INTER 1865, ML-1866 angbuk-Do, Ko igital Printin WEIHAI, CHI cs Co., Ltd. Shandong Pro Co., Ltd. s Developmen NSI C63.4-2 ber 12, 2010 10 ndards. n Park the Mutual R reproduced, a ls Verificatio 6, ML-1867 orea 730-030 ng Co.Ltd INA ovince, nt Zone , 2003 0 Recognition except in fu on ll, Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 2/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 3/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) FCC Part 15 Subpart B Complied Meets Class B Limit Radiated Disturbance Complied Meets Class B Limit 2. General Information 2.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 4/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Stand-by Operating Mode 2 USB printing Description Model No. Serial No. Manufacturer FCC ID and/or DoC Mono Laser Printer ML-1860 - SAMSUNG A3LML1860 PC PP18L 29359007709 DELL DoC Adapter PA-12 CN-0YD637-71615-83C-0280DELL DoC USB MOUSE MOARUO 0740007850 Primax Electronics DoC Headset - - Labtec - Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 5/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.3 Details of Sampling Customer selected, single unit. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.5 No - USB 1.8 Yes From EUT to PC USB 1.5 Yes From PC to Mouse Headset 1.6 No From PC to Headset Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 6/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor TEMUJIN(300Mhz) Standard System memory Embedded SDRAM 8MB size Resolution 1200x1200dpi Copy Quality mode N.A Paper Handling Paper Tray(BIN Type) 150 Sheets Power Rating 110~127 VAC, 4A, 50/60 Hz Power Consumption Power save mode : 2.8 Watts Printing mode: MAX. 270 Watts Printer Language SPL PC Interfaces Hi-Speed USB 2.…

Text truncated - open the document above for the full version.

Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 9/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.2 Temperature and humidity condition Test date October 12, 2010 Test engineer Sung Jin Sim Test place Shielded Room #1 4.1.3 Photograph of Test Setup Front Rear Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 17/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2.3 Photograph of Test Setup Front Rear Project No. : LBE20100662 MONO LASER PRINTER : ML-1860 - 18/27- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1GHz) Rear (above 1GHz)
