A3LML3310NDLaser Printer

ML-331x SeriesML-371x Series User’s GuideBasic imagine the possibilitiesThis guide provides information concerning installation, basic operation and troubleshooting on windows. 2 Contents  1. Introduction5 Key benefits 7 Features by models 8 Useful to know 9 About this user’s guide 10 Safety information 16 Machine overview 19 Control panel overview 22 Turning on the machine 23 Installing the driver locally 24 Reinstalling the driver  2. Menu overview and basic setup26 Menu overview 28 Printing a demo page 29 Changing the display language 30 Media and tray 41 Basic printing 3. Maintenance48 Ordering supplies and accessories 49 Available supplies 50 Available accessories 51 Available maintenance parts 52 Redistributing toner 54 Replacing the toner cartridge 56 Upgrading a memory module 58 Monitoring the supplies life 59 Setting the toner low alert 60 Cleaning the machine 4. Troubleshooting65 Tips for avoiding paper jams 66 Clearing paper jams 72 Understanding the status LED 75 Understanding display messages 5. Appendix81 Specifications Contents 3 91 Regulatory information 101 Copyright 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5 •Features by models 7 •Useful to know 8 • About this user’s guide 9 • Safety information 10 • Machine overview 16 • Control panel overview 19 • Turning on the machine 22 • Installing the driver locally 23 • Reinstalling the driver 24   Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see Advanced Guide). • To save paper, you can print on both sides of the paper (double- sided printing) (see Advanced Guide). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. ML-331xD or ML-331xND: - For single-side printing, 31 ppm (A4) or 33 ppm (Letter). - For duplex printing, 15 ppm (A4) or 16 ppm (Letter).ML-371xD, ML-371xND, or ML-371xDW: - For single-side printing, 35 ppm (A4) or 37 ppm (Letter).- For duplex printing, 17 ppm (A4) or 18 ppm (Letter). Convenience• Samsung Easy Printer Manager and Samsung Printer Status (or Smart Panel) are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see Advanced Guide). • AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see Advanced Guide).   Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 83).• Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of pap er and can then be taped together to form a poster (see Advanced Guide). • You can print in various operating systems (see "System requirements" on page 86).• Your machine is equipped with a USB interface and/or a network interface. Expand your machine’s capacity• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 50).• Zoran IPS Emulation compatible with PostScript 3 (PS) enables PS printing. • Zoran IPS Emulation compatible with PostScript 3• ©1995-2005, Zoran Corporation. All rights reserved. Zoran, the Zoran logo, IPS/PS3, and OneImage are trademarks of Zoran Corporation. • 136 PS3 fonts• Contains UFST and MicroType from Monotype Imaging Inc.   Features by modelsSome features and optional goods may not be available depending on model or country. ( ?: Included, ?: Optional, Blank: Not available) Features ML-331xD ML-331xND ML-371xD ML-371xND ML-371xDW Hi-Speed USB 2.0 ? ? ? ? ? IEEE 1284 parallel connector ? ? ? ? ? Network Interface Ethernet 10/100 Base TX wired LAN ? Network Interface Ethernet 10/100/1000 Base TX wired LAN ? ? Network Interface 802.11b/g/n wireless LAN ? IPv6 ? ? ? Eco printing ? ? ? ? ? Wi-Fi Protected Setup™ (WPS) ? Duplex (2-sided) printing ? ? ? ? ? Samsung Easy Printer Manager ? ? ? ? ? Memory ? ? ? Tray 2 (520 sheets) ? ? ? ? SyncThru™ Web Service ? ? ? Useful to know The machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 42). • Remove the driver and install it again (see "Installing the driver locally" on page 23). • Select your machine as your default machine in your Windows. Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/ region to view product service information. The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 72). A paper jam has occurred.• Open and close the front door.• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 66). Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge. • Try a different print resolution setting.• Replace the toner cartridge.Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system. 9 1. Introduction About this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine. • If you have a problem using the machine, refer to the troubleshooting chapter. • Terms used in …

Text truncated - open the document above for the full version.

Media and tray 31 2. Menu overview and basic setup Paper quantity indicator shows the amount of paper in the tray. 1 Full 2 Empty  2 Loading paper in the tray/ optional tray 1 Pull out the paper tray (see "Tray overview" on page 30). 2 Flex or fan the edge of the paper stack to separate the pages before loading papers. 3 Place paper with the side you want to print on facing down. 1 2 Media and tray 32 2. Menu overview and basic setup 4 Slide the paper length guide until it lightly touches the end of the paper stack. 5 Squeeze the paper width guide and slide it to the edge of the paper stack without causing it to bend. • Do not push the paper width guide too far causing the media to warp. • If you do not adjust the paper width guide, it may cause paper jams. • Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled. 6 Insert the tray back into the machine. 7 Set the paper type and size for tray 1 (see "Setting the paper size and type" on page 40). Media and tray 33 2. Menu overview and basic setup The settings set from the machine driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 43). c Press the Paper tab in Printing Preferences , and select an appropriate paper type.  3 Loading in multi-purpose tray The multi-purpose tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes. • The machine does not have a display screen: 1 sheet of 80 g/ m 2 (20 lbs bond) • The machine has the display screen: 50 sheets of 80 g/m 2 (20 lbs bond) Tips on using the multi-purpose tray• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose tray. • Print media should be loaded face up with the top edge going into the multi-purpose tray first and be placed in the center of the tray. • To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 83). • Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray. • When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 35). • When papers overlap when printing using the multi- purpose tray, open tray 1 and remove the overlapping papers then try printing again. • When paper does not feed well while printing, push the paper in manually until it starts feeding automatically. Media and tray 34 2. Menu overview and basic setup 1 Open the multi-purpose tray and unfold the multi-purpose tray extension, as shown. 2 Adjust the multi-purpose tray paper width guides to the width of the paper. 3 Flex or fan the edge of the paper stack to separate the pages before loading paper. 4 Load the paper. Squeeze the multi-purpose tray paper width guides and adjust them to the width of the paper. 5 Set the paper type and size from the control panel (see "Setting the paper size and type" on page 40). 1 2 Media and tray 35 2. Menu overview and basic setup The settings set from the machine’s driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 43). c Press the Paper tab in Printing Preferences and select an appropriate paper type.For example, if you want to use a label, set the paper type to Label . d Select MP Tray in paper source, then press OK . e Start printing in application.  4 Printing on special media The table below shows the special media usable in each tray. The media types are shown in the Printing Preferences . Select the proper media type to get the highest printing quality. • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 83). • Printing the special media (Face up)If special media are printed out with curl, wrinkles, crease, or black bold lines, open the rear cover and try printing again. Keep the rear cover opened during printing. To see for paper weights for each sheet, refer to "Print media specifications" on page 83. Types Tray 1 Optional tray Multi-purpose tray Plain ?? ? Thick ?? ? Media and tray 36 2. Menu overview and basic setup ( ?: Included, Blank: Not available) EnvelopePrinting successfully on envelopes depends upon the quality of the envelopes. To print an envelope, place it as shown in the following figure.If envelopes are printed out with wrinkles, crease, or black bold lines, open the rear cover and pull down the pressure lever on the right side about 90 degrees and try printing again. Keep the rear cover opened during printing. Thicker ? Thin ?? ? Bond ?? ? Color ? CardStock ?? ? Labels ? Transparency ? Envelope ? Preprinted ? Cotton ? Recycled ?? ? Archive ?? ? Types Tray 1 Optional tray Multi-purpose tray Media and tray 37 2. Menu overview and basic setup • When selecting envelopes, consider the following factors:- Weight: should not exceed 90 g/m 2 otherwise; jams may occur. - Construction: should lie flat with less than 6 mm curl and should not contain air. - Condition: should not be wrinkled, nicked, nor damaged. - Temperature: should resist the heat and pressure of the machine during operation. • Use only well-constructed envelopes with sharp and well- creased folds. • Do not use stamped envelopes. • Do not use envelopes with clasps, snaps, windows, coated lining, self-adhesive seals, or other synthetic materials. • Do not use damaged or poorly made envelopes. • Be sure the seam at both ends of the envelope extends all the way to the corner of the envelope. 1 Acceptable 2 Unacceptable • Envelopes with a peel-off adhesive strip or with more than one flap that folds over to seal must use adhesives compatible with the machine’s fusing temperature for 0.1 second (about 170°C (338 °F)). The extra flaps…

Text truncated - open the document above for the full version.

Regulatory information 96 5. Appendix 17 Turkey only 18 Replacing the fitted plug (for UK only) ImportantThe mains lead for this machine is fitted with a standard (BS 1363) 13 amp plug and has a 13 amp fuse. When you change or examine the fuse, you must re-fit the correct 13 amp fuse. You then need to replace the fuse cover. If you have lost the fuse cover, do not use the plug until you have another fuse cover. Contact the people from you purchased the machine.The 13 amp plug is the most widely used type in the UK and should be suitable. However, some buildings (mainly old ones) do not have normal 13 amp plug sockets. You need to buy a suitable plug adaptor. Do not remove the moulded plug. If you cut off the moulded plug, get rid of it straight away.You cannot rewire the plug and you may receive an electric shock if you plug it into a socket. Important warning: If the wires in the mains lead do not match the colors marked in your plug, do the following:You must connect the green and yellow wire to the pin marked by the letter “E” or by the safety ‘Earth symbol’ or colored green and yellow or green.You must connect the blue wire to the pin which is marked with the letter “N” or colored black.You must connect the brown wire to the pin which is marked with the letter “L” or colored red. You must earth this machine.The wires in the mains lead have the following color code:• Green and Yellow: Earth • Blue: Neutral • Brown: Live Regulatory information 97 5. Appendix You must have a 13 amp fuse in the plug, adaptor, or at the distribution board.19 Declaration of conformity (European countries) Approvals and CertificationsHereby, Samsung Electronics declare that this product is in compliance with the essential requirements and other relevant provisions of:• ML-331x Series, ML-371x Series: Low Voltage Directive (2006/ 95/EC), EMC Directive (2004/108/EC) • ML-371xDW: R&TTE Directive (1999/5/EC) The declaration of conformity may be consulted at www.samsung.com/printer , go to Support > Download center and enter your printer (MFP) name to browse the EuDoC. January 1, 1995: Council Directive 2006/95/EC Approximation of the laws of the member states related to low voltage equipment. January 1, 1996: Council Directive 2004/108/EC (92/31/EEC), approximation of the laws of the Member States related to electromagnetic compatibility.March 9, 1999: Council Directive 1999/5/EC on radio equipment and telecommunications terminal equipment and the mutual recognition of their conformity. A full declaration, defining the relevant Directives and referenced standards can be obtained from your Samsung Electronics Co., Ltd. representative. European radio approval information (for products fitted with EU-approved radio devices)Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz band, may be present (embedded) in your printer system which is intended for home or office use. This section is only applicable if these devices are present. Refer to the system label to verify the presence of wireless devices.Wireless devices that may be in your system are only qualified for use in the European Union or associated areas if a CE mark with a Notified Body Registration Number and the Alert Symbol is on the system label.The power output of the wireless device or devices that may be embedded in you printer is well below the RF exposure limits as set by the European Commission through the R&TTE directive. The CE marking applied to this product symbolizes Samsung Electronics Co., Ltd. Declaration of Conformity with the following applicable 93/68/EEC Directives of the European Union as of the dates indicated: Regulatory information 98 5. Appendix Ź European states qualified under wireless approvals: EUAustria, Belgium, Cyprus, Czech Republic, Denmark, Estonia, Finland, France (with frequency restrictions), Germany, Greece, Hungary, Ireland, Italy, Latvia, Lithuania, Luxembourg, Malta, The Netherlands, Poland, Portugal, Slovakia, Slovenia, Spain, Sweden and the U.K.EEA/EFTA countriesIceland, Liechtenstein, Norway and SwitzerlandŹ European states with restrictions on use: EUIn France, the frequency range is restricted to 2446.5-2483.5 MHz for devices above 10 mW transmitting power such as wirelessEEA/EFTA countriesNo limitations at this time 20 Regulatory compliance statements Wireless guidanceLow power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4 GHz/5 GHz Band, may be present (embedded) in your printer system. The following section is a general overview of considerations while operating a wireless device.Additional limita tions, cautions, and concerns for specific countries are listed in the specific country sections (or country group sections). The wireless devices in your system are only qualified for use in the countries identified by the Radio Approval Marks on the system rating label. If the country you will be using the wireless device in, is not listed, contact your local Radio Approval agency for requirements. Wireless devices are closely regulated and use may not be allowed.The power output of the wireless device or devices that may be embedded in your printer is well below the RF exposure limits as known at this time. Because the wireless devices (which may be embedded into your printer) emit less energy than is allowed in radio frequency safety standards and recommendations, manufacturer believes these devices are safe for use. Regardless of the power levels, care should be taken to minimize human contact during normal operation. Regulatory information 99 5. Appendix As a general guideline, a separation of 20 cm (8 inches) between the wireless device and the body, for use of a wireless device near the body (this does not include extremities) is typical. This device should be used more than 20 cm (8 inches) from the body when wireless devices are on and transmitting.This transmitter must not be collocat…

Text truncated - open the document above for the full version.

Magpie BLOCK Diagram Revision0.3 Magpie Hardware Team IT Solution SMB Lab Samsung Electronics 100902 MAIN JUPITER5 FUSER Unit ThermoStat Thermistor1 PaperExit Sensor Regi Clutch Pickup Clutch Front Cover Micro Switch 24V 5V_SMPS FUSER ON Relay 24VS 3.3VS 3.3V_Cover_Open1 3.3V_Cover_Open3.3V_SMPS DEVELOPER Unit FAN MAIN FAN SMPS OPCMHV DEV Supply THV Varistor T D S DRUM M Main Motor MT BLDC Serial Flash ML-3310D : 8M ML-3310ND : 16M DDR2 SDRAM (64MB) EEPROM ML-3310D : 24C32(Sys) ML-3310ND 24C256(Sys+NW) SOL C R U M Network BCM5241 25MHz FUSER BIAS INLET MP Clutch Paper Size/Binful Sensor Clock Generator ASM3P2863A 12MHz MAIN CLK USB CLK VCLK USB 2.0 I N L E T F U S E R SOL HVPS 1 1 1 0 987654321 123456789 1 0 SMPS 24VS PaperEmpty Sensor EMPTY Sensor REGI Sensor MP Sensor FEED Sensor LSU (Dual Beam) 16X2 3310ND 3700 Series SCF Unit 3310ND 3700 Series E C O C a n c e l P o w e r S t a t u s _ L E D Only 3310D (LED_OPE) 3310ND,3700 Series (LCD_OPE) E C O C a n c e l P o w e r S t a t u s _ L E D N a v i _ K E Y L C D Relay Eraser LED SOL Option Parallel 5V Usb USB/Parallel Cover Open Switch DC-DC 5V to 1V DC-DC 5V to 3.3V Regulator 5V to 1.8V

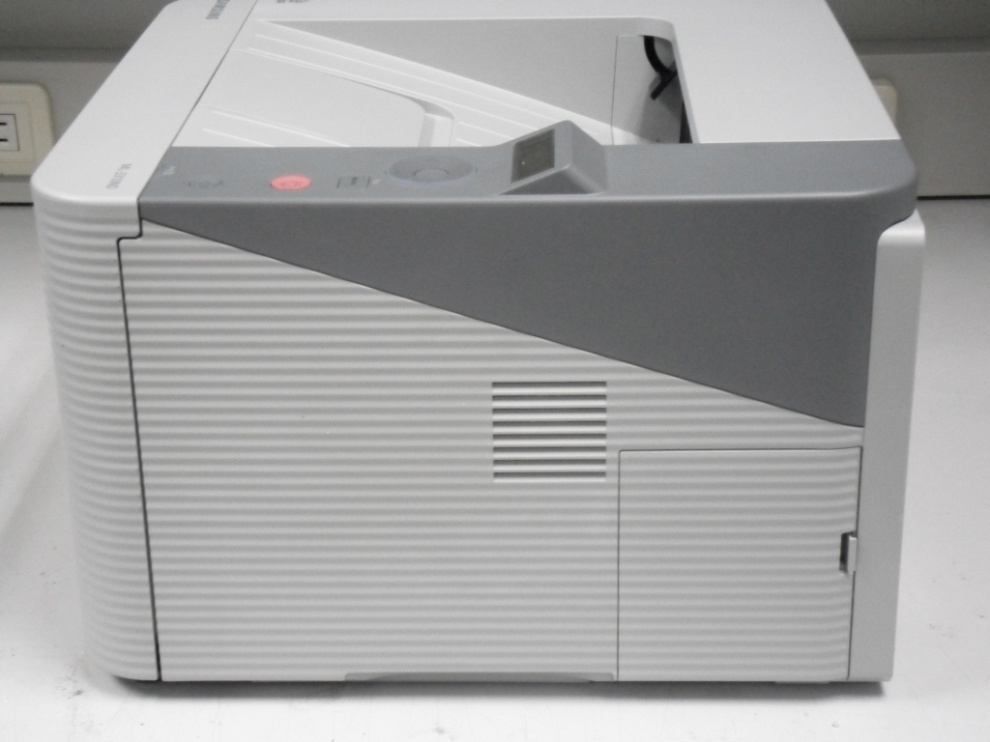

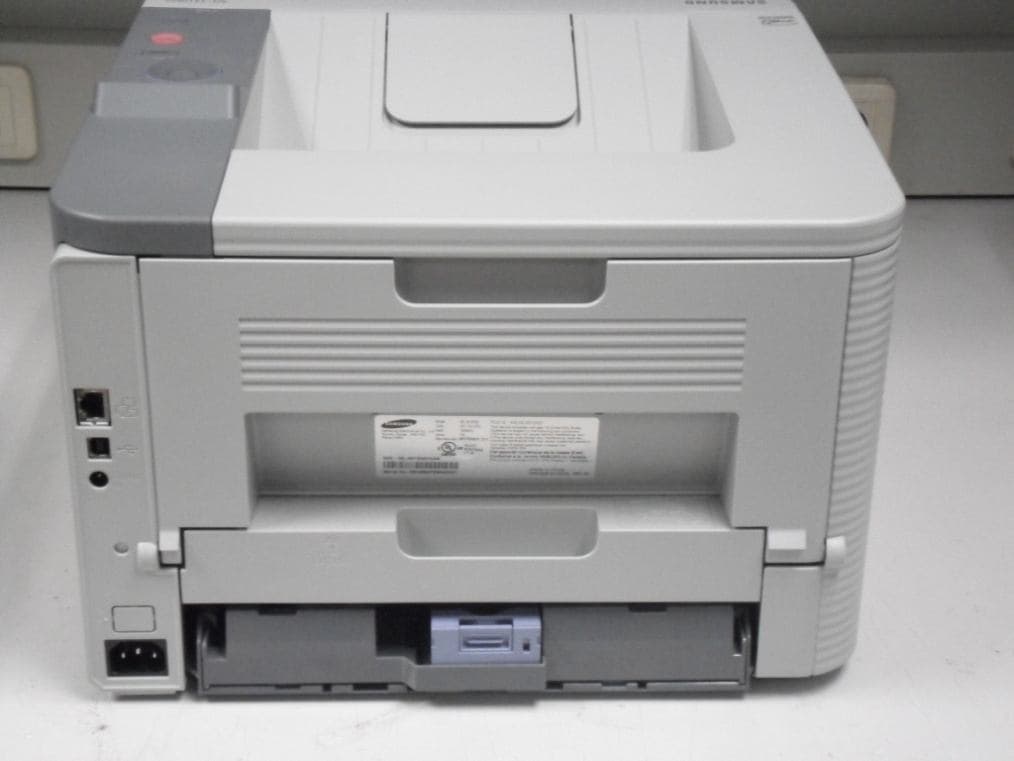

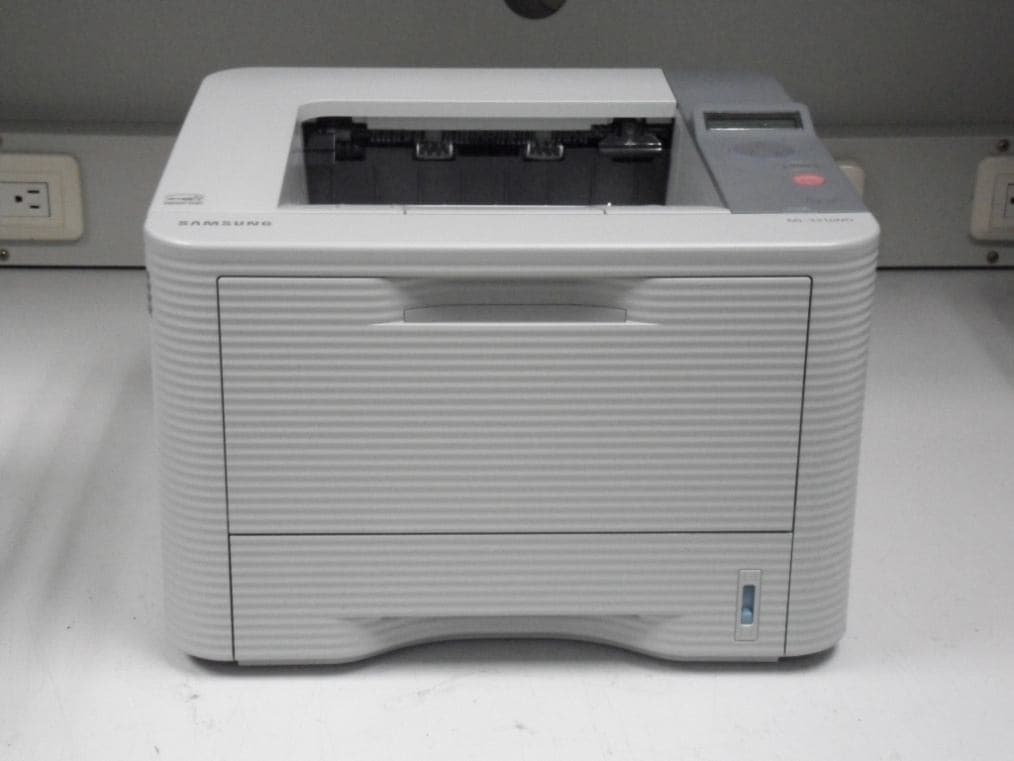

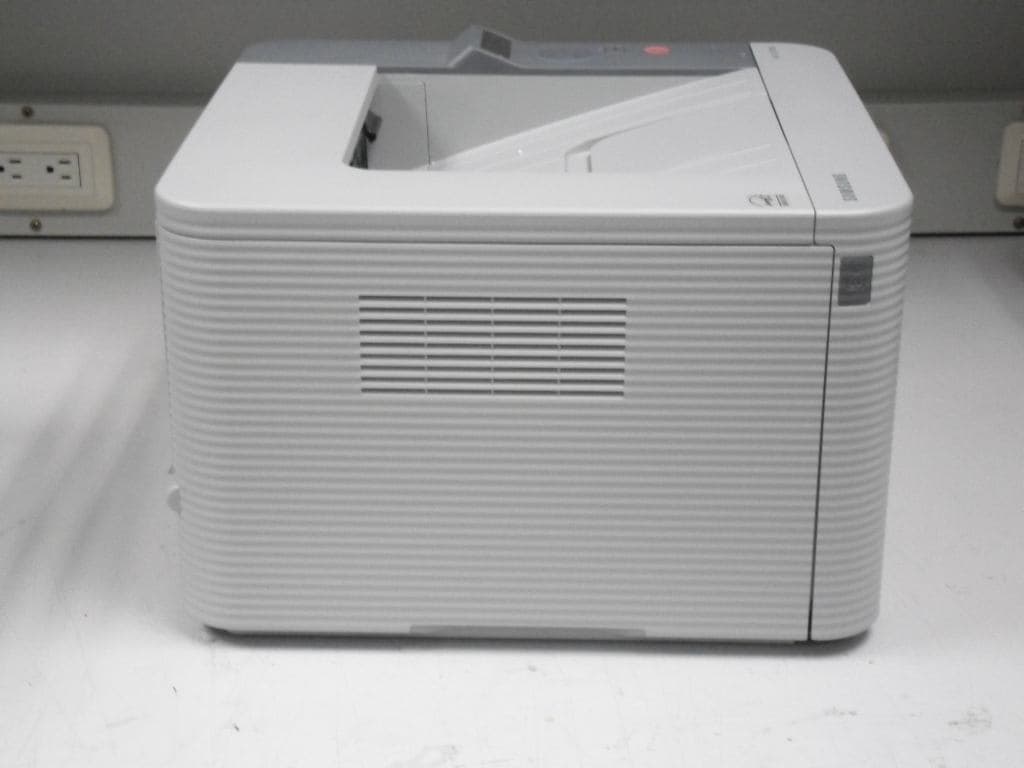

1. External Picture 1) Front View 2) Rear View 3) Side View(Right) 4) Side View(Left)

Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -46/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Label Location Label

1) Front View 2) Rear View 2. Internal Picture 1) Top View of Main Controller 2) Bottom View of Main Controller 3.Print Board Assemled(PBA) Pictures 3) Top View of SMPS 4) Bottom View of SMPS 5) Top View of HVPS 6) Bottom View of HVPS 7) Top View of OPE 8) Bottom View of OPE

Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -6/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor JUPITER5 (375Mhz) - Standard System memory 64MB DDR2 SDRAM - Resolution True 600x600dpi (Addressible 1200dpi support) - Copy Quality mode N.A - Paper Handling Paper Tray(standard) 250 Sheets Paper Tray(Option) 520 sheets Bypass Tray 3310ND 50 sheets, 3310D 1 Sheet - Power Rating 110~127 VAC, 6.5A, 50/60 Hz - Power Consumption Power save mode : 3.5 Watts Printing mode: MAX. 550 Watts - Printer Language GDI - PC Interfaces USB2.0, NW - OS compatibility Windows 2000/XP(32/64bits)/Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/7(32/64bit)/2008 Server R2 Various Linux OS: Fedora Core 4, 5, 6 Fedora 7, 8, 9, 10, 11, 12 RedHat Enterprise Linux WS 4, 5 SuSE 10.0, 10.1 openSuSE 10.2, 10.3, 11.0, 11.1, 11.2 SuSE Linux Enterprise Desktop 10, 11 Debian 4.0, 5.0 Ubuntu 5.04, 5.10, 6.04, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 Mandriva 2005LE, 2006, 2007, 2007.1, 2008, 2008.1, 2009, 2009.1 Mac OS 10.3 ~ 10.6 - Modes of Operation USB Printing, , 1200dpi Printing, Network Printing(ND only) - Intended Class for Emissions Class B -

-1/46- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20100373 Issue No. 3 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application October 1, 2010 EUT Type of device Class B digital devices, peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML3310ND Kind of product Mono Laser Printer Model No. ML-3310ND Variant Model No. ML-3310D, ML-3312ND, ML-3312D Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2003 ICES-003 issue 4 Test Period October 1, 2010 ~ October 4, 2010 Issue date October 5, 2010 Test result : Complied The equipment under test has found to be compliant with the applied standards. (Refer to the attached test result for more detail.) Tested by : Young Hun Cheong Reviewed by : No Cheon Park The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -2/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. Table of contents 1. Summary of test results 1.1 Emission 2. General Information 2.1 Test facility 3. Test configuration 3.1 Test Peripherals 3.2 EUT operating mode 3.3 Details of Sampling 3.4 Used cable description 3.5 EUT Description 3.6 Clock Frequencies 3.7 Test configuration and condition 3.8 Measurement uncertainty 4. Result of individual tests 4.1 Conducted disturbance 4.2 Radiated disturbance Appendix – EUT photography Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -3/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 1. Summary of test results 1.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Remarks Conducted Disturbance (Mains Port) FCC Part 15 Subpart B ICES-003 issue 4 Complied Meets Class B Limit Radiated Disturbance Complied Meets Class B Limit 2. General Information 2.1 Test facility The CS & Environment Centre is located on Samsung Electronics Co., Ltd. at 416 Maetan 3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment Centre is operated as EMC testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -4/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3. Test Setup configuration 3.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: 3.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Mode Operating Mode 2 Network Simplex Printing Mode Operating Mode 3 USB Duplex Printing Mode Operating Mode 4 LPT & USB 2.0 Duplex Printing Mode 3.3 Details of Sampling Customer selected, single unit. Description Model No. Serial No. Manufacturer FCC ID and/or DoC Mono Laser Printer ML-3310ND - Samsung A3LML3310ND Note book Computer D410 JP-0NC428-71761-54J-D01C DELL DoC Adapter LA65NS1-00 CN-0YD637-71615-83C-0A0A DELL - USB Mouse M-UV69a HCA45203099 LOGITECH DoC Headset Axis-202 - Labtec DoC Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -5/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.4 Used cable description The EUT is configured, installed, arranged and operated in a manner consistent with typical applications. Interface cables/loads/devices are connected to at least one of each type of interface port of the EUT, and where practical, each cable shall be terminated in a device typical of actual usage. The type(s) of interconnecting cables to be used and the interface port (of the EUT) to which these were connected; Connected cable Length [m] Shielded [Y/N] Note Power 1.8 No For EUT USB 1.8 Yes EUT to Notebook PC Power 1.8 No For Note PC USB 0.4 Yes EUT to USB Mouse Headset 1.6 No From PC to Headset LAN 5.0 No From EUT to hub Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -6/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 3.5 EUT Description The following features describe EUT represented by this report: Item Specification Remarks Processor JUPITER5 (375Mhz) - Standard System memory 64MB DDR2 SDRAM - Resolution True 600x600dpi (Addressible 1200dpi support) - Copy Quality mode N.A - Paper Handling Paper Tray(standard) 250 Sheets Paper Tray(Option) 520 sheets Bypass Tray 3310ND 50 sheets, 3310D 1 Sheet - Power Rating 110~127 VAC, 6.5A, 50/60 Hz - Power Consumption Power save mode : 3.5 Watts Printing mode: MAX. 550 Watts - Printer Language GDI - PC Interfaces USB2.0, NW - OS compatibility Windows 2000/XP(32/64bits…

Text truncated - open the document above for the full version.

Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -11/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.1.3 Photograph of Test Setup Front + Rear Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -27/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.2.3 Photograph of Test Setup(30 ~ 1 GHz) Front Rear Project No. : LBE20100373 Mono Laser Printer : ML-3310ND -28/46- This report must not be reproduced, except in full, without written permission from CS & Environment Centre. 4.2.4 Photograph of Test Setup(1 ~ 2 GHz) Front Rear
