A3LML3750NDMono Laser Printer

ML-375x Series User’s GuideBasicimagine the possibilitiesThis guide provides information concerning installation, basic operation and troubleshooting on windows. 1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 3 •Features by models 5 •Useful to know 6 • About this user’s guide 7 • Safety information 8 • Machine overview 14 • Control panel overview 17 • Turning on the machine 18 • Installing the driver locally 19 • Reinstalling the driver 20   Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature. • To save paper, you can print multiple pages on one single sheet of paper (see Advanced Guide). • To save paper, you can print on both sides of the paper (double- sided printing) (see Advanced Guide). • To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use. Print with excellent quality and speed• You can print with a resolution of up to 1,200 x 1,200 dpi effective output. • Fast, on-demand printing. - For single-side printing, 35 ppm (A4) or 37 ppm (Letter).- For duplex printing, 17 ppm (A4) or 18 ppm (Letter). Convenience• Samsung Easy Printer Manager and Samsung Printer Status (or Smart Panel) are a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see Advanced Guide). • AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see Advanced Guide). Wide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 79). • Print watermark: You can customize your documents with words, such as “Confidential” (see Advanced Guide). • Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see Advanced Guide).   Key benefits• You can print in various operating systems (see "System requirements" on page 82).• Your machine is equipped with a USB interface and/or a network interface.Expand your machine’s capacity• This machine has an extra memory slot for adding more memory (see "Available accessories" on page 48). • Emulation compatible with PostScript 3 (PS3) enables PS printing.   Features by modelsSome features and optional goods may not be available depending on model or country. ( Ɣ : Included, ż : Optional, Blank: Not available) Features ML-3750ND ML-3753ND Hi-Speed USB 2.0 port 1 Ɣ Ɣ Hi-Speed USB 2.0 port 2 Ɣ IEEE 1284 parallel connector ż ż Network Interface Ethernet 10/100/1000 Base TX wired LAN Ɣ Ɣ IPv6 Ɣ Ɣ Eco printing Ɣ Ɣ Duplex (2-sided) printing Ɣ Ɣ Samsung Easy Printer Manager Ɣ Ɣ Memory ż ż Tray 2 (520 sheets) ż ż SyncThru™ Web Service Ɣ Ɣ PCL printer driver Ɣ Ɣ PS printer driver Ɣ Ɣ XPS printer driver Ɣ Ɣ Useful to know The machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 40). • Remove the driver and install it again (see "Installing the driver locally" on page 19). • Select your machine as your default machine in your Windows. Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/ region to view product service information. The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 69). A paper jam has occurred.• Open and close the front door.• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 63). Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge. • Try a different print resolution setting.• Replace the toner cartridge.Where can I download the machine’s driver?• Visit www.samsung.com/printer to download the latest machine’s driver, and install it on your system. 7 1. Introduction About this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine. • If you have a problem using the machine, refer to the troubleshooting chapter. • Terms used in this user’s guide are explained in the glossary chapter. • All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased. • The screenshots in this user's guide may differ from your machine depending on the machine’s firmware/driver version. • The procedures in this user’s guide are mainly based on Windows 7.  1 Conventions Some terms in this guide are used interchangeably, as below:• Document is synonymous with original. • Paper is synonymous with media, or print media. • Machine refers to printer or MFP.  2 General icons Icon Text Description Caution Gives users information to protect the machine from possible mechanical damage or malfunction. Note Provides additional information or detailed specification of the machine function and feature. 8 1. Introduction Safety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.  3 Important safety symbols Explanation of all icons and signs used in this chapter  4 Operating environment Warning Warning Hazards or unsafe practices that may result in severe personal injury or death. Caution Hazards or unsafe practices that may result in minor personal injury or property damage. Do not attempt. Do not use if the…

Text truncated - open the document above for the full version.

27 2. Learning the basic usage Media and trayThis chapter provides information on how to load print media into your machine. • Using print media that does not meet these specifications may cause problems or require repairs. Such repairs are not covered by Samsung’s warranty or service agreements. • Make sure not to use the inkjet photo paper with this machine. It could cause damage to the machine. • Using inflammable print media can cause a fire.• Use designated print media G (see "Print media specifications" on page 79). The use of inflammable media or foreign materials left in the printer may lead to overheating of the unit and S in rare cases may cause a fire.  1 Tray overview To change the size, you need to adjust the paper guides. The duplex unit is preset to Letter/LGL or A4 size, depending on your country. To change the paper size, adjust the guide as shown below. 1 Tray extention guide 2 Paper length guide 3 Paper width guide 2 3 1 A4 L T R LGL Media and tray 28 2. Learning the basic usage If you do not adjust the guide, it may cause paper registration, image skew, or jamming of the paper. Paper quantity indicator shows the amount of paper in the tray. 1 Full 2 Empty A4 1 2 Media and tray 29 2. Learning the basic usage  2 Loading paper in the tray/ optional tray 1 Pull out the paper tray. 2 Flex or fan the edge of the paper stack to separate the pages before loading papers. 3 Place paper with the side you want to print on facing down. 4 Slide the paper length guide until it lightly touches the end of the paper stack. 5 Squeeze the paper width guide and slide it to the edge of the paper stack without causing it to bend. Media and tray 30 2. Learning the basic usage • Do not push the paper width guide too far causing the media to warp. • If you do not adjust the paper width guide, it may cause paper jams. • Do not use a paper with a leading-edge curl, it may cause a paper jam or the paper can be wrinkled. 6 Insert the tray back into the machine. 7 Set the paper type and size for tray 1 (see "Setting the paper size and type" on page 38). The settings set from the machine driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 41). c Press the Paper tab in Printing Preferences , and select an appropriate paper type.  3 Loading in multi-purpose tray The multi-purpose tray can hold special sizes and types of print material, such as postcards, note cards, and envelopes. Tips on using the multi-purpose tray• To prevent paper jams, do not add paper while printing when there is still paper in the multi-purpose tray. • Print media should be loaded face up with the top edge going into the multi-purpose tray first and be placed in the center of the tray. • To ensure printing quality and to prevent paper jams, only load the available paper (see "Print media specifications" on page 79). Media and tray 31 2. Learning the basic usage • Flatten any curl on postcards, envelopes, and labels before loading them into the multi-purpose tray. • When printing on special media, you must follow the loading guidelines (see "Printing on special media" on page 32). • When papers overlap when printing using the multi- purpose tray, open tray 1 and remove the overlapping papers then try printing again. • When paper does not feed well while printing, push the paper in manually until it starts feeding automatically. 1 Open the multi-purpose tray and unfold the multi-purpose tray extension, as shown. 2 Adjust the multi-purpose tray paper width guides to the width of the paper. 3 Flex or fan the edge of the paper stack to separate the pages before loading paper. 1 2 Media and tray 32 2. Learning the basic usage 4 Load the paper. Squeeze the multi-purpose tray paper width guides and adjust them to the width of the paper. 5 Set the paper type and size from the control panel (see "Setting the paper size and type" on page 38). The settings set from the machine’s driver override the settings on the control panel. a To print from an application, open an application and start the print menu. b Open Printing Preferences (see "Opening printing preferences" on page 41). c Press the Paper tab in Printing Preferences and select an appropriate paper type.For example, if you want to use a label, set the paper type to Label . d Select MP Tray in paper source, then press OK . e Start printing in application.  4 Printing on special media The table below shows the special media usable in each tray. The media types are shown in the Printing Preferences . Select the proper media type to get the highest printing quality. Media and tray 33 2. Learning the basic usage • When using special media, we recommend you feed one sheet at a time (see "Print media specifications" on page 79). • Printing the special media (Face up)If special media are printed out with curl, wrinkles, crease, or black bold lines, open the rear cover and pull down the pressure lever as shown below and try printing again. Keep the rear cover opened during printing. To see for paper weights for each sheet, refer to "Print media specifications" on page 79. ( Ɣ : Included, Blank: Not available) Types Tray 1 Optional tray Multi-purpose tray Plain ?? ? Thick ƔƔ Ɣ Thicker Ɣ Thin ƔƔ Ɣ Bond ƔƔ Ɣ Color Ɣ CardStock ƔƔ Ɣ Labels Ɣ Transparency Ɣ Envelope Ɣ Preprinted Ɣ Cotton Ɣ Recycled ƔƔ Ɣ Archive ƔƔ Ɣ Types Tray 1 Optional tray Multi-purpose tray Media and tray 34 2. Learning the basic usage EnvelopePrinting successfully on envelopes depends upon the quality of the envelopes. To print an envelope, place it as shown in the following figure.If envelopes are printed out with wrinkles, crease, or black bold lines, open the rear cover and pull down the pressure lever on the right side about 90 degrees and try printing again. Keep the rear cover opened during printing. • When selecting envelopes, consider the following factors: - We…

Text truncated - open the document above for the full version.

4. TroubleshootingThis chapter gives helpful information for what to do if you encounter an error.• Tips for avoiding paper jams 62 • Clearing paper jams 63 • Understanding the status LED 69 • Understanding display messages 71 † This chapter gives helpful information for what to do if you encounter an error.Check the message on the display screen first to solve the error. If you cannot find a solution to your problem in this chapter, refer to the Troubleshooting chapter in the Advanced User's Guide. If you cannot find a solution in the User's Guide or the problem persists, call for service. 62 4. Troubleshooting Tips for avoiding paper jamsBy selecting the correct media types, most paper jams can be av oided. To avoid paper jams, refer to the following guidelines: • Ensure that the adjustable guides are positioned correctly (see "Tray overview" on page 27). • Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside of the tray. • Do not remove paper from the tray while your machine is printing. • Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper. • Do not mix paper types in a tray. • Use only recommended print media (see "Print media specifications" on page 79). 63 4. Troubleshooting Clearing paper jams To avoid tearing the paper, pull the jammed paper out slowly and gently. 1 In tray 1 Click this link to open an animation about clearing a jam. 1 Open and close the front cover. The jammed paper is automatically ejected from the machine.If the paper does not exit, go to the next step. 2 Pull out tray 1 . Clearing paper jams 64 4. Troubleshooting 3 Remove the jammed paper by gently pulling it straight out.If the paper does not move when you pull, or if you do not see the paper in this area, check the fuser area around the toner cartridge (see "Inside the machine" on page 65). 4 Insert tray 1 back into the machine until it snaps into place. Printing automatically resumes. 2 In optional tray2 Click this link to open an animation about clearing a jam. 1 Pull out optional tray 2. 2 Remove the jammed paper from the machine.If the paper does not move when you pull or if you do not see the paper in this area, stop and go to the next step. Clearing paper jams 65 4. Troubleshooting 3 Pull tray 1 half-way out. 4 Pull the paper straight up and out. 5 Insert the trays back into the machine. Prin ting automatically resumes. 3 In the multi-purpose tray Click this link to open an animation about clearing a jam. 1 If the paper is not feeding properly, pull the paper out of the machine. 2 Open and close the front cover to resume printing. 4 Inside the machine Click this link to open an animation about clearing a jam. The fuser area is hot. Take care when removing paper from the machine. Clearing paper jams 66 4. Troubleshooting 1 Open the front cover and pull the toner cartridge out. 2 Remove the jammed paper by gently pulling it straight out. 3 Replace the toner cartridge and close the front cover. Printing automatically resumes. 5 In the exit area Click this link to open an animation about clearing a jam. 1 Open and close the front cover. The jammed paper is automatically ejected from the machine.If you do not see the jammed paper, go to the next step. 2 Gently pull the paper out of the output tray. 3 Clearing paper jams 67 4. Troubleshooting If you do not see the jammed paper or if there is any resistance when you pull, stop and go to the next step. 3 Open the rear cover. 4 Remove the jammed paper as shown in the following figure. 5 Close the rear cover. Printing automatically resumes. 6 In the duplex unit area Click this link to open an animation about clearing a jam. 1 Pull the duplex unit out of the machine. 2 Remove the jammed paper from the duplex unit. 3 1 1 2 3 Clearing paper jams 68 4. Troubleshooting If the paper does not come out with the duplex unit, remove the paper from the bottom of the machine. If you still do not see the paper, go to the next step. 3 Insert the duplex unit into the machine. 4 Open the rear cover. 5 Remove the jammed paper as shown in the following figure. 6 Close the rear cover. Printing automatically resumes. 3 1 1 2 3 69 4. Troubleshooting Understanding the status LEDThe color of the LED indicates the machine's current status. • Some LEDs may not be available depending on model or country.• To resolve the error, look at the error message and its instructions from the troubleshooting part. • You also can resolve the error with the guideline from the computers’s Samsung Printer Status or Smart Panel program window. • If the problem persists, call a service representative. Understanding the status LED 70 4. Troubleshooting  7 Status LED Status Description (Status LED) Off The machine is off-line. Green Blinking The machine is receiving data from the computer or the machine is printing data. On • The machine is on-line and can be used. Red Blinking • A minor error has occurred and the machine is waiting for the error to be cleared. Check the display message. When the problem is cleared, the machine resumes. For some models that does not support the display screen on the contro l panel, this feature is not applicable. • Small amount of toner is left in the cartridge. The estimated cartridge life of toner is close. Prepare a new cartridge for replacement. You may temp orarily increase the printing quality by redistributing the toner (see "Redistributing toner" on page 50). On • A toner cartridge has almost reached its estimated cartridge life a . It is recommended to replace the toner cartridge (see "Replacing the toner cartridge" on page 52). • The cover is opened. Close the cover.• There is no paper in the tray. Load paper in the tray.• The machine has stopped due to a major error. Check the display message (see "Understanding display messages" on page 71). • A paper jam has occurred (see "Clearing paper jams" on page 63). a. Estimated cartridge life means the expected or estimat…

Text truncated - open the document above for the full version.

Magpie Plus BLOCK Diagram Revision0.2 Magpie Plus Hardware Team IT Solution SMB Lab Samsung Electronics 110916 MAIN C3N Core 533 MHz BUS 150.8MHz FUSER Unit ThermoStat Thermistor1 Exit Sensor Regi Clutch Pickup Clutch Front Cover Micro Switch 24V 5V_SMPS FUSER ON Relay 24VS 3.3V 3.3V_Cover_Open1 3.3V_Cover_Open3.3V DEVELOPER Unit FAN MAIN FAN SMPS OPCMHV DEV Supply THV Varistor T D S DRUM M Main Motor MT BLDC Serial Flash 16MB DDR3 1 DIMM PBA Default x16 128MB(1Gb 1ea) Option x16 512MB(2Gb*2ea) EEPROM(I2C CH0) EEPROM 24C512(Sys+NW) SPI SOL C R U M RTL8211E Giga_PHY 25MHz FUSER BIAS INLET MP Clutch Paper Size/Binful Sensor Clock Generator ASM3P2863A 12MHz MAIN CLK USB CLK_ REF USB 2.0 Device I N L E T F U S E R SOL HVPS SMPS 24VS EMPTY Sensor REGI Sensor MP Sensor FEED Sensor LSU MOTOR Laser Diod(Dual Beam) UART Option SCF E C O C a n c e l P o w e r S t a t u s _ L E D E C O C a n c e l N a v i _ K E Y L C D Relay SYSTEM RAM SO_DIMM Con. 204pin Eraser LED SOL 5V Usb USB/Parallel DC-DC 3CH 5V to 3.3V,1.5V,1.2V 2 Line LCD I2C 3.3V/1.2V 1.5V Rear Cover Micro Switch PANEL LSU 22.137 MHz u a r t Option PARALLEL (Parallel to USB) DIMM_PBA 377 MHz LDO 1CH 5V to 1.8V 1.8V

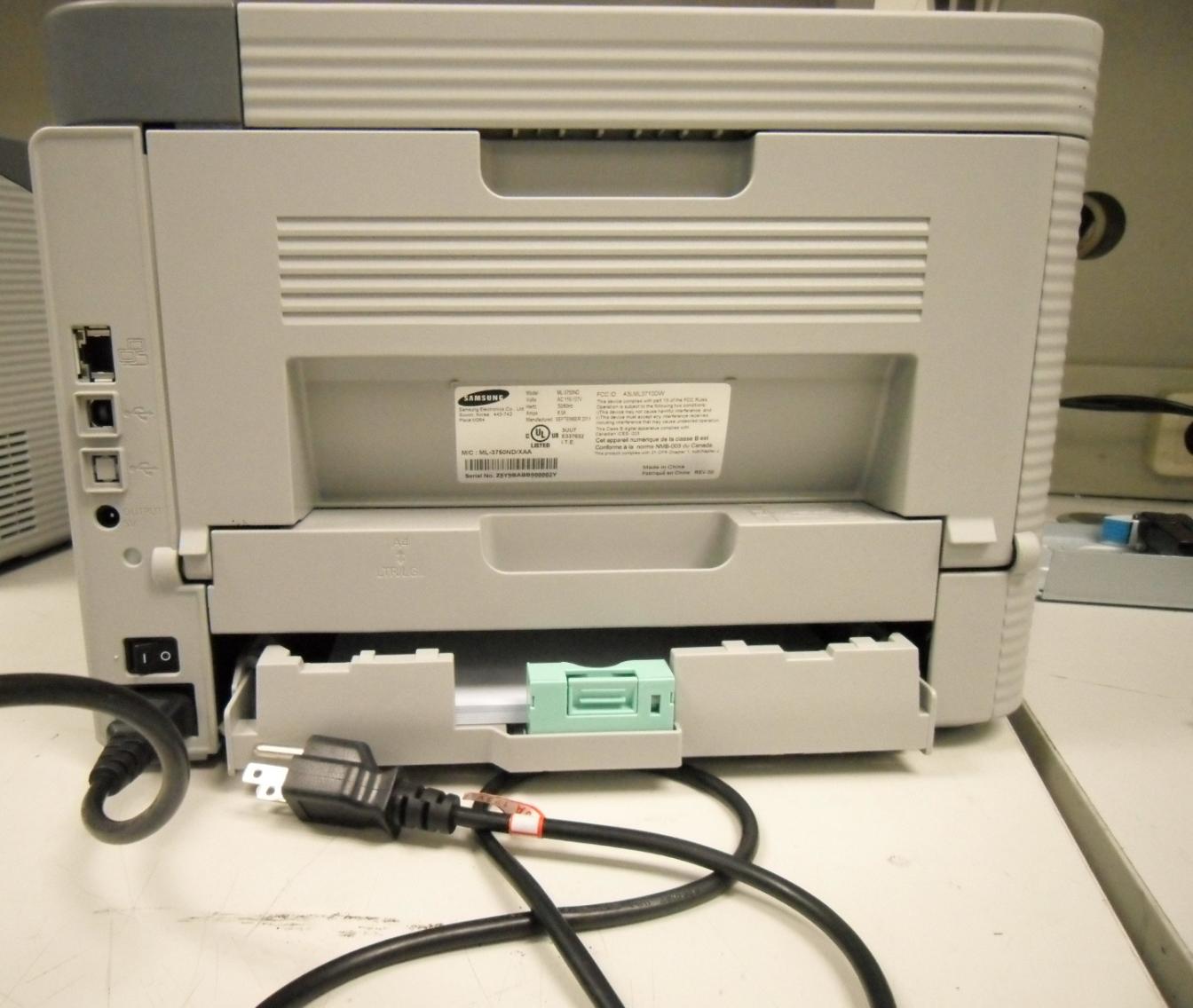

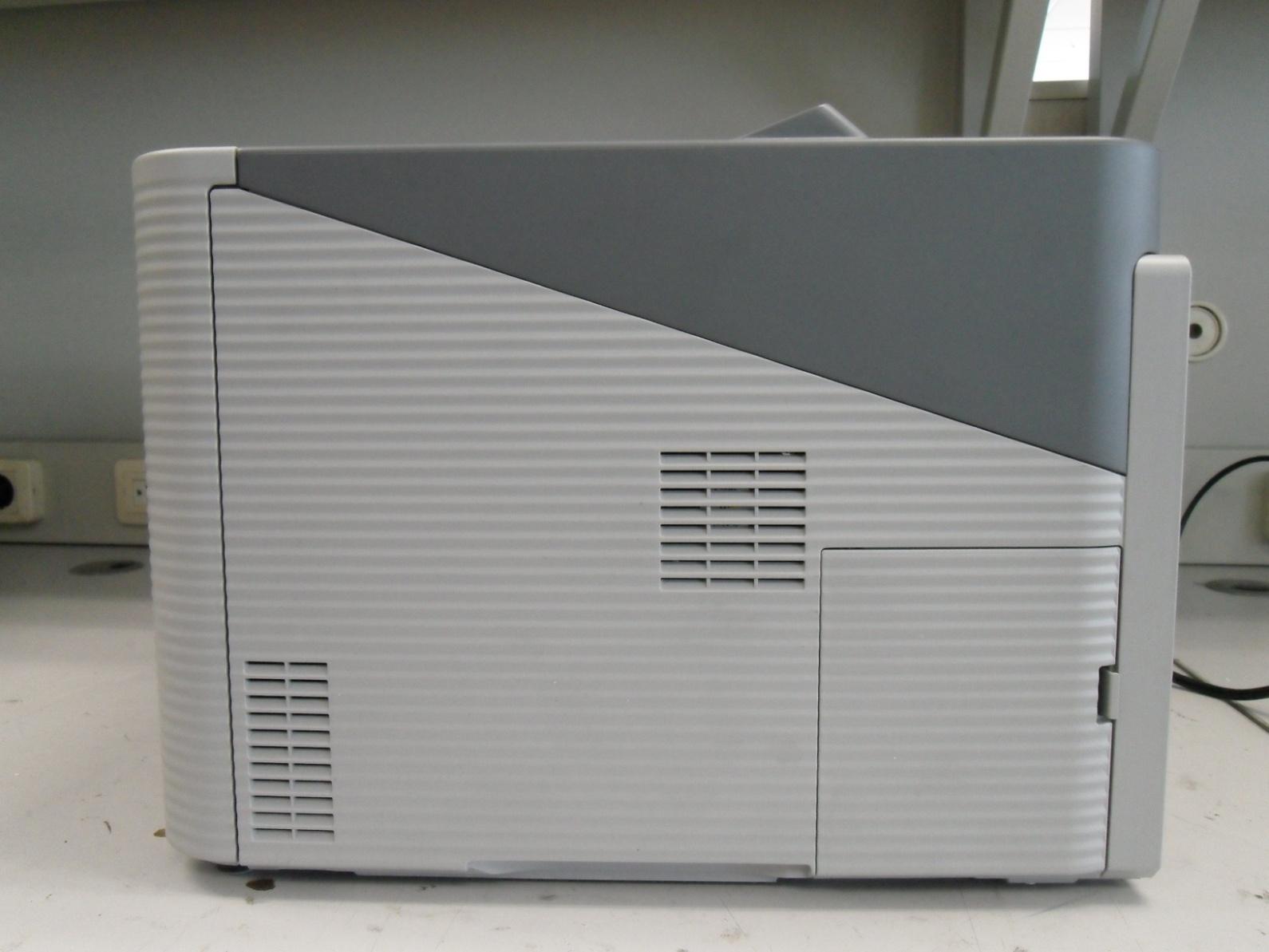

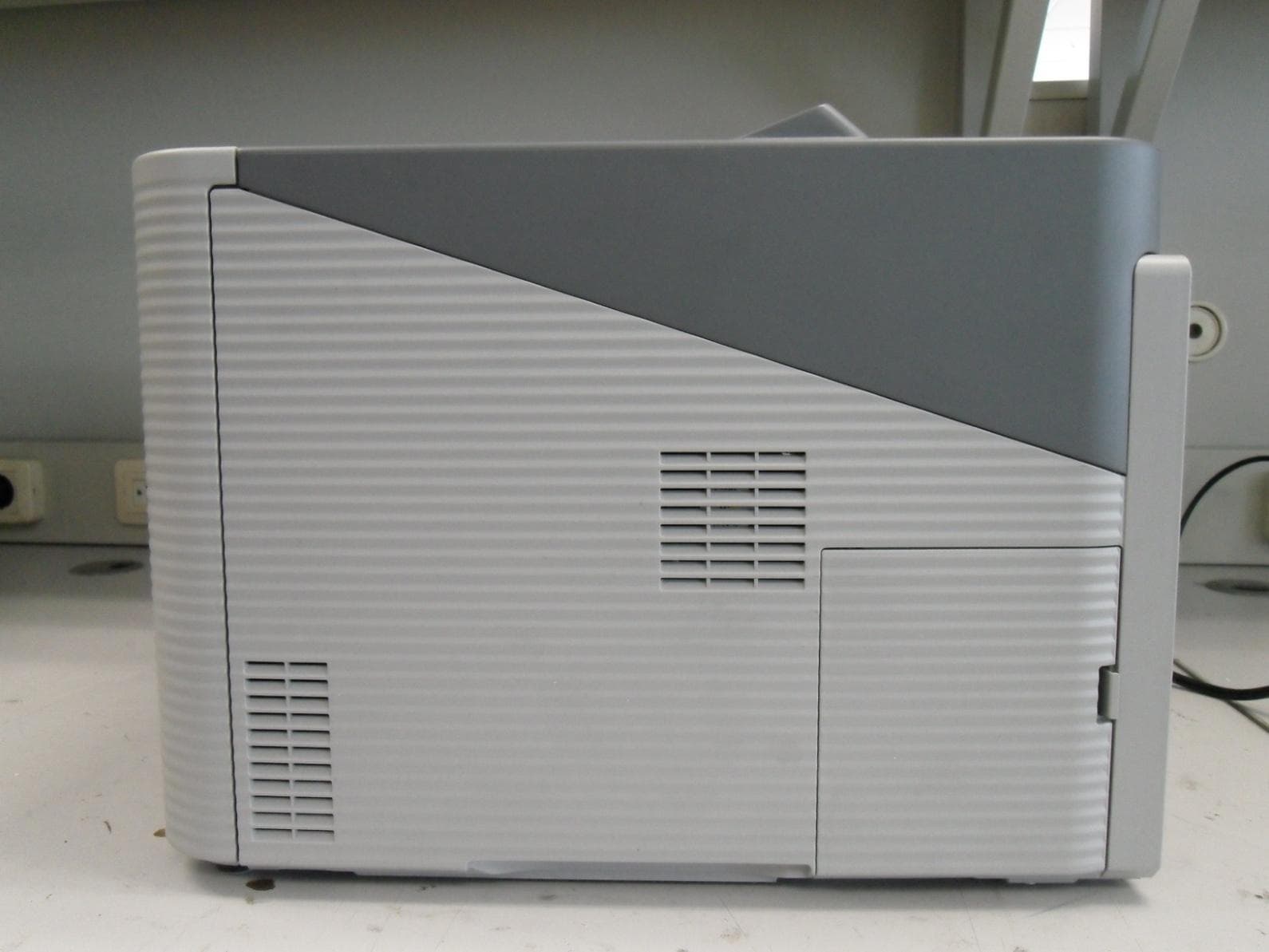

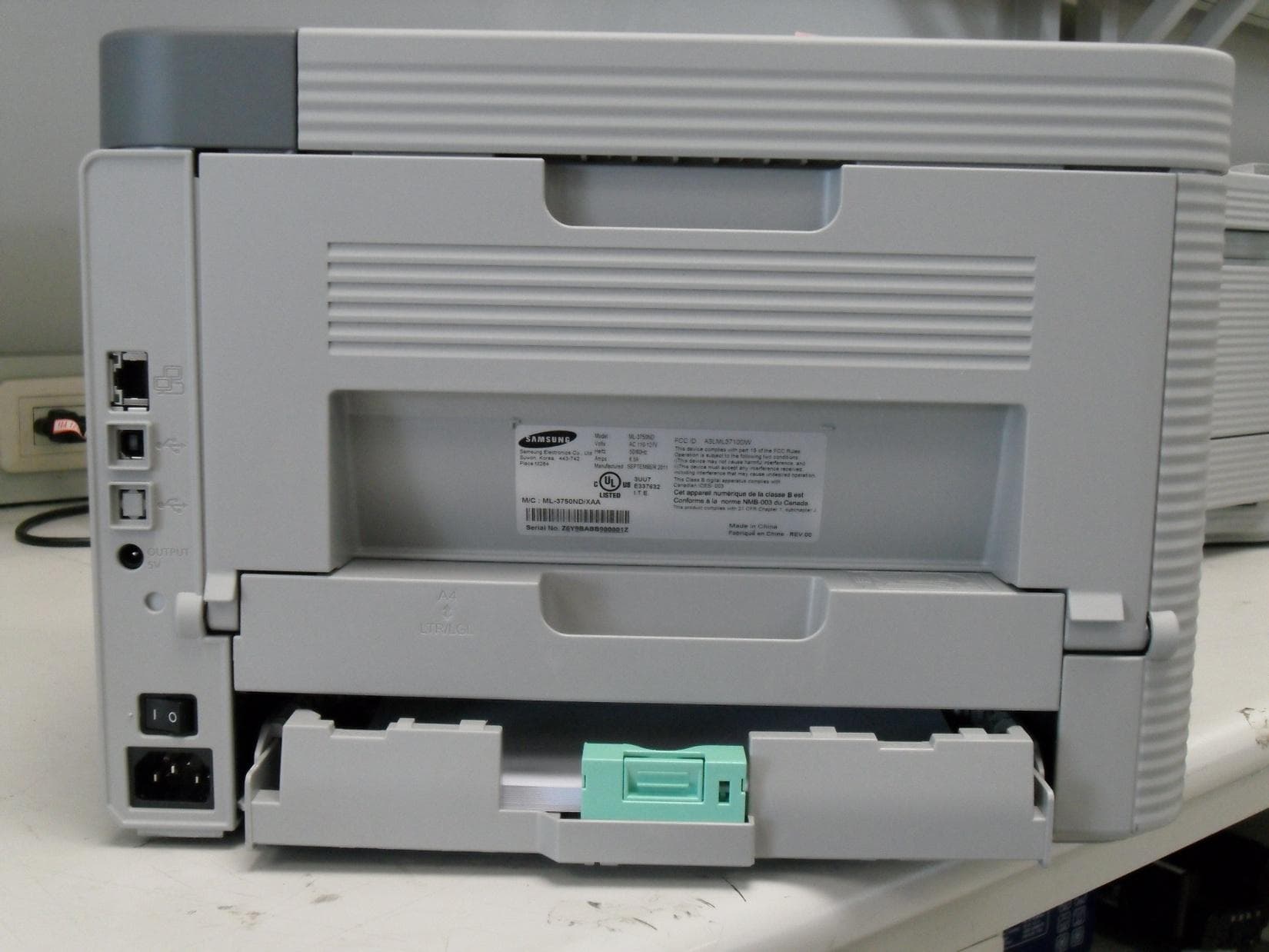

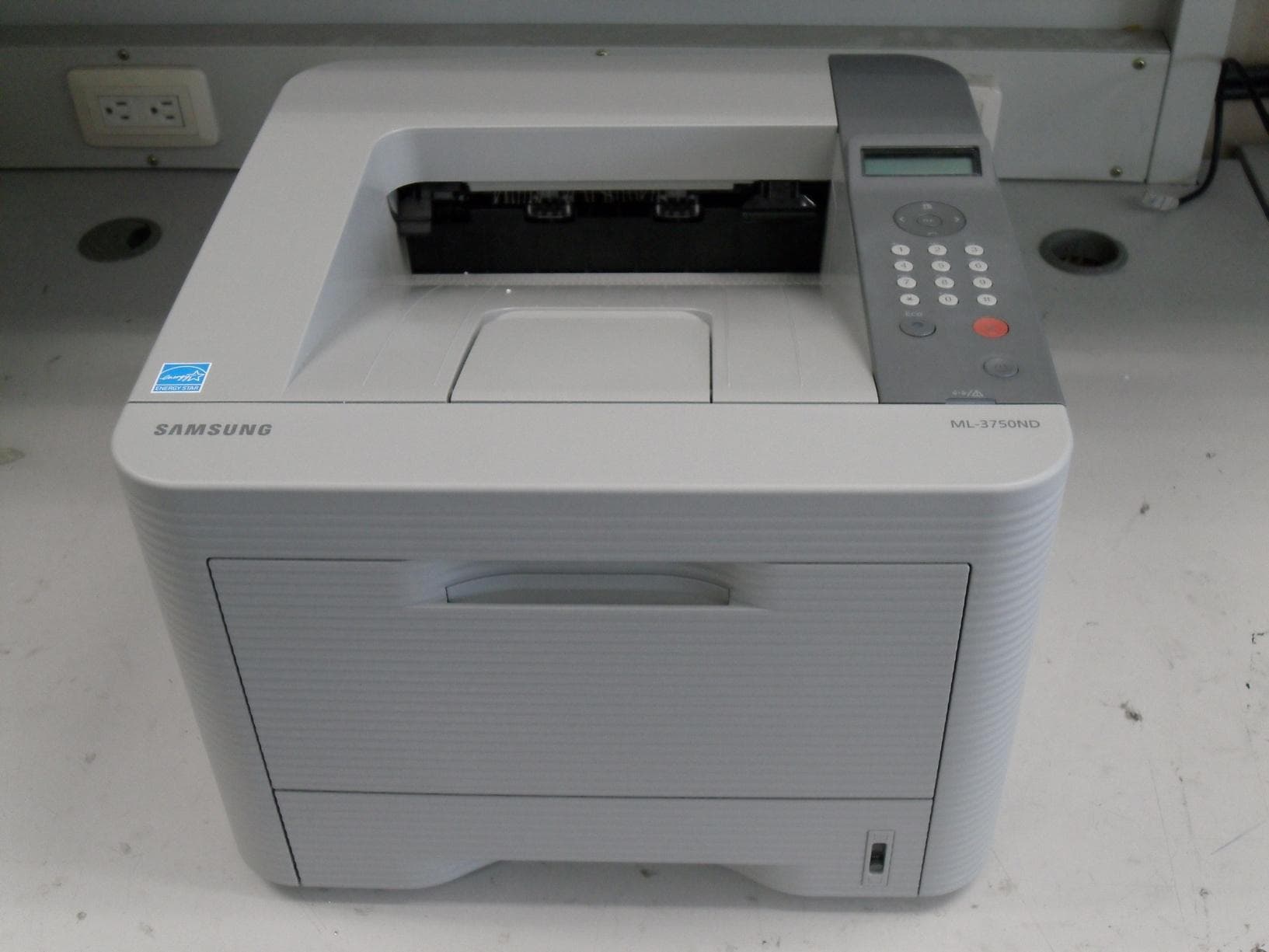

Top View Front View Rear View Left side View Right side View Model Name Rear side connected with power cable power cable

Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -46/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. Appendix – EUT photography Front View Rear View with label location Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -50/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. Label

Top View Front View Rear View Left side View Right side View Main Board(Top) Main Board(bottom) DimmBoard(Top) DimmBoard(bottom) OPE PBA HVPS(Dong yang) HVPS(Dong yang) HVPS(Sys Hitek) HVPS(Sys Hitek) SMPS(LiteOn) SMPS(LiteOn) SMPS(Dong yang) SMPS(Dong yang)

Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -7/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.5 EUT Description The following features describe EUT represented by this report: Item Specification and Description Processor CHORUS3-NEXT(533MHz) Standard System memory 128MB DDR3 SDRAM Resolution True 600x600dpi (Up to 1,200x1,200dpi effective output) Paper Handling Paper Tray(standard) 250Sheets Manual Tray 50Sheet Power Rating 110~127VAC, 6.5A, 50/60Hz Power Consumption Sleep mode : 2Watts Ready mode : 60Watts Printing mode: 550Watts Printer Language PostScript3, PCL6/5e, IBM ProPrinter, EPSON PC Interfaces USB2.0, NW OS compatibility Windows 2000/XP(32/64bits)/ Vista(32/64bits)/2003 Server(32/64bits)/2008 Server(32/64bits)/ 7(32/64bit)/2008 Server R2 Various Linux OS: Fedora Core 4, 5, 6 Fedora 7, 8, 9, 10, 11, 12 RedHat Enterprise Linux WS 4, 5 SuSE 10.0, 10.1 openSuSE 10.2, 10.3, 11.0, 11.1, 11.2 SuSE Linux Enterprise Desktop 10, 11 Debian 4.0, 5.0 Ubuntu 5.04, 5.10, 6.04, 6.10, 7.04, 7.10, 8.04, 8.10, 9.04, 9.10 Mandriva 2005LE, 2006, 2007, 2007.1, 2008, 2008.1, 2009, 2009.1 Modes of Operation USB Printing, 1200dpi Printing, Network Printing Intended Class for Emissions Class B

-1/50- E E E M M M C C C T T T E E E S S S T T T R R R E E E P P P O O O R R R T T T Project No. LBE20111418 Issue No. 0 Applicant Name of organization Samsung Electronics Co., Ltd. Address 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do 443-742 Korea Date of application September 14, 2011 EUT Type of device Class B personal computers and peripherals Equipment authorization Declaration of Conformity Certification Verification FCC ID A3LML3750ND Kind of product MONO LASER PRINTER Model No. ML-3750ND Variant Model No. None Manufacturer 1) Samsung Electronics Co., Ltd. 259, Gongdan-Dong, Gumi-City, Gyeongsangbuk-Do, Korea 730-030 2) Samsung Electronics (Shandong) Digital Printing Co., Ltd. 264209, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 3) Weihai Shin Heung Digital Electronics Co., Ltd. 98, Samsung Road, Weihai Hi-Tech. IDZ, Shandong Province, P.R.China 4) Intops : Intops (Weihai) Electronics Co., Ltd., Keji Road-268-1 , Weihai Hi-Tech,Industries Development Zone Shandong Province , CHINA Applied Standards FCC Part 15, Subpart B / ANSI C63.4-2009 Test Period September 14, 2011 ~ September 15, 2011 Issue date September 21, 2011 Test result : Complied The equipment under test has found to be compliant with the applied standards. The result is not applied the uncertainty concept. This mean that the result is applied the original (standard) limit. (Refer to the attached test result for more detail.) Tested by : Young-Man Lee Reviewed by : Tae-Young Jang The test results in this report only apply to the tested sample. This report must not be reproduced, except in full, without written permission from CS & Environment center. 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742 Korea Tel: 82 31 277 7752, Fax: 82 31 277 7753 Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -2/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. Table of contents 1. Report information 1.1 Revision history - 3 page 1.2 Sample calculation - 3 page 2. Summary of test results 2.1 Emission - 3 page 3. General Information 3.1 Test facility - 4 page 4. Test configuration 4.1 Test configuration - 4 page 4.2 EUT operating mode(s) - 6 page 4.3 Details of Sampling - 6 page 4.4 Clock Frequencies - 6 page 4.5 EUT Description - 7 page 4.6 Test configuration and condition - 8 page 4.7 Measurement uncertainty - 8 page 5. Result of individual tests 5.1 Conducted disturbance - 9 page 5.2 Radiated disturbance - 23 page Appendix – EUT photography - 46 page Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -3/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 1. Report information 1.1 Revision history 1.2 Sample calculation 1.2.1 Conducted disturbance (at 10 MHz) ◦ Class B limit = 60 dBμV (Quasi-peak limit) ◦ Level (50 dBμV) = Meter Reading (40.2 dBμV) + factor ( 9.8 dB, AMN factor 9.7 dB + Cable loss 0.1 dB) ◦ Margin (10 dB) = Limit (60 dBμV) – Level (50 dBμV) = 10 dB below limit 1.2.2 Radiated disturbance (at 100 MHz) ◦ Class B limit = 40 dBμV/m at 3 m ◦ Level (30 dBμV/m) = Meter Reading (50 dBμV) + factor (- 20 dB(1/m), antenna factor + cable loss – amplifier gain) ◦ Margin (10 dB) = Limit (40 dBμV/m) – Level (30 dBμV/m) = 10 dB below limit 2. Summary of test results 2.1 Emission The EUT has been tested according to the following specifications: Applied Test type Applied standard Result Conducted Disturbance (Mains Port) FCC Part 15 Subpart B / ANSI C63.4-2009 Complied Radiated Disturbance Complied No. Revised detailed information Issue 0 There are no revisions and this version is basic test report. Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -4/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 3. General Information 3.1 Test facility The CS & Environment center is located on Samsung Electronics Co., Ltd. at 416 Maetan 3-Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, South Korea. All testing are performed in Semi-anechoic chambers conforming to the site attenuation Characteristics defined by ANSI C63.4, CISPR 22, 16-1 and 16-2. and Shielded rooms. The CS & Environment center is operated as testing laboratory in accordance with the requirements of ISO/IEC 17025:2005. 4. Test Setup configuration 4.1 Test configuration 4.1.1 Test Peripherals The cables used for these peripherals are either permanently attached by the peripheral manufacturer or coupled with an assigned cable as defined below. The following is a listing of the EUT and peripherals utilized during the performance of EMC test: Seq Description Model No. Serial No. Manufacturer Fcc ID / DoC A Mono Laser Printer ML-3750ND - SAMSUNG A3LML3750ND B NOTE PC PP18L 27182225373 DELL DoC C Docking PD01X CN-0HD026-48643-83K-2196 DELL DoC D USB mouse SC-1000 1034000243 SAMSUNG - E Headset - - SAMSUNG - Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -5/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.1.2 Test cables No. Connected cable Length [m] Shielded [Y/N] Note 1 Power 1.8 No For EUT 2 Power 1.8 No For Notebook PC 3 USB 1.8 Yes EUT to Notebook PC 4 USB 1.8 Yes Notebook PC to USB Mouse 5 NETWORK 2.0 No From EUT to hub(Notebook PC) 6 Head set 1.5 No For Note PC to Head set 4.1.3 Test arrangement Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -6/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 4.2 EUT operating mode To achieve compliance applied standard specification, the following mode(s) were made during compliance testing: Operating Mode 1 Standby Operating Mode 2 USB Printing(Duplex) Operating Mode 2 Network Printing(Duplex) 4.3 Details of Sampling Customer selected, two units (One with SMPS of LITEON and another with SMPS of Dongyang) 4.4 Clock Frequencies Kind of Clocks Frequency[MHz] …

Text truncated - open the document above for the full version.

Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -10/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.1.3 Photograph of Test Setup Front Rear Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -26/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. 5.2.3 Photograph of Test Setup Front (Below 1 GHz) Rear (Below 1 GHz) Project No. : LBE20114618 MONO LASER PRINTER : ML-3750ND -27/50- This report must not be reproduced, except in full, without written permission from CS & Environment center. Front (above 1 GHz) Rear (above 1 GHz)
