A3LMOBILE2FM Transmitter

© 2001 PCTEST Lab ATTACHMENT K – USERS MANUAL POWER EJECT REC STOP PLAY F.F VIDEO AUDIO LINE IN 2 POWER REC SLP HEAT DEW R L REW SV-LCD3MODEL NO.: KMV1610 User’s Guide Important Safety InstructionsImportant Safeguards 2 3 6. Attachments and Connections - Do not use attachments or make any connections other than those recommended by the manufacturer. 7. Ventilation - Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect against overheating, these openings must not be blockedor covered. The openings must not be placed on any surface or positioned in any way that will cause these openings to be blocked or covered. 8. Power Cord Wiring Harness - The power cord should be routed in such a way that it is not likely to be stepped on, have objects placed on it, or hinder operation of a vehicle in any way. 9. Unit Placement - The unit should be positioned on a flat, sturdy surface and secured in such a way that it cannot move freely about the passenger compartment or hinder operation of a vehicle in any way. 10. Object and Liquid Entry - Never insert objects (other than video cassette tapes, as instructed) in to this product. Electric shock, fire or electric shortout can occur. Never spill/pour liquid of anykind onto/into this product. 11. Servicing - Do not attempt to service this product yourself; opening or removing the covers may expose you to dangerous electric voltage or other hazards. Refer all servicing to qualified ser-vice personnel. 12. Damage Requiring Service - Unplug this product from the power source and refer to qualified service personnel for the following: a. If the power supply cord or plug is damaged. b. If liquid has spilled into or objects have been dropped onto the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally according to the operating instructions. Adjust only thosecontrols covered by the operating instructions, as improper adjustment of other controls cancause damage and can require extensive repair work by a qualified technician to restore normaloperation. e. If the product has been dropped or damaged in any way. f. If the product exhibits a distinct change in performance. 13. Replacement Parts - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or that have the same characteristics as theoriginal part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 14. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 15. Heat - The product should be situated away from heat sources devices such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. This symbol indicates the pres-ence of high voltage in the unit. Itis dangerous to make any kind ofcontact with any inside part of thisproduct.This symbol alerts you that impor-tant literature concerning opera-tion and maintenance has beenincluded with this product. CAUTIONFCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TOTHIS EQUIPMENT MAY VOID THE USER'S AUTHORITY TO OPERATE IT.IMPORTANT : One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may be copyrighted and any unauthorized recording in whole or in partmay be a violation of these rights.To prevent damage which may result in fire or electric shock hazard, do not expose thisappliance to rain or moisture.1. Read Instructions - Read all safety and operating instructions before operating the product. 2. Retain Instructions - Retain all safety and operating instructions for future reference. 3. Heed Warnings - Adhere to all warnings on the product and in the operating instructions. 4. Follow Instructions - Follow all operating and use instructions. 5. Cleaning - Unplug from power source before cleaning. Use damp cloth only; do not use liquid or aerosol cleaners. CAUTIONTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER SERVICEABLE PARTSINSIDE. REFER SERVICINGTO QUALIFIED PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN 5 4 Features and Accessories Features u Hi-Fi stereo u Audio/Video Inputs u Digital Auto Tracking u Built-in HQ (High Quality) video circuitry u Frame Advance and Slow Motion u DLC (Diamond Like Carbon) Head - special alloy reduces head wear andincreases durability u Infrared Remote Control u On Screen Display Accessories Check that you have received the following: u VCR u VCR user’s guide u Remote control u Batteries u Power harness u VCR Mount Bracket(2Piece) u Installation Screw u Remote control Sensor u TFT-LCD(6.8 inch) Table of Contents POWER EJECT REC STOP PLAY F.F VIDEO AUDIO LINE IN 2 POWER REC SLP HEAT DEW R L REW User's Guide Power Harness VCR TFT-LCD Features and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear Panel/Monitor Connection/Power . . . . . . . . . . . . . . . . . . . . . . . . . Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Remote Control Battery Install/Replace . . . . . . . . . . . . . . . . . . . . . . . . . Playing a Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT B – ATTESTATION STATEMENT(S) March 9, 2001 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Wallace Oh Engineering Manager Samsung Electronics America

© 2001 PCTEST Lab ATTACHMENT F – BLOCK DIAGRAM(S)

July24, 2001 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS INC. FCC ID: A3LMOBILE2 Gentlemen: Transmitted herewith, on behalf of SAMSUNG Electronics Inc. is an application for certification of the following 6.8–inch LCD color monitor w/ built in FM Transmitter: FCC ID:A3LMOBILE2 MODEL:KMV11610 TRADE NAMES:SAMSUNG EUT TYPE:6.8-inch LCD Color Monitor w/ built in FM Transmitter Attached is the applicant’s authorization letter, measurement report (test data and test plots), FCC ID label and location, test setup photographs, internal and external photographs, block diagram, and user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:

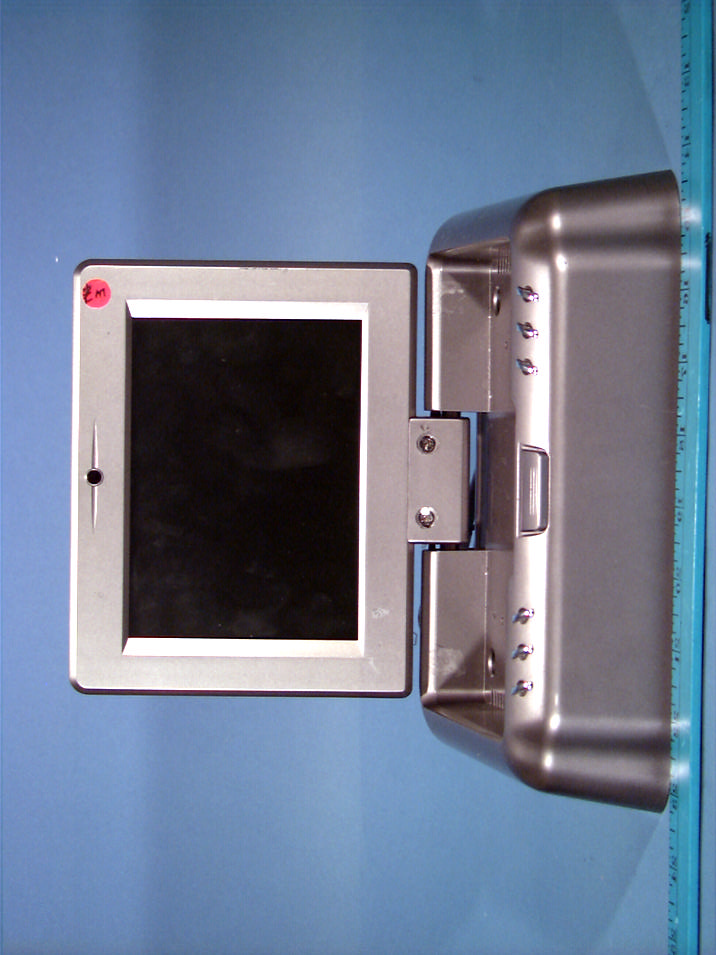

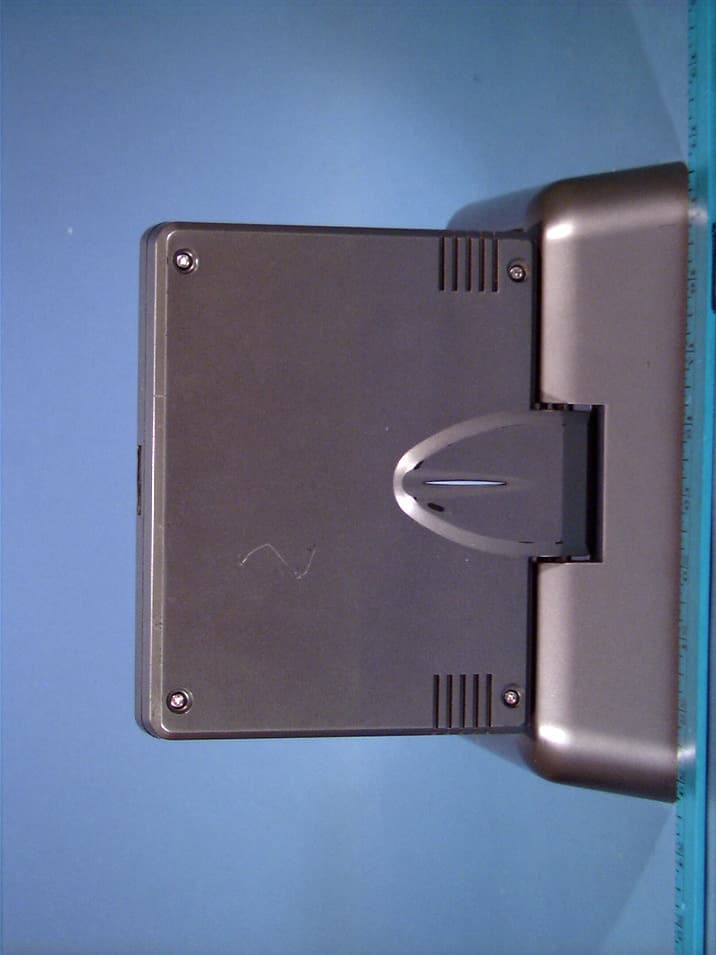

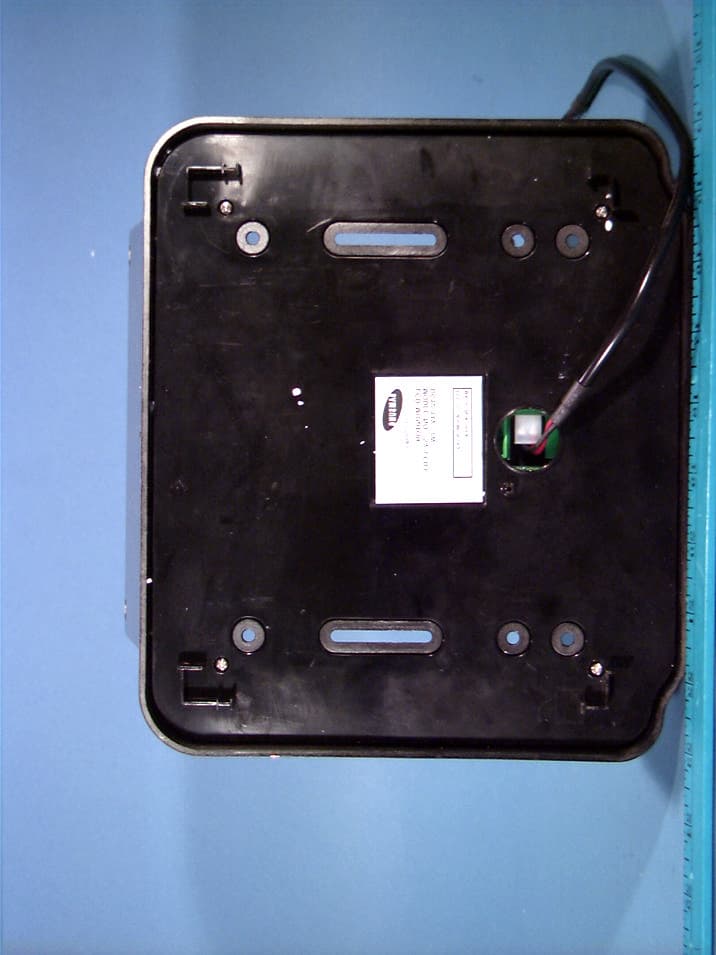

© 2001 PCTEST Lab ATTACHMENT I – EXTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3)

© 2001 PCTEST Lab ATTACHMENT E – FCC ID LABEL & LOCATION © 2001 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

© 2001 PCTEST Lab ATTACHMENT J – INTERNAL PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3)

POWER EJECT REC STOP PLAY F.F VIDEO AUDIO LINE IN 2 POWER REC SLP HEAT DEW R L REW SV-LCD3MODEL NO.: KMV1610 User’s Guide Important Safety InstructionsImportant Safeguards 2 3 6. Attachments and Connections - Do not use attachments or make any connections other than those recommended by the manufacturer. 7. Ventilation - Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect against overheating, these openings must not be blockedor covered. The openings must not be placed on any surface or positioned in any way that will cause these openings to be blocked or covered. 8. Power Cord Wiring Harness - The power cord should be routed in such a way that it is not likely to be stepped on, have objects placed on it, or hinder operation of a vehicle in any way. 9. Unit Placement - The unit should be positioned on a flat, sturdy surface and secured in such a way that it cannot move freely about the passenger compartment or hinder operation of a vehicle in any way. 10. Object and Liquid Entry - Never insert objects (other than video cassette tapes, as instructed) in to this product. Electric shock, fire or electric shortout can occur. Never spill/pour liquid of anykind onto/into this product. 11. Servicing - Do not attempt to service this product yourself; opening or removing the covers may expose you to dangerous electric voltage or other hazards. Refer all servicing to qualified ser-vice personnel. 12. Damage Requiring Service - Unplug this product from the power source and refer to qualified service personnel for the following: a. If the power supply cord or plug is damaged. b. If liquid has spilled into or objects have been dropped onto the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally according to the operating instructions. Adjust only thosecontrols covered by the operating instructions, as improper adjustment of other controls cancause damage and can require extensive repair work by a qualified technician to restore normaloperation. e. If the product has been dropped or damaged in any way. f. If the product exhibits a distinct change in performance. 13. Replacement Parts - When replacement parts are required, be sure the service technician uses replacement parts specified by the manufacturer or that have the same characteristics as theoriginal part. Unauthorized substitutions may result in fire, electric shock, or other hazards. 14. Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition. 15. Heat - The product should be situated away from heat sources devices such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat. This symbol indicates the pres-ence of high voltage in the unit. Itis dangerous to make any kind ofcontact with any inside part of thisproduct.This symbol alerts you that impor-tant literature concerning opera-tion and maintenance has beenincluded with this product. CAUTIONFCC REGULATIONS STATE THAT ANY UNAUTHORIZED CHANGES OR MODIFICATIONS TOTHIS EQUIPMENT MAY VOID THE USER'S AUTHORITY TO OPERATE IT.IMPORTANT : One Federal Court has held that unauthorized recording of copyrighted TV programs is an infringement of U.S. copyright laws. Certain Canadian programs may be copyrighted and any unauthorized recording in whole or in partmay be a violation of these rights.To prevent damage which may result in fire or electric shock hazard, do not expose thisappliance to rain or moisture.1. Read Instructions - Read all safety and operating instructions before operating the product. 2. Retain Instructions - Retain all safety and operating instructions for future reference. 3. Heed Warnings - Adhere to all warnings on the product and in the operating instructions. 4. Follow Instructions - Follow all operating and use instructions. 5. Cleaning - Unplug from power source before cleaning. Use damp cloth only; do not use liquid or aerosol cleaners. CAUTIONTO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK). NO USER SERVICEABLE PARTSINSIDE. REFER SERVICINGTO QUALIFIED PERSONNEL. RISK OF ELECTRIC SHOCK DO NOT OPEN 5 4 Features and Accessories Features u Hi-Fi stereo u Audio/Video Inputs u Digital Auto Tracking u Built-in HQ (High Quality) video circuitry u Frame Advance and Slow Motion u DLC (Diamond Like Carbon) Head - special alloy reduces head wear andincreases durability u Infrared Remote Control u On Screen Display Accessories Check that you have received the following: u VCR u VCR user’s guide u Remote control u Batteries u Power harness u VCR Mount Bracket(2Piece) u Installation Screw u Remote control Sensor u TFT-LCD(6.8 inch) Table of Contents POWER EJECT REC STOP PLAY F.F VIDEO AUDIO LINE IN 2 POWER REC SLP HEAT DEW R L REW User's Guide Power Harness VCR TFT-LCD Features and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Rear Panel/Monitor Connection/Power . . . . . . . . . . . . . . . . . . . . . . . . . Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Remote Control Battery Install/Replace . . . . . . . . . . . . . . . . . . . . . . . . . Playing a Tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Manual Tracking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Using Special Features . . . . . . . . . . .…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT G – SCHEMATIC DIAGRAM(S)

          These signalsare outputsto panel!
  DC-DC CONV VIDEO IN



































































                    GNDCVBS SHIELDWIRE REMOCON


         !
"  #$ %&
' ( )




































%*


             +      +,
     +         + -.
   +    ,/01234






 567,5
     ,55555556575,5                        2 +08 *% 2 9
9
 % %

* 9 9

* 2 :  !  ! !  "  !
 : 9 % 20
8 + 908 *% 9 + %*      !     +    6;71        +                            " -; 6       +
   +  0<2     +    ,5-5 5 , 765 629
 7  6 5              5 6  7           +    +      +           1 5,   +           #
            #
    $$
     %&#      ; 0
              +       6%=6-0,    -          %&#          ' ( +
1 77            5 ,>6,
               +           $ $                                       $$  %&#            1      )   567,                          ;6 034 $$
$ $    #
     $ '$
# (
   )  * " # 567, 567,



5
6
7
,






5
6
7
,


 +   0<62         67   +           +                     +     +    6;71 +              +    ,6.    +
  +   +   0<62 $ $
        1 5, +           +    ,'(              5,1      +        #

-   +   +          % 1 0 5 ,76   =  ?  2** 2  : = : ? :            +    0<72    %1 55 0 567, 765  ? =0**
:1
 % 9
  ?  = %*0  2  **       +   0<2     '.(        %&#
   +              %  56 7, 56 7,   )   567,    1            +   %&#
 ,' (

© 2001 PCTEST Lab ATTACHMENT C – TEST REPORT © 2001 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE Manufacturer Samsung Electronics Co., Ltd.Dates of Tests: July 20-21, 2001 416 Maetan-3 Dong, Paldal-Ku Test Report S/N: B.210716426.A3L Suwon City Kyungki-Do 441-742, KoreaTest Site: PCTEST Lab, MD U.S.A. FCC ID A3LMOBILE2 APPLICANT SAMSUNG ELECTRONICS INC. Rule Part(s): FCC Part 15.239 Subpart C Equipment Class: Low Power Communication Device Transmitter(DXX) EUT Type: 6.8-inch Color LCD Monitor w/ built in FM Transmitter Frequency Range: Stereo FM Transmitter 88.1MHz-89.1MHz Trade Name(s): SAMSUNG ® Model(s): SV-LCD3 This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-1992 (Note Codes: #CC). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Alfred Cirwithian Vice President Engineering Lab Code 100431-0 210716426.A3L © 2001 PCTEST Engineering Laboratory, Inc. FCC Class B TABLE OF CONTENTS ATTACHMENT A: COVER LETTER(S) ATTACHMENT B: ATTESTATION STATEMENT(S) ATTACHMENT C: TEST REPORT 1.1SCOPE 1 2.1INTRODUCTION (SITE DESCRIPTION) 2 3.1PRODUCTION INFORMATION 3 4.1DESCRIPTION OF TESTS (CONDUCTED) 4 4.3DESCRIPTION OF TESTS (RADIATED) 5 5.1LIST OF SUPPORT EQUIPMENT 6 6.1TEST DATA (CONDUCTED) 7 7.1TEST DATA (RADIATED) 8-9 8.1SAMPLE CALCULATIONS 10 9.1ACCURACY OF MEASUREMENT 11 10.1LIST OF TEST EQUIPMENT 12 11.1TEST SOFTWARE USED 13 12.1CONCLUSION 14 ATTACHMENT D: TEST PLOTS ATTACHMENT E: FCC ID LABEL & LOCATION ATTACHMENT F: BLOCK DIAGRAM(S) ATTACHMENT G: SCHEMATICS ATTACHMENT H: TEST SETUP PHOTOGRAPHS ATTACHMENT I: EXTERNAL PHOTOGRAPHS ATTACHMENT J: INTERNAL PHOTOGRAPHS ATTACHMENT K: USER’S MANUAL Test Report S/N: B.210716426.A3LFCC Class B Dates of Tests: July 20-21, 2001Certification © 2001 PCTEST LabSAMSUNG Electronics Inc. FCC ID: A3LMOBILE21 6.8” LCD Monitor w/built in FM Transmitter (SAMSUNG Model: SV-LCD3) MEASUREMENT REPORT 1.1 Scope Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission. U.S. Responsible Party*:Samsung Telecommunications America Address:1130 E. Arapaho Road Richardson, TX 75081 Contact Person:Gordon Malterud Telephone No.:(972) 761-7145 • FCC ID:A3LMOBILE2 • Equipment Class:Low Power Communication Device Transmitter(DXX) • EUT Type:6.8-inch LCD Monitor w/ built in FM Transmitter • Trade Name(s):SAMSUNG ® • Model(s):SV-LCD3 • Frequency Range:Stereo FM Transmitter 88.1MHz-89.1MHz • Power Source:DC 12V/8W (supplied from VCR) • Rule Part(s):FCC Part 15 Subpart C • Test Procedure(s):ANSI C63.4 (1992) • Dates of Tests:July 20-21, 2001 • Place of Tests:PCTEST Lab, Columbia, MD U.S.A. • Test Report S/N:B.210716426.A3L Test Report S/N: B.210716426.A3LFCC Class B Dates of Tests: July 20-21, 2001Certification © 2001 PCTEST LabSAMSUNG Electronics Inc. FCC ID: A3LMOBILE22 6.8” LCD Monitor w/built in FM Transmitter (SAMSUNG Model: SV-LCD3) 2.1 INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio- Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-1992) was used in determining radiated and conducted emissions emanating from SAMSUNG Electronics Inc. 6.8” LCD Monitor w/ built in FM Transmitter FCC ID: A3LMOBILE2. These measurement tests were conducted at PCTEST Engineering Laboratory, Inc. facility in New Concept Business Park, Guilford Industrial Park, Columbia, Maryland. The site address is 6660-B Dobbin Road, Columbia, MD 21045. The test site is one of the highest points in the Columbia area with an elevation of 390 feet above mean sea level. The site coordinates are 39° 11'15" N latitude and 76° 49'38" W longitude. The facility is 1.5 miles North of the FCC laboratory, and the ambient signal and ambient signal strength are approximately equal to those of the FCC laboratory. There are no FM or TV transmitters within 15 miles of the site. The detailed description of the measurement facility was found to be in compliance with the requirements of § 2.948 according to ANSI C63.4 on October 19, 1992. 2.2 PCTEST Location The map at right shows the location of the PCTEST Lab, its proximity to the FCC Lab, the Columbia vicinity area, the Baltimore-Washington International (BWI) airport, and the city of Baltimore, and the Washington, D.C. area. (see Figure1). Figure 1. Map of the Greater Baltimore and Metropolitan Washington, D.C. area. Test Report S/N: B.210716426.A3LFCC Class B Dates of Tests: July 20-21, 2001Certification © 2001 PCTEST LabSAMSUNG Electronics Inc. FCC ID: A3LMOBILE23 6.8” LCD Monitor w/built in FM Transmitter (SAMSUNG Model: SV-LCD3) 3.1 Product Information 3.2 Equipment Description The Equipment Under Test (EUT) is the SAMSUNG Electronics Inc. (SAMSUNG Model: SV-LCD3) 6.8-inch LCD Monitor w/ built in FM Transmitter FCC ID: A3LMOBILE2. Frequency Range(s):Stereo FM Transmitter 88.1MHz-89.1MHz Display Type:6.8-inch Flat Panel LCD Power Supply:Supply from the VCR DC 12V/8W Port(s)(1) Video in, (1) Audio in Viewing Angle:15° vertic…

Text truncated - open the document above for the full version.

© 2001 PCTEST Lab ATTACHMENT D – TEST PLOT(S)

© 2001 PCTEST Lab ATTACHMENT H – TEST SETUP PHOTOGRAPHS © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3) © 2001 PCTEST Lab SAMSUNG Electronics Inc. FCC ID: A3LMOBILE2 NVLAP Lab Code: 100431-0 6.8” LCD Monitor w/built in FM Transmitter (Model: SV-LCD3)
