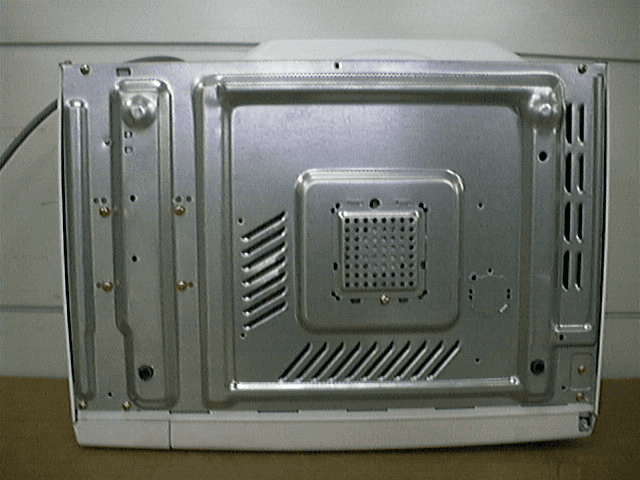

Microwave Oven Owner’s Manual 321 654 987 0 Auto Recalentado Auto Descongelado Inicio Pausa Cancelar Reloj Mas / Menos Nivel de Potencia Un Minuto + Cocinado Suave Papas Palomitas Comida dietetica Comida para bebe Vegetales frescos Desayuno congelado Cena congelada Receta personalizada 1.Plato de comida 2.Guisado 3.Sopa / salsa Sonido MW7692W / MW7693G IMPORTANT IN ORDER TO PREVENT BAD OPERATING AND AVOID DAMAGES TO THE PRODUCT, PLEASE READ THIS MANUAL CAREFULLY BEFORE CONNECTING AND TURNNING-ON THE APPARATUS. PLEASE ALSO KEEP THIS MANUAL FOR FUTURE REFERENCES. Code No.DE68-00801A MW7692W/MW7693G 1/17/00 6:13 AM Page 1 SAFETY 2 S AFETY PRECAUTIONS TO AVOIDPOSSIBLE EXPOSURE TO EXCESSIVE MICROWAVEENERGY: (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu- mulate on sealing surfaces. (c) Do not operate the oven if it is dam- aged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNING Always observe Safety Precautions when using your oven. Never try to repair the oven on your own – there is dangerous voltage inside. IMPORTANTSAFETY INSTRUCTIONS WARNING • Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or labo- ratory use. • As with any appliance, close supervision is nec- essary when used by children. To reduce risk of burns, electric shock, fire, personal injury or expo- sure to excessive microwave energy: • Read all safety instructions before using the appliance. • Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page. • This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4 of this manual. • Install or place this appliance only in accor- dance with the installation instructions provided. SAVETHESEINSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: MW7692W/MW7693G 1/17/00 6:13 AM Page 2 SAFETY 3 S AFETY Important Safety Instructions, continued • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by quali- fied service personnel. Contact the nearest autho- rized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on this appliance. • Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficien- cy of the oven. • Do not immerse cord or plug in water. • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a. Do not overcook food. Watch appliance care fully if paper, plastic, or other combustible materials are inside. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty. • Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break. • Dishes and containers can become hot. Handle with care. • Carefully remove container coverings, directing steam away from hands and face. • Remove lids from bay food before heating. After heating baby food, stir well and test temperature by tasting before serving. • A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used with caution. • Do not operate any other heating or cooking appli- ance beneath this appliance. • Do not mount unit over or near any portion of a heating or cooking appliance. • Do not mount over a sink. • Do not store anything directly on top of the appli- ance when it is in operation. SAVETHESEINSTRUCTIONS MW7692W/MW7693G 1/17/00 6:13 AM Page 3 SAFETY 4 S AFETY Important Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Plug the three-prong power cord into a properly grounded outlet of standard 115-120 volt- age, 60 Hz. Your oven should be the only appliance on this circuit. WARNING Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or servicer if you do no…

Text truncated - open the document above for the full version.

9. Schematic Diagrams 9-1 Schematic Diagrams 9-1 VARISTOR L.V.TRANS LAMP MAIN RELAY POWER RELAY (SECONDARY INTERLOCK) PRIMARY S/W MGT CVT TCO FANMOTOR D/MOTOR MONITOR SWITCH H.V.DIODE H. V. TRANSFORMER H. V. CAPACITOR 120V 0V F FA MAGNETRON POWER CORD AC 120V/60Hz BLK BLK ORG ORGORG GRN BLU BLU BLK BLK GND FUSE WHT RED RED YEL YEL YEL COM NC 120V 125V 40W 21V 0V NO FM DM L ASSY PCB BOARD DOOR SENSING S/W CONDITION DOOR IS OPENED 120V15A PCB PATTERN WARNING NOTE: CIRCUIT SHOWN WITH DOOR IS OPENED POSITION. NOTE: FOR SERVICE REPLACEMENT USE 16 GA 105 ̊C THERMOPLASTIC COVERED WIRE EXCEPT FOR HIGH VOLTAGE LEADS OR AS NOTED ON SPECIAL LEADS. POWER MUST BE DISCONNECTED BEFORE SERVICING THIS APPLIANCE BLK BLU BLK R RED RED ORG RED BLK BLU RED ORG ORG BLU BLK MAGNETRON HIGH VOLTAGE DIODE TO CHASSIS FAF HIGH VOLTAGE TRANSFORMER POWER RELAY DOOR SENSING SWITCH BOTTOM MONITOR SWITCH CENTER BLK PRIMARY SWITCH TOP HIGH VOLTAGE CAPACITOR BLK RED ORG WHT SYMBOLCOLOR BLU BLK RED ORANGE WHITE BLUE BLACK Samsung Electronics

CAUTION THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL. CONSULT THE SERVICE MANUAL FOR PROPER SERVICE PROCEDURES TO ASSURE CONTINUED COMPLIANCE WITH THE FEDERAL PERFORMANCE STANDARD FOR MICROWAVE OVENS AND FOR PRECAUTIONS TO BE TAKEN TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY. WARNING * TO ENSURE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK HAZARD CONNECT TO PROPERLY GROUNDED OUTLETS ONLY. * DISCONNECT APPLIANCE BEFORE SERVICING REMOVAL OF OUTER CASE WITH PRODUCT ENERGIZED MAY EXPOSE SERVICEMAN TO HAZARDOUS HIGH VOLTAGE POTENTIALS. WARNING CERTAIN INTERNAL PARTS ARE INTENTIONALLY NOT GROUNDED AND MAY PRESENT A RISK OF ELECTRICAL SHOCK ONLY DURING SERVICING. SERVICE PERSONNEL- DO NOT CONTACT THE FOLLOWING PARTS WHILE THE APPLIANCE IS ENERGIZED : FAN MOTOR, LOW VOLTAGE TRANSFORMER (TOUCH CONTROL TYPE), TIMER & TIMER MOUNTING BRACKET (MECHANICAL TYPE). WARNING RISK OF ELECTRIC SHOCK. NON-REMOVABLE FASTENERS ARE PROVIDED BECAUSE OF INTERNAL HIGH VOLTAGES. DO NOT REMOVE FASTENERS. MODEL NO. MW7692W1.55 A3LMW7692 NOT FOR BUILT-IN INSTALLATION SERIAL NO.120Vac60Hz Kw MICROWAVE MANUFACTURED : MADE IN KOREA FCC ID : THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J. HOUSEHOLD MICROWAVE OVEN 416 MAETANDONG, SUWON, KOREA SEC LISTED 725F U L R

Microwave Oven Owner’s Manual 321 654 987 0 Auto Recalentado Auto Descongelado Inicio Pausa Cancelar Reloj Mas / Menos Nivel de Potencia Un Minuto + Cocinado Suave Papas Palomitas Comida dietetica Comida para bebe Vegetales frescos Desayuno congelado Cena congelada Receta personalizada 1.Plato de comida 2.Guisado 3.Sopa / salsa Sonido MW7692W / MW7693G IMPORTANT IN ORDER TO PREVENT BAD OPERATING AND AVOID DAMAGES TO THE PRODUCT, PLEASE READ THIS MANUAL CAREFULLY BEFORE CONNECTING AND TURNNING-ON THE APPARATUS. PLEASE ALSO KEEP THIS MANUAL FOR FUTURE REFERENCES. Code No.DE68-00801A MW7692W/MW7693G 1/17/00 6:13 AM Page 1 SAFETY 2 S AFETY PRECAUTIONS TO AVOIDPOSSIBLE EXPOSURE TO EXCESSIVE MICROWAVEENERGY: (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu- mulate on sealing surfaces. (c) Do not operate the oven if it is dam- aged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door seals and sealing surfaces. (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNING Always observe Safety Precautions when using your oven. Never try to repair the oven on your own – there is dangerous voltage inside. IMPORTANTSAFETY INSTRUCTIONS WARNING • Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. • Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or labo- ratory use. • As with any appliance, close supervision is nec- essary when used by children. To reduce risk of burns, electric shock, fire, personal injury or expo- sure to excessive microwave energy: • Read all safety instructions before using the appliance. • Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page. • This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4 of this manual. • Install or place this appliance only in accor- dance with the installation instructions provided. SAVETHESEINSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: MW7692W/MW7693G 1/17/00 6:13 AM Page 2 SAFETY 3 S AFETY Important Safety Instructions, continued • Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. • This appliance should be serviced only by quali- fied service personnel. Contact the nearest autho- rized service facility for examination, repair, or adjustment. • Do not cover or block any of the openings on this appliance. • Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. • Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficien- cy of the oven. • Do not immerse cord or plug in water. • Keep cord away from heated surfaces. • Do not let cord hang over edge of table or counter. • When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a. Do not overcook food. Watch appliance care fully if paper, plastic, or other combustible materials are inside. b. Remove wire twist-ties from plastic cooking bags before placing bags in oven. c. If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d. Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. • Do not try to preheat oven or operate while empty. • Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. • Do not defrost frozen beverages in narrow-necked bottles. The containers can break. • Dishes and containers can become hot. Handle with care. • Carefully remove container coverings, directing steam away from hands and face. • Remove lids from bay food before heating. After heating baby food, stir well and test temperature by tasting before serving. • A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used with caution. • Do not operate any other heating or cooking appli- ance beneath this appliance. • Do not mount unit over or near any portion of a heating or cooking appliance. • Do not mount over a sink. • Do not store anything directly on top of the appli- ance when it is in operation. SAVETHESEINSTRUCTIONS MW7692W/MW7693G 1/17/00 6:13 AM Page 3 SAFETY 4 S AFETY Important Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Plug the three-prong power cord into a properly grounded outlet of standard 115-120 volt- age, 60 Hz. Your oven should be the only appliance on this circuit. WARNING Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or servicer if you do no…
