Microwave oven User manual MC12J8035CT MC12J8035CT_AA_DE68-04367A-00_EN.indd 12015-06-11  12:16:14 2 English Contents Contents Important safety instructions 3 Installation 16 What’s included 16 Turntable 18 Maintenance 19 Cleaning 19 Replacement (repair) 20 Care during an extended period of disuse 20 Before you start 21 Clock 21 Sound On/Off 22 About microwave energy 23 Cookware for microwave mode 24 Operations 26 Control panel 26 Manual mode 29 Auto mode 37 Special functions 40 Cooking Smart 42 Auto cooking 42 Manual cooking 49 Quick & Easy 62 Troubleshooting 63 Checkpoints 63 Information codes 71 Technical specifications 72 Warranty 73 MC12J8035CT_AA_DE68-04367A-00_EN.indd 22015-06-11  12:16:14 English 3 Important safety instructions SAVE THESE INSTRUCTIONS Important safety instructions Congratulations on your new Samsung microwave oven. This manual contains important information on the installation, use and care of your appliance. Please take time to read this manual to take full advantage of your microwave oven’s many benefits and features. WHAT YOU NEED TO KNOW ABOUT SAFETY INSTRUCTIONS Warnings and Important Safety Instructions in this manual do not cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution, and care when installing, maintaining, and operating your microwave oven. PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY A. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. B. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on the sealing surface. C. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the: 1) Door (bent), 2) Hinges and latches, (broken or loosened), 3) Door seals and sealing surface. D. The oven should not be adjusted or repaired by anyone except properly qualified service personnel. MC12J8035CT_AA_DE68-04367A-00_EN.indd 32015-06-11  12:16:14 4 English Important safety instructions SAVE THESE INSTRUCTIONS Important safety instructions IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS What the icons and signs in this user manual mean: WARNING Hazards or unsafe practices that may result in severe personal injury or death. CAUTION Hazards or unsafe practices that may result in minor personal injury or property damage. CAUTION To reduce the risk of fire, explosion, electric shock, or personal injury when using your microwave oven, follow these basic safety precautions. Do NOT attempt. Unplug the power plug from the wall socket. Do NOT disassemble. Make sure the machine is grounded to prevent electric shock. Do NOT touch.Call the service center for help. Follow directions explicitly.Note These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference. MC12J8035CT_AA_DE68-04367A-00_EN.indd 42015-06-11  12:16:15 English 5 Important safety instructions SAVE THESE INSTRUCTIONS When using any electrical appliance, basic safety precautions should be followed, including the following: WARNING To reduce risk of burns, electric shock, fire, personal injury or exposure to excessive microwave energy: 1. Read all safety instruc tions before using the appliance. 2. Read and follow the specific “Precautions to avoid possible exposure to excessive microwave energy” on page 3. 3. This appliance must be grounded. Connec t only to properly grounded outlets. See Important “Grounding instructions” on page 7 of this manual. 4. Install or locate this appliance only in accordance with the provided installation instructions. 5. Some products such as whole eggs and sealed containers (for example, closed glass jars) can explode if heated rapidly. Never heat them in a microwave oven. 6. Use this appliance only for its intended use as de scribed in the manual. Do not put corrosive chemicals or vapors in or on this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or laboratory use. 7. As with any appliance, close supervision is necessary when it is used by children. Keep children away from the door when opening or closing it as they may bump themselves on the door or catch their fingers in the door. 8. Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged or dropped. 9. This appliance should be repaired or serviced only by qualified service personnel. Contact the nearest authorized service facility for examination, repair, or adjustment. 10. Do not cover or block any openings on the applianc e. 11. Do not tamper with or make any adjustment s or repairs to the door. 12. Do not store this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations. 13. Do not immerse the cord or plug in w ater. 14. Keep the cord away fr om heated surfaces. (including the back of the oven). 15. Do not let the cord hang o ver edge of table or counter. MC12J8035CT_AA_DE68-04367A-00_EN.indd 52015-06-11  12:16:15 6 English Important safety instructions SAVE THESE INSTRUCTIONS Important safety instructions 16. When cleaning surfaces of the door and oven that come together when the door closes, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth. Unplug the plug before cleaning. 17. To reduce the risk of fir e in the oven cavity: 18. Do not overcook food. Carefully attend appliance when paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking. 19. Remove wire twis t-ties from paper or plastic bags before placing the bags in the oven. 20. If materials i…

Text truncated - open the document above for the full version.

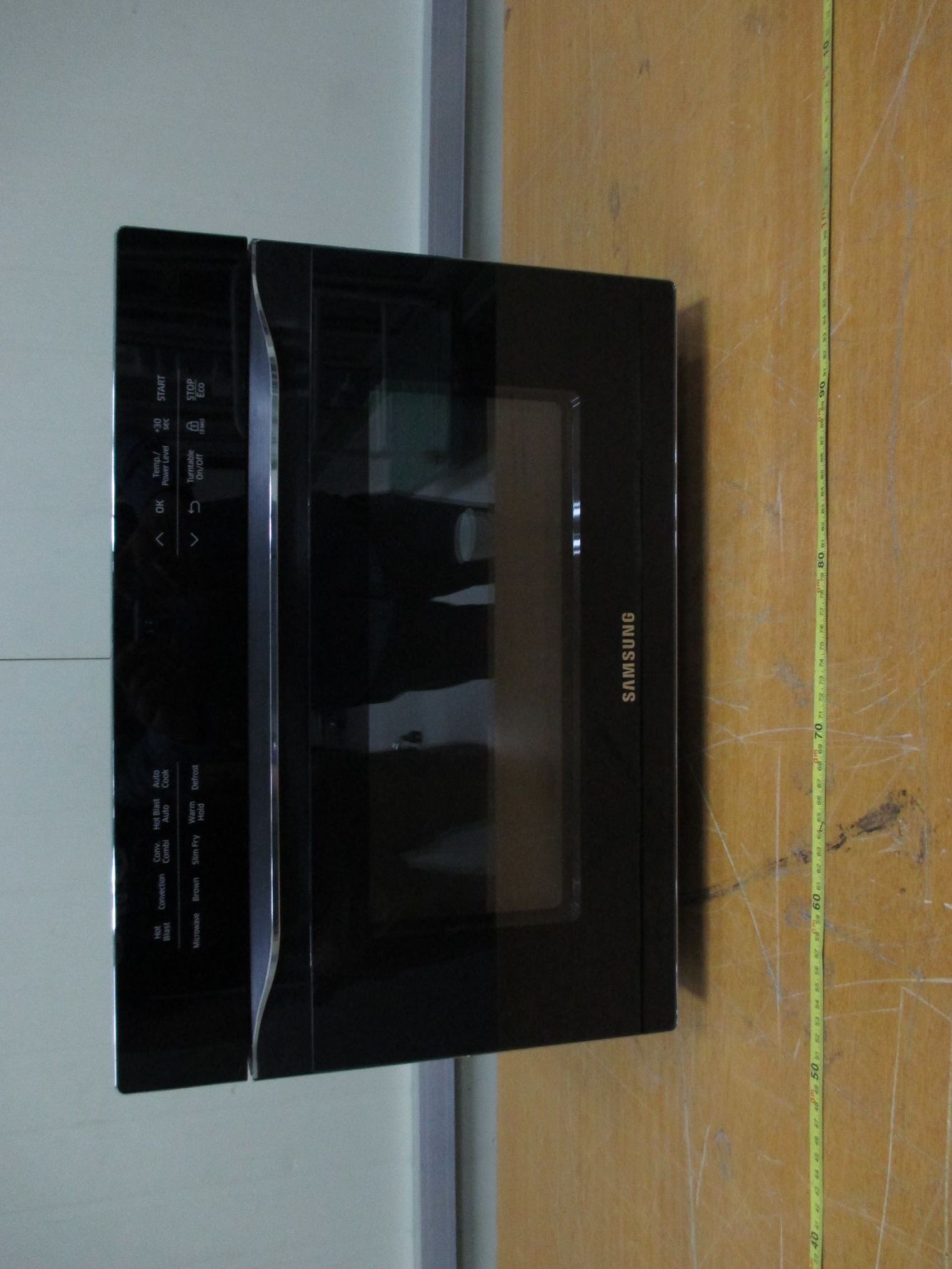

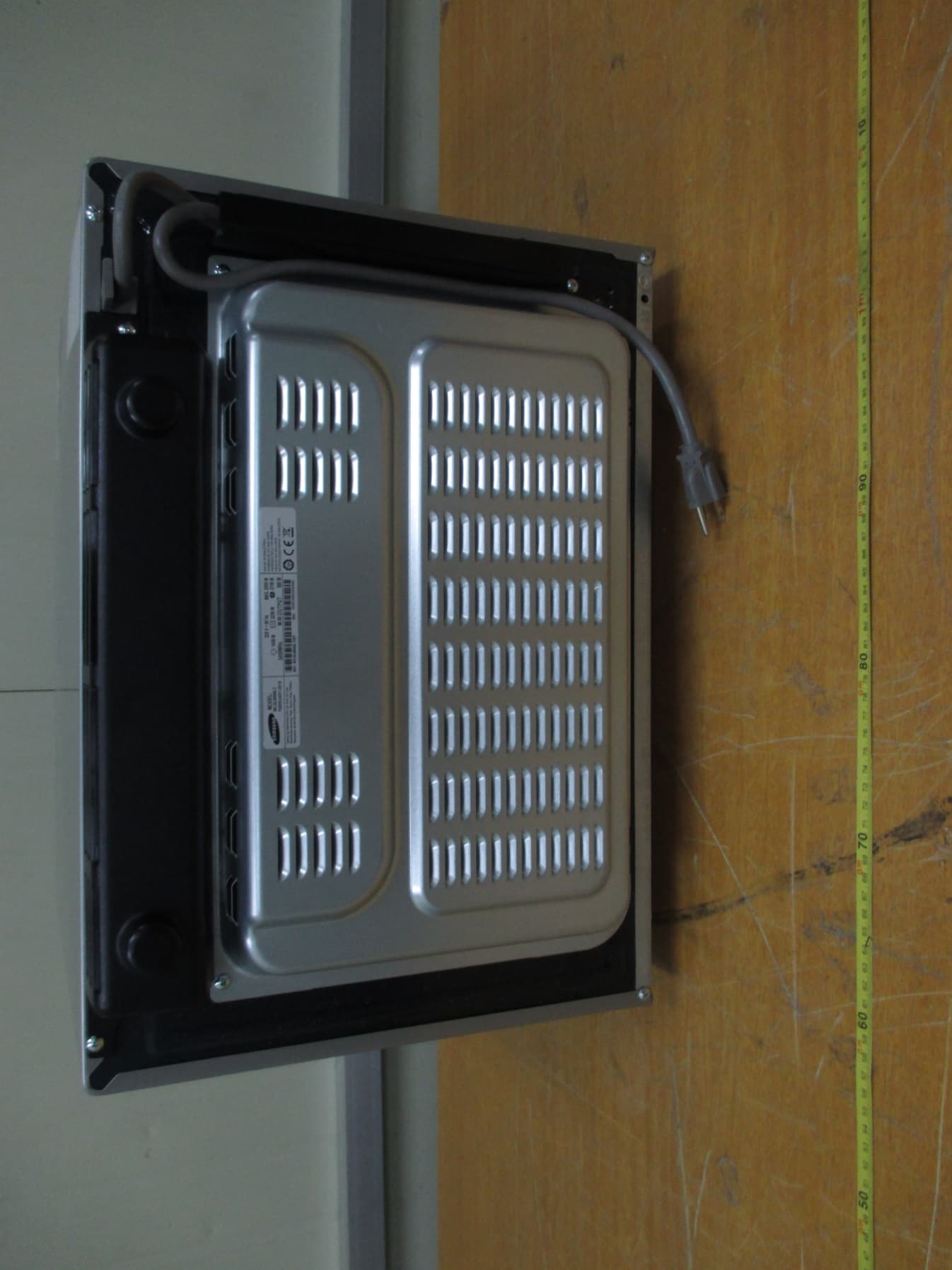

Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 52 of 68 APPENDIX C – EUT PHOTOGRAPHS  Front View of EUT Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 53 of 68  Rear View of EUT

Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 46 of 68 APPENDIX A – SAMPLE LABEL The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase.  FCC ID Location of EUT Labeling Requirements

Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 54 of 68  Door open View of EUT Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 55 of 68  Inside View of EUT Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 56 of 68  Front View of MAGNETRON Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 57 of 68  Rear View of MAGNETRON Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 58 of 68  Front View of H.V TRANS Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 59 of 68  Front View of H.V CAPACITOR Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 60 of 68  Rear View of H.V CAPACITOR Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 61 of 68  Front View of FAN MOTOR Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 62 of 68  Rear View of FAN MOTOR Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 63 of 68  Front View of INTERLOCK SWITCH Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 64 of 68  Front View of PCB Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 65 of 68  Rear View of PCB

OPERATION DESCRIPTION Model : MC12J8035CT (FCC ID : A3LMW8000J) After turning on microwave oven and pressing starting button, micom gives signal to main relay and power relay to supply 120 V power for high voltage circuit. This high voltage circuit consisted of HVT, HVC, HVD generates 4 ㎸ output and supplys to a magnetron. As a result, a magnetron generates 2450㎒ microwave and wave guide makes microwave go into cavity.

COMPONENT LIST Model : MC12J8035CT (FCC ID : A3LMW8000J) Parts Spec. Manufacturer 1 MAGNETRON OM75P Samsung 2 H.V TRANS SHV-UT1136B Samsung 3 H.V CAPACITOR CH85 21091 Bicai 4 FAN MOTOR SMB-U365A Oh Sung 5 INTERLOCK SWITCH 16A, 125/250V Several 6 PCB MW8000J_MAIN Samsung COMPONENT LIST Model : MG11H2020CT (FCC ID : A3LMG11H2020) Parts Spec. Manufacturer 1 MAGNETRON OM75P Samsung 2 H.V TRANS SHV-UT1136B Samsung 3 H.V CAPACITOR CH85-21091 Bicai 4 FAN MOTOR SMF-U1136A Oh Sung 5 INTERLOCK SWITCH 16A, 125/250V Several 6 PCB SMS3L Samsung COMPONENT LIST Model : MG14H3020CM (FCC ID : A3LMG14H3020) Parts Spec. Manufacturer 1 MAGNETRON OM75P Samsung 2 H.V TRANS SHV-UT1136B Samsung 3 H.V CAPACITOR CH85-21091 Bicai 4 FAN MOTOR SMF-U1136A Oh Sung 5 INTERLOCK SWITCH 16A, 125/250V Several 6 PCB SMS3L Samsung

Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 2 of 68 TABLE OF CONTENTS SCOPE INTRODUCTION (Site Description) EUT INFORMATION DESCRIPTION OF TESTS (Radiation Hazard) DESCRIPTION OF TESTS (Input Power Measurement) DESCRIPTION OF TESTS (RF Output Power Measurement) DESCRIPTION OF TESTS (Operating Frequency Measurements) DESCRIPTION OF TESTS (Conducted Emissions) DESCRIPTION OF TESTS (Radiated Emissions) TEST DATA (Radiation Hazard) TEST DATA (Input Power Measurement) TEST DATA (RF Output Power Measurement) TEST DATA (Operating Frequency Measurements) TEST DATA (Conducted Emissions) TEST DATA (Radiated Emissions) PLOT OF EMISSIONS (Operating Frequency Measurements) ACCURACY OF MEASUREMENT LIST OF TEST EQUIPMENT APPENDIX A - SAMPLE LABEL APPENDIX B - PHOTOGRAPHS OF TEST SET-UP APPENDIX C - EUT PHOTOGRAPHS APPENDIX D - SCHEMATIC DIAGRAM APPENDIX E - USER’S MANUAL APPENDIX F - BLOCK DIAGRAM 3 4 5 6 6 6 6 7 8 9 9 9 11 13 16 22 42 45 46 47 52 66 67 68 Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 3 of 68 SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 18. Responsible Party : Contact Person : Manufacturer : Samsung Electronics Co., Ltd. Mr. Gilryeong Koh Tel No.: + 82-31-200-6766 Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Korea, Republic of  FCC ID: A3LMW8000J  Model: MC12J8035CT  Trade Mark: SAMSUNG  EUT Type: Microwave ovens  Applied Standard:  Test Procedure(s):  Dates of Test:  Place of Tests:  Test Report No.: FCC Part 18 & Part 2 MP-5:1986 April 27, 2015 to May 19, 2015 Nemko Korea Co., Ltd. EMC Site NK-15-E-0235 Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 4 of 68 INTRODUCTION The measurement procedure described in MP5:1986 for Methods of Measurement of radiated, powerline conducted radio noise, frequency and power output was used in determining emissions emanating from Samsung Electronics Co., Ltd. FCC ID : A3LMW8000J, Microwave ovens. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory. The site address is 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilometers (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18 miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to FCC Part 2. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab and Incheon Airport. ☜ Nemko Korea Co., Ltd. 155 & 159, Osan-Ro, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-852 KOREA, REPUBLIC OF Tel) + 82 31 330 1700 Fax) + 82 31 322 2332 Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 5 of 68 EUT INFORMATION EUT Information Used Magnetron OM-75P by Samsung Installation Type CMO, BUILT IN Power Supply 120 V ac, 60 ㎐ Operating Frequency 2450 +/- 50 ㎒ Power Input 1 580 W RF Power Output 1 000 W (by IEC 705 method) Clock Frequency 10 ㎒ Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 6 of 68 DESCRIPTION OF TESTS Radiation Hazard A 700 ㎖ water load was placed in the center of the oven. The power setting was set to maximum power. While the oven was operating, the Microwave Survey Meter probe was moved slowly around the door seams to check for leakage. Input Power Measurement A 700㎖ water load was placed in the center of the oven and the oven set to maximum power. A 700 ㎖ water load was chosen for its compatibility. Input power and current were measured using a Power Analyzer. Manufacturers to determine their input ratings commonly use this procedure. Output Power Measurement The Caloric Method was used to determine maximum output power. The initial temperature of a 1000 ㎖ water load was measured. The water load was placed in the center of the oven. The oven was operated at maximum output power for 47 seconds. Then the temperature of the water re-measured. Frequency Measurements Following the above test, after operating the oven long enough to assure that stable operating temperature were obtained, the operating frequency was monitored as the input voltage was varied between 80 percent to 125 percent of the nominal rating. And the load quantity was reduced by evaporation to approximately 20 % of the original quantity with nominal rating. Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 7 of 68 DESCRIPTION OF TESTS Conducted Emissions The Line conducted emission test facility is located inside a 4 x 7 x 2.5 m shielded enclosure. It is manufactured by EM engineering. The shielding effectiveness of the shielded room is in accordance with MIL-STD-285 or NSA 65-6. A 1 m x 1.5 m wooden table 0.8 m height is placed 0.4 m away from the vertical wall and 0.5 m away from the side of wall of the shielded room Rohde & Schwarz (ESH2-Z5) of the 50 ohm / 50 uH Line Impedance Stabilization Network(LISN) is bonded to the shielded room. The EUT is powered from the Rohde & Schwarz (ESH2-Z5) LISN. Power to the LISN s are filtered by high-current high insertion loss power line filters. The purpose of filter is to atten…

Text truncated - open the document above for the full version.

Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 47 of 68 APPENDIX B – PHOTOGRAPHS OF TEST SET-UP The Conducted Test Picture and Radiated Test Picture and show the worst-case configuration and cable placement. ● Radiation hazard Test Picture  Operating Frequency Test Picture Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 48 of 68  Conducted Test Picture (Front)  Conducted Test Picture (Side) Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 49 of 68  Radiated Test Picture : 0.15 ㎒ ~ 30 ㎒ (Front)  Radiated Test Picture : 0.15 ㎒ ~ 30 ㎒ (Rear) Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 50 of 68  Radiated Test Picture : 30 ㎒ ~ 1 ㎓ (Front)  Radiated Test Picture : 30 ㎒ ~ 1 ㎓ (Rear) Test Report No.: NK-15-E-0235 FCC Certification Samsung Electronics Co., Ltd. FCC ID: A3LMW8000J Page 51 of 68  Radiated Test Picture : 1 ㎓ ~ 18 ㎓ (Front)  Radiated Test Picture : 1 ㎓ ~ 18 ㎓ (Rear)
