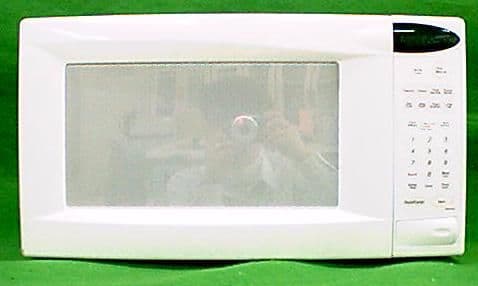

A3LMW949Microwave Oven

Microwave Oven O w n e r’s Manual MW9496W CODE NO. : DE68-00000A MW9596W/G(mini) 12/4/98 5:32 AM Page 1 SAFETY 2SAFETY PRECAUTIONSTO AVOIDPOSSIBLE EXPOSURETO EXCESSIVE MICROWAVEENERGY: (a) Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. (b) Do not place any object between the front face of the oven and the door or allow soil or cleaner residue to accu mulate on sealing surfaces. (c) Do not operate the oven if it is dam aged. It is particularly important that the oven door close properly and that there is no damage to the 1) Door (bent or dented), 2) Hinges and latches (broken or loosened), 3) Door (seals and sealing surfaces). (d) The oven should not be adjusted or repaired by anyone except properly qualified service personnel. WARNING Always observe Safety Precautions when using your oven. Never try to repair the oven on your own – there is dangerous voltage inside. If the oven needs to be repaired, call 1-800-SAM- SUNG for the name of an authorized service center near you. IMPORTANTSAFETY INSTRUCTIONS WARNING •Some items, like whole eggs and food in sealed containers, may explode if heated in this oven. •Use this appliance only for its intended use as described in the manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook, or dry food. It is not designed for industrial or labo- ratory use. •As with any appliance, close supervision is nec- essary when used by children. To reduce risk of burns, electric shock, fire, personal injury or expo- sure to excessive microwave energy: • Read all safety instructions before using the appliance. • Read and follow the specific “Precautions to Avoid Exposure to Excessive Microwave Energy” on this page. •This appliance must be grounded. Connect only to properly grounded outlets. See “Important Grounding Instructions” on page 4 of this manual. •Install or place this appliance only in accor dance with the installation instructions provided. SA V ETH E S EIN S T R U C T I O N S MW9596W/G(mini) 12/4/98 5:32 AM Page 2 SAFETY 3SAFETY Safety Instructions, continued •Do not operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been damaged. •This appliance should be serviced only by quali- fied service personnel. Contact the nearest autho- rized service facility for examination, repair, or adjustment. •Do not cover or block any of the openings on this appliance. •Do not store this appliance outdoors. Do not use near water – for example, near a kitchen sink, in a wet basement, or near a swimming pool, etc. •Keep the inside of the oven clean. Food particles or spattered oils stuck to the oven walls or floor can cause paint damage and reduce the efficien- cy of the oven. •Do not immerse cord or plug in water. •Keep cord away from heated surfaces. •Do not let cord hang over edge of table or counter. •When cleaning door and oven surfaces, use only mild, nonabrasive soaps or detergents applied with a sponge or soft cloth. • To reduce the risk of fire in the oven: a.Do not over cook food. Watch appliance care fully if paper, plastic, or other combustible materials are inside. b .Remove wire twist-ties from plastic cooking bags b e f o re placing bags in oven. c.If materials inside the oven ignite, keep the oven door closed, turn the oven off, disconnect the power cord, or shut off the power at the fuse or circuit breaker panel. d.Do not use the oven compartment for storage purposes. Do not leave paper products, cooking utensils, or food in the oven when not in use. •Do not try to preheat oven or operate while empty. •Do not cook without the glass tray in place on the oven floor. Food will not cook properly without the tray. •Do not defrost frozen beverages in narrow-necked bottles. The containers can break. •Dishes and containers can become hot. Handle with care. •Carefully remove container coverings, directing steam away from hands and face. •Remove lids from bay food before heating. After heating baby food, stir well and test temperature by tasting before serving. •A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used with caution. •Do not operate any other heating or cooking appli- ance beneath this appliance. •Do not mount unit over or near any portion of a heating or cooking appliance. •Do not mount over a sink. •Do not store anything directly on top of the appli- ance when it is in operation. SA V ETH E S EIN S T R U C T I O N S MW9596W/G(mini) 12/4/98 5:32 AM Page 3 SAFETY 4SAFETY Important Grounding Instructions This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electrical current. This appliance is equipped with a cord that includes a grounding wire and a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. Plug the three-prong power cord into a properly grounded outlet of standard 115-120 volt- age, 60 Hz. Your oven should be the only appliance on this circuit. WARNING Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or servicer if you do not understand the grounding instructions or if you are not sure if the appliance is properly grounded. Use of Extension Cords A short power-supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and may be used if care is exercised in their use. If a long cord or extension cord is used: 1. The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance. 2. The extens…

Text truncated - open the document above for the full version.

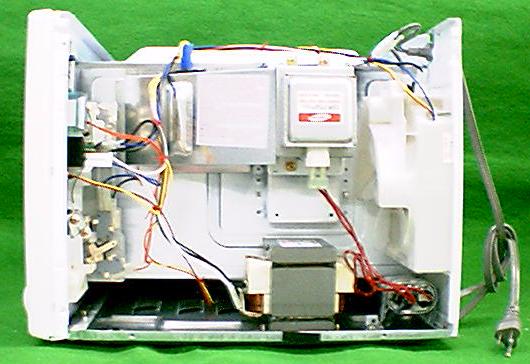

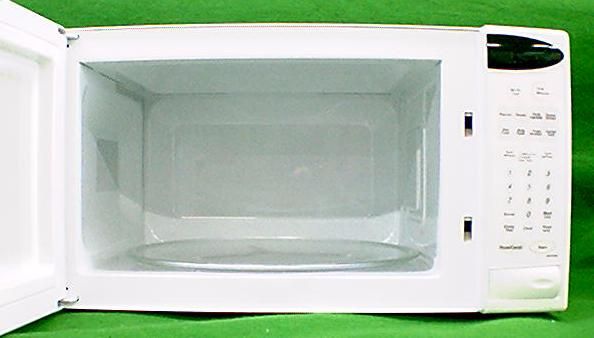

Jan 17, 1999 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Microwave Oven (FCC P.18) Model: MW9496W FCC ID No: A3LMW949 FCC Confirmation Number: Gentleman: The above application has been submitted to FCC OET web site on Jan 18. 1999. A check, $940.00 will be directly mailed to Mellon Bank to pay this application. The above Microwave Oven includes 1 Emission source, Magnetron model, OM-75P made by Samsung Electronics. The frequency range of this equipment is 2400MHz to 2500MHz. The attached files are, for your reference, as follows: 1. FCC ID Label and location 2. Block Diagram 3. Test report 4. External photo’s 5. Internal photo’s 6. User Manual If you have any question on this application, please let me know at [email protected] or Phone) 408-544-5124. Sincerely Yours, Ben Kim Engineering Manager Samsung Electronics America

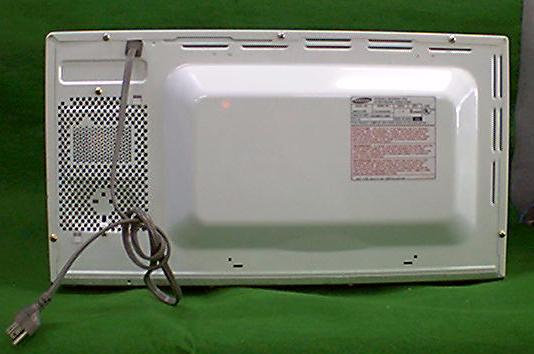

MODEL NO. MW9496W SERIAL NO. 75DJ105538 120Vac 60Hz 1 . 45 Kw MANUFACTURED : J ANUARY-1999 MADE IN KOREA FCC ID : A3LMW949 THIS PRODUCT COMPLIES WITH DHHS RULES 21 CFR SUBCHAPTER J. CAUTION THIS DEVICE IS TO BE SERVICED ONLY BY PROPERLY QUALIFIED SERVICE PERSONNEL. CONSULT THE SERVICE MANUAL FOR PROPER SERVICE PROCEDURES TO ASSURE CONTINUED COMPLIANCE WITH THE FEDERAL PERFORMANCE STANDARD FOR MICROWAVE OVENS AND FOR PRECAUTIONS TO BE TAKEN TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY. WARNING * TO ENSURE CONTINUED PROTECTION AGAINST ELECTRIC SHOCK HAZARD CONNECT TO PROPERLY GROUNDED OUTLETS ONLY. * DISCONNECT APPLIANCE BEFORE SERVICING REMOVAL OF OUTER CASE WITH PORDUCT ENERGIZED MAY EXPOSE SERVICEMAN TO HAZARDOUS HIGH VOLT AGE POTENTIALS. WARNING CERTAIN INTERNAL PARTS ARE INTENTIONALLY NOT GROUNDED AND MAY PRESENT A RISK OF ELECTRICAL SHOCK ONLY DURING SERVICING. SERVICE PERSONNEL- DO NOT CONTACT THE FOLLOWING PARTS WHILE THE APPLIANCE IS ENERGIZED : FAN MOTOR, LOW VOLT AGE TRANSFORMER (TOUCH CONTROL TYPE), TIMER & TIMER MOUNTING BRACKET (MECHANICAL TYPE). LISTED 725F HOUSEHOLD MICROWAVE OVEN 416 MAETANDONG, SUWON, KOREA SEC

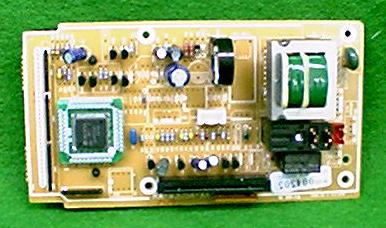

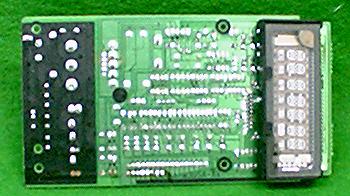

VARISTOR L.V.TRANS LAMP MAIN RELAY POWER RELAY (SECONDARY INTERLOCK) PRIMARY S/W MGT CVT TCO FANMOTOR D/MOTOR MONITOR SWITCH H.V.DIODE H. V. TRANSFORMER H. V. CAPACITOR 120V 0V F FA MAGNETRON POWER CORD AC 120V/60Hz BLK BLK ORG ORG ORG GRN BLU BLU BLK BLK GND FUSE WHT RED RED YEL YEL YEL COM NC 120V 125V 40W 21V 0V NO FM DM L ASSY PCB BOARD DOOR SENSING S/W CONDITION DOOR IS OPENED 120V20A PCB PATTERN Schematic Diagram Model : MW9596W/MW9496W PCB Diagram MW9596W / MW9496W
