Using Your Documentation 1 Using Your Documentation Congratulations on your purchase of a notebook computer with the Windows® XP operating system. Whether you are new to using a portable computer or are an experienced user, this user’s manual can help you get the most from your computer. Manual Documentation Conventions Information Icons Three icons and their associated messages appear in this manual. The information icons are placed before the step/information they apply to: Warning: Indicates the possibility of personal injury. Caution: Warns you of possible damage to equipment or data. Note: Informs you of special circumstances. Technical Information: Informs you of special requirements or limitations for use of item(s). Keyboard Conventions Keys that you need to press to perform certain functions are displayed in the manual in brackets. For example: <Ctrl> indicates the control key (Ctrl on the keyboard). If you need to press two keys at the same time, the key names are shown joined by a plus sign. For example: <Fn+F8>means that you should press the Fn key and hold it and then press the F8 key. 2 Users Manual CD-ROM Device Naming Convention In many installation programs you will have to get a program from the CD-ROM device. The program installation sequence assumes that the CD is drive d:\, however this is not always the case. The name of the CD-ROM drive is the letter following the letter assigned to your last HDD. For instance, if you have one HDD with two partitions, the HDD is drives C: and D: and the CD-ROM drive is then drive E. Touchpad Conventions You may be asked to click or double-click on items on the display screen. As a general note the touchpad actions act much in the same way as a wheel mouse, any differences are explained fully. The object that needs to be clicked upon will be displayed in Bold text or shown in a small figure such as the “Start Button” shown on the right =>. Table 1. Touchpad Click Conventions Windows Conventions: Almost all “Windows” programs will display the name/function of a button or icon if you place the touchpad pointer on the item you want information about. Software User Documentation Your computer is shipped from the factory with several software programs installed. The software may include its own online or printed documentation. Refer to the documentation or the Help options in the software for more information. The figures and illustrations in this manual may not be identical to those on your system. General Icon Note: Some of the Icons used in Windows XP may be placed on the taskbar by selecting (ex: Place the volume icon in the taskbar) in the properties dialog box. ActionProcess ClickDepress the touchpad left button and release Double-clickQuickly click the left touchpad button two times Getting Started 3 Getting Started Introducing Your Computer Front View Fingerprint sensor is optional. For more information on using the fingerprint sensor, refer to the manual supplied with the device. Touchpad Button Keyboard (p8) LCD Panel Touchpad (p11) Power Button Hot Keys (p14) Fingerprint Sensor(Optional) Status Indicators (p16) Status Indicators (p16) Microphone LCD Button 4 Users Manual Right View You can install various other multi-bay devices in the multi-bay of the system. Refer to (p 27). Left View USB Port (2.0) Headphone Jack Microphone Jack Multi-Bay PCMCIA Card Slot (p31) Modem Port (p40) LAN Port (p41) Memory Card Slot (p28) Fan Vent Infrared Port Security Lock Port USB Port (2.0) Getting Started 5 Back View Bottom View Removing or disassembling the hard disk drive will void your warranty. To replace the hard disk drive, please contact your nearest Samsung Service Centre. USB Port (2.0) 1394 Port (6 pin) TV-Out Port (S-Video) DC-In Port Monitor Port Parallel Port Serial Port Memory Compartment(p92) HDD Compartment SpeakerSpeaker Battery (p87) Battery Latch Multi-Bay Latch Port Replicator Connector(Optional) 6 Users Manual Turning the Computer On and Off To turn on the computer 1.Insert the battery and connect the AC adapter according to the Installation Guide. 2.Slide the LCD latch to the right and open the LCD panel. 3.Press the power button. To turn off the computer 1.Click the start button () on the taskbar. 2.Click Turn Off Computer. 3.Click Turn Off. Getting Started 7 If the computer is not turned off properly due to a system error, press <Ctrl>+<Alt>+<Delete>. When [Windows Task Manager] dialog box appears, click Shut Down > Turn Off to turn off the computer. Your unsaved work may be lost/damaged. If <Ctrl>+<Alt>+<Delete> keys do not operate either, press the power button for more than 4 seconds to turn off the computer. Your unsaved work may be lost/damaged. When you turn on the computer next time, it will perform a disk checking process. 8 Users Manual Using the Keyboard Your computer has an 89-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard. Although the layout of the keys on your computer’s keyboard is different from that on a desktop computer’s keyboard, the keyboard feels like a full-sized keyboard when you use it. You can use a symbol of , if press Fn and F3 simultaneously depending on a kind of keyboard. Embedded Numeric Keypad Windows Key Function Key Function & Special Purpose Keys Screen Brightness and Volume Adjustment / Direction Keys Getting Started 9 The keys on the keyboard can be grouped into the following categories: xFull-sized Alphanumeric typewriter keys are arranged like a standard typewriter keyboard and are used for text entry. The Windows keys on either side of the spacebar open Windows menus and perform other special functions. xFunction keys, when pressed together with the <Fn> key, enable special functions. xCursor and Screen control keys move the cursor. They may perform other functions, depending on your software. To clean the computer keyboard, use slightly damp cotton swabs. Scrub the keys and the surface around the keys…

Text truncated - open the document above for the full version.

Connecting to the Internet 61 Using Network Services While the computer is connected to the network, you can use network services to share files, folders, and printers. Network services are provided for the computers that are connected to the network through wired or wireless network connections. For details, see “Connecting Through a Wired LAN” on page 41 and see “Connecting Through a Wireless LAN (Option)” on page 48. Sharing files or folders This section describes how to share files and folders between computers connected to the network. To share files, complete the following procedures: xStep 1. Configuring the sharing of files and folders on a computer. xStep 2. Accessing shared files and folders from another computer. When a file or folder is shared, anyone connected to the network can open and delete the shared file or folder. Configure a file sharing network only when the network is secure, and do not share important data. 62 Users Manual Step 1. Configuring Sharing 1.Right-click the target file or folder to share in My Computer, and select Sharing and Security. 2.Click 'IF you understand the security risks but want to share files without running the wizard, click here'. It has the same security effect as that of the 'Network Setup Wizard'. This screen does not appear if Internet Sharing Network Wizard has been installed in the computer-to-computer wireless network environment. 3.Select 'Just enable file sharing', and click OK. 4.In the 'Network sharing and security' field, select 'Share this folder on the network', enter the share name, and click OK. Be cautious when selecting 'Allow network users to change my files' since other network users can change the files in the shared folder. The file and folder sharing configuration has been completed. Connecting to the Internet 63 Step 2. Using Shared Files or Folders This section describes how to access shared files or folders if your computer is a member of the same workgroup. 1.Double-Click My Network Places of desktop under Other Places. 2.Click 'View workgroup computers', and click the desired computer to access the shared file. If your computer is a member of another workgroup: 1. Click Other Places > Microsoft Windows Network. 2. Click the desired workgroup. 3. Click the desired computer to display the shared files or folders. Sharing Printers This section describes how to share a printer between computers connected to a network. To share a printer, complete the following procedures: xStep 1. Configure printer sharing in the computer connected to the printer. xStep 2. Add and use the shared printer in other computers on the network. 64 Users Manual Step 1. Configuring Printer Sharing 1.From the computer connected to the printer, click Start > Printers and Faxes. 2.Right-click the printer you want to share, and click Sharing. 3.Select 'Share this printer', enter a share name for the shared printer, and click OK. 4.In the Printers and Faxes window, you will find the printer icon has been changed to another icon on a hand. Step 2. Adding and Using a Shared Printer. 1.From a different computer that wants to use the shared printer, click Start > Printers and Faxes. 2.Click Add a printer. 3.In the Add Printer Wizard, click Next. 4.Select 'A network printer, or a printer attached to another computer', and click Next. Connecting to the Internet 65 5.Select 'Browse for a printer', and click Next. 6.Select the workgroup or computer, select the desired printer, and click Next. If you cannot find the desired printer, try again after a while. 7.Read the warning about a shared printer, and click Yes to install the shared printer. 8.SelectYes for 'Do you want to use this printer as a default printer?', and click Next. 9.Click Finish. 10.When the printer sharing configuration has been completed, the shared printer appears in the Printers and Faxes window. Now you can print using the shared printer even if your computer is not directly connected to a printer. 66 Users Manual Using Bluetooth Devices (Optional) You can transfer files between Bluetooth devices, use the Internet, and construct a Personal Area Network. In addition, you can use a wireless keyboard, wireless mouse, and a wireless printer that have the Bluetooth function. You can only use the Bluetooth communication function between devices (computers, mobile phones, PDAs, printers, etc.) which support Bluetooth. The Bluetooth function is provided through the Bluetooth software included in Microsoft Windows XP SP2. Bluetooth Device Help For more detailed procedures on using the Bluetooth function, click Start > Help and Support > Network and the Web > Networking > Wireless networking > Bluetooth devices, and view the descriptions. The following functions are provided by the Bluetooth software. xTransferring files You can transfer files between Bluetooth devices such as computers, mobile phones, PDAs (Personal Digital Assistant), etc. For more detailed procedures on transferring files, refer to “Send and Receive files to/from a Bluetooth device” of the Bluetooth On-line help. xUsing the Internet via a mobile phone You can connect to the Internet through your mobile phone after connecting it to a computer which is connected to the Internet. For more detailed procedures on using the Internet, refer to “Install a Bluetooth mobile phone” and “Create a Bluetooth connection to the Internet using a Bluetooth mobile phone” of the Bluetooth On-line help. xUsing a wireless keyboard and mouse You can use a wireless keyboard and mouse which have the Bluetooth function. For more detailed procedures on using a wireless keyboard and mouse, refer to “Install a Bluetooth keyboard” and “Install a Bluetooth mouse” of the Bluetooth On-line help. Connecting to the Internet 67 xUsing a wireless printer You can use a wireless printer if the printer supports Bluetooth HCRP (Hardcopy Cable Replacement Profile). For more detailed procedures on using a wireless printer, refer to “Install a Bluetooth printer” of t…

Text truncated - open the document above for the full version.

AA BB CC DD EE 1 1 2 2 3 3 4 4 5 5 4,5 HOST BUS RESET 593 uFCBGAAGTL 1.468V, 400 /533 MHZ CLOCK GEN.ICS954201 DDR II 533 MHz PLATY: DOTHAN/ALVISO/ATI-M22(M24) BLOCK DIAGRAM DothanAlvisoGM/PM SW BOARD FUN.KEY PWRBUT. DCIN_JackTPMFAN CONNBLUETOOTH 478 uFCPGA 4143 0.9VS &1.05VS &1.5VSUS LOAD Switch BATLOW#/SD# 384042 CHARGEVCORESYSTEMBAT CONNPIC16C54PWOK 37 CRT DDR II 533MHz SODIMMX2+1.8V+0.9VS .... DDR IICAP/RES CPU CAP/RES, THERMALSENSOR 6 .... BATTERY4 X 2 ATI M22/M24 PCIE X16 TVOUT DMI 2 GB/s CARDBUS BroadcomBCM5788M(BCM4401) ICH6-M LAN IO VCCA, VCCBVPPA, VPPB CRT USB2.0 HDD_CN KEYBOARDCONTROLLERM3885XHP FWH SWAP BAY MINI PCITYPEII PCI_BUS PC87393 LPC, 33MHz LPT CDROM 2'ndHDD LPT COM TVOUT 3.3V, 33MHz SUPER I/O CARDBUS1 SLOT 3 IN 1CARDREADER 1394SLOT INTERNALKEYBOARD FIR USB X3 609 BGA RICOHR5C841 COM IDE_BUS LAN USB X2 DCJACK LINEIN LINEOUT RJ 45 PORT REPLICATER TP FP BOARD FINGERPRINT 1394SLOT AC97STAC9750 AUDIO BOARD MDC LVDS &INV. 32 35 12 161717 22 18,19,20 21 21 27 25,26,27 27 23 28 24 25 14,15 1334 33 22 29 3131 30 30 30 39 TrustedPlatformModule AC97 AT97SC3201 33 1.8V & 1.5V& 2.5V &1.05V 44 LVDS &INV. Daugther Board 16 Daugther Board Daugther Board Daugther Board Daugther Board 7,8,9,10,11 Daugther Board TP BOARD 35 35 47, 48, 49, 50, 51 35 47, 48, 49, 50 ,51 USB X1 BLOCK DIAGRAM 0.31 Platy 1 51 Tuesday, November 30, 2004 David Lee PROJECT: SHEET OF DATE: REVISION DESCRIPTION: DESIGN ENGINEER : SCHEMATIC FILE NAME :RELEASE DATE :

20 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 7 Label Pic. 8 Label Location

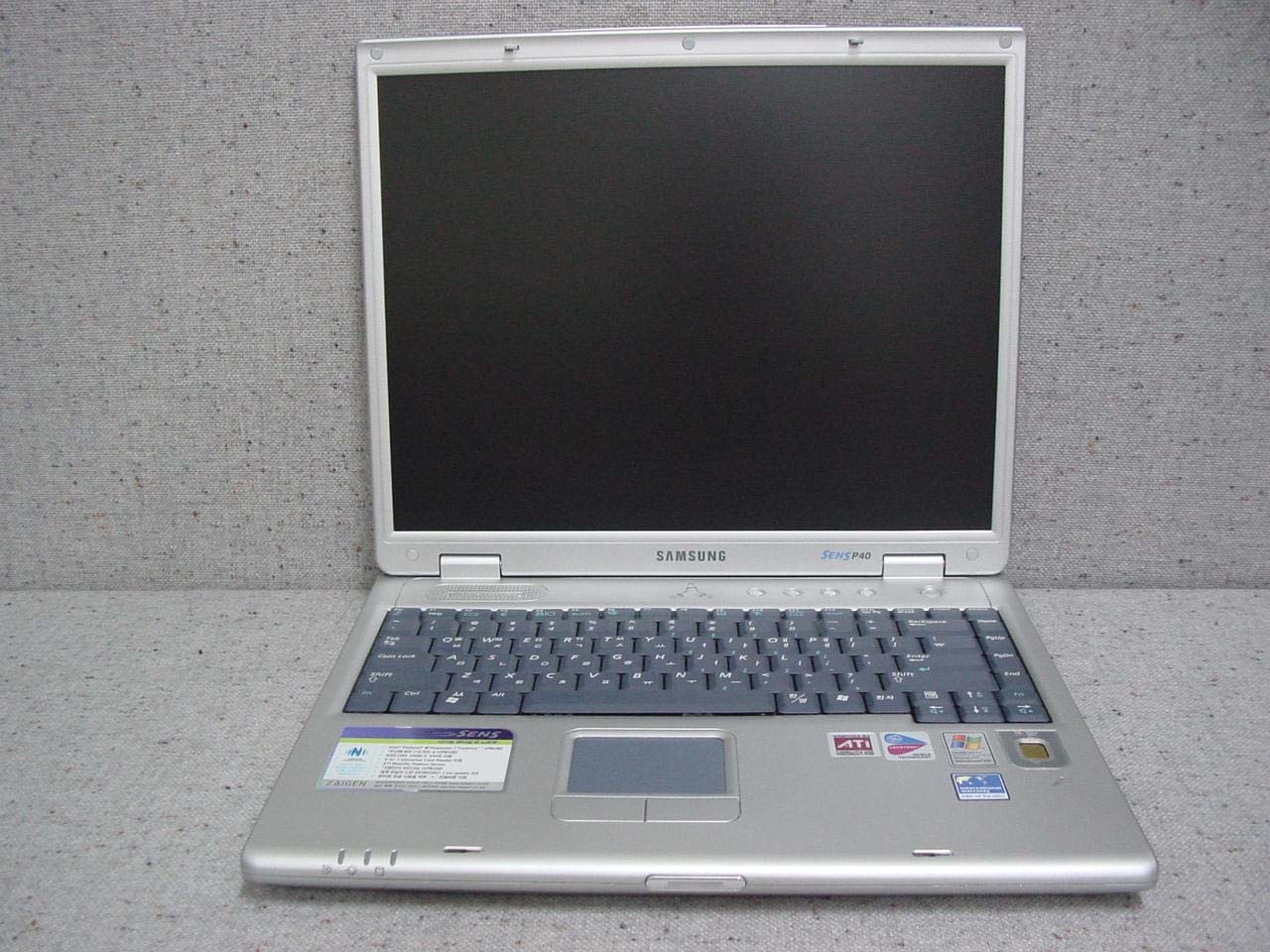

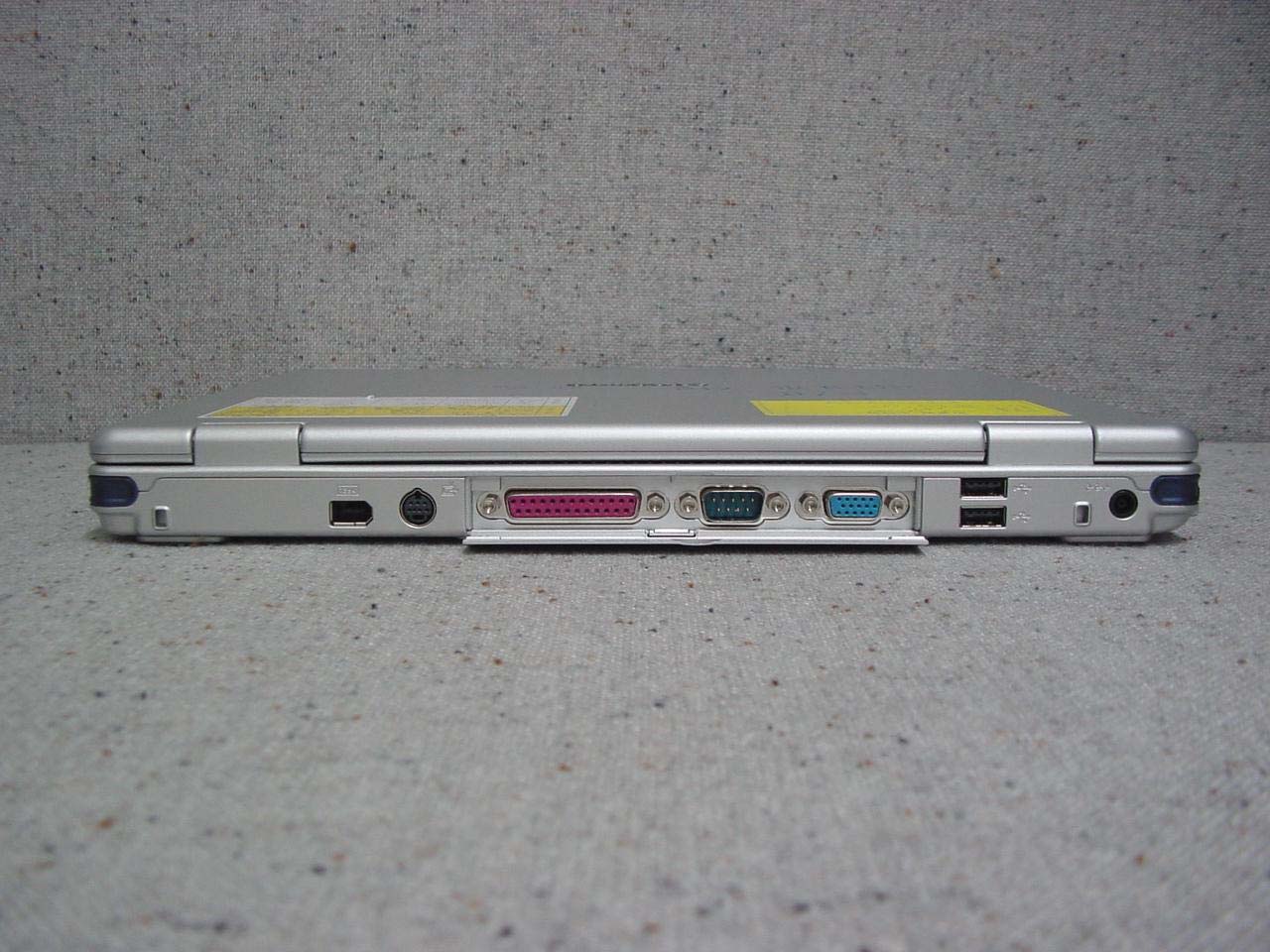

1 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMI Test Report According to FCC Part 15 Subpart B Project No. LBE042267 Equipment under Test Applicant Samsung Electronics Co. Ltd 416 Maetan-3 Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 FCC ID A3LNP-P40 Product Name Notebook PC Model Name NP-P40, T2300 Manufacturer ASUS Date of Test December 01, 2004 Issued Date December 13, 2004 Name/Position Signature Tested by Min Gon, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 2 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd Model name NP-P40 Applicant Address 416 Maetan3- Dong, Yeoung tong-Ku, Suwon City, Gyeonggi-Do, Korea, 443-742 Contact Person Min Gon, Kim Kind of product Notebook PC Variant list NP-P40 E, T2300 Manufacturer ASUS New / Alternative / Permissive change Information New (Platy platform) 1.2 Detail Information related Product Specification Item Specification Remark CPU Intel Pentium-M DOTHAN 2.13GHz Cache 2MB, FSB 533MHz - Chipset Intel Alviso 915PM, 400MHz/533MHz FSB - Main Memory Infineon, PC4200, HYS64T128021HDL, 1Gbyte X2 (2Gbyte) - Graphic controller ATI Mobility Radeon X600, 216XDDAGA23FH, 128 on die memory - LCD DISPLAY Samsung LTN-150PG-L03, 15.0”, SXGA+, 1400x1050 - HDD Hitachi, HTS548080M9AT00, 80GB, 5400RPM - MODEM Ambit, T60M283.00, S/W Modem, 56KBPS, Fax/Data MDC - LAN BROADCOM, BCM5788MKFB - Wireless LAN Intel, WM3B2200BG, 802.11b/g, 54MBPS, Mini PCI FCC ID:PD9WM3B2 200BG ADAPTER Acbel, API3AD05, AD-9019N, 90W, 3pin - Internal ODD Teac Super multi DV-W24E - 4 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Ports VGA / SIO /PIO/6pin 1394/4 port USB 2.0 / MIC / Line-out / IRDA /PCMCIA/3in1 slot/S-VHS / RJ11 / RJ45 - Operating Frequency 2.13MHz(CPU Speed), 533MHz(Host Clock), 400MHz/533MHz(DDR2), 33MHz(PCI Clock), 133MHz (PCIE Clock),14.318MHz(Ref), 12.2MHz(Audio Clock), 54MHz(LCD Clock) 1.3 Operating Mode and Condition The EUT exercise program used during radiated and conducted emissions testing was the Samsung Standardized Emission Test Program for Windows. During the certification test, the LCD panel was open and video signals were simultaneously active on the LCD panel, and the VGA port. The system was configured for testing in a typical fashion that a customer would normally use, and was tested while in an automated non-attendant mode. The program repetitively sends a screen of ‘H’ to the display, reads and writes to the hard drive, and writes to all serial , parallel ports and modem. Music is played from the CD player to the Line-In jack and ported out to the earphones. A hard drive from the remote PC was mapped to the EUT and a data file was read and written over the network connection to provide continuous activity. The EUT was connected to a remote PC through the Ethernet port with UnShielded Twisted Pair Ethernet cable and Modem port by using hyperterminal program. Ethernet testing was performed at 100 Mbps operation. Cable were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. 1.4 Test System Details This section provide details of the equipment under test(EUT)and the peripheral assemblies attached during radiated and conducted emission testing. 15.0”, SXGA+ resolution LCD was set to its maximum value of 1400x1050 pixcels. and externally attached VGA monitor was set same resolution of 1400x1050 in simultaneous display mode 1.5 Equipment Modifications No equipment modifications were required. 5 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.6 Test Procedure 1.6.1 Conducted Emission EUT was placed on a platform nominal size, 1m by 1.5m, raised 80cm above the conducti ng ground plane. The rear of tabletop was located 40cm to the vertical conducting ground plane. The rear of EUT, including peripherals was aligned and flush with rear of tabletop. All other surfaces of tabletop was at least 80cm from any other grounded conducing surface. I/O cables and AC cables that were connected to the peripherals were bundled in center. They were folded back and forth forming a bindle 30cm to 40cm long and were handed at a…

Text truncated - open the document above for the full version.

17 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Pic. 1 Conducted Emission (Front) Pic. 2 Conducted Emission (Rear) 18 of 20 Samsung EMC Testing and Certification Laboratory Project No: LBE042267 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Pic. 3 Radiated Emission (Front) Pic. 4 Radiated Emission (Rear)
