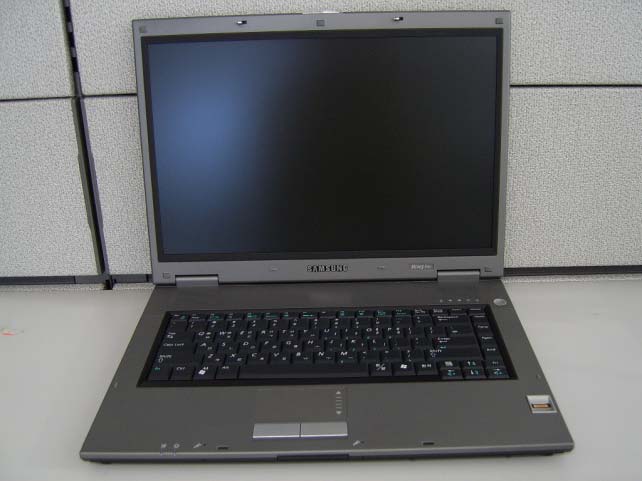

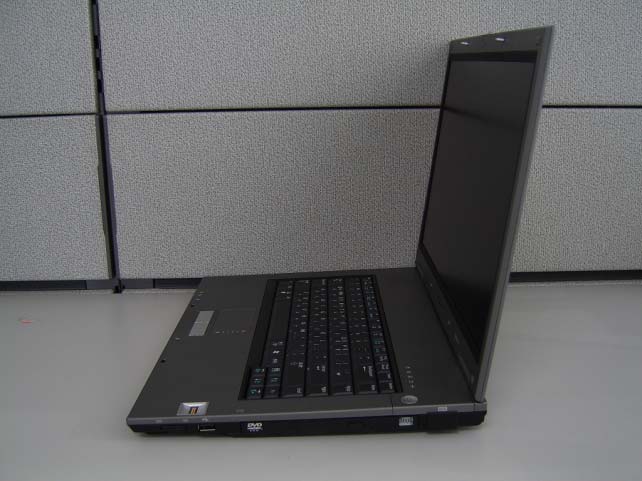

A3LNP-P60Notebook PC

Notices i Notices No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. Microsoft Windows is a registered trademark of the Microsoft Corporation. Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies. Macrovision Statement If your computer has a DVD drive and an analog TV Out port, the following paragraph applies: This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. Copyright 2003 All rights are reserved ii Users Manual Important Safety Information Safety Instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed. Always follow these instructions to help guard against personal injury and damage to your system. i Setting Up your System xRead and follow all instructions marked on the product and in the documentation before you operate your system. Retain all safety and operating instructions for future use. xDo not use this product near water or a heat source such as a radiator. xSet up the system on a stable work surface. xThe product should be operated only with the type of power source indicated on the rating label. xEnsure that the electrical outlet you are using to power your equipment is easily accessible in case of fire or short circuit. xIf your computer has a voltage selector switch, make sure that the switch is in the proper position for your area. xOpenings in the computer case are provided for ventilation. Do not block or cover these openings. Make sure you provide adequate space, at least 6 inches (15 cm), around the system for ventilation when you set up your work area.  Never insert objects of any kind into the computer ventilation openings. xEnsure that the fan vents on the bottom of the casing are clear at all times. Do not place the computer on a soft surface, doing so will block the bottom vents. xIf you use an extension cord with this system, make sure that the total ampere rating on the products plugged into the extension cord does not exceed the extension cord ampere rating. Important Safety Information iii Care During Use x Do not walk on the power cord or allow anything to rest on it. xDo not spill anything on the system. The best way to avoid spills is to not eat or drink near your system. xSome products have a replaceable CMOS battery on the system board. There is a danger of explosion if the CMOS battery is replaced incorrectly. Replace the battery with the same or equivalent type recommended by the manufacturer. Dispose of batteries according to the manufacturer’s instructions. If the CMOS battery requires replacement insure that a qualified technician performs the task xWhen the computer is turned off, a small amount of electrical current still flows through the computer. To avoid electrical shock, always unplug all power cables, remove the battery and modem cables from the wall outlets before cleaning the system. xUnplug the system from the wall outlet and refer servicing to qualified personnel if: – The power cord or plug is damaged. – Liquid has been spilled into the system. – The system does not operate properly when the operating instructions are followed. – The system was dropped or the casing is damaged. – The system performance changes. The Instruction On Safety Operation of NotePC 1.At installation and operation of devices it is necessary to carry out requirements of the user's guide. 2.Devices can be used only with the equipment specified in the technical specifications of the devices. 3.At operation of devices it is necessary to carry out the basic requirements 4.At occurrence of malfunctions in the device (a smell of burnt isolation, a smoke, etc.), it is necessary to disconnect the equipment from the power supply and to not to inserted back before reparation. 5.Service and reparation of devices should be carried out by experts of the manufacturer. Technical director of the service center Replacement Parts and Accessories Use only replacement parts and accessories recommended by manufacturer. iv Users Manual To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line cord. Written by: Daryl L. Osden Do not use this product in areas classified as hazardous. Such areas include patient care areas of medical and dental facilities, oxygen rich environments, or industrial areas. Battery Disposal Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact the Samsung Helpline for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries. Laser Safety All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performa…

Text truncated - open the document above for the full version.

72 Users Manual Refer to setting up the advanced settings by clicking on the Advanced button. Network authentication: The network authentication options include an Open System and Shared Key. When selecting Open Systems, no authentication is applied (however, encryption is supported). When selecting Shared Key, a WEP key is used for authentication. The default setting is Open System. Data encryption (WEP): The IEEE 802.11 WEP (Wired Equivalent Privacy) standard defines two levels of encryption, a 64-bit key (this is sometimes represented by 40bits) and a 128-bit key. Key index: Select the current encryption key index used by the access point out of 1 to 4. Using an encryption key: Click Use pass phrase to activate, and enter 5 (for 64- bit) or 13 (for 128-bit) alphanumeric characters (represented by 0-9, a-z, or A-Z). 6.The Done window appears, click OK. When a wireless connection to an access point is established, the connection icon () appears in front of the name of the connected profile. Connecting to the Internet 73 Using Samsung Network Manager Samsung Network Manager is a program that has been developed to enable users to use the network easily. Samsung Network Manager provides the following features. xYou can easily set up the network and printer settings. xYou can immediately use the network without defining new network settings again after moving locations. By setting the network settings (IP address, printer settings, etc.) for each location, you can immediately access the network without following network setting procedures each time regardless of your location. xYou can easily share Internet Access. You can share your Internet connection by setting up a computer with 2 LAN interfaces (wired and wireless, or 2 wired LAN) as the sharing server. Then, you can access the Internet on a sharing client by connecting to the sharing server. xYou can diagnose the network status. You can diagnose the network status when the network is not properly connected. Using the Network This section describes the procedures to connect to the Internet by setting up a network. The setting up procedures include the procedures to add a printer to the network. The setting up procedures are different for wired and wireless LAN connections. To use a wireless LAN, there should be a wireless LAN AP available nearby. Setting Up a Network 1.To use a wired LAN, connect the LAN cable to the LAN port. To use a wireless LAN, slide the Wireless LAN Latch into the ON position, if the wireless LAN is turned off.O p4P When the wireless LAN is turned on, the Wireless LAN Operation LED () lights up. 74 Users Manual 2.Run Samsung Network Manager. SelectStart > All Programs > Samsung > Samsung Network Manager > Samsung Network Manager or double click the Samsung Network Manager() icon on the Desktop. 3.Click the Add button. 4.Select a network location icon and enter the name of the location (e.g. Home). Click the Next button. 5.SelectInternet direct connection and click the Next button. 6.Select the LAN device, setup the IP address and click the Next button. Select Device Select a device to be connected to the Internet. Select either Wired LAN or Wireless LAN. Select Device Setup IP Address Connecting to the Internet 75 Setting up the IP Address To allocate an IP address automatically (DHCP), select Get IP Automatically. To use a static IP address, unselect Get IP Automatically and enter an IP address. For IP address information, ask your network administrator. 7.When the Printer Setting window appears, click Finish. To add a printer, click Add Printer. The Add Printer Wizard appears. Set up the printer according to the instructions displayed on the screen. When the printer has been added, click the Show printer button, select the newly added printer and then click the Finish button. To not add a printer, select No Default Printer and then click the Finish button. When the network setting is complete, the ’Do you want to move to newly added location now?’ message appears. If you select ’Yes’, the network settings for the added location are applied. When the network settings for the added location are applied, the added place and the corresponding network connection information is displayed in The detailed Information for window. When the network setting is complete, an icon for the added location is created within the Saved Locations window. Now you can use the Internet or add a new network location. Menu Current Place Information Saved Locations 76 Users Manual Wireless LAN AP Connection Procedures To use a wireless LAN, first connect to a wireless LAN AP and then you can access the network even when moving location. Or moving location and then you can access the network even when connecting to a wireless LAN AP 1. Right-click over the Wireless Network Connection () icon on the Taskbar and click View Available Wireless Networks. 2. Click Search AP from the Wireless menu to search for wireless LAN APs. Select an available wireless network (e.g. SAMSUNG) and click the Connect button. For information on available wireless LAN APs, ask your network administrator. 3. The network key (security key) input window appears. - If a network key has been set for the wireless LAN AP, enter the network key and click the Connect button. For the network key information, ask your network administrator. - If no network key has been set for the wireless LAN AP, click the Connect button without entering the network key. 4. When the computer is connected to the wireless LAN AP, the Connected message will appear on the Wireless Network icon in the Taskbar. Using the network after moving location By setting the network settings (IP address, printer setting, etc.) for each location, you can immediately access the network without performing the network setting procedures regardless of your location. 1.Run Samsung Network Manager when connected to the Internet. Available AP Connect Connecting to the Internet 77 2.Select an icon that represents …

Text truncated - open the document above for the full version.

(667MHz) Wireless LAN ANT USB 6 PG 37 CRT/TV PG 46 Switche PWR PG 32 PG 25 ~28 LCD PG 46 PG 41 PG 46 RJ11 PG 55 (toDCDCB’D) CardBus MICOM Hitachi H8S 3 AZALIA USB 0,1,2,3 30P Ext. -Int. Option TV Dual channel CPUVRM PCIE x1 Lane 1 PCI Wireless LAN IMVP-6 Internal Graphics LVDS Charging Circuit Lane 2 USB 7 PG 36 PG 34 PG 34 ~ 35 2 Mini PCI Ext. PEG PG 12 SPKR L VRM AMP ANT KBD PG 18 PEG x16 PG 46 AZALIA Secondary AUDIO HDD 52P PG 37 D AZALIA PSB 33MHz, 3.3V PCI 82573EZ PG 13 ~17 PG 12 PG 43~44 CD-ROM 64 PIN Golan PG 35 INTEL Touch PAD PG 47PG 50 PG 40 PG 30 ~31 Graphic PG 46 3 Mobile Processor GMCH-M RJ45 2P 128MB : K4D55323QF HDD Bluetooth PG 45 ITP PG 11 SVHS / HDTV AZALIA Primary 652 BGA Clocking ANT HP & SPDIF. CK-410M C alistoga-GM PG 16 PATA B DDR IISODIMM 1 C USB 0,1,2,3 DDR II CARDBUS R5532V002 SPKR R PG 38 Yonah- 2M CRT ATI M56-P Pri. IDE slave A Pri. IDE master U-ATA 100 ExternalGraphics LVDS Direct Media Interfacex4/x2, 1.5V 478pin 667 MT/S 3.3V LPC, 33MHz PG 51 Thermal FAN FWH PG 24 Core PG 53 PG 45 PG 54 System DC/DC PORT REPLICATOR USB5 HD64F2169/2160 Audio PG 34 B Video Memory 64MB : K4D26323QG 4 SATA S-ATA PG 41 1394 4pin 1466 FCBGA ICH7-M EEPROM PG 34 CPU CONN. DDR II PG 42 MDC Modem CRT/TV Mini PCIE CONN. 26P PG 36 Codec ALC880 SD/xD/MS R5C841 PG 41 PG 20 ~ 23 A Express Card PCIE x1 TBD D SODIMM 0 DDR II 667/533 PG 8 PG 9,10,11 L2 Cache : 2 MB Channel B (Reverse)Channel A (Standard) MIC-IN 82802AC Connector PG 52 PG 38 PG 18 PG 39 11 2 PG 45 2ND HDD 4 PG 45,46 PG 33 TPM DDR II Thermistor CARDBUS Module USB4 2P C 12P Sensor

21 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 7. ID Label Location Picture 8. ID Label

1 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMI Test Report According to FCC Part 15 Subpart B Project No. LBE052834 Equipment under Test Applicant Samsung Electronics Co., Ltd. 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, 443-742, Korea FCC ID A3LNP-P60 Product Name Notebook PC Model Name Transport T2400, NP-P60, NP-X60 Manufacturer Samsung Electronics Date of Test December 01, 2005 ~ December 05, 2005 Issued Date December 07, 2005 Name/Position Signature Tested by Kyeong Dong, Kim Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Seung Kyu, Cha Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. 3. FCC Registration Number : KR0004 NVLAP LAB CODE 200623-0 2 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Operating mode and condition 1.4 Test System Details 1.5 Equipment Modifications 1.6 Test Procedure 1.7 Test Configuration 1.8 Applied Standard 1.9 Test Facility 2. Summary of Test Results 3. Description of individual tests 3.1 Conducted Emission 3.2 Radiated Emission 4. Appendix 4.1 Test Photography 4.2 EUT Photography 3 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co., Ltd. Model name Transport T2400 Applicant Address 416 Maetan3- Dong, Yeongtong-Gu, Suwon-Si, Gyeonggi-Do, Korea, 443-742 Contact Person Kyeong Dong, Kim Kind of product Notebook PC Variant list NP-P60, NP-X60 Manufacturer Samsung Electronics New / Alternative / Permissive change Information NEW 4 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.2 Detail Information related Product Operating Frequency 2.16 GHz(CPU speed), 667 MHz(Host Clock), 533 MHz/667MHz(DDR2), 33 MHz(PCI Clock), 100 MHz (PCIE, SATA Clock), 14.318 MHz(Ref), 27 MHz ( GFX Ref ), 10 MHz ( MICOM Ref ) 59.6 MHz(WSXGA+ LCD Clock) Item Specification Remark CPU Intel Pentium-M Dual Core Yonah 2.16 GHz Cache 2MB, FSB 667MHz - Chipset Intel Calistoga 945PM/GM, 667MHz FSB - Main Memory Samsung, DDR 2 533Mhz, 512MB(M470T6554BG0) * 2 - Graphic controller ATi Mobility Radeon X1400/X1600 , M54/M56, Graphic memory 128MB/256MB External Gfx Inverter Board DELTA - LCD DISPLAY Samsung, LTN154P1-L03, 15.4”, WSXGA+, 1680 x 1050 Pixels - HDD Fujitsu, SATA type 40GB(MHV2040BH), 2.5”. - MODEM Agere systems, Athens(AM2) S/W Modem, 56KBPS, Fax/Data Azalia MDC, MIC No.:TE-A22/K012-04-0410 - LAN Intel 82573L(Vidalia), Gigabit - Wireless LAN Intel, WM3945ABG KR, 802.11abg, 54Mbps, Mini-card MIC No.:INT-WM3945ABGKR FCC ID: PD9WM3945A BG Bluetooth Broadcom, BCM92045NMD, USB 2.0 type, Bluetooth Ver 2.0 Foxconn Module, MIC No.:R-LARN-05-0240 FCC ID: QDS- BRCM1018 ADAPTER Acbel, API5AD10, AD-9019S, 90W, 3 pin - Internal ODD TEAC DW-224E, DVD-Combo - Input Devices Keyboard, Travel length 2.6mm / Key Pitch 19.05mm Synaptics Touchpad, Finger Print - Battery SDI / 6Cell(AA-PB2NC6B, 2600mA) LI-ION. - Ports LAN, Modem,1 X 1394, 3 USB, 1 CRT, TV-out, PCMCIA slot, DC IN, 1 MIC-IN, 1 HP-OUT, 1 LINE-IN, SIO port - 5 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The EUT exercise program used during radiated and conducted emissions testing was the Samsung Standardized Emission Test Program for Windows. During the certification test, the LCD panel was open and video signals were simultaneously active on the LCD panel, and the VGA port. The system was configured for testing in a typical fashion that a customer would normally use, and was tested while in an automated non-attendant mode. The program repetitively sends a screen of ‘H’ to the display, reads and writes to the hard drive, and writes to all serial, parallel ports and modem. Music is played from the CD player to the Line-In jack and ported out to the earphones. A hard drive from the remote PC was mapped to the EUT and a data file was read and written over the network connection to provide continuous activity. The EUT was connected to a remote PC through the Ethernet port with Unshielded Twisted Pair Ethernet cable and Modem port by using hyper terminal program. Ethernet testing was performed at 100 Mbps operation. Cables were attached to each of the available I/O Ports. Where applicable, peripherals were attached to the I/O cables. 1.4 Test System Details This section provide details of the equipment under test(EUT)and the peripheral assemblies attached during radiated and conducted emission testing. For the LCD panel the WSXGA+ resolution was set to its maximum value of 1680X1050 The AC adapter was connected to notebook PC. All external peripherals were connected to the I/O ports to the EUT. 1.5 Equipment Modifications No equipment modifications were required. 6 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testi…

Text truncated - open the document above for the full version.

18 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Conducted Emission (Rear) 19 of 21 Samsung EMC Laboratory Project No: LBE052834 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Front) Picture 4. Radiated Emission (Rear)
