A3LNX300Digital Camera

Shooting Functions 102102 Shooting FunctionsShooting Functions The camera automatically sets the exposure by measuring the levels of light from the photo’s composition and the position of a subject. If the exposure set by the camera is higher or lower than you expected, you can adjust the exposure value manually. The exposure value is adjustable in ±3 increments. The camera displays the exposure warning in red for each step beyond ±3 range. To adjust the exposure value, while holding down [W], scroll the jog dial. You can also adjust the exposure value by pressing [f], and then selecting EV. You can check the exposure value by the position of the exposure level indicator. Exposure level indicator Increased exposure (brighter) Decreased exposure (darker) Exposure warning Standard exposure index -2 Original +2 Exposure compensation Shooting Functions 103103 Shooting FunctionsShooting Functions When you cannot achieve an appropriate exposure because of a strong color contrast, lock the exposure, and then capture a photo. To lock the exposure value, adjust the photo’s exposure, and then press the custom button. After locking the exposure, aim the lens where you desire, and then press [Shutter]. • Set a function of the custom button to AEL to lock the current exposure value. (p. 150) • This feature is not available in Manual mode. Exposure lock Shooting Functions 104104 Shooting FunctionsShooting Functions The functions available for video are explained below. Movie size Set the movie size. To set movie size options, In Shooting mode, press [m] → 6 → Movie Size → an option. IconSizeRecommended for 1920X1080 (60 fps) (16:9)View on a Full HDTV. 1920X1080 (30 fps) (16:9)View on a Full HDTV. 1920X1080 (15 fps) (16:9) View on a Full HDTV. (Available only with some Smart Filter options.) 1920X810 (24 fps) (Approx. 2.35:1) View on an HDTV. 1280X720 (60 fps) (16:9)View on an HDTV. 1280X720 (30 fps) (16:9)View on an HDTV. 640X480 (30 fps) (4:3)View on a TV. 320X240 (30 fps) (4:3) Post on a website using the wireless network (30 seconds maximum). Movie quality Set the Movie quality. To set movie quality options, In Shooting mode, press [m] → 6 → Movie Quality → an option. IconExtensionDescription MP4 (H.264)Normal: Record videos in normal quality. MP4 (H.264)HQ: Record videos in high quality. Video functions 105 Shooting Functions > Video functions Multi Motion Set the playing speed of a video. To set playing speed options, In Shooting mode, press [m] → 6 → Multi Motion → an option. IconDescription x0.25: Record a video and play it at 1/4 normal speed. (Available only with 640x480 or 320x240) x0.5: Record a video and play it at 1/2 normal speed. (Available only with 1280x720 (30 fps), 640x480, or 320x240) x1: Record a video and play it at normal speed. x5: Record a video and play it at 5X normal speed. x10: Record a video and play it at 10X normal speed. x20: Record a video and play it at 20X normal speed. • If you select an option other than x1, sound will not be recorded. • The available options may differ depending on shooting conditions. Fader You can fade in or fade out a scene using the fader function on the camera without having to do it on a PC. Set the fade in option to gradually fade in at the start of the scene. Set the fade out option to gradually fade out the scene. Use the function appropriately and add dramatic effects on your videos. To set fader options, In Shooting mode, press [m] → 6 → Fader → an option. IconDescription Off: Fader function not used. In: Scene gradually fades in. Out: Scene gradually fades out. In-out: The fader function is applied at the start and end of the scene. When you use the fader function, it may take longer to save a file. 106 Shooting Functions > Video functions Voice Sometimes, a muted video is more appealing than the one with sound. Turn the voice off to record a muted video. To set voice options, In Shooting mode, press [m] → 6 → Voice → an option. Wind cut When you record videos in noisy environments, unintended sounds can be recorded in videos. In particular, severe wind noise recorded in videos distracts you from enjoying your videos. Use the Wind Cut function to remove some surrounding noise in addition to wind noise. To reduce wind sound, In Shooting mode, press [m] → 6 → Wind Cut → an option. Chapter 3 Playback/Editing Learn about how to play back and edit photos and videos. Refer to chapter 6 for editing files on a PC. 108 Playback/Editing Learn how to view photo and video thumbnails and how to protect or delete files. If you perform no operations for a while, information and icons on the screen disappear. When you operate the camera again, they will reappear. Viewing photos 1 Press [y]. • The most recent file you captured will be displayed. 2 Press [C/F] to scroll through files. • You can also drag the image left or right to move to another file. You may not be able to edit or play back files that were captured with other cameras, due to unsupported sizes or codecs. Use a computer or another device to edit or play back these files. Viewing image thumbnails In order to search for photos and videos you want, convert to the thumbnail view. The thumbnail view displays multiple images at a time so that you can easily look through items you wish to find. You can also classify and display files by category, such as date or file type. Scroll the jog dial to the left to select the thumbnail view mode. (Scroll the jog dial to the right to return to the previous mode.) Searching and managing files 109 Playback/Editing > Searching and managing files Viewing files by category 1 In the thumbnail view, press [m] → z → Filter → a category. • You can also touch FILTER to select a category. * Default OptionDescription All View files normally. Date* View files by the date they were saved. Type View files by the file type. Location View files by the place they were saved. (Only the photos captured with a GPS module have the location information.) 2 Select a list to …

Text truncated - open the document above for the full version.

Date: January 28, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: Jan 28, 2013 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: A3LNX300 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

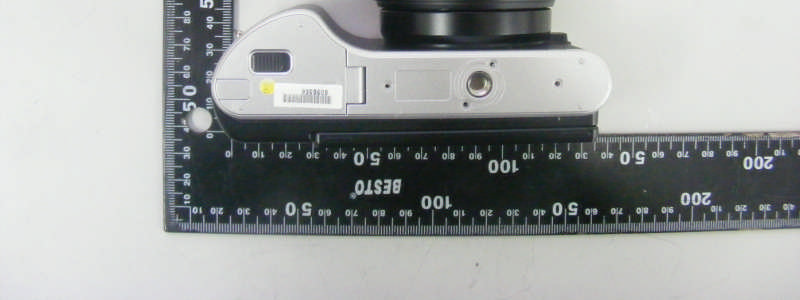

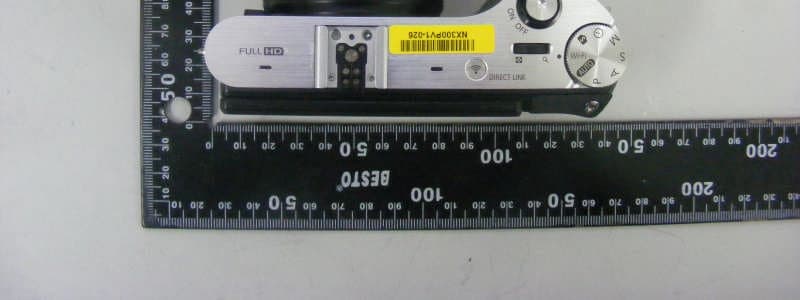

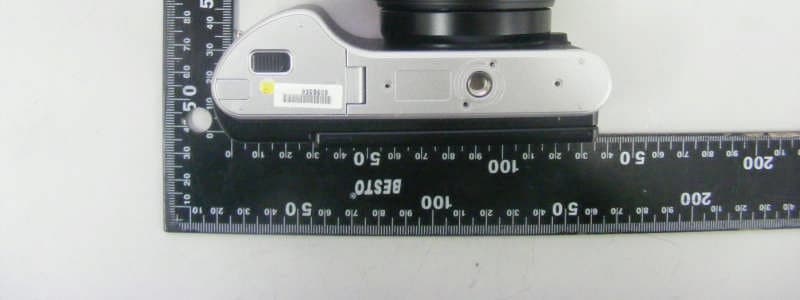

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

FCC/IC Label 1.(1) FCC Label Drawing (2)FCC Label Location 2.(1)IC Label Drawing (Basic Model: NX300) (2)IC Label Location Model:NX300

Model :NX300 Internal photos of EUT Model :NX300 Internal view of EUT Model :NX300 Top view of Main PCB Bottom view of Main PCB Model :NX300 Top view of Sub PCB#1 Bottom view of Sub PCB#1 Model :NX300 Top view of Sub PCB#2 Bottom view of Sub PCB#2 Model :NX300 Top view of Lens PCB Bottom view of Lens PCB Model :NX300 View of Antenna View of WLAN module Antenna

Report Number:F690501/RF-RTL006223Page:2of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter radiated spurious emissions and conducted spurious emission --------------6 3. 6㏈bandwidth & 99% Occupied Bandwidth-----------------------------------------------------53 4. Maximum peak output power --------------------------------------------------------------------------73 5. Power Spectral Density ---------------------------------------------------------------------------------79 6. Transmitter AC Power Line Conducted Emission-------------------------------------------------90 7. Antenna Requirement -----------------------------------------------------------------------------------95 Report Number:F690501/RF-RTL006223Page:3of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) -Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible athttp://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone:+82 31 428 5700 FAX:+82 31 427 2371 1.2. Details of Applicant Applicant:SAMSUNG ELECTRONICS CO., LTD. Address:129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Korea, Republic of Contact Person:Hwang, Seong-Jo Phone No.:+82 31 277 8583 1.3. Description of EUT Kind of Product Digital Camera Model Name NX300 Serial Number N/A Power Supply DC 7.4 V Frequency Range 2 412㎒~ 2 462㎒(11b/g/n_HT20), 5 745㎒~ 5 825㎒(11a/n_HT20), 5 755㎒~ 5 795㎒(11n_HT40), 5 180㎒~ 5 240㎒(11a/n_ HT20 – Non DFS), 5 190㎒~ 5 230㎒(11n_ HT40 – Non DFS), 5 260㎒~ 5 320㎒(11a/n_ HT20 – DFS), 5 270㎒~ 5 310㎒(11n_ HT40 – DFS), 5 500㎒~ 5 700㎒(11a/n_ HT20 – DFS), 5 510㎒~ 5 670㎒(11n_ HT40 – DFS) Modulation Technique DSSS, OFDM Number of Channels 11 channel (11b/g/n_HT20), 5 channel (11a/n_HT20), 2 channel (11n_HT40), 4 channel (11a/n_HT20–Non DFS), 2 channel (11n_HT40 – Non DFS), 15 channel (11a/n_HT20 – DFS), 7 channel (11n_HT40 – DFS) Antenna Type Internal type (SISO) Antenna Gain 2 412㎒~ 2 472㎒: 1.14㏈i, 5 180㎒~ 5 320㎒: 3.75㏈i, 5 500㎒~ 5 700㎒: 2.26㏈i, 5 745㎒~ 5 805㎒: 1.80㏈i 1.4. Declaration by the manufacturer - Duty Cycle ≥ 98 percent. Report Number:F690501/RF-RTL006223Page:4of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List EquipmentManufacturerModelS/NCal Date Cal Interval Cal Due. Signal GeneratorR&S SMR40100272 Aug. 23, 2012AnnualAug. 23, 2013 Spectrum AnalyzerAgilentN9030AUS51350132Oct. 30, 2012AnnualOct. 30, 2013 Attenuator AEROFLEX / Weinschel, Inc. 81-40-33PX987 Mar. 30, 2012 Annual Mar. 30, 2013 High Pass FilterWainwrightWHK3.0/18G-10SS344 Jul. 12, 2012AnnualJul. 12, 2013 High Pass FilterWainwrightWHK7.5//26.5G-6SSN/A Jul. 12, 2012AnnualJul. 12, 2013 Low Pass FilterMini-Circuits NLP-1200+ V8979400903-1Jul. 12, 2012 Annual Jul. 12, 2013 Power SensorR&S NRP-Z81100669 Apr. 03, 2012 Annual Apr. 03, 2013 DC power SupplyAgilentU8002AMY49030063Dec. 20, 2012 Annual Dec. 20, 2013 PreamplifierH.P.8447F2944A03909Jul. 03, 2012AnnualJul. 03, 2013 PreamplifierR&SSCU 1810117Jan. 14, 2013 Annual Jan. 14, 2014 PreamplifierMITEQ Inc.JS44-18004000-35-8P1546891Jul. 12, 2012 Annual Jul, 12, 2013 Test ReceiverR&SESU26100109Feb. 21, 2012 Annual Feb. 21, 2013 Bilog AntennaSCHWARZBECKVULB9163396May 12, 2011BiennialMay 12, 2013 Horn AntennaSCHWARZBECKBBHA9170 BBHA9170431May 15, 2012BiennialMay 15, 2014 Horn AntennaR&SHF 906 100326Nov. 23, 2011BiennialNov. 23, 2013 Antenna MasterINN-COMM4000 N/AN/AN/AN.C.R. Turn TableINN-CODS 1200 S N/AN/AN/AN.C.R. Test ReceiverR&S ESHS10863365/018Jun. 04, 2012AnnualJun. 04, 2013 Two-Line V-NetworkR&S ENV216100190Jan. 04, 2013 Annual Jan. 04, 2014 Anechoic ChamberSY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/AN/A N/A N.C.R. Anechoic ChamberSY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/AN/AN/AN.C.R. ▶Support equipment DescriptionManufacturerModelSerial Number N/A--- Report Number:F690501/RF-RTL006223Page:5of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247, RSS-210 Issue8, RSS-Gen Issue3 Standard sectionTest Item(s)Result 15.205 15.209 15.247(d) RSS-210 A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) RSS-210 A8.2(a) RSS-Gen 4.6.1 6㏈Bandwidth and 99% Occupied Bandwidth Complied 15.247(b)(3)RSS-210 A8.4(4)Maximum Peak Output PowerComplied 15.247(e)RSS-210 A8.3(2)Power Spectral DensityComplied 15.207RSS-Ge…

Text truncated - open the document above for the full version.

Report Number:F690501/RF-RTL006223Page:41of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel Report Number:F690501/RF-RTL006223Page:42of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (㏈) = Attenuator(㏈) + Cable loss (㏈) Result (㏈m) = Spurious offset (㏈) + Reading values (㏈m) Frequency (㎒)Reading values (㏈m)Spurious offset (㏈)Result (㏈m) 5 850.0-75.5320.88-54.65 5 922.8-64.3820.91-43.47 26 095.2Noise floor-- 38 402.9Noise floor-- Report Number:F690501/RF-RTL006223Page:43of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea OFDM : 802.11n_HT20(MCS0) Low Channel Report Number:F690501/RF-RTL006223Page:44of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (㏈) = Attenuator(㏈) + Cable loss (㏈) Result (㏈m) = Spurious offset (㏈) + Reading values (㏈m) Frequency (㎒)Reading values (㏈m)Spurious offset (㏈)Result (㏈m) 5 633.0-65.1120.70-44.41 5 725.0-70.8920.79-50.10 25 940.1Noise floor-- 39 129.2Noise floor-- Report Number:F690501/RF-RTL006223Page:45of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Middle Channel Report Number:F690501/RF-RTL006223Page:46of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (㏈) = Attenuator(㏈) + Cable loss (㏈) Result (㏈m) = Spurious offset (㏈) + Reading values (㏈m) Frequency (㎒)Reading values (㏈m)Spurious offset (㏈)Result (㏈m) 5 630.3-65.2320.70-44.53 26 062.7Noise floor-- 38 302.5Noise floor-- Report Number:F690501/RF-RTL006223Page:47of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel Report Number:F690501/RF-RTL006223Page:48of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (㏈) = Attenuator(㏈) + Cable loss (㏈) Result (㏈m) = Spurious offset (㏈) + Reading values (㏈m) Frequency (㎒)Reading values (㏈m)Spurious offset (㏈)Result (㏈m) 5 694.8-64.9420.75-44.19 5 850.5-72.5120.88-51.63 25 754.2Noise floor-- 35 228.9Noise floor-- Report Number:F690501/RF-RTL006223Page:49of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea OFDM : 802.11n_HT40(MCS0) Low Channel Report Number:F690501/RF-RTL006223Page:50of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea Note: Offset (㏈) = Attenuator(㏈) + Cable loss (㏈) Result (㏈m) = Spurious offset (㏈) + Reading values (㏈m) Frequency (㎒)Reading values (㏈m)Spurious offset (㏈)Result (㏈m) 5 626.3-58.6020.70-37.90 5 724.7-63.8120.79-43.02 26 112.2Noise floor-- 39 149.0Noise floor-- Report Number:F690501/RF-RTL006223Page:51of95 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGSKoreaCo.,Ltd.(GunpoLaboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea High Channel Report Number:F690501/RF-RTL006223Page:52of95 The results shown in this test report refer only to the sample(s) tested unless…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. The photo of Radiated Emission B. Transmitter AC Power Line Conducted Emission
