A3LNX3000Digital Camera

USER MANUAL ENG This user manual includes detailed usage instructions for your camera. Please read this manual thoroughly. 1 Copyright information • Camera specifications or contents of this manual may be changed without prior notice due to upgrade of camera functions. • You are not allowed to reuse or distribute any part of this manual without prior permission. • We recommend using your camera within the country where you purchase it. • Use this camera responsibly and adhere to all laws and regulations concerning its use. PlanetFirst represents Samsung Electronics' commitment to sustainable development and social responsibility through eco-driven business and management activities. • Microsoft Windows and the Windows logo are registered trademarks of the Microsoft Corporation. • Mac and Apple App Store are registered trademarks of the Apple Corporation. • Google Play Store is a registered trademark of Google, Inc. • Adobe, the Adobe logo, Photoshop, and Lightroom are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other countries. • microSD™, microSDHC™, and microSDXC™ are registered trademarks of the SD Association. • HDMI, the HDMI logo, and the term "High Definition Multimedia Interface" are trademarks or registered trademarks of HDMI Licensing LLC. • Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. • Trademarks and trade names used in this manual are the property of their respective owners. 2 Health and safety information Prevent damage to subjects’ eyesight. Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage. Keep your camera away from small children and pets. Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well. Do not expose the camera to direct sunlight or high temperatures for an extended period of time. Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components. Avoid covering the camera or charger with blankets or clothes. The camera may overheat, which may distort the camera or cause a fire. Do not handle the power supply cord or the charger during a thunderstorm. This may result in an electric shock. Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera. Warning—situations that could cause injury to yourself or others Do not disassemble or attempt to repair your camera. You can damage the camera and expose yourself to the risk of an electric shock. Do not use your camera near flammable or explosive gases and liquids. This may cause a fire or explosion. Do not insert flammable materials into the camera or store these materials near the camera. This may cause a fire or electric shock. Do not handle your camera with wet hands. This may result in an electric shock. 3 Health and safety information If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center. Comply with any regulations that restrict the use of a camera in a certain area. • Avoid interference with other electronic devices. • Turn off the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel. • Turn off the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel. Avoid interference with pacemakers. Maintain a safe distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance. Caution—situations that could cause damage to your camera or other equipment Remove the batteries from your camera when storing it for an extended period of time. Installed batteries may leak or corrode over time and cause serious damage to your camera. Use only authentic, manufacturer-recommended, Lithium-ion replacement batteries. Do not damage or heat the battery. Inauthentic, damaged, or heated batteries may cause a fire or personal injury. Use only Samsung-approved batteries, chargers, cables, and accessories. • Using unauthorized batteries, chargers, cables, or accessories can cause batteries to explode, damage your camera, or cause injury. • Samsung is not responsible for damage or injuries caused by unapproved batteries, chargers, cables, or accessories. Use the battery only for its intended purpose. Misusing the battery may cause a fire or electric shock. 4 Health and safety information Do not touch the flash while it fires. The flash is very hot when fired and may burn your skin. When you use the AC charger, turn off the camera before you disconnect the power to the AC charger. Failing to do so may result in fire or electric shock. Disconnect the charger from the wall socket when not in use. Failing to do so may result in fire or electric shock. Do not use a damaged power supply cord, plug, or loose outlet when you charge batteries. This may cause a fire or electric shock. Do not allow the AC charger to come in contact with the +/- terminals on the battery. This may cause a fire or electric shock. Do not drop or subject the camera to strong impacts. Doing so may damage the screen or external or internal components. Exercise caution when you conn…

Text truncated - open the document above for the full version.

Date: April 17th, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94 538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Charles. Kim (or Feel. Jeong) and of SGS Korea Co., Ltd and hereafter referred to as SGS Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Charles. Kim (or Feel. Jeong) of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the cer tification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, in specti on, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which cert ifi c ation has been granted; d)do not use our product certification in such a manner as to bring the Certification Division int o disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthori zed; e)upon suspension or cancellation of certification, discontinue use of all advertising m atter that contains any reference thereto and return any certification docume nts as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified st andards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a m isleading ma nner; h)ensure that any reference to our product certification in communication media such as docum ents, brochures or advertising, complies with the requirements of th e Certification Division ; i)kee p a record of all complaints made known to the us relating to the pro duct’s com pliance with requirements of the relevant standard and to make these record s avai lable to the Certification Division wh en requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certific ation; k)do cument the acti ons taken. Th is authorization is valid until further written notice from the applicant. Sincerely Yours, Sang Kyu ng (Peter) Ra / General Manager Samsung Electronics Co., Ltd.

Date: April 18th, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Requ est of Confidentiality for FCC ID: A3LNX3000 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Samsung Electronics Co., Ltd temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1Block Diagram 2Operational Descriptions Permanent 3Schematics 4External Photos 5Internal Photos 6Test-Setup Photos Short-Term 7User’s Manual The Applicant understands that pu rsuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang Kyung (Peter) R a / General Manager Samsung Electronics Co., Ltd.

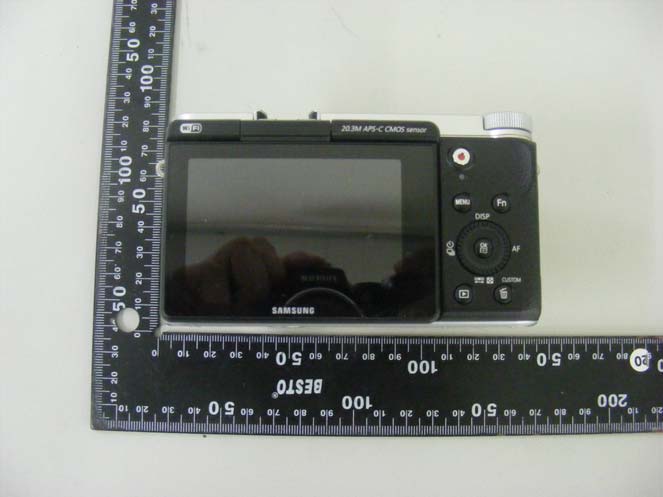

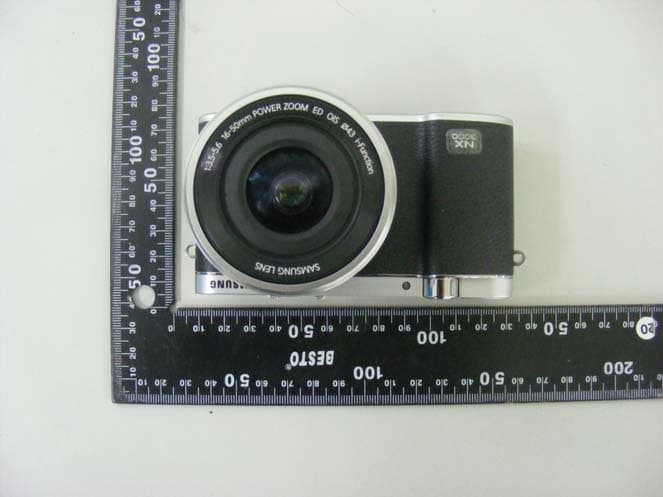

Model : NX3000 External photos of EUT Model : NX3000 Top view of EUT Bottom view of EUT Model : NX3000 Front view of EUT Rear view of EUT Model : NX3000 Side view of EUT

FCC/IC Label 1.(1) FCC Label Drawing (2) FCC Label Location 2.(1) IC Label Drawing (2) IC Label Location

Model : NX3000 Internal photos of EUT Model : NX3000 Internal view of EUT Model : NX3000 Top view of Main PCB Bottom view of Main PCB Model : NX3000 Top view of Sub PCB#1 Bottom view of Sub PCB#1 Model : NX3000 Top view of Sub Keypad PCB Bottom view of Keypad PCB Model : NX3000 Top view of Lens PCB Bottom view of Lens PCB Model : NX3000 Top view of WLAN Antenna Bottom view of WLAN Antenna Model : NX3000 View of WLAN module View of NFC Tag

SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 1 / 49 Report File No : F690501/RF-SAR002168 Date of Issue : 2014-04-18 FCC SAR TEST REPORT Test File No : F690501/RF-SAR002168 Equipment Under Test Digital Camera Model No. NX3000 Applicant Samsung Electronics Co., Ltd. Address of Applicant 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 443-742 Korea, Republic of FCC ID A3LNX3000 IC Certification 649E-NX3000 Device Category Portable Device Exposure Category General Population/Uncontrolled Exposure Standards FCC 47 CFR Part 2 (2.1093) IEEE 1528, 2003 ANSI/IEEE C95.1, C95.3 Date of Receipt 2014-04-04 Date of Test(s) 2014-04-15 Date of Issue 2014-04-18 In the configuration tested, the EUT complied with the standards specified above. Remarks: Report prepared by / Jongwon Ma Test Engineer Approved by / Nicky You Technical Manager This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS Korea Co., Ltd. or testing done by SGS Korea Co., Ltd. in connection with distribution or use of the product described in this report must be approved by SGS Korea Co., Ltd. in writing. SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 2 / 49 Report File No : F690501/RF-SAR002168 Date of Issue : 2014-04-18 Revision history Revision Date of issue Revisions Revised By - April 18, 2014 Initial issue - SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 3 / 49 Report File No : F690501/RF-SAR002168 Date of Issue : 2014-04-18 Contents 1 Testing Laboratory 4 2 Details of Applicant 4 3 Description of EUT(s) 4 4 The Highest Reported SAR Values 4 5 Test Methodology 5 6 Test Environment 5 7 Specific Absorption Rate (SAR) 6 7.1 Introduction 6 7.2 SAR Definition 6 7.3 Test Standards and Limits 6 8 The SAR Measurement System 8 9 System Components 9 9.1 Probe 9 9.2 ELI Phantom 9 9.3 Device Holder 10 10 SAR Measurement Procedures 11 10.1 Normal SAR Measurement Procedure 11 11 SAR System Verification 13 12 Tissue Simulant Fluid for the Frequency Band 14 13 Test System Validation 15 14 Instruments List 16 15 FCC Power Measurement Procedures 17 16 Measured and Reported SAR 17 17 Maximum Output Power Specifications 17 18 RF Conducted Power Measurement 17 19 SAR Test configuration 19 20 SAR Data Summary 20 21 SAR Measurement Variability 21 21.1 Measurement Variability 21 21.2 Measurement Uncertainty 21 Appendixes List 22 Appendixes A.1 23 Appendixes A.2 24 Appendixes B.1 25 Appendixes C.1 26 Appendixes C.2 37 Appendixes C.3 42 END 49 SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 4 / 49 Report File No : F690501/RF-SAR002168 Date of Issue : 2014-04-18 1 Testing Laboratory Company Name SGS Korea Co., Ltd. (Gunpo Laboratory) Address Wireless Div. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Republic of Korea Telephone +82 +31 428 5700 FAX +82 +31 427 2371 Homepage All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and- Conditions.aspx 2 Details of Manufacturer Applicant Samsung Electronics Co., Ltd. Address 129, Samsung-ro, Yeongtong-gu, Suwon-city, Gyeonggi-do, 443-742 Korea, Republic of Contact Person Yonghee -Jeung Email [email protected] Phone No. +82 +10 2205 7555 3 Description of EUT(s) EUT Type Digital Camera Model NX3000 Serial Number N/A Mode of Operation WLAN Duty Cycle 1 (WLAN) Body worn Accessory None Tx Frequency Range 2412 ~ 2462 (WLAN)) Battery Type DC 3.8 V (Li-ion Battery) 4 The Highest Reported SAR Values Exposure Configuration Band & Mode Measured Conducted Power [dBm] Highest Reported SAR 1g Body (W/kg) DTS WLAN 9.42 0.137 Simultaneous SAR per KDB 690783 D01v01r03 N/A SGS Korea Co., Ltd. 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, 435-040 Tel. 031-428-5700 / Fax. 031-427-2371 http://www.sgsgroup.kr Page : 5 / 49 Report File No : F690501/RF-SAR002168 Date of Issue : 2014-04-18 5 Test Methodology ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. It specifies the maximum exposure limit of 1.6 W/kg as averaged over any 1 gram of tissue for portable devices being used within 20 cm of the user in the uncontrolled environment. Test tests documented in this report were performed in accordance with IEEE Standard 1528-2003 & IEEE 1528a- 2005 and the following published KDB procedures. In additions; KDB 865664 D01v01r03 SAR Measurement Requirements for 100 MHz to 6 GHz KDB 447498 D01v05r02 Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies KDB 447498 D02v02 SAR Measurement Procedures for USB Dongle Transmitters KDB 248227 D01v01r02 SAR Measurement Procedures for 802.11a,b,g Transmitters KDB 615223 D01v01 802.16e/WiMax SAR Measurement Guidance KDB 616217 D04v01r01 SAR Evaluation Considerations for Laptop, Notebook, Netbook and Tablet Computers KDB 643646 D01v01r01 SAR Test Reduction Considerations for Occupational PTT Radios KDB 648474 D03v01r02 Evaluation and Approval Considerations for Handsets with Specific Wireless Charging Battery Covers KDB 648474 D04v01r02 SAR Evaluation Considerations for Wireless Handsets KDB 6801…

Text truncated - open the document above for the full version.

Report Number: F690501/RF-RTL007569-1 Page: 2 of 64 INDEX Table of contents 1. General information --------------------------------------------------------------------------------------3 2. Transmitter ra diated spurious emissions and conducted spurious emission --------------6 3. 6 ㏈ b andwidth & 99% Occupied Bandwidth-----------------------------------------------------36 4. Maximum Conducted output power -----------------------------------------------------------------48 5. Power Spectral Density --------------------------------------------------------------------------------- 52 6. Trans mitter AC Power Line Conducted Emission------------------------------------------------- 59 7. Antenna Requirement --------------------------------------------------- --------------------------------64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Te l . +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007569-1 Page: 3 of 64 1. General Information 1. 1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil , Gunpo-si, Gyeonggi-do, Korea, 435- 040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 129, Samsung-ro, Yeongtong-gu Suwon-si, Gyeonggi-do, 433-742 Korea, Republic of Contact Person : Jeung, Yong-Hee Phone No. : +82 10 2205 7555 1. 3. Details of Factory Information Applicant : TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD. Address : No.9 ZhangHeng Street, Micro-Electronic Industrial Park, JinGang Road, Tianjin, China 1.4. Description of EUT Kind of Product Digital Camera Model Name NX3000 Power Supply DC 3.8 V Frequency Range 2 412 ㎒ ~ 2 462 ㎒ (11b/g/n_HT20) Modulation Technique DSSS, OFDM Number of Channels 11 channels (11b/g/n_HT20) Antenna Type Internal type ( SISO) Antenna Gain 0.58㏈i 1.5. Declaration by the manufacturer - N/A The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Te l . +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007569-1 Page: 4 of 64 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100272 Aug. 10, 2013 Annual Aug. 10, 2014 Spectrum Analyzer Agilent N9030A US51350132 Oct. 08, 2013 Annual Oct. 08, 2014 Spectrum Analyzer R&S FSV30 100768 Mar. 27, 2014 Annual Mar. 27, 2015 Attenuator AEROFLEX / INMET 26A-10dB 3 Mar. 18, 2014 Annual Mar. 18, 2015 Attenuator AEROFLEX / INMET 18N-20dB 2 Mar. 18, 2014 Annual Mar. 18, 2015 High Pass Filter Wainwright WHK3.0/18G-10SS 344 Jun. 08, 2013 Annual Jun. 08, 2014 High Pass Filter Wainwright WHNX7.5/26.5G-6SS 11 Jun. 08, 2013 Annual Jun. 08, 2014 Low Pass Filter Mini -Circuits NLP -1200+ V 8979400903-1 Jun. 12, 2013 Annual Jun. 12, 2014 Power Sensor R&S NRP-Z81 100669 Mar. 19, 2014 Annual Mar. 19, 2015 DC power Supply Agilent U8002A MY49030063 Dec. 12, 2013 Annual Dec. 12, 2014 Preamplifier H.P. 8447F 2944A03909 Jun. 28, 2013 Annual Jun. 28, 2014 Preamplifier R&S SCU 18 1391123 Sep. 30, 2013 Annual Sep. 30, 2014 Preamplifier MITEQ Inc. JS44-18004000-35- 8P 1546891 Jun. 13, 2013 Annual Ju n. 13, 2014 Test Receiver R&S ESU26 100109 Mar. 04, 2014 Annual Mar. 04, 2015 Bilog Antenna SCHWARZBECK VULB9163 396 Jun. 07, 2013 Biennial Jun. 07, 2014 Horn Antenna SCHWARZBECK BBHA9170 BBHA9170431 Aug. 24, 2012 Biennial Aug. 24, 2014 Horn Antenna R&S HF906 100326 Dec. 10, 2013 Biennial Dec. 10, 2015 Loop Antenna R&S HFH2-Z2 100118 Jul. 12, 2013 Biennial Jul. 12, 2015 Antenna Master INN- CO MM4000 N/A N/A N/A N.C.R. Turn Table INN- CO DS 1200 S N/A N/A N/A N.C.R. Test Receiver R&S ESHSI0 863365/018 Jun, 27. 2013 Annual Jun, 27. 2014 Two -Line V-Network R&S ENV216 100190 Jan. 02, 2014 Annual Jan. 02, 2015 Anechoic Chamber SY Corporation L × W × H (6.5 m × 3.5 m × 3.5 m) N/A N/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N/A N/A N.C.R. ▶ Support equipment Description Manufacturer Model Serial Number N/A - - - The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Te l . +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) Report Number: F690501/RF-RTL007569-1 Page: 5 of 64 1.7. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD: FCC Part15 Subpart C § 15.247, RSS-210 Issue8, RSS-Gen Issue3 Standard section Test Item(s) Result 15.205(a) 15.209 15.247(d) RSS-210 A8.5 Transmitter Radiated Spurious Emissions Conducted Spurious Emission Complied 15.247(a)(2) RSS-210 A8. 2(a) RSS-Gen 4.6.1 6 ㏈ Bandwidth and 99% Occupied Bandwidth Complied 15.247(b)( 3) RSS-210 A8.4(4) Maximum Conducted Output Power Complied 15.247(e) RSS-210 A8. 3(2) Power Spectral Density Complied 15.207 RSS-Gen 7.2. 4 Transmitter AC Power Line Conducted Emission Complied 1.8. Test Procedure(s) The measurement procedures described in the American National Standard for Methods of Measur…

Text truncated - open the document above for the full version.

Test Setup Photographs (a) Edge 1 (b) Edge 2 (c) Edge 3 (d) Edge 4 (e) Front (f) Rear EUT Photo (a) Front (b) Rear Edge1 Edge2 Edge3 Edge4

Test setup photo of EUT A. Radiated Spurious Emission (Below 30 MHz) B. Radiated Spurious Emission (30 MHz – 1 GHz) C. Radiated Spurious Emission (Above 1 GHz) D. AC Power Line Conducted Emission
