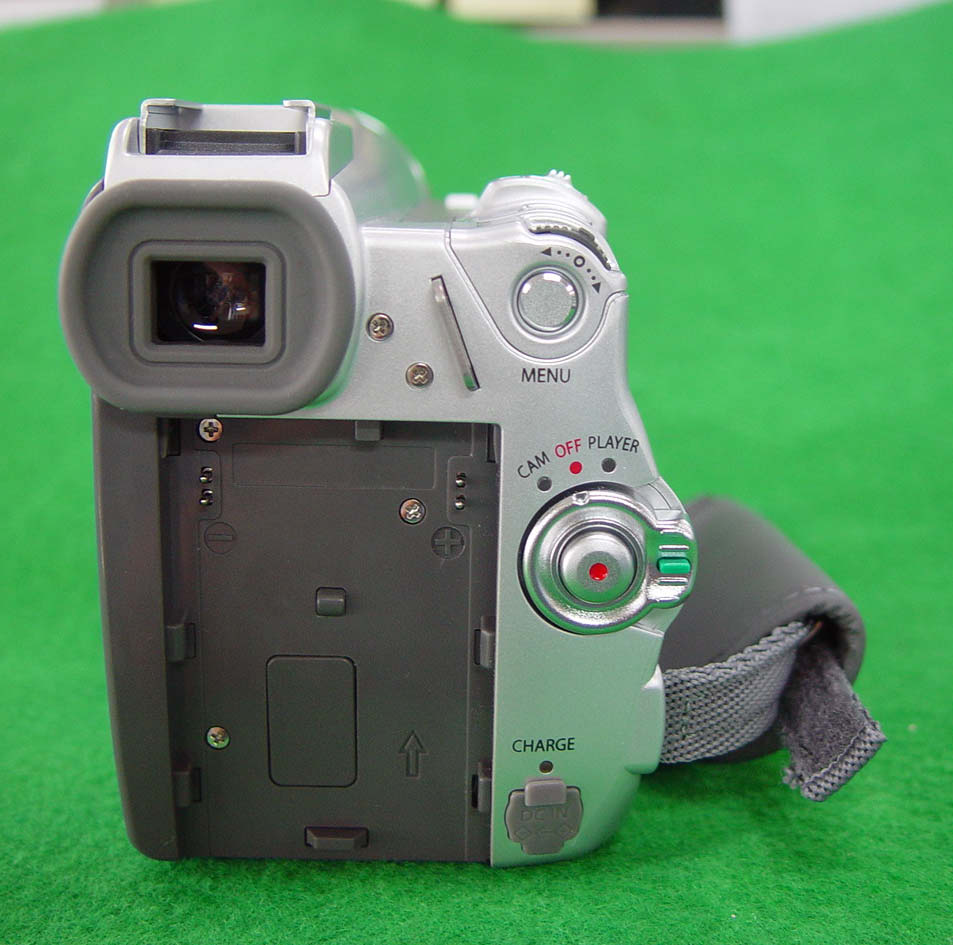

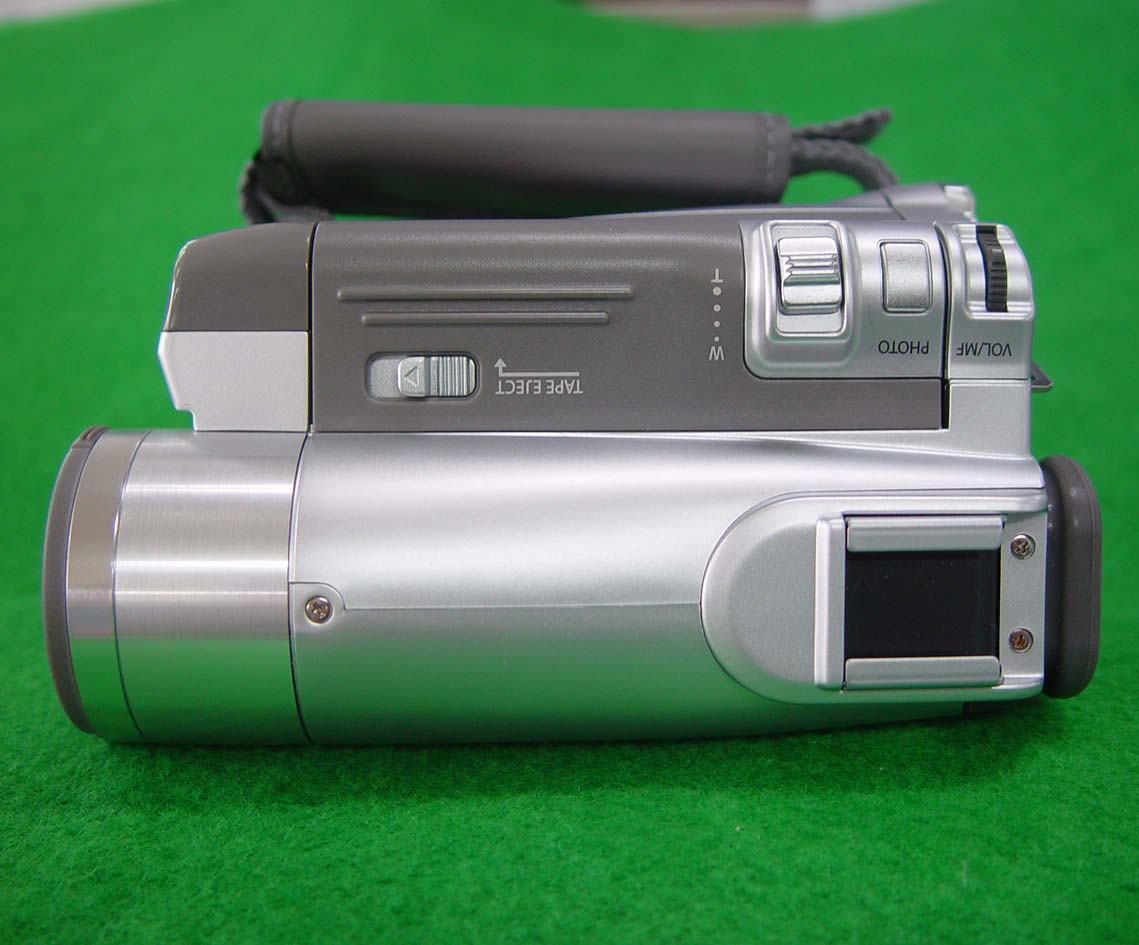

A3LOMEGADigital Video Camcorder

ENGLISH Digital Video CamcorderOwner’s Instruction BookBefore operating the unit, please read thisinstruction book thoroughly, and retain it forfuture reference. AF Auto Focus CCD Charge Coupled Device LCD Liquid Crystal Display SCD99 ELECTRONICS This product meets the intent of Directive 89/336 CEE, 73/23 CEE, 93/68 CEE. S TA R T / S TO P SE LF T IM E R A.DU B ZE R O M E M O RY P H O T O D ISP LA Y X 2 S LO W F.A D V P H O T O S E A R C H DATE/ TIME SCD99 UK (01~27) 6/17/03 11:52 AM Page 101 FCC Warning Class B Computing Device Information to the User This Equipment has been tested and found to comply with the limits for a class B di gital device pursuant to part 15 of FCC Rule s. These limits are designed to provide reasonable protection agai nst harmful interference in a residential installation. This equipment generates , uses, and can radiate radio frequency energy and, if not installed and used in accord ance with the instructions, may cause harmful interference to ra dio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause int erference to radio or television reception, which can be determined by turning the equipment off and on, the u ser is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help and for additional suggestions. The user may find the following booklet prepared by the Federal Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This Booklet is available from the U.S. Government Printing Office, Washington, D.C. 20402, Stock No. 004-000- 00345-4. FCC Warning The user is cautioned that changes or modifications not expr essly approved by the manufacturer could void the user’s authority to operate the equipment. ENGLISH Notices and Safety Instructions Safety Instructions RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOTREMOVE COVER(OR BACK). NO USER SERVICEABLEPARTS INSIDE, REFER SERVICING TO QUALIFIEDSERVICE PERSONNEL. This symbol is intended to alert the user to the presence of uninsulateddangerous voltage within the product’s enclosure that may be ofsufficient magnitude to constitute a risk of fire or electric shock. This symbol is intended to alert the user to the presence of importantoperating and maintenance instructions in the literature accompanyingthis product. To prevent electric shock, match wide blade of plugto wide slot and fully insert.1. READ INSTRUCTIONS: All the safety and operating instructions should be read before the CAMCORDER is operated. 2. RETAIN INSTRUCTIONS: The safety and operating instructions should be retained for future reference. 3. HEED WARNINGS: All warnings on the CAMCORDER and in the operatinginstructions should be adhered to. 4. FOLLOW INSTRUCTIONS: All operating and maintenance instructions should be followed. 5. CLEANING: Unplug this CAMCORDER from the wall outlet before cleaning.Do not use liquid or aerosol cleaners.Use a dry cloth used for dusting cabinets. 6. ATTACHMENTS: Do not use attachments not recommended by the CAMCORDER product manufacturer as they may be hazardous. 7. WATER AND MOISTURE: Do not use this CAMCORDER near water;for example, near a bathtub, wash bowl, kitchen sink, laundry tub, in a wet basement, near a swimming pool or lake. 8. ACCESSORIES: Do not place this CAMCORDER on an unstable cart, stand, tripod,bracket or table. The CAMCORDER may fall, causing serious injuryto a child or adult, and serious damage to the unit.Use only with a cart, stand, tripod, bracket, or table recommendedby the manufacturer or sold with the CAMCORDER. Any mountingof the unit should follow the manufacturer’s instructions and shoulduse a mounting accessory recommended by the manufacturer.A. An appliance and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the appliance and cart combination to overturn. PORTABLE CART WARNING(Symbol provided by RETAC) CAUTION 00654B SCD30-SAFETY 6/17/03 12:05 PM Page 100 ENGLISH Notices and Safety Instructions9. VENTILATION: Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the CAMCORDER and to protect it from overheating. These openings must not be blocked or covered. Never place your CAMCORDER on a bed, sofa, rug, or other similar surface: on or near a radiator or heat register.This CAMCORDER should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is providedor the manufacturer’s instructions have been adhered to. 10. POWER SOURCES: The CAMCORDER should be operated only from the type of power source indicated on the label.If you are not sure of the type of power supply at your home, consult your appliance dealer or local power company.A CAMCORDER is intended to be operated from battery power, or other sources, refer to the operating instructions. 11. GROUNDING OR POLARIZATION: This CAMCORDER may be equipped with either a polarized 2-wire AC line plug (a plug having one blade wider than the other)or a 3-wire grounding type plug, a plug having a third (grounding)pin.If you are unable to insert the plug fully into the outlet, try reversingthe plug. If the plug still fails to fit, contact your electrician to replace your outlet. Do not defeat the safety purpose of the polarized plug. 12. POWER-CORD PROTECTION: Power-supply cords should be routed so that they are not likely tobe walked on or pinched by items placed upon or against them, paying particular attention to cords or plugs, convenient receptacles, and the point where they exit from the unit. 13. OUTDOOR ANTENNA GROUNDING: If an …

Text truncated - open the document above for the full version.

ENGLISH 5656 Advanced Recording  DATE/TIME✤ The DATE/TIME function works in CAM, PLAYER, M.REC and M.PLAY modes. ✤ The date and time are automatically recorded on a special data area of the tape. 1. Press the MENU button.  The menu list will appear. 2. Move the MENU SELECTOR to highlight VIEWER and push the MENU SELECTOR.3. Move the MENU SELECTOR to highlight DATE/TIME.4. Push the MENU SELECTOR to select the sub-menu.5. Using the MENU SELECTOR, select the DATE/TIME mode.  You can choose to display - the OFF, DATE, TIME, DATE/TIME - OFF - DATE only - TIME only - DATE & TIME  To return to the previous menu, highlight the DATE/TIME in the middle of the and push the MENU SELECTOR. 6. To exit, press the MENU button. Notes  The DATE/TIME is not affected by the OSD ON/OFF (DISPLAY) button.  The DATE/TIME will read “ - - - ” in the following conditions. - During playback of a blank section of a tape.- If the tape was recorded before setting the DATE/TIME in the Camera ’ s memory. - When the lithium battery becomes weak or dead.  Before you can use the DATE/TIME function, you must set the Clock.See CLOCK SET on page 37. CAM MODE VIEWER SET LCD ADJUSTDATE / TIME TV DISPLAY CAM MODE INITIAL LCD ADJUSTDATE / TIMETV DISPLAY CAMERAA/VMEMORYVIEWER CAM MODE DATE / TIME VIEWER SET DATETIMEDATE&TIME SCD99 UK (28~63) 6/17/03 11:55 AM Page 56 ENGLISH 5757 Advanced Recording  TV DISPLAY✤ The TV DISPLAY function works in CAM, PLAYER, M.REC and M.PLAY modes. ✤ You can select the output path of the OSD (On Screen Display). OFF: The OSD appears in the LCD screen only.  ON: The OSD appears in the LCD screen, View Finder and TV.  Use the DISPLAY button located at the left side of the camcorder to turn ON/OFF all of the OSD displayed on the LCD/View Finder/TV. 1. Set the camcorder to CAM, PLAYER, M.REC and M.PLAY mode.2. Press the MENU button.  The menu list will appear. 3. Move the MENU SELECTOR to highlight VIEWER and push the MENU SELECTOR.4. Select the TV DISPLAY mode in list, push the MENU SELECTOR.  The DISPLAY mode switches between ON/OFF with each push. 5. To exit, press the MENU button. CAM MODE VIEWER SET LCD ADJUSTDATE / TIME TV DISPLAY CAM MODE INITIAL LCD ADJUSTDATE / TIMETV DISPLAY CAMERAA/VMEMORYVIEWER SCD99 UK (28~63) 6/17/03 11:55 AM Page 57 ENGLISH 5858 Advanced Recording✤ Quick menu is available only in CAM and M.REC mode. ✤ Quick menu is used to adjust camera functions by simply using the MENU SELECTOR button.This feature is useful for when you want to make simple adjustments without having to access the menus and submenus.  DATE/TIME (see page 56)- Each time you select DATE/TIME and push the MENU SELECTOR, it will be displayed in the order of DATE - TIME - DATE/TIME - OFF.  WL.REMOTE( ) (see page 38) - Each time you select WL.REMOTE and push the MENU SELECTOR, the WL.REMOTE is switched to either enabled ( ) or disabled ( ).  EIS ( ) (see page 47) - Each time you select EIS and push the MENU SELECTOR, the EIS icon is displayed or set to OFF.  DSE (Digital Special Effect) (see page 48)- Each time you select DSE and push the MENU SELECTOR, the DSE preset values are applied or set to OFF. DSE values will not switch between On and Off if they have not been preset in the menu.  PROGRAM AE (see page 42)- Each time you select PROGRAM AE and push the MENU SELECTOR, you can choose between the preset PROGRAM AE values and AUTO. You can ’ t choose between Auto and the PROGRAM AE values if the values have not been preset in the regular menu. Using Quick Menu(Navigation Menu) MIRROR 1 0 : 0 0 10 . J A N . 2 0 0 3 (CAM mode) SCD99 UK (28~63) 6/17/03 11:55 AM Page 58 ENGLISH 5959 Advanced Recording WHT. BALANCE (see page 44)- Each time you select WHT. BALANCE and push the MENU SELECTOR, you can choose between preset WHT.BALANCE values and AUTO. As in PROGRAM AE, you can't choose betweenAuto and WHT.BALANCE values it they have not been preset.  SHUTTER SPEED & EXPOSURE- You can set values for SHUTTER SPEED and EXPOSURE by selecting ( ) icon and pushing the MENU SELECTOR. For more information, see the next chapter. Setting the Quick menu 1. Set the camcorder to CAM mode.2. Move the MENU SELECTOR to select a function you want and then push the MENU SELECTOR to change the values. Note  Quick menu function will not operate in EASY mode. SHUTTEREXPOSURE 0 : 0 0 : 0 0 1 0 : 0 0 1 0 . J A N . 2 0 0 3 STBY MIRROR WL.REMOTE DSE PROGRAM AE WHT. BALANCE SHUTTTER EXPOSURE EIS DATE/TIME SCD99 UK (28~63) 6/17/03 11:55 AM Page 59 ENGLISH 6060 Advanced Recording SHUTTER SPEED & EXPOSURE ✤ You can set SHUTTER SPEED and EXPOSURE only in CAM mode. ✤ SHUTTER SPEED and EXPOSURE values can only be set in the Quick Menu. ✤ SHUTTER SPEED and EXPOSURE are automatically switched and/or deactivated. 1. Set the power switch to CAM mode.2. Move the MENU SELECTOR until you see icon( ) on, and then push the MENU SELECTOR.  You see a screen on which you can select SHUTTER SPEED and EXPOSURE.  Move the MENU SELECTOR to select the item you want and then push the MENU SELECTOR.  SHUTTER SPEED can be set to 1/50, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000 or 1/10000.  EXPOSURE can be set between 00 and 29. 3. To exit from the setting screen, select the icon( ) and push the MENU SELECTOR. Recommended Shutter speeds when recording ✤ Outdoor sports such as golf or tennis : 1/2000 or 1/4000. ✤ Moving cars or trains or other rapidly moving vehicles such as roller coasters : 1/1000, 1/500 or 1/250 ✤ Indoor sports such as basketball : 1/120 Notes  If you want to use the selected shutter speed and exposure value, you should begin the recording with the shutter speed and the exposure adjustment screens displayed on the LCD.  If you manually change the shutter speed and the exposure value when Auto-exposure option is selected, manual changes are applied first.  The image may not seem as smooth when a high shutter speed is set.  The camcorder returns to the auto shutter setting and auto exposure setting when you change to the E…

Text truncated - open the document above for the full version.

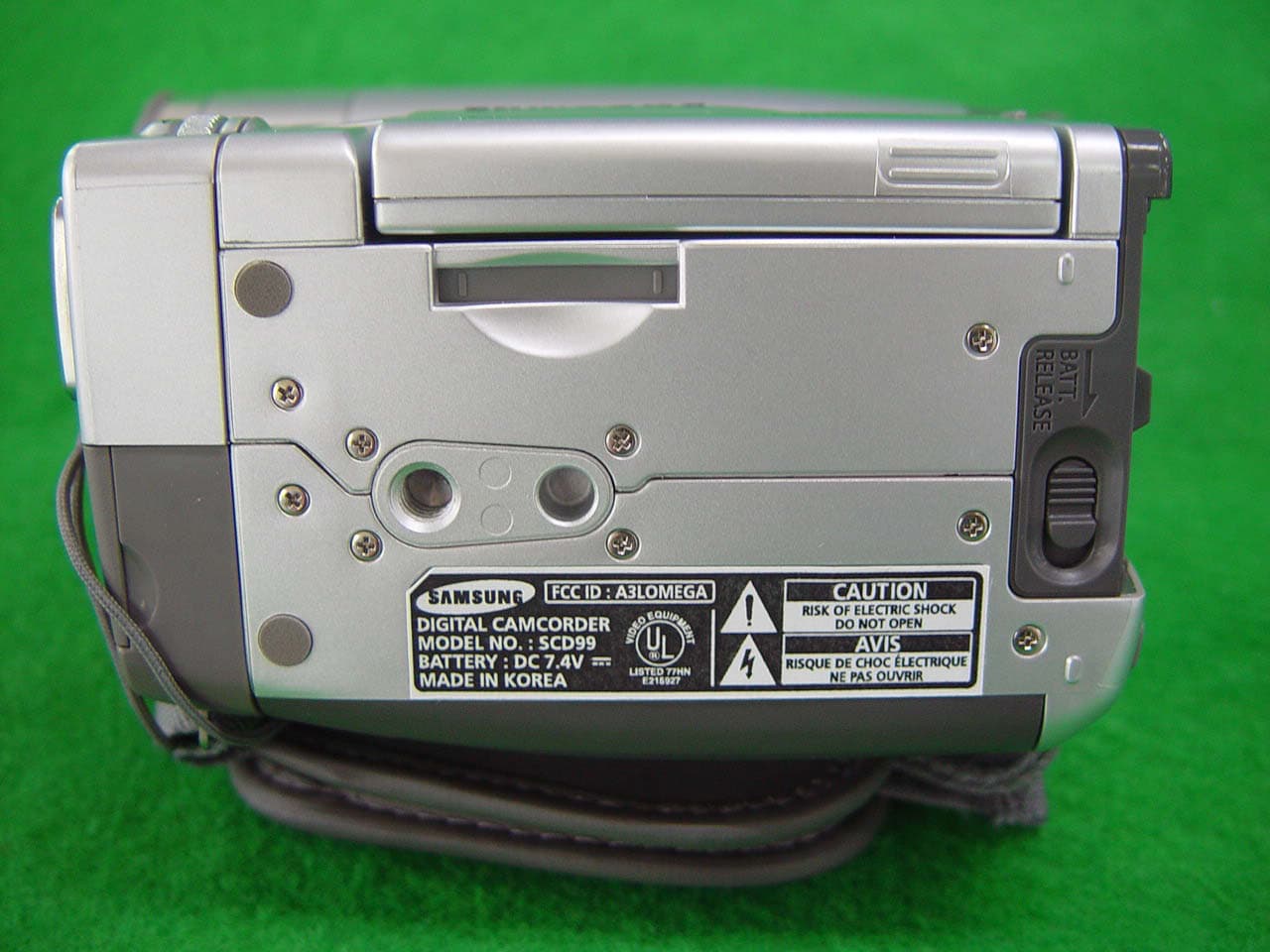

FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE)

Project No. : LBE031244 Page 1 of 15 Project No. :LBE031244 Product :Digital Camcorder Model No. :SCD99 Date of test :May 21 ~ 29, 2003 Issued Date :June 4, 2003 Tested by: Tae Young , JANG / Test Engineer Reviewed by: No Cheon, PARK / Test Engineer Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laboratory 416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE031244 Page 2 of 15 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test mode 1.4 Test rule and Procedure 1.5 Test Summary 2. Test Results 2.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 2.2 RADIATED EMISSION MEASUREMENT 3. Test equipment This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031244 Page 3 of 15 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 120V 60Hz None SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE031244 Digital Camcorder SCD99 Project No. : LBE031244 Page 4 of 15 1.3 Test mode Test Planning and Test Mode In each measurement were performed under following three EUT operation modes. 1) Camcorder play mode Playback the video tape that is recorded NTSC Color pattern signal. 2) Camcorder rec mode A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 1.4 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators TV Interface Devices. Test Procedure : ANSI C63.4-1992 1.5 Test Summary Test itemApplied StandardsResult AC POWERLINE CONDUCTED EMISSION Pass RADIATED EMISSIONPass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. ANSI C63.4-1992 ANSI C63.4-1992 Project No. : LBE031244 Page 5 of 15 2. Test Results 2.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 1) Reference Rule and Specification FCC Rule Part 15, Section 15.107(a) 2) Test Procedure 2-1) Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. See also the block diagram of tested device configuration in this report. Connect the EUT's AC line cord to the EUT port of LISN. 2-2) All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port are terminated in the proper impedance. 2-3) Activates the EUT system Using a calibrated coaxial cable, the TEST RECEIVER is connected to the measuring port of the LISN for EUT. 2-4) To the find out an EUT condition procedures the maximum emission, the position of cables, EUT operations mode are checked under normal usage of EUT. Then, the emission are scanned from 0.15MHz to 30MHz relative to the limit are recorded. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031244 Page 6 of 15 3) Test Results A) Operating Mode : play FrequencyMeter reading(a)TotalResultsLimitsMargin LISN PortLoss(b)(a) + (b) [MHz][dB][dBuV][dBuV][dB] 0.18052.40.252.664.511.9 0.18548.20.248.464.315.9 0.23543.80.143.962.318.4 0.30042.80.142.960.217.3 0.36042.70.142.858.715.9 1.91533.30.233.556.022.5 1.98033.00.233.256.022.8 2.87533.40.133.556.022.5 4.43532.90.133.056.023.0 * Margin = Limits - Results B) Operating Mode : rec FrequencyMeter reading(a)TotalResultsLimitsMargin LISN PortLoss(b)(a) + (b) [MHz][dB][dBuV][dBuV][dB] 0.17042.50.242.765.022.3 0.18053.60.253.864.510.7 0.23544.90.145.062.317.3 0.29542.40.142.560.417.9 0.36043.90.144.058.714.7 0.48033.10.133.256.323.1 0.78034.40.234.656.021.4 0.84034.60.234.856.021.2 0.90034.30.234.556.021.5 1.98034.40.234.656.021.4 2.04034.40.134.556.021.5 2.10033.90.234.156.021.9 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031244 Page 7 of 15 4) Graph O play mode , LISN Mode : Live & Neutral This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031244 Page 8 of 15 O rec mode , LISN Mode : Live & Neutral This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE031244 Page 9 of 15 2.2 RADIATED EMISSION MEASUREMENT 1) Reference Rule and Specification FCC Rule Part 15, Section 15.109(a) and (c) 2) Test Procedure 2-1) Configurate the EUT System in accordance with ANSI C63.4-1992section 8 and 12.2. See also the block diagram and photographs of tested configuration for radiated emission measurement in this report. 2-2) Power cords for the EUT System are connected the receptacle on the ground plane. The output ports are connected to the cable provided with the device and the ending port of the cable are terminated in the proper impedance. 2-3) Activates the EUT system. To find out the emission of the EUT system, preliminary radiated measurement are performed at a closer distance than that specified for final radiated m…

Text truncated - open the document above for the full version.

Test Setup Photographs [FRONT] [BACK] [FRONT] [BACK]
