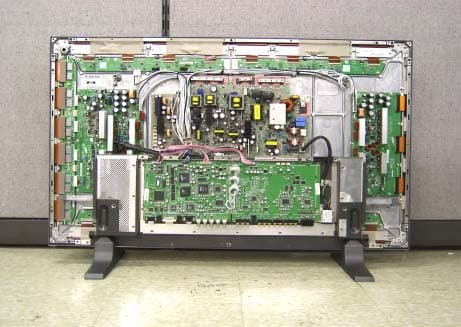

A3LPPM42H342-inch PDP Monitor

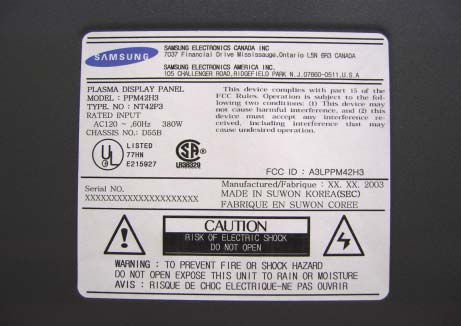

EUT Photographs [Label and Label position]

Project No. : LBE032343 Page 1 of 13 Project No. : LBE032343 Product :PDP Monitor Model No. : NT42P3 Date of test :November. 6 ~ 10, 2003 Issued Date :November. 18, 2003 Tested by: Jay Yong,PARK / Test Engineer Reviewed by: No Cheon, PARK / Manager of EMC Lab. Authorized by: Kyu Baek, CHUNG / Chief of EMC Lab. SAMSUNG ELECTRONICS Co., Ltd. EMC Test Laborator y 416 Maetan-3 Dong, Youngtong-Ku, Suwon City, Kyungki-Do, Korea,442-742 Tel. : 81-31-200-2185 Fax. : 81-31-200-2189 This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC TEST REPORT Project No. : LBE032343 Page 2 of 13 Table of Contents 1. Introduction & Summary 1.1 Description of the EUT 1.2 Test facility 1.3 Test equipment 2. Test Set-up 2.1 Test mode 2.2 Justification 2.3 Test equipment setup 2.4 Tested System Details 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure 2.7 Test Summary 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.2 RADIATED EMISSION MEASUREMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE032343 Page 3 of 13 1. Introduction & Summary 1.1 Description of the EUT Applicant Project Number Equipment Under Test Trade Name Model Number Variant Model Operating Frequency FCC ID Number Mains input 1.2 Test facility The EMI/EMS measurement facilities used to collect the tested data are located at 416 Maetan 3 Dong, Youngtong-Ku, Suwon City, Kyungki Do, Korea. The sites are constructed in conformance with the requirements of ANSI C63.4 and CISPR 16-1 & 16-2. SAMSUNG Electronics Co.,Ltd is accredited by Korea Laboratory Accreditation Scheme(KOLAS) which signed the International Laboratory Accreditation Cooperation (ILAC) Mutual Recognition Arrangement (MRA) for the above test item(s) and test method(s). Measured in Semi-anechoic chamber #1 that is FCC Registration Number 98856. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. NT42P3 SAMSUNG SAMSUNG ELECTRONICS Co., Ltd. LBE032343 PDP Monitor 60Hz A3LPPM42H3 120V - Project No. : LBE032343 Page 4 of 13 1.3 Test equipment DescriptionModelManufacturerSerial No.Applied TEST RECEIVERESI26R & S839809/002o RF RELAIS MATRIXPSUR & S861206/024o 10dB ATTENUATOR8491BAgilent58226o LISNESH3-Z5R & S847265/028o TEST SOFTWAREEP5CETOYO-o TEST RECEIVERESCS30R & S100104o SPECTRUM ANALYZERE7405AAgilentUS41110272o BI-LOG ANTENNACBL6112BSCHAFFNER2766o RF SELECTORNS4900TOYO0303-015o MAST CONTROLLERHD2000HD HD2000090202 7 o TEST SOFTWAREEP5RETOYO-o Turn TableDS412HD-N/A Antenna MastMA240HD240/620N/A Preamplifier310 SONOMA Instrument 185821o This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Project No. : LBE032343 Page 5 of 13 2. Test Set-up 2.1 Test mode The EUT was tested in the following operating modes for the tests mention in this report: Description of Testing operating mode & Tested Resolution Measured each about 2 input(PC VIDEO INPUT mode & Digital Video Interface)of EUT. Further details of cabling and configuration are shown in the test system configuration. The EUT exercise program used during radiated and conducted testing was designed to exercise the various system components in a manner similar to typical use. 2.2 Justification The system was configured for testing in typical fashion use. Cable were attached to each of the available I/O Ports. The mode of operation utilized for testing was selected to best simulate typical EUT use. 2.3 Test equipment setup The explanation of measuring equipment setup when respective function is used in any frequency band is as following: DetectorResolutionVideo functionBandwidthBandwidth Quasi-Peak9kHz- Peak100kHz1MHz Quasi-Peak120kHz- Peak1MHz1MHz This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Operating ModeResolutionsRefresh ratesColors "H" Pattern display1024x76832bits Frequency Band [MHz] Equipment Horizontal F.: 48.4kHz Vertical F. : 60Hz EMI Test receiverAbove 1000 0.15 to 30EMI Test receiver Spectrum analyzer EMI Test receiver 30 to 1000 Project No. : LBE032343 Page 6 of 13 2.4 Tested System Details 1) Configuration of EUT and peripherals MarkItemModel No.Serial No.ManufacturerRemark A PDP MonitorNT42P3 -SamsungEUT BPersonal Computer Dinension 8200000045-144-204-361 DELL- CPrinterLQ-580HCG2Y014537Epson- D PS/2 KeyboardKT7D20 TH-05N292-37171-2135-2131 DELL- EPS/2 Mouse-6167967-8DELL- FSpeaker--Samsung- 2) Used Cable Description No.ItemLength[m]Shielded(Y/N) 1PS/2 Mouse Cable1.8N 2 PS/2 Keyboard Cable 1.6N 3Video Cable(Analog)1.5Y 4Video Cable(Digital)1.5Y 5Speaker Cable1.2N 6 AC Power Cable(Monitor) 1.8N 7AC Power Cable(PC)1.8N 8 AC Power Cable(Printer) 1.8N 9Printer Cable1.5Y 10 A/V In Cable1.2N 11 S-Video In Cable1.2N 12 Component Cable1.2N This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Remark Project No. : LBE032343 Page 7 of 13 2.5 System Block Diagram of Test Configuration 2.6 Test rule and Procedure FCC Rule Part 15, Subpart B : Unintentional Radiators Test Procedure : ANSI C63.4-1992 2.7 Test Summary Result Pass Pass * N/A : Test not applicable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. RADIATED EMISSIONANSI C63.4-1992 Test itemTest Procedure AC POWERLINE CONDUCTED EMISSION ANSI C63.4-1992 E D A B C FF 1 2 3 4 5 5 6 7 8 9 10 11 12 Project No. : LBE032343 Page 8 of 13 3. Test Results 3.1 AC POWERLINE CONDUCTED EMISSION MEASUREMENT 3.1.1 Test Procedure Configurate the EUT System in accordance with ANSI C63.4-1992 section 7 and 12.2. Connect the EUT's AC line cord to the EUT port of LISN. All input terminals are terminated in the proper impedance. The output ports are connected to the cable provided with the device and the ending port…

Text truncated - open the document above for the full version.

Test Set up Photographs [AC POWERLINE CONDUCTED EMISSION MEASUREMENT] Test Set up Photographs [RADIATED EMISSION MEASUREMENT]
