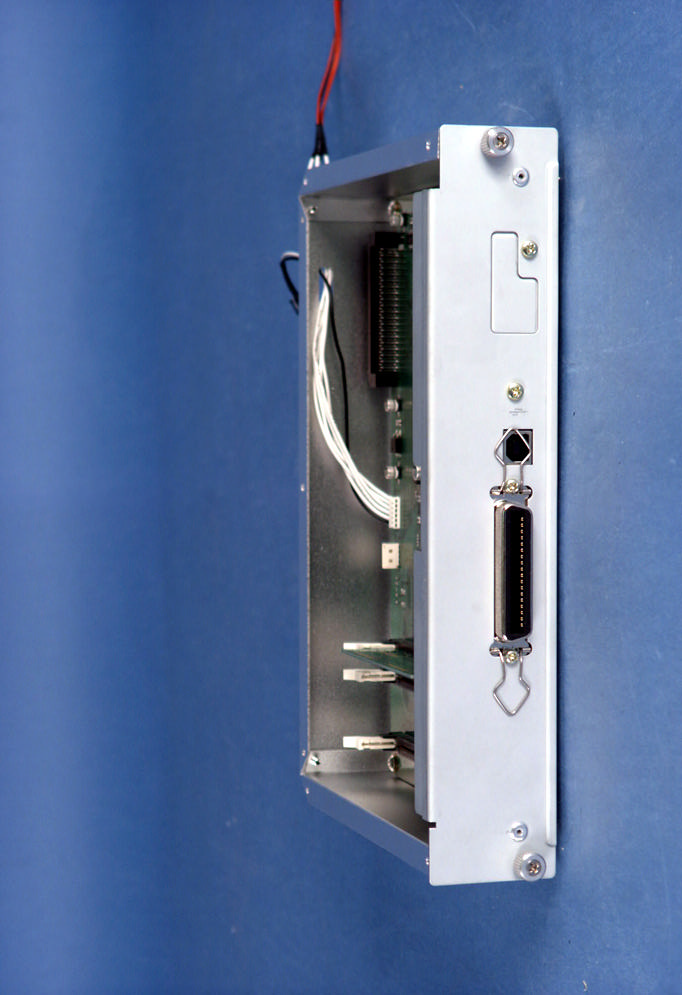

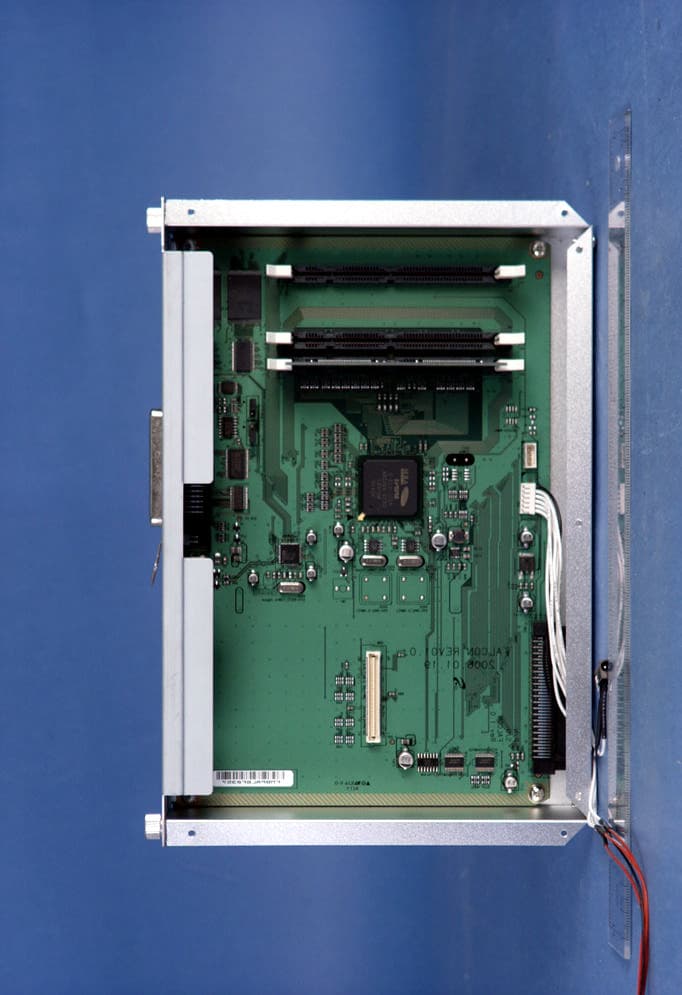

A3LPRSE0609RFID Multifunction Printer

© 2006 Samsung Electronics Co., Ltd. All rights reserved. This manual is provided for information purposes only. All information included herein is subject to change without notice. Samsung Electronics is not responsible for any direct or indirect damages, arising from or related to use of this manual. • SCX-6345N and SCX-6355N are model names of Samsung Electronics Co., Ltd. • Samsung and Samsung logo are trademarks of Samsung Electronics Co., Ltd. • Centronics is a trademark of Centronics Data Computer Corporation. • PCL and PCL 6 are trademarks of Hewlett-Packard company. • Microsoft, Windows, Windows 98, Windows Me, Windows 2000, Windows NT 4.0, Windows XP, and Windows 2003 are registered trademarks of Microsoft Corporation. • PostScript 3 is a trademark of Adobe System, Inc. • UFST® and MicroType™ are registered trademarks of Monotype Imaging Inc. • TrueType, LaserWriter and Macintosh are trademarks of Apple Computer, Inc. • All other brand or product names are trademarks of their respective companies or organizations. CONTACT SAMSUNG WORLD WIDE If you have any comments or questions regarding Samsung products, contact the Samsung customer care center. CountryCustomer Care Center Web Site ARGENTINE0800-333-3733www.samsung.com/ar AUSTRALIA1300 362 603www.samsung.com/au BELGIUM02 201 2418www.samsung.com/be BRAZIL0800-124-421www.samsung.com/br CANADA1-800-SAMSUNG (7267864) www.samsung.com/ca CHILE800-726-7864 (SAMSUNG)www.samsung.com/cl CHINA800-810-5858 010- 6475 1880 www.samsung.com.cn COSTA RICA0-800-507-7267www.samsung.com/latin CZECH REPUBLIC 844 000 844www.samsung.com/cz DENMARK38 322 887www.samsung.com/dk ECUADOR1-800-10-7267www.samsung.com/latin EL SALVADOR800-6225www.samsung.com/latin FINLAND09 693 79 554www.samsung.com/fi FRANCE08 25 08 65 65 ( 0,15/min) www.samsung.com/fr GERMANY01805 - 121213 ( 0,12/min) www.samsung.de GUATEMALA1-800-299-0013www.samsung.com/latin HONG KONG2862 6001www.samsung.com/hk HUNGARY06 40 985 985www.samsung.com/hu INDIA3030 8282 1600 1100 11 www.samsung.com/in INDONESIA0800-112-8888www.samsung.com/id ITALIA199 153 153www.samsung.com/it JAMAICA1-800-234-7267www.samsung.com/latin JAPAN0120-327-527www.samsung.com/jp LUXEMBURG02 261 03 710www.samsung.lu MALAYSIA1800-88-9999www.samsung.com/my MEXICO01-800-SAMSUNG (7267864) www.samsung.com/mx NETHERLANDS0900 20 200 88 ( 0,10/min) www.samsung.com/nl NORWAY231 627 22www.samsung.com/no PANAMA800-7267www.samsung.com/latin PHILIPPINES1800-10-SAMSUNG (7267864) www.samsung.com/ph POLAND0 801 801 881www.samsung.com/pl PORTUGAL80 8 200 128www.samsung.com/pt PUERTO RICO1-800-682-3180www.samsung.com/latin REP. DOMINICA1-800-751-2676www.samsung.com/latin RUSSIA8-800-200-0400www.samsung.ru SINGAPORE1800-SAMSUNG (7267864)www.samsung.com/sg SLOVAKIA0850 123 989www.samsung.com/sk SOUTH AFRICA0860 7267864 (SAMSUNG)www.samsung.com/za SPAIN902 10 11 30www.samsung.com/es SWEDEN08 585 367 87www.samsung.com/se TAIWAN0800-329-999www.samsung.com/tw THAILAND1800-29-3232 02-689-3232 www.samsung.com/th TRINIDAD & TOBAGO 1-800-7267-864www.samsung.com/latin U.A.E800SAMSUNG (7267864)www.samsung.com/mea U.K0870 242 0303www.samsung.com/uk U.S.A1-800-SAMSUNG (7267864) www.samsung.com UKRAINE8-800-502-0000www.samsung.com/ur VENEZUELA1-800-100-5303www.samsung.com/latin VIETNAM1 800 588 889www.samsung.com/vn CountryCustomer Care Center Web Site CONTENTS About this user’s guide ............................................................................................................................................ 1.1 Finding more information ........................................................................................................................................ 1.1 1. Introduction Special features ...................................................................................................................................................... 1.1 Machine overview ................................................................................................................................................... 1.2 Control panel overview ............................................................................................................................................ 1.3 2. Getting Started Setting up the hardware .......................................................................................................................................... 2.1 Setting up the software ........................................................................................................................................... 2.1 Setting up the network ............................................................................................................................................ 2.2 Machine's basic settings ......................................................................................................................................... 2.3 Understanding keyboard ......................................................................................................................................... 2.5 3. Loading originals and print media Loading originals ..................................................................................................................................................... 3.1 Selecting print media ............................................................................................................................................... 3.2 Loading paper ......................................................................................................................................................... 3.5 Setting the paper size and type ............................................................................................................................... 3.8 4. Copying Understanding the Copy screen .............................................................................................................................. 4.1 Copying originals .....................…

Text truncated - open the document above for the full version.

10.2 <Troubleshooting> Exit Misfeed 1Remove the remaining documents from the DADF. 2Open the document input tray upward and pull the document gently out of the DADF. 3Close the document input tray. Then place the documents back into the DADF. Roller misfeed 1Open the scanner lid. 2Seize the misfed paper, and remove the paper from the feed area by carefully pulling it to the right using both hands. 3Close the scanner lid. Then load the removed pages back into the DADF. 1 scanner lid 1 Clearing paper jams When a paper jam occurs, Paper Jam appears on the display. Refer to the table below to locate and clear the paper jam. Caution To avoid tearing the paper, pull out the jammed paper gently and slowly. Follow the instructions in the following sections to clear the jam. In the tray 1 1Pull out the paper Tray to open. After you pull it out completely, lift the front part of the Tray slightly up to release the Tray from the machine. MessageLocation of jamGo to [Paper Jam 0] Open/Close Door In the paper feed area (tray 1, optional tray 2, or multi- purpose tray) below and page 10.3, 10.4 [Paper Jam 1] Open/Close Door In the fuser area or around the toner cartridge page 10.5 [Paper Jam 2] Check Inside In the paper exit areapage 10.5 Duplex Jam Open/Close Door In the duplex unitpage 10.7 10.3 <Troubleshooting> 2Remove the jammed paper by gently pulling it straight out. Once you remove the jammed paper here, open the side cover and then close it to clear the “Paper Jam0” message on the display. If there is any resistance, and the paper does not move immediately when you pull, stop pulling. Then: 3Open the side cover. Note Do not touch the shiny drum cartridge surface. Scratches or smudges will result in poor copy quality. 4Carefully remove the misfed paper in the direction shown. 5Close the cover and insert the paper Tray. Lower the rear part of the Tray to align the rear edge with the corresponding slot of the machine, then insert it completely. In the optional tray 2 1Pull the optional tray 2 open. 2Pull the paper Tray to open. After you pull it out completely, lift the front part of the Tray slightly up to release the Tray from the machine. If the paper does not move when you pull, or if you do not see the paper in this area, stop and go to step 3. 3Pull the tray 1 half. 10.4 <Troubleshooting> 4Remove the paper in the direction shown. To avoid the paper torn, pull it out gently and slowly. If you cannot find the jammed paper, or if there is any resistance removing the paper, stop pulling and continue to step 5. 5Open the outer jam cover in tray2. 6Open the inner cover of tray2. 7Pull the jammed paper out in the direction shown. To avoid tearing the paper, pull it out gently and slowly. 8Close the two jam covers. To clear paper jam in Tray 2, follow the instructions on page 10.3. In the multi-purpose tray 10.5 <Troubleshooting> 1If the paper is not feeding properly, pull the paper out of the machine. 2Open and close the front cover to resume printing. In the fuser area or around the toner cartridge Note The fuser area is hot. Take care when removing paper from the machine. 1Open the side cover. 1Open the side cover. 2Pull down on the fuser lever as shown below. This will release pressure on the paper. If paper is not seen in this area, skip to the Exit Area. Note Do not pull paper up through the fusing unit. Unfused toner may adhere to the area, resulting in smudged copies. 3Remove the jammed paper, in the direction shown. 4Push the fuser lever up, and then close the side cover. 5Open and close the front cover to resume printing. In the paper exit area 1Open the side cover. 10.6 <Troubleshooting> 2Open the front cover. 3Turn the Jam Remove Lever in the direction of the arrow to move the paper to the exit area, then gently pull the paper out through the exit area. 4Turn the Jam Remove Lever back to the original position. 5Close the front cover n and the side cover o. Printing automatically resumes. 10.7 <Troubleshooting> In the duplex unit area If the duplex unit is not inserted correctly, paper jam may occur. Make sure that the duplex unit is inserted correctly. 1Open the side cover. 2Remove the jammed paper. 3Close the side cover. In the stacker 1Open the stacker cover. 2Push the stacker lever up. 3Remove the jammed paper. 4Pull down on the stacker lever. 5Close the stacker cover. Tips for avoiding paper jams By selecting the correct media types, most paper jams can be avoided. When a paper jam occurs, follow the steps outlined on page 10.2. • Follow the procedures on page 3.5. Ensure that the adjustable guides are positioned correctly. • Do not overload the tray. Ensure that the paper level is below the paper capacity mark on the inside wall of the tray. • Do not remove paper from the tray while your machine is printing. • Flex, fan, and straighten paper before loading. • Do not use creased, damp, or highly curled paper. • Do not mix paper types in a tray. • Use only recommended print media. See page 3.8. • Ensure that the recommended print side of print media is facing down in the tray, or facing down in the multi-purpose tray. 10.8 <Troubleshooting> Understanding display messages Messages appear on the Smart Panel program window or the control panel display to indicate the machine’s status or errors. Refer to the tables below to understand the messages’ meaning and correct the problem if necessary. Messages and their meanings are listed in alphabetical order. Note When you call for service, it is very convenient to tell the service representative the display message. MessageMeaningSuggested solutions Feed Jam at MPTPaper Misfed from multi-purpose tray Clear the jam. See page 10.4. Feed Jam at Tray 1Paper Misfed from tray Clear the jam. See page 10.2 and 10.3. Feed Jam at Tray 2 Feed Jam at Tray 3 Feed Jam at Tray 4 Registration JamPaper has jammed in the registration area Jam at FuserPaper has jammed in the fuser area. Clear the jam. See page 10.5. Jam at Tray 2Paper has jammed in the feedin…
