A3LPSWX810Active Sub Woofer

QUESTIONS OR COMMENTS? COUNTRYCALLOR VISIT US ONLINE AT WRITE IN THE US 1-800-SAMSUNG (7267864) www.samsung.com/us Samsung Electronics America, Inc. 105 Challenger Road Ridgefield Park, NJ 07660-0511 Code No. AH68-02062R(0.0) HT-X810_XAA_0303.indd 2 Digital Home Theater System user manual imagine the possibilities Thank you for purchasing this Samsung product. To receive more complete service, please register your product at www.samsung.com/global/register HT-X810 HT-X810_XAA_0303.indd 3 / PS-WX810 2 features Playback of many disc types This Home Theater System allows you to play back various discs, including DVD-AUDIO, DVD-VIDEO, CD, MP3-CD, WMA-CD, DivX, CD-R/RW, and DVD±R/RW. DVD-Audio compatible Experience the super high-quality audio performance of DVD-Audio. The on-board 24-bit/192kHz DAC enables this player to deliver exceptional sound quality in terms of dynamic range, low-level resolution and high-frequency detail. USB Host support You can connect and play files from external USB storage devices such as MP3 players, USB flash memory, etc. using the Home Theater's USB HOST function. TV Screen Saver Function If the main unit remains in Stop mode for 3 minutes, Samsung logo appears on TV screen. The HT-X810 automatically switches itself into the power saving mode after 20 minutes in the Screen Saver mode. Power Saving Function The HT-X810 automatically shuts itself off after 20 minutes in Stop mode. Customized TV Screen Display The HT-X810 allows you to select your favorite image during JPEG, DVD playback and set it as your background wallpaper. HDMI HDMI transmits DVD video and audio signals simultaneously, and provides a clearer picture. AV SYNC Function Video may lag behind the audio if the unit is connected to a digital TV. To compensate for this, you can adjust the audio delay time to sync up with the video. Anynet+(HDMI-CEC) Function Anynet+ is a function that can be used to operate the main unit using a Samsung TV remote control, by connecting the Home Theater to a SAMSUNG TV using an HDMI Cable. (This is only available with SAMSUNG TVs that support Anynet+.) Bluetooth Function You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires! Wireless Subwoofer You can hear powerful sound from the subwoofer without having to use speaker cables. WHAT’S INCLUDED Check for the supplied accessories below. Video Cable (AH39-40001V) FM Antenna (AH42-00017A) User's Manual (AH68-02062R) Remote Control (AH59-01907T) / Batteries (AAA size) (4301-000116) Bracket-Wall Mount (AH61-02574A) / Mounting Studs (2EA) (AH97-02638A) HT-X810_XAA_0303.indd 2 3 ENG safety information SAFETY WARNINGS TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER(OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and Arrowhead within Triangle Is a warning sign alerting you of dangerous voltage inside the product CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QULAIFIED SERVICE PERSONNEL. The explanation point within the triangle is a warning sign alerting you of important instructions accompanying the product. WARNING To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. If this power supply is used at 240V ac, a suitable plug adapter should be used. CAUTION Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. The Mains plug is used as a disconnect device and shall stay readily operable at any time. This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions, use shielded cables and connectors for connections. FCC NOTE (for U.S.A): This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Caution : FCC regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it. • • • • • • • • • CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. CAUTION:INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED, AVOID EXPOSURE TO BEAM. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LASER CLASE 1 HT-X810_XAA_0303.indd 3 4 safety information IMPORTANT SAFETY INSTRUCTIONS Read these operating instructions carefully before using th…

Text truncated - open the document above for the full version.

39 ENG ● PLAYBACK USING BLUETOOTH You can use a Bluetooth device to enjoy music with high quality stereo sound, all without wires! What is Bluetooth? Bluetooth is an new technology that enables Bluetooth-compliant devices to easily interconnect with each other using a short wireless connection. A Bluetooth device may cause a noise or malfunction, depending on usage. When a part of the body is in contact with the receiving/transmitting system of the Bluetooth device or the Home Theater System. Electrical variation from electrical jamming by the wall, corner or office partitioning. Electrical interference from the same frequency-band devices including medical equipment, microwave oven and wireless LAN. Pair the Home Cinema System with the Bluetooth device while maintaining a close distance. The further the distance is between Home Theater System and Bluetooth device, the worse the quality is. If the distance exceeds the Bluetooth operational range, the connection is lost. The Home Theater System only supports Middle Quality SBC data(up to 237kbps@48kHz), and does not support High Quality SBC data([email protected]). In poor reception-sensitivity areas, the Bluetooth connection may not work properly. The Home Theater System has an effective reception range of up to 33 feet in all directions if there are no obstacles. The connection will be automatically cut off if the distance is out of this range. Even within this range, the sound quality may be deteriorated by obstacles such as walls or doors. To connect the Home Theater System to a bluetooth device Check if the Bluetooth device supports the Bluetooth-compliant stereo headset function. Press the FUNCTION button on the front panel of the home theater system repeatedly until the "BT AUDIO" appears. The mode switches as follows : DVD/CD ➞ D. IN➞AUX 1➞AUX 2➞USB ➞BT AUDIO➞ TUNER You will see “WAIT” for 2 seconds and then “READY” on the front display of th me Theater System. Select the Bluetooth menu on Bluetooth device you want to connect. (refer to bluetooth device's user manual) Select a Stereo headset menu in a Bluetooth device. You will see a list of scanned devices. Select "Samsung Home Theater" from the searched list. When the Home Theater System is connected to the Bluetooth device, the Home Theater System will display "Connect" on the front display, followed by the device name of the connected Bluetooth device. The Home Theater System connection is complete. Play music on the connected device. You can listen to the music playing on the connected Bluetooth device over the home theater system. You are not required to enter a PIN code (password) when connecting the Bluetooth device to the home theater system. • • • • • • • • • 1. • • 2. 3. • 4. • • 5. • M  Connect Bluetooth Device *6:A:##AKPFF 40 playback You can disconnect the Home Theater System from the Bluetooth device. (refer to bluetooth device's user manual) The Home Theater System will be disconnected. When the Home Theater System is disconnected from the Bluetooth device, the Home Theater System will display "DISCONNECT" on the front display. Press the FUNCTION button on the front panel of the home theater system to switch from “BT AUDIO” to another mode. The bluetooth device connected will wait a certain time for response from the home theater system before terminating the connection. (Time to disconnection may differ, depending on the bluetooth device) The currently connected device will be disconnected. In Bluetooth connection mode, the Bluetooth connection will be lost if the distance between the Home Theater System and the Bluetooth device exceeds 33 feet. If the distance is returned to the effective range or you restart the Bluetooth device, the Bluetooth connection can be restored. With some bluetooth devices, some functions may not work properly. • • • • M   To disconnect the Bluetooth device from the Home Theater System To disconnect the Home Theater System from the Bluetooth device USING THE BLUETOOTH (CON'T) HT-X810_XAA_0303.indd 40 41 ENG ● PLAYBACK PLAYING MEDIA FILES USING THE USB HOST FEATURE You can enjoy media fi les such as pictures, movies and music saved on an MP3 player, USB memory stick or digital camera in high quality video by connecting the storage device to the USB port of the Home Theater. Connect the USB device to the USB port on the side of the unit. Press the FUNCTION button on the DVD Player or the PORT button on the remote control to select the USB mode. USB appears on the display screen and then disappears. The USB MENU screen appears on the TV screen and the saved fi le is played. To stop playback, press the STOP () button. Safe USB Removal To prevent damage to the memory stored in the USB device, perform safe removal before disconnecting the USB cable. Press the STOP () button twice in a row. The display will show REMOVE USB. Remove the USB cable. Skip Forward/Back During playback, press the #,$ button. When there is more than one fi le and you press the $ button, the next fi le is selected. When there is more than one fi le and you press the # button, the previous fi le is selected. 1. 2. • • 3. • • • • HT-X810_XAA_0303.indd 41 42 playback PLAYING MEDIA FILES USING THE USB HOST FEATURE (CON'T) Fast playback During playback, press the , button. Each time you press either button, the playback speed will change as follows: 2x 4x 8x 32x Normal. Compatible Devices USB devices that support USB Mass Storage v1.0. (USB devices that operate as a removable disc in Windows (2000 or later) without additional driver installation.) MP3 Player: HDD and fl ash type MP3 players. Digital camera: Cameras that support USB Mass Storage v1.0. Cameras that operate as a removable disc in Windows (2000 or later) without additional driver installation. USB HDD and USB Flash Drive: Devices that support USB2.0 or USB1.1. You may experience a difference in playback quality when you …

Text truncated - open the document above for the full version.

Date: Mar. 31, 2008 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Testing Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Testing Korea as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Steve Kim / General Manager Samsung Electronics Co., Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

If you have not received all pages, please call the direct phone number. FAX : 031-428-5859 TEL : 031-428-5744 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Samsung Electronics , would like the following documents regarding this submission for FCC ID: A3LPSWX810 to be kept confidential. 1. Schematics 2. Parts List 3. Operating description 4. Block diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Steve. Kim / General Manager Samsung Electronics Co., Ltd.

1 Lucy Tsai From:Kim, Raymond (Gunpo) [[email protected]] Sent:Wednesday, April 02, 2008 4:41 AM To:Lucy Tsai Cc:Ham, Denny (Gunpo); Loh, Grace (Gunpo); Jo, Jenny (Gunpo) Subject:RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LPSWX810, Assessment NO.: AN08T7793, Notice#2 Attachments:PS-WX810 Test Report_FCC&IC_Rev.1.pdf; PS-WX810_Block diagram_revised.pdf Dear Lucy, I'm pleased that I contact you. I'm Raymond Kim who works for SGS Korea with Ms. Jenny. Please refer to the below answer for your comments. If you have any questions, let me know. Q#1: Though you have confirmed the EUT is transceiver, however, as indicated in the operational description, TX block is HT-X810 from the main unit to send sub woofer sound data to RX module inside the speaker. Please address what the speaker will transmit to the main unit HT-X810 and provide an updated operational description to clearly show out how the EUT works or provide more information by return email. --> Basically the EUT has a 5GHz transceiver and receiving some audio signal from HT-X810, but it is also transmitting Sync and Ack signal to HT-X810. That's why we applied to you the FCC certification for the EUT. Q#2: As indicated in the block diagram, it's RX only, please provide an update block diagram to include the TX portion. --> Please find out the revised block diagram. Q#3: As indicated in test report, three planes were investigated during the test. But please explain why three planes are required for such device. --> Please find out the revised test report. Thanks and regards. Raymond Kim/ ? ? ? Wireless Division Assistant Section Chief/ ?? SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 Phone: +82 (0)31 428 5747 Mobile: +82 (0)11 9780 8727 Fax: +82 31 427 2371 E-mail : [email protected] -----Original Message----- From: Lucy Tsai [mailto:[email protected]] Sent: Wednesday, April 02, 2008 12:42 PM To: Jo, Jenny (Gunpo) 2 Cc: Ham, Denny (Gunpo); Kim, Raymond (Gunpo); Loh, Grace (Gunpo) Subject: RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LPSWX810, Assessment NO.: AN08T7793, Notice#2 Hi Jenny, Thanks for the confirmation and please address following issues. Q#1: Though you have confirmed the EUT is transceiver, however, as indicated in the operational description, TX block is HT-X810 from the main unit to send sub woofer sound data to RX module inside the speaker. Please address what the speaker will transmit to the main unit HT-X810 and provide an updated operational description to clearly show out how the EUT works or provide more information by return email. Q#2: As indicated in the block diagram, it's RX only, please provide an update block diagram to include the TX portion. Q#3: As indicated in test report, three planes were investigated during the test. But please explain why three planes are required for such device. Best Regards, Lucy -----Original Message----- From: Jo, Jenny (Gunpo) [mailto:[email protected]] Sent: Tuesday, April 01, 2008 6:58 PM To: Lucy Tsai Cc: Ham, Denny (Gunpo); Kim, Raymond (Gunpo); Loh, Grace (Gunpo) Subject: RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LPSWX810, Assessment NO.: AN08T7793, Notice#1 Dear Lucy Yes, the speaker has transmitting function. (Sync and ACK) If you have any question, please let me know. Jenny Jo / ??? SGS Testing Korea Co., Ltd. -----Original Message----- From: Lucy Tsai [mailto:[email protected]] Sent: Wednesday, April 02, 2008 12:15 AM To: Ham, Denny (Gunpo); Jo, Jenny (Gunpo) Subject: RE: SAMSUNG ELECTRONICS CO. LTD., FCC ID: A3LPSWX810, Assessment NO.: AN08T7793, Notice#1 Hi Denny and Jenny, Before starting the review, I have a question needs to be clarified in advance. According to the block diagram and operational description, this speaker should be a receiver but not a transmitter. And according to the inforamtion, the transmitter used should be the one certified under the FCC ID:A3LHTX810. Please double check whether this speaker also has transmitting function 3 and confirm by return. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm Information in this email and any attachments is confidential and intended solely for the use of the individual(s) to whom it is addressed or otherwise directed. Please note that any views or opinions presented in this email are solely those of the author and do not necessarily represent those of the Company. Finally, the recipient should check this email and any attachments for the presence of viruses. The Company accepts no liability for any damage caused by any virus transmitted by this email. All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/terms_and_conditions.htm

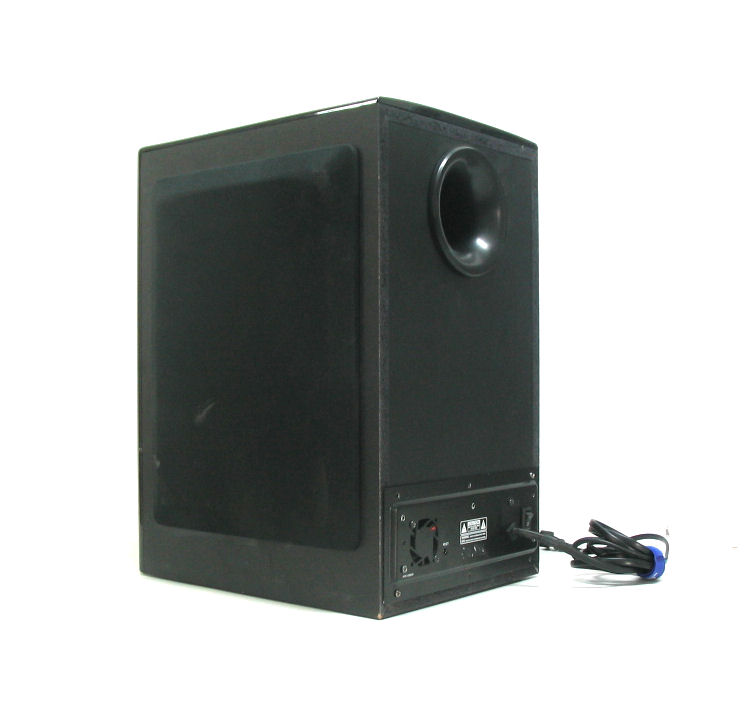

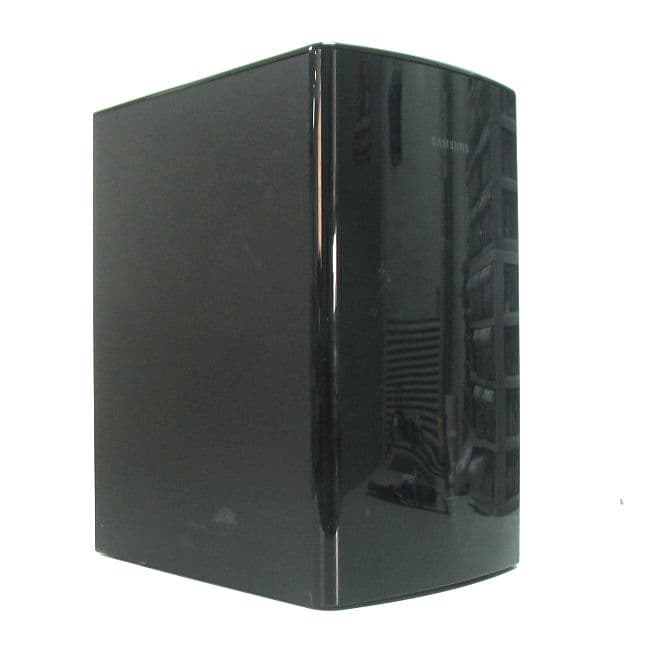

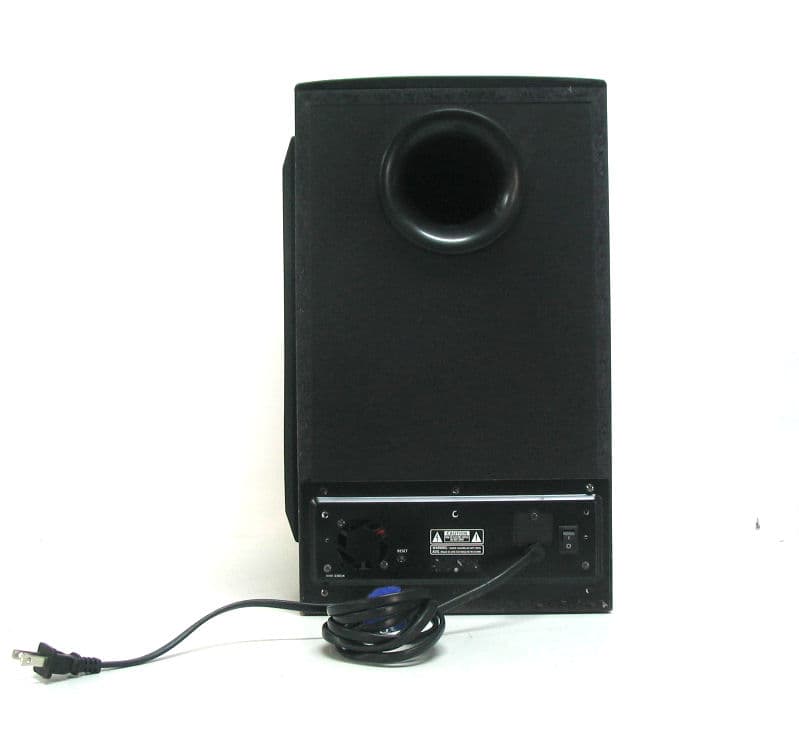

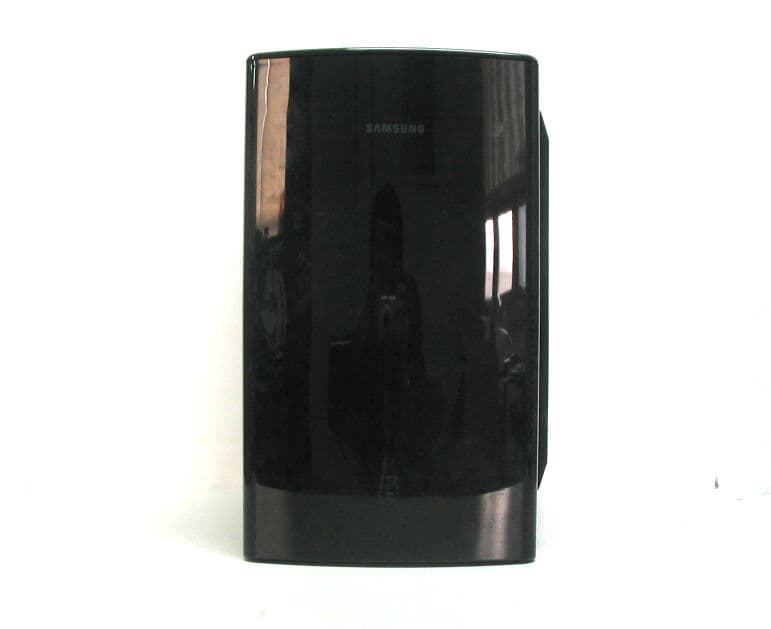

FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 44 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Appendix B. Photos of the EUT Front View of EUT Rear View of EUT FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 45 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Right View of EUT Left View of EUT

FCC/IC ID Label 1. FCC/IC ID label drawing & location 2. FCC ID label location FCC ID:A3LPSWX810 IC:649E-PSWX810

FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 46 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Inner of EUT Top View of Digital AMP FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 47 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of Digital AMP Top View of SMPS FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 48 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Bottom View of SMPS Top View of RF module FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 49 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com Top View of RF module (Opened) Bottom View of RF module

FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 1 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com TEST REPORT of FCC Part 15 Subpart B&C §15.247/RSS-210 Issue 7, RSS-Gen Issue 2 FCC ID/IC Certification: A3LPSWX810/649E-PSWX810 Equipment Under Test :Active Sub Woofer Model Name :PS-WX810 Serial No. :N/A Applicant :SAMSUNG ELECTRONICS CO., LTD. Manufacturer : SHENZHEN KWANG SUNG ELECTRONICS CO., LTD. Date of Test(s) :2008-03-10 ~ 2008-03-17 Date of Issue :2008-03-17 In the configuration tested, the EUT complied with the standards specified above. Te s t e d B y : Date 2008-03-17 Geoffrey Do Approved By Date 2008-03-17 Jim Kim FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 2 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com INDEX TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Transmitter AC Power Line Conducted Emission----------------------------------- 6 3. Receiver AC Power Line Conducted Emission---------------------------------------- 11 4. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission--------- 15 5. Receiver Radiated Spurious Emission-------------------------------------------------- 27 6. 6 dB Bandwidth and 99 % BW---------------------------------------------------------- 29 7. Maximum Peak Output Power ---------------------------------------------------------- 33 8. Power Spectral Density ------------------------------------------------------------------- 36 9. Antenna Requirement -------------------------------------------------------------------- 39 10.RF Exposure Evaluation ----------------------------------------------------------------- 40 Appendix A-1. Photo of Spurious Emission Test Appendix A -2. Photos of Conducted Power Line Test Appendix B. Photos of the EUT FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 3 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1. General Information 1.1. Testing Laboratory SGS Testing Korea Co., Ltd. Wireless Div. 2FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 www.electrolab.kr.sgs.com Telephone : +82 +31 428 5700 FAX : +82 +31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS CO., LTD. Address : 416, Maetan-3dong, Yeongtong-gu, Suwan-city, Gyeonggi-do, Korea Contact Person : Owon Seo Phone No. : +82 +31 277 6775 Fax No. : +82 +31 277 4008 1.3. Description of EUT Kind of Product Active Sub Woofer Model Name PS-WX810 Serial Number N/A Power Supply AC 110 V Frequency Range 5745~5805 MHz Modulation Technique DSSS Number of Channels 4 ch. Operating Conditions 5~35 °C Antenna Type PIFA Antenna Antenna Gain -1.87 dBi 1.4. Details of modification -N/A FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 4 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.electrolab.kr.sgs.com 1.5. Test Equipment List EQUIPMENT MANUFACTURER MODEL CAL DUE. Signal Generator Agilent E4438C May 2008 Spectrum Analyzer R&S FPS40 Dec. 2008 Spectrum Analyzer Agilent E440A May 2008 Pre amplifier Agilent 8449B May 2008 High Pass Filter Wainwright Instrument GmbH WHK 6.0 /18.G-10SS Dec. 2008 Attenuator Agilent 8494B May 2008 Two-Line V-Network Rohde & Schwarz ESHS10 Aug. 2008 Test Receiver Rohde & Schwarz ESVS10 May 2008 Test Receiver Rohde & Schwarz ESHS10 Aug. 2008 Ultra-Broadband Antenna Rohde & Schwarz HL562 Oct. 2009 Horn Antenna Electro-Metrics RGA-60 Jul. 2008 Horn Antenna Schwarzbeck Mess-Elektronik BBHA9170 May. 2008 Anechoic Chamber SY Corporation L xWxH 6.5x3.5x3.5 Aug. 2008 FCC ID : A3LPSWX810 Report File No. : F690501/RF-RTL001452 Page : 5 of 49 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 570…

Text truncated - open the document above for the full version.
