A3LRDRVX500Video Cassette Recorder/ DVD Recorder

6-1 6. Block Diagram 4MB FLASH K8D3216UBM (8bit) 8MB(x2) SDRAM (32bit) DVD-Rewritable Drive ND-2500A/REC VCR DECK SUPER IN LINE1 IN(REAR) LINE2 IN(FRONT) DV IN EEPROM 24LC32 (I2C) TM BLOCK RF RF Out VHF/UHF CVBS L/R from Tuner MTS IC (LA72670) MUX SV1274 7 to 4 Video Mux SW 6 to 4 Audio Mux SW 2CH DECODER CS98202 ENCODER CS92686 6CH AMP LA73054 VIDEO DECORDER TVP5146 AUDIO ADC CS5340 AUDIO DAC CS4391 IEEE1394PHY (TSB41AB1) VCR MICOM MN 101D10F AV I-CHIP LA71207 HI-FI LA72670 2MB(x4) SDRAM (64bit) Front Panel VFD DRIVE, KEY CONTROL PT6315 Key Input Remocon COAXIAL OPTICAL SIF SUPER OUT DIGITAL AUDIO OUT VCR V IN DVD V IN Y/C NIX IN Y Pb Pr VIDEO L R L R IEC958 Block Diagram6-2 MEMO

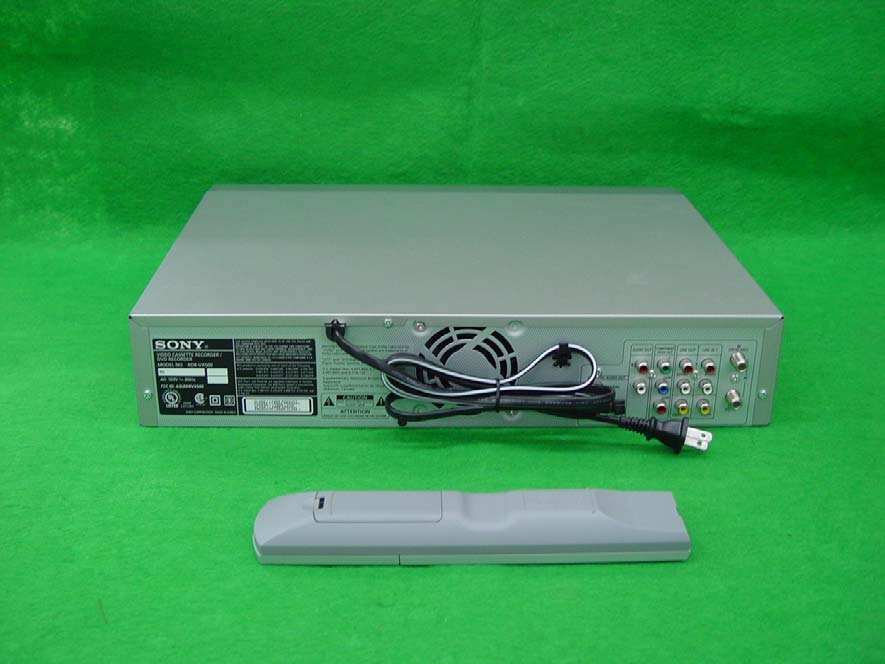

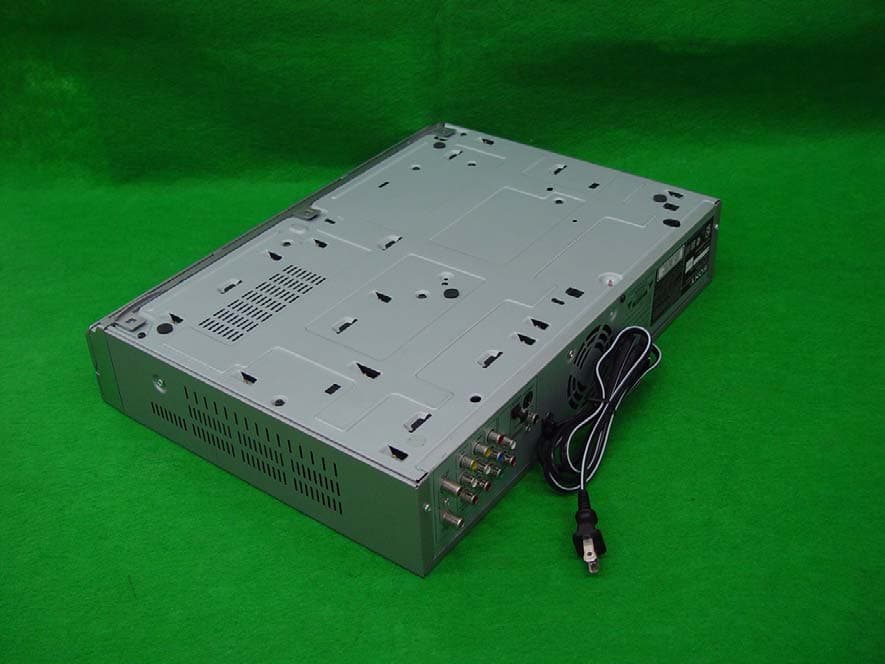

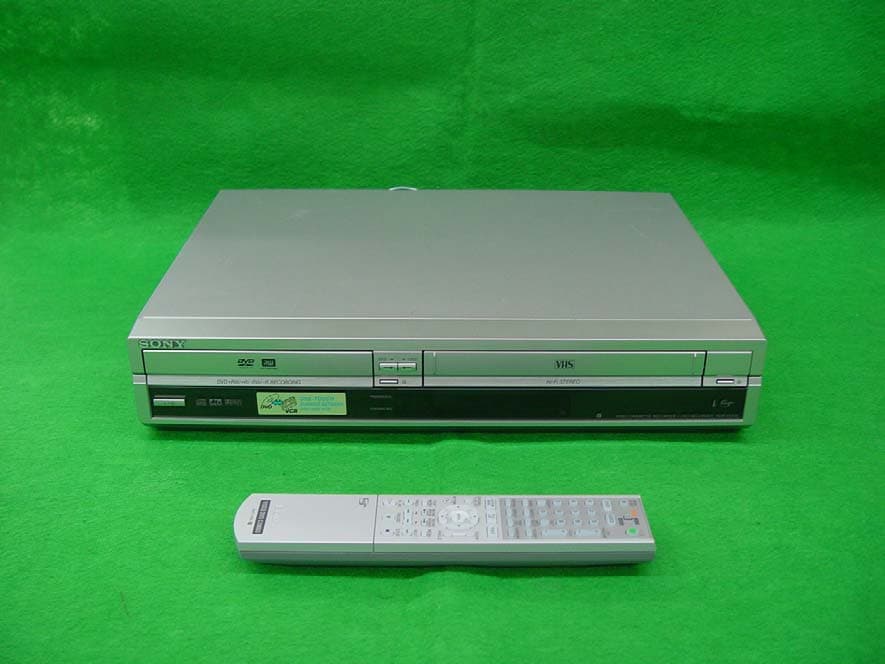

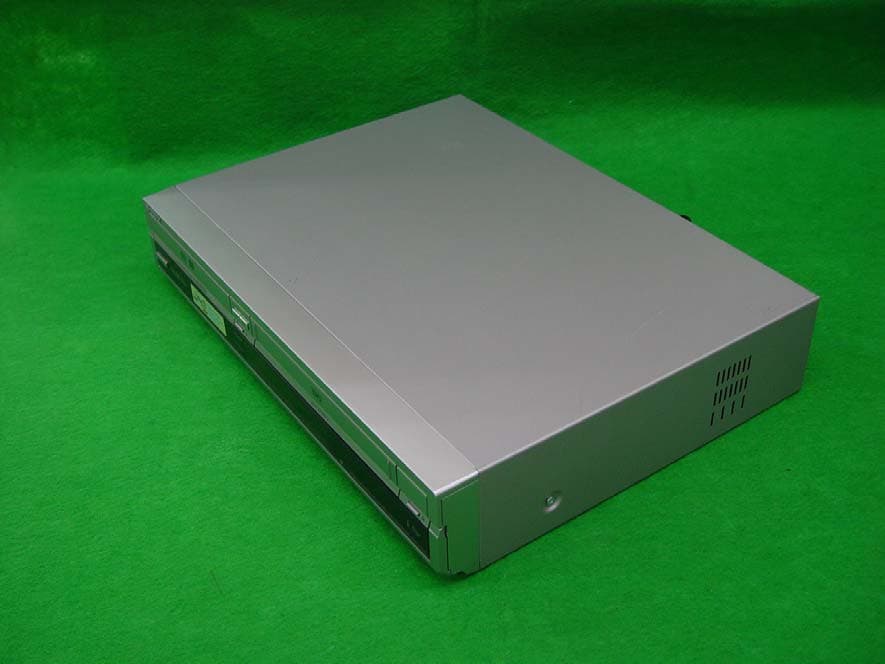

Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Fro nt View Rear View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top / Side View Bottom / Side View

Labeling requirement FCC IDENTIFICATION & STATEMENT Location: on the label rating Location: on the label rating THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES AND THE CANADIAN ICES-003. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED FCC ID: A3LRDRVX500

Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Front View – Front/Top cover open Top View – Front/Top cover open Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top of Main PCB View Bottom of Main PCB View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top of DVD PCB 1 View Bottom of DVD PCB 1 View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top of DVD PCB 2 View Bottom of DVD PCB 2 View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top of Front PCB View Bottom of Front PCB View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Top of DVD Deck Mechanism View Bottom of DVD Deck Mechanism View Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Shielding 1 Shielding 2 Photograph of RDR-VX500 - FCC ID : A3LRDRVX500 Shielding 3 Shielding 4 Photograph of TM-BLOCK TM-BLOCK TYPE: TCMN0682PA20A To p V i e w Bottom View

Si MHz signallevel KHz beat level / . = 358 920 Si MHz signallevel MHz beat level / . . = 358 45

Page : 1 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. EMC Test Report According to FCC Part 15 Subpart B Project No. LBE041723 Equipment under Test Address 416 Maetan3-Dong,Yeongtong-Gu,Suwon-City,Gyeonggi-Do, Korea,443-742 Product Name DVD Recorder / Video Cassette Recorder Model Name RDR-VX500 Manufacturer SAMSUNG Brand Name SONY Broadcasting System NTSC-M Variant Model See Page 3 Date of Test August 24 ~ 27, 2004 Issued Date August 30, 2004 Name/Position Signature Tested by Tae Young JANG Test Engineer Reviewed by No Cheon, Park Manager of EMC Lab. Authorized by Kyu Baek, Chung Chief of EMC Lab. 1. This test reports does not constitute an endorsement by NIST/NVLAP or U.S Government. 2. This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. This laboratory is registered by the NIST/NVLAP, U.S.A. The test reported herein have been performed in accordance with its terms of registration. NVLAP LAB CODE 200623-0 Page : 2 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Table of Contents 1. General Information 1.1 Basic Information related Product 1.2 Detail Information related Product 1.3 Test Configuration 1.4 EUT Operating Conditions 1.5 Applied Standard 1.6 Test Facility 2. Summary of Test Results 3. Description of individual tests 3. 1 Conducted Emission 3. 2 Radiated Emission 3. 3 Output Signal Level 3. 4 Output Terminal Conducted Spurious Emission 3. 5 Ant. Transfer Switch 4. Appendix A 4.1 Test Photography 4.2 EUT Photography Page : 3 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1. General Information 1.1 Basic Information related Product Applicant Samsung Electronics Co. Ltd; Model name RDR-VX500 Applicant Address Samsung Electronics Co. Ltd; 416 Maetan3- Dong, Yeongtong-Gu, Suwon-City, Gyeonggi-Do, Korea, 443-742 Contact Person WOOSUNG CHO Kind of product DVD Recorder / Video Cassette Recorder Valiant list None Manufacturer Samsung Electronics Co.Ltd; Page : 4 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.2 Detail Information related Product Specification Gerneral Power Requirment 120V AC, 60Hz Power Consumption 42Watts Weight 5.6 kg Dimensions 430mm(W)*321mm(D)*84mm(H) Input Video(1,2,3) 1.0V p-p at 75ohm load, sync negative S-Vedio input(Y:1.0V p-p,C:0.286V p-p at 75 ohm load) Max. Audio Inout Level 2 Vrms DV Input IEEE 1394(4p) compatible jack Receivable Channels Regular TV broadcasting : VHF(2~13),UHF(14~60) Cable TV broadcasting : 1 ~125 Output Audio Audio input jacks 1,2 Optical/Coaxial digital audio output support Min 100dB signal-to-noise ratio Max. 0.005% total harmonic distortion(T.H.D) at average 1kHz Video Video input jacks 1,2 S-video output 1,2(Y:1.0V p-p,C:0.286Vp-p, at 75 ohm load) Component output(Y:1.0Vp-p,Pb:0.70Vp-p, Pr:0.70Vp-p at 75 ohm load) DVD Picture Compression format MPEG-II Audio Compression format Dolby AC-3 256kbps Recording Quality LP(2 Mbps), SP(4 Mbps), XP(8 Mbps) Video S/N Ratio Min. 50dB at standard recording Audio S/N Ratio Min. 75dB Audio frequency characteristics20Hz ~ 20kHz Page : 5 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.3 Operating Mode and Condition The EUT was tested in the following operating modes(at both channel 3 and 4) for the tests mention in this report : 1) DVD Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.69(801.25MHz) through the ant. Input connector 2) DVD Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 3) DVD Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 4) DVD Play In this test mode, a DVD recorded with NTSC signal was played on the EUT. 5) DVD Copy mode In this test mode, a video tape recorded with NTSC signal copy to DVD disc. 6) VCR Recording ( NTSC Signal ) A NTSC signal(Color bar) was supplied at ch.5(77.25MHz) through the ant. Input connector 7) VCR Recording ( 1V VITS Signal ) A 1V peak-to-peak VITS signal was supplied through the video input connector for recording. 8) VCR Recording ( 5V VITS Signal ) A 5V peak-to-peak VITS signal was supplied through the video input connector for recording. 9) VCR Play In this test mode, a video tape recorded with VITS signal was played on the EUT. 10) VCR Copy mode Note: The NTSC TV signal input record mode is not applicable to the antenna transfer switch test. 1.4 Equipment Modifications No equipment modifications were required. Page : 6 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 1.5 Test Configuration Used EUT and Peripherals Seq Device Model Name Serial # Maker Note A DVD Combo RDR-VX500 - SAMSUNG EUT B Remote Controller - - SAMSUNG EUT Used Cable Description Connect Cable Length [m] Shielded [Y/N]Remark 1 AC Power Cable 1.5 N to the mains 2 AV In Cable 1.2 N Terminated video : 75 ohm Audio In : 1k ohm 3 AV Out Cable 1.2 N Terminated video : 75 ohm Audio In : 10k ohm 4 Front AV In Cable 1.2 N Terminated video : 75 ohm Audio In…

Text truncated - open the document above for the full version.

Page : 74 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. 4. Appendix A 4.1 Test Photography Picture 1. Conducted Emission (Front) Picture 2. Radiated Emission (Front) Page : 75 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 3. Radiated Emission (Rear) Picture 4. Output Signal Level Page : 76 of 77 Samsung EMC Testing and Certification Laboratory Project NO. :LBE041723 This report shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. Picture 5. Output Terminal Conducted Spurious Emission Picture 6. Ant. Transfer Switch
