A3LRMCBNFBluetooth Remote Control

| 2 English Safety Information WARNING • To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. • To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the power plug must be easily and readily accessible at all times. • Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on the apparatus. FCC NOTES (for U.S.A) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on. If interference is present, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect this equipment to an outlet on a circuit that the receiver is not connected to. • Consult the dealer or an experienced radio/TV technician for help. This class B digital product meets all requirements of the Canadian Interference - Causing Equipment Regulations. Warning TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lighting flash and arrowhead within the triangle are warning signs alerting you to dangerous voltage inside the product. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The exclamation point within the triangle is a warning sign alerting you to important instructions accompanying the product. CLASS 1 LASER PRODUCT This Compact Disc player is classified as a CLASS 1 LASER product. Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Complies with 21CFR 1040.10 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007. DANGER : • VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE TO BEAM. (FDA 21 CFR) CAUTION : • CLASS 3B VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO THE BEAM (IEC 60825-1) • THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL. CLASS 1 LASER PRODUCT KLASSE 1 LASER PRODUKT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT PRODUCTO LÁSER CLASE 1 English 13 | 02 Getting Started Remote Control To pair NFC (Near Field Communication) devices with your Home Theater, you must first pair the remote control with the Home Theater. See page 39. Pairing occurs automatically when you press any button on the remote after turning on the Home Theater for the first time. Tour of the Remote Control Tag the on the back of the remote control to use the NFC function. (See page 39) FUNCTION DISC MENUTITLE MENU MUTE TV SOUND FULL SCREENREPEAT TOOLS RETURN EXIT INFO MO/ST 3D SOUND SOUND S/W LEVEL MANUAL 1 2 3 4 56 7 8 0 9 POPUP RECEIVER SLEEP BDTV TUNER MEMORY SUBTITLE SMARTSEARCH HOME ABCD EFFECTPRESET HUB VOL TUNING / CH TV SOURCE AUDIO Press to apply sound effects. Turn the product on and off. To change to Home Theater mode and control the Home Theater, press the BD button. Press numeric buttons to operate options. Press to skip backwards or forwards. Adjust the volume. Cut off the sound temporarily. Press to see the full screen on a TV. Press to move to the Home screen. Select on-screen menu items and change menu values. Return to the previous menu. These buttons are used both for menus on the product and also several Blu-ray Disc functions. Press to view the disc menu. Press to use the Tools menu. Press to use Smart Hub. Selects the disc Audio language. To change to Television mode and control the TV, press the TV button. Press to stop/play a disc. Press to search contents. Press to select MANUAL/ PRESET in the Tuner function. Set a Sleep time to shut off the product. Press to select the home theater's mode (HDMI, AUX, BD/DVD, etc.). or Press to select TV's video mode. Select MONO or STEREO for radio broadcasts. Press to search backwards or forwards. Press to pause a disc. Search for active FM stations and to change channels. Press to output the audio signal to the home theater speakers or the TV speaker. (See page 42) Use to enter the Popup menu/Title menu. Press to exit the menu. Use to display the playback information when playing a Blu-ray/DVD disc. Use to set a preset radio frequency. Allows you to repeat a title, chapter, track or disc. Use to adjust the level of the subwoofer. Selects the disc subtitle language. Press to apply the 3D sound effect. Press to open and close the disc tray. | 14 English Getting Started Installing batteries in the Remote Control Battery size: AAA 21 | NOTES |  Make sure to match the “+” and “–” ends of the batteries with the diagram inside the compartment.  Assuming typical TV usage, the batteries last for about one year.  The remote control can be used up to approximately 23 feet (7 meters) from the product in a straight line. Setting up the Remote Control You can control certain functions of your TV with this remote control. To operate a TV with the Remote Control 1. Press the TV button to set the remote control to TV mode. 2. Turn on your TV. 3. While holding down the POWER button, enter the code corresponding to your brand of TV. • If the…

Text truncated - open the document above for the full version.

129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do,443-742, Republic of Korea Date: June 16, 2013 UL Verification Services Inc. Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, (Type name of signer : Sang Kyung Ra(Peter)) (Title of signer: General Manager) (Applicant name : Samsung Electronics Co., LTD.) (Date : 2013-06-27)

129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do,443-742, Republic of Korea Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: A3LRMCBNF To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Parts List Tune-Up Procedure Antenna specification Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the commission to grant short-term confidentiality request on the following attachments for 180 days. External Photos Internal Photos Test Setup Photos User Manual It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards (Type name of signer : Sang Kyung Ra(Peter)) (Title of signer: General Manager) (Applicant name : Samsung Electronics Co., LTD.) (Date : 2013-06-27)

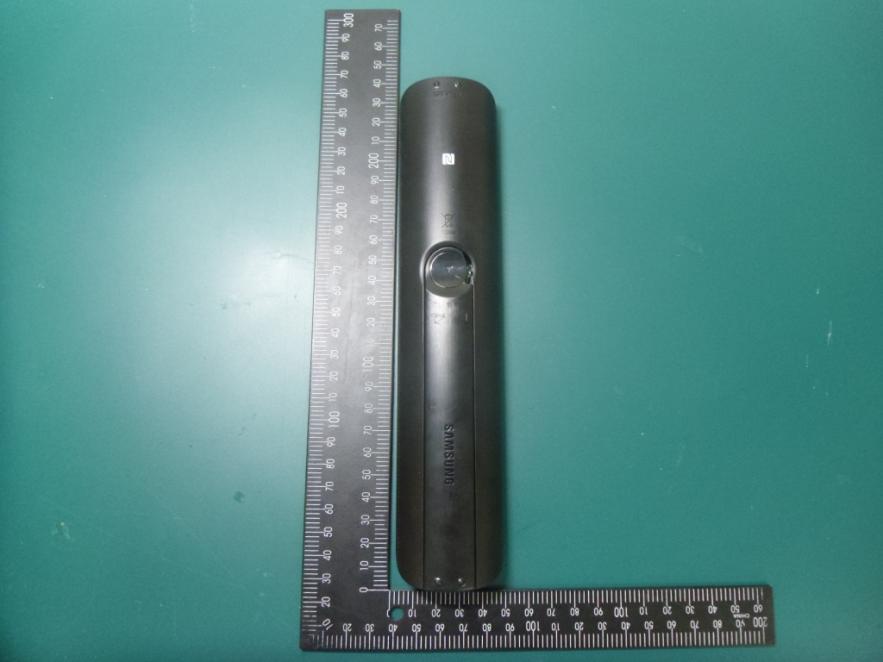

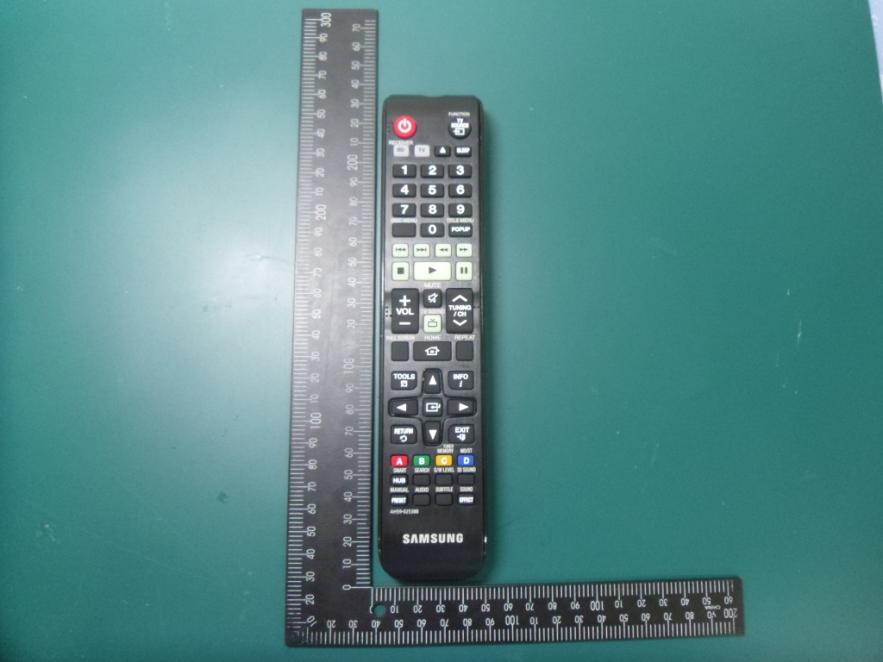

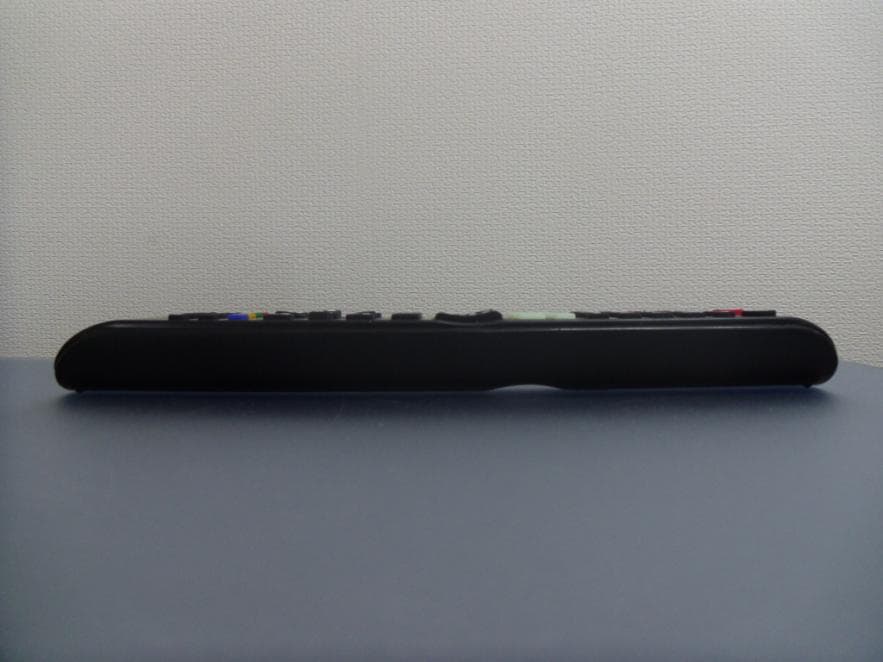

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

iiii

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Bluetooth Antenna Top view of Sub PCB Bottom view of Sub PCB

FCC ID : A3LRMCBNF According to KDB 447498 D01 General RF Exposure Guidance v05, section 4.3.1 At 100 ㎒ to 6 ㎓ and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following a) [(max. power of channel, including tune-up tolerance, ㎽) / (min. test separation distance, mm)] x [√f (GHz) ] ≤ 3.0 1. SAR test exclusion threshold Frequency : 2 480 ㎒ (min. separation distances = 5 mm) SAR test exclusion thresholds(5 mm) = (3 x 5) / √ 2.480 = 9.53 ㎽ Max. conducted power(㎽) SAR Test Exclusion Thresholds(5 mm) (㎽) 3.508 9.53 Calculation value : 3.508(㎽) / 5(mm) x √ 2.480 = 1.10 So, Calculation value ≤ 3.0 2. Conclusion : No SAR is required.

Report Number: F690501/RF-RTL006608 Page: 2 of 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX Table of Contents Page 1. General Information --------------------------------------------------------------------------------- 3 2. Transmitter Radiated Spurious Emissions and Conducted Spurious Emission ------ 7 3. 20㏈ Bandwidth and 99% BW ------------------------------------------------------------------- 30 4. Maximum Peak Output Power ------------------------------------------------------------------- 41 5. Hopping Channel Separation --------------------------------------------------------------------- 43 6. Number of Hopping Frequency ------------------------------------------------------------------ 46 7. Time of Occupancy(Dwell Time) ----------------------------------------------------------------- 50 8. Antenna Requirement ------------------------------------------------------------------------------ 64 Report Number: F690501/RF-RTL006608 Page: 3 of 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Giheoung Laboratory) - 400-2, Gomae-dong, Giheoung-gu, Yongin-si, Gyeonggi-do, Korea, 446-901 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : SAMSUNG ELECTRONICS Co., Ltd. Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 443-742 Republic of Korea Contact Person : Lee, Jae-Woo Phone No. : +82 10 5691 9410 1.3. Description of EUT Kind of Product Bluetooth Remote Control Model Name RMCBNF1AP1 Serial Number N/A Power Supply DC 3 V Frequency Range 2 402 ㎒ ~ 2 480 ㎒ Modulation Technique GFSK, π/4DQPSK, 8DPSK Number of Channels 79 Antenna Type Internal type Antenna Gain 3.5 ㏈i 1.4. Declaration by the manufacturer - Adaptive Frequency Hopping is supported and use at least 20 channels - The EUT does not do anything at charging mode. Therefore, AC conducted emission test is not necessary (Bluetooth Remote Control) Report Number: F690501/RF-RTL006608 Page: 4 of 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Information about the FHSS characteristics: 1.5.1. Pseudorandom Frequency Hopping Sequence The channel is represented by a pseudo-random hopping sequence hopping through the 79 RF channels. The hopping sequence is unique for the piconet and is determined by the Bluetooth device address of the master; the phase in the hopping sequence is determined by the Bluetooth clock of the master. The channel is divided into time slots where each slot corresponds to an RF hop frequency. Consecutive hops correspond to different RF hop frequencies. The nominal hop rate is 1 600 hops/s. 1.5.2. Equal Hopping Frequency Use All Bluetooth units participating in the piconet are time and hop-synchronized to the channel. 1.5.3. System Receiver Input Bandwidth Each channel bandwidth is 1㎒ 1.5.4. Equipment Description 15.247(a)(1) that the rx input bandwidths shift frequencies in synchronization with the transmitted 15.247(g): In accordance with the Bluetooth Industry Standard, the system is designed to comply with all of the regulations in Section 15.247 when the transmitter is presented with a continuous data (or information) system. 15.247(h): In accordance with the Bluetooth Industry Standard, the system does not coordinate it channels selection/ hopping sequence with other frequency hopping systems for the express purpose of avoiding the simultaneous occupancy of individual hopping frequencies by multiple transmitters. Report Number: F690501/RF-RTL006608 Page: 5 of 64 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 08, 2013 Annual Jan. 08, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Band Rejection Filter Wainwright WRCT2402/2480- 2400/2483.5-30/20SS 22 Jul. 31, 2012 Annual Jul. 31, 2013 High Pass Filter Wainwright WHK3.0/18G-6SS 4 Aug. 01, 2012 Annual Aug. 01, 2013 High Pass Filter Wainwright WHK7.5/26.5G-6SS N/A Jul. 12, 2012 Annual Jul. 12, 2013 Low Pass Filter Mini circuits NLP-1200+ V9500401023-1 Aug. 01, 2012 Annual Aug. 01, 2013 Power Sensor R&S NRP-Z81 101421 Mar. 26, 2013 Annual Mar. 26, 2014 DC Power Supply Agilent U8002A MY48490027 Jan. 08, 2013 Annual Jan. 08, 2014 Preamplifier H.P. 8447D 1726A01265 Sep.17, 2012 Annual Sep.17, 2013 Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Jul. 12, 2012 Annual Jul. 12, 2013 Preamplifier MITEQ Inc. AFS42-00101800-25-S 900699 Jul. 07, 2012 Annual Jul. 07, 20…

Text truncated - open the document above for the full version.

Test setup photos of EUT A. Photo of Field Strength & Spurious Emission Test for Bluetooth
