A3LRMCSPA1EP1Smart Control

ButtonDescription (Power) Press to turn the TV on or off. (Voice Assistant) Runs Voice Assistant. Press and hold the button, say a command, and then release the button to run Voice Assistant. •The supported Voice Assistant's languages and features may differ by geographical region. [Keep the remote more than 0.6 inches (15.24 mm) from your face when using and speaking to Voice Assistant through the mic on the remote. (Color - Number button) Each time you press this button, the colored buttons window and the virtual numeric pad are displayed alternately. •Use this button to access additional options that are specific to the feature in use. •Press to bring up the virtual numeric pad on the screen. Use the numeric keypad to enter numeric values. Select numbers and then select Done to enter a numeric value. Use to change the channel, enter a PIN, enter a ZIP code, etc. (Multi View) Press the button to display the Multi View screen. 1 Directional button (up, down, left, right) Use to navigate the menu or move the focus to highlight items on the Home Screen. 2 Select Selects or runs a focused item. When pressed while you are watching a broadcast program, detailed program information appears. (Return) Press to return to the previous menu. When pressed for 1 second or more, the running function is terminated. When pressed while you are watching a program, the previous channel appears. (Smart Hub) Press to return to the Home Screen. (Play/pause) When pressed, the playback controls appear. Using these controls, you can control the media content that is playing. (Volume) Move the button up or down to adjust the volume. To mute the sound, press the button. (Channel) Move the button up or down to change the channel. To see the Guide screen, press the button. Press and hold the button up or down to quickly change the channel. 3 (Launch app button) Launch the app indicated by the button. + (Pairing) If the Samsung Smart Remote does not pair to the TV automatically, point it at the front of the TV, and then press and hold the and buttons simultaneously for 3 seconds or more. –Use the Samsung Smart Remote less than 20 feet (6 m) from the TV. The usable distance may vary with the wireless environmental conditions. –The images, buttons, and functions of the Samsung Smart Remote may differ with the model or geographical area. –The Universal Remote function operates normally only when you use the Samsung Smart Remote that comes with the TV. About the Buttons on the Samsung Smart Remote 3 2 1 The Accessibility Shortcuts button on your remote provides easy access to the accessibility functions on your TV. For more information, refer to the next page. Press and hold the Volume button to display the Accessibility Shortcuts menu. ENG BN68-******-X0 Using Accessibility Functions (may differ with model) Accessing your TV's accessibility functions The Accessibility Shortcuts button on your remote provides easy access to the accessibility functions on your TV. •Press and hold the Volume button to display the Accessibility Shortcuts menu. Voice Guide Settings You can activate voice guides that describe the menu options aloud to aid the visually impaired. To activate this function, set Voice Guide to On. With Voice Guide on, the TV provides voice guides for channel change, volume adjust, information on current and upcoming programs, schedule viewing, other TV functions, various content in the Web Browser, and in Search. •You can configure the volume, speed, pitch, and level of the Voice Guide. •The Voice Guide is provided in the language that is specified on the Language screen. English is always supported. However, some languages are not supported by Voice Guide even though they are listed in the Language screen. TV Background Volume By default, the volume of the broadcast content is set to be low so that you can hear the voice guide clearly. When the content volume is too low while the voice guide is coming out, you can adjust the content volume. Picture Off Turn off the TV screen and provide only sound to reduce overall power consumption. When you press any button on the remote control with the screen off, the TV screen is returned to on. Video Description You can activate an audio guide that provides an audio description of video scenes for the visually impaired. This function is only available with broadcasts that provide this service. High Contrast You can change major service screens to white text on a black background or change the transparent TV menus to opaque so that text can be more easily read. To activate this function, set High Contrast to On. Grayscale You can change the color of the TV screen to a black and white tone to sharpen blurred edges caused by colors. •If Grayscale is on, some Accessibility menus are not available. •This function may not be supported depending on the model or geographical area. Color Inversion You can invert the colors of the text and background for the setting menus displayed on the TV screen to make it easier to read them. •If Color Inversion is on, some Accessibility menus are not available. •This function may not be supported depending on the model or geographical area. Enlarge You can enlarge the size of the font on the screen. To activate, set Enlarge to On. Learn TV Remote This function helps individuals with a visual impairment to learn the positions of the buttons on the remote control. When this function is activated, you can press a button on the remote control and the TV will tell you its name. Press the RETURN button twice to exit Learn TV Remote. •This function is only available when Voice Guide is enabled. Learn Menu Screen Learn the menus on the TV screen. Once enabled, your TV will tell you the structure and features of the menus you select. •This function is only available when Voice Guide is enabled. Caption Settings Set Caption to On to watch programs with the captions displayed. •Captions are not displayed by programs that do not support captions. •This fu…

Text truncated - open the document above for the full version.

Rev 11/20/07 19 Chapin Rd, Building D. Pine Brook, New Jersey Tel No : 973-808-6375 Fax No : - Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: A3LRMCSPA1EP1 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Parts List Operational description (RMCSPA1EP1)_Block Diagram.pdf (RMCSPA1EP1)_Schematics.pdf (RMCSPA1EP1)_Schematics PCB Layout.pdf (RMCSPA1EP1)_Part List.pdf (RMCSPA1EP1) _Operational Description.pdf (RMCSPA1EP1)_Antenna Specification Operational Description.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Sincerely, HanSung You / Staff Engineer Samsung Electronics Co., Ltd.

19 Chapin Rd, Building D. Pine Brook, New Jersey Tel No : 973-808-6375 Fax No : - Special Power of Attorney I, HanSung You of Samsung Electronics Co., Ltd. hereby authorize appoint Gwan-yong Kim of CTK Co., Ltd. to represent me to act on my behalf to do any and all of the following : Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The right, powers and authority in fact to exercise any and all of the rights and powers herein granted shell commence and be in full force from 2020/11/12 and continue to effective unless specifically terminated by either party. Applicant : Samsung Electronics Co., Ltd. FCC ID : A3LRMCSPA1EP1 Dated 2020/11/12 Sincerely, HanSung You / Staff Engineer Samsung Electronics Co., Ltd.

19 Chapin Rd, Building D. Pine Brook, New Jersey Tel No : 973-808-6375 Fax No : - MODEL ATTESTATION COVER LETTER Date: 2020-11-12 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. FCC ID: A3LRMCSPA1EP1 Product/ Model Number : Smart Control / RMCSPA1EP1, RMCSPA1FP1 Addition of model name as follow: - Basic Model name : RMCSPA1EP1 - Variant Model name : RMCSPA1FP1 It is simply the difference between the presence of buttons on the exterior of the case, and the internal circuit is the same. The device remain electrically, Software Configuration and mechanically identical to the originally certified device and no changes have been made. Sincerely, NAME: HanSung You TITLE: Staff Engineer Applicant: Samsung Electronics Co., Ltd. 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea

19 Chapin Rd, Building D. Pine Brook, New Jersey Tel No : 973-808-6375 Fax No : - Special Power of Attorney Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Attn: OET Dept. Product/ Model Number: Smart Control / RMCSPA1EP1, RMCSPA1FP1 I, JENNI CHUN of SAMSUNG Electronics Co., Ltd. hereby appoint HanSung You of SAMSUNG Electronics Co., Ltd. to represent me to act on my behalf to do any and all of the following : Sign on my behalf the agency, anti-drug and confidentiality cover letters and apply to FCC for the products. The right, powers and authority in fact to exercise any and all of the rights and powers herein granted shell commence and be in full force from 11/12/2020 and continue to 11/12/2021 effective unless specifically terminated by either party. This authorization is limited to the product of as following: FCC ID: A3LRMCSPA1EP1 Dated 11/12/2020, JENNI CHUN Sincerely,. NAME: JENNI CHUN TITLE: General Manager, Regulatory & Environmental Affairs Applicant: Samsung Electronics America, Inc Address: 19 Chapin Rd, Building D. Pine Brook, NJ 07058

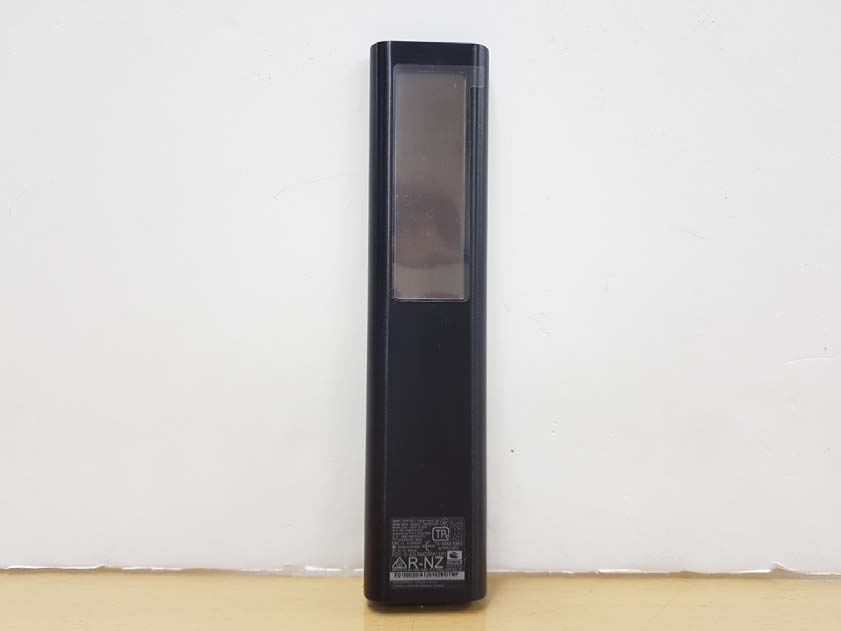

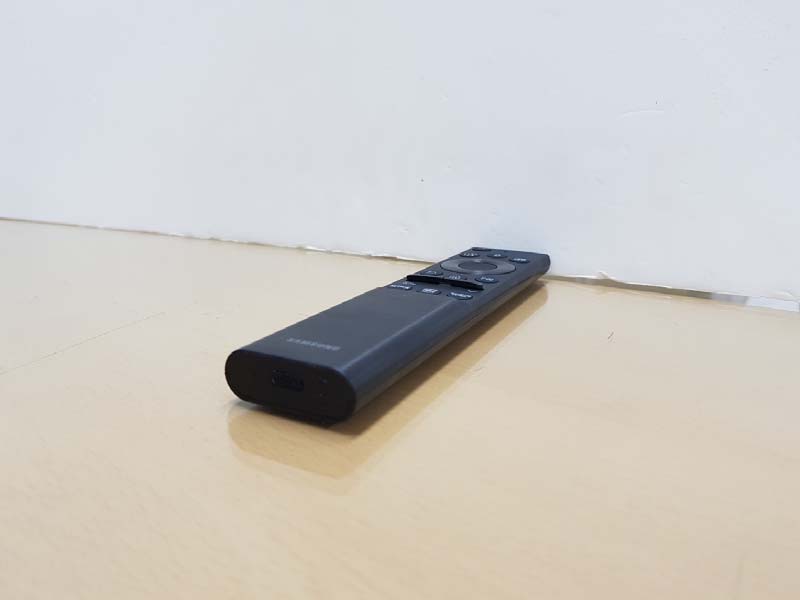

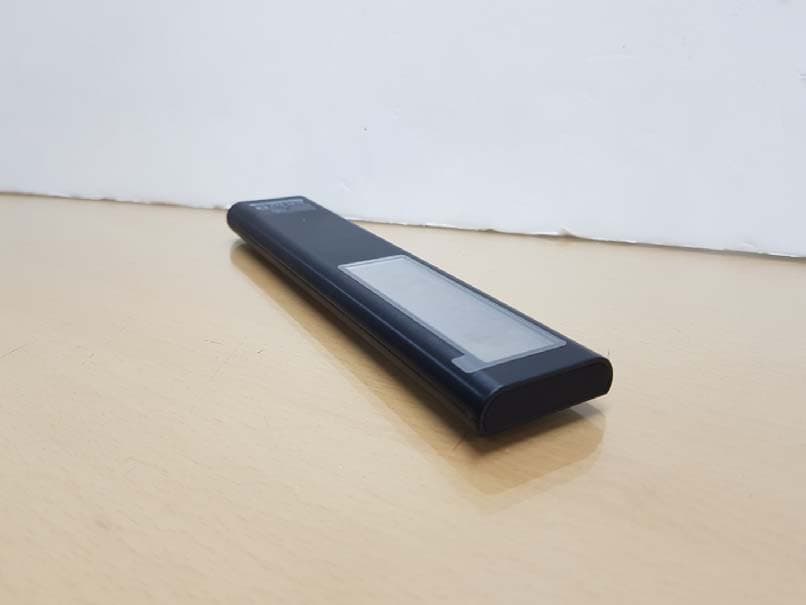

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 1 / 2 EUT External Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 2 / 2

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com 1 / 1 Label

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com EUT Internal Photographs CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 449-100, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com ANTENNA

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 1 of 3 RF EXPOSURE EVALUATION Applicant Samsung Electronics Co., Ltd Applicant Address 19 Chapin Rd, Building D. Pine Brook, New Jersey, United States Product Description Smart Control FCC ID A3LRMCSPA1EP1 IC 649E-RMCSPA1EP1 RF power Bluetooth LE : 1.06 dBm Zigbee : 1.07 dBm Antenna type Chip Antenna Antenna Gain 0.97 dBi Frequency Range Bluetooth LE : 2402 MHz - 2480 MHz Zigbee : 2425 MHz, 2450 MHz, 2475 MHz Number of channels Bluetooth LE: 40 Zigbee : 3 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 2 of 3 ** RF Exposure Evaluation** Limits SAR Test Exclusion Thresholds for 100 MHz - 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table, The equation and threshold in Note 1 must be applied to determine SAR test exclusion. Note 1: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by : CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page 3 of 3 [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where - f(GHz) is the RF channel transmit frequency in GHz - Power and distance are rounded to the nearest mW and mm before calculation - The result is rounded to one decimal place for comparison - 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 4.1f) is applied to determine SAR test exclusion. Output Power: Mode Frequency (MHz) Maximum output power to antenna (mW) SAR Test Exclusion Threshold (mW) Bluetooth LE 2 402 1.276 10 Zigbee 2 450 1.279 10 Per FCC KDB 447498 D01v06, the SAR exclusion threshold for distances ≤50mm is defined by the following equation : [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]* [√f(GHz)] ≤ 3.0 Base on the maximum conducted power of the antenna to use separation distance, SAR was not required; Bluetooth LE : [(1.276 / 5) * √2.402] = 0.396 (≤ 3.0) Zigbee : [(1.279 / 5) * √2.450] = 0.400 (≤ 3.0) Result : As a result of the calculation above, the SAR test is exempt.

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04448 Page (1) / (40) Pages QF-QP15-03 R101 Rev.0 1. Client ◦ Name : Samsung Electronics Co., Ltd ◦ Address : 19 Chapin Rd, Building D. Pine Brook, New Jersey, United States ◦ Date of Receipt : 2020-11-02 2. Manufacturer ◦ Name : Samsung Electronics Co., Ltd. ◦ Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea 3. Use of Report : For FCC & ISED Certification 4. Test Sample / Model: Smart Control / RMCSPA1EP1 5. Date of Test : 2020-11-10 to 2020-11-21 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247 ANSI C63.10-2013, RSS-247, RSS-Gen 7. Testing Environment: Temp.: (23 ± 1) °C, Humidity: (48 ± 5) % R.H. 8. Test Results : Compliance The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Affirmation Tested by Gwanyong Kim: (Signature) Technical Manager Young-taek Lee: (Signature) 2020-11-21 Republic of KOREA CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04448 Page (2) / (40) Pages QF-QP15-03 R101 Rev.0 REPORT REVISION HISTORY Date Revision Page No 2020-11-21 Issued (CTK-2020-04448) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04448 Page (3) / (40) Pages QF-QP15-03 R101 Rev.0 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Client Information ............................................................................................. 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 2. Facility and Accreditations .......................................................................................... 5 2.1 Test Facility ...................................................................................................... 5 2.2 Laboratory Accreditations and Listings .................................................................. 5 2.3 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Mode of operation during the test ........................................................................ 6 3.3 Maximum Measurement Uncertainty .................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 6dB Bandwidth and 99 % Bandwidth .................................................................... 8 4.2 Maximum peak Conducted Output Power ............................................................ 12 4.3 Power Spectral Density .................................................................................... 15 4.4 Band Edge & Conducted Spurious emission ......................................................... 18 4.5 Radiated Emission ........................................................................................... 22 4.6 AC Conducted Emissions .................................................................................. 37 APPENDIX A – Test Equipment Used For Tests ................................................................ 40 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04448 Page (4) / (40) Pages QF-QP15-03 R101 Rev.0 1. General Product Description 1.1 Client Information Company Samsung Electronics Co., Ltd Contact Point 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Contact Person Name : HanSung You E-mail : [email protected] Tel : +82 31-277-2746 Fax : - 1.2 Product Information FCC ID A3LRMCSPA1EP1 Certification Number ISED 649E-RMCSPA1EP1 Product Description Smart Control Basic model RMCSPA1EP1 Variant Model name RMCSPA1FP1 RMCSPA1FP1 has the same basic model and internal circuit, but the CP Key part of the exterior has been deleted. (CP key : Contents Provider key) Operating Frequency 2 402 MHz - 2 480 MHz RF Output Power 1.06 dBm (1.28 mW) Antenna type Chip Antenna Antenna gain 0.97 dBi Number of channels 40 Channel Spacing 1 MHz Type of Modulation GFSK (Bluetooth LE) Power Source DC 3.85 V (Battery) Hardware Rev TM2180A_200821 Software Rev A Test Software(Version) RadioControlConsole, Ver.3.1.0.0 RF Power setting in Test SW W “0” 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer HP 15-bs563TU CND7253R6P AC/DC Adapter HP HSTNN-LA40 7628011101 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04448 Page (5) / (40) Pages QF-QP15-03 R101 Rev.0 2. Facility and Accreditations 2.1 Test Facility The measurement facility is located at (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. 2.2 Laboratory Accreditations and Listings Country Agency Registration Number USA FCC 8058…

Text truncated - open the document above for the full version.

TEST REPORT CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04449 Page (1) / (40) Pages QF-QP15-03 R101 Rev.0 1. Client ◦ Name : Samsung Electronics Co Ltd ◦ Address : 19 Chapin Rd, Building D. Pine Brook, New Jersey, United States ◦ Date of Receipt : 2020-11-02 2. Manufacturer ◦ Name : Samsung Electronics Co., Ltd. ◦ Address : 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea 3. Use of Report : For FCC & ISED Certification 4. Test Sample / Model: Smart Control / RMCSPA1EP1 5. Date of Test : 2020-11-10 to 2020-11-21 6. Test Standard(method) used : FCC 47 CFR part 15 subpart C 15.247 ANSI C63.10-2013, RSS-247, RSS-Gen 7. Testing Environment: Temp.: (23 ± 1) °C, Humidity: (48 ± 5) % R.H. 8. Test Results : Compliance The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full. Affirmation Tested by Gwanyong Kim: (Signature) Technical Manager Young-taek Lee: (Signature) 2020-11-21 Republic of KOREA CTK Co., Ltd. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04449 Page (2) / (40) Pages QF-QP15-03 R101 Rev.0 REPORT REVISION HISTORY Date Revision Page No 2020-11-21 Issued (CTK-2020-04449) all This report shall not be reproduced except in full, without the written approval of CTK Co., Ltd. This document may be altered or revised by CTK Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by CTK Co., Ltd. will constitute fraud and shall nullify the document. CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04449 Page (3) / (40) Pages QF-QP15-03 R101 Rev.0 CONTENTS 1. General Product Description ....................................................................................... 4 1.1 Client Information ............................................................................................. 4 1.2 Product Information ........................................................................................... 4 1.3 Peripheral Devices ............................................................................................. 4 2. Facility and Accreditations .......................................................................................... 5 2.1 Test Facility ...................................................................................................... 5 2.2 Laboratory Accreditations and Listings .................................................................. 5 2.3 Calibration Details of Equipment Used for Measurement .......................................... 5 3. Test Specifications .................................................................................................... 6 3.1 Standards ........................................................................................................ 6 3.2 Mode of operation during the test ........................................................................ 6 3.3 Maximum Measurement Uncertainty .................................................................... 7 4. Technical Characteristic Test ....................................................................................... 8 4.1 6dB Bandwidth and 99 % Bandwidth .................................................................... 8 4.2 Maximum peak Conducted Output Power ............................................................ 12 4.3 Power Spectral Density .................................................................................... 15 4.4 Band Edge & Conducted Spurious emission ......................................................... 18 4.5 Radiated Emission ........................................................................................... 22 4.6 AC Conducted Emissions .................................................................................. 37 APPENDIX A – Test Equipment Used For Tests ................................................................ 40 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04449 Page (4) / (40) Pages QF-QP15-03 R101 Rev.0 1. General Product Description 1.1 Client Information Company Samsung Electronics Co., Ltd. Contact Point 129, Samsung-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do, 16677, Korea Contact Person Name : HanSung You E-mail : [email protected] Tel : +82 31-277-2746 Fax : - 1.2 Product Information FCC ID A3LRMCSPA1EP1 ISED 649E-RMCSPA1EP1 Product Description Smart Control Model name RMCSPA1EP1 Variant Model name RMCSPA1FP1 RMCSPA1FP1 has the same basic model and internal circuit, but the CP Key part of the exterior has been deleted. (CP key : Contents Provider key) Operating Frequency 2 425 MHz, 2 450 MHz, 2 475 MHz RF Output Power 1.07 dBm (1.28 mW) Antenna type Chip Antenna Antenna gain 0.97 dBi Number of channels 3 Channel Spacing 5 MHz Type of Modulation OQPSK Power Source DC 3.85 V (Battery) Hardware Rev TM2180A_200821 Software Rev A Test Software(Version) RadioControlConsole, Ver.3.1.0.0 RF Power setting in Test SW W “0” 1.3 Peripheral Devices Device Manufacturer Model No. Serial No. Note Computer HP 15-bs563TU CND7253R6P AC/DC Adapter HP HSTNN-LA40 7628011101 CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 Report No.: CTK-2020-04449 Page (5) / (40) Pages QF-QP15-03 R101 Rev.0 2. Facility and Accreditations 2.1 Test Facility The measurement facility is located at (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, Korea. 2.2 Laboratory Accreditations and Listings Country Agency Registration Number USA FCC 805871 CANADA ISED 8737A-2 KOREA…

Text truncated - open the document above for the full version.

CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (1) / (6) Pages Test Setup Photo AC Power Line Emissions measurement CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (2) / (6) Pages Radiated Emissions measurement 9 kHz to 30 MHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (3) / (6) Pages 30 MHz to 1 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (4) / (6) Pages 1 GHz to 18 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (5) / (6) Pages 18 GHz to 25 GHz CTK Co., Ltd. (Ho-dong), 113, Yejik-ro, Cheoin-gu, Yongin-si, Gyeonggi-do, 17142, Korea Tel: +82-31-339-9970 Fax: +82-31-624-9501 www.e-ctk.com Page (6) / (6) Pages Conducted Emissions measurement
