A3LROH20SRF CONTROL HANDLE

imagine the possibilities Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at www.samsung.com/register Vacuum Cleaner user manual ✻ Before operating this unit, please read the instructions carefully. ✻ For indoor use only. English SC88P* series This manual is made with 100% recycled paper. RAMBO (미주향).indd 12011.10.17 2:10:11 PM 2_ safety information safety information SAFETY INFORMATION • Before operating the appliance, please read this manual thoroughly and retain it for your reference. • Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual. CAUTION/WARNING SYMBOLS USED WARNING Indicates that a danger of death or serious injury exists. CAUTION Indicates that a risk of personal injury or material damage exists. OTHER SYMBOLS USED Represents something you must NOT do. Represents something you must follow. Indicates that you must disconnect the power plug from the socket. This vacuum cleaner is designed for domestic household use only. Do not use this vacuum cleaner to clear building waste or debris. Do not use this vacuum cleaner with any of the filters removed as this could cause damage to the internal components and void your warranty. SAVE THESE INSTRUCTIONS This vacuum cleaner is intended for household use only. POLARIZATION INSTRUCTIONS - To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way. WARNING WARNING WARNING RAMBO (미주향).indd 22011.10.17 2:10:11 PM safety information _3 IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING YOUR CANISTER VACCUM WARNING – To reduce the risk of fire, electric shock, or injury: 1. Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing. 2. Do not use outdoors or on wet surfaces. 3. Do not allow to be used as a toy. Close attention is necessary when used by or near children. 4. Use only as described in this manual. Use only manufacturer’s recommended attachments. 5. Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center. 6. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces. 7. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord. 8. Do not handle plug or appliance with wet hands. 9. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. 10. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts. 11. Turn off all controls before unplugging. 12. Use extra care when cleaning on stairs. 13. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in are as where they may be present. 14. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 15. Do not use without dirt cup and/or filters in place. 16. The hose contains electrical wires. Do not use when damaged, cut, or punctured. Avoid picking up sharp objects. 17. Always turn off this appliance before connecting or disconnecting either hose or motorized nozzle. 18. Unplug before connecting motorized nozzle. 19. Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding. safety information RAMBO (미주향).indd 32011.10.17 2:10:11 PM 4_ contents contents ASSEmblING THE ClEANER 05 05 Assembling the Cleaner OPERATING THE ClEANER 06 06 Power cord 06 On/Off switch 07 Power control 08 Power Brush mAINTAIN TOOlS ANd fIlTER 09 09 Using accessory 10 Maintain floor tools 11 Emptying the dust bin 12 Cleaning the dust pack 14 Cleaning the outlet filter 14 Change the battery (optional) TROUblESHOOTING 15 RAMBO (미주향).indd 42011.10.17 2:10:11 PM assembling the cleaner _5 01 ASSEMBLING THE CLEANER assembling the cleaner • Please do not push the button of dust bin handle when carrying machine. • For storage, park the floor nozzle. OPTION RAMBO (미주향).indd 52011.10.17 2:10:12 PM 6_ operating the cleaner operating the cleaner POWER CORD ON/OFF SWITCH • When removing the plug from the electrical outlet, grasp the plug, not the cord. CAUTION RAMBO (미주향).indd 62011.10.17 2:10:13 PM operating the cleaner _7 02 OPERATING THE CLEANER - bOdY Press the power ON/OFF button repeatedly to start and to stop the vacuum cleaner. (OFF → ON → OFF) If the remote handle control is not working, the cleaner can be operated using the ON/OFF button on the body of the machine. 1 The ON/OFF button operates the vacuum cleanner or stops it. 2 The RADIO FREQUENCY light indicates the part that receives the RADIO FREQUENCY signal from the handle control. 3 The filter light is illuminated when the dust pack requires checking or emptying. An audio signal will also sound. 1 32 POWER CONTROL 1. Vacuum cleaner ON/Off( ) Press the ON/OFF button to operate the vacuum cleaner. Press again to stop the vacuum cleaner. 2. Vaccum cleaner suction(-/+) Press the SUCTION (-/+) button to operate the vaccum with higher/lower suction power. When getting into operation, press this button then the suction power will gradually increase each time. After reaching the maximum suction power, press the same button then the suction power will gradually decrease each time. 3. bRUSH ON/Off Press the BRUSH ON/OFF button to operate the Power Brush. Press again …

Text truncated - open the document above for the full version.

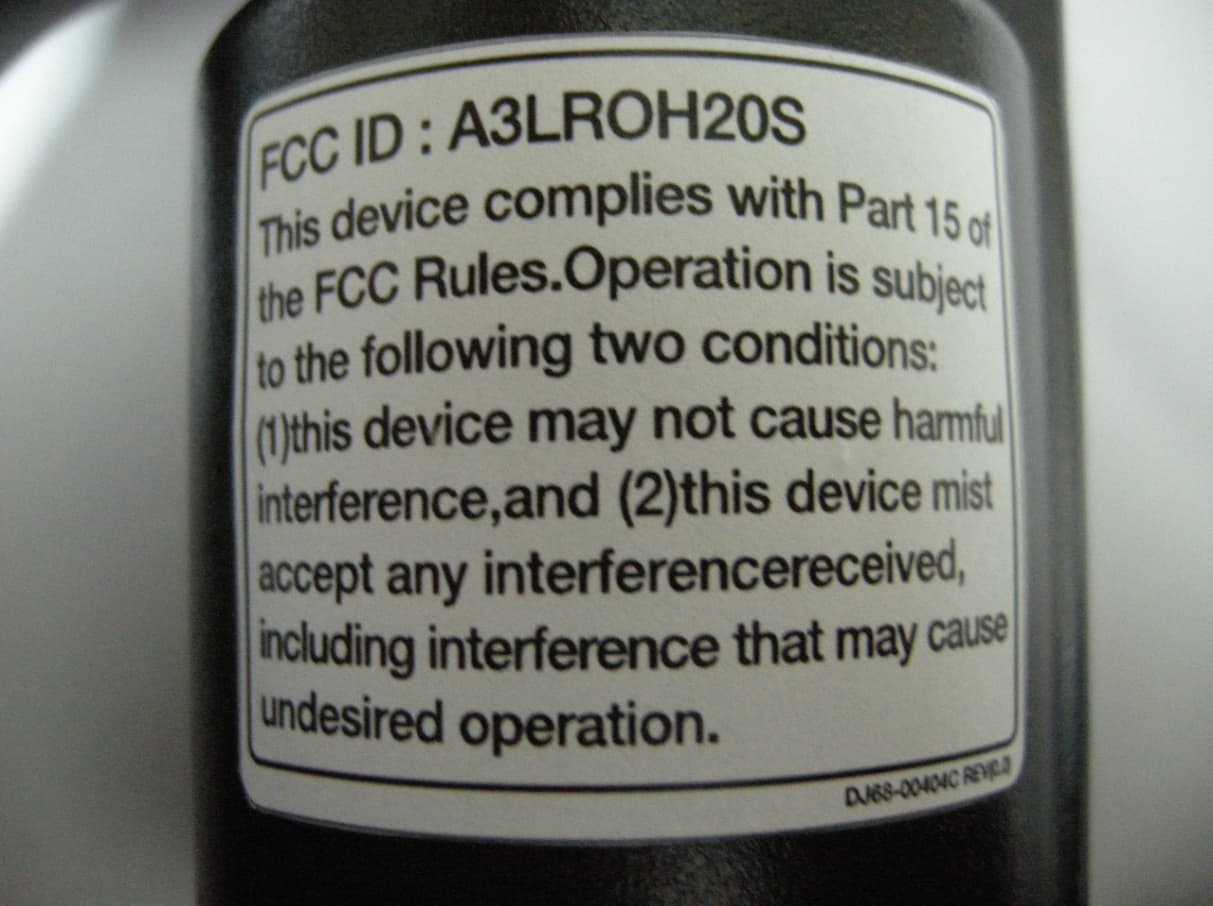

External Photographs

Internal Photographs of EUT

Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (2) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory 0. REPORT REVISION HISTORY Date Revision Page No November 22, 2011 Issued All This report shall not be reproduced except in full, without the written approval of Korea EMC Laboratory Co., Ltd. This document may be altered or revised by Korea EMC Laboratory Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by Korea EMC Laboratory Co., Ltd. will constitute fraud and shall nullify the document. Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (3) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory TABLE OF CONTENTS 0. REPORT REVISION HISTORY 2 1. TEST LABORATORY 5 1.1 General 5 1.2 Certificate of designated testing laboratory 5 2. DESCRIPTION OF THE EQUIPMENT UNDER TEST 6 2.1 Characteristic 6 2.2 Applied standard 6 2.3 Submitted documents 6 3. TEST CONDITIONS 7 3.1 Description of test configuration 7 3.2 List of peripherals 7 3.3 Uncertainty 7 3.4 Environment condition 7 4. SUMMARY OF TEST RESULTS 8 5. TEST AND RESULTS 9 5.1 AC Power conducted emission 9 5.2 Radiated emission test 10 5.2.1 Test procedures 10 5.2.2 Limits of radiated emission test 10 5.2.3 Test instruments 11 5.2.4 Test results 11 5.3 Emission bandwidth measurement 12 5.3.1 Test procedures 12 5.3.2 Limit of emission bandwidth measurement 12 5.3.3 Test instruments 12 5.3.4 Test results 12 5.4 Deactivation time 13 5.4.1 Test procedures 13 5.4.2 Limit of deactivation time 13 5.4.3 Test instruments 13 5.4.4 Test results 13 Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (4) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory 1. Test Laboratory General Name of Test Laboratory Korea EMC Laboratory Co., Ltd. President Won-Hyang Oh Address 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) TEL +82-31-286-5881 FAX +82-31-286-2661 e-mail [email protected] Certificate of Designated Testing Laboratory Area and Category Regulation Registration & Certification No. Mark. Radio Research Agency EMI(Radiated & Conducted emission) EMS(Radiated Immunity) Safety Radio Communication Part Regulation of KCC No. 2011-12 (2011.02.18) KR0002 Korea Laboratory Accreditation Scheme (KOLAS) EMI(Radiated & Conducted emission) EMS(Radiated Immunity) Safety Road Vehicle component test(EMC) Military EMC(MIL-STD-461E) KS Q ISO/IEC 17025:2006 No. 154 FCC Part 15 & 18 EMI(Radiated & Conducted emission) ANSI 63.4:2003 90751 (KR0002) VCCI EMI(Radiated & Conducted emission) VCCI C-2314 R-2139 R-2140 UL Korea Ltd. Safety Star Alliance Program - European Conformity EMC & Safety 2004/108/EC 2006/95/EC - TUV SUD Certification after Recognition of Agent’s Testing EMC ISO/IEC 17025:2005 ROK1006C Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (5) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory 2. DESCRIPTION OF THE EQUIPMENT UNDER TEST The product specification described herein was obtained from the product data sheet or user’s manual 2.1 Characteristics Product name RF Control handle Model no. ROH-20S FCC ID A3LROH20S Operation frequency 434.1 MHz Modulation type ASK Number of channel 1 Channel Antenna type Pattern antenna, Wire Antenna Power source DC 3 V(DC 1.5 V AA Size Battery X 2) Size 330 mm X 60 mm X 145 mm Interface ports - Accessory - 2.2 Applied standard - FCC part 15, subpart C(15.231) - ANSI C63.4 Note : It has been verified to comply with requirements of FCC part 15, subpart B, Class B(DoC). The test report has been issued separately(KEL11-F08142) 2.3 Submitted documents - Block diagram - Schematic diagram - Part list(B.O.M) - User manual Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (6) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory 3. TEST CONDITIONS 3.1 Description of test configuration The EUT has been tested as an independent unit with other necessary accessories or support unit. The following support units or accessories were used to form a representative test configuration during the tests. 3.2 List of peripherals Type Model no. Serial no. Manufacturer EUT(RF Control handle) ROH-20S - Samsung Electronics Co., Ltd. - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3.3 Uncertainty Measurement Frequency Uncertainty Conducted Emission 150 kHz ~ 30 MHz 1.5 Radiated Emission 30 MHz ~ 1 GHz 4.4 1 GHz ~ 40 GHz 4.1 This uncertainty represents an expanded uncertainty expressed at approximately the 95 % confidence level using a coverage factor if k=2. 3.4 Environment condition Measurement Temperature Humidity Atmospheric pressure Conducted Emission 22 ± 4 °C 30 – 60 % R.H. 101.5 kPa Radiated Emission 20 ± 4 °C 30 – 60 % R.H. 101.4 kPa Korea EMC Laboratory Co., Ltd. 390 Bora-dong, Giheung-gu, Yongin-si, Gyeonggi-do, Republic of Korea (446-904) Tel : 82-31-286-5881 Fax : 82-31-286-2661 www.koreaemc.com Report Ref. No: KEL11-F08096 Page (7) / Total (13) KEL-D-QP-25-24/3 KEL Korea EMC Laboratory 4. SUMMARY OF TEST RESULTS Section Test Type Remark Result 15.207 ▪ AC Power conducted emission NA (Use only battery) NA 15.209, 15.231(b) ▪ Radiated emission test Meet the requirement Pass 15.231(c) ▪ Emission bandwidth measurement Meet the requirement Pass 15.231(a…
