A3LRT4424-77A

Samsung Electronics Co Ltd

RRU(RT4424)

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Apr 10, 2023
Application Purpose: Original Equipment
Date of Application: Apr 10, 2023
Equipment Note: RRU(RT4424)
Frequency Range: 3700.00000000 - 3980.00000000
Company: Samsung Electronics Co Ltd
Country: United States

Documents & Files

Select a file to view

Attestation Statements

Cover Letter(s)

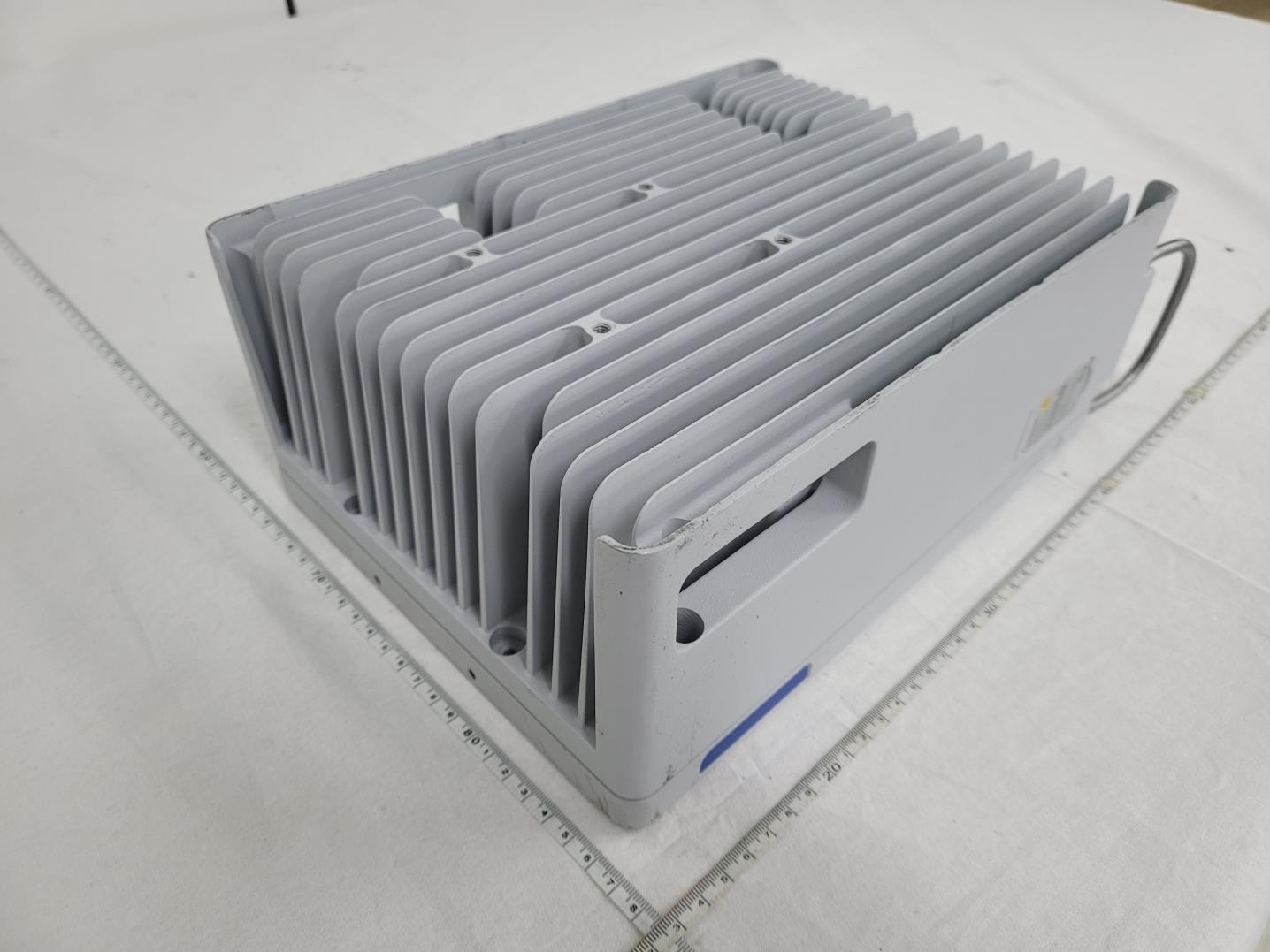

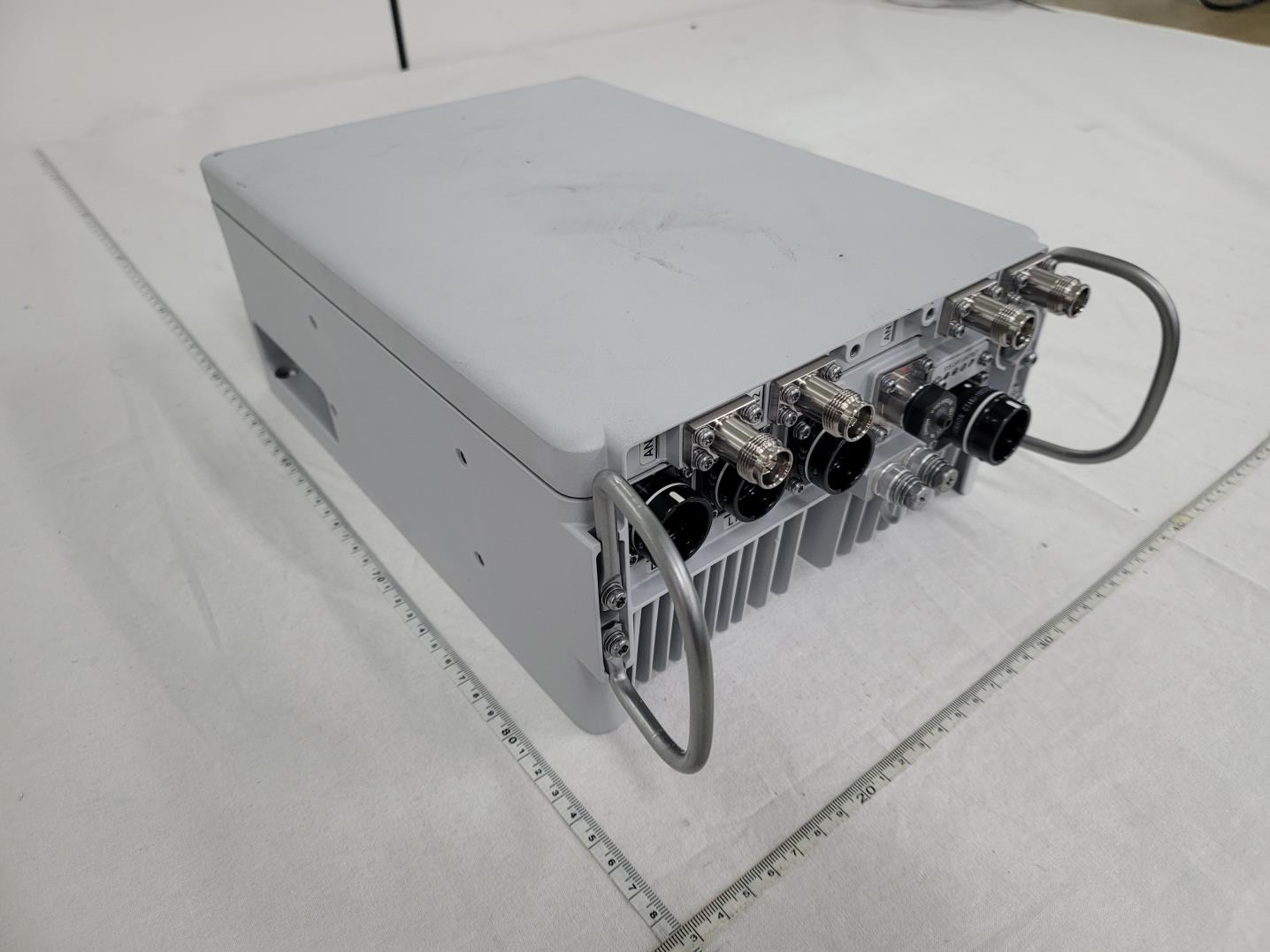

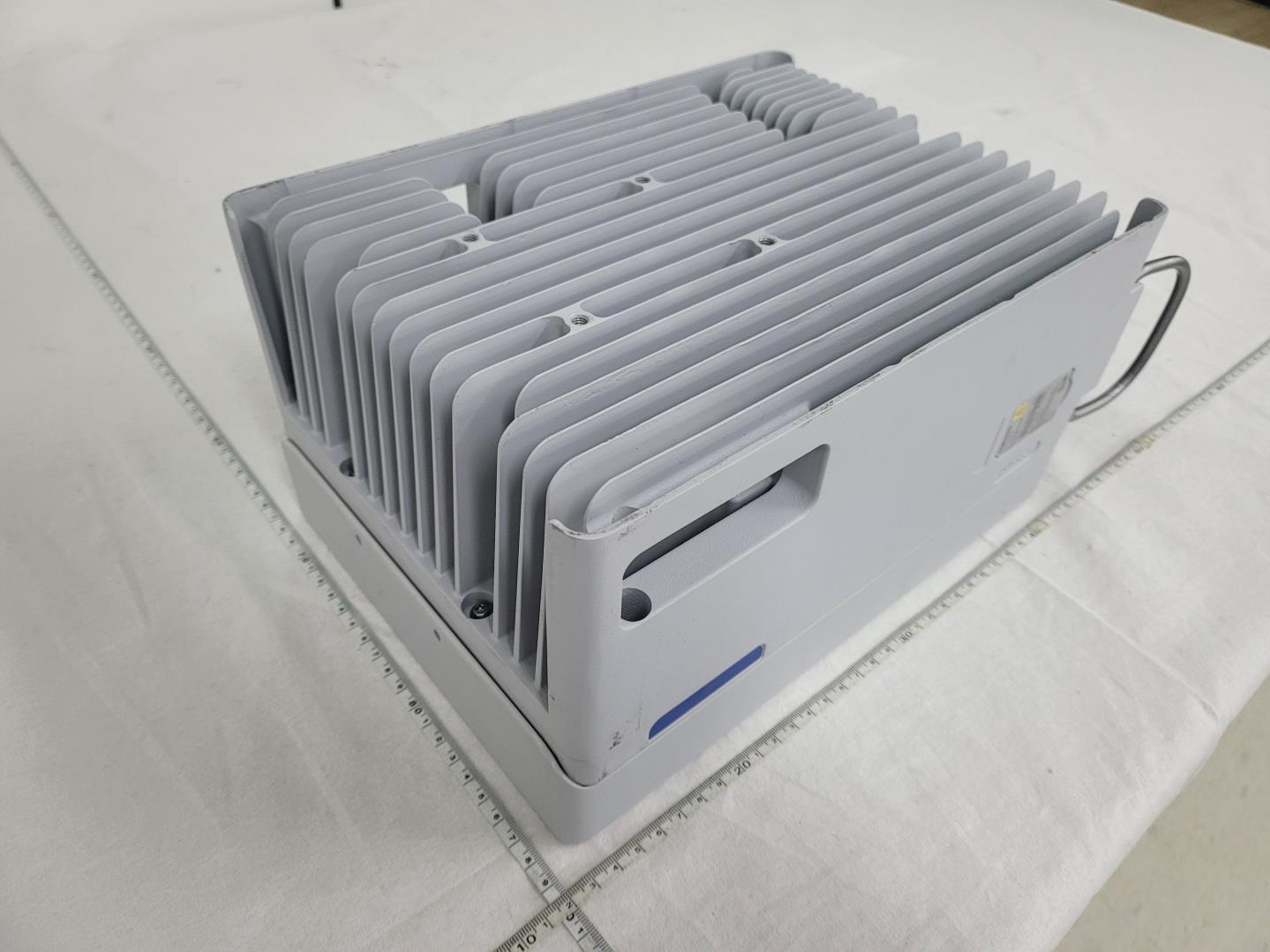

External Photos

ID Label/Location Info

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
12	27	3.70 GHz - 3.98 GHz	75.61 W	197MW7D	0.5 ppm

Confidentiality

Long Term

Grant Notes

Power listed is maximum combined conducted output power. This device operates as an 4Tx/4Rx MIMO with single-carrier 40/60/80/100MHz Channel BW 5G NR and up to 2CC operation. The antennas used for this transmitter must be fixed-mounted on permanent Structures. RF exposure compliance to be addressed at the time of licensing, as required by the responsible FCC Bureau(s), including antenna co-location requirements of 1.1307(b)(3). This device was tested for QPSK, 16QAM, 64QAM, and 256QAM modulation type.
