A3LS160Hand PC with 802.11b Wireless LAN

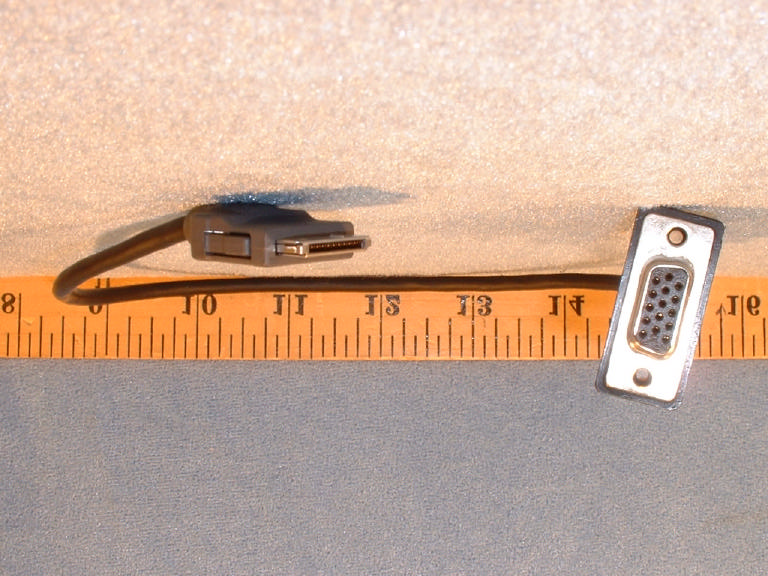

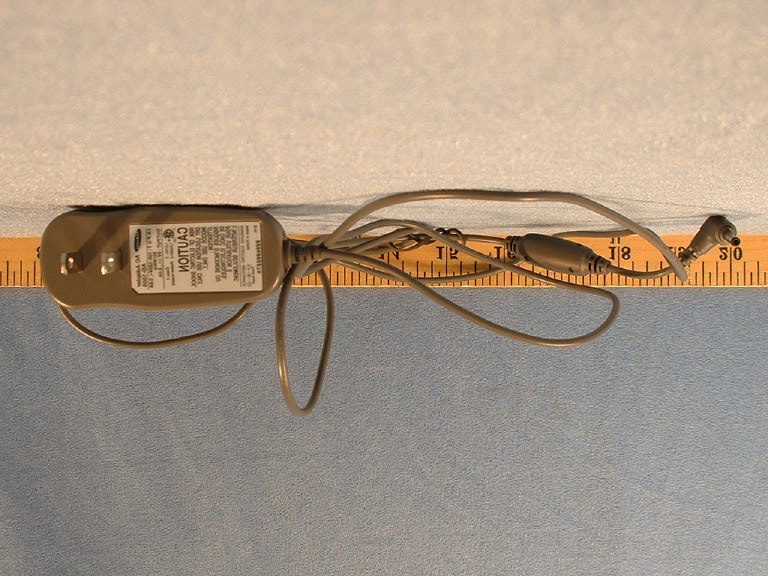

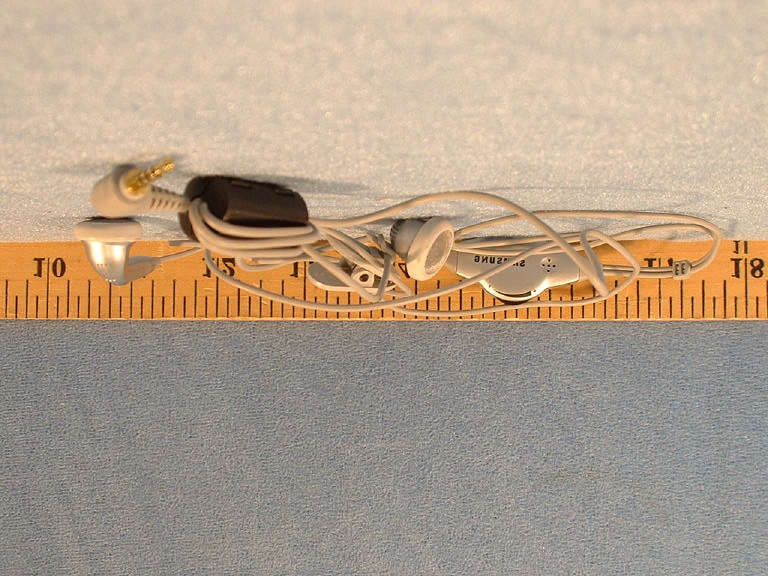

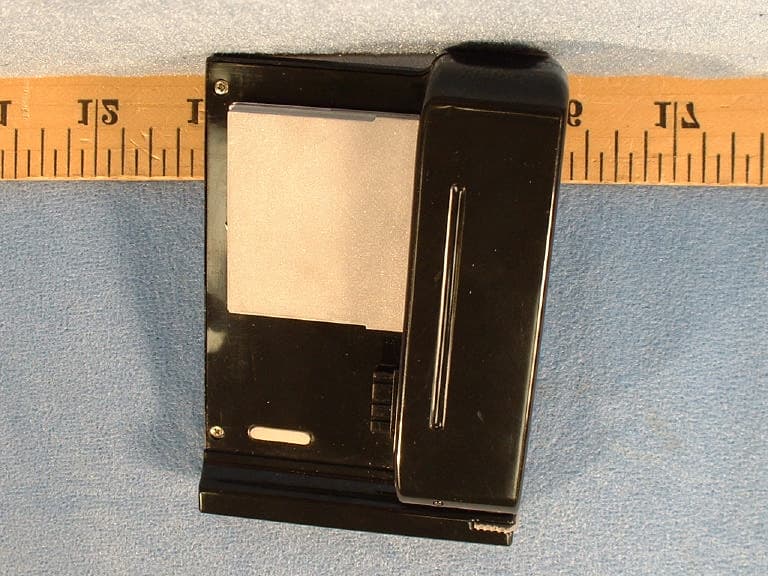

- 1 - Wireless Hand PC NEXiO (Samsung S160) Quick Reference Guide SAMSUNG DIGITall everyone's invited - 2 - - 3 - NEXiO Samsung S160 - 4 - NEXiO Powerful Mobile Office - Pocket Internet Explorer 5.5 - Pocket Office(Word, Spreadsheet, PPT) - PIMS compatible w/MS Outlook - Smart Presentation Full Internet Capability - 800*480 WVGA : No horizontal scrolling ! - JVM, Flash Player built-in - 802.11b(11Mbps) built-in Highest Performance - Intel 400MHz CPU - 64MB FROM, 128MB RAM - WLAN built-in Various Expandability - standard USB slot -CFIIslot : Camera, Memory, WAN module - PCMCIA adapter(optional) - 5 - Big&vividWidescreen - 5inch wide screen LCD - Clear & Bright Transflective LCD - Low power consumption LCD Enforced Battery Solution - Li-Polymer rechargeable battery : 3hrs for continuous Internet use - 2nd Li-Polymer option Battery pack : 3hrs talking time Digital Entertainments - MP3, MPEG Player -e-BookViewer - Games - Camera & Image viewer Outstanding Design - Slim & Sexy : 154*91*13.4, 250g - Homogeneous design : keyboard cover, 2nd battery - 6 - Unpacking Your package contains the following items. NEXiO (Samsung S160)StylusEar-microphone AC Adapter Communication Cable External Display Cable CradleLeather CoverStand NEXiO CD Quick Reference Guide Accessory Guide Handwriting Guide - 7 - NEXiO (Samsung S160) Nickname of Samsung S160 Stylus Stylus that is appropriate for operating NEXiO. Kept in stylus slot on the right side. Ear-microphone Listen to music and record sound AC Adapter Supply DC power and charge battery Communication Cable Connect NEXiO to computer and transfer data between two devices External Display Cable Connect NEXiO to External Display and enable to view NEXiO screen through external display device (ex : Monitor, Project) Cradle Enable to use NEXiO at more comfortable angle and charge external battery Leather Cover Protect LCD screen Stand Inserted in the back side and stand NEXiO. Kept in CF card slot in the right side. NEXiO CD Install program in NEXiO from computer or read online manual Quick Reference Guide Explain basic operation skill Accessory Guide Show Accessory and Option items that can be purchased separately Handwriting Guide Show handwriting method - 8 - NEXiO Overview NEXiO Overview Front View Indicator Show NEXiO operation status Microphone Arrow Key Move cursor(item) to up/down/left/right Enter Key Run selected program Hot Key Short cut to run program Speaker Note Hot Key LauncherRun NEXiO Programs BacklightTurnon/offbacklight RECRun recorder program - 9 - Indicator Network Show wireless LAN connection status - On after 2 blinking : connection trial. network icon is activated if connection is successful - On: connected to network - Off : not connected to network Reminder Blinks at set-up reminder time Power Show internal battery charge status when connected to adapter - Green: Charging complete - Red:Charging proceeding - Red Blinker: Low Battery Rear View Reset Hole Recover NEXiO when it does not operate normally (refer "Resetting") External Battery Connector Protection Hole Fix External Battery or stick stand in to use NEXiO in a more comfortable angle - 10 - Left View Power Button Turn on/off NEXiO Hold Button Only power button is activated in HOLD status. Touch screen is activated when power is on. Ear-microphone Port AC Adapter Port Right View Stylus Slot Keep Stylus PCMCIA Adapter Port Insert PCMCIA Adapter (option) CF Card Slot Insert CF Card Note Since PCMCIA Adapter uses both PCMCIA Adapter Port and CF Card Slot, you cannot use CF Card when you are already using PCMCIA Adapter. Bottom View - 11 - Communication Port Connect to Computer, External Display, or Cradle (refer to "Connecting to Computer", "Using External Display Device", "Using Cradle") External Keyboard Connector Protection Hole Fix Leather Cover or External Keyboard - 12 - Cradle overview Front Indicator Show battery charge status when connected to adapter External Battery room Attach and charge External Battery Dummy External Battery Connector NEXiO Connector Connect to Communication Port of NEXiO Note Indicator NEXiO internal Battery - Green: Charging complete - Red: Charging proceeding External Battery * When you charge NEXiO internal Battery and External Battery at the same time, external battery starts being charged after internal battery is fully charged. - 13 - Back Communication Port Connect to Computer or External Display (refer to "Connecting to Computer", "Using External Display Device", "Using Cradle") AC Adapter Port Stylus/Pen Stand Ear-microphone overview Ear-phone Microphone Volume control dial - 14 - Connecting NEXiO with peripherals This part explains connecting NEXiO with peripherals such as AC Adapter, Cradle and using. NEXiO power is supplied with AC Adapter or internal battery. Battery should be sufficiently charged with AC adapter to be in use. Note Sufficiently charge internal battery. It takes 2 1/2 hours to fully charge internal battery. If you want to charge quickly, charge 2 hours and you will be able to use. Connecting AC Adapter Attaching Cover Fit cover to 4 protection holes in the NEXiO bottom. While pressing cover against NEXiO, slide two lock buttons to arrow direction and fix cover. ① ② ① ② ② - 15 - To detach cover from NEXiO, slide two lock buttons in the opposite direction of arrow and pull cover out. Attaching Stand Fit stand to one of 4 protection holes in the rear. You can use NEXiO in a more comfortable angle. ① ② ① - 16 - FittingtoCradle connecting adapterfitting NEXiO to cradle Note You cannot use fit NEXiO to cradle when AC adapter is connected to NEXiO. To use cradle, connect adapter to the back side of cradle. Connecting to Computer You can transfer data and install program in NEXiO by connecting Communication Port of NEXiO to a Computer. (refer to "Connecting to computer") Connect Communication Port ofNEXiO and USB Port of computer with Communication Cable. directly connecting with NEXiOconnecting through Cradle ① ② ① ② ② ① - 17 - Conne…

Text truncated - open the document above for the full version.

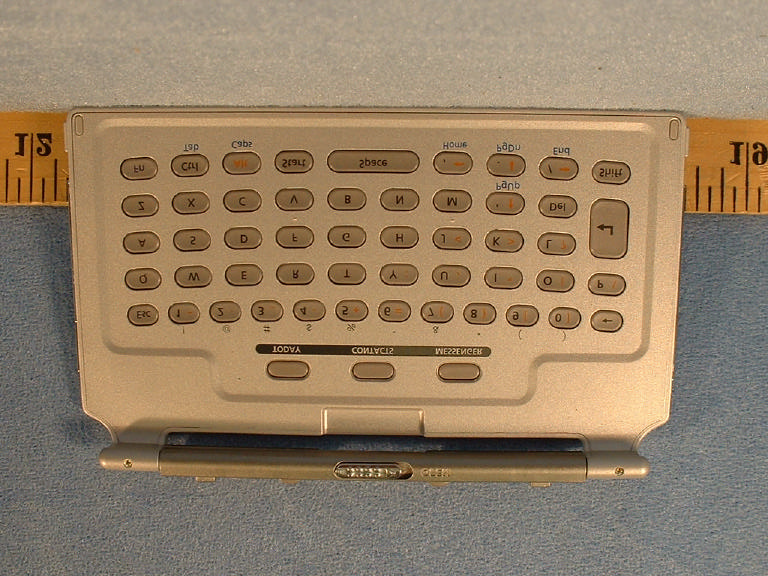

Keyboard (KB-160E) The KB-160E Keyboard is NEXiO S160’s exclusive keyboard which combines functionality and mobility. You may use the external keyboard immediately by attaching it to NEXiO. Also, when on the run, the keyboard can be folded and used as a protective cover for the LCD. Keyboard Overview Attaching/Removing the Keyboard To Attach the Keyboard 1Place the keyboard on top of NEXiO, and then align the guide rib on keyboard with the keyboard hole on the bottom of NEXiO. Power Connector Guide Rib Keyboar Hook Hook Bar 2 Push the bottom of the keyboard down to attach it to NEXiO. 3 The keyboard icon () will appear in the NEXiO task bar. Note You will hear a sound when the keyboard is connected or disconnected from NEXiO. To Remove the Keyboard 1While (a) holding hook bar on keyboard to the right, (b) slide the keyboard toward the bottom side of NEXiO. 2 Keyboard is now disconnected. a b Using the Keyboard  Hot KeysExecutes the Calendar, Contact and Messenger pro- grams.  Fn KeyAllows you to use the orange keys.  Ctrl KeyAllows you to use the green keys.  Shift KeyAllows you to type capital letters or the symbols on the upper part of the keys. Note The keyboard will not work when NEXiO’s Hold Button is activated or when the LCD is turned off. NoteDue to the fewer number of keys (53) than a standard keyboard, the fol- lowing features are not supported. We recommend using the software keyboard in the following instances: - The features on a standard keyboard are activated using Ctrl + the arrow keys. Hot Keys Ctrl Key Shift Key Fn Key - Key entry when using the RDP (Remote Desktop Protocol) to activate the PC’s Client terminal. To L o c k Internal Software Keyboard You can lock the NEXiO’s internal software keyboard when using the external keyboard. 1Tap on the extended keyboard () icon in NEXiO’s task bar. "Lock Soft Keyboard" message appears. 2Tap the message. The software keyboard will be locked, and () icon will replace () icon in the NEXiO’s taskbar. 3Tap on this message again to activate the software keyboard. To Keep Keyboard while not in Use Attach the keyboard to the underside of NEXiO when not in use. Turn the NEXiO so its LCD is down, and attach keyboard to the backside. Use the same method explained above. Specifications  Total number of keys 53  Size47.6mm * 81mm * 4mm  InterfaceSerial

Engineering and Testing for EMC and Safety Compliance July 03, 2002 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 To Whom It May Concern: The following information is to be held confidential pursuant of 47 CFR Part 0§0.457 and Section 552(b)(4) of the Freedom of Information Act, because the information provided contains trade secrets and proprietary. If made public, the information might be used to the disadvantage of the applicant in the market place. - Schematics - Block Diagram - Bill of Materials (Parts List) Best Regards, 416 Maetan-dong,Paldal-gu, Suwon City, Kyungki-Do, 442-742 Korea SAMSUNGELECTRONICSCO.,LTD.

PROPOSED FCC ID LABEL AND LOCATION FCC ID LABEL SAMSUNG ELECTRONICS CO, LTD This device complies with Part 15 of FCC rules. FCC ID: A3LS160

Theory of Operation *Description of Circuit Operation * Main Board * Audio Board * CF Board * Power system in main board –

TCA10FTCA10F is an advanced, surface-mount(SMT) integrated antenna for is an advanced, surface-mount(SMT) integrated antenna for use in various wireless products, ideal for high-sensitivity and lowuse in various wireless products, ideal for high-sensitivity and low profile design.profile design. 1/3 Specification • Part No.TCA10F • Center Frequency2450MHz • Band width300MHz • Peak Gain3dBi • Typical Gain2dBi • Operating Temp.-20 o C~+85 o C • Storage Temp.-40 o C~+85 o C • Weight 0.6g Features: • Miniaturized size • Omni-direction • Low interference design • Wide bandwidth • Light weight • High gain Typical SMT InstallationOutline of TCA10F (unit:mm) TCA10F Ver 5.3 9/13/2000 TriCOME www.tricome.com Integrated Miniaturized Antenna for 2.4GHz Wireless RF Applications Layout Guide (unit:mm) Ver 5.3 9/13/2000 TriCOME www.tricome.com 2/3 A5mm B16mm C3.1mm D0.4mm E0.4mm F1.4x1.4mm G1.4x1.4mm Smith Chart CH1 S 11 1 U FS START 1 500.000 000 MHzSTOP 3 500.000 000 MHz Cor MARKER 1 2.44 GHz 22 Feb 2000 13:51:25 1 1_: 44.236 -13.779 4.7337 pF 2 440.000 000 MHz CH1 S 11 SWR1 /REF 1 START 1 500.000 000 MHzSTOP 3 500.000 000 MHz Cor MARKER 1 2.44 GHz 22 Feb 2000 13:51:54 1 1_: 1.3969 2 440.000 000 MHz H-PlaneE-Plane VSWR Measured Antenna Patterns at 2.4GHz Input Characteristics 3/3 This specification , prepared by TriCOME , is believed to be accurate and reliable . But TriCOME reserves the right to make any change or improvement without further notice. 0 45 90 135 180 225 270 315 0 0 -5 -5 -10 -10 -15 -15 -20 -20 -25 -25 -30 -30-35 Ver 5.3 9/13/2000 TriCOME www.tricome.com

Ö

in accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C for WIRELESS HAND PC MODEL: S160 FCC ID: A3LS160 July 1, 2002 REPORT NO: 02I1394-4 Prepared for SAMSUNG ELECTRONICS CO., LTD. #416, MAETAN-3DONG, PALDAL-GU SUWON CITY, GYEONGGI-DO 442-742, KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES 561F MONTEREY ROAD, MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 REPORT NO: 02I1394-4 DATE: July 1, 2002 FCC ID: A3LS160 COMPLIANCE CERTIFICATION SERVICES Page: 2 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Dates of Tests: July 1, 2002 Report No: 02I1394-4 APPLICANT: SAMSUNG ELECTRONICS CO., LTD. #416, MAETAN-3DONG, PALDAL-GU SUWON CITY, GYEONGGI-DO 442-742, KOREA TRADE NAME: SAMSUNG MODEL: S160 FCC ID: A3LS160 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Operating Mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. RF Output Power (Conducted): 18.21 dBm (2412MHz) Max. SAR (1g): 0.526 mW/g (2462 MHz) Separate distance: Direct touched to the phantom Application Type: Certification FCC Rule Part(s): §15.247 This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C (released on 6/29/2001 see Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Steve Cheng EMC Engineering Manager REPORT NO: 02I1394-4 DATE: July 1, 2002 FCC ID: A3LS160 COMPLIANCE CERTIFICATION SERVICES Page: 3 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. EUT DESCRIPTION..............................................................................................4 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC.....................5 3. DOSIMETRIC ASSESSMENT SETUP.....................................................................5 3.1. MEASUREMENT SYSTEM DIAGRAM..............................................................................................................6 3.2. SYSTEM COMPONENTS..................................................................................................................................7 3.3. EUT SET-UP PHOTOS.....................................................................................................................................11 3.4. MEASUREMENT UNCERTAINTY...................................................................................................................13 4. EUT TUNE-UP PROCEDURE...............................................................................13 5. EVALUATION PROCEDURE...............................................................................14 5.1. SYSTEM VALIDATION DATA..........................................................................................................................15 5.2. SAR EVALUATION PROCEDURE..................................................................................................................15 5.3. EXPOSURE LIMIT............................................................................................................................................16 6. MEASUREMENT RESULTS................................................................................17 7. EUT PHOTOS....................................................................................................19 8. EQUIPMENTS LIST & CALIBRATION INFORMATION............................................20 9. REFERENCES...................................................................................................21 10. ATTACHMANTS.............................................................................................22 REPORT NO: 02I1394-4 DATE: July 1, 2002 FCC ID: A3LS160 COMPLIANCE CERTIFICATION SERVICES Page: 4 of 22 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. EUT DESCRIPTION APPLICANT: SAMSUNG ELECTRONICS CO., LTD. #416, MAETAN-3DONG, PALDAL-GU SUWON CITY, GYEONGGI-DO 442-742, KOREA TRADE NAME: SAMSUNG MODEL: S160 FCC ID: A3LS160 DEVICE CATEGORY: PORTABLE DEVICES EXPOSURE CATEGORY: GENERAL POPULATION/UNCONTROLLED EXPOSURE Test Sample is a: Production unit Operating Mode: Maximum continuous output Tx Frequency: 2412 ~ 2462 MHz Max. RF Output Power (Conducted): 18.21 dBm (2412MHz) Max. SAR (1g): 0.526 mW/g (2462 MHz) Application Type: Certification FCC Rule Part(s): §15.247 Antenna Dimensions: Length (mm): 10 x 5.9 x 3.4 (L x W x H) Battery option: Only one model with EUT 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. REPORT NO: 02I1394-4 DATE: July 1, 2002 FCC ID: A3LS160 COMPLIANCE CERTIFICATION SERVICES Page: 5 of 22 This report shall not be reproduced except in full, without the written approval of …

Text truncated - open the document above for the full version.

SAMSUNG_S160; Flat position; Frequency: 2412 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: Peak: 1.14 mW/g, SAR (1g): 0.503 mW/g, SAR (10g): 0.205 mW/g, (Worst-case extrapolation) Penetration depth: 6.8 (6.4, 8.0) [mm]; Powerdrift: 0.06 dB Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.7 SAR Tot [mW/g] 4.64E-2 1.39E-1 2.32E-1 3.25E-1 4.18E-1 07/01/02 COMPLIANCE CERTIFICATION SERVICES SAMSUNG_S160; Flat position; Frequency: 2412 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:: , , () Penetration depth: 5.7 (5.4, 6.5) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.7 07/01/02 COMPLIANCE CERTIFICATION SERVICES 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 01020304050607080 SAR tot [mW/g] [mm] SAMSUNG_S160; Flat position; Frequency: 2437 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: Peak: 1.18 mW/g, SAR (1g): 0.496 mW/g, SAR (10g): 0.195 mW/g, (Worst-case extrapolation) Penetration depth: 7.2 (6.8, 8.2) [mm]; Powerdrift: -0.18 dB Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.8 SAR Tot [mW/g] 3.61E-2 1.08E-1 1.80E-1 2.53E-1 3.25E-1 07/01/02 COMPLIANCE CERTIFICATION SERVICES SAMSUNG_S160; Flat position; Frequency: 2437 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:: , , () Penetration depth: 5.8 (5.5, 6.5) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.8 07/01/02 COMPLIANCE CERTIFICATION SERVICES 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0 1.1 01020304050607080 SAR tot [mW/g] [mm] SAMSUNG_S160; Flat (body) position; Frequency: 2462MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: Peak: 1.28 mW/g, SAR (1g): 0.521 mW/g, SAR (10g): 0.191 mW/g, (Worst-case extrapolation) Penetration depth: 5.5 (5.2, 6.1) [mm]; Powerdrift: -0.07 dB Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.5 SAR Tot [mW/g] 3.72E-2 1.12E-1 1.86E-1 2.60E-1 3.35E-1 07/01/02 COMPLIANCE CERTIFICATION SERVICES SAMSUNG_S160; Flat (body) position; Frequency: 2462MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:: , , () Penetration depth: 5.6 (5.3, 6.4) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.5 07/01/02 COMPLIANCE CERTIFICATION SERVICES 0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 01020304050607080 SAR tot [mW/g] [mm] SAMSUNG_S160; Flat (body) position; Frequency: 2412MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: Peak: 0.823 mW/g, SAR (1g): 0.330 mW/g, SAR (10g): 0.134 mW/g, (Worst-case extrapolation) Penetration depth: 6.9 (6.8, 7.1) [mm]; Powerdrift: -0.09 dB Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.7 SAR Tot [mW/g] 2.92E-2 8.76E-2 1.46E-1 2.04E-1 2.63E-1 07/01/02 COMPLIANCE CERTIFICATION SERVICES SAMSUNG_S160; Flat (body) position; Frequency: 2412MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:: , , () Penetration depth: 4.7 (4.3, 5.5) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.7 07/01/02 COMPLIANCE CERTIFICATION SERVICES 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 01020304050607080 SAR tot [mW/g] [mm] SAMSUNG_S160; Flat position; Frequency: 2437 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: Peak: 0.801 mW/g, SAR (1g): 0.304mW/g, SAR (10g): 0.124 mW/g, (Worst-case extrapolation) Penetration depth: 6.4 (6.3, 6.7) [mm]; Powerdrift: 0.06 dB Coarse: Dx = 14.0, Dy = 14.0, Dz = 10.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.5 SAR Tot [mW/g] 3.00E-2 9.00E-2 1.50E-1 2.10E-1 2.70E-1 07/01/02 COMPLIANCE CERTIFICATION SERVICES SAMSUNG_S160; Flat position; Frequency: 2437 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Section; Position: Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:: , , () Penetration depth: 4.4 (4.0, 5.2) [mm]; Z-Axis: Dx = 0.0, Dy = 0.0, Dz = 2.0 Ambient Temperature (degree C): 22.5 Liquid Temperature (degree C): 20.5 07/01/02 COMPLIANCE CERTIFICATION SERVICES -0.1 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 1020304050607080 SAR tot [mW/g] [mm] SAMSUNG_S160; Flat position; Frequency: 2462 MHz Frequency: 2450 MHz; Crest factor: 1.0 Medium: Muscle 2450 MHz: σ = 2.04 mho/m ε r = 50.6 ρ = 1.00 g/cm 3 SAM Phantom; Flat Section; Position: (90°,90°) Probe: ET3DV6 - SN1578; ConvF(4.10,4.10,4.10); SAR:Cube 5x5x7: …

Text truncated - open the document above for the full version.

FCC CFR47 PART 15 CERTIFICATION TEST REPORT FOR Wireless HAND PC MODEL: S160 FCC ID: A3LS160 REPORT NUMBER: 02I1394 ISSUE DATE: JULY 08, 2002 Prepared for SAMSUNG ELECTRONICS CO., LTD. #416, MAETAN-3 DONG, PARDAL-GU SUWON CITY, GYEONGGI-DO 442-742 (SOUTH) KOREA Prepared by COMPLIANCE CERTIFICATION SERVICES 561 F MONTEREY ROAD MORGAN HILL, CA 95037, USA TEL: (408) 463-0885 FAX: (408) 463-0888 REPORT NO: 02I1394 DATE: JULY 8, 2002 EUT: Wireless HAND PC FCC ID: A3LS160 Page 2 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. TABLE OF CONTENT 1. TEST RESULT CERTIFICATION.................................................................................................3 2. EUT DESCRIPTION.........................................................................................................................4 3. EUT MODIFICATION......................................................................................................................4 4. TEST METHODOLOGY..................................................................................................................4 5. TEST FACILITY...............................................................................................................................4 6. ACCREDITATION AND LISTING................................................................................................4 6.1. LABORATORY ACCREDITATIONS AND LISTINGS..........................................................................5 7. CALIBRATION AND UNCERTAINTY.........................................................................................6 7.1. MEASURING INSTRUMENT CALIBRATION.....................................................................................6 7.2. MEASUREMENT UNCERTAINTY....................................................................................................6 7.3. TEST AND MEASUREMENT EQUIPMENT.......................................................................................7 8. SUPPORT EQUIPMENT / EUT SETUP.........................................................................................7 9. APPLICABLE RULES AND BRIEF TEST RESULT.................................................................10 10. TEST SETUP, PROCEDURE AND RESULT..........................................................................15 10.1. PEAK POWER OUTPUT......................................................................................................15 10.2. 6 DB BANDWIDTH MEASUREMENT...............................................................................19 10.3. CONDUCTED SPURIOUS EMISSION...............................................................................23 10.4. PEAK POWER SPECTRAL DENSITY................................................................................30 10.5. RESTRICTED BAND EDGE MEASUREMENT.................................................................34 10.6. RADIATED EMISSION........................................................................................................37 10.6.1. RADIATED EMISSION AND RESTRICTED BANDS........................................................37 10.7. POWER LINE CONDUCTED EMISSION...........................................................................46 10.8. SETUP PHOTOS...................................................................................................................48 REPORT NO: 02I1394 DATE: JULY 8, 2002 EUT: Wireless HAND PC FCC ID: A3LS160 Page 3 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 1. TEST RESULT CERTIFICATION COMPANY NAME: SAMSUNG ELECTRONICS CO., LTD. #416, MAETAN-3 DONG, PARDAL-GU SUWON CITY, GYEONGGI-DO 442-742 (SOUTH) KOREA CONTACT PERSON: B.H. KIM / SAFETY & EMC TEAM MANAGER TELEPHONE NO: (031) 200-7241 EUT DESCRIPTION: WIRELESS HAND PC MODEL NAME: S160 DATE TESTED: JULY 1 – 3, 2002 TYPE OF EQUIPMENT INTENTIONAL RADIATOR EQUIPMENT TYPE 2.4GHz TRANSCEIVER MEASUREMENT PROCEDURE ANSI 63.4 / 1992, TIA/EIA 603 PROCEDURE CERTIFICATION FCC RULE CFR 47 PART 15 Subpart C Compliance Certification Services, Inc. tested the above equipment for compliance with the requirement set forth in CFR 47, PART 15 Subpart C. The equipment in the configuration described in this report, shows the measured emission levels emanating from the equipment do not exceed the specified limit. Note: This document reports conditions under which testing was conducted and results of tests performed. This document may not be altered or revised in any way unless done so by Compliance Certification Services and all revisions are duly noted in the revisions section. Any alteration of this document not carried out by Compliance Certification Services will constitute fraud and shall nullify the document. Approved & Released For CCS By: Tested By: STEVE CHENG KERWIN CORPUZ EMC MANAGER ASSOCIATE EMC ENGINEER COMPLIANCE CERTIFICATION SERVICES COMPLIANCE CERTIFICATION SERVICES REPORT NO: 02I1394 DATE: JULY 8, 2002 EUT: Wireless HAND PC FCC ID: A3LS160 Page 4 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and…

Text truncated - open the document above for the full version.

REPORT NO: 02I1394 DATE: JULY 8, 2002 EUT: Wireless HAND PC FCC ID: A3LS160 Page 48 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. 10.8. SETUP PHOTOS Radiated Emission below 1 GHz measurement Y axis with Cradle front side (worst case) Y axis with Cradle back side REPORT NO: 02I1394 DATE: JULY 8, 2002 EUT: Wireless HAND PC FCC ID: A3LS160 Page 49 of 54 COMPLIANCE CERTIFICATION SERVICES DOCUMENT NO: CCSUP4031A 561F MONTEREY ROAD, MORGAN HILL, CA 95037 USA TEL: (408) 463-0885 FAX: (408) 463-0888 This report shall not be reproduced except in full, without the written approval of CCS. This document may be altered or revised by Compliance Certification Services personnel only, and shall be noted in the revision section of the document. X axis position Z axis position REPORT NO: 02I1394 DATE: JULY 8,…
