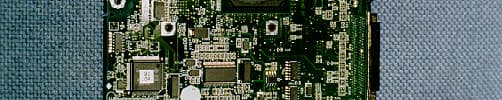

A3LS720RNotebook Computer, 233/366MHz Pentium II

Notice The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editional errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. Product names mentioned herein are for identification purposes only, and may be trademarks and/ or registered trademarks of their respective companies. 1998. All rights reserved Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, it may cause harmful interference in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet helpful: "Something About Interference." This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction will be the responsibility of the user. Use only shielded data cables with this system. CLASS 1 LASER PRODUCT CAUTION The laser beam used by this CD-ROM drive unit can be harmful to the eyes. Do not attempt to open the unit. All service procedures should be performed by an authorized dealer or distributor. WARNING Never use any optical instruments in conjunction with this unit. To do so will greatly increase the hazard to your eyes. ADVARSEL USYNLIG LASERSTRÅLING VED ÅBNING, NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. SE IKKE IND I STRÅLEN - HELLER IKKE MED OPTISKE INSTRUMENTER. ADVARSEL USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS BRYTES. STIRR IKKE INN I STRÅLEN ELLER SE DIREKTE MED OPTISKE INSTRUMENTER. LUOKAN 1 LASERLAITE. VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTöOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTöMÄLLE LASERSÄTEILYLLE. KLASS 1 LASERAPPARAT. VARNING OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERATS, KAN ANVÄNDAREN UTSÄTTAS FöR OSYNLIG LASER-STRÅLNING, SOM öVERSKRIDER GRÄNSEN FöR LASERKLASS 1. Labels appearing on the drives: CAUTION - INVISIBLE LASER RADIATION WHEN OPEN. AVOID EXPOSURE TO BEAM. VORSICHT! UNSICHTBARE LASERSTRAHLUNG TRITT AUS, WENN DECKEL GEöFFNET. NICHT DEM STRAHL AUSSETZEN! VARNING - OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR öPPNAD. STRÅLEN ÄR FARLIG. ADVARSEL - USYNLIG LASERSTRÅLING VED ÅBNING.UNDGÅ UDS/ETTELSE FOR STRÅLING. CLASS 1 LASER PRODUCTLASERSCHUTZKLASSE 1 PRODUKT TOEN 60825 Important Safety Instruction Read all of these instructions, and save these instructions for later use. • Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. • Do not use this product near water. Never spill liquid of any kind on the product. • Do not place this product on an unstable cart, stand, or table. • Slots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built- in installation unless proper ventilation is provided. • Before connecting this product to a power source, check the required voltage and frequency match the available power source. • This computer is powered by an internal battery pack or by an external AC power source through an external AC adapter. Use of another battery pack or external AC adapter may present risk of fire or explosion. • This product is equipped with a 2-wire type plug. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. • Do not allow anything to rest on the power cord. • Do not place this product in a location where someone may trip over the cord. • If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampererating. • Never push objects of any kind into this product through the cabinet slots, as they may touch dangerous voltage points or short out parts; that could result in a risk of fire or electric shock. • Except as explained elsewhere in this manual, do not attempt to service this product yourself. • Handle battery with care. If dro…

Text truncated - open the document above for the full version.

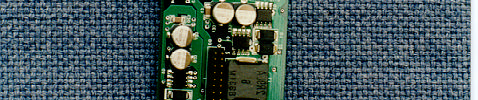

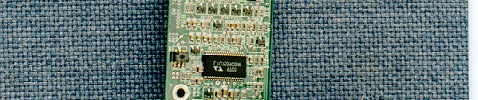

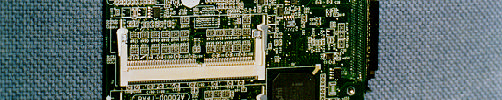

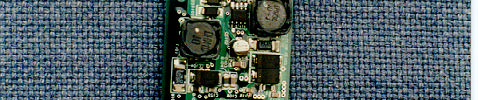

Jan 4, 1999 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Notebook Computer (FCC P.15 Digital Device) Model: S720 FCC ID No: A3LS720R FCC Confirmation Number: Gentleman: The above application has been submitted to FCC OET web site on Jan 01, 1999. A check, $940.00 has been directly mailed to Mellon Bank to pay this application. The above Notebook Computer includes 4 kinds of oscillator, 16MHz, 14.318MHz, 56.448MHz, 32.768MHz as shown on block diagram. This equipment uses 366MHz Intel Pentium Processor. The attached files are, for your reference, as follows: 1. FCC ID Label and location 2. Block Diagram including oscillator information 3. Test report including test set up photo’s 4. External photo’s 5. Internal photo’s 6. Specification 7. User Manual If you have any question on this application, please let me know at [email protected] or Phone) 408-544-5124. Sincerely Yours, Ben Kim Engineering Manager Samsung Electronics America

SAMSUNG Reference NO. : 981224 FCC ID : A3LS720R JOB NO. : SEMC058 EMI TEST REPORT SAMSUNG ELECTRONICS CO., LTD. Product :Notebook Computer Model No. :SENS Pro 720 FCC ID : A3LS720R DATE :December 12, 1998 SAMSUNG Reference NO. : 981224 This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name : SAMSUNG ELECTRONICS CO., LTD. (Company name & Address) 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 2. Identification of tested device 2.1 FCC ID :A3LS720R 2.2 Device Name :Notebook Computer 2.3 Brand (Trade Name) :SAMSUNG 2.4 Model Number :SENS Pro 720 3. Test Procedure and Items 3.1 AC Powerline Conducted Emissions Measurement :ANSI C63.4-1992 3.2 Radiated Emissions Measurement :ANSI C63.4-1992 4. Issued Date :December 12, 1998 TESTED BY : No-Cheon, PARK / Test Engineer APPROVED BY : Taek-Jeong, SHIN / Manager of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 981224 FCC ID : A3LS720R TABLE OF CONTENTS 1. GENERAL INFORMATION 1.1 Product Description 1.2 Grants 1.3 Tested System Details 1.4 Test Methdology 1.5 Test Facility 2. SYSTEM TEST CONFIGURATION 2.1 Justification 2.2 Video Mode Justification 2.3 EUT Exercise Software 2.4 Special Accessories 2.5 Equipment Modification 2.6 Test System configuration 2.7 Photographs 3. CONDUCTED EMISSION DATA 4. RADIATED EMISSION DATA 5. LIST OF TEST INSTRUMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 981224 FCC ID : A3LS720R 1. General Information 1.1 Product Description The Samsung Electronics Co., Ltd. Notebook Computer Model SENS Pro 720(FCC ID :A3LN720R)is based on the powerful Pentium II processor. It can be operated from rechargeable battery pack or by 90-240V AC Adapter(with ferrite bead). 1.2 Grants The EUT was tested with a External FDD. Samsung does not intend to market this as a separate unit; therefore, an application for certification is not being filed. This device will be supplied with this computer. 1.3 Test System Details The FCC IDs for all equipment plus descriptions of all cables used with the tested system (including inserted cards which have grant) are: FCC ID DESCRIPTION (Model Name)CABLE DESCRIPTION A3LS720REUT (SENS Pro 720)- A3LCST768External Monitor (CST7687L)Shielded interface EW425-1040DSerial Mouse (25-1040D)Unshielded interface GJJSKR-1032BKeyboard (SEM-K15Z)Unshielded interface N/AAC Adaper (AD-5019)Unshielded interface N/AUSB Termination cableUnshielded interface A3LSPR500EPort Replicator (SPR-500E)Unshielded interface N/ATelePhone (SSP-2501)Unshielded interface N/AMicrophone (YMC-2511)Unshielded interface DSI16XU222Inkjet Printer (2225C)Shielded interface N/APCMCIA(SLOTS-2EA)FLASH MEMORY- N/AExternal FDD (SFD-600E)Unshielded interface N/ALoud Speaker (BS-211)Unshielded interface This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 981224 FCC ID : A3LS720R 1.5 Test Methodology Both radiated and conducted tests were performed according to the procedure in ANSI C63.4-1992. Radiated testing was performed at an antenna-to-EUT distance of three meters. 1.6 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 Open area test site (3 meter) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. 2. SYSTEM TEST CONFIGURATION 2.1 Justification The system was configured for testing in typical fashion (as a customer would use it). The EUT has internal clock speeds of 14.318, 33, 48 56.448 and 66.6MHz. And the EUT have various CPUs(266,300 and 366MHz speed CPU) The EUT was investigated while operating at all speeds. The highest speed of 366MHz CPU was used for final testing as it was found to cause worst case emissions. And the EUT has LCD displays of 14.1" XGA TFT type. The EUT's video circuitry is capable of operating at a maximum non-interlaced resolution of 1024x768 pixels. The EUT was observed while scrolling a continuous stream for capital "H's" in the 1024x768 mode(both LCD display and External Monitor). Comparing the test results with Port Replicator and without Port Replicator. The test result without Port Replicator was found the worst case emissions. And so the final testing was performed without Port Replicator. The EUT was tested with a Samsung AC Adapter Model number AD-5019. Further details of cabling and configuration are shown in the test system configuration. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 981224 FCC ID : A3LS720R 2.2 Video Mode Justification The system was tested in 1024x768 resolution mode and in the highest resolution mode of 1024x768. Since the 1024x768 resolution mode(LCD & External Monitor both in use) was found to be worst case, this mode was used to collect the included data. 2.3 EUT Exercise Soft ware The EUT exercise program used during testing was designed to exercise the system in a manner similar to a typical use. This program was contained on the EUT's Hard Disk and Floppy Disk. Once loaded, the program sequentially exercise each system component in turn. The sequence used was : 1) serial "H"s scrolled to the LCD and Monitor; 2) copy series of "H"s characters to mass storage device. 3) print series of H characters to printer. Since the mouse and speaker are strictly input device, no data was transmitted to them during testing. They are, however, continuously scanned for data input activity. 2…
