A3LS730

i User’s Manual Notice The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained in herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies. 1998. All rights reserved ii Important Safety Instruction Read all of these instructions, and save these instructions for later use. •Follow all warnings and instructions marked on the product. •Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. •Do not use this product near water. Never spill liquid of any kind on the product. •Do not place this product on an unstable cart, stand, or table. •Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. •Before connecting this product to a power source, check the required voltage and frequency match the available power source. •This computer is powered by an internal battery pack or by an external AC power source, Which is supplied with the computer. Use of another battery pack or AC power source may present risk of fire or explosion. To disconnect the AC power cord and remove the battery packs. •This product is equipped with a 2-wire type plug. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. •Do not allow anything to rest on the power cord. •Do not place this product in a location where someone may trip over the cord. •If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. •Never push objects of any kind into this product through the cabinet slots, as they may touch dangerous voltage points or short out parts; that could result in a risk of fire or electric shock. •Except as explained elsewhere in this manual, do not attempt to service this product yourself. •Handle battery with care. If dropped, they may damaged. •Do not allow the battery to be exposed to direct sunlight for extended periods of time. iii User’s Manual •Do not attempt to disassemble the battery. If the battery is disassembled and the electrodes are exposed to outside, the battery may generate eat and smoke by chemical reaction. •Do not expose the battery to moisture or chemicals. •Charge the battery only as described in this document. •Do not short circuit the battery terminals as the resulting high currents can damage the battery. •The battery should not be used to power other products. •Do not dispose of a used battery in a fire or incinerator, as an explosion may result. •The battery should be recycled. •Do not subject the battery to temperature should not less than -20 degrees Centigrade or greater than 50 degrees Centigrade. •Unplug this product from the wall outlet and refer problems to the service representative under the following conditions: - When the power cord or plug is damaged or frayed. - If liquid has been spilled into product. - If the product has been exposed to rain or water. - If the product does not operate normally when the operating instructions are followed, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage. - If the product exhibits a distinct change in performance. iv Battery Disposal Warning : Do not put rechargeable batteries or products powered by non- removable rechargeable batteries in the garbage. Contact your customer service representative for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when old batteries. v User’s Manual Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. If necessary, the user should consult the dealer or an experienced radio/television technician for additional suggestions. The user may find the fol…

Text truncated - open the document above for the full version.

September 30, 1998 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Notebook Computer (FCC P.15 Digital Device) Model: S730 FCC ID No: A3LS730 FCC Confirmation Number: Gentleman: The above application has been submitted to FCC OET web site on Sep.30, 1998. A check, $940.00 has been directly mailed to Mellon Bank to pay this application. The above Notebook Computer includes 4 kinds of oscillator, 14.318MHz, 33.MHz, 48MHz, 66.6MHz as shown on block diagram. This equipment uses 300MHz Intel Pentium Processor. The attached files are, for your reference, as follows: 1. FCC ID Label and location 2. Block Diagram including oscillator information 3. Test report including test set up photo’s 4. External photo’s 5. Internal photo’s 6. Specification 7. User Manual If you have any question on this application, please let me know at [email protected] or Phone) 408-544-5124. Sincerely Yours, Ben Kim Engineering Manager Samsung Electronics America

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID LABEL ** This label will be placed on bottom of this equipment. Signature : Ben Kim Printed : Ben Kim Title : Manager

Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID LABEL ** This label will be placed on bottom of this equipment. ( See next page for detail location) Signature : Ben Kim Printed : Ben Kim Title : Manager Location of ID Label

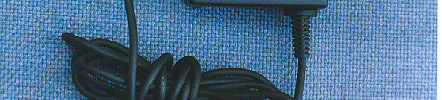

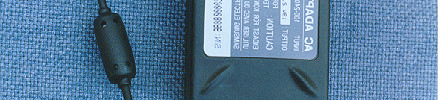

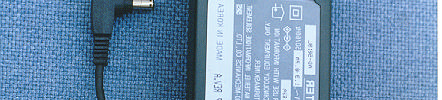

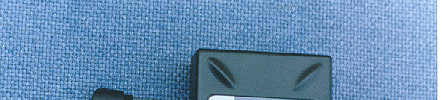

A3LS730 PHOTOGRAPHICS °¤ A3LS730FRONT&REARVIEW °¤ OPENSIDE °¤ MANIBOARDFRONT&REARVIEW °¤ MODEMBOARDFRONT&REARVIEW °¤ DC/DCBOARDFRONT&REARVIEW °¤ INVERTORBOARDFRONT&REARVIEW °¤ ACADAPTER °¤ ADAPTERPCBFRONT&REARVIEW

SAMSUNG Reference NO. : 980947 FCC ID : A3LS730 EMI TEST REPORT SAMSUNG ELECTRONICS CO., LTD. Product :Notebook Computer Model No.:SENS Pro 730 FCC ID : A3LS730 DATE :September 22, 1998 SAMSUNG Reference NO. : 980947 This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name : SAMSUNG ELECTRONICS CO., LTD. (Company name & Address) 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 2. Identification of tested device 2.1 FCC ID :A3LS730 2.2 Device Name :Notebook Computer 2.3 Brand (Trade Name) :SAMSUNG 2.4 Model Number :SENS Pro 730 3. Test Procedure and Items 3.1 AC Powerline Conducted Emissions Measurement :ANSI C63.4-1992 3.2 Radiated Emissions Measurement :ANSI C63.4-1992 4. Issued Date :September 22, 1998 TESTED BY : No-Cheon, PARK / Test Engineer APPROVED BY : Taek-Jeong, SHIN / Manager of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 980947 FCC ID : A3LS730 TABLE OF CONTENTS 1. GENERAL INFORMATION 1.1 Product Description 1.2 Grants 1.3 Tested System Details 1.4 Test Methdology 1.5 Test Facility 2. SYSTEM TEST CONFIGURATION 2.1 Justification 2.2 Video Mode Justification 2.3 EUT Exercise Software 2.4 Special Accessories 2.5 Equipment Modification 2.6 Test System configuration 2.7 Photographs 3. CONDUCTED EMISSION DATA 4. RADIATED EMISSION DATA 5. LIST OF TEST INSTRUMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 980947 FCC ID : A3LS730 1. General Information 1.1 Production Description The Samsung Notebook Computer Model SENS Pro 730(FCC ID:A3LS730) is based on the powerful INTEL PENTIUM-II DIXON processor (CPU 300MHz) and has internal clock speeds of 14.318, 33, 48 and 66.6MHz. It can be operated from rechargeable battery pack or by AC 100~240V FREE-VOLTAGE AC Adapter. See attached SENS Pro 730 User's Guide for more information. 1.2 Grants N / A 1.3 Test System Details The FCC IDs for all equipment plus descriptions of all cables used with the tested system (including inserted cards which have grant) are: FCC ID DESCRIPTION (Model Name) CABLE DESCRIPTION A3LS730 EUT (SENS Pro 730) - D2LCC Serial Mouse (M-CG7) Unshielded Cable N/A AC Adaper (AD-5019L) Unshielded Power Cord (with Ferrite bead) N/A USB Termination Cable Unshielded Cable N/A TelePhone (SSP-2501) Unshielded Cable N/A Microphone (YMC-2511) shielded Cable GJJB50PA0 PS/2 Mouse (SMB-600) Unshielded Cable DSI16XU222 Inkjet Printer (2225C) shielded Cable N/A PCMCIA(SLOTS-2EA) FLASH MEMORY - A3LCST768 External Monitor (CST7687L) shielded Cable N/A Loud Speaker (BS-211) Unshielded Cable This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 980947 FCC ID : A3LS730 1.4 Test Methodology Both radiated and conducted tests were performed according to the procedure in ANSI C63.4. Radiated testing was performed at an antenna-to-EUT distance of three meters. 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 Open field test site (3 meter) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. 2. SYSTEM TEST CONFIGURATION 2.1 Justification The system was configured for testing in typical fashion (as a customer would use it). The EUT has internal clock speeds of 14.318, 33, 48 and 66.6MHz. The EUT was investigated while operating at all speeds. The highest speed of 300MHz CPU was used for final testing as it was found to cause worst case emissions. And the EUT has LCD displays of 13.3" TFT. The EUT's video circuitry is capable of operating at a maximum non-interlaced resolution of 1024x768 pixels. The EUT was observed while scrolling a continuous stream for capital "H's" in the 1024x768 mode(both LCD display and External Monitor). Comparing the test results without port replicator and with port replicator. The test result without port replicator was found the worst case emissions. And so the final testing was performed without port replicatator. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 980947 FCC ID : A3LS730 The EUT was tested with a Samsung AC Adapter Model number AD-5019L. Further details of cabling and configuration are shown in the test system configuration. 2.2 Video Mode Justification The system was tested in 1024x768 resolution mode and in the highest resolution mode of 1024x768. Since the 1024x768 resolution mode(LCD & External Monitor both in use) was found to be worst case, this mode was used to collect the included data. 2.3 EUT Exercise Soft ware The EUT exercise program used during testing was designed to exercise the system in a manner similar to a typical use. This program was contained on the EUT's Hard Disk and Floppy Disk. Once loaded, the program sequentially exercise each system component in turn. The sequence used was : 1) serial "H"s scrolled to the LCD and Monitor; 2) copy series of "H"s characters to mass storage device. 3) print series of H characters to printer. Since the mouse and speaker are strictly input device, no data was transmitted to them during testing. They are, however, continuously scanned for data input activity. 2.4 Special Accessories The Samsung AC adapter cable has a ferrite bead on the line. The following is ferrite Core specification. A : 5.02mm B : 9.84mm C : 24.5mm C 2.5 Equipment Modifications No equipment modifications were performed during testing. This reports shall not be reproduced …

Text truncated - open the document above for the full version.
