A3LS820Notebook Computer

i Notice 1998. All rights reserved The information within this manual is subject to change without notice. The manufacturer shall not be held liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance or use of this material. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, mechanical photocopying, recording or otherwise, without the prior written permission of the manufacturer. Product names mentioned herein are for identification purposes only, and may be trademarks and/or registered trademarks of their respective companies. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must by authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited. ii Important Safety Instruction Read all of these instructions, and save these instructions for later use. •Follow all warnings and instructions marked on the product. •Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. •Do not use this product near water. Never spill liquid of any kind on the product. •Do not place this product on an unstable cart, stand, or table. •Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product on a bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation unless proper ventilation is provided. •Before connecting this product to a power source, check the required voltage and frequency match the available power source. •This computer is powered by an internal battery pack or by an external AC power source, Which is supplied with the computer. Use of another battery pack or AC power source may present risk of fire or explosion. To disconnect the AC power cord and remove the battery packs. •This product is equipped with a 2-wire type plug. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. •Do not allow anything to rest on the power cord. •Do not place this product in a location where someone may trip over the cord. •If an extension cord is used with this product, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord ampere rating. Also, make sure that the total of all products plugged into the wall outlet does not exceed 15 amperes. •Never push objects of any kind into this product through the cabinet slots, as they may touch dangerous voltage points or short out parts; that could result in a risk of fire or electric shock. •Except as explained elsewhere in this manual, do not attempt to service this product yourself. •Handle battery with care. If dropped, they may damaged. •Do not allow the battery to be exposed to direct sunlight for extended periods of time. iii •Do not attempt to disassemble the battery. If the battery is disassembled and the electrodes are exposed to outside, the battery may generate eat and smoke by chemical reaction. •Do not expose the battery to moisture or chemicals. •Charge the battery only as described in this document. •Do not short circuit the battery terminals as the resulting high currents can damage the battery. •The battery should not be used to power other products. •Do not dispose of a used battery in a fire or incinerator, as an explosion may result. •The battery should be recycled. •Do not subject the battery to temperature should not less than -20 degrees Centigrade or greater than 50 degrees Centigrade. •Unplug this product from the wall outlet and refer problems to the service representative under the following conditions: - When the power cord or plug is damaged or frayed. - If liquid has been spilled into product. - If the product has been exposed to rain or water. - If the product does not operate normally when the operating instructions are followed, adjust only those controls that are covered by the operating instructions. Improper adjustment of other controls may result in damage. - If the product exhibits a distinct change in performance. v Federal Communications Commission (FCC) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generate uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. If necessary, the user should consult the deale…

Text truncated - open the document above for the full version.

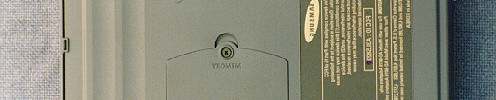

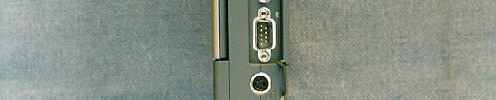

Feb.18, 1999 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 RE: Notebook Computer (FCC P.15 Digital Device) Model: Sens 820 FCC ID No: A3LS820 FCC Confirmation Number: Gentleman: The above application has been submitted to FCC OET web site on Feb 18, 1999. A check, $940.00 has been directly mailed to Mellon Bank to pay this application. The above Notebook Computer includes 4 kinds of oscillator, 16MHz, 14.318MHz, 29.498MHz, 32.768KHz, 49.152MHz as shown on block diagram. This equipment uses 366MHz Intel Pentium Processor. The attached files are, for your reference, as follows: 1. FCC ID Label and location 2. Block Diagram including oscillator information 3. Test report including test set up photo’s 4. External photo’s 5. Internal photo’s 6. Specification 7. User Manual If you have any question on this application, please let me know at [email protected] or Phone) 408-544-5124. Sincerely Yours, Ben Kim Engineering Manager Samsung Electronics America

SAMSUNG Reference NO. : 990208 FCC ID : A3LS820 JOB NO. : SEMC253 EMI TEST REPORT SAMSUNG ELECTRONICS CO., LTD. Product :Notebook Computer Model No. :SENS Pro 820 FCC ID : A3LS820 DATE :February 11, 1999 SAMSUNG Reference NO. : 990208 This test report is to certify that the tested device properly complies with the requirements of FCC Rules and Regulations Part 15 Subpart B Unintentional Radiators. All tests necessary to show compliance to the requirements were and these results met the specifications requirement. 1. Applicant Name : SAMSUNG ELECTRONICS CO., LTD. (Company name & Address) 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 2. Identification of tested device 2.1 FCC ID :A3LS820 2.2 Device Name :Notebook Computer 2.3 Brand (Trade Name) :SAMSUNG 2.4 Model Number :SENS Pro 820 3. Test Procedure and Items 3.1 AC Powerline Conducted Emissions Measurement :ANSI C63.4-1992 3.2 Radiated Emissions Measurement :ANSI C63.4-1992 4. Issued Date :February 11, 1999 TESTED BY : No-Cheon, PARK / Test Engineer APPROVED BY : Taek-Jeong, SHIN / Chief of EMC Lab. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 990208 FCC ID : A3LS820 JOB NO. : SEMC253 TABLE OF CONTENTS 1. GENERAL INFORMATION 1.1 Product Description 1.2 Grants 1.3 Tested System Details 1.4 Test Methdology 1.5 Test Facility 2. SYSTEM TEST CONFIGURATION 2.1 Justification 2.2 Video Mode Justification 2.3 EUT Exercise Software 2.4 Special Accessories 2.5 Equipment Modification 2.6 Test System configuration 2.7 Photographs 3. CONDUCTED EMISSION DATA 4. RADIATED EMISSION DATA 5. LIST OF TEST INSTRUMENT This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 990208 FCC ID : A3LS820 JOB NO. : SEMC253 1. General Information 1.1 Product Description The Samsung Electronics Co., Ltd. Notebook Computer Model SENS Pro 820(FCC ID :A3LS820)is based on the powerful pentium II processor(CPU 366MHz) and has internal clock speeds of 14.318, 16, 33, 66 and 100MHz. It can be operated from rechargeable battery pack or by 100-240V AC Adapter. See attached SENS Pro 820 User's Guide for more information. 1.2 Grants The EUT was tested with the External FDD. Samsung does not intend to market this as a separate unit; therefore, an application for certification is not being filed. This device will be supplied with this computer. 1.3 Test System Details The FCC IDs for all equipment plus descriptions of all cables used with the tested system (including inserted cards which have grant) are: FCC ID DESCRIPTION (Model Name)CABLE DESCRIPTION A3LS820EUT (SENS Pro 820)- A3LCST768External Monitor (CST7687L)Shielded interface DZLCCSerial Mouse (M-CG7)Unshielded interface GJJSKR-1032BKeyboard (SKR-1032B)Unshielded interface N/AAC Adaper (AD-6019)Unshielded interface N/AUSB Termination cableUnshielded interface A3LSMD750EMini-Dock(SMD-750EL)Unshielded interface DSI16XU222Inkjet Printer (2225C)Shielded interface N/A PCMCIA(SLOTS-2EA)FLASH MEMORY- N/ATelePhone (SSP-2501)Unshielded interface N/AEar-set (-)Unshielded interface This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 990208 FCC ID : A3LS820 JOB NO. : SEMC253 1.4 Test Methodology Both radiated and conducted tests were performed according to the procedure in ANSI C63.4-1992. Radiated testing was performed at an antenna-to-EUT distance of three meters. 1.5 Test Facility All test described in this report were performed by : SAMSUNG ELECTRONICS CO., LTD. EMC TESTING LABORATORY 416 Maetan 3 Dong, Paldal-Ku, Suwon City, Kyungki Do, Korea, 441-742 Open area test site (3 meter) and Shielded Room. This test facility has been filed in FCC under the criteria in ANSI C63.4-1992. 2. SYSTEM TEST CONFIGURATION 2.1 Justification The system was configured for testing in typical fashion (as a customer would use it), It has internal clock speeds of 14.318, 16, 33, 66 and 100MHz. And the EUT have various CPUs(266,300,333 and 366MHz CPU). The EUT has been checked with the optional Modem(SFM-1400LW, 56KBPS) installed. The EUT was investigated while operating at all speeds. The highest speed of 366MHz CPU was used for final testing as it was found to cause worst case emissions. The EUT's video circuitry is capable of operating at a maximum non-interlaced resolution of 1024x768 pixels. The EUT was observed while scrolling a continuous stream for capital "H's" in the 1024x768 mode(both LCD 14.1" and External Monitor). Comparing the test results with Mini-Dock and without Mini-Dock. The test result without Mini-Dock was found the worst case emissions. And so the final testing was performed without Mini-Dock. Samsung does intend to market this Mini-Dock as a separate unit. Therefore this Mini-Dock will not be supplied with the EUT. The External FDD(SEF-820E) that was tested with the computer is intended to be sold with the computer. It will not be marketed as a separate unit. The EUT was tested with a Samsung AC Adapter Model number AD-6019. Further details of cabling and configuration are shown in the test system configuration. This reports shall not be reproduced except in full, without the written approval of SEC EMC Testing laboratory. SAMSUNG Reference NO. : 990208 FCC ID : A3LS820 JOB NO. : SEMC253 2.2 Video Mode Justification The system was tested in 1024x768 highest resolution mode. Since the 1024x768 resolution mode(LCD 14.1" TFT & External Monitor both in use) was found to be worst case, this mode was used to collect the included data. 2.3 EUT Exercise Soft ware The EUT exercise program used during testing was designed to exercise the system in a manner similar to a typical use. This program was contained on the EUT's Hard Disk and CD-ROM Drv. Once loaded, the program sequentially exercise each system component in turn. The sequence used was : 1) serial "H"s scro…
