A3LSBD100PBEBluetooth PC Dongle

User Manual for 1 INDEX 1. Introduction 1.1 Introduction to Bluetooth Wireless Technology ......................................................... 2 1.2 Introduction to Bluetooth PC Dongle............................................................................... 2 1.3 Box Content and Picture .......................................................................................................2 2. System Requirement 2.1 PC System Requirement: ....................................................................................................... 3 3. Specification 3.1 External appearance...................................................................................................................4 3.2 Bluetooth Specification.............................................................................................................4 3.3 Supported Bluetooth Profile ................................................................................................ 4 4. Software Installation ................................................................................................... 5 5. Pairing Guide ................................................................................................................ 10 6. Connect and Disconnect 6.1 Connect .......................................................................................................................................18 6.2 Disconnect ................................................................................................................................. 19 7. Certification and safety approvals ....................................................................24 8. Correct Disposal of This Product .........................................................................26 2 1. Introduction 1.1 Introduction to Bluetooth Wireless Technology Bluetooth is a short-range wireless communication technology. It allows wireless connections between Bluetooth devices such as cellular phones, personal digital assistants (PDA), desktop and notebooks computers, input-output devices (mouse, keyboards, and printers), and home appliances. Bluetooth refers to a worldwide standard designed to operate in the internationally recognized ISM(Industrial Scientific and Medical) frequency band. Within the ISM band (2.402GHz ~ 2.480GHz) Bluetooth transmissions hop between 79 separate frequencies 1,600 times every second, and with a communication range of about 10 meters (33 feet) for class II or 100 meters (330 feet) for class I. 1.2 Introduction to Bluetooth PC Dongle Bluetooth PC Dongle is a Bluetooth enabler, that enables your desktop or notebook computer to connect wirelessly to any otherBluetooth enabled computers and devices. It allows a working range of up to 10 (class 2)/100 (class 1) meters (33/330 feet) with a 3Mbps data rate transmission, and complies with Bluetooth 1.2 and USB 1.1 (support the two lower data-transfer rates of either 1.5Mb/s or 12Mb/s)/ 2.0(support all three data rates: 1.5Mb/s, 12Mb/s, and 480Mb/s. the fast data-transfer rate of 480 Mb/s) specifications. Bluetooth PC Dolgle is an ideal solution for home and mobile networking needs. It is easy to install and use for wireless connectivity to such as cellular phones, PDAs, printers, computers, keyboards, mouse etc. 1.3 Box Content and Picture - Bluetooth PC Dongle -Driver CD(Bluetooth Stack + User Manual) 3 2. System Requirement 2.1 PC System Requirement: - CPU: Intel Pentium III 500MHz or above. - Memory: 256MB or more. - Hard disk space: at least 50MB. - OS: Microsoft Windows 2000/XP - A free USB port, USB 1.1/2.0 compliant. -CD-ROMDrive. 4 3. Specification 3.1 External appearance - Dimensions : 53mm x 22.5mm x 11.2mm - Weight : 10.2g - Operating Temperature Range : -20°C~60°C 3.2 Bluetooth Specification - In compatible with Bluetooth Spec. V2.0+EDR(Enhanced Data Rate) - Frequency Range : 2.402GHz ~ 2.480GHz - Data Rate : Support 1Mbps, 2Mbps and 3Mbps -RxSensitivity:-75dBm -TxOutputPower:-6~+4dBm 3.3 Supported Bluetooth Profile - DUN(Dial-Up Networking Profile) - BIP(Basic Image Profile) - HCRP(Hard Copy Replacement Profile) - GAVDP(Generic Audio/Video Distribution Profile) - A2DP(Advanced Audio Distribution Profile) - AVRCP(Audio/Video Remote Control Profile) - HID(Human Interface Device) - PAN(Personal Area Networking) - LAP(LAN Access Profile) - FTP(File Transfer Profile) -OPP(ObjectPushProfile) 5 4. Software Installation Note: Do not plug your Bluetooth PC Dongle into USB port until you have completed the software installation as the following 1. Insert the software CD comes with your PC Dongle. The “InstallShield Wizard” should automatically start running. If it doesn’t load, run its “Setup.exe” file. 2. A menu window appears for you to select settings items. Click “Install” to start installation process. 3. The InstallShield Wizard windowshould now appear, Click “Next”. 6 4. Select “Yes” to accept License Agreement. 5. Click “Install” to begin the installation. 7 6. InstallShield is processing. 7. Wait for the setup. 8 8. Now plug the PC Dongle onto an available USB port and click “OK” to continue installation. 9. Click “Finish” to finish the installation. 9 10. You will be asked to restart system. Click “Yes” to restart immediately or click “No” to restart later. 10 5. Pairing Guide What’s pairing? Pairing is a process of associating Bluetooth devices with each other. It allows avoiding entering access information every time when a connection is requested. Bluetooth devices need to be paired with each other before attempting a connection at first time. Paired devices will remain paired, even if: 1. One of the devices is un-powered. 2. A service connection is interrupted or stopped. 3. One or both devices are rebooted. Pass Key PaireddevicesshareauniquePassKey(alsoreferredtoasLinkKey),bywhichthey authenticate with each other when connecting. The Pass Key can be alphanumeric, numbers, or letters, and must consist of one or up to 16 characters. …

Text truncated - open the document above for the full version.

BLOCK DIAGRAM

SAMSUNG Electronics Co., Ltd 3351 Michelson Drive, Suite 290, Irvine, California, USA, 92612 If you have not received all pages, please call the direct phone number. FAX : 82-2-751-3100 TEL : 82-2-751-2566 Form# : Date: Jan. 2, 2006 Attn: Reviewing Engineer Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize MET Laboratories, Inc. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely Yours, Jong-Myung Park / Manager

DOC-FCC009 4/14/2005 Page 1 of 3 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Samsung Electronics Co., Ltd. Item 2. Applicant's mailing address Line 1: 3351 Michelson Drive, Suite 290 Line 2: P.O.Box: City: Irvine State: California Country (if foreign address): USA Zip/Postal Code: 92612 Item 3. FCC ID: A3LSBD100PBE Grantee code: A3L Equipment Product Code (14 characters maximum): SBD100PBE FCC Registration Number (FRN): 0005905633 Item 4. Person at the applicant's address to receive grant or for contact: First Name: Jong-Myung Mail Stop: Last Name: Park Telephone: 82-2-751-2566 Ext: Title: Manager E-mail: [email protected] Fax No: 82-2-751-3100 Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-city, Gyeonggi-do, 435-040, South Korea James Kwon (T. 82-31-428-5740, [email protected]) Item 6. Technical Contact: Firm Name: SGS Testing Korea Co., Ltd. Telephone: 82314285742 Ext: Fax No: 82314272371 First Name: Feel Middle Initial: Last Name: Jeong Address Line 1: 18-34, Sanbon-dong, Gunpo-city P.O.Box: Address Line 2: City: Gyeonggi-do Country (if foreign address): South Korea Zip/Postal Code: 435-040 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: Telephone: Ext: Fax No: First Name: Middle Initial: Last Name: Address Line 1: P.O.Box: Address Line 2: City: Country (if foreign address): Zip/Postal Code: E-mail: Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) • Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: DXT (Part 15 Low Power Transceiver, Rx Verified) * Description of Product as it is Marketed: Bluetooth PC Dongle (NOTE: This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) • Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) DOC-FCC009 4/14/2005 Page 2 of 3 Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes • No Ο Yes • No (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: Last Name: Telephone Ext Fax No. E-mail: Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes Part 15.247 2400-2483.5 MHz 1.35 mW WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? • Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature of Authorized Person Filing: Marie Ann Confroy Title of autho…

Text truncated - open the document above for the full version.

SAMSUNG Electronics Co., Ltd 3351 Michelson Drive, Suite 290, Irvine, California, USA, 92612 If you have not received all pages, please call the direct phone number. FAX : 82-2-751-3100 TEL : 82-2-751-2566 Date: Jan. 2, 2006 MET Laboratories, Inc. Certification Division 914 W. Patapsco Ave. Baltimore, Maryland, 21230-3432, USA To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; SAMSUNG Electronics Co., Ltd 3351 Michelson Drive, Suite 290, Irvine, California, USA, 92612 If you have not received all pages, please call the direct phone number. FAX : 82-2-751-3100 TEL : 82-2-751-2566 e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Jong-Myung Park / Manager /Samsung Electronics Co., Ltd.

SAMSUNG Electronics Co., Ltd 3351 Michelson Drive, Suite 290, Irvine, California, USA, 92612 If you have not received all pages, please call the direct phone number. FAX : 82-2-751-3100 TEL : 82-2-751-2566 Form# : Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Samsung Electronics Co., Ltd., would like the following documents regarding this submission for FCC ID: A3LSBD100PBE to be kept confidential. 1. Schematics 2. Parts List 3. Operating Description The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Jong-Myung Park / Manager

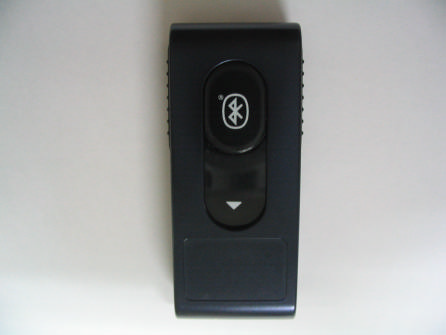

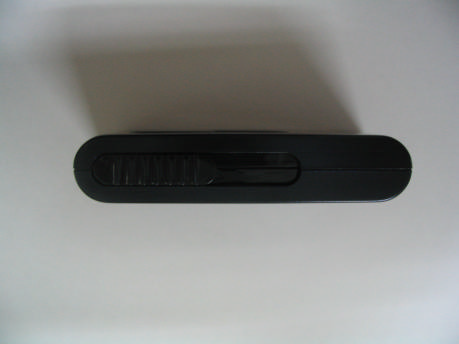

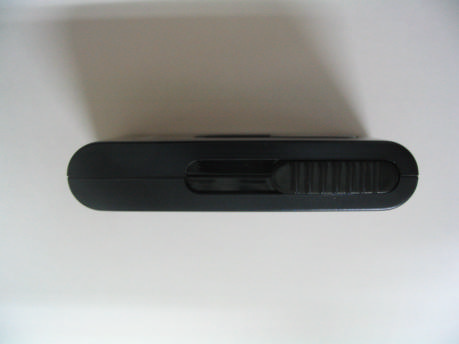

Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 50 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 13. Attachment B – Photos of the EUT Front View of EUT Rear View of EUT Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 51 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Left View of EUT Right View of EUT

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location

Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 52 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Top View of Main-board Bottom View of Main-board

Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 46 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 11. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in § 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) 11.1 Friis transmission formula : Pd = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd the limit of MPE, 1 mW/ cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 EUT Operating Condition A software provided by client enabled the EUT to transmit and receive data at low, middle and high channel individually. Frequency Range (MHz) Electric Field Strength(V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational /Control Exposures 300 – 1500 -- -- F/300 6 1500 - 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300 – 1500 -- -- F/1500 6 1500 - 100000 -- -- 1 30 Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 47 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 11.3 Test Result of RF Exposure Evaluation Test Item : RF Exposure Evaluation Data Test Mode : Normal Operation 11.3.1 Output Peak Power & RF Exposure Evaluation Distance Chip Antenna gain : -0.03 dBi Channel Channel Frequency (MHz) Output Peak Power (dBm) Antenna Gain (dBi) Power Density at 20 cm (mW/cm 2 ) LIMITS (mW/cm 2 ) Low 2402 0.94 -0.03 0.00025 1 Middle 2441 1.31 -0.03 0.00027 1 High 2480 1.11 -0.03 0.00026 1

Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 1 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr TEST REPORT FCC RULES Part 15 Subpart C Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Kind of Product : Bluetooth PC Dongle Model Name : SBD100PBE FCC ID : A3LSBD100PBE Manufacturer : Samsung Electronics Co., Ltd. Serial No. : - Test Result : Complied Note: This report shall not be reproduced except in full, without the written approval of SGS Testing Korea Co., Ltd. This document may be altered or revised by SGS Testing Korea Co., Ltd. Personnel only, and shall be noted in the revision section of the document Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 2 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr VERIFICATION OF COMPLIANCE Applicant : Samsung Electronic Co., Ltd. Kind of Product : Bluetooth PC Dongle Brand Name : - Model Name : SBD100PBE Model Difference : - Report File No. : STROR-06-002 Date of test : Dec. 07, 2005 ~ Jan. 04, 2006 Receiver EUT : - APPLICABLE STANDARDS STANDARD TEST RESULT Part 15, Subpart B and Subpart C §15.247 Complied The above equipment was tested by SGS Testing Korea Co., Ltd. for compliance with the requirements set forth in the FCC RULES Part 15, Subpart B and Subpart C §15.247. The results of testing in this report apply to the product system that was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Tested By: Date Jan. 04, 2006 Feel Jeong Approved By Date Jan. 04, 2006 Albert Lim Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 3 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr INDEX CONTENTS Page 1. GENERAL INFORMATION 4 2. CONDUCTED POWERLINE TEST 5 3. SPURIOUS EMISSION, BAND EDGE, AND RESTRICTED BAND TEST 12 4. 20 dB BANDWIDTH MEASUREMENT 24 5. MAXIMUM PEAK OUTPUT POWER MEASURMENT 27 6. FREQUENCY SEPARATION 30 7. NUMBER OF HOPPING FREQUENCY 32 8. TIME OF OCCUPANCY (DWELL TIME) 34 9. POWER SPECTRAL DENSITY MEASURMENT 42 10. ANTENNA REQUIREMENT 45 11. RF EXPOSURE EVALUATION 46 12. Attachment A – Photos of the Test Set up 48 13. Attachment B – Photos of the EUT 50 Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 4 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1. GENERAL INFORMATION 1.1 General Description of EUT & Power Kind of Product Bluetooth PC Dongle Model Name SBD100PBE Power Supply DC 5 V (DC 4.5 ~ 5.5 V : Operating Power Range stated by Manufacturer) Frequency Range 2402~2480 MHz(FHSS) Transmit Power 1.31 dBm (FHSS) Modulation Technique FHSS Number of Channels 79 ch (FHSS) Test Modulation Continuous RF Operating Conditions -20 ~ + 60 Antenna Type Chip Antenna Antenna Gin -0.03 dBi Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 5 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 1.2 Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD:FCC 47 C.F.R. Part15, Subpart B and Subpart C Standard Section Test Item Result 15.107 15.207 AC Power Conducted Emission PASS 15.247(a)(1) 20 dB Bandwidth PASS 15.247(b)(1) Maximum Peak Output Power PASS 15.205(a) 15.209(a) 15.247(d) Spurious Emission, Band Edge, and Restricted Bands PASS 15.247(a)(1) Frequency Separation PASS 15.247(a)(1)(iii) Number of Hopping Frequency PASS 15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS 15.247(e) Power Spectral Density PASS 15.247(i) 1.1307(b)(1) RF Exposure PASS Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 6 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2. CONDUCTED POWERLINE TEST 2.1 Test Setup Main power source Shield room enclosure to Test Receiver Table height 0.8m 0.4m LISN LISN Note PC EUT Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 7 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 2.2 Limit According to §15.107(a) for an intentional radiator that is designed to be connected to the public utility (AC) power line, the radio frequency voltage that is conducted back onto the AC power line on any frequency or frequencies, within the band 150 kHz to 30 MHz, shall not exceed the limits in the following table, as measured using a 50 uH/50ohm line impedance stabilization network(LISN). Compliance w…

Text truncated - open the document above for the full version.

Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 48 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr 12. Attachment A-1 Photos of the test set up Report File No. : STROR-06-002 Date of Issue : 2006-01-04 Page : 49 of 52 FCC ID : A3LSBD100PBE The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.sgstesting.co.kr Attachment A-2 Photos of the test set up
