A3LSBH100Samsung Bluetooth Headset

1 English Contents » Getting started 1. Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 2. Headset Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 3. Button Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 4. Charging the Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 5. Putting on the headset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 » Before using your headset 6. Turning the Phone On or Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 7. Pairing the headset with a compatible phone. . . . . . . . . . . . . 9 8. Deleting the previous pairing information from the headset. . . . .11 9. Connecting the paired headset to the phone . . . . . . . . . . . . 11 » Using the headset 10. Making and answering a call . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 11. Rejecting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 12. Switching the call between phone and headset. . . . . . . . . 14 13. Adjusting the speaker volume. . . . . . . . . . . . . . . . . . . . . . . . . . 14 14. Muting an ongoing call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 15. Listening to music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 16. Answering a call while listening to music . . . . . . . . . . . . . . . 16 » Care and Maintenance 17. Storing the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 18. Frequently asked questions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 19. Certification and safety approvals . . . . . . . . . . . . . . . . . . . . . . 19 20. Warranty and parts replacement . . . . . . . . . . . . . . . . . . . . . . . 21 21. Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22 22. Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 2 English 3 English » Left Ear Hook Speaker Stereo Headset Carrying CaseCharger User’s Manual Unpacking 1 Answer/End Button Indicator Light Microphone Volume Up Button Play/Pause/Stop Button REW Button On/Off Button Charger Connector FF Button Volume Down Button Speaker Getting Started Using a mobile phone while driving creates a distraction to the driver which may increase the likelihood of an accident. When using the phone while driving, keep conversations short and do not make notes or read documents. Before answering calls consider your circumstances. Pull off the road and park before making or answering calls when driving conditions require (e.g. bad weather, high traffic density, presence of children in the car, difficult junctions or manoeuvres.) Remember, driving comes first, not the call! Abide by local laws. Drive safely ! Headset Overview 2 » Right Explains what to remember for a proper use of your Bluetooth 1 headset. 4 English 5 English Button Functions 3 Answers / ends a call Returns to MP3 mode after ending a call. Switching an active call from the headset to the phone While the call is in progress, press and hold the button to switch the call to the phone. - Available only when your headset and the phone are connected as Hands-free Bluetooth profile 2 . Switching an active call from the phone to the headset While the call is in progress, press and hold the button to switch the call to the headset. Redialling if pressed briefly while being connected with the phone. Connecting the paired headset to the phone if pressed briefly. Answer/End Button – Bluetooth is a radio technology developed to connect devices, such as mobile phones and headsets, without wires or cords over a short distance of approximately 10 meters. More information is available at www.bluetooth.com. - Headset/Hands-free profiles are protocols through which Bluetooth devices communicate with other devices. - Paired headset needs to go through the process of connection. If the paired headset is ready to be connected, the blue indicator light flickers every 3 seconds. Adjusts the speaker volume while the music is on. Adjusts the speaker volume while the call is in progress. Beeps per 3 seconds and mutes the ongoing call if pressed and held while the call is in progress. Unmutes the ongoing call if pressed briefly. Rejects a call when pressed and held when a call comes in . - Available only when your headset and the phone are connected as Hands-free Bluetooth profile, and the phone supports the incoming call rejecting function. Voice dials when pressed and held while connected to the phone. - Available only when your headset and the phone are connected as Hands-free Bluetooth profile, and the phone supports the voice dialing function. Volume Up/Down Button Audio transmission profile is a kind of protocol that should be supported through which Bluetooth devices communicate with other devices to listen to music. Connects to a Bluetooth phone as an Audio transmission profile if pressed and held after completing the pairing 3 . Pauses if pressed while the music is on, starts the song from the paused part if pressed once again. Stops the music if pressed and held while the music is on, starts the song from the very first part if pressed once again. Play/Pause/Stop Button 6 English 7 English Starts the previous/next song from the very first part if pressed while the music is on. Rewind/Fast Forward functions if pressed and held. REW/FF Button + (Switch on) Ready for the connection after completing the pairing 3 . + + (Switch on) Deletes the information of previously paired Bluetooth devices. (While turned on) (FF) + (Volume Down Button) Red light is flickering to notify the remained battery amount. - Flickers once : 5~20% charged - Flickers twice : 20~50% charged - Flickers three times : 50~80% charged - Flickers four times : 80~1…

Text truncated - open the document above for the full version.

Samsung Electronics Co., Ltd. www.samsung.com Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, Samsung Electronics Co., Ltd. requests confidentiality for the following products: FCC ID Number Product Title / Model A3LSBH100 Samsung Bluetooth Headset / SBH100 For the product stated above, we request that the following information be held confidential: 1) Block Diagram 2) Schematic Diagram 3) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain Samsung Electronics Co., Ltd. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Jae-Yoong Kim / Engineer email: [email protected] Samsung Electronics Co., Ltd. #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Tel: 82-31-297-7347 Fax: 82-31-297-6548 http://www.samsung.com

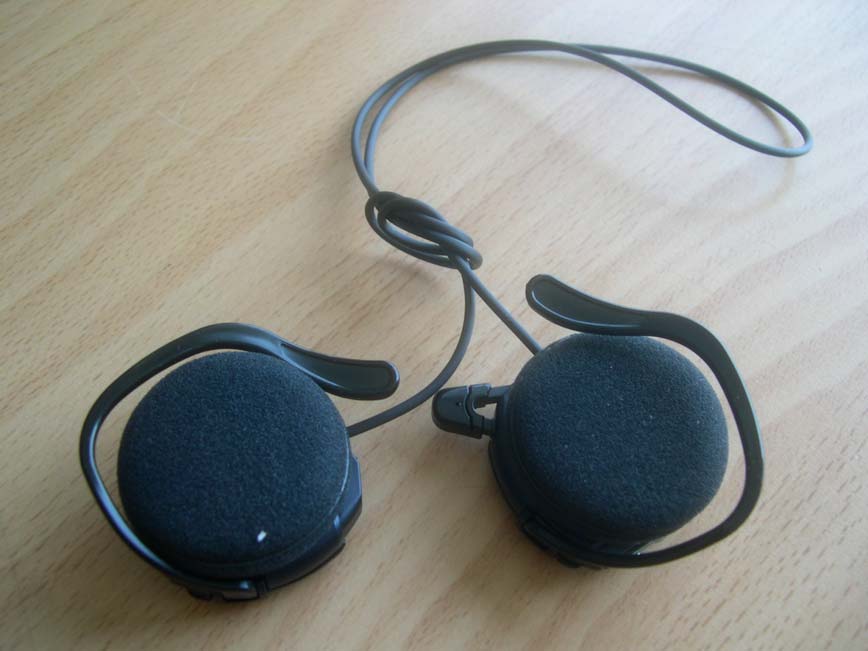

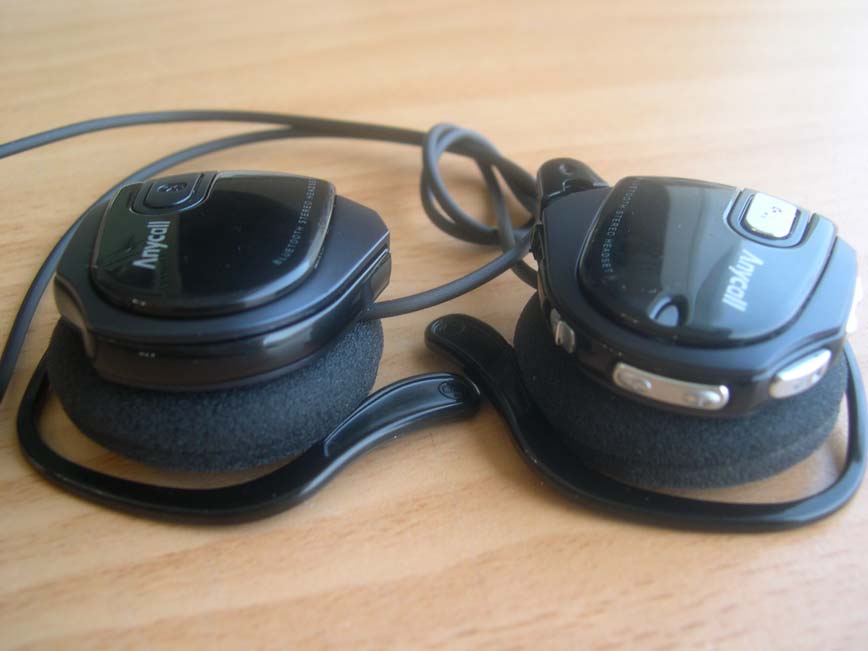

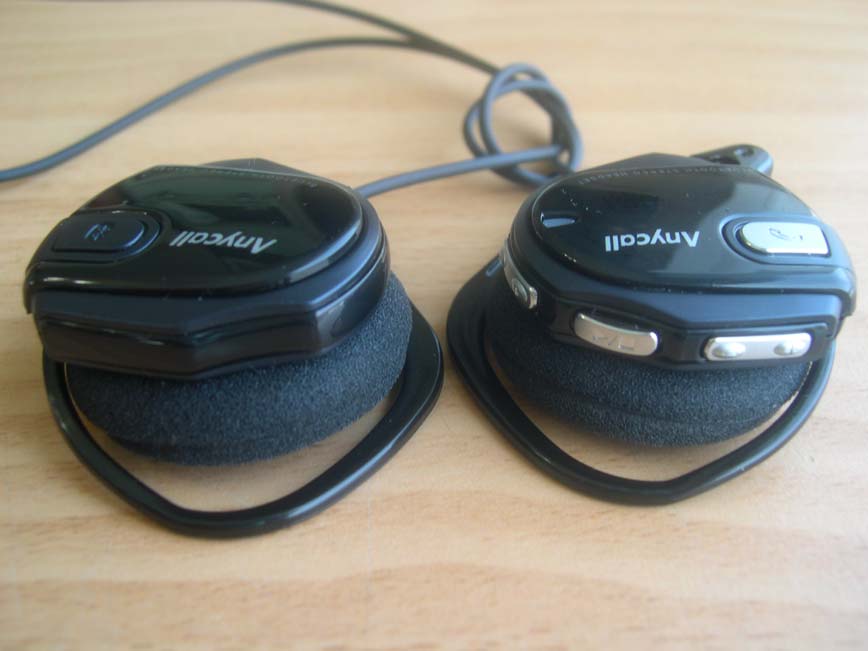

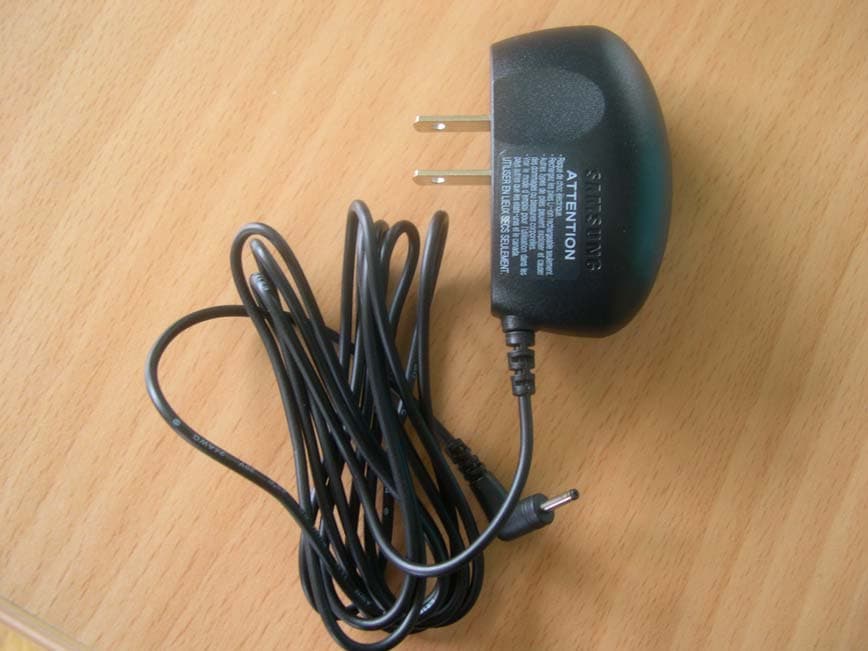

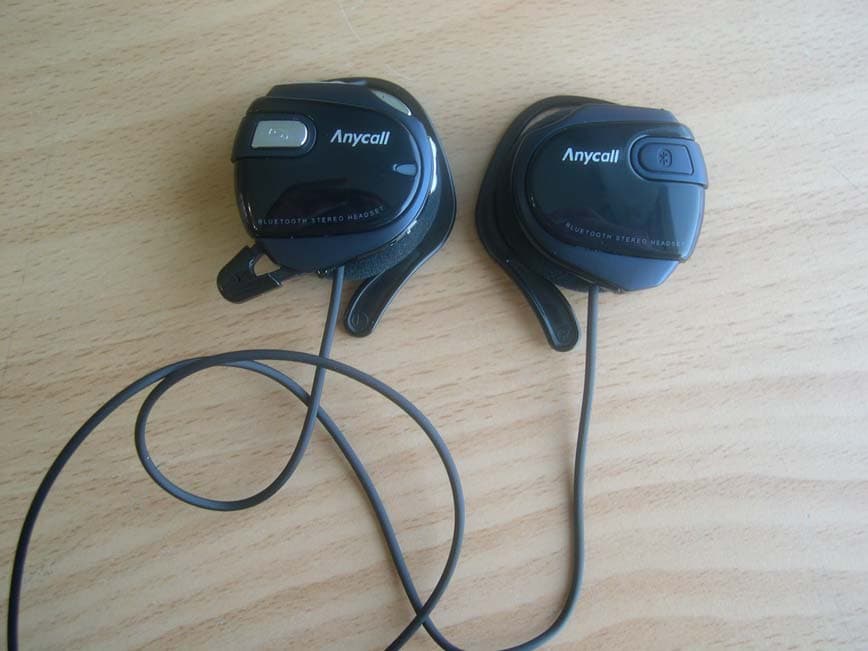

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 External Photographs of EUT SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 FCC ID Label Location & Sample Label is permanently attached on the front of the product 14 mm 11 mm LABEL LOCATION LABEL SAMPLE 0678 FCCID:A3LSBH100 SAMSUNG BLUETOOTH HEADSET Model No.: SBH100

SK TECH CO., LTD. Page 1 of 2 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 Internal Photographs of EUT SK TECH CO., LTD. Page 2 of 2 SKT SKTTRT-050608-010 FCC ID: A3LSBH100

SK TECH CO., LTD. Page 1 of 1 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 Operational Description The EUT has the RF module, BC358239A that is a Bluetooth module, operating in 2400 to 2483.5 MHz band and employing 79 hopping channels. The nominal hop rate is 1600 hops/s. BC358239A is a single chip radio and baseband IC for Bluetooth 2.4GHz systems. BC358239A contains 8Mbit of internal Flash Memory. When used with the CSR Bluetooth software stack, it provides a fully compliant Bluetooth system to V1.2 of the specification for data and voice communications. POWER SOURCE The EUT uses a 3.7V Li-Ion battery re-chargeable via AC/DC adapter (DC output: 5.0V). The DC/DC Converter (XC9215A18CDRN) converts the input voltage from the battery into Down Voltages. The Down voltages are supplied to Codec (WM8731LSEFL), BT module (BC358239A), and MIC AMP (TDA2005D1). ANTENNA The EUT uses an integral SMD chip antenna (ALA931C4). No external ground is required. Co-ordination of the hopping sequence in data mode to avoid simultaneous occupancy by multiple transmitters: Bluetooth units which want to communicate with other units must be organized in a structure called piconet. This piconet consists of maximum 8 Bluetooth units. One unit is the master, the others seven are the slaves. The master co- ordinates frequency occupation in this piconet for all units. As the master hop sequence is derived from it’s BD address which is unique for every Bluetooth device, additional masters intending to establish new piconets will always use different hop sequences.

SK TECH CO., LTD. Page 1 of 40 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 Certificate of Compliance Test Report No.: SKTTRT-050608-010 NVLAP CODE: 200220-0 Applicant: SAMSUNG ELECTRONICS CO., LTD. Applicant Address: #416 Metan-Dong, Yeongtong-Gu, Suwon-City, Gyunggi-Do, Korea. Device Under Test: SAMSUNG BLUETOOTH HEADSET FCC ID: A3LSBH100 Model No.: SBH100 Receipt No.: SKTEU05-0223 Date of receipt: Apr 4, 2005 Date of Issue: June 8, 2005 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2003 Test Specification: 47CFR, Part 15 Subpart C Equipment Class: DSS - Part 15 Spread Spectrum Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Chang-Min, Moon June 8, 2005 Approved by: Jae-Kyung, Bae June 8, 2005 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ •This test report is not permitted to copy partly without our permission. •This test result is dependent on only equipment to be used. •This test result is based on a single evaluation of one sample of the above mentioned. •This test report must not be used to claim product endorsement by NVLAP or any agency of the U.S Government. • We certify that this test report has been based on the measurement standards that is traceable to the national or International standards. NVLAP Lab. Code: 200220-0 SK TECH CO., LTD. Page 2 of 40 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 >> CONTENTS << 1. GENERAL ·············································································································4 2. TEST SITE ············································································································4 2.1 Location ·········································································································4 2.2 List of Test and Measurement Instruments ····················································5 2.3 Test Date ········································································································5 2.4 Test Environment ···························································································5 3. DESCRIPTION OF THE EQUIPMENT UNDER TEST ·········································6 3.1 Rating and Physical Characteristics ······························································6 3.2 Equipment Modifications ················································································6 3.3 Submitted Documents ····················································································6 4. MEASUREMENT CONDITIONS ···········································································7 4.1 Description of test configuration ····································································7 4.2 List of Peripherals ··························································································7 4.3 Uncertainty ·····································································································7 5. TEST AND MEASUREMENTS ·············································································8 5.1 ANTENNA REQUIREMENT ··········································································8 5.1.1 Regulation ·······························································································8 5.1.2 Result ······································································································8 5.2 MAXIMUM PEAK OUTPUT POWER ····························································9 5.2.1 Regulation ·······························································································9 5.2.2 Test Procedure ························································································9 5.2.3 Test Results ·····························································································9 Table 1: Measured values of the Maximum Peak Output Power (Conducted)·····9 Figure 1: Plot of the Maximum Peak Output Power (Conducted)······················10 5.3 CARRIER FREQUENCY SEPARATION ·····················································12 5.3.1 Regulation ·····························································································12 5.3.2 Test Procedure ······················································································12 5.3.3 Test Results ···························································································12 Table 2: Measured values of the Carrier Frequency Separation (Conducted) ···12 Figure 2: Plot of the Carrier Frequency Separation (Conducted) .....................13 5.4 20dB CHANNEL BANDWIDTH ··································································15 5.4.1 Regulation ·····························································································15 5.4.2 Test Procedure ······················································································15 5.4.3 Test Results ···························································································15 Table 3: Measured values of the 20dB Channel Bandwidth (Conducted)··········15 Figure 3: Plot of the 20dB Channel Bandwidth (Conducted) ···························16 5.5 NUMBER OF HOPPING CHANNELS ························································18 SK TECH CO., LTD. Page 3 of 40 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 5.5.1 Regulation ·····························································································18 5.5.2 Test Procedure ······················································································18 5.5.3 Test Results ···························································································18 Table 4: Measured values of the Number of Hopping Channels (Conducted)·····18 Figure 4: Plot of the Number of Hopping Channels (Conducted) ·····················19 5.6 TIME OF OCCUPANCY (DWELL…

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 Test set up photos <Radiated Emissions – Front View> SK TECH CO., LTD. Page 2 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 <Radiated Emissions – Rear View> SK TECH CO., LTD. Page 3 of 3 SKT SKTTRT-050608-010 FCC ID: A3LSBH100 <Conducted Emissions – Front View> <Conducted Emissions – Rear View>
