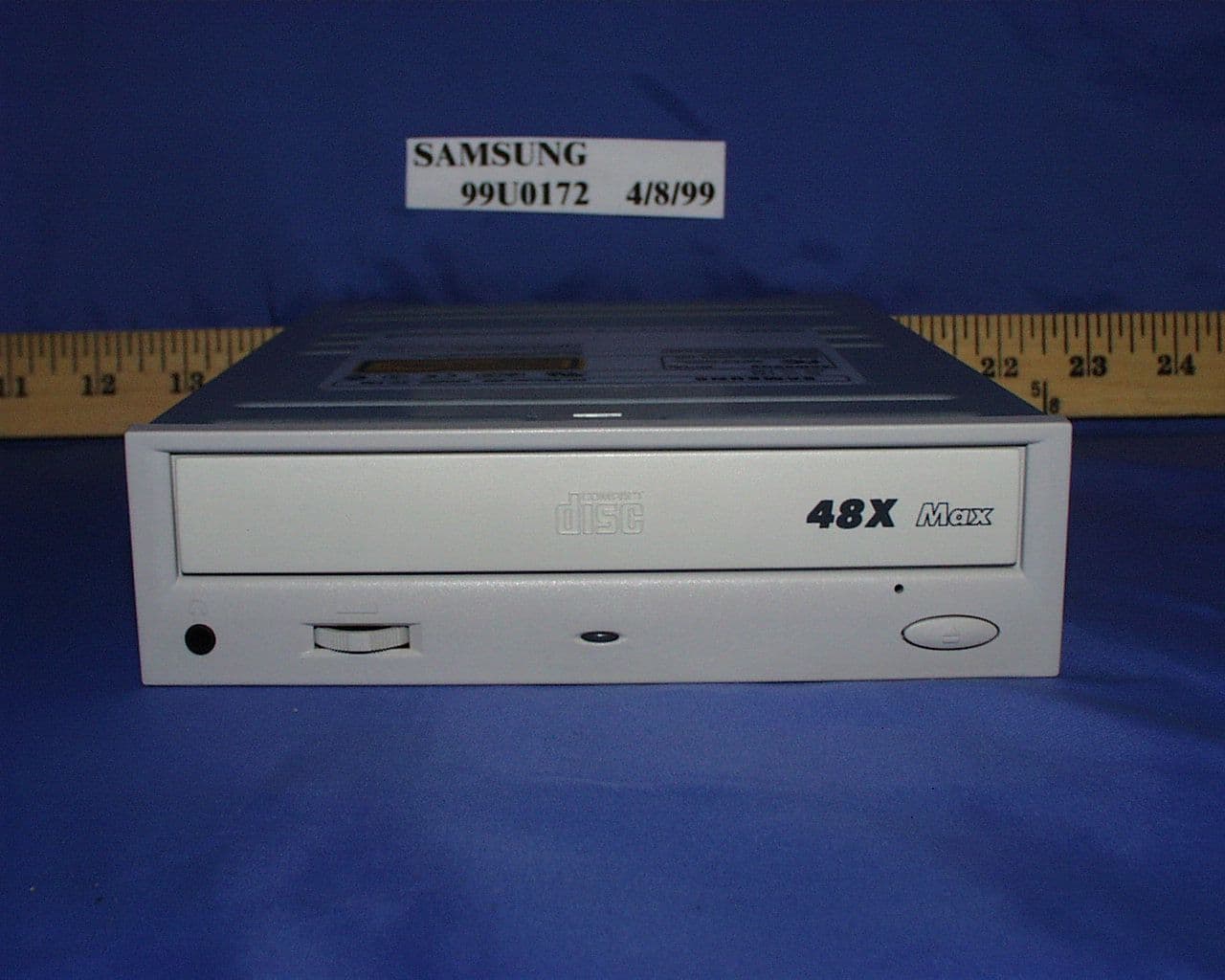

CD-ROM DRIVE SC-140/148 User's Guide - ENGLISH When handling the drives, you may hear a slight rattle inside the unit. This is NOTa problem, it is simply the ball bearings of the Auto Balancershifting. http://www.samsungelectronics.com BG68-00044A Rev 02 Safety Warnings 1 The following diagrams illustrate the precautions to be taken when using your CD-ROM drive. You must not use the drive in any manner other than that specified in this guide. To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture. CAUTION Do not attempt to repair the CD-ROM drive yourself. Contact your dealer or local SAMSUNG representative for all repairs. Use of controls or adjustments or performance of procedures other than those specified here in may result in hazardous radiation exposure WARRANTY Please refer to the Samsung limited warranty statements. Front View of the CD-ROM Drive 2 COMPACT 1 1 23456 Headphone Connector The audio output connector enables you to plug stereo headphones into the drive. It requires a 3.6 mm stereo mini-jack. 6 Stop/Open/Close-Button When in play, press the stop key and when in stop, press open/close key. 4 Disc Tray The Disc Tray opens and closes automatically when you press the Open/Close button. u When you place a disc in the tray, make sure that the label on the disc is facing upwards. If you are not loading or unloading a disc, the disc tray should remain closed. 5 Emergency Hole If the disc tray does not open when you press the Open/Close button, insert a small, metal rod(an unwound paper clip for example) into this hole to eject the disc. *This function should only be performed when the computer is powered OFF. 2 Volume Control Dial This control dial adjusts the volume for your headphones. You can only use the headphone jack and volume control when you have installed the required software utilities. For example, the Microsoft Windows Media player can be used. 3 LED Rear View of the CD-ROM Drive 3 1 1 2345 Digital Audio You can connect a sound card or MPEG card which support Digital Audio to your drive using this two-pin connector. 2 Audio Output Connector You can connect a sound card to your drive using this four-pin connector. *This function is not covered in detail in this guide. Refer to the documentation supplied with your sound card. 3 Device Configuration Jumper Usually, this is a pre-set configuration as illustrated below. * Verify that the setting is as illustrated. If it is not, simply remove the jumper and place it in the correct position. 4 Host IDE Interface connector This input/output interface connector is used to connect the 40-pin flat cable from the IDE interface to the CD-ROM drive. 5 Power Connector The power connector is a four-conductor male plug. C S S L M A System Requirements 4 1 Turn OFF your computer. Remember to verify the configuration jumper on the rear of the CD-ROM drive. 2 Remove the cover of your PC(main unit of the computer) 3 Remove the blank cover panel of the 5.25 inch unit in which the CD-ROM drive is to be installed. 6 Put the cover back on your PC. 5 Install the CD-ROM drive into the unit and secure it with mounting screws (recommended standard M3x6x4) * u Depending on your PC model, you may need to attach guide rails to the drive, so that the drive is held firmly in place. *u If you use screws that are longer than the recommended standard, you may damage the drive. Before you install the CD-ROM drive, we strongly recommend that you make certain that your set-up meets the system requirements listed below. Installing the CD-ROM Drive Install the CD-ROM drive in your computer horizontally, making sure that the To install the drive, proceed as follows. 4 Connect the CD-ROM drive to the IDE interface and power cables Iocated inside your computer. * Connectors are keyed so it is impossible to put them in an incorrect position. Do not force the connectors, if they do not seem to fit. Item Windows version MS-DOS version Disk space Free expansion unit Type of computer Description 3.1(or higher) 5.0(or higher) 100KB minimum 5.25 inch IBM 486SX 20MHz (or higher) with an IDE interface(or a 100% IBM- compatible computer) 5 Installing the Software You can install the device driver for DOS or for Windows ¡Do not install DOS Driver when the program of Windows 95 is going on. (Remark CD-ROM Driver in the state of Config. Sys.) 1 Turn on your computer and wait for it to boot. 2 Insert the driver disk into a floppy disk drive(usually the A drive). 3 If you are a... DOS user Windows user Windows 95user Then : uType a:at the DOS prompt uPress the RETURN key u Access the File Manager u Click on the Aicon. u Type CDSETUPafter the a: prompt u Press RETURN Double-click CDSETUP.EXEfrom the Windows File Manager u When you are in Windows 95, it is not u necessary to install Device Driver. u Whereas, when you are in Dos Mode of u Windows 95, then install as follows. u Click on MY COMPUTERicon. u Click on the Aicon. 4 5 6 Run the CDSETUP program: To... Confirm the installationY Exit without installingN When the Setup Completedscreen is displayed, remove the installation floppy disk from the drive. 7 Reboot your system. If you answer Y(Yes), the installation program automatically u Creates a SAMSUNG directory on your hard disk u Copies the required softwares (mscdex.exe and sscdrom.sys) u Modifies the CONFIG.SYS and AUTOEXEC.BAT files Result : u The computer restarts u Both the device driver and MSCDEX are loaded Result : Then enter... If you are a... Then : DOS user Windows user 6 Resolving Technical Problems * Please consult the following table BEFORE contacting your dealer or local SAMSUNG * representative. The software installation faileduCheck that your hard disk is not full uThe installation floppy disk may be corrupted. Repeat the installation with the backup floppy disk. After installing the device driver, your system start-up program may take more time than expected. If it does not start-up after 60 seconds, verify yo…

Text truncated - open the document above for the full version.

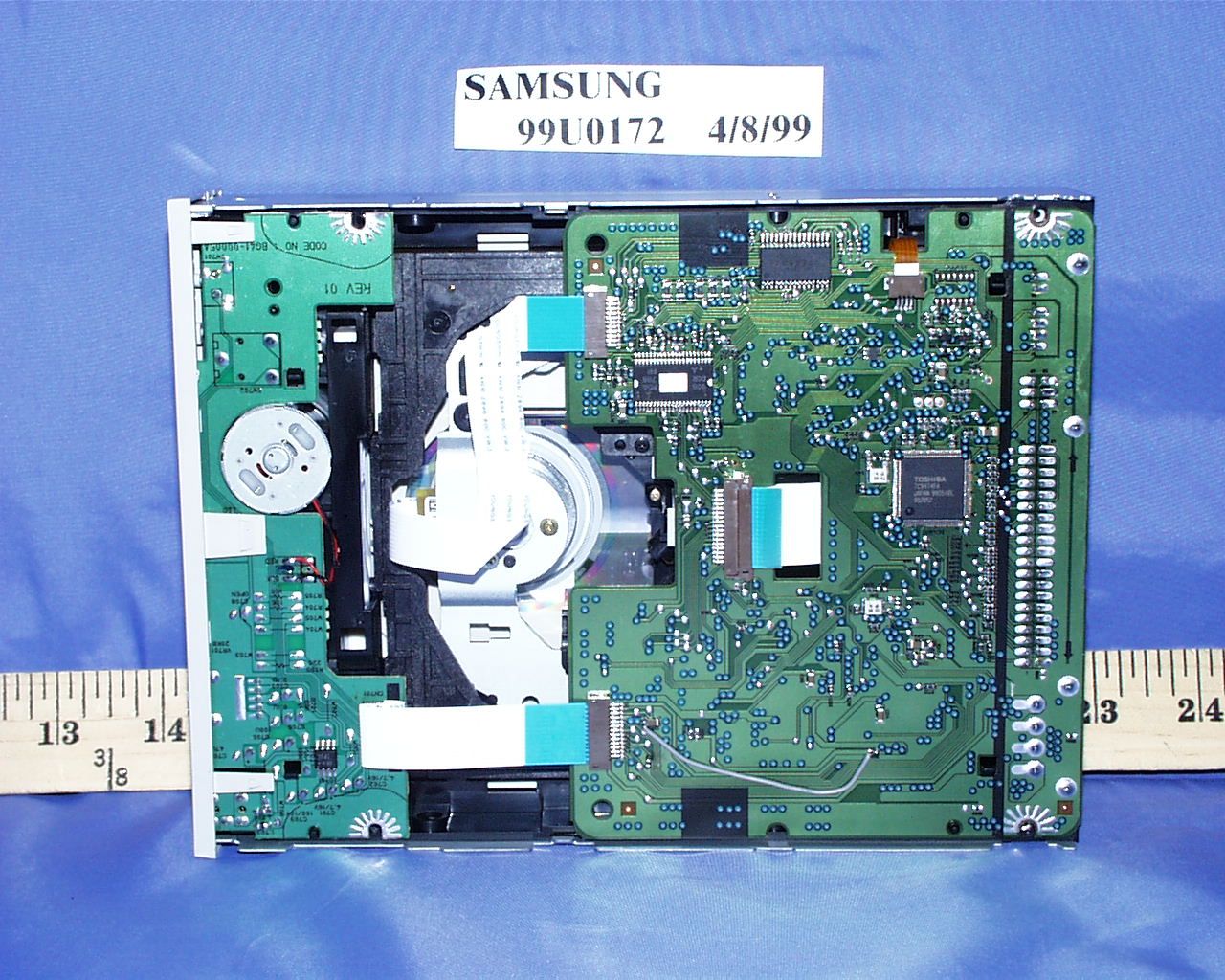

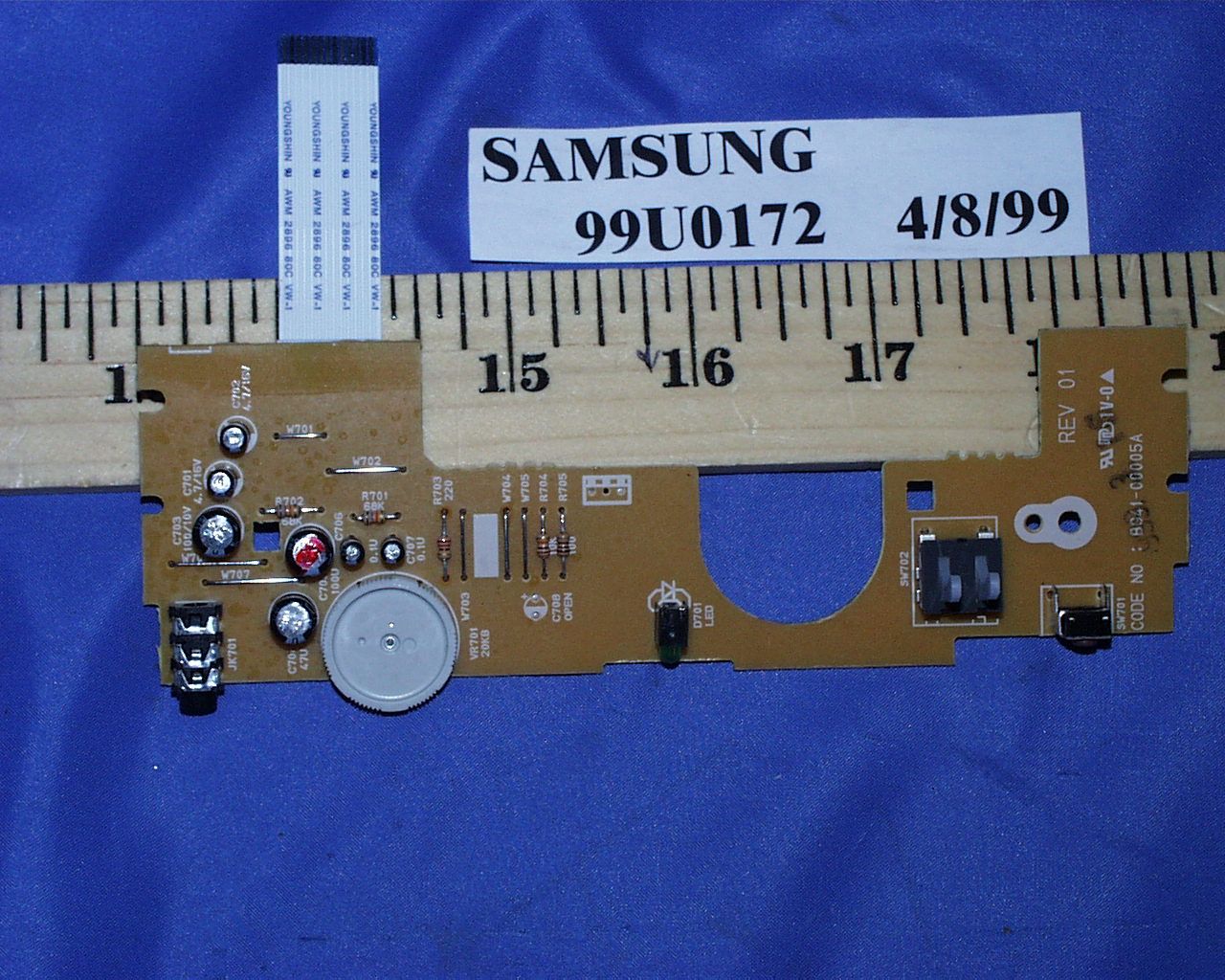

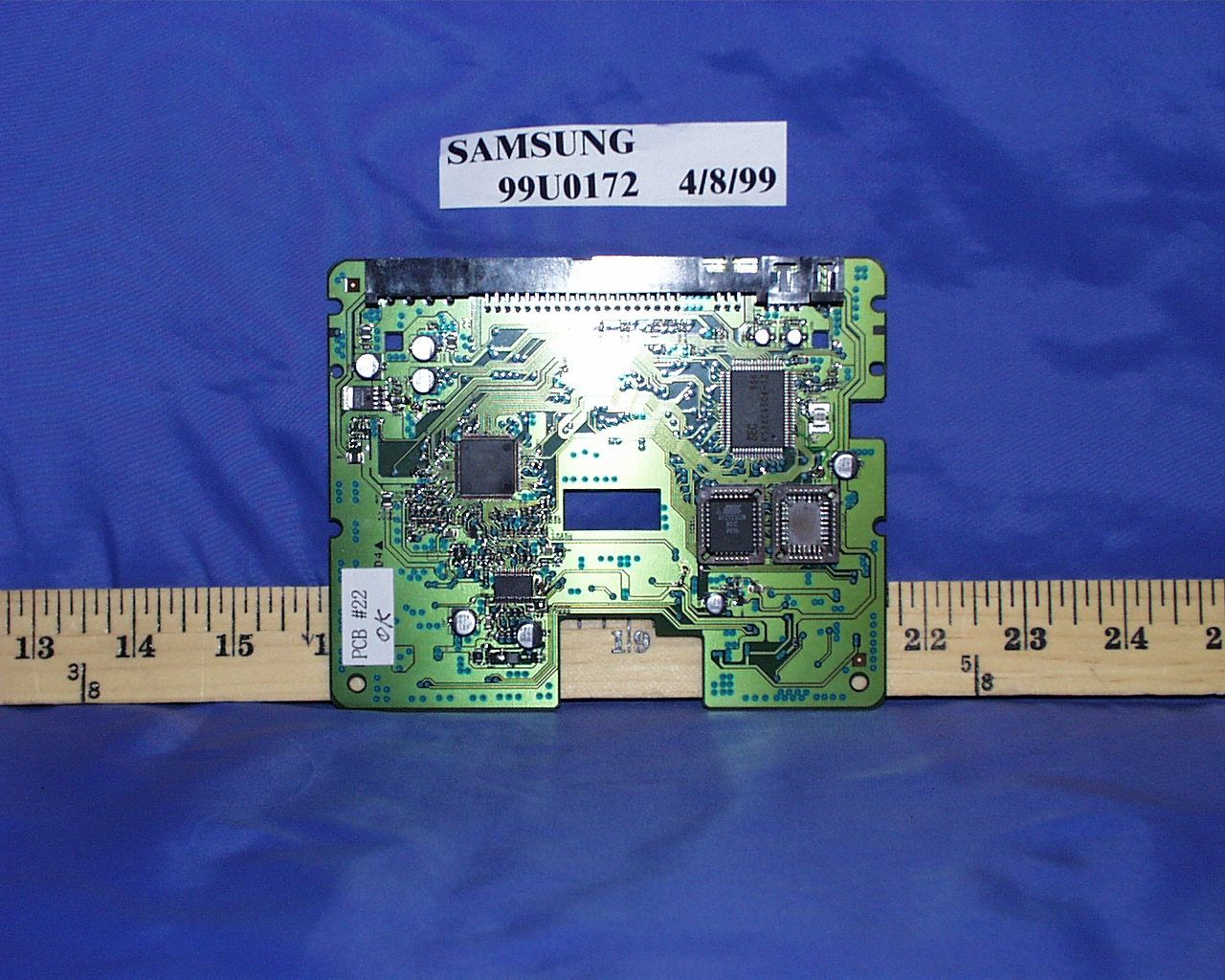

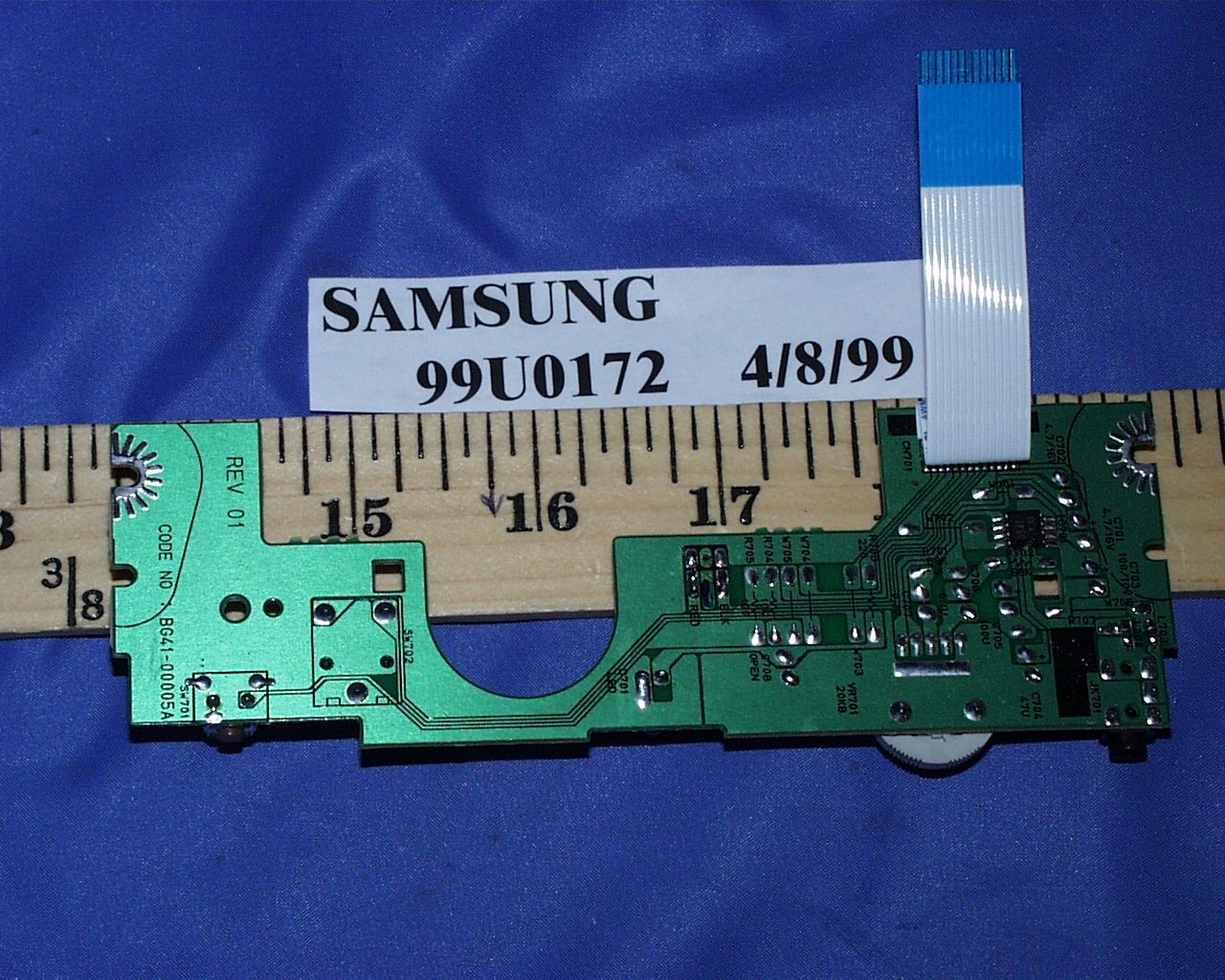

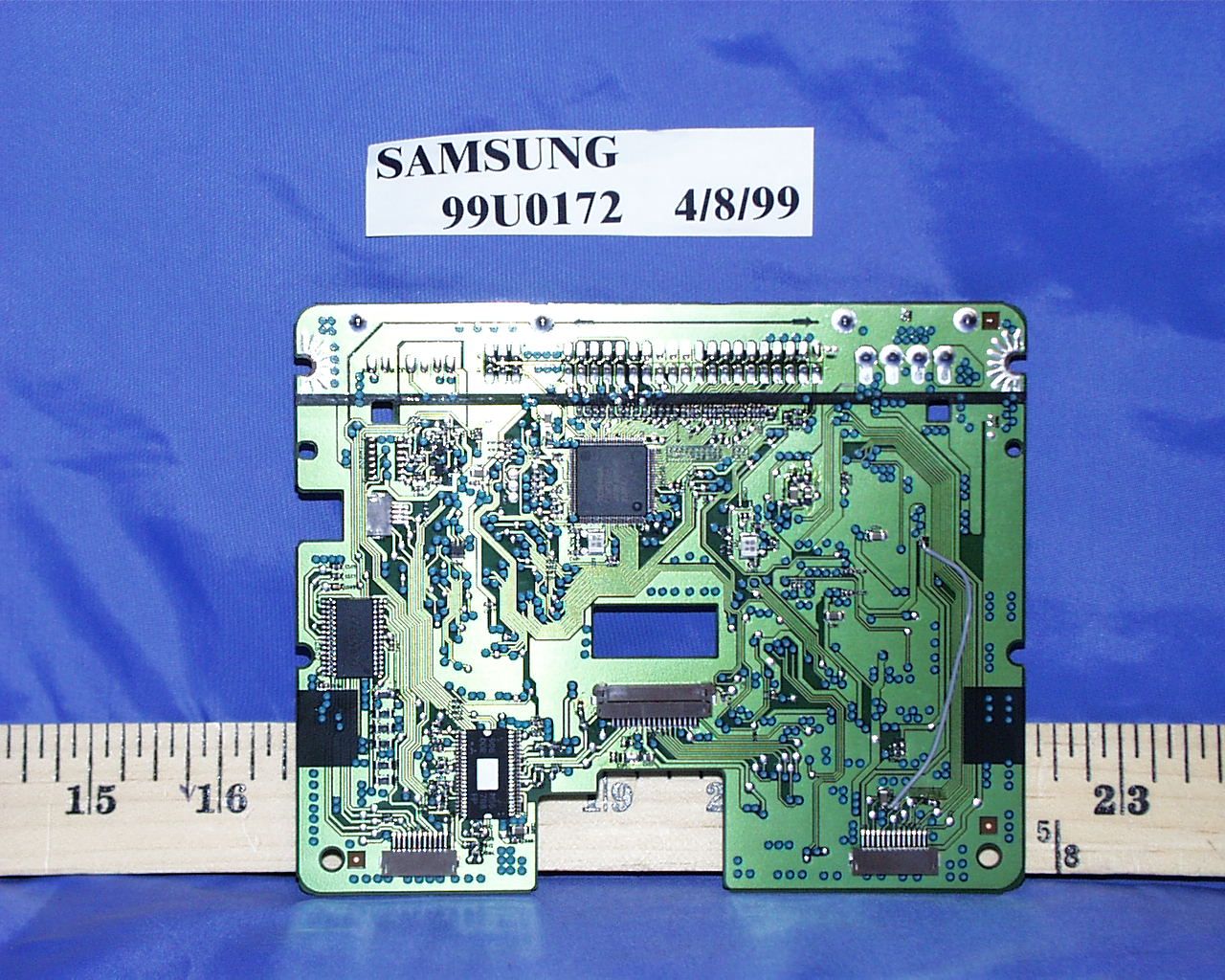

SC-148BBLOCKDIAGRAM SPINDLE MOTOR PICK-UP SPINDLE DRIVE TA8493AF (EHTLQKG) ACTURATOR DRIVE M56788FP πìÍ∫ÒΩ√ ) LOADING MOTOR RF-AMP TA2143FN DSP TC9450BF SYSTEM CONTROL KS88P4504Q (SAMSUNG) INTERFACE TC9474FA (TOSHIBA) INNER1M DRAM HOST INTERFACE (IDE) HEADPHONE PROM 512KB FLASHROM 512KB SLEDMOTOR

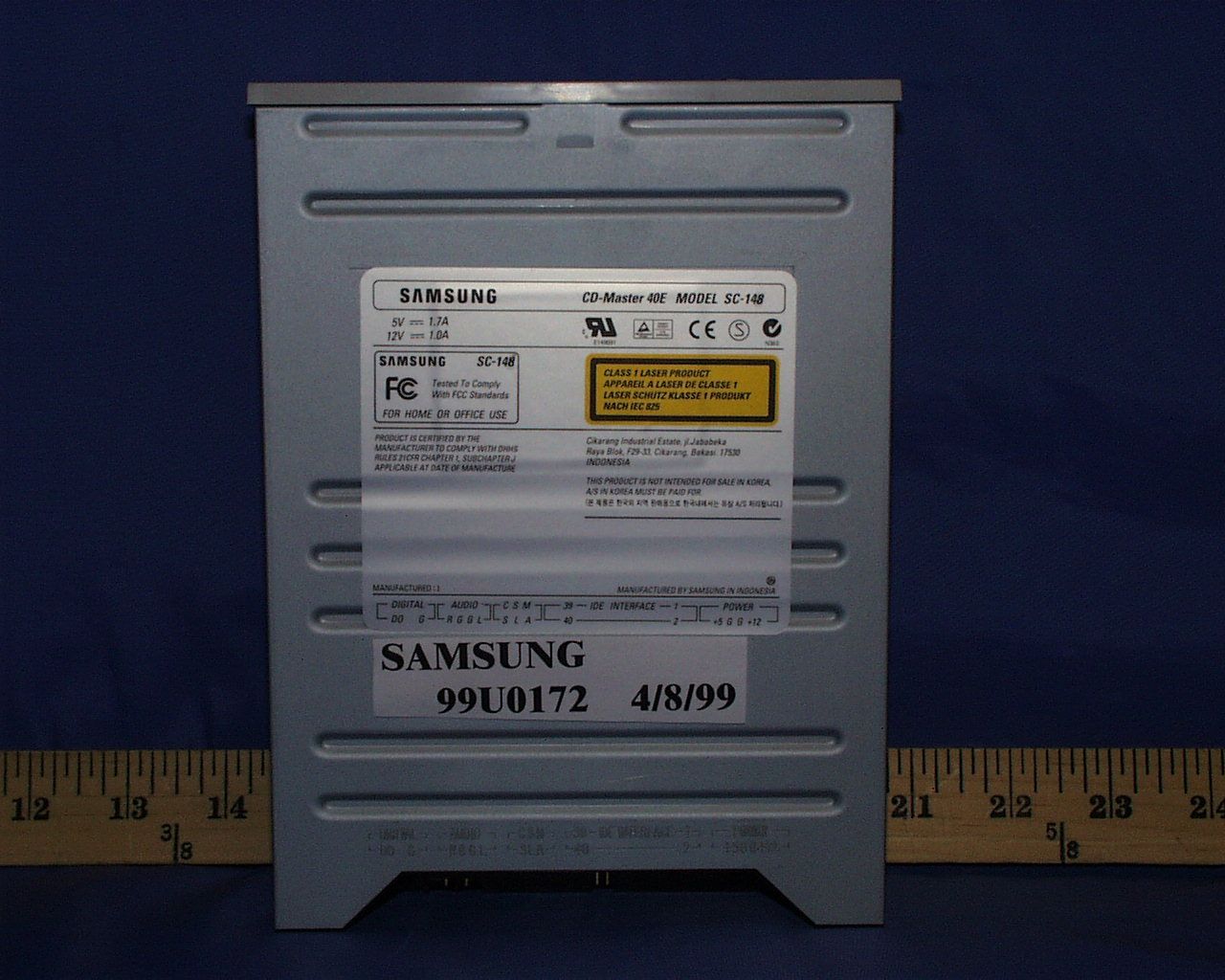

PROPOSED FCC ID LABEL AND LOCATION SAMSUNG ELECTRONICS CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID: A3LSC148B FCC ID LABEL LOCATION

FCC CFR47 PART 15 DIGITAL DEVICE TEST REPORT FOR CD-ROM DRIVE MODEL: SC-148B, CD4833E, CD1488 REPORT NUMBER: 99U0172-1 ISSUE DATE: APRIL 07, 1999 Prepared for SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA Prepared by COMPLIANCE ENGINEERING SERVICES, INC. d.b.a. COMPLIANCE CERTIFICATION SERVICES 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089, USA TEL: (408) 752-8166 FAX: (408) 752-8168 REPORT NO: 99U0172-1DATE: APRIL 07, 1999 EUT: CD-ROM DRIVE COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. TABLE OF CONTENTS PAGE 1. VERIFICATION OF COMPLIANCE............................................................................................................ 1 2. PRODUCT DESCRIPTION ............................................................................................................................ 2 3. TESTED SYSTEM DETAILS ......................................................................................................................... 2 4. TEST FACILITY .............................................................................................................................................. 3 5. ACCREDITATION AND LISTING ............................................................................................................... 3 6. MEASUREMENT INSTRUMENTATION.................................................................................................... 3 7. MEASURING INSTRUMENT CALIBRATION .......................................................................................... 4 8. UNITS OF MEASUREMENT ......................................................................................................................... 4 9. ANTENNAS....................................................................................................................................................... 5 10. CLASSIFICATION OF DIGITAL DEVICE ................................................................................................. 5 11. RADIATED EMISSION LIMITS ................................................................................................................... 5 12. CONDUCTED EMISSION LIMITS............................................................................................................... 6 13. CONDUCTED EMISSION TEST PROCEDURE......................................................................................... 8 14. RADIATED EMISSION TEST PROCEDURE ............................................................................................. 8 15. AMBIENT CONDITIONS ............................................................................................................................... 9 17. EQUIPMENT MODIFICATIONS................................................................................................................ 10 18. EUT SETUP PHOTOS ................................................................................................................................... 11 19.TEST EQUIPMENT LIST ............................................................................................................................. 12 20.TEST RESULT SUMMARY.......................................................................................................................... 13 APPENDICES ........................................................................................................................................................... 15 .EXTERNAL I/O CABLE CONSTRUCTION DESCRIPTION .CONFIGURATION BLOCK DIAGRAM .CONDUCTED EMISSION PLOT .RADIATED EMISSION DATA .RETENTION OF RECORDS BY RESPONSIBLE PARTY .LABELING REQUIREMENTS .FCC COMPLIANCE INFORMATION .EUT PHOTOGRAPHS REPORT NO: 99U0172-1DATE: APRIL 07, 1999 EUT: CD-ROM DRIVE 1 OF 22 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 1. VERIFICATION OF COMPLIANCE COMPANY NAME: SAMSUNG ELECTRONICS CO., LTD. 416 MAETAN DONG, PALDAL GU SUWON SHI, KOREA CONTACT PERSON: BEN KIM / MANAGER TELEPHONE NO:408-544-5124 MODEL NO/NAME: SC-148B, CD4833E, CD1488 SERIAL NO:N/A DATE TESTED:APRIL 07, 1999 TYPE OF EQUIPMENT:INFORMATION TECHNOLOGY EQUIPMENT (ITE) MEASUREMENT DISTANCE:(X) 3 METER ( ) 10 METER TECHNICAL LIMIT:CLASS B FCC RULES:PART 15 MEASUREMENT PROCEDUREANSI C63.4:92 EQUIPMENT AUTHORIZATION PROCEDURE DECLARATION OF CONFORMITY MODIFICATIONS MADE ON EUT YES NO DEVIATIONS FROM MEASUREMENT PROCEDURE YES (refer to section 20 for comments) NO RADIATED EMISSION TEST RESULT-3.66 dB @ 420.0 MHz MHz/VERTICAL CONDUCTED EMISSION TEST RESULT-12.85 dB @ 0.465 MHz/L2 The above equipment was tested by Compliance Certification Services for compliance with the requirements set forth in the FCC CFR 47, PART 15. The results of testing in this report apply to the product/system which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved ByAcknowledged By MIKE C.I. KUO / VICE PRESIDENTBEN KIM / MANAGER COMPLIANCE CERTIFICATION SERVICESSAMSUNG ELECTRONICS CO., LTD. REPORT NO: 99U0172-1DATE: APRIL 07, 1999 EUT: CD-ROM DRIVE 2 OF 22 COMPLIANCE CERTIFICATION SERVICESDOCUMENT NO:CCSUP4002C 1366 BORDEAUX DRIVE SUNNYVALE, CA 94089 USA TEL:(408) 752-8166 FAX:(408) 752-8168 This report shall not be reproduced except in full, without the written approval of CCS. 2. PRODUCT DESCRIPTION CHASSIS TYPEMETAL LIST OF EACH OSC. OR XTAL. FREQ. (FREQ.>=1 MHz) 20, 50, 33.86 MHz NUMBER OF PCB LAYERS4 BOARD REVISION NODVT 01 LINE FILTER NAME AND MODELBUILT-IN POWER REQUIREMENTS12 V DC NO. OF EXTERNAL I/O CONNECTORS1 Model Differences: Model NameDifferencesTested (Checked…
