AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCH2510) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN. b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Ben Kim Engineering Manager Samsung Electronics America

June 21, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCH2510 Part 24/22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 24/22 Certification of the following Tri-Mode Dual-Band Phone (AMPS/CDMA): FCC ID: A3LSCH2510 TRADE / MODEL(s): SAMSUNG SCH-2510 EUT TYPE: Licensed Portable Transmitter Held to Ear (PCE) Tx Freq. Range: 824.04 – 848.97 MHz (AMPS) / 824.64 – 848.37 MHz (CDMA) 1851.25 – 1908.75 MHz (CDMA) Rx Freq. Range: 869.04 – 893.97 MHz (AMPS) / 869.64 – 893.97 MHz (CDMA) 1931.25 – 1988.75 MHz (CDMA) Max. Output Power: 0.251 W EIRP (PCS CDMA)/0.32 W ERP (CDMA)/0.6 W ERP (AMPS) Attached is the Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description (Confidential), parts list & tune-up procedure (Confidential), and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc: Mr. Ben Kim Engineering Manager, QA Lab SAMSUNG Electronics America

June 17, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize PCTEST Engineering Laboratory Inc., to act as agent on our behalf for all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, Inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Ben Kim Engineering Manager

June 21, 1999 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: A3LSCH2510 AMPS/CDMA/PCS Phone - Certification Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. requests confidentiality of the Block Diagrams, Schematics, Circuit Description, Operational Description, Parts List, and Tune-Up Procedure for the attached test report. These documents contain detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Ben Kim Engineering Manager

August 30, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Greg Czumak / Kwok Chan SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCH2510 731 Confirmation Number: EA94623 Correspondence Reference No.: 9353 Request for Tech. Info.: 08/24/99 Dear Greg / Kwok: Submitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to your e-mail dated August 24 requesting additional information for the subject application. 1. The ERP and EIRP of the CDMA emission were determined by mathematical conversion from the field strength measurement data with the following settings: RBW = 3MHz, VBW = 3MHz, Detector Function = Peak. Please see attached revised Page 10 of the test report. 2. Attached are the SPEAG SAR test system dipole validation results (800MHz & 1900MHz bands) from the SAR system manufacturer, and PCTEST Lab’s validation results for comparison, with tabulated data and plot including tissue dielectric parameters. 3. Attached are the resubmitted SAR data sheets reflecting conducted output power plus cable loss (in Watts) to correspond with the SAR plots. 4. The phone has three battery options (Extended-life, Mid-life, Standard-life). Attached are the resubmitted SAR data sheets indicating the three battery options. 5. Attached are the resubmitted SAR test plots indicating the crest factor used for all SAR tests. 6. Attached is the E-field probe calibration information confirming the calibration is current. 7. The radiated tests with the Mid-life and Standard-life batteries were performed at 824.04 MHz test frequency. We have retested the phone with Mid-life and Standard-life batteries in the AMPS mode at 836.49 MHz. Please see attached ERP test data (Page 8) for AMPS mode. The two PCS SAR test plots indicating 23dBm conducted output power is a typographical error. The actual conducted output power is 22dBm plus 2.3 dB cable loss. Please see attached resubmitted SAR test plots. 8. The test frequencies on the SAR data sheets are correct. Please see attached resubmitted SAR plots listing the correct test frequencies. We trust this information is sufficient to issue the grant. Should you have any further questions, please do not hesitate to contact us. Thank you. Sincerely,

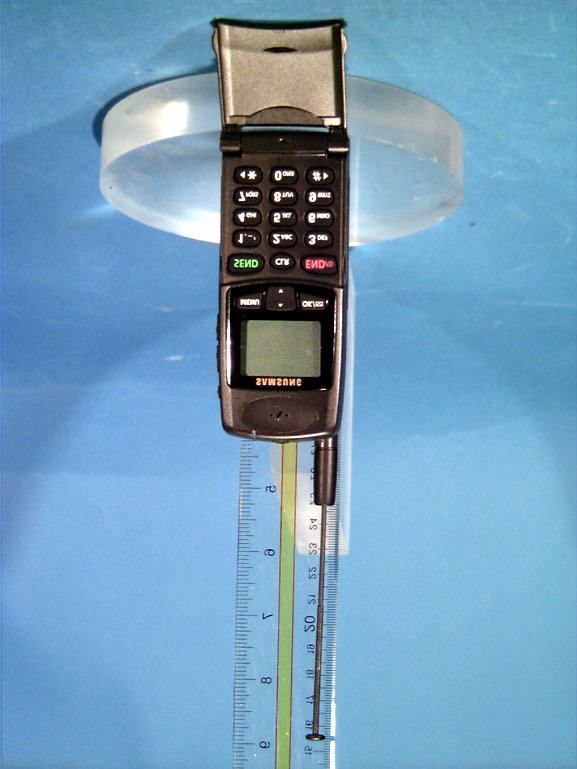

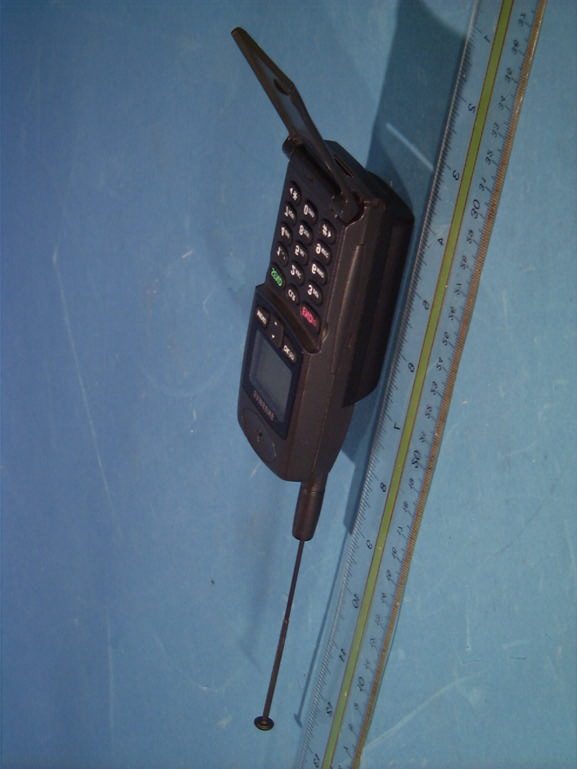

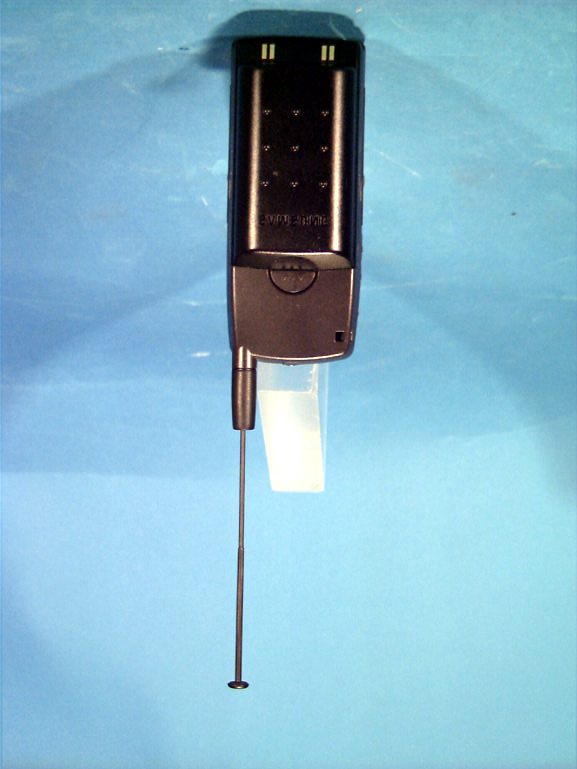

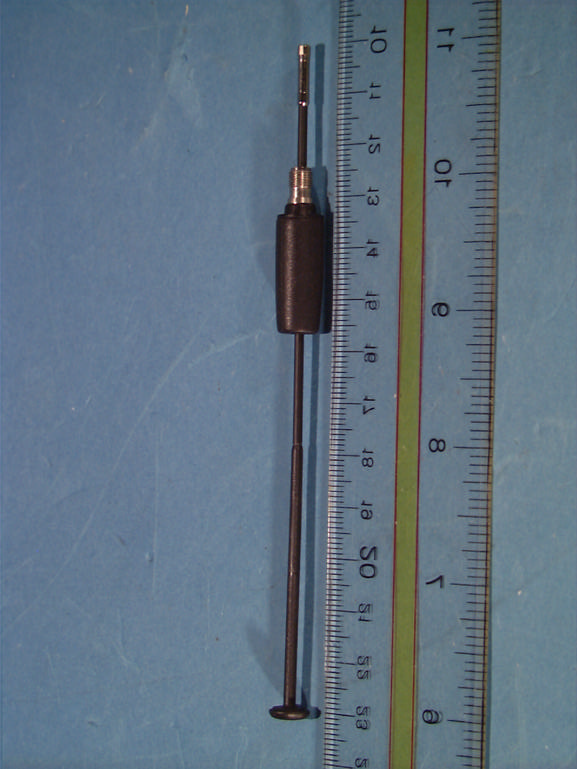

Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-2510 SERIAL NO.: FCC ID: A3LSCH2510 I I MADE IN KOREA 1

Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone Test Report S/N: 24/22.990512293.A3LFCC Parts 24 & 22 Test Date(s): June 07-11, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual-Band Analog/PCS Phone

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road 6660-B Dobbin Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO. LTD.Dates of Tests: June 07-11, 1999 416 Maetan-3 Dong, Paldal-Ku,Test Report S/N: SAR.990512294.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia, MD USA Attention: D. H. KIM, General Manager FCC ID A3LSCH2510 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Tri-Mode Dual-Band Cellular/PCS Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.64 – 848.37 MHz (CDMA) 1851.25 – 1908.75 MHz (CDMA) Rx. Frequency:869.04 – 893.97 MHz (AMPS) / 869.64 – 893.37 MHz (CDMA) 1931.25 – 1988.75 MHz (CDMA) Max Output Power:0.6 W ERP (AMPS) / 0.32 W ERP (CDMA) / 0.251 EIRP (CDMA) Trade Name/Model(s):SAMSUNG SCH-2510 FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 24(E); 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990512294.A3L SAR Measurement ReportFCC Part 24/22 Certification © 1999 PCTEST Labi Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM, HOLDER & BRAIN EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE PHONE 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTAINTIES 12 TEST DATA SUMMARY 13-14 SAR TEST EQUIPMENT LIST 15 CONCLUSION 16 REFERENCES 17 Test Report S/N: SAR.990512294.A3LSAR Measurement Report Test Date(s): June 07-11, 1999FCC Part 24/22 Certification FCC ID: A3LSCH2510 (Model: SCH-2510) © 1999 PCTEST LabSAMSUNG Tri-Mode Dual-Band Phone1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Company Name:SAMSUNG ELECTRONICS CO., LTD. Address:416 Maetan-3 Dong, Paldal-Ku, Suwon City, Kyungki-Do 441-742, KOREA Attention:D. H. KIM, General Manager • EUT Type:Tri-Mode Dual-Band Cellular/PCS Phone • Trade Name:SAMSUNG • Model(s):SCH-2510 • FCC IDENTIFIER:A3LSCH2510 • S/N:Pre-production • Tx Frequency:824.04 – 848.97 MHz (AMPS) 824.64 – 848.37 MHz (CDMA) 1851.25 – 1908.75 MHz (CDMA) • Rx Frequency:869.04 – 893.97 MHz (AMPS) 869.64 – 893.37 MHz (CDMA) 1931.25 – 1988.75 MHz (CDMA) • Application Type: Certification • FCC Classification:Licensed Portable Transmitter Held to Ear (PCE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 24(E); § 22(H) • Modulation(s):AMPS / CDMA • Max. Output Power:0.6W ERP (AMPS) / 0.32W ERP (CDMA) / 0.251 EIRP (CDMA) • Antenna Type:Helical (λ/2) • Antenna Dimensions:13.3 cm. (Length) • Date(s) of Tests:June 07-11, 1999 • Place of Tests:PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990512294.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET Docket 93-62. Fig. 1 SAR Test Setup Test Report S/N: SAR.990512294.A3LSAR Measurement Report Test Date(s): June 07-11, 1999FCC Part 24/22 Certification FCC ID: A3LSCH2510 (Model: SCH-2510) © 1999 PCTEST LabSAMSUNG Tri-Mode Dual-Band Phone2 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1992 by the Institute of Electrical and Electronics Engineers, Inc., New York, New York 10017.[2] The measurement procedure described in IEEE/ANSI C95.3-1992 Recommended Practice for the Measurement of Potentially Hazardous Electromagnetic Fields - RF and Microwave[3] is used for guidance in measuring SAR due to the RF radiation exposure from the Equipment Under Test (EUT). These criteria for SAR evaluation are similar to those recommended by the National Council on Radiation Protection and Measurements (NCRP) in Biological Effects and Exposure Criteria for Radiofrequency Electromagnetic Fields,” NCRP Report No. 86 (c) NCRP, 1986, Bethesda, MD 20814.[4] SAR is a measure of the rate of energy absorption due to exposure to an RF transmitting source. SAR values hav…

Text truncated - open the document above for the full version.

Test Report S/N: SAR.990512293.A3LSAR Measurement Report Test Date(s): June 07-11, 1999FCC Part 24/22 Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual Band Phone Test Report S/N: SAR.990512293.A3LSAR Measurement Report Test Date(s): June 07-11, 1999FCC Part 24/22 Certification © 1999 PCTEST Lab FCC ID: A3LSCH2510 (Model: SCH-2510) NVLAP Lab Code: 100431-0 SAMSUNG Tri-Mode Dual Band Phone

EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #13 Antenna Position In SAR (1g): 1.26 mW/g Samsung TRI mode Phone Channel 991 FM mode Conducted Power 25.8dBm 1.2dBm Cable offset SAR Tot [mW/g] 1.31E-1 7.84E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #13 Antenna Position Out SAR (1g): 1.33 mW/g Samsung TRI mode Phone Channel 991 FM mode Conducted Power 25.8dBm 1.2dBm Cable offset SAR Tot [mW/g] 1.39E-1 8.31E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #16 Antenna Position In SAR (1g): 1.33 mW/g Samsung TRI mode Phone Channel 383 FM mode Conducted Power 26.4dBm 1.2dBm Cable offset SAR Tot [mW/g] 1.27E-1 7.61E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #16 Antenna Position Out SAR (1g): 1.29 mW/g Samsung TRI mode Phone Channel 383 FM mode Conducted Power 26.4dBm 1.2dBm Cable offset SAR Tot [mW/g] 1.22E-1 7.33E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #17 Antenna Position In SAR (1g): 1.02 mW/g Samsung TRI mode Phone Channel 799 FM mode Conducted Power 25.1dBm 1.2dBm Cable offset SAR Tot [mW/g] 1.02E-1 6.10E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #17 Antenna Position Out SAR (1g): 1.02 mW/g Samsung TRI mode Phone Channel 799 FM mode Conducted Power 25.1dBm 1.2dBm Cable offset SAR Tot [mW/g] 9.78E-2 5.87E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2500 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #156 Antenna Position In SAR (1g): 0.781 mW/g, SAR (10g): 0.480 mW/g Serial Number B010042D Samsung TRI mode phone Channel 363 CDMA Mode Conducted Power 23.75 dBm 1.2 dBm cable offset SAR Tot [mW/g] 7.58E-2 6.06E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 835MHz: σ = 0.86 mho/m ε r = 42.5 ρ = 1.00 g/cm 3 File #156 Antenna Position Out SAR (1g): 0.765 mW/g Serial Number B010042D Samsung TRI mode phone Channel 363 CDMA Mode Conducted Power 23.75 dBm 1.2 dBm cable offset SAR Tot [mW/g] 7.39E-2 5.91E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #158 Antenna Position In SAR (1g): 0.195 mW/g Samsung TRI mode phone Channel 0025 CDMA/PCS Mode Conducted Power 22.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 1.74E-2 1.04E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #158 Antenna Position Out SAR (1g): 0.407 mW/g Samsung TRI mode phone Channel 0025 CDMA/PCS Mode Conducted Power 22.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 2.76E-2 1.66E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #157 Antenna Position In SAR (1g): 0.127 mW/g Serial Number B010042D Samsung TRI mode phone Channel 0600 CDMA/PCS Mode Conducted Power 23.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 1.44E-2 1.15E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #157 Antenna Position Out SAR (1g): 0.530 mW/g Serial Number B010042D Samsung TRI mode phone Channel 0600 CDMA/PCS Mode Conducted Power 23.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 5.07E-2 4.06E-1 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #159 Antenna Position In SAR (1g): 0.0746 mW/g Samsung TRI mode phone Channel 1175 CDMA/PCS Mode Conducted Power 21.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 8.20E-3 4.92E-2 PCTEST ENGINEERING LAB INC. EUT SCH-2510 Generic Twin Phantom; Left Hand Section; Probe: ET3DV5 - SN1368 Brain 1800 MHz: σ = 1.65 mho/m ε r = 41.0 ρ = 1.00 g/cm 3 File #159 Antenna Position Out SAR (1g): 0.353 mW/g Samsung TRI mode phone Channel 1175 CDMA/PCS Mode Conducted Power 21.0 dBm 2.3 dBm cable offset SAR Tot [mW/g] 3.51E-2 2.11E-1 PCTEST ENGINEERING LAB INC.

Validation Dipole D835V2 SN:406, d = 15mmFrequency: 835 MHz; Antenna Input Power: 250 [mW]Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 20.0, Dy = 20.0, Dz = 10.0Probe: ET3DV5 - SN1342/DAE3; ConvF(5.75,5.75,5.75); Brain 835 MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Cubes (2): Peak: 3.17 mW/g ± 0.03 dB, SAR (1g): 2.11 mW/g ± 0.03 dB, SAR (10g): 1.41 mW/g ± 0.04 dB, (Worst-case extrapol ation) Penetration depth: 13.4 (12.3, 14.9) [mm]Powerdrift: -0.01 dB SAR Tot [mW/g] 2.50E-15.00E-17.50E-11.00E+01.25E+01.50E+01.75E+02.00E+02.25E+02.50E+0 Validation SN406, 07/21/99Schmid & Partner Engineering AG, Zürich Switzerland

Validation Dipole D1900V2 SN:502, d = 10mmFrequency: 1900 MHz; Antenna Input Power: 250 [mW]Generic Twin Phantom; Flat Section; Grid Spacing: Dx = 15.0, Dy = 15.0, Dz = 10.0Probe: ET3DV5 - SN1302/DAE3; ConvF(4.55,4.55,4.55); Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 Cubes (2): Peak: 21.2 mW/g ± 0.01 dB, SAR (1g): 10.7 mW/g ± 0.01 dB, SAR (10g): 5.26 mW/g ± 0.01 dB, (Worst-case extrapol ation) Penetration depth: 7.0 (6.8, 7.5) [mm] SAR Tot [mW/g] 1.00E+02.00E+03.00E+04.00E+05.00E+06.00E+07.00E+08.00E+09.00E+0 Validation SN502, 12/16/98Schmid & Partner Engineering AG, Zürich Switzerland

EUT: 835 MHz Dipole Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 -- Probe Cal Date 2/99 Meduim Parameters 835MHz: σ = 0.79 mho/m ε r = 41.9 ρ = 1.00 g/cm 3 Crest Factor 1.0 SAR (1g): 2.09 mW/g SAR Tot [mW/g] 2.17E-1 8.68E-1 1.52E+0 2.17E+0 PCTEST ENGINEERING LAB INC.

EUT Dipole 1900 MHz Generic Twin Phantom; Flat Section; Probe: ET3DV5 - SN1368 Brain 1900 MHz: σ = 1.82 mho/m ε r = 40.4 ρ = 1.00 g/cm 3 File #Validation 1900 MHz PCTest Antenna Position Out Crest Factor 1.0 SAR (1g): 11.0 mW/g ± 0.02 dB SAR Tot [mW/g] 1.15E+0 8.04E+0 PCTEST ENGINEERING LAB INC.

Test Report S/N: SAR.990512294.A3LSAR Measurement Report Test Date(s): June 07-11, 1999FCC Part 24/22 Certification FCC ID: A3LSCH2510 (Model: SCH-2510) © 1999 PCTEST LabSAMSUNG Tri-Mode Dual-Band Phone13 TEST DATA SUMMARY Ambient TEMPERATURE (°C) 24.0 Relative HUMIDITY (%) 80.0 Atmospheric PRESSURE (kPa) 99.0 Mixture Type: Brain Dielectric Constant: 43.40 Conductivity: 0.90 S/m Closest Distance (between E-Probe & Phone Antenna): 1.8 cm Measurement Results (AMPS/CDMA) FREQUENCYModulationPOWEREARAntennaSAR MHzCh.(W)PositionPosition (W/kg) 824.04991AMPS0.50LeftIN1.260 824.04991AMPS0.50LeftOUT1.330 836.49383AMPS0.58LeftIN1.330 836.49383AMPS0.58LeftOUT1.290 848.97799AMPS0.43LeftIN1.020 848.97799AMPS0.43LeftOUT1.020 835.89363CDMA0.31LeftIN0.781 835.89363CDMA0.31LeftOUT0.765 ANSI / IEEE C95.1 1992 - SAFETY LIMIT Spatial Peak (Brain) Uncontrolled Exposure/General Population 1.6 W/kg (mW/g) NOTES: 1. The test data reported are the worst-case SAR value with the antenna-head position set in a typical configuration. All modes of operation were investigated and the worst-case are reported. 2. Battery condition is fully charged for all readings. 3.Power Measured:x Conducted o ERP o EIRP 4.SAR measurements were made using the Extended-life battery. The ERP results using the Standard- life and Mid-life battery were lower, theref…
