A3LSCH670CELLULAR CDMA PHONE (SINGLE-MODE)

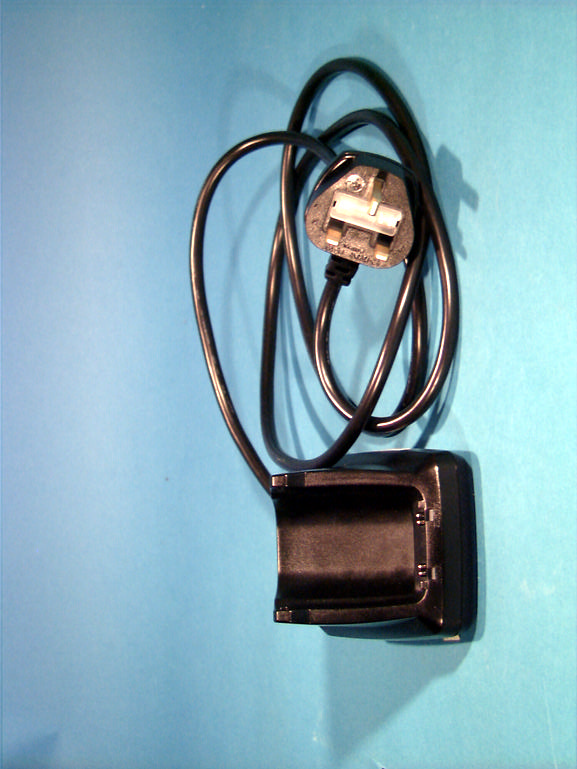

CDMA PORTABLE CELLULAR TELEPHONE SCH-670 OWNER’S MANUAL SCH-670 (1-19) 11/23/98 3:16 PM Page 1 3 You are advised to turn off the phone when at a gas station. NEVER store or carry inflammable gas, liquids or explosive materials in the same compartment as your cellular phone. Safety Precautions The use of cellular phones in an aircraft: uIs dangerous to aircraft operations. uMay disrupt the cellular network. uIs illegal. Failure to observe in-flight regulations may lead to the suspension of cellular services and/or legal action. The illustrations below indicate the safety precautions to be taken when using your cellular telephone. Parts List The SCH-670 product contains the following parts. PhoneTravel ChargerBattery (BTL1024S) StrapManual (Quick Reference Card included) NEVER use your phone while driving, even if hands free operation is allowed. ALWAYS park your vehicle first. In some countries, it is illegal to use mobile and radio telephones while driving. DO NOT use the Travel Charger if: uThe power cord is damaged. uThe phone has been dropped or undergone a shock. Have an authorized service center repair the phone. NEVER try to repair the phone by yourself. Symbols Press/Push ¬= Step number Important + Note 2 SCH-670 (1-19) 11/23/98 3:16 PM Page 2 5 Contents 4 Front View of the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Rear View of the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 LCD Display and Indicators . . . . . . . . . . . . . . . . . . . . . . . . .8 Preparation Installing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . .9 Charging a Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Using a Travel Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10 Tips on Battery Charging (Desk-top Charger) . . . . . . . . . . . . .11 Checking the Battery Charge Level . . . . . . . . . . . . . . . . . . .12 Basic Operation Turning the Phone On and Off . . . . . . . . . . . . . . . . . . . . . . .13 Extending the Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Making a Call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14 Using One Touch Silent Mode . . . . . . . . . . . . . . . . . . . . . . .16 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17 Adjusting Volumes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18 Mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Recording the Other Person’s Talking During Telephone Conversation . . . . . . . . . . . . . . . . . . . . . .20 Choosing Alert Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21 Choosing Ringer Bell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22 Redialing the Last Numbers . . . . . . . . . . . . . . . . . . . . . . . .23 Memory Dialing Finding an Empty Memory Location . . . . . . . . . . . . . . . . . . .25 Storing Numbers in Memory . . . . . . . . . . . . . . . . . . . . . . . .26 Entering Name in Memory . . . . . . . . . . . . . . . . . . . . . . . . . .28 Correcting a Name or Number . . . . . . . . . . . . . . . . . . . . . . .29 Storing Numbers into Numeric Group . . . . . . . . . . . . . . . . .30 One-Touch Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Two-Touch Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31 Searching for Numbers in Memory . . . . . . . . . . . . . . . . . . .32 Erasing Numbers in Memory . . . . . . . . . . . . . . . . . . . . . . . .36 Voice Dialing Voice Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Recording Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38 Checking Recoded Name . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Erasing Recorded Name . . . . . . . . . . . . . . . . . . . . . . . . . . .40 Using Voice Dial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42 Useful Features Turning Tones On and Off . . . . . . . . . . . . . . . . . . . . . . . . . .45 Sending Your Own Phone Number . . . . . . . . . . . . . . . . . . . .48 Displaying Your Own Phone Number . . . . . . . . . . . . . . . . . .48 System Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49 Message Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Setting Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 DTMF Dialing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57 Timers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59 Advanced Features Using Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64 Using Stop Watch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65 Automatic Feature Setup . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Changing Greeting Message . . . . . . . . . . . . . . . . . . . . . . . .69 Restricting the Use of the Phone . . . . . . . . . . . . . . . . . . . . .70 Changing Lock Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .73 Locking the Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74 Warning Beep Generation . . . . . . . . . . . . . . . . . . . . . . . . . .75 Choosing NAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Setting the Phone to Send PIN . . . . . . . . . . . . . . . . . . . . . .77 Vocoder Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .78 System Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 Miscellaneous Cleaning Your Cellular Phone . . . . . . . . . . . . . . . . . . . . . . . .80 Battery Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . .81 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .83 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

February 10, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCH670 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following Single Mode Cellular CDMA phone: FCC ID:A3LSCH670 TRADE / MODEL(s):SAMSUNG SCH-670 EUT TYPE:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.64 – 849.37 MHz Rx Freq. Range:869.64 – 893.37 MHz Max. Output Power:0.25 Watts Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ben Kim Engineering Manager SAMSUNG Electronics America

Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone

© 1998 PCTEST Lab FCC ID SAMPLE LABEL LOCATION LABELLING REQUIREMENTS PER §§ 2.925 & §§ 15.19 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Fig 12. Sample label (SEE NEXT PAGE) PORTABLE CDMA PHONE MODEL NO: SCH-670 SERIAL NO.: 605AOOOD FCC ID: A3LSCH670 I I MADE IN KOREA 1

Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone Test Report S/N: 22.990106001.A3LFCC Part 22 Test Date(s): January 18-22, 1999Certification © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670) NVLAP Lab Code: 100431-0 SAMSUNG Cellular CDMA Phone

1.SPECIFICATION 1.GENERAL FreqencyRange Transmitter Receiver 824.64~848.37MHz 869.64~893.37MHz ChannelSpacing1.23MHz NumberofChannels20FA DuplexSpacing45MHz FrequencyStability °æ 300Hz OperatingTemperature-20 °... ~+50 °... (-4~+122 ¢μ ) OperatingVoltage HHP 3.6VDC( °æ 10%) SizeandWeight Includingstandardbattery 108x46x25mm 152g OperatingTime StandbyTime (Slotmode2) TalkTime 50~70hours (withstandardbattery) 60~95hours (withmediumbattery) about150min (withstandardbattery) about240min (withextended-lifebattery) WaveformQualityabove0.944 TimeReferencewithin °æ 1us RxSensitivityand DynamicRange -104dBm,FER=within0.5% -104dBm~-25dBm,FER=within0.5% TxOutputPowerMaximum450mW(26.5dBm) TxFrequencyDeviationwithin °æ 300Hz OccupiedBandWidthwithin1.32MHz TxConductedSpuriousEmission900KHz:below-42dBc/30KHz(1'st) 1.98MHz:below-54dBc/30KHz(2'nd) MinimumTxPowerControlbelow-50dBm OpenLoopPowerControl-25dBm:-57.0dBm~-38.5dBm -65dBm:-17.5dBm~+1.5dBm -104dBm:+18.0dBm~+30.0dBm StandbyOutputPowerbelow-61dBm ColsedLoopTxPowerControlRangeTest1:withine °æ 24dB Test2:withine °æ 24dB Test3:withine °æ 24dB Test4:withine °æ 24dB Test5:withine °æ 24dB 2.FREQENCYRANGE TransmitterFrequency FANO.CHNO.CenterFrequency 11011824.64MHz 229825.87MHz 370827.10MHz 4111828.33MHz 5152829.56MHz 6193830.79MHz 7234832.02MHz 8275833.25MHz 9316834.48MHz 10363835.89MHz 11404837.12MHz 12445838.35MHz 13486839.58MHz 14527840.81MHz 15568842.04MHz 16609843.27MHz 17650844.27MHz 18697845.91MHz 19738847.14MHz 20779848.37MHz ReceiverFrequency FANO.CHNO.CenterFrequency 11011869.64MHz 229870.87MHz 370872.10MHz 4111873.33MHz 5152874.56MHz 6193875.79MHz 7234877.02MHz 8275878.25MHz 9316879.58MHz 10363880.89MHz 11404882.12MHz 12445883.35MHz 13486884.58MHz 14527885.81MHz 15568887.04MHz 16609888.27MHz 17650889.27MHz 18697890.91MHz 19738892.14MHz 20779893.37MHz

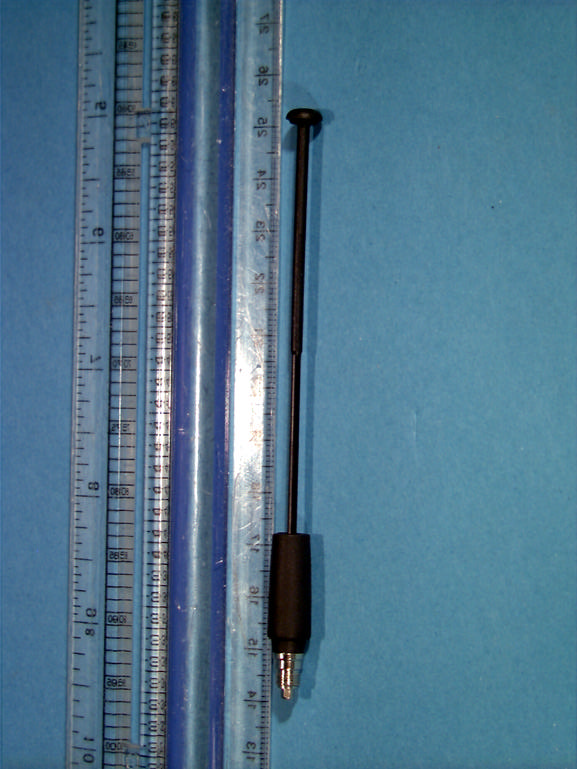

RetractablebottomhelicalAntenna Vendor:AllgonMobilecommucationsAB VendorP/N:39445.1 ElectricalData Freq.Band TransmitBand(Tx):824-849MHz ReceiveBand(Rx):869-894MHz Impedance NominalValue:50 •ÿ VSWR(FreeSpace) MaximumValues TxRx extended2:12:1 retracted3.2:13.2:1 GAIN TypicalMinimumValuesinMaximumDirection TxRx extended-2dBd-2dBd retracted-3.5dBd-3.5dBd °ÿ dBd:dBrelativetoadipole MaximumLobeTilt TxRx extended45 °∆ 45 °∆ retracted45 °∆ 45 °∆ PowerRating MaximumValueP=2W(continuouswave) Environment OperationalTemperature LowOperationalTemperature T LO :-20 °... Hi ghOperationalTemperature T HO :+70 °... Method:TheantennaisplacedinaclimaticchamberatT LO (orT HO ) Theantennaistakenoutaft er1hour,andtheVSWRis immediatelymeasured. TemperatureCycli ng LowTemperatureCycli ng T LC :-40 °... Hi ghTemperatureCycli ngT HC :+80 °... Method:Theantennaisplacedinaclimaticchamber.The temperatureiscycledasfollows: ThetemperatureiskeptconstantlyatT LC for1hour, incre asedtoT HC during1hour,keptconstantlyatT HC for1hour,andthendecreasedtoT LC during1hour. Thisprocedureisre peated10times,endingatroo m temperature. Humidity RelativeHumidity:95% Temperature :+55 °... Method:Theantennaisplacedinaclimaticchamberfor24hours. Theantenna istakenoutfromthechamberandmeasured aft eranother24hoursinroo mtemperature. SinusoidalVibration VibrationFreq. :8-25 -8Hz(1cycle) SweepRate : 1octav e/min(logarithmic) Max imumAmplitude: A=1. 5mm Max imumAcce ler ation:2g Cross ov erFreq. : 18.2Hz Method:Theextendedantennaisass embledinthetestequipment. Thevibrationisdonebothx-andz-directions,witha durationof1hourineachdirection.

6.DescriptionofFrequencyStabilization Circuit,SuppressionofSpuriousRadiation FrequencySynthesizerCircuit TheFrequencysynthesizerisanindirectfrequencysynthesizerPLL(PhasedLockedLoop).Itconsistsofa VCTCXO(U705),PLLIC(U703),VCO(U702),andloopfilter. VCTCXO TheVCTCXOisareferencesourceofthefrequencysynthesizer.Itprovides19.68MHzreferencefrequencyto PLL.TheVCTCXOisaVoltageControlledTemperatureCompensatedCrystalOscillatorhaving19.68MHz °æ 2.5 ppmfrequencystabilityoverallusefultemperaturerange.Acorrectfrequencytuningismadebythecontrol voltage. VCO TheVCO(U702)generatesthesignalhaving967 °æ 12.5MHzcenterfrequencywiththevoltagecontrol. PLLICcontrolsthissignal. PLLIC ThePLLIC(U703)includesprescalersandchargepump.ThereferencedividerinPLLICdividesthefrequencyof VCTCXOby19.68MHzandmakesreferencefrequency10KHz.Thisreferencefrequencyissuppliedtooneofthe inputofphasedetector.ThesignalgeneratedatVCOgoesintoanotherinputstageofthephasedetectorthrough aprescalerandthemaindivider.Atthispoint,theerrorproportionaltothephasedifferenceoftwoinputsis occurred.ThiserrorsignalissuppliedtothefrequencycontrolinputstageofVCOthroughtheloopfilter consistedRC. SpuriousRadiationSuppressionCircuit Thespurioussignalfromantennaissuppressedattheduplexer.Theduplexerhasaflatcharacteristicstothe receivesignalandahighattenuationcharacteristicstotheharmonicsignaloftransmission.Soitsuppressthe spuriousradiation Table:Thecharacteristicofduplexerfilter(F700) ParameterValue TX CenterFrequency836.5MHz(FT) BandwidthFT °æ 12.5MHz InsertionLossatBW+10 °... ~+35 °... 2.6dBMax -30 °... ~+85 °... 2.8dBMax VSWRatBW1.7Max Inputpower2WMax Attenuation absolutevalue relativevalue 869~894MHz43dBMin 1648~1698MHz27dBMin 2472~2547MHz30dBMin RippleatBW1.9dBMax RX CenterFrequency881.5MHz(FR) BandwidthFR °æ 12.5MHz InsertionLossatBW3.7dBMax VSWRatBW1.8Max Inputpower1WMax Attenuation absolutevalue relativevalue 824~849MHz50dBMin 914~939MHz10dBMin 959~984MHz30dBMin RippleatBW1.3dBMax

WaveformQualityabove0.944 TimeReferencewithin °æ 1us RxSensitivityand DynamicRange -104dBm, FER=within0.5% -104dBm~-25dBm,FER=within0.5% TxOutputPowerMaximum250mW(24.0dBm) TxFrequencyDeviationwithin °æ 300Hz OccupiedBandWidthwithin1.32MHz TxConductedSpuriousEmission900KHz:below-42dBc/30KHz(1'st) 1.98MHz:below-54dBc/30KHz(2'nd) MinimumTxPowerControlbelow-50dBm OpenLoopPowerControl-25dBm: -57.0dBm~-38.5dBm -65dBm: -17.5dBm~+1.5dBm -104dBm: +18.0dBm~+30.0dBm StandbyOutputPowerbelow-61dBm ColsedLoopTxPowerControlRangeTest1: withine °æ 24dB Test2: withine °æ 24dB Test3: withine °æ 24dB Test4: withine °æ 24dB Test5: withine °æ 24dB

Item 12 . EQUIPMENT SPECIFICATIONS: (See instructions) Frequency range in MHzRated RF power output in watts Frequency toleranceEmission designator (See 47 CFR § 2.201 and § 2.202) Microprocessor Model Number Item 13. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 13(c). Yes No Yes No (c) The related application: has been filed at same time as this application under the FCC ID listed to the right has been granted under the FCC ID listed to the right is in the process of being filed under the FCC ID listed to the right is pending with the FCC under the FCC ID listed to the right FCC ID Item 14. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: First Name: Last Name: Telephone: Ext: Fax No: E-mail: Read each certification carefully before answering and signing this application WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: 824.64848.37.257 2.5 ppm 1M25F9WMSM2300 PCTEST Engineering Laboratory, Inc. - RANDYORTANEZ [email protected] 3 of 5 2/10/99 6:06 PM FCC Form 731 https://gullfoss.fcc.gov/cgi-bin/ws.exe/prod/oet/forms/731/731_Form.hts

10.FUNCTIONSOFACTIVEDEVICES NONAMEVENDORCODEDESCRIPTION 1U904TLV320AC36IPTCODEC 2U905MSM2300MobileStationModem 3U701CXA3221NRXIFAGCAMP 4U703LMX2332L1STLOCALPLL 5U800CXA3003BRBasebandAnalogProcessor 6U801BU4051BCFVMUX 7U806UPC8106TUPCONVERTER 8F700DFD0836G0881BDUPLEXER 9U702VOU0967N33KRAVCO 10U705TOU1968VBH6KRATCXO 11U808RI23124UPOWERAMP 12F800,F801FAR_F5CH_836M50_2AW_TRFTXFILTER 13U807GN1037BTX2ndPRE-AMP 14U805CXA3222NTX1stPRE-AMP

3.NAMPROGRAMMING NAMfeaturescanbeprogrammedasfollows: Notes: -IfyouentertheNAMprogrammode,eachitemshowsthecurrenlystoreddata.Gotothenextitemby pressingSTO. -Youcanmodifythedatabyenteringanewdata. -Ifyouenterawrongdigit,pressCLRtodeletethelastdigit.PressandholdCLRtodeletealldigits. -Toscrollitemsbackwardsorforwards,pressthe*,#buttonontheleftsideofthephone. GeneralSetup LCDDisplayKeyinFunction 47*869#08#947*869#08#9-selectNAMprogramming NAMprogram1-choose'GENERAL' 1:General 2:SetupNAM1 ESN#-ElectronicSerialNumberofthephone B0000000 CAIversion#-TheversionofCommonAirInterfacesupported 2bythemobile SCM#-StationClassMarkdisplaysthepowerclass(bit0~1), 00101010transmission(bit2),slottedclass(bit5),dualmode(bit6). VOC8/13/EVRC#-Theserviceoptionsupportedbythethemobile SO_VOIC_EVRC LockCode(0000)-Lockcode,currentstatusisdisplayed 00004-digitcodetochange,enternewcode. STO-storesit SlotMode-Slotmode.'Yes'indicatestheslotmode. Yes*or#changesthestatus. STO-storesit. SlotIndex-Slotmodeindex.Thehigher,thelongersleepingtime 20-7tochange,enternewone. STO-storesit. PrefNAM1...-PreferredsystemselectionforNAM1 DigitalonlySTOchangesthesystem. -storesit. PrefNAM2...-PreferredsystemselectionforNAM2 DigitalonlySTOchangesthesystem. -storesit. LCDDisplayKeyinFunction PrefNAM3...-PreferredsystemselectionforNAM3 DigitalonlySTOchangesthesystem. -storesit. PrefNAM4...-PreferredsystemselectionforNAM4 DigitalonlySTOchangesthesystem. -storesit. SettingUpNAM1 LCDDisplayKeyinFunction NAMProgram2-Choose'SetupNAM1.' 1:General 2:SetupNAM1 IMSI_MCC-IMSIMobleCountryCode,currentcodeisdisplayed. 454numbertochange,enternewone. STO-storesit. IMSI_MNC-IMSIMobileNetworkCode,currentcodeisdisplayed. 05numbertochange,enternewone. STO-storesit. CDMATELNO.-CDMAcurrentnumberisdisplayed. 8520000000phonenumbertochange,enternewone. STO-storesit. CDMApref..-Preferredsystemselection,currentsystemisdisplayed. Apref*or#changesthesystem. STO-storesit. CDMAACCOLC-CDMAAccessOverloadClass,currentstatusisdisplayed. 0classnumbertochange,enternewone. STO-storesit. PchnSysA-PreferredchannelcurrentlyusedundersystemA 283channelnumbertochange,enternewone. STO-storesit. PchnSysB-PreferredchannelcurrentlyusedundersystemB 384channelnumbertochange,enternewone. STO-storesit. SchnSysA-SecondchannelcurrentlyusedundersystemA 691channelnumbertochange,enternewone. STO-storesit. SchnSysB-SecondchannelcurrentlyusedundersystemB 777channelnumbertochange,enternewone. STO-storesit. CDAcqSID1-1'stAcquisitionsystemID,currentstatusisdisplayed. 0IDnumber1~6tochange,enternewone. STO-storesit. CDlockSID1-1'stlocksystemID,currentstatusisdisplayed. 10640IDnumbertochange,enternewone. STO-storesit. CDlockSID2-2'ndlocksystemID,currentstatusisdisplayed. 8103IDnumbertochange,enternewone. STO-storesit. LCDDisplayKeyinFunction CDlockSID3-3'rdlocksystemID,currentstatusisdisplayed. 0IDnumbertochange,enternewone. STO-storesit. CDMAHomeSID-CDMAHomesystemID,currentstatusisdisplayed Yes*or#changesthestatus. STO-storesit. CDMAfSID-CDMAforeignSID,currentstatusisdisplayed. Yes*or#changesthesystem. STO-storesit. CDMAfNID-CDMAforeignNID,currentstatusisdisplayed. Yes*or#changesthesystem. STO-storesit. SID#1-firstSIDwritteninthelist,currentstatusisdisplayed. 10641numbertochange,enternewone. STO-storesit. NID#1-firstNIDwritteninthelist,currentstatusisdisplayed. 65535numbertochange,enternewone. STO-storesit. SID#2-2ndSIDwritteninthelist,currentstatusisdisplayed. 13numbertochange,enternewone. STO-storesit. NID#2-2ndNIDwritteninthelist,currentstatusisdisplayed 0numbertochange,enternewone. STO-storesit. SID#3-3rdSIDwritteninthelist,currentstatusisdisplayed. 0numbertochange,enternewone. STO-storesit. NID#3-3rdSIDwritteninthelist,currentstatusisdisplayed. 0numbertochange,enternewone. STO-storesit. SID#4-4thSIDwritteninthelist,currentstatusisdisplayed. 0numbertochange,enternewone. STO-storesit. NID#4-4thNIDwritteninthelist,currentstatusisdisplayed. 0numbertochange,enternewone. STO-storesit. SettingUpNAM2 LCDDisplayKeyinFunction NAMProgram3-Choose'SetupNAM2' 1:General 2:SetupNAM1 TheNAM2setupprogramisthesameas'NAM1'. SettingUpNAM3 LCDDisplayKeyinFunction NAMProgram4-Choose'SetupNAM3'. 3:SetupNAM2 4:SetupNAM3 TheNAM3setupprogramisthesameas'NAM1'. SettingUpNAM4 LCDDisplayKeyinFunction NAMProgram5-Choose'SetupNAM4' 5:SetupNAM4 TheNAM4setupprogramisthesameas'NAM1'. 5.TESTPROCEDURE TUNE-UPPROCEDURE ListofEquipment -DCPowerSupply -TestJig -TestCable -CDMAMobileStationTestSetHP8924C,HP83236A,CMD-80,etc -SpectrumAnalyzer(includeCDMAtestmode)HP8596E ConfigurationofTest SpectrumAnalyzer RFIn HP8924C RFAudioAudio In/OutOutIn ToA-Out TestJig ToA-In DCPowerSupply (+3.75V) Directional Coupler ChangetoTestMode A.TochangethephonefromNormalModetotestMode,Youshouldenterthefollowingkeys. "*759#813580" B.Thecommand °∞ 01"(Suspend)isenteredtostarttest. C.TofinishtheTestMode,Youshouldenterthecommand"02". ChannelSelectionandTxPowerOutputlevelControl 1.CDMA A.YoushouldchangethephonefromNormalModetoTestmode B.Thecommand °∞ 01"(Suspend)isenteredtostarttest. C.Youshouldenterthefollowingkeys. "09 XXXX#,07,71XXX#,34" -Ifyouenterthecommand"09",Youcanselectthechannel ex)090363(under-barmeanschannelnumber) -Thecommand"07 °± meansCarrierOn(CarrierOff: °∞ 08 °± ) -Ifyouenterthecommand"71",Youcancontrolthepoweroutputlevel.Followingunder-barmeansAGC code,0to511.AndyoucancontrolthepoweroutputlevelusingVolumeUp/DownKeys. ex)71 475 -Ifyouenterthecommand"34",Youcanspreadspectrumto1.23MHzbandwidth. D.Afterenterthecommand"74"andcontroltheTxPowerOutputLeveltobe0.0dBmusingVolumeUp/Down keys,press"STO"keytostoreDatainEEPROM. TESTCABLEDESCRIPTIONFORSCH-670 1.TESTCABLE 2 1 4 3 5 2.TESTCABLECONNECTIONS 1PLUGCONNECTTOSCH-670 2BNCCONNECTOR(RF) 3Dsub25PINCONNECTOR(DATA) 4RFCABLE 5DATACABLE 3.Dsub25PINCONNECTORPINDESCRIPTION(TESTCABLE1,BACKSIDE) 4.CONVERSIONTABLEOFFREQUENCYvsCHANNEL DATADESCRIPTIONDsubCONN.PINNO. Vcc4,5,6 GND13,23,24,25 PWON/OFF7 TXAUDIO10 TXDATA22 RXAUDIO12 RXDATA21 RSSI8 °∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆ °∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆°∆ 151719212325 14 °È 1…

Text truncated - open the document above for the full version.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Samsung Electronics Co., Ltd.Dates of Tests: January 18-22, 1999 146 Maetun-3 Dong, Paldal-KuTest Report S/N: SAR.990106002.A3L Suwon City, Kyungki-Do, KOREA 441-742Test Site: PCTEST Lab, Columbia MD Attention: Ben Kim, Engineering Manager American QA Lab FCC ID A3LSCH670 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Cellular CDMA Phone (Single Mode) Tx Frequency:824.64 – 848.37 MHz Rx Frequency:869.64 – 893.37 MHz Max Output Power:0.25 Watts (ERP) Trade Name/Model(s):SAMSUNG SCH-670 FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 980727515.A3L SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE .............................................................................1 INTRODUCTION / SAR DEFINITION ......................................2 SAR MEASUREMENT SET-UP .............................................3 E-FIELD PROBE SYSTEM ...................................................4 PHANTOM & BRAIN EQUIVALENT MATERIAL ......................7 SYSTEM SPECIFICATIONS ................................................. 8 MEASUREMENT PROCESS ................................................9 TEST POSITION OF THE PHONE .........................................10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS ..............................11 MEASUREMENT UNCERTAINTIES ......................................12 TEST DATA SUMMARY ...................................................... 13 SAR TEST EQUIPMENT LIST .............................................. 14 CONCLUSION / REFERENCES ...........................................15 Test Report S/N: SAR.990106002.A3LSAR Measurement Report Test Dates: January 18-22, 1999FCC Part 22 Certification SAMSUNG Cellular CDMA Phone (Tx 824-849 MHz) © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670)1 SAR MEASUREMENT REPORT Scope - Environmental evaluation measurements of specific absorption rate 1 (SAR) distributions in simulated human head tissues exposed to radiofrequency (RF) radiation from wireless portable devices for compliance with the rules and regulations of the U.S. Federal Communications Commission (FCC). 2 Applicant Name:SAMSUNG ELECTRONICS CO., LTD. Address:146 Maetun-3 Dong, Paldal-Ku Suwon City, Kyungki-Do, KOREA 441-742 Attention:Ben Kim, Engineering Manager American QA Lab • EUT Type:Cellular CDMA Phone (Single-Mode) • Trade Name:SAMSUNG • FCC IDENTIFIER:A3LSCH670 • Model:SCH-670 • S/N:Pre-production • Tx Frequency:824.64 ~ 848.37 MHz • Rx Frequency:869.64 ~ 893.37 MHz • Application Type: Certification • FCC Classification:Non-Broadcast Transmitter Held to Ear (TNE) • FCC Rule Part(s):§ 2.1093, Docket 96-326; § 22(H) • Max. Output Power:0.25W (ERP) • Modulation:CDMA • Antenna:Helical (λ/2) • Antenna Dimensions:11.1 cm. (Length) • Date of Test(s):January 18-22, 1999 • Place of Test(s):PCTEST Engineering Lab. Columbia, MD, U.S.A. • Report Serial No.:SAR.990106002.A3L 1 Specific Absorption Rate (SAR) is a measure of the rate of energy absorption due to exposure to an RF transmitting source (wireless portable device). 2 IEEE/ANSI Std. C95.1-1992 limits are used to determine compliance with FCC ET-Docket 93-62. Figure 1. SAR Test Set-up Test Report S/N: SAR.990106002.A3LSAR Measurement Report Test Dates: January 18-22, 1999FCC Part 22 Certification SAMSUNG Cellular CDMA Phone (Tx 824-849 MHz) © 1999 PCTEST LabFCC ID: A3LSCH670 (Model: SCH-670)2 1.1 INTRODUCTION The FCC has adopted the guidelines for evaluating the environmental effects of radiofrequency radiation in ET Docket 93-62 on Aug. 6, 1996 to protect the public and workers from the potential hazards of RF emissions due to FCC-regulated portable devices.[1] The safety limits used for the environmental evaluation measurements are based on the criteria published by the American National Standards Institute (ANSI) for localized specific absorption rate (SAR) in IEEE/ANSI C95.1-1992 Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. (c) 1…
