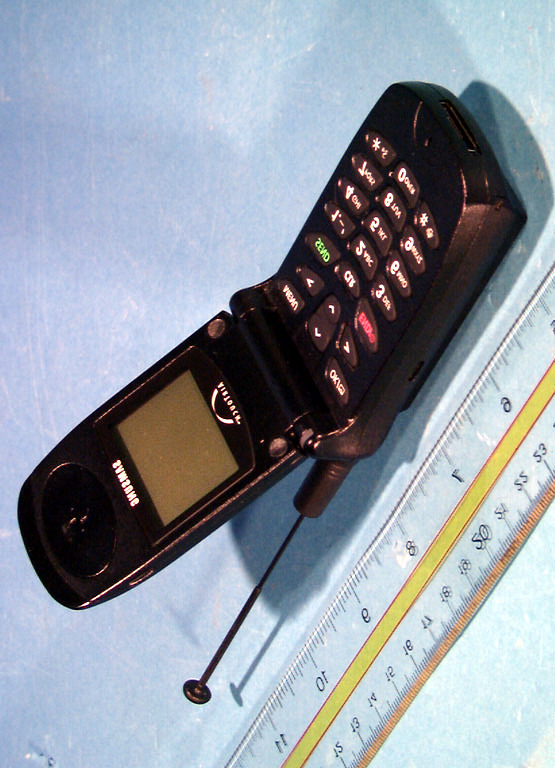

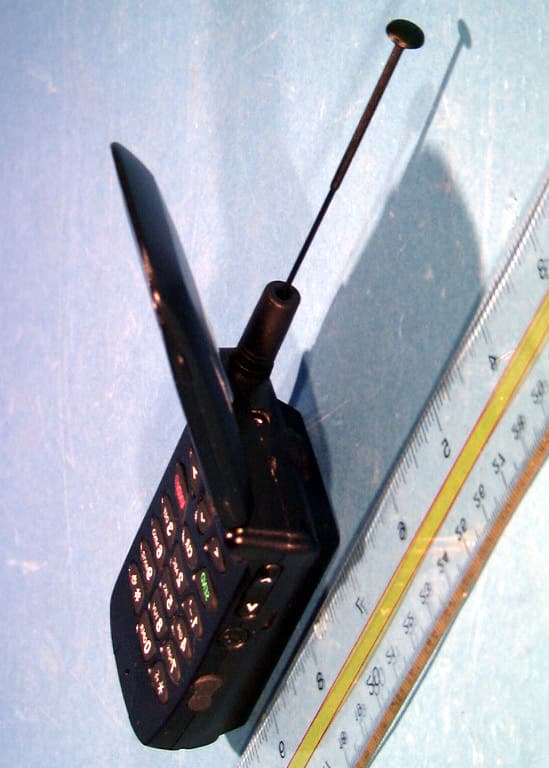

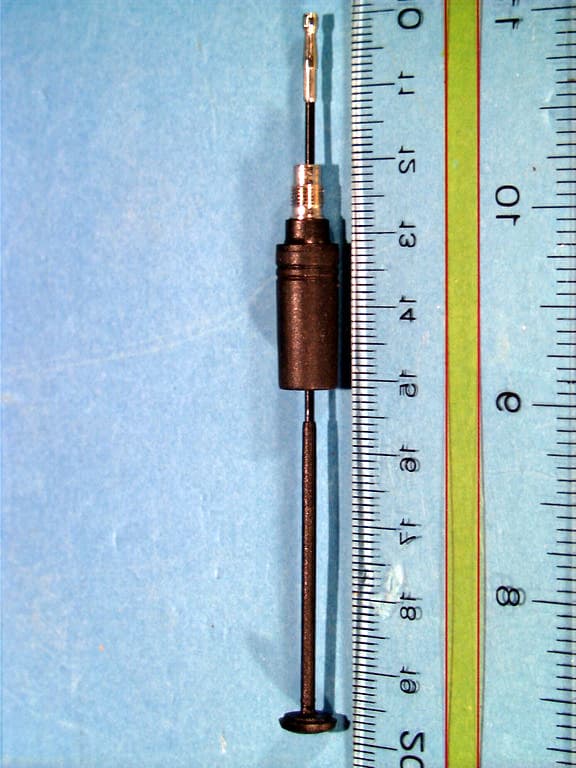

A3LSCH850Dual Mode Cellular Phone (AMPS/CDMA)

SCH-850 Series CDMA DIGITAL PORTABLE CELLULAR TELEPHONE OWNER’S MANUAL Please read this manual before operating the phone, and keep it for future reference. !SCH-850(01~21) 7/16/99 1:20 PM Page 1 23 Table of Contents uGETTINGSTARTED Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 Description of Your Phone . . . . . . . . . . . . . . . .7 Screen Display . . . . . . . . . . . . . . . . . . . . . . . .8 Key Functions . . . . . . . . . . . . . . . . . . . . . . . . .9 Status Indicators . . . . . . . . . . . . . . . . . . . . . . .10 Display Messages . . . . . . . . . . . . . . . . . . . . .11 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 uBASICOPERATIONS Basic Operations of Your Phone . . . . . . . . . . .18 Turn On/Off . . . . . . . . . . . . . . . . . . . . . . . . . .19 Placing Calls . . . . . . . . . . . . . . . . . . . . . . . . .20 Receiving Calls . . . . . . . . . . . . . . . . . . . . . . .21 uTHEMENU Menu Organization . . . . . . . . . . . . . . . . . . . .23 Calls Options . . . . . . . . . . . . . . . . . . . . . . . . .26 Sounds Options . . . . . . . . . . . . . . . . . . . . . . .28 Display Options . . . . . . . . . . . . . . . . . . . . . . .34 Setup Options . . . . . . . . . . . . . . . . . . . . . . . .37 uPHONEBOOK Overview of the Phone Book . . . . . . . . . . . . .41 Storing Phone Numbers . . . . . . . . . . . . . . . . .42 Inputting Characters . . . . . . . . . . . . . . . . . . . .43 Viewing Stored Entries . . . . . . . . . . . . . . . . . .45 Dialing from the Phone Book . . . . . . . . . . . . .46 Editing Phone Book Entries . . . . . . . . . . . . . .47 Storing Secret Numbers . . . . . . . . . . . . . . . . .48 Erasing Phone Book Entries . . . . . . . . . . . . .48 uWEBBROWSER uPERSONALINFORMATIONMANAGEMENT Overview of the PIM . . . . . . . . . . . . . . . . . . . .51 Schedule Management . . . . . . . . . . . . . . . . . .52 To Do List . . . . . . . . . . . . . . . . . . . . . . . . . . . .54 Count Down . . . . . . . . . . . . . . . . . . . . . . . . . .55 World Time . . . . . . . . . . . . . . . . . . . . . . . . . .56 Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . .57 uVOICEDIAL Voice Dialing . . . . . . . . . . . . . . . . . . . . . . . . . .58 Training the Phone . . . . . . . . . . . . . . . . . . . . .58 Checking Recorded Name . . . . . . . . . . . . . . .59 Activation . . . . . . . . . . . . . . . . . . . . . . . . . . . .60 Using Voice Dialing . . . . . . . . . . . . . . . . . . . .61 uVOICEMEMO VOICEMEMO . . . . . . . . . . . . . . . . . . . . . . . . . .63 Recording Voice Memo . . . . . . . . . . . . . . . . . .63 Reviewing Voice Memo . . . . . . . . . . . . . . . . .64 Erasing Voice Memo . . . . . . . . . . . . . . . . . . .64 uSECURITYOPTIONS Security Menu . . . . . . . . . . . . . . . . . . . . . . . . .65 Lock Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .66 Call Restriction . . . . . . . . . . . . . . . . . . . . . . .68 Priority Numbers . . . . . . . . . . . . . . . . . . . . . .69 Other Options . . . . . . . . . . . . . . . . . . . . . . . .70 !SCH-850(01~21) 7/16/99 1:20 PM Page 2 45 Table of Contents uMESSAGESERVICES Short Message Services and Voicemail . . . . . .72 Reviewing Messages . . . . . . . . . . . . . . . . . . .73 uSAFETY Compliance with Safety Standards . . . . . . . . .76 Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76 Electronic Devices . . . . . . . . . . . . . . . . . . . . .77 Aircraft . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77 Blasting Areas . . . . . . . . . . . . . . . . . . . . . . . .77 Other Dangerous Areas . . . . . . . . . . . . . . . . .78 uACCESSORIES Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 Dual-Slot Desktop Charger . . . . . . . . . . . . . . .79 Cigarette Lighter Adapter . . . . . . . . . . . . . . . .79 Travel Charger . . . . . . . . . . . . . . . . . . . . . . . .79 Hands-Free Car Kit . . . . . . . . . . . . . . . . . . . .79 Headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79 uGLOSSARYOFTERMS . . . . . . . . . . . . .80 uINDEX . . . . . . . . . . . . . . . . . . . . . . . .83 Precautions Important Information This manual is based on the production version of the included portable cellular telephone. Software changes may have occurred after this printing. • For more detailed safety information, see “Safety” on page 76. • Do not use your phone while driving; park the vehicle first. • Do not use your phone when near medical equipment. • Do not use your phone at any time while traveling on board a plane. • Do not use your phone where a blasting operation is in progress. • Do not use your phone at a refueling point. Safety Precaution This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause unde- sired operation. FCC/IC Notice !SCH-850(01~21) 7/16/99 1:20 PM Page 3 67 FeaturesDescription of Your Phone Getting Started Congratulations on the purchase of your SAMSUNG Phone. Using the latest digital technology, the phone oper- ates in a similar manner to other wireless phones, while providing superior resonance and one quality. Function keys and other controls activate the features of your phone. The following illustration identifies the function keys, controls, and indicators: The following options make yourphone both fun and easy to use: •Active Folder •Variable Character Display •Phone Book Memory - 229 Locations •Voice Dialing - 20 Locations •Programmable Lock Code •Short Message Services(SMS) and Voicemail •9 Ring Types, 4 Melody Tones, Vibrator Alert •Call Logs - 10 Locations Each: Outgoing and Incoming Calls •Pause Dialing •Ringer Mute During Incoming Call •Alarm •EVRC Menu Key Antenna Volume Control (not actual size) Voice Memo Button SEND Key Earpiece LCD Screen OK(Store)/ M…

Text truncated - open the document above for the full version.

July 23, 1999 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concerns: We, the undersigned, hereby authorize PCTEST Engineering Laboratory inc., to act as on our agent in behalf of all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by PCTEST Engineering Laboratory, inc. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988,21 U.S.C.853(a) Sincerely, Ben Kim Ben Kim Engineering Manager Samsung Electronics America

July 23, 1999 Federal Communications Commission Authorization and Evaluation Div. Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Samsung Electronics Co., Ltd. FCC ID: A3LSCH850 Dual-Mode AMPS/CDMA Phone - Certification Request for Confidentiality To whom it may concern: In accordance with 0.459 of CFR 47, Samsung Electronics Co., Ltd. Requests confidentiality for the Block Diagram, Schematics and Circuit Description attachments of the attached test report. These documents contains detailed system and equipment description and related information about the product which Samsung Electronics Co., Ltd. considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, Samsung feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Sincerely, Ben Kim Ben Kim Engineering Manager Samsung Electronics America

AFFIDAVIT FOR ESN PROTECTION OF CELLULAR MOBILE TELEPHONES We hereby certify that the Portable Cellular Telephone (FCC ID:A3LSCH850) is so designed that it complies with all the requirements for ESN protection specified in Sec.22.919 of the FCC Rules. a) The transmitter in service has a unique ESN b) The ESN host component is permanently attached to a main circuit board of the mobile transmitter and the integrity of the unit operating software cannot be altered. The ESN is plated from fraudulent contact and tampering. The ESN is encoded using multiplication by a polynomial and the ESN data programmed in the memory with other information. c) The ESN is factory set and cannot be altered, transferred, removed or otherwise able to be manipulated. Cellular mobile equipment is specifically designed such that any attempt to remove, tamper with, or change the ESN chip, its logic system, or firmware originally programmed by the manufacturer will render the mobile transmitter inoperative. Sincerely, Ben Kim Ben Kim Engineering Manager Samsung Electronics America

September 14, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT:SAMSUNG ELECTRONICS CO., LTD. FCC ID: A3LSCH850 Part 22 Certification Gentlemen: Attached herewith, on behalf of SAMSUNG ELECTRONICS CO., LTD. is an application for Part 22 Certification of the following dual mode cellular phone (AMPS/CDMA): FCC ID:A3LSCH850 TRADE / MODEL(s):SAMSUNG SCH-850 EUT TYPE:Non-Broadcast Transmitter Held to Ear (TNE) Tx Freq. Range:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx Freq. Range:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max. Output Power:0.6 Watts ERP (AMPS) / 0.35 Watts ERP (CDMA) Attached is the applicant’s Letter of Authorization, Confidentiality Request, ESN Affidavit, measurement report data and plots, RF Exposure measurement report, FCC ID label and location, test setup photographs, internal and external photographs, block diagrams (confidential), schematic diagrams & circuit description (confidential), operational description, parts list & tune-up procedure, and the user's manual. Should you have any questions or comments concerning the above, please contact the undersigned. cc:Mr. Ben Kim Engineering Manager SAMSUNG Electronics America (QA Lab)

October 22, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCH850 731 Confirmation Number: EA95417 Correspondence Reference No.: 10003 Request for Additional Info.: 10/07/99 Dear Frank / Kwok: Submitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to your e-mail dated October 07, 1999 requesting additional information for the subject application. 1. Attached are the hand SAR test setup photographs. 2. Attached are additional test setup photographs showing the actual handset test position and the head test position. 3. The CDMA mode ERP data for the standard and slim batteries was inadvertently submitted with typographical error in the AFCL column. Please find attached the correct AFCL data and output readings (.34W) for CDMA ERP with the standard and slim batteries. 4. Attached is SAR measurement data and photographs for hands-free body-worn configuration, with the phone placed in the holster designed for use with this phone. Also attached is a letter from the applicant, confirming the warning statement that will be placed in the users manual. We trust this information is sufficient to issue the grant. Should you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Ben Kim Engineering Manager Samsung American QA Lab

December 14, 1999 Federal Communications Commission Equipment Approval Services 7435 Oakland Mills Road Columbia, MD 21046 Attn: Frank Coperich / Kwok Chan SUBJECT:Samsung Electronics Co., Ltd. FCC ID: A3LSCH850 731 Confirmation Number: EA95417 Correspondence Reference No.: 11003 Dear Frank / Kwok: Submitted herewith, on behalf of Samsung Electronics Co., Ltd., is an amendment in response to your e- mail dated December 13, 1999 requesting additional information for the subject application. 1. Attached are photos of the optional holster used in the body-worn SAR test. As the photographs show, there are no metallic parts on the optional holster. 2. Attached is the remeasured radiated and SAR test data for SCH-850. Please note that we have retested the head and hand SAR using the SPEAG SAR system, and the body-worn SAR using the IDX SAR system. 3. Please note that Samsung FCC ID: A3LSCH8500 (EA95488) and FCC ID: A3LSCH8600 (EA95489) are currently being retested, and will be filed separately upon completion of the tests. 4. Listed below is the information we received from SPEAG on 12/3/99 stating the conversion factor for the muscle material at 835MHz, and the appropriate conductivity and permittivity parameters for the SPEAG probe S/N: 1368. Based on this information, the data derived from the SPEAG system is comparable to the data derived using the IDX system for body-worn SAR. SN:1368 – brain 900MHz – eps=42.5, sig=0.85, ConvF=5.76 SN:1368 – muscle 900MHz – eps=55.96, sig=0.97, ConvF=5.59 (3% lower than 5.76) SN:1368 – muscle 835MHz – eps=56.2, sig=0.95, ConvF=5.7 (1% lower than 5.76) 5. We confirm that the RF exposure user manual warning statement uploaded on 12/1/99 is applicable. We trust this information is sufficient to issue the grant asap. If you have any further questions, please do not hesitate to contact us. Thank you. Sincerely, cc:Ben Kim, Engineering Manager Samsung American QA Lab

Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

© 1999 PCTEST Lab FCC ID SAMPLE LABEL & LOCATION LABELLING REQUIREMENTS PER §§ 2.925 The Label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. (SEE NEXT PAGE) MODEL NO: SCH-850 FCC ID: A3LSCH850 CANADA: I I MADE IN KOREA 1

Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA) Test Report S/N: 22.990907536.A3LFCC Part 22 Test Date(s): September 07-10, 1999Certification © 1999 PCTEST Lab FCC ID: A3LSCH850 (Tx 824-849MHz) NVLAP Lab Code: 100431-0 SAMSUNG Dual-Mode Cellular Phone (AMPS/CDMA)

CONFIDENTIAL 1.General ITEMCDMAAMPS TxFreq.range RxFreq.range ChannelBandwidth ChannelSpacing NumberofChannel DuplexSeparation TypeofEmission In/OutputImpedance TxIntermediateFreq. RxIntermediateFreq. TxLocalFreq. RxLocalFreq TCXOfreq. Freq.Stabili ty OperatingTemperature 824~849MHz 869~894MHz 1.23MHz 30KHz 832 45MHz 40K0F8W,40K0F1D 50 130.38MHz 85.38MHz 1st(F TX +130.38MHz) 2nd(260.76MHz) 1st(170.76MHz) 2nd(F RX +85.38MHz) 19.68MHz (F RX -45MHz) 300Hz -30~+60 824~849MHz 869~894MHz 30KHz 30KHz 832 45MHz 40K0F8W,40K0F1D 50 130.38MHz 85.38MHz 1st(F TX +130.38MHz) 2nd(260.76MHz) 1st(170.76MHz) 2nd(F RX +85.38MHz) 19.68MHz 2.5ppm -30~+60 SupplyVoltage SizeandWeight 3.6V Sli m :88mmX50mmX23.5mm, 105g, 500mA STD :88mmX50mmX25.7mm, 135g, 1000mA EXT :88mmX50mmX27.5mm, 151g, 1600mA CONFIDENTIAL 1.800MHzCDMA 1).General FrequencyRange .Transmitter:824 °≠ 849MHz .Receiver:869 °≠ 894MHz ChannelBandwidth:1.23MHz ChannelSpacing:30kHz NumberofChannels:832 DuplexSeperation:45MHz TypeofEmission:40K0F8W,40K0F1D Input/OutputImpedance:50 ߟ IntermediateFreequency .Transmitter:130.38MHz .Receiver:85.38MHz LocalFrequency .Transmitter:1st(F TX +130.38MHz),2nd(260.76MHz) .Receiver:1st(F RX +85.38MHz),2nd(170.76MHz) TCXOFrequency:19.68MHz FrequencyStability:(F RX -45MHz) °æ 300Hz OperationTemperature:-30 °...°≠ 60 °... SupplyVoltage:+3.6V 2).Transmitter WaveformQuality:0.944ormore OpenLoopPowerControlRange .-25dBm:-57.5dBm °≠ -38.5dBm .-65dBm:-17.5dBm °≠ +1.5dBm .-104dBm:+18.0dBm °≠ +30dBm MinimumTxPowerControl:below-50dBm ClosedLoopPowerControlRange: °æ 24dB MaximumRFOutputPower:200mW(+23dBm) OccupiedBandwidth:1.23MHz ConductedSpuriousEmission@900KHz:-42dBc/30kHz @1.25MHz:-54dBc/30kHz CONFIDENTIAL 3).Receiver RxSensitivityandDynamicRange:-104dBm,FER=0.5%orless :-25dBm,FER=0.5%orless ConductedSpuriousEmission .869 °≠ 894MHz:<-81dBm .824 °≠ 849MHz:<-61dBm .AllOtherFrequencies:<-47dBm SingleToneDesensitization:lowerthan1% Rxpowerlevel=-101dBm Tonepowerlevel=-30dBm Toneoffsetfromcarrier= °æ 900kHz IntermodulationSpuriousResponseAttenuation:lowerthan1% Rxpower=-101dBm Tone1power=-43dBm Tone2power=-43dBm Tone1offsetfromcarrier= °æ 900kHz Tone2offsetfromcarrier= °æ 1.700MHz CONFIDENTIAL 2.800MHzAMPS 1).General FrequencyRange .Transmitter:824 °≠ 849MHz .Receiver:869 °≠ 894MHz ChannelSpacing:30kHz NumberofChannels:832 DuplexSpacing:45MHz FrequencyStability: °æ 2.5ppm(-30 °...°≠ 60 °... ,-22 °£ F °≠ 140 °£ F) Modulation/Demodulation .Voice:PM .Data:FM OperatingTemperature:-30 °...°≠ 60 °... ,-22 °£ F °≠ 140 °£ F SupplyVoltate:3.6V 2).Transmitter RFoutputpower:0.6W(+2/-4dB) CarrierON/OFFconditions "ON"Condition:within °æ 3dBofspecificationoutput(in2ms) "OFF"Condition:below-60dBm(in2ms) Compresssor CompressionRate:2:1 AttackTime:3ms RecoveryTime:13.5ms ReferenceInput:inputpowerlevelforproducinganominal °æ 2.9kHz :peakfrequencydeviationoftransmittedcarrier Preamphasis:6dB/OCTwithin0.3 °≠ 3kHz MaximumFrequencyDeviation F3ofG3: °æ 12kHz SupervisoryAudioTone: °æ 2kHz( °æ 10%) SignalingTone: °æ 8kHz( °æ 10%) WidebandData: °æ 8kHz( °æ 10%) CONFIDENTIAL PostDeviationLimiterFilter 3.0 °≠ 5.9kHz:above40LOG(F/3000)dB 5.9 °≠ 6.1kHz:above35dB 6.1 °≠ 15kHz:above40LOG(F/3000)dB Over15kHz:above28dB SpectrumNoiseSuppression Forallmodulation fo+20kHz °≠ fo+45kHz:above26dB FormodulationbyvoiceandSAT fo+45kHz:above63dB+10LOG(PY)dB FormodulationbyWBD(withoutSAT)andST(withSAT) fo+45kHz °≠ fo+60kHz:above45dB fo+60kHz °≠ fo+90kHz:above65dB fo+90kHz °≠ 2fo:above63dB+10LOG(PY)dB (wherefo=carrierfrequency PY=meanoutputpowerinwatts) HarmonicandconductedSpuriousEmissions:below43+10LOG(PY)dB 3).Receiver De-emphasis:-6dB/OCTwithin0.3 °≠ 3kHz Expandor ExpandorRate:1:2 Attacktime:within3ms RecoveryTime:within13.5ms Referenceinput:outputpowerleveltoa1000Hztonefromacarrierwithin °æ 2.9kHz peakfrequencydeviation Sensitivity:12dBSINAD/-116dBm IntermodulationSpuriousResponseAttenuation:above65dB RSSIRange:above60dB ProtectionAgainstSpuriousResponseInterference:above60dB CONFIDENTIAL InBandConductedSpuriousEmission TransmitBand:below-60dBm ReceiveBand:below-80dBm OutofBandConductedSpuriousEmissions:below-47dBm RadiatedSpuriousEmission FrequencyRange:MaximumAllowableEIRP 25 °≠ 70MHz:-45dBm 70 °≠ 130MHz:-41dBm 130 °≠ 174MHz:-41 °≠ -32dBm 174 °≠ 260MHz:-32dBm 260 °≠ 470MHz:-32 °≠ -26dBm 470 °≠ 1GMHz:-21dBm

CONFIDENTIAL NAMfeaturescanbeprogrammedasfollows: LCDDisplay KeyinFunction menu+60,654321-selectsNAMprogramming NAMprogram 1-choose'SetupNAM1' 1:SetupNAM1 2:SetupNAM2 NAM1 Phone#-directorynumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM1 Directory#-directorynumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM1 ActivatePRL-PRLstatus No<or>-toactivatePRL,press<or> OK -storeit. NAM1 AnlgHomeSIDSystemIDforhome,currentststusisdisplayed. 4369IDnumber-tochange,enternewone. OK -storeit. NAM1 DgtlHomeSIDSystemIDforhome,currentststusisdisplayed. 4369IDnumber-tochange,enternewone. OK -storeit. NAM1 MoreProg.?GeneralNAMsetup No<or>-tochange,press<or> OK -storeit CONFIDENTIAL NAMprogram1 Choose'General' 1.General 2.SetupNAM1 3.SetupNAM2 General ESN-ElectronicSerialNumberofthephoneisdisplayed B0000000 OK -Press OK ,toviewnextstatusitem. General CAIversion-CommonAirInterfaceversionisdisplayed 3 OK -Press OK ,toviewnextstatusitem. General VOCSelect SO_VOICE_08K<or>-tochangeVocoderrate,press<or> OK -storeit General SCM-StationClassMarkdisplaysthepowerclass, 01101010transmission,slottedclass,dualmode. OK -Press OK ,toviewnextstatusitem. General ServiceCodeServicecode,currentststusisdisplayed 6543216-digitcode-tochange,enternewcode. OK -storeit General LockCodeLockcode,currentststusisdisplayed 00004-digitcode-tochange,enternewcode. OK -storeit General SlotModeSlotmode.'Yes'indicatestheslotmode. Yes <or>- changesthestatus. OK -storeit. General SlotIndexSlotmodeindex.Thehigher,thelongersleepingtime 2 0-7 -tochange,enternewone. OK -storeit. General RoundupTimerRoundupTimer. No<or>-tochangethestatus. OK -storeit. CONFIDENTIAL NAMprogram3 choose'SetupNAM2' 1.General 2.SetupNAM1 3.SetupNAM2 NAM2Digital IMSI_MCCIMSIMobleCountryCode,currentcodeisdisplayed. 000number-tochange,enternewone. OK -storeit. NAM2Digital IMSI_MNCIMSIMobileNetworkCode,currentcodeisdisplayed. 00number-tochange,enternewone. OK -storeit. NAM2Digital Phone#-Phonenumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM2Digital Directory#-directorynumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM2Digital HomeSID011stCDMAHomesystemID,currentstatusisdisplayed 1Phonenumber-tochange,enternewone. OK -storeit. NAM2Digital HomeNID011stCDMAHomeNetworkID,currentstatusisdisplayed 65535Phonenumber-tochange,enternewone. OK -storeit. NAM2Digital HomeSID022ndCDMAHomesystemID,currentstatusisdisplayed 1Phonenumber-tochange,enternewone. OK -storeit. NAM2Digital HomeNID022ndCDMAHomeNetworkID,currentstatusisdisplayed 65535Phonenumber-tochange,enternewone. OK -storeit. ----------repeatedtoSID20&NID20-------------------- NAM2Digital LockoutSID011stlocksystemID,currentstatusisdisplayed. 0IDnumber-tochange,enternewone. OK -storeit. CONFIDENTIAL NAM2Digital LockoutSID022ndlocksystemID,currentstatusisdisplayed. 0IDnumber-tochange,enternewone. OK -storeit. -----------repeatedtoLockoutSID10------------------------- NAM2Digital CDMAHomeSIDCDMAHomesystemID,currentstatusisdisplayed Yes <or>- changesthestatus. OK -storeit. NAM2Digital CDMAfSIDCDMAforeignSID,currentstatusisdisplayed. Yes <or>- changesthesystem. OK -storeit. NAM2Digital CDMAfNIDCDMAforeignNID,currentstatusisdisplayed. Yes <or>- changesthesystem. OK -storeit. NAM2Digital CDMAACCOLCCDMAAccessOverloadClass,currentstatusisdisplayed. 6classnumber-tochange,enternewone. OK -storeit. NAM2Analog Phone#-Phonenumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM2Analog Directory#-directorynumber 1234567890Phonenumber-tochange,enternewone. OK -storeit. NAM2Analog HomeSIDAnalogHomesystemID,currentstatusisdisplayed 1Phonenumber-tochange,enternewone. OK -storeit. NAM2Analog AutoRegAutoRegistration,currentstatusisdisplayed Yes <or>- changesthestatus. OK -storeit. NAM2Analog ACCOLCAnalogAccessOverloadClass,currentstatusisdisplayed. 6classnumber-tochange,enternewone. OK -storeit. CONFIDENTIAL 5.TestCommands&TestProcedureList CONFIDENTIAL Tochangethephonefromnormalmodetotestmode,youshouldenterthefollowingkeys: Press[*759#813580] TestCommandTable CommandNoCommandSWNameDescription 01(1F,0,0) 02(3F,0,0) 04(1D,0,1) 07(81,0,0) 08(82,0,0) 09(83,4,0) 10(84,1,0) 11(85,0,0) 12(86,0,0) 13(87,0,0) 14(88,0,0) 15 16(8F,0,0) 17(90,0,0) 18 20 21 22(91,96,96) 23(95,3,4) 24(9F,7,8) 25(92,0,0) 26(93,0,0) 27(96,0,0) 28(97,0,0) 30(9D,15,0) 31 32(A0,1,0) 33(A1,0,0) 34(A2,0,0) 37 38 39 40(A7,3,0) 41 42(AA,1,0) 43(AB,0,0) 44(B0,0,0) 45(B1,0,0) 46(B2,0,0) 47(B3,3,0) 48(B4,0,0) 49(B5,0,0) 50(B6,0,4) T_SUSPEND_I T_RESTART_I T_GET_MODE_I T_CARRIERON_I T_CARRIEROFF_I T_LOADSYN_I T_PWRLEVEL_I T_RXMUTE_I T_RXUNMUTE_I T_TXMUTE_I T_TXUNMUTE_I T_VOC_ESEC_I T_STON_I T_STOFF_I T_LCD_CONTRAST_I T_LNA_GAIN_WR_I T_TEST_SYS_I T_SNDNAM_I 1) T_SNDVERSION_I 1) T_SNDESN_I 1) T_BACKLIGHT_ON_I T_BACKLIGHT_OFF_I T_LAMP_ON_I T_LAMP_OFF_I T_PLINE_I T_AUTOANSWER_I T_SATON_I *2) T_SATOFF_I * T_CDATA_I T_RXRAS_FLATNESS_I T_VOC_ENC_OFFSET_I T_VOC_DEC_OFFSET_I T_VOC_CDMA_UNITY_GAIN_I T_VOC_FM_HFRX_UPGAIN_I T_DTMFON_I 2) T_DTMFOFF_I T_COMPANDORON_I T_COMPANDOROF_I T_FM_VCLINE_I * T_FM_AUD_GAIN_I T_VIBRATOR_ON_I T_VIBRATOR_OFF_I T_BATT_TYPE_I Entertotestmenu Escapefromtestmenu GetmodeCDMA/FM Turnonthecarrier Turnoffthecarrier Loadthesynthesizerforlocking ChangeRFpowerlevel Muterxaudio Unmuterxaudio Mutetxaudio Unmutetxaudio EchoCancellerOn/Off TransmitacontinuousSignalingTone(ST) StoptransmitacontinuousSignalingTone(ST) TuneLCDcontrast writeLNAgainforIMDtest settestsystem&Channel Display&SendNAMInformation Display&SendSoftwareVersion Display&returnESN Backlighton Backlightoff LAMPon LAMPoff Displayandreturnproductiondate EnableAuto-answermode EnablethetransmissionofSAT DisablethetransmissionofSAT ContinuouslysendTXControldata AdjustCDMARXRASflatness. VocoderENCoffset VocoderDECoffset VocoderCDMAunitygain VocoderFMhfrxupgain TurnonDTMF TurnoffDTMF Turnoncompandor Turnoffcompandor EnterFMvoicestate FMaudiogain Activateavibrator Inactivateavibrator BatteryType CONFIDENTIAL CommandNoCommandSWNameDescription 52(B9…

Text truncated - open the document above for the full version.

© 1999 PCTEST Engineering Lab., Inc. PCTEST Engineering Laboratory, Inc. 6660-B 6660-B DobbinDobbin Road Road •• Columbia, MD 21045 Columbia, MD 21045 •• U.S.A. U.S.A. TEL (410) 290-6652 TEL (410) 290-6652 •• FAX (410) 290-6654 FAX (410) 290-6654 http://www.pctestlab.comhttp://www.pctestlab.com CERTIFICATE OF COMPLIANCE (SAR EVALUATION) SAMSUNG ELECTRONICS CO., LTD. Date(s) of Tests: September 07-10, 1999 416 Maetan-3 Dong, Paldal-Ku,Test Report S/N: SAR.990907537.A3L Suwon City, Kyungki-Do 441-742, KOREATest Site: PCTEST Lab, Columbia, MD USA Attention: Ben Kim, Engineering Manager Samsung Electronics America (QA Lab) FCC ID A3LSCH850 APPLICANT SAMSUNG ELECTRONICS CO., LTD. EUT Type:Dual-Mode Cellular Phone (AMPS/CDMA) Tx Frequency:824.04 – 848.97 MHz (AMPS) / 824.70 – 848.31 MHz (CDMA) Rx. Frequency:869.04 – 893.97 MHz (AMPS) / 869.70 – 893.31 MHz (CDMA) Max Output Power:0.6 W ERP (AMPS) / 0.35 W ERP (CDMA) Trade Name/Model(s):SAMSUNG SCH-850 FCC Classification:Non-Broadcast Transmitter held to ear (TNE) Application Type:Certification Serial Number:n/a (pre production) FCC Rule Part(s):2.1093; ET Docket 96.326; 22(H) This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in ANSI/IEEE Std. C95.3-1992. (See Test Report). I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. NVLAP accreditation does not constitute any product endorsement by NVLAP or any agency of the United States Government. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a) 990907537.A3L SAR Measurement ReportFCC Part 22 Certification © 1999 PCTEST Labi Table of Contents SCOPE 1 INTRODUCTION / SAR DEFINITION 2 SAR MEASUREMENT SET-UP 3 E-FIELD PROBE SYSTEM 4 E-FIELD PROBE CALIBRATION PROCESS 5 DATA EXTRAPOLATION 6 PHANTOM, HOLDER & BRAIN EQUIVALENT TISSUE 7 SYSTEM SPECIFICATIONS 8 MEASUREMENT PROCESS 9 TEST POSITION OF THE PHONE 10 ANSI/IEEE C95.1 RF EXPOSURE LIMITS 11 MEASUREMENT UNCERTA…
